New Original OMRON E3X‑HD11 Photoelectric Fiber Amplifier Sensor
"*" indicates required fields

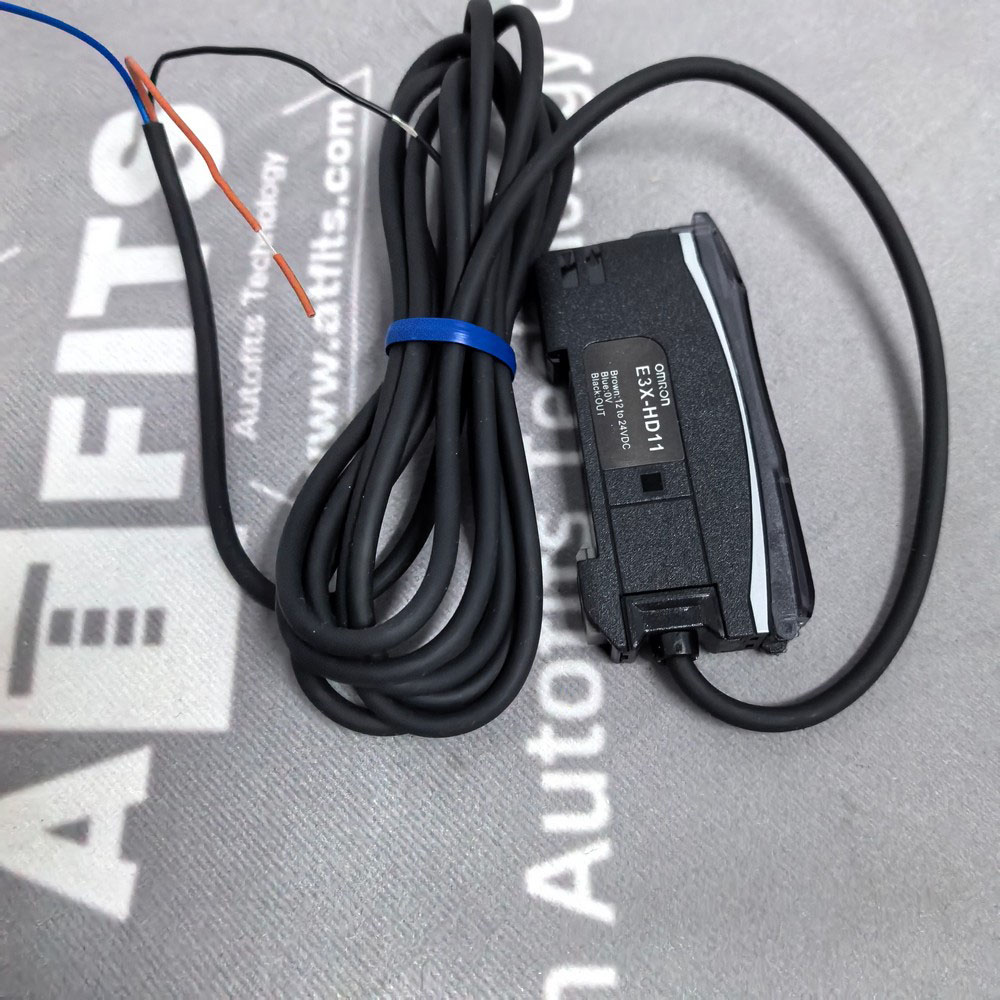

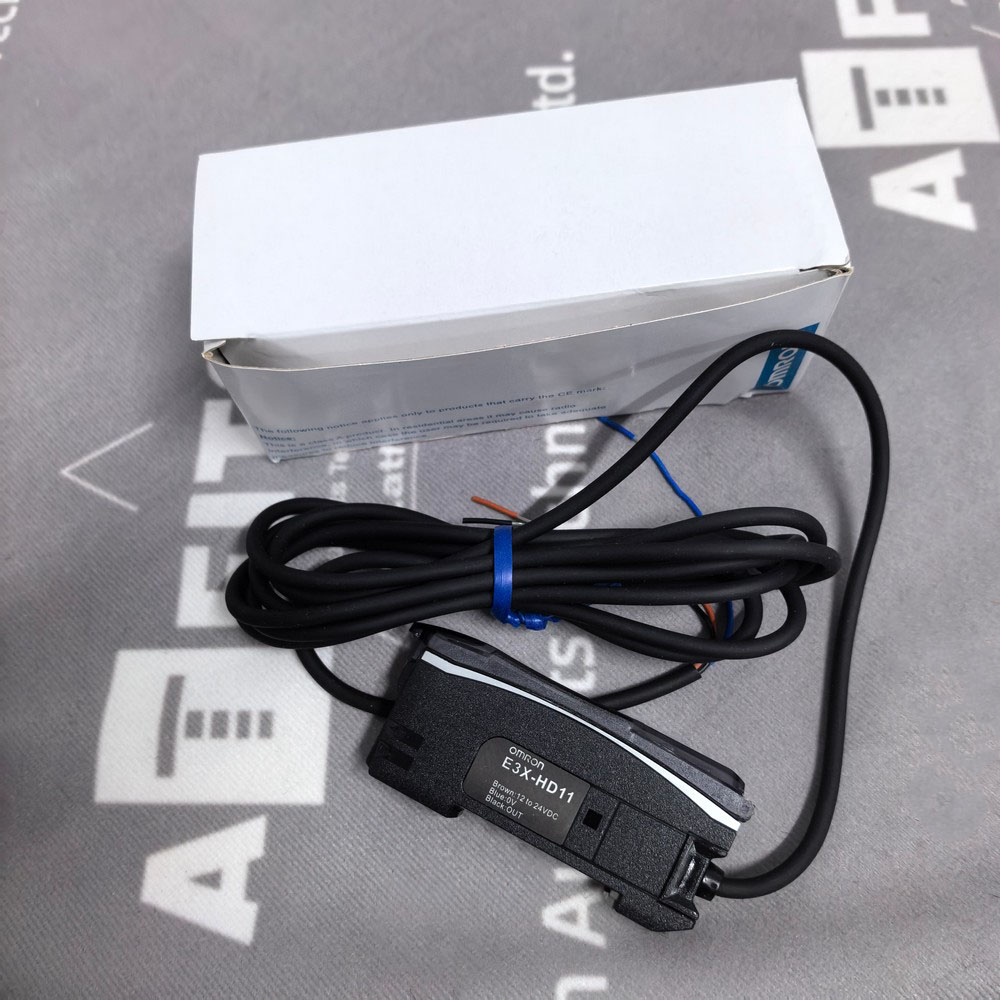

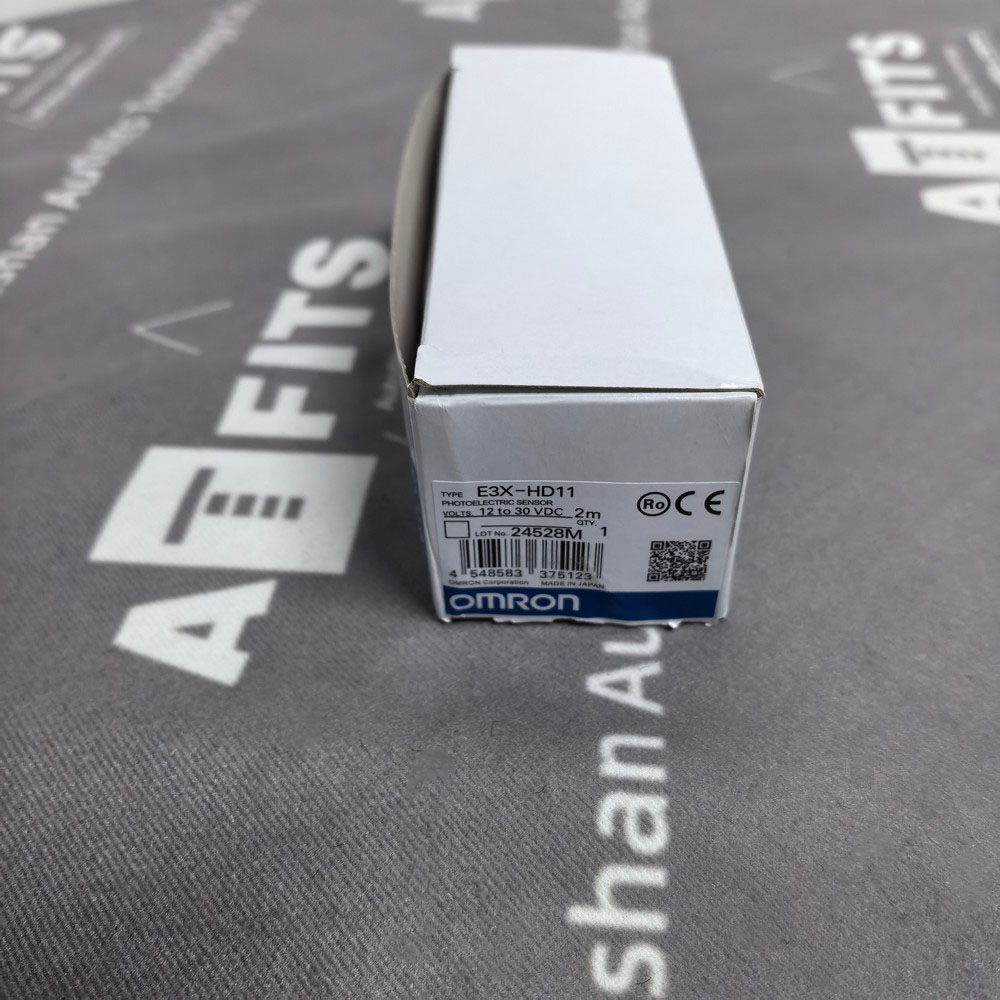

OMRON E3X‑HD11 Photoelectric Fiber Amplifier Sensor
Product Overview
OMRON E3X‑HD11 is a digital fiber optic amplifier sensor of the E3X‑HD series. It works with both transmissive and reflective fiber sensing heads, adopting a 625 nm red LED light source. Equipped with dual digital displays and operation buttons, this unit enables intuitive parameter setup and real‑time signal value monitoring. Built‑in automatic power compensation functions offset signal attenuation caused by LED aging, fiber dust contamination and mechanical drift. It supports DIN‑rail mounting and multi‑amplifier side‑by‑side installation, widely used in automated production lines, packaging machinery and semiconductor equipment for object detection, counting and position confirmation. This model comes with a 2‑meter pre‑attached cable and provides NPN open‑collector switching output.
Main Functions
- Compatible with transmissive and reflective fiber units to fulfill various detection requirements.
- Multiple response speed modes selectable: super‑high‑speed, high‑speed, standard and giga‑power mode.
- Switchable Light‑ON / Dark‑ON output logic; integrated on‑delay, off‑delay and one‑shot timer functions.
- Automatic power compensation compensates signal loss; warning indicator alerts when compensation range is exceeded.
- Mutual interference prevention function allows multiple amplifiers to operate adjacent to each other without crosstalk.
- Zero‑reset function and energy‑saving eco‑mode simplify on‑site commissioning.
- Hardware protection including reverse‑polarity protection, output short‑circuit and reverse output protection.
- LED status indicators clearly display switching status and working conditions for fast troubleshooting.
Technical Features
‑ Red LED light source at 625 nm wavelength; NPN open‑collector output. ‑ Adjustable response time ranging from 50 μs to 16 ms, adapts to high‑speed production processes. ‑ Supports cascade installation of up to 16 amplifier units. ‑ Polycarbonate housing; IP50 protection rating when protective cover is fitted. ‑ Available for DIN‑rail mounting or bracket fixed installation. ‑ Meets relevant EMC and industrial safety standards.
Technical Data Table
| Item | Specification |
|---|---|
| Model | E3X‑HD11 |
| Brand | OMRON |
| Light Source | Red 4‑element LED, 625 nm |
| Supply Voltage | DC 12 V ~ 24 V ±10% |
| Switching Output | NPN open‑collector |
| Max Output Current | 100 mA (1‑3 units), 20 mA (4‑16 cascaded units) |
| Response Time | 50 μs ~ 16 ms, multi‑mode selectable |
| Connection Type | 2 m pre‑wired cable |
| Protection Class | IP50 (with protective cover) |
| Operating Temperature | ‑25 °C ~ +55 °C, non‑condensing |
| Storage & Transport Temperature | ‑30 °C ~ +70 °C, non‑condensing |
| Operating Humidity | 35%‑85% RH, non‑condensing |
| Housing Material | Polycarbonate |
| Dimensions (W × H × D) | 10 mm × 72 mm × 42 mm |
| Net Weight | Approx 65 g |
10 Similar‑function OMRON Fiber Amplifier Sensors
- E3X‑HD41: Fiber amplifier, PNP output, 2 m pre‑wired cable
- E3X‑HD14: Fiber amplifier, NPN output, M8 connector type
- E3NX‑FA11: High‑performance digital fiber amplifier, NPN output, cable version
- E3NX‑CA11: Color‑detection fiber amplifier for color mark identification
- E3X‑NA11: Economical digital fiber amplifier with bar‑graph display
- E3X‑HD6: NPN output fiber amplifier, connector‑type wire‑saving model
- E3NX‑FA21: Dual‑output high‑speed fiber amplifier, NPN output
- E3X‑ZD11: Compact low‑cost digital fiber amplifier
- E3X‑HD44: Fiber amplifier, PNP output, M8 connector interface
- E3NX‑FA41: High‑performance fiber amplifier, PNP output, 2 m cable
