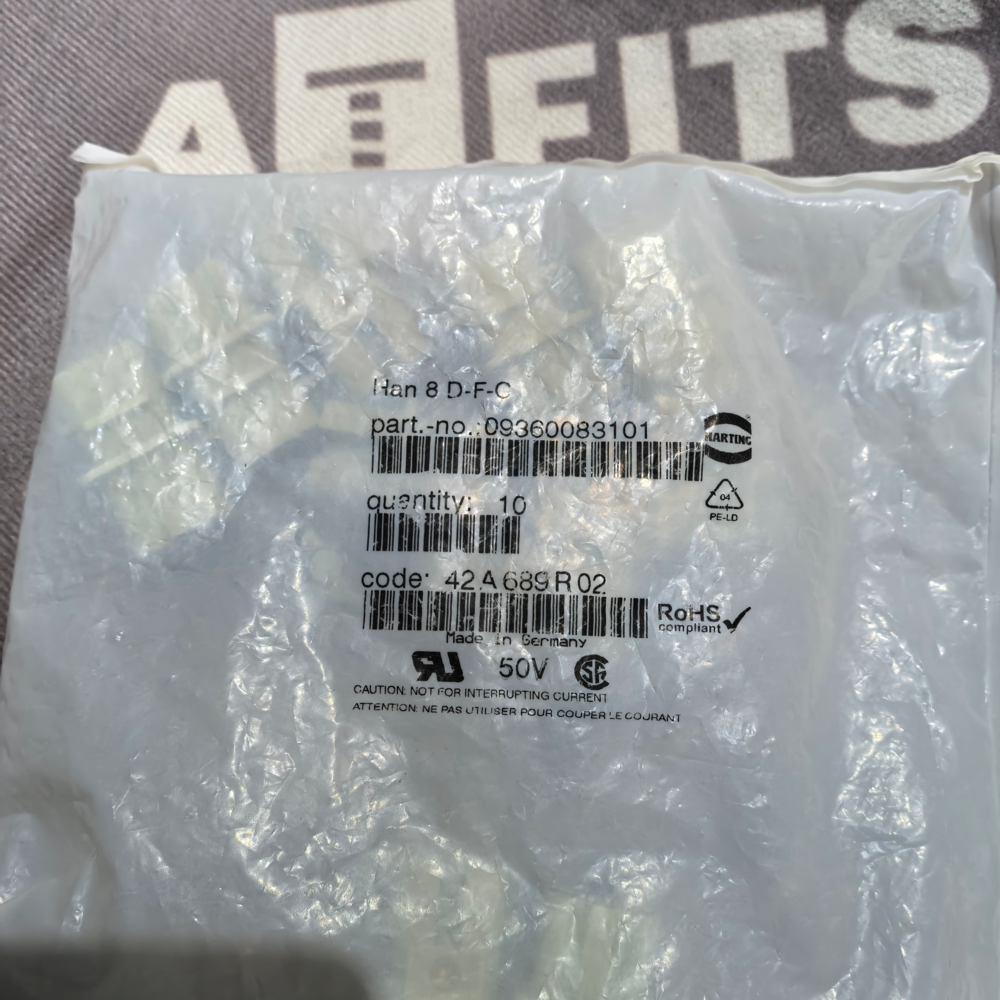

New Original Harting 09360083101 8-Pin Han DD Heavy Duty Male Insert
"*" indicates required fields
Full‑Product Introduction for New Original Harting 09360083101 8‑Pin Han DD Heavy‑Duty Male Insert
1. Product Overview

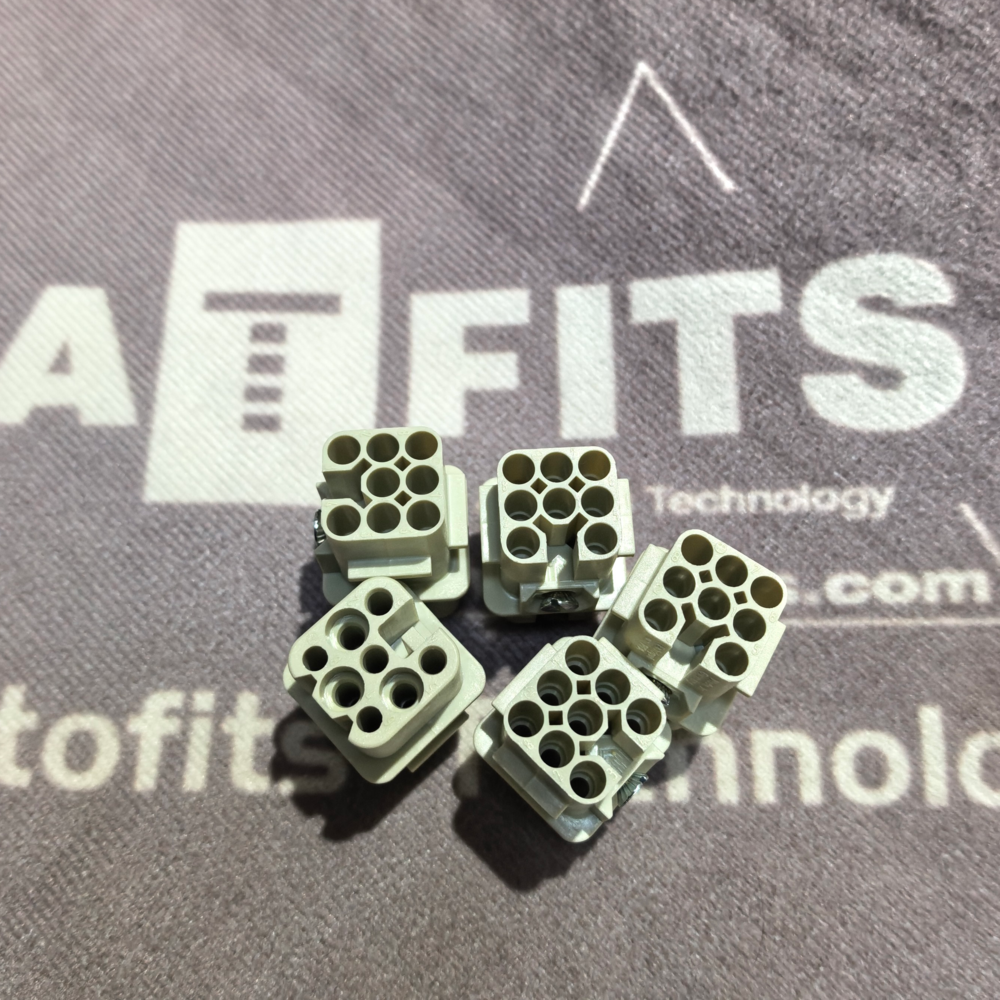

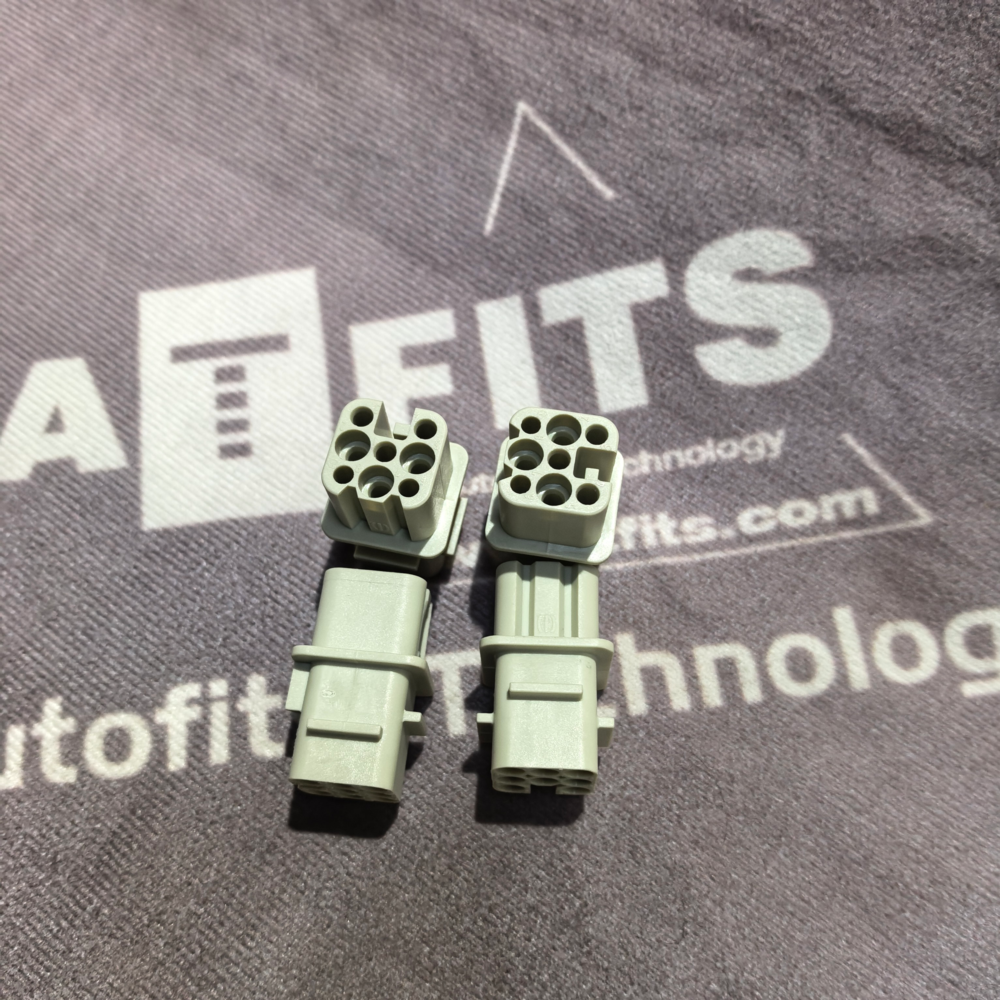

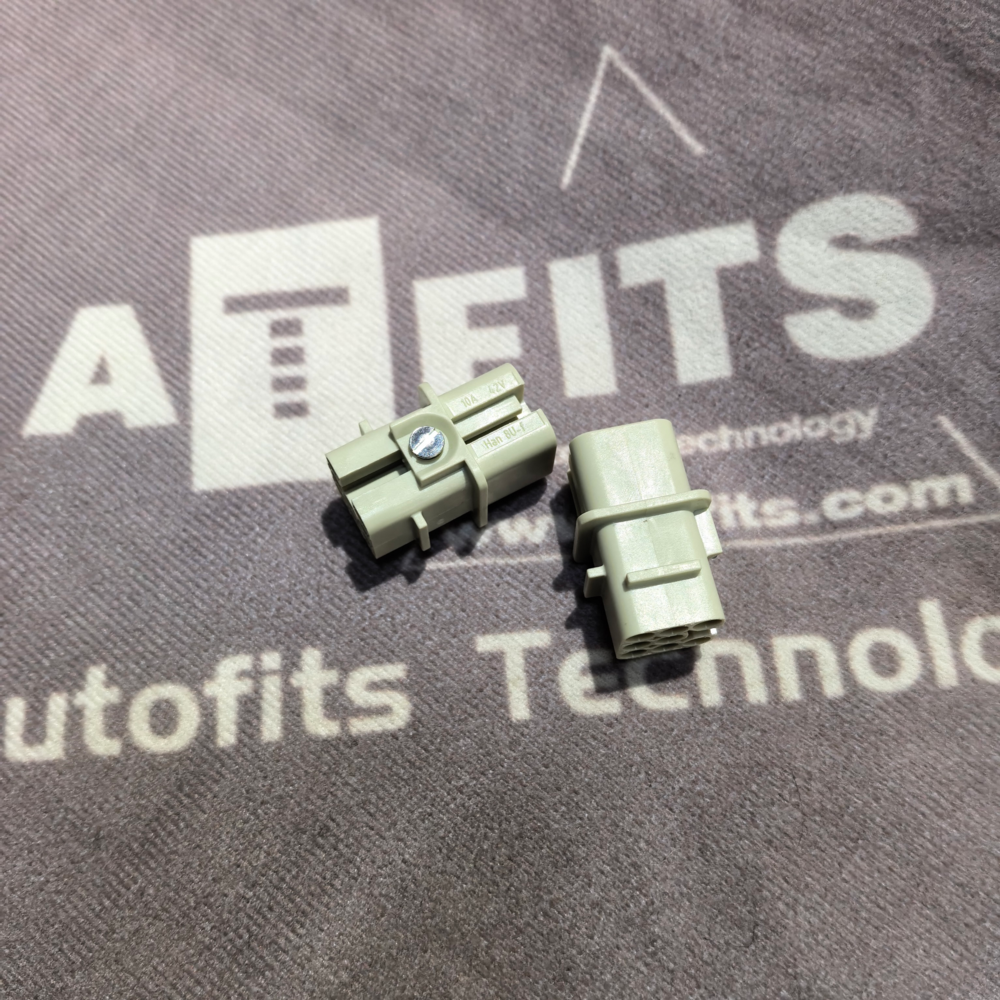

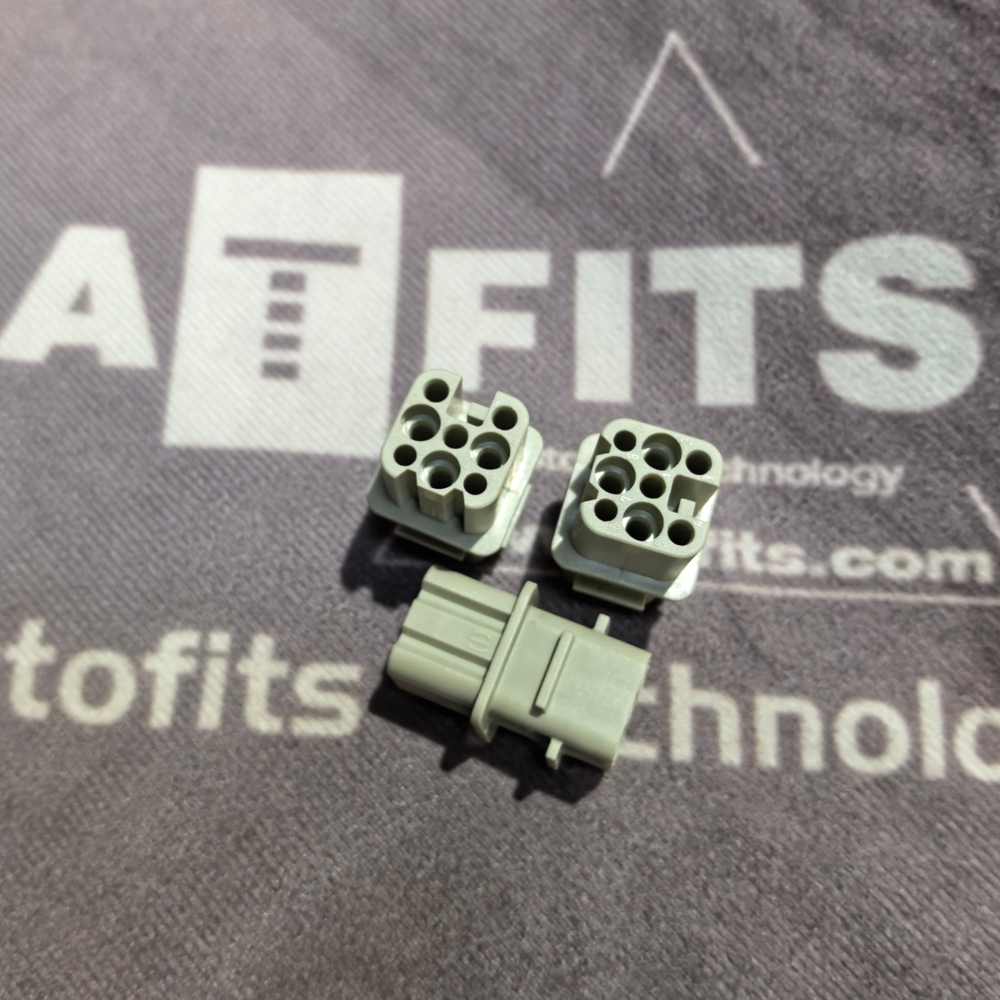

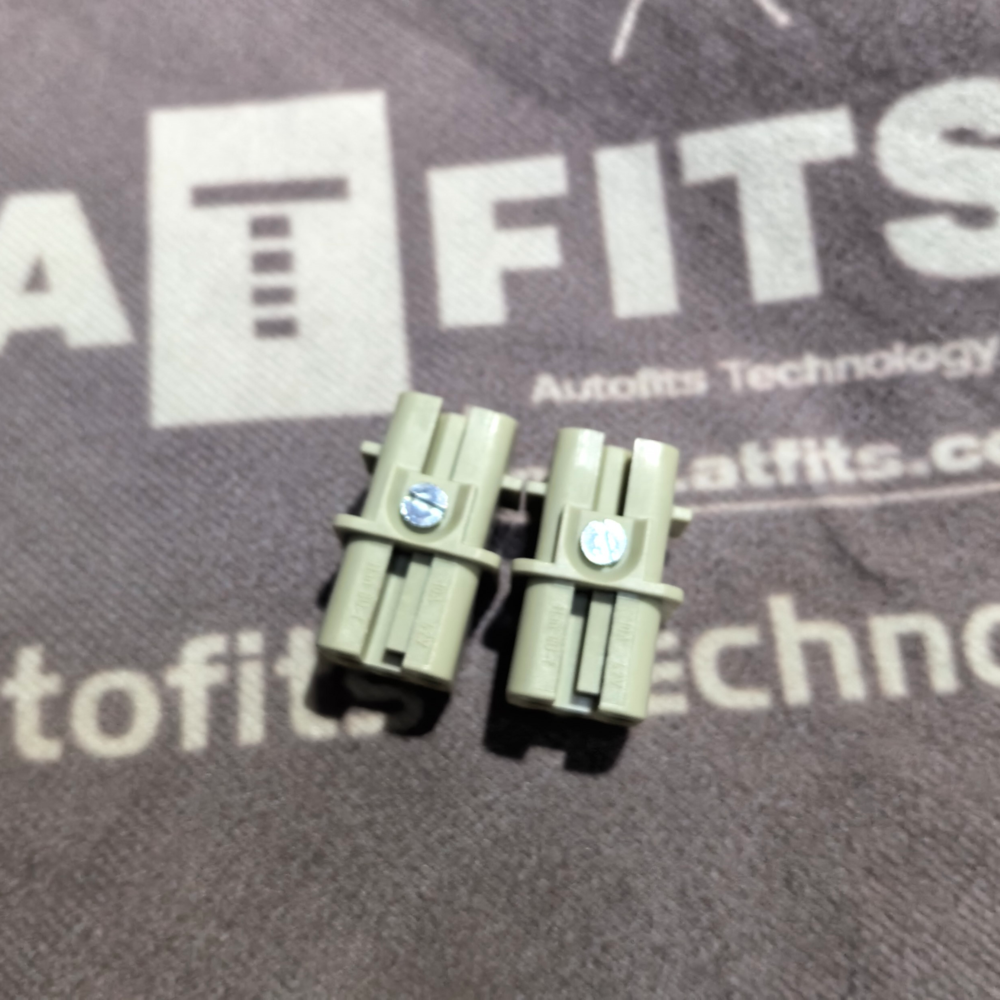

The part number 09360083101 is an original HARTING Han‑DD series male insert designed for Han‑3A size heavy‑duty connector housings. This component adopts crimp‑style connection method and contains 8 male contacts for signal and low‑current power transmission. The insulating body is made of UL94‑V0 flame‑retardant polycarbonate. Contact elements consist of high‑conductivity copper alloy with silver‑plated surface treatment. It can be installed inside Han‑3A bulkhead bases and cable hoods to build a complete heavy‑duty connector set. Compliant with IEC‑61984, UL, RoHS‑3 and REACH standards, this Germany‑manufactured insert fits automation equipment, machine tools, conveyor systems and control cabinets for industrial‑field wiring.
2. Main Functions
- Stable Electrical Connection
It provides 8 independent conducting channels to transmit control signals and low‑current power between internal cabinet circuits and field‑side actuators and sensors.
- Crimp‑Type Termination
Contacts are terminated by professional crimping tools. After crimping, wires are fixed firmly to resist long‑time vibration from workshop‑running machines. It accommodates wires ranging from 0.5 mm² to 1.5 mm².
- Excellent Compatibility
This insert matches all standard Han‑3A housings, including panel‑mount bulkhead bases and cable‑entry hoods. Its mating counterpart is the 8‑pin female insert for reliable plug‑in connection.
- High Mechanical Durability
The male contacts are precision‑machined. It can sustain at least 500 times of plug‑and‑unplug cycles without obvious contact‑resistance rise.
- Safety and Environmental Adaptability
Flame‑retardant insulator avoids fire spread during short‑circuit failures. When assembled with outer metal housing, the whole connector assembly reaches IP65 protection grade against dust and splashing water.
- Compact Structure
The insert is specially sized for Han‑3A inner cavity, saving installation space inside compact control boxes.
3. Technical Characteristics
| Item | Specific Parameters |
|---|---|
| Part Number | 09360083101 |
| Series | HARTING Han‑DD, Han‑3A form factor |
| Contact Type | Male contacts, total 8 pins |
| Termination Style | Crimp connection |
| Rated Current | 10 A per single contact |
| Rated Voltage | 250 V AC, 300 V DC |
| Insulator Material | Glass‑filled polycarbonate, UL94‑V0 |
| Contact Material | Copper alloy with silver‑plated finish |
| Operating Temperature | -40°C to +125°C |
| Insulation Resistance | ≥1000 MΩ under 50 V DC |
| Withstand Voltage | 2000 V AC for 60 seconds |
| Applicable Wire Cross‑section | 0.5 mm²‑1.5 mm² |
| Mechanical Service Life | Minimum 500 mating cycles |
| Compliance Certifications | IEC‑61984, UL, RoHS‑3, REACH |
4. Product Dimensions and Weight
- Overall outer dimensions
Length: 37.5 mm
Width: 20.8 mm
Height: 20.6 mm
- Net weight of single insert: 15.9 g
- Installation requirement: Fits standard Han‑3A internal cavity without modification.
5. Ten Harting Alternative Products with Similar Functions (Han‑DD / Han‑D Series Inserts for Han‑3A Housing)
All listed parts are original Harting heavy‑duty inserts for signal and low‑power transmission inside Han‑3A housings.
- 09360083201: 8‑pin crimp‑type female insert, direct mating counterpart of 09360083101 with silver‑plated contacts.
- 09360043101: 4‑pin Han‑DD crimp‑type male insert for simple‑circuit control equipment.
- 09360123101:12‑pin crimp‑type male insert for high‑density multi‑signal wiring projects.
- 09360082632:8‑pin male insert with push‑in quick‑lock wiring method without crimp tools.
- 09360081101:8‑pin crimp‑type female insert with gold‑plated contacts for weak‑signal anti‑interference application.
- 09360063101:6‑pin male crimp‑style insert integrated with PE earth pin for equipment grounding.
- 09360083111:8‑pin nickel‑plated male crimp insert for coastal high‑humidity and slightly salty‑fog workshops.
- 09140123102:12‑pin Han‑DD male crimp‑type insert used for modular combined‑connector assemblies.
- 09360083121:8‑pin high‑temperature‑resistant male insert with modified‑polycarbonate insulator working up to 130°C continuously.
- 09360083211:8‑pin corrosion‑resistant female crimp insert suitable for chemical‑factory working environments.
6. Typical Application Areas
Harting 09360083101 is widely applied in CNC machines, packaging machinery, automated warehouse equipment, robot auxiliary control units, printing machines and belt‑conveyor systems. It is installed inside Han‑3A connector housings to transmit sensor signals and low‑voltage control power for industrial automation devices.
