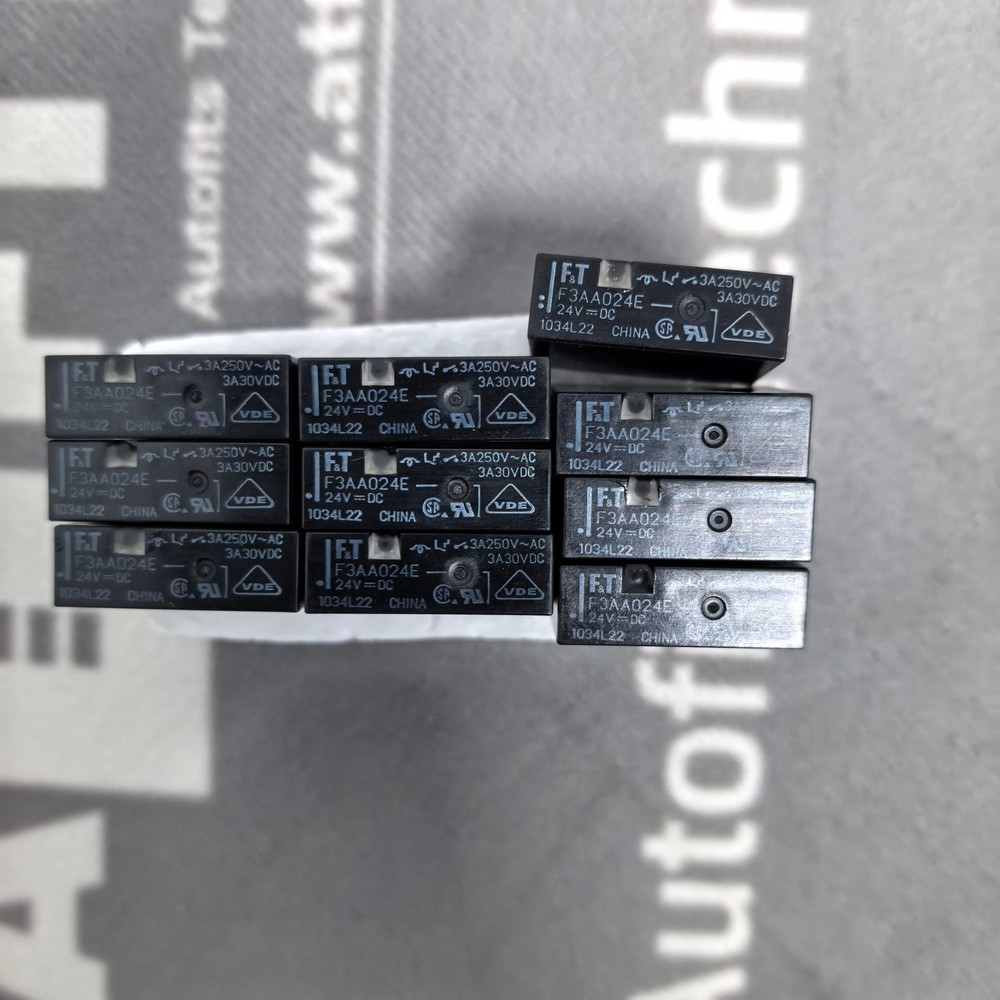

New Original Fujitsu F3AA024E PCB Mount Power Relay
"*" indicates required fields
New Original Fujitsu F3AA024E PCB Mount Power Relay
1. Product Overview
The Fujitsu F3AA024E belongs to the FTR-F3 slim series electromagnetic power relay. It is a through-hole PCB-mount non-latching relay with SPST normally-open contact configuration and 24 VDC coil voltage. This compact relay adopts sealed plastic housing, suitable for high-density circuit board layout. It serves as a signal and medium-power switching component for industrial control boards, automation equipment, instrument controllers, household appliances and communication devices. The offered unit is brand-new original genuine Fujitsu product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | F3AA024E |
| Series | FTR-F3 Slim PCB Power Relay |
| Contact Form | SPST-NO (1 Form A) |
| Rated Coil Voltage | 24 V DC |
| Coil Power Consumption | 200 mW |
| Coil Resistance | 2880 Ω |
| Contact Rated Load | 5 A 250 VAC / 5 A 30 VDC |
| Max Switching Voltage | 277 VAC, 30 VDC |
| Operate Time | ≤10 ms |
| Release Time | ≤10 ms |
| Insulation Voltage (Coil to Contact) | 4000 VAC |
| Surge Voltage Resistance | 10,000 V |
| Mounting Style | Through-hole PCB mounting |
| Pin Quantity | 4 pins |
| Overall Dimension (L × W × H) | 20.3 mm × 7.2 mm × 15.0 mm |
| Net Weight | Approx. 4.0 g |
| Operating Temperature Range | -40 °C ~ +70 °C |
| Contact Material | Silver-nickel alloy |
| Compliance Standards | UL, CSA, RoHS |
3. Main Functions
- Realize electrical circuit switching by controlling coil power supply to pull in or release internal contact points.
- Enable low-current control of medium-current loads on printed circuit boards.
- Isolate control signal circuits and power load circuits to protect main control chips.
- Support sequential logic switching for automation controllers, sensor signal output and actuator drive circuits.
- Provide reliable on/off switching for small motors, solenoid valves, indicator lights and heating modules.
- Compact through-hole pin design allows direct soldering on PCB for automated assembly.
- Sealed structure prevents dust and minor moisture erosion to maintain stable switching performance.
4. Technical Features
- Ultra-slim compact outline saves PCB space and supports high-density component layout.
- Low coil power consumption reduces system energy loss and heat generation.
- High dielectric withstand voltage between coil and contacts improves circuit safety and anti-interference performance.
- Silver-nickel alloy contacts deliver stable electrical conductivity and extended service life under frequent switching.
- Plastic sealed package enhances adaptability to ordinary industrial workshop environments.
- Standard 4-pin through-hole layout compatible with common PCB relay footprint.
- Consistent operate and release time guarantees stable timing control for logic circuits.
- Wide operating temperature range adapts to indoor equipment and enclosed control cabinets.
- Non-latching design simplifies control logic without extra reset signals.
- Verified stable performance for continuous cyclic switching in electronic control systems.
5. 10 Fujitsu Similar FTR-F3 Series PCB Power Relays
- F3AA005E, FTR-F3 series relay, 5 VDC coil, SPST 5A contact
- F3AA012E, FTR-F3 series relay, 12 VDC coil, SPST 5A contact
- F3AA024E-HA, flux-proof sealed variant of F3AA024E for wave soldering
- F3CA024E, SPDT contact type 24 VDC slim PCB relay
- F3AA005E-HA, 5 VDC coil washable sealed power relay
- F3AA012E-HA, 12 VDC coil flux-proof sealed relay
- F3AA048E, FTR-F3 series 48 VDC coil SPST power relay
- F3GA024E, 3A low-current slim relay, 24 VDC coil
- MYAA024D, compact Fujitsu general-purpose PCB relay with 24 VDC coil
- FTR-H1AA024E, alternative compatible PCB power relay from Fujitsu FTR-H1 series
