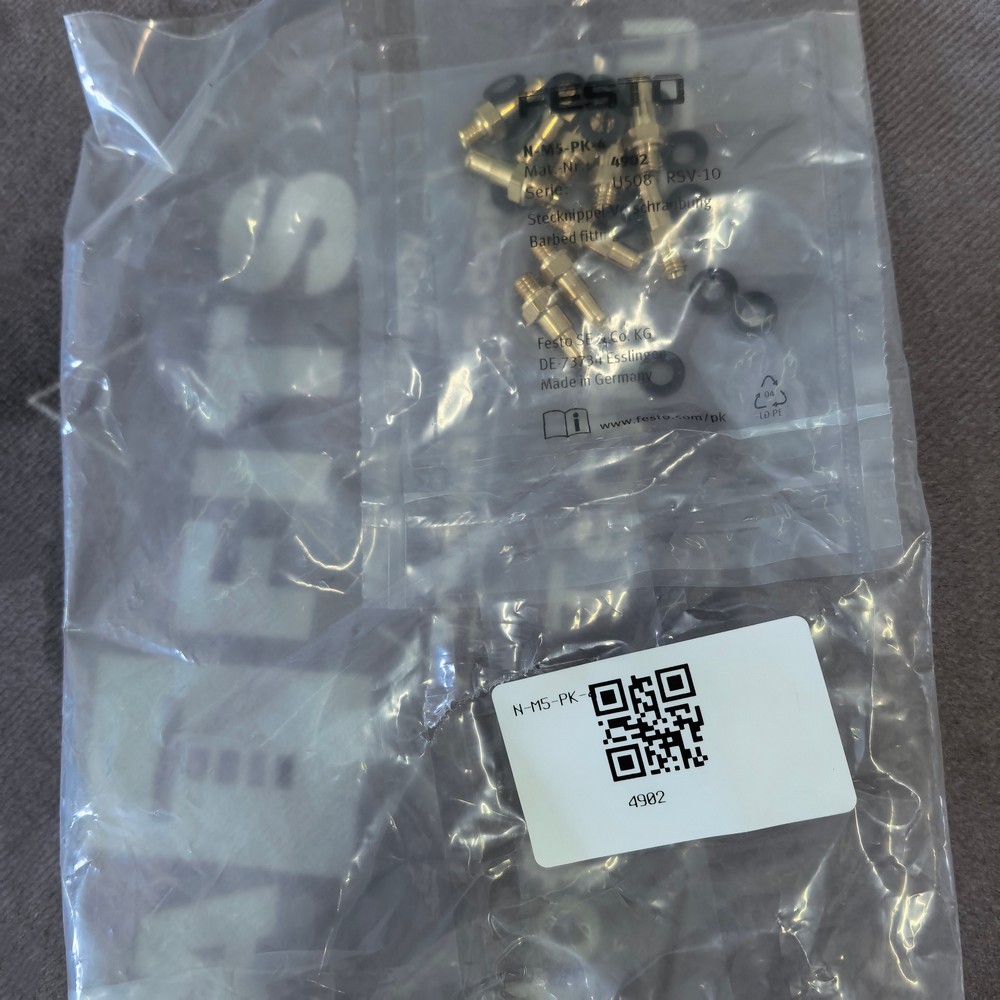

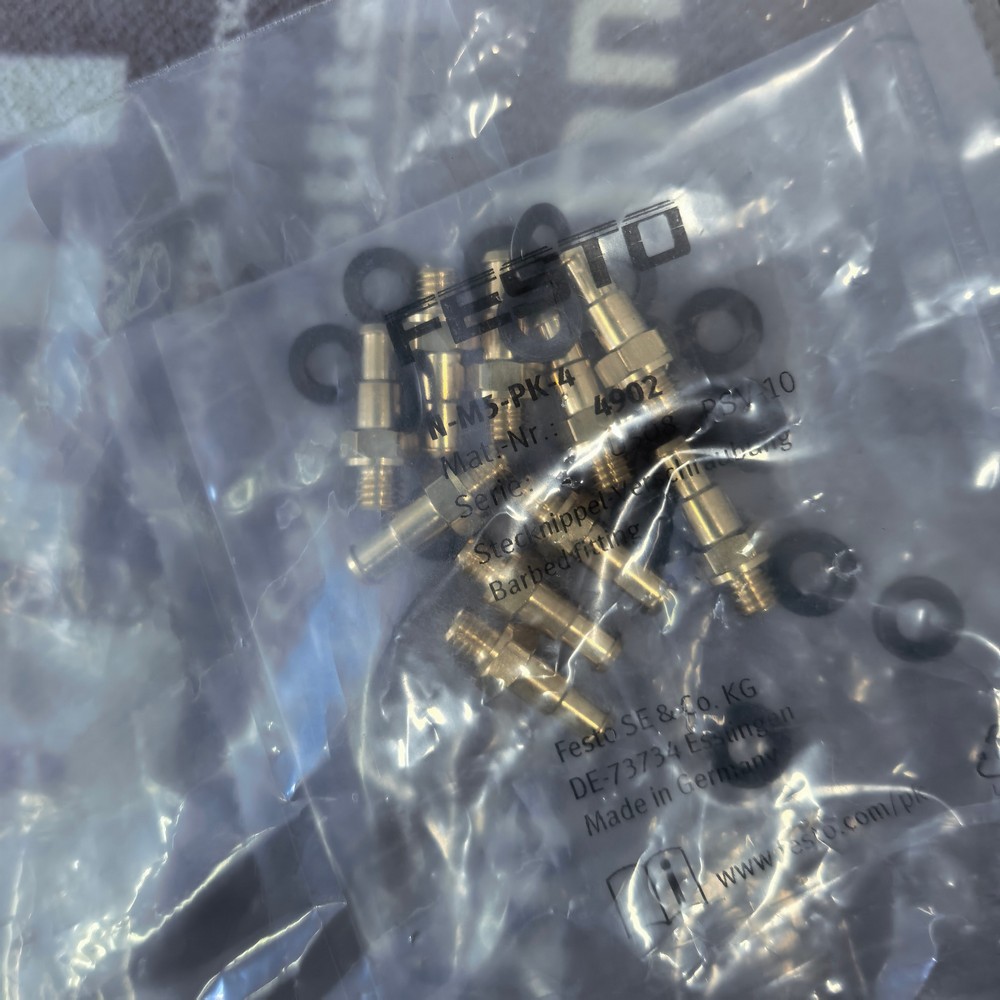

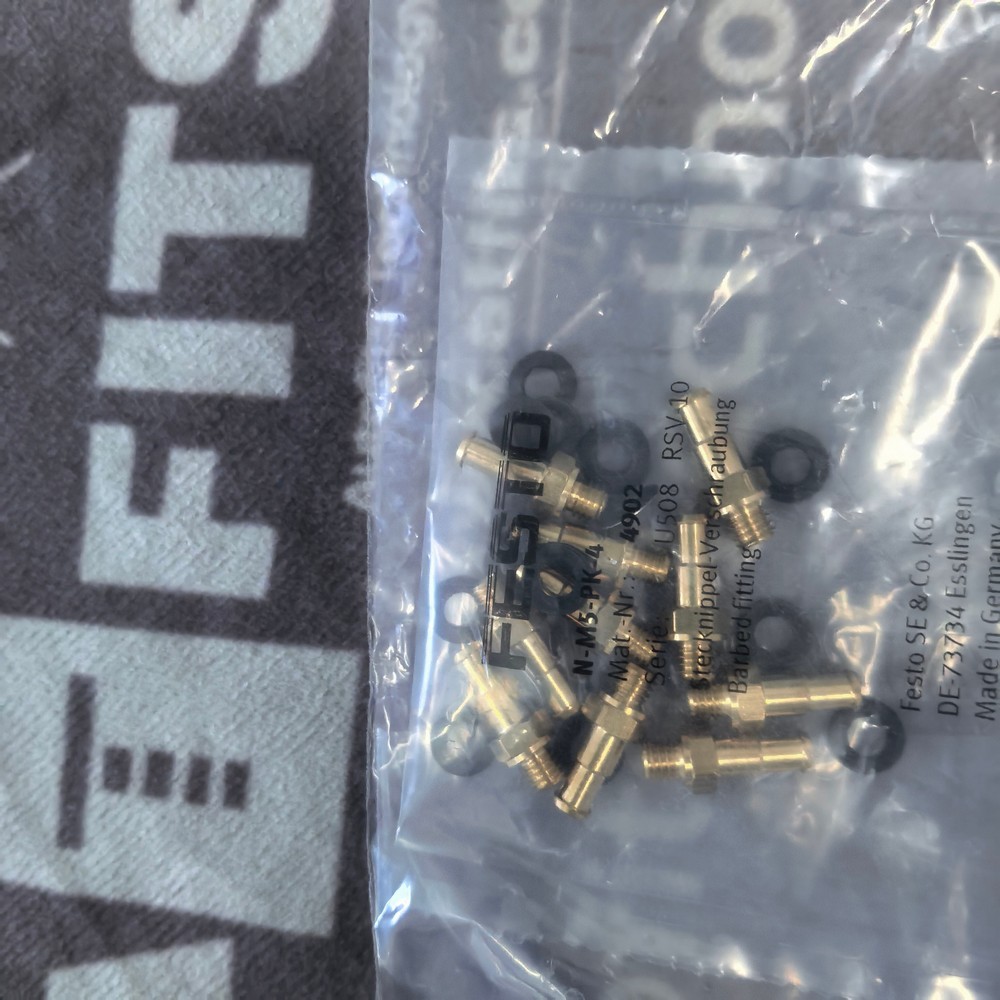

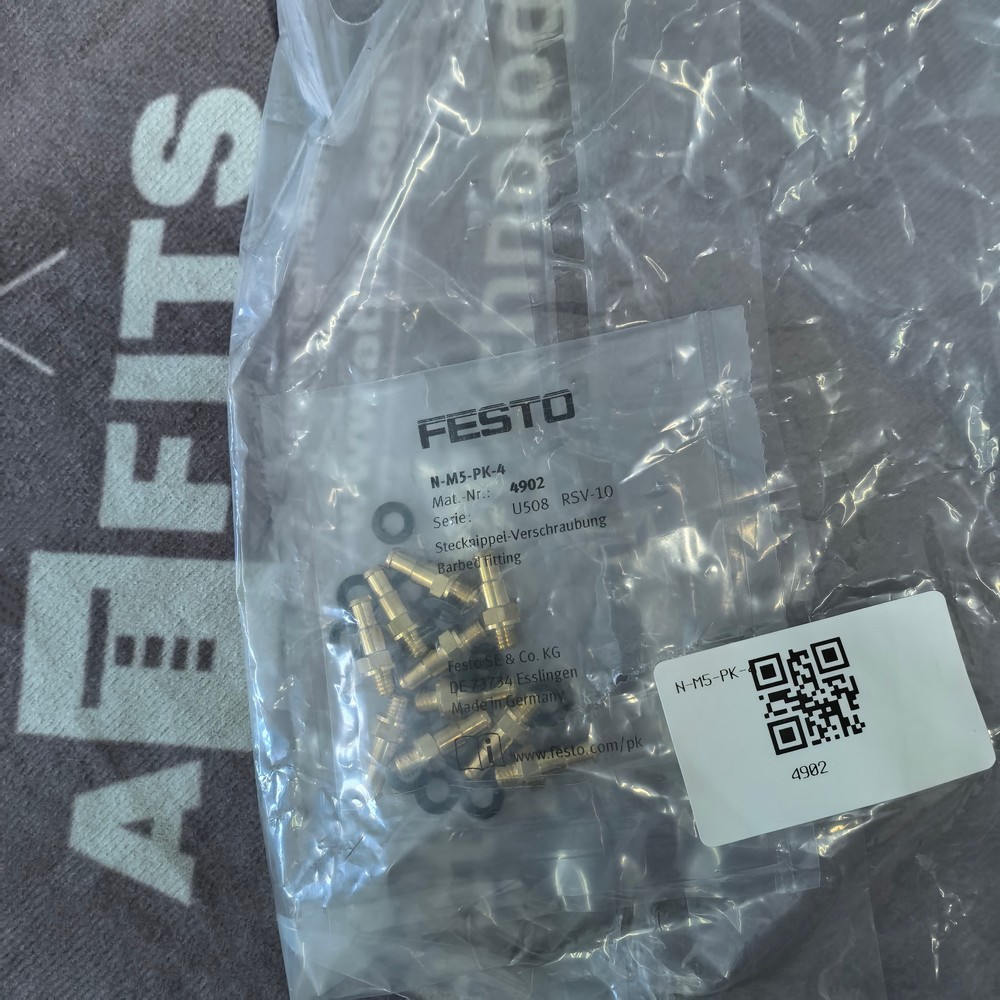

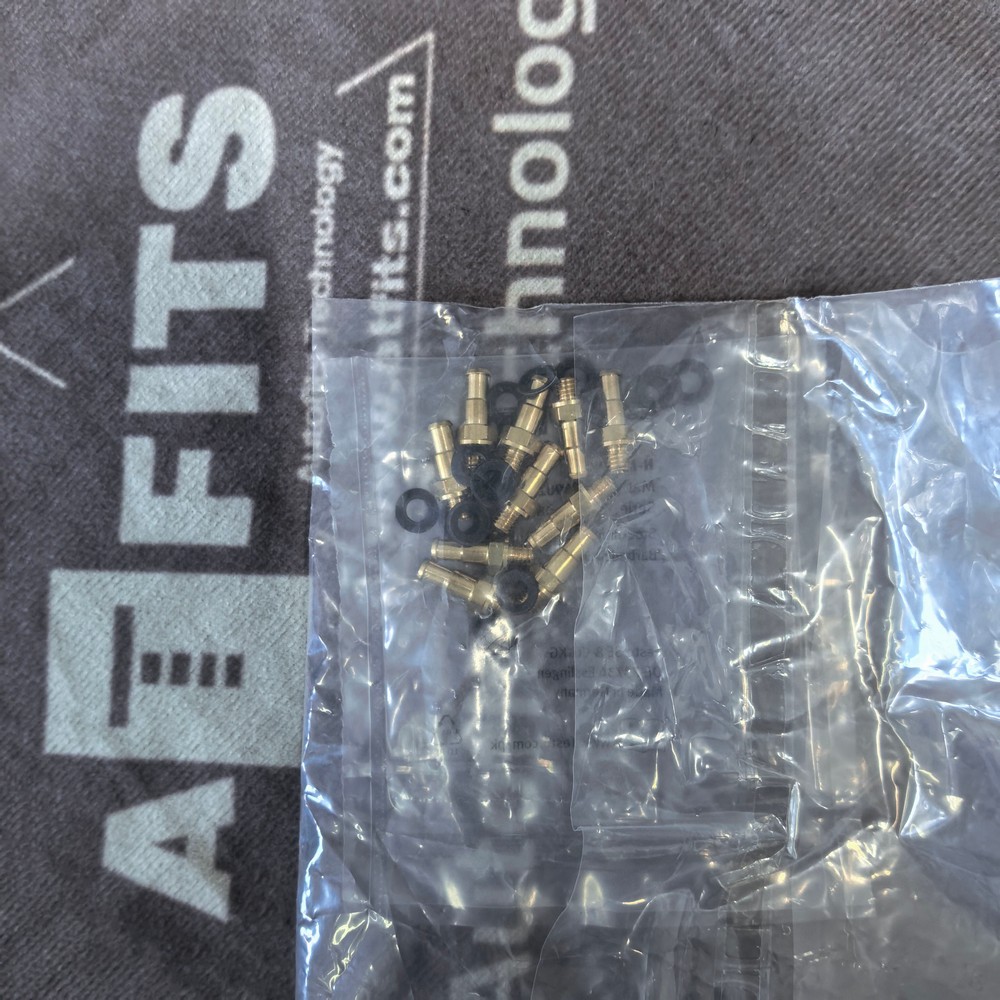

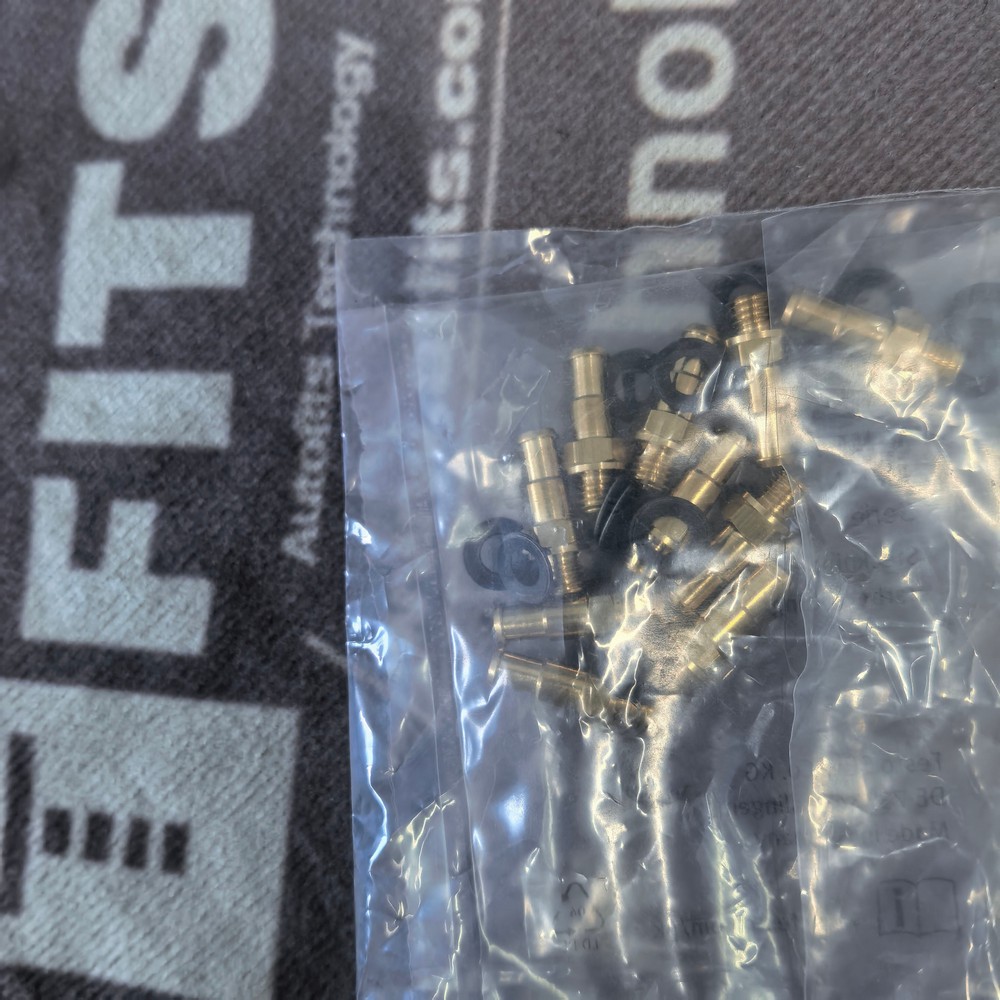

New Original FESTO 4902 N‑M5‑PK‑4 Brass Barbed Pneumatic Fitting
Product Overview
FESTO N‑M5‑PK‑4, part number 4902, is a straight barbed hose fitting from the N‑PK barbed fitting series. One end features M5 male metric thread with integrated sealing ring, while the opposite barbed spigot connects to flexible pneumatic tubing with 4 mm inner diameter. Constructed from solid brass, this fitting converts threaded pneumatic ports to flexible hose connections. It is widely deployed in small‑bore pneumatic circuits, miniature cylinders, solenoid valves, sensor manifolds, laboratory automation equipment and compact automated machinery. It works for both compressed‑air and vacuum circuits and is designed for low‑pressure miniature pneumatic system assemblysp-sparepa….
Main Functions
- Interface conversion: Converts M5 male threaded port to barbed connection for flexible soft pneumatic hose.
- Pneumatic fluid transmission: Creates straight‑through flow path for compressed air or vacuum flow.
- Secure hose retention: Multi‑ridge barbed profile locks flexible hose firmly to prevent hose dislodgement under pressure or vacuum.
- Integrated sealing: Built‑in sealing ring at M5 thread eliminates extra external gasket for threaded‑port sealing.
- Omni‑direction mounting: Can be installed in any spatial orientation without performance loss.
- Simple manual assembly: Hose can be pushed onto barbed tip without special tools; hose clamps can be added for enhanced security.
- Mini‑circuit expansion: Supports building compact pneumatic loops for small‑size actuators and valves.
- Passive connection component: No moving parts, zero energy consumption for long‑term stable connection.
Technical Characteristics
- Body material: Machined brass, corrosion‑resistant for standard industrial workshop environments.
- Integrated NBR sealing ring fitted on M5 male thread for thread‑joint sealing.
- Multi‑ridge barbed spigot for 4 mm inner‑diameter flexible pneumatic hose.
- Straight‑through monolithic brass body, low‑restriction internal flow channel.
- RoHS compliant and LABS‑PWIS compliant per VDMA 24364‑B1/B2‑L for paint‑industry automation systems.
- Wide operating pressure range covering vacuum and positive compressed‑air pressure.
- Corrosion resistance class CRC 1 for low‑corrosion‑stress indoor industrial conditions.
- Compatible with non‑lubricated compressed air; lubricated air is permitted if system maintains consistent lubrication.
Product Dimensions and Weight
| Item | Specification |
|---|---|
| Thread specification | M5 male metric thread |
| Barbed connection | For hose inner diameter 4 mm |
| Nominal bore | 2.5 mm |
| Overall total length | 24.4 mm |
| Hex wrench flat size | 7 mm |
| Net weight | Approx. 2 g |
Core Operating Parameters
| Parameter | N‑M5‑PK‑4 Specification |
|---|---|
| Operating medium | Compressed air conforming to ISO 8573‑1:2010 [7:-:-], vacuum, inert non‑corrosive gas |
| Operating pressure range | ‑0.95 bar ~ 10 bar |
| Ambient working temperature | ‑10 ℃ ~ +60 ℃ |
| Body material | Brass |
| Seal material | NBR rubber |
| Mounting orientation | Any position |
10 FESTO Products with Approximate Barbed‑Fitting Functions
- N‑M3‑PK‑3 (4898): Straight brass barbed fitting, M3 male thread, barbed tip for 3 mm inner‑diameter hose, ultra‑small miniature pneumatic circuit connection.
- N‑M5‑PK‑6 (4903): Brass barbed fitting, M5 male thread, barbed spigot for 6 mm inner‑diameter hose, larger flow capacity for M5 threaded ports.
- N‑G1/8‑PK‑4 (4904): Barbed hose fitting, G1/8 male parallel thread, barbed end for 4 mm inner‑diameter hose, converts standard G‑thread port to soft‑hose connection.
- N‑G1/8‑PK‑6 (4905): Brass barbed fitting with G1/8 male thread, barbed tip for 6 mm inner‑diameter hose for general‑purpose small‑valve connection.
- CN‑M5‑PK‑4 (12256): Right‑angle elbow barbed fitting, M5 male thread, barbed port for 4 mm inner‑diameter hose, changes pipeline flow direction in tight spaces.
- T‑PK‑4 (4499): Barbed T‑branch connector, three‑way barbed ports for 4 mm inner‑diameter hose, for hose‑based pneumatic circuit splitting.
- Y‑PK‑4 (4804): Barbed Y‑shaped splitter fitting, all barbed ports for 4 mm inner‑diameter hose, for diverging pneumatic flow inside soft‑hose loops.
- N‑G1/4‑PK‑8 (4907): Brass barbed fitting, G1/4 male thread, barbed tip for 8 mm inner‑diameter hose, medium‑flow barbed‑hose transition fitting.
- CRQS‑M5‑4 (162860): Push‑in quick‑connect fitting, M5 male thread for 4 mm outer‑diameter tubing, tool‑free quick‑connect alternative to barbed fittings.
- CK‑M5‑PK‑4 (3562): Barbed fitting with lock nut, M5 male thread, barbed for 4 mm inner‑diameter hose, for panel‑through mounting applications.
