Product Introduction for New‑Original Festo 196133 MHE2‑MS1H‑3/2G‑M7‑K Air Solenoid Valve
1. Product Overview

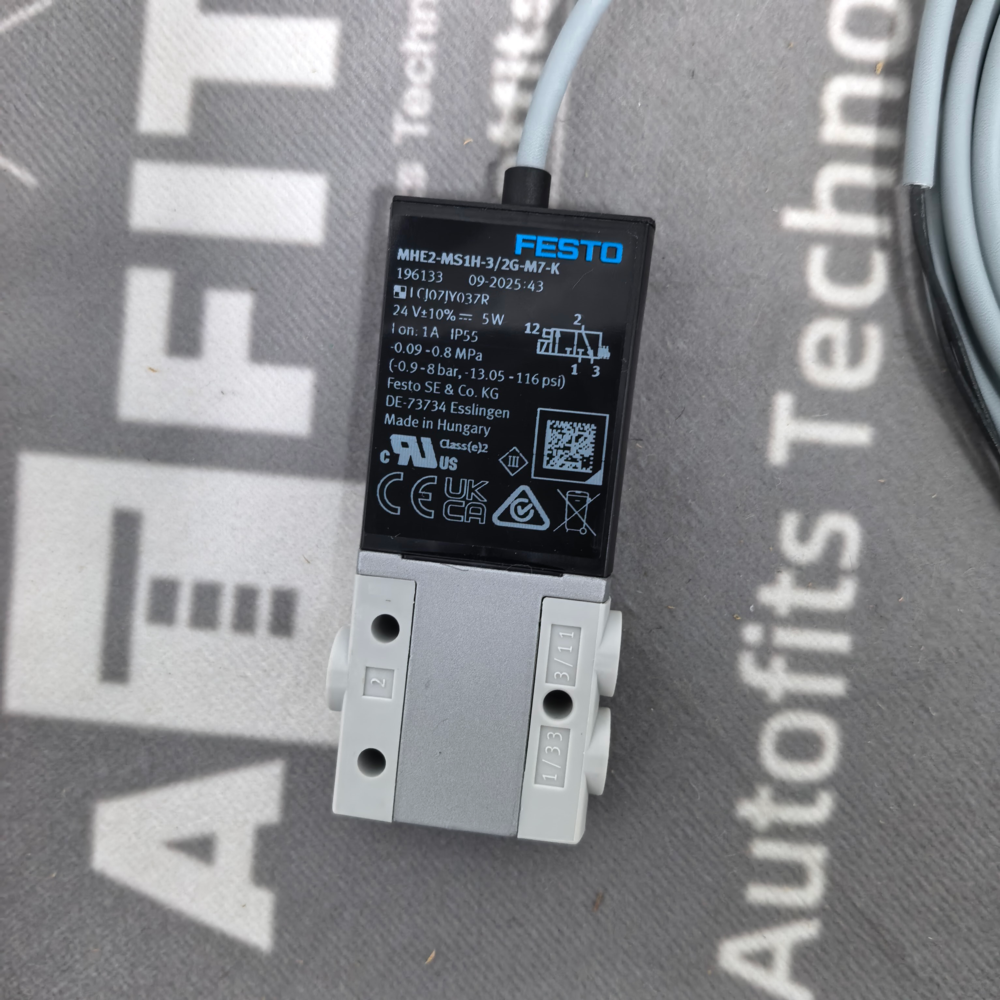

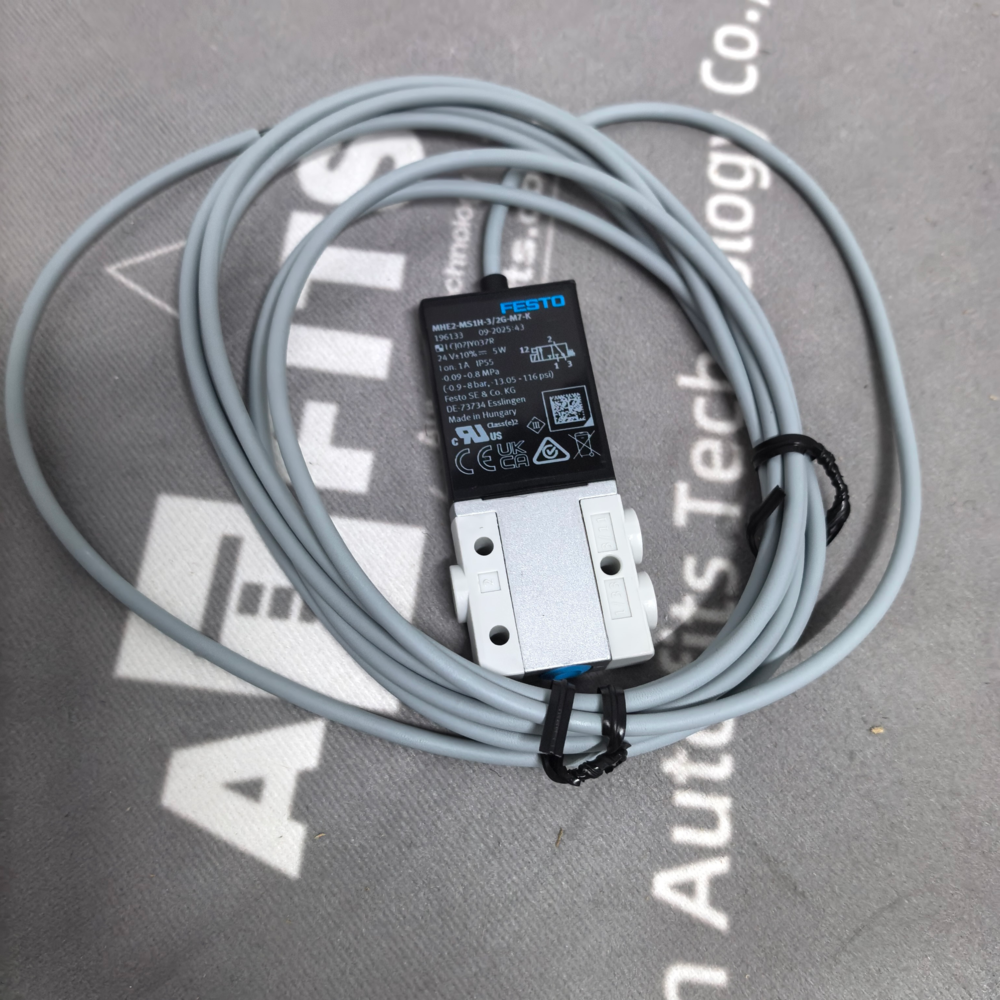

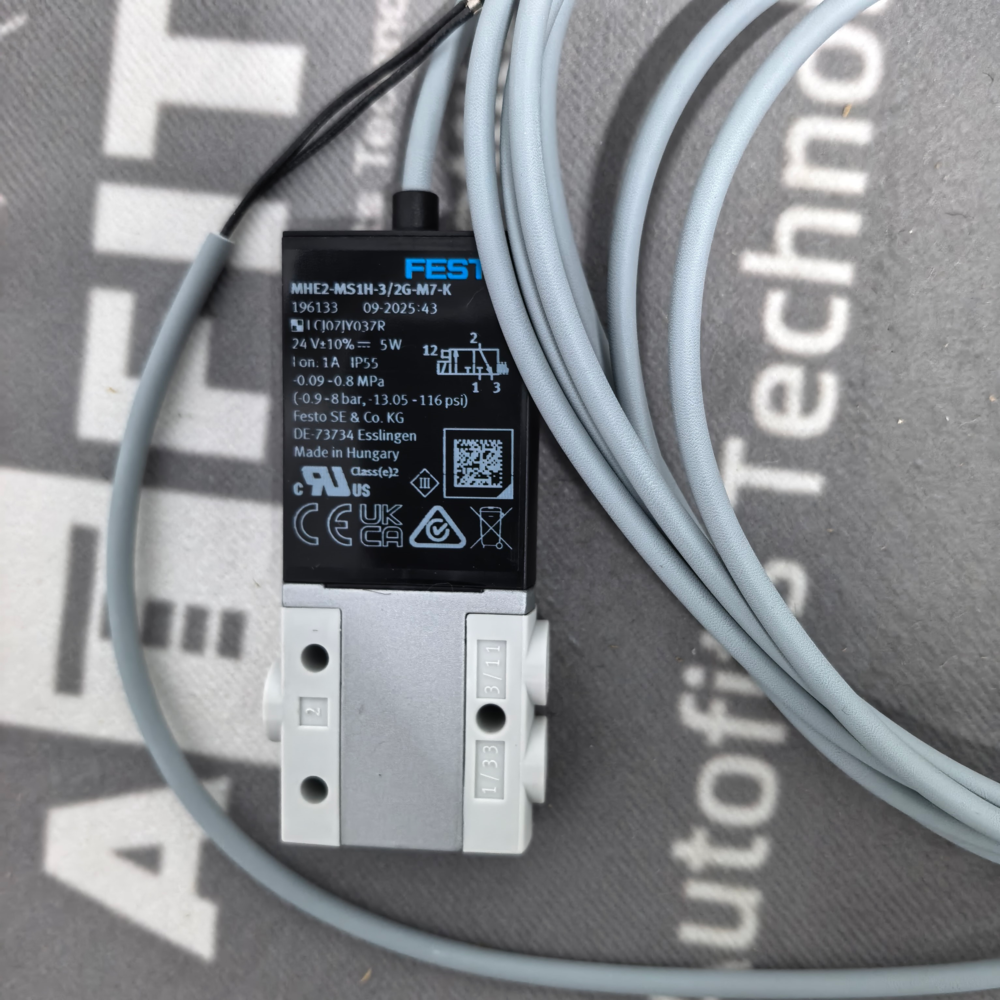

MHE2‑MS1H‑3/2G‑M7‑K with part‑number 196133 belongs to Festo MHE2 high‑speed miniature solenoid‑valve series manufactured in Germany. It is a 3/2‑way monostable normally‑closed poppet‑type valve. The suffix definition: MS1H stands for single‑solenoid drive with mechanical spring reset; 3/2G means three‑port two‑position normally‑closed function; M7 refers to M7 metric thread for pneumatic ports;‑K is equipped with a 2.5‑meter PUR connecting cable with built‑in protective circuit. With only 10‑mm installation width, this compact‑size valve is widely applied for controlling short‑stroke cylinders, vacuum components and small‑pneumatic actuators on automated assembly equipment, testing fixtures and packaging‑machinery. This component complies with CE, RoHS, UL‑recognized and VDMA‑24364‑LABS industrial standards, suitable for general‑industrial workshop environmentFesto.
2. Main Functions
- Compressed‑air on‑off control: It opens airflow passage after receiving 24 V DC electric signal and cuts‑off air supply once power is removed, controlling extension‑action of single‑acting pneumatic parts.
- Mechanical automatic reset: Internal precision spring pushes the poppet back to closed‑state without extra‑air supply when solenoid power cuts off.
- Fast‑switching performance: Realizes rapid valve‑on and valve‑off movement to match high‑frequency cyclic‑operation of automated equipment.
- Built‑in circuit protection: The integrated protective‑circuit prevents damage from reverse‑voltage and excessive‑current for the solenoid coil.
- Manual override function: Non‑locking manual button is reserved for on‑site manual‑test during machine‑commissioning and maintenance.
- Exhaust‑throttle option: The exhaust‑port can be fitted with throttle mufflers to adjust exhaust‑speed for stable‑action control.
3. Technical Parameters
| Item | Specification Details |
|---|---|
| Part Number | 196133; Model: MHE2‑MS1H‑3/2G‑M7‑K |
| Valve structure | 3/2‑way, monostable, normally‑closed poppet‑valve |
| Driving method | Electric solenoid‑driven, spring‑return |
| Rated voltage | DC 24 V |
| Operating pressure range | −0.9 bar ~ 8 bar |
| Standard nominal flow‑rate | 100 l/min (DIN‑1343 standard) |
| Pneumatic connection thread | M7 for port‑1, port‑2 and port‑3 |
| Protection class | IP65 |
| Ambient working temperature | −10°C ~ +50°C |
| Internal seal material | NBR and HNBR rubber |
| Valve‑body housing material | Coated die‑cast zinc alloy |
| Cable‑jacket material | Flexible PUR |
| Screw material | Galvanized steel |
| Cable total length | 2.5 m |
| Mounting type | Fixed via through‑holes, installation‑position optional |
| Certification | c UL us‑Recognized, CE, RCM, RoHS compliantFesto |
4. Physical Dimensions and Net‑Weight
| Dimension Description | Value |
|---|---|
| Overall valve‑body width | 10 mm |
| Valve‑body height | 34 mm |
| Valve‑body depth | 18 mm |
| Total cable length | 2500 mm |
| Single‑piece net‑weight | 70 g |
5. Product Core Advantages
- Ultra‑narrow‑10‑mm width saves installation space for dense‑arranged small‑valve‑group layout.
- Pressure‑relieved poppet‑valve design reduces internal friction and extends service‑life for millions‑of‑switching cycles.
- Die‑cast zinc‑alloy housing resists workshop‑oil mist and dust; NBR sealing‑parts effectively prevent internal air‑leakage.
- Original‑integrated 2.5‑meter PUR‑cable avoids trouble of purchasing separate connecting‑wires.
- Low‑power‑consumption coil reduces heating‑problem under long‑time energized‑state and matches PLC control‑system perfectly.
6. Ten Festo products with similar miniature‑solenoid‑valve function
- Festo 196150 MHE2‑MS1H‑3/2O‑M7‑K: 3/2‑way normally‑open version with M7 ports and 2.5‑meter PUR cable.
- Festo 196135 MHE2‑MS1H‑3/2G‑M7‑0,5‑K: 0.5‑meter short‑cable variant for narrow‑installation‑space.
- Festo 196137 MHE2‑MS1H‑3/2G‑M7‑5‑K: 5‑meter‑length cable for long‑distance wiring condition.
- Festo 196313 MHE2‑MH1H‑5/2‑M7‑K: 5/2‑way single‑solenoid‑valve with M7 thread for double‑acting‑cylinders.
- Festo 8017045 MHE2‑MS1H‑3/2G‑M7‑K‑W: White‑PUR‑cable type applied for clean‑room‑automation‑equipment.
- Festo 197168 MHA1‑MS1H‑3/2‑M3‑K: Mini‑size 3/2‑way valve with M3 thread for super‑compact‑devices.
- Festo 8045971 MHE2‑MS1H‑3/2G‑M7‑K‑LED: Updated model with built‑in LED indicator to check energized‑state.
- Festo 196141 MHE2‑MS2H‑3/2G‑M7‑K: Double‑solenoid‑controlled‑valve for high‑safety‑interlock‑requirements.
- Festo 196405 MHE4‑MS1H‑3/2G‑QS‑4‑K: MHE4‑series valve with push‑in‑connector QS‑4 instead of threaded‑port.
- Festo 8077120 MHE2‑MS1H‑3/2G‑M7‑K‑A: Anti‑corrosion‑improved version for slightly‑corrosive‑factory‑environment.
