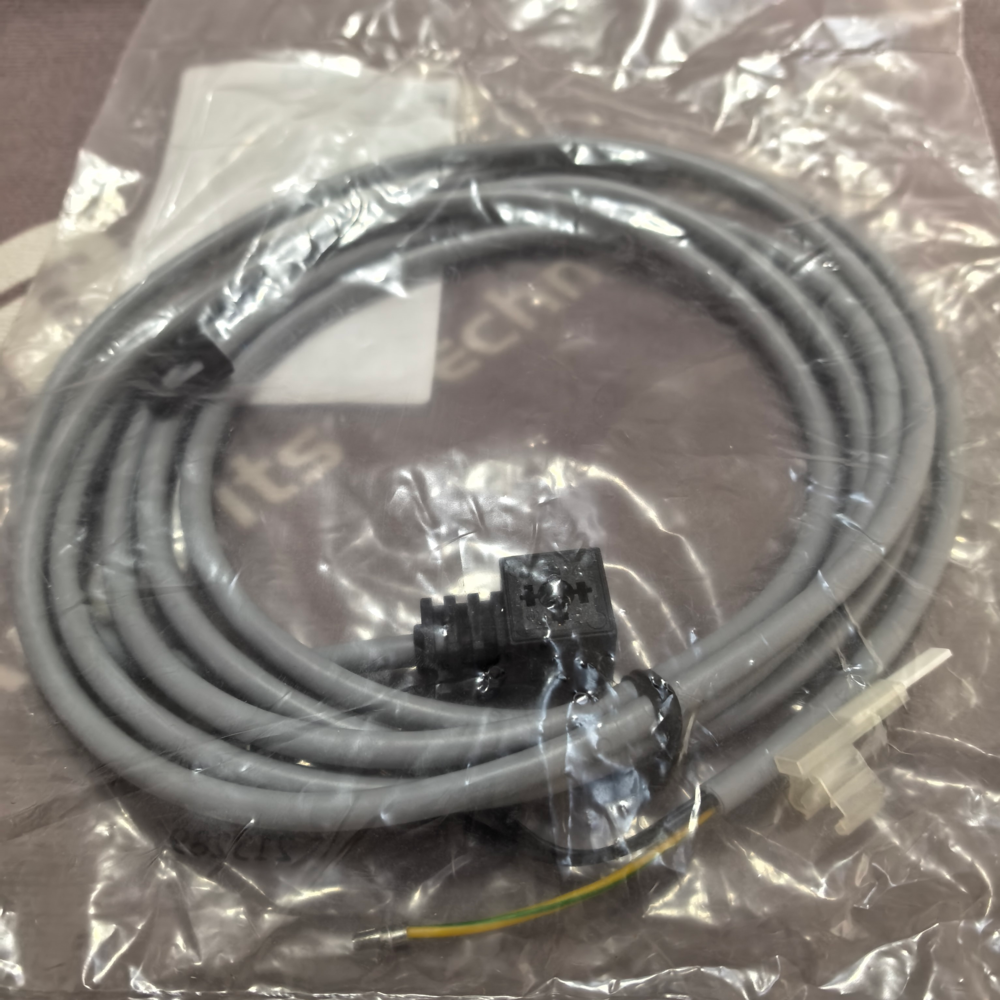

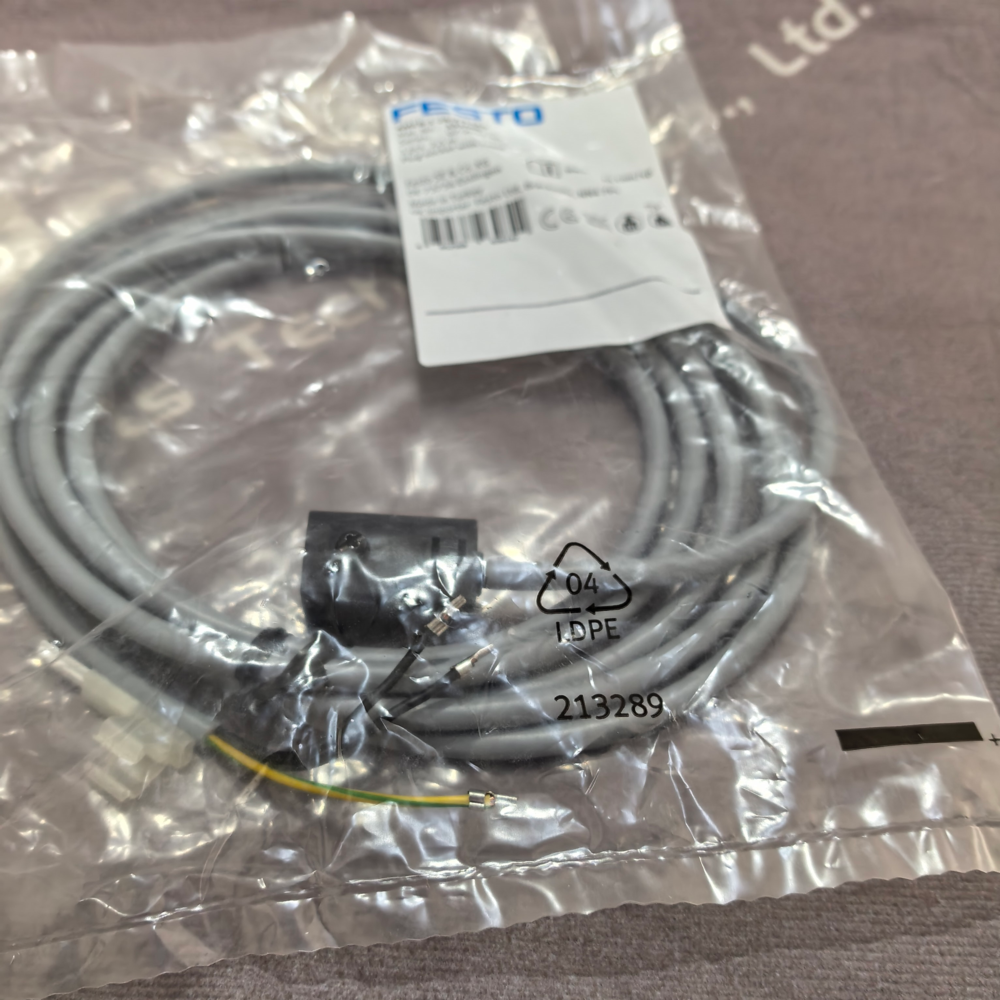

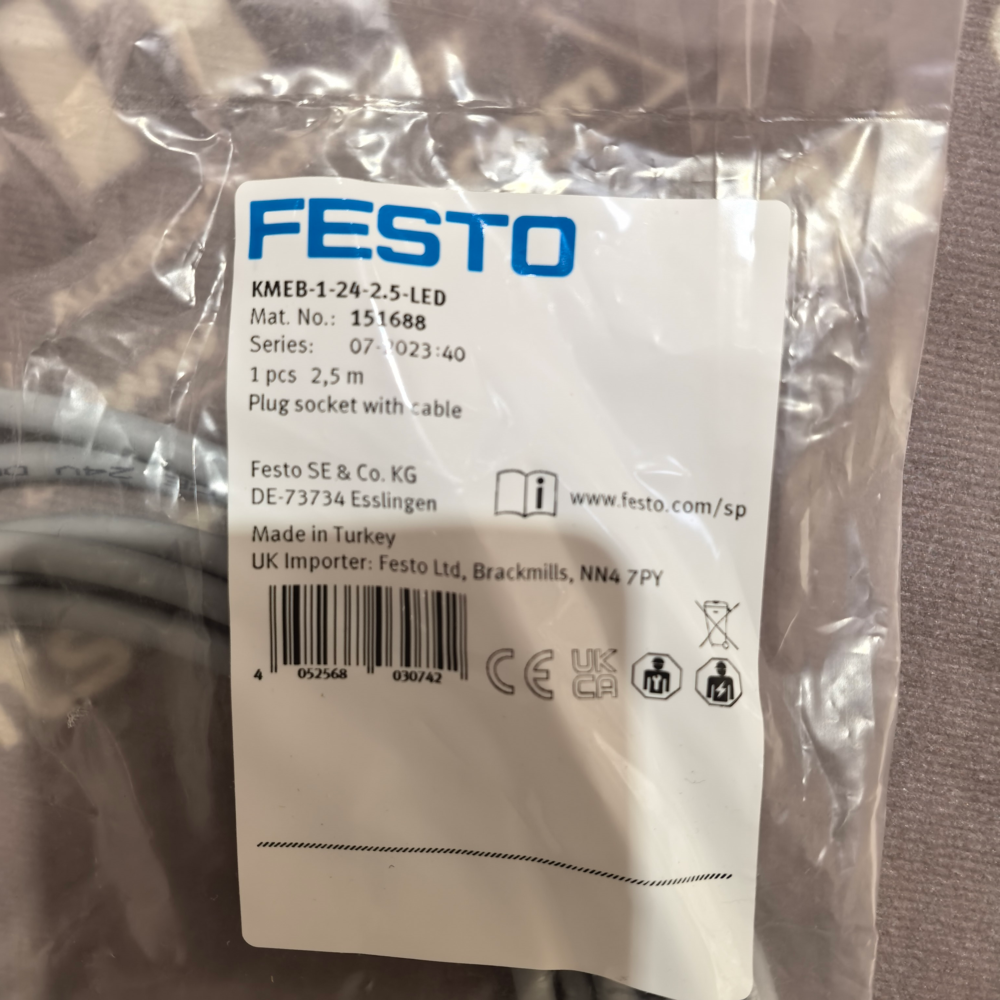

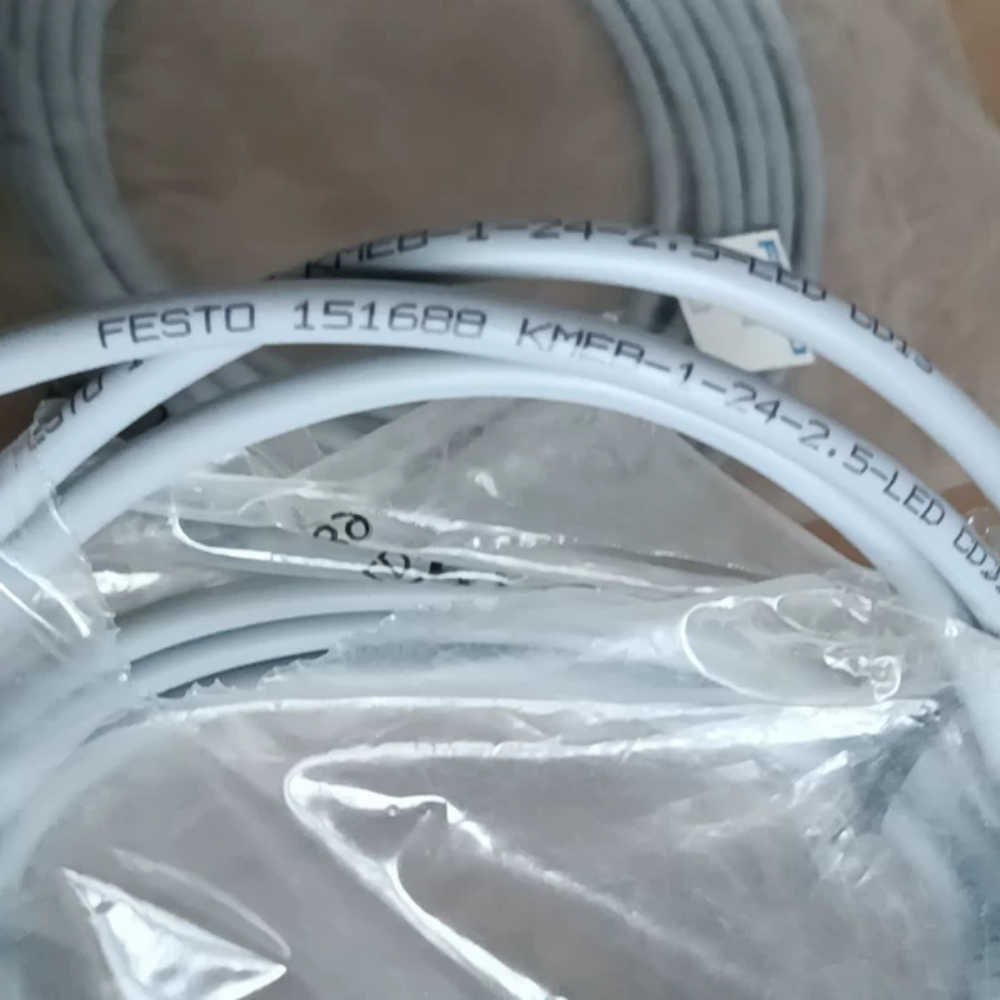

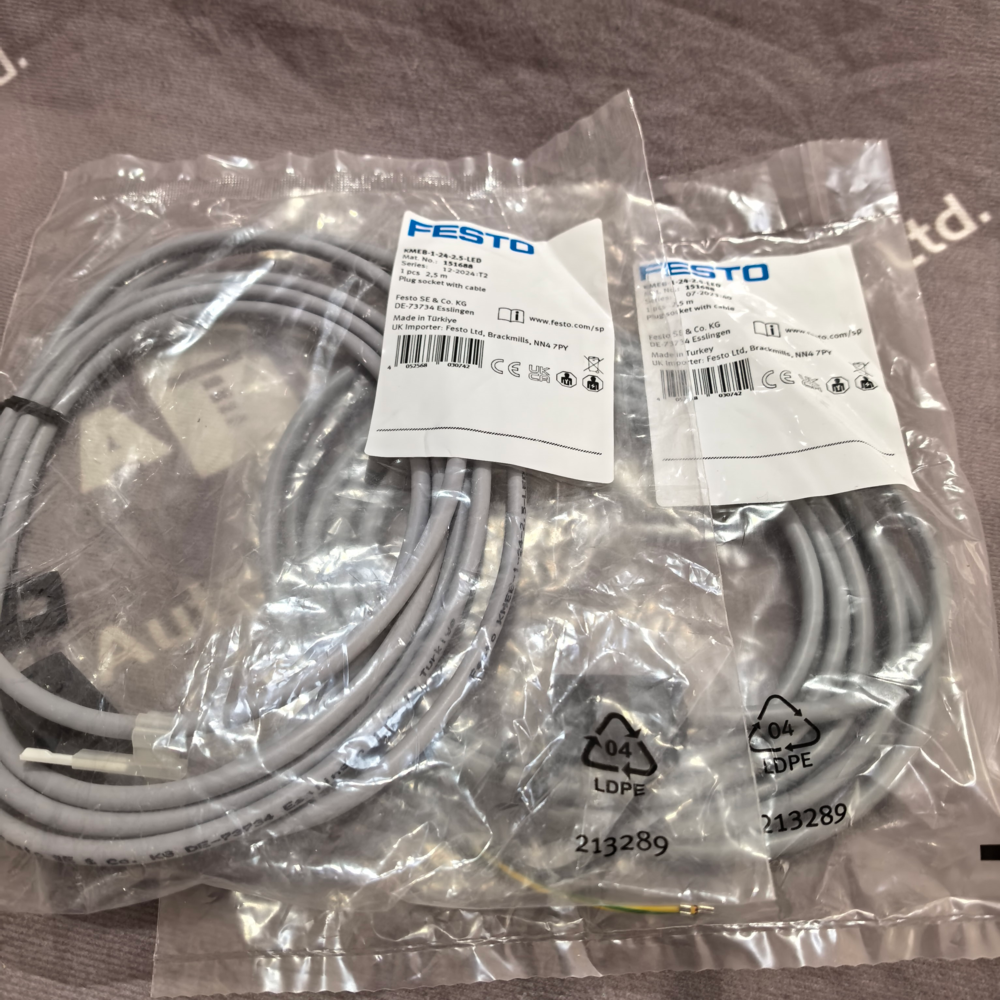

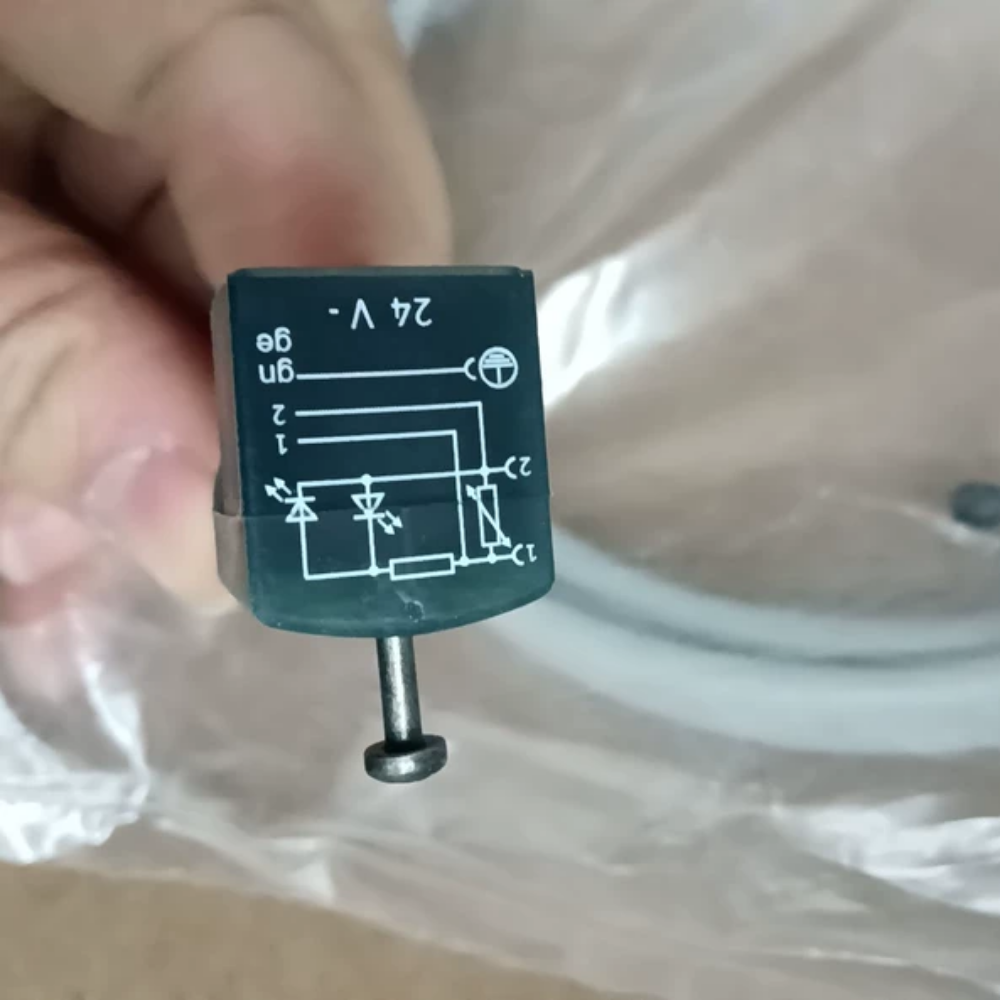

New Original Festo 151688 KMEB‑1‑24‑2.5‑LED Plug‑Socket with Cable
1. Product Overview
The part‑number 151688 KMEB‑1‑24‑2.5‑LED is an original Festo single‑pin plug‑in connector assembly integrated with connecting cable and LED status indicator. It is specially designed for connecting proximity sensors, magnetic switches and small‑size field components inside automated equipment. The whole assembly works under DC24‑V industrial power supply and adopts 2.5‑meter fixed‑length cable. The built‑in LED lamp visually displays power‑on status to facilitate on‑site inspection and fault diagnosis. It is widely used in packaging machinery, conveyor‑line systems, machine‑tools, sorting equipment and S7‑PLC‑controlled automation systems. The cable and connector follow industrial‑grade abrasion‑resistant standards to adapt to long‑term continuous‑operation factory environments.
2. Main Functions
- Electrical connection: Transmit 24‑V DC power and digital switching signals between field sensors and PLC input modules.
- Visual status feedback: Integrated LED indicator lights up when power supply is normal, helping maintenance staff quickly identify circuit failures.
- Reliable signal transmission: Shield‑free cable conducts switching signals steadily without signal loss under normal factory‑interference conditions.
- Fixed‑range wiring: The 2.5‑meter pre‑assembled cable avoids on‑site wire cutting and wiring mistakes, shortening installation time.
- Vibration‑resistant connection structure: The bayonet‑style locking design prevents loose contact caused by machine‑body vibration.
- Reverse‑polarity protection: Internal structural design reduces damage risk if positive‑negative poles are incorrectly connected by accident.
- Flexible layout: The round flexible cable can be arranged along equipment frames and cable ducts neatly.
3. Technical Specifications
| Item | Specification |
|---|---|
| Model Number | KMEB‑1‑24‑2.5‑LED, Part‑No.151688 |
| Rated Operating Voltage | DC 24 V |
| Rated Current | Maximum 4 A |
| Cable Length | 2.5 m |
| Connector Type | 3‑pin M8 straight‑type plug, single‑way version |
| Indicator Function | Red LED for power‑on status display |
| Cable Outer Material | PUR (polyurethane), oil‑resistant and abrasion‑resistant |
| Wire Cross‑section | 0.34 mm² internal copper conductors |
| Operating Temperature | ‑20 °C ~ +70 °C |
| Protection Rating | IP65 after correct locking assembly |
| Locking Mode | Twist‑lock bayonet connection |
| Working Medium Environment | Dry or slightly damp indoor workshop |
| Compliance Standard | RoHS‑compliant, LABS‑free silicone‑free as per VDMA standard |
| Cable Bending Condition | Suitable for static wiring, not for frequent flexing movement |
4. Technical Features
- Pre‑assembled integrated design: The plug and cable are factory‑crimped, eliminating manual soldering and wiring errors.
- Intuitive LED diagnosis: Operators can judge power‑supply conditions without using multimeters.
- High‑durability PUR cable shell: Resists cutting fluid, dust and slight oil mist in workshop environments.
- Compact M8‑plug structure: Small‑size connector saves installation space near sensors and compact mechanical parts.
- Good vibration‑proof performance: Firm twist‑lock structure can withstand continuous mechanical vibration of automation equipment.
- Standard pin‑assignment: Follows Festo standard pin‑definition compatible with most M8 proximity switches and cylinder sensors on the market.
- Strict factory‑quality test: Every finished product passes continuity and insulation‑resistance tests before delivery for stable long‑term service.
5. Product Dimensions and Weight
| Parameter | Value |
|---|---|
| Plug Dimensions (Diameter × Length) | 12 mm × 36 mm |
| Overall Cable‑assembly Length | 2500 mm |
| Net Weight | 135 g |
| Cable Outer Diameter | 4.7 mm |
| Mounting Method | Plug‑in connection with M8‑socket of sensors, cable laid along equipment cable channels |
6. Ten Festo Products with Similar‑Function (M8 plug‑and‑cable assemblies for sensors)
All listed items are original Festo sensor connecting cables with M8 connectors for power‑supply and signal transmission:
- KMEB‑1‑24‑0.5‑LED (Part‑No:151685): 0.5‑meter cable length with LED indicator for short‑distance connection.
- KMEB‑1‑24‑5‑LED (Part‑No:151689): 5‑meter‑long cable version for long‑distance wiring.
- KMEB‑1‑24‑10‑LED (Part‑No:151690): 10‑meter cable used for large‑scale production‑line layouts.
- KMEB‑1‑24‑2.5 (Part‑No:151687): 2.5‑meter‑cable without LED indicator for concealed wiring applications.
- KMEB‑2‑24‑2.5‑LED (Part‑No:151692): Right‑angled M8‑plug with 2.5‑meter‑cable for narrow‑installation space.
- KMEB‑1‑24‑2.5‑LED‑PUR‑FLEX (Part‑No:541356): Continuous‑flex‑resistant cable for moving‑chain‑type equipment.
- KMEB‑1‑24‑2.5‑LED‑PVC (Part‑No:541357): PVC‑sheath economical‑type cable for dry‑indoor‑only environments.
- KMEB‑4‑24‑2.5‑LED (Part‑No:175476): 4‑core M8‑plug‑cable for sensors with two‑channel‑signal output.
- KMEB‑1‑24‑2‑LED (Part‑No:151686): 2‑meter‑length cable with LED‑indicator for medium‑short‑distance connection.
- KME‑1‑24‑2.5 (Part‑No:151580): M8‑plug‑cable without LED indicator with higher‑current‑rating up to 6 A for heavy‑duty sensors.
