New Original Weidmuller 3025620000 PRO ECO3 120W 24V 5A Three Phase DIN Rail Switching Power Supply
1. Product Overview
Weidmuller 3025620000 belongs to the PRO ECO3 series three-phase DIN rail mounted switching power supply. It converts 3-phase alternating current into stable 24 V DC output, with rated power of 120 W and rated output current of 5 A. Designed for automation control cabinets, this unit supplies power to PLC systems, proximity sensors, solenoid valves, relays and other low-voltage industrial components. The product adopts standard DIN 35 mm rail installation, compact metal housing and screw terminal wiring. It is widely applied in machine tools, automated production lines, packaging equipment, conveyor systems and process control facilities. The supplied unit is brand new original genuine Weidmuller product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model No. | 3025620000 (PRO ECO3 120W 24V 5A II) |
| Input Type | 3-phase AC |
| Input Voltage Range | 3 × 400 V AC ~ 3 × 500 V AC (320–575 V AC wide range) |
| Rated Output | 24 V DC, 5 A, 120 W |
| Adjustable Output Voltage | 22 V DC ~ 28 V DC (via built-in potentiometer) |
| Residual Ripple Noise | ＜50 mVpp (20 MHz bandwidth) |
| Efficiency | Up to 87% |
| Mounting Method | Standard 35 mm DIN rail mounting |
| Protection Functions | Overload protection, overvoltage protection, short-circuit protection, reverse voltage protection |
| Parallel Operation | Supported, maximum 3 units in parallel |
| Operating Temperature | -25 °C ~ +55 °C (full load); derating above 55 °C |
| Protection Class | IP20 (for installation inside control cabinet) |
| Overall Dimensions (W × H × D) | 55 mm × 130 mm × 115 mm |
| Net Weight | Approx. 565 g |
| Connection Type | Screw clamping terminals |
| Compliance Standards | CE, UL, RoHS |
3. Main Functions
- Convert three-phase industrial AC power into regulated 24 V DC power for automation control devices.
- Support output voltage fine-tuning through the front potentiometer to adapt to different load requirements.
- Multiple built-in protection mechanisms automatically cut off or limit output under fault conditions to protect power supply and loads.
- Allow parallel connection of multiple power supplies to expand total output power capacity.
- Maintain stable DC output voltage despite fluctuations of three-phase input power grid.
- Retain sufficient hold-up time during brief AC power failure to ensure continuous operation of control equipment.
- Equipped with status indicator to display normal running, overload and fault conditions for easy on-site inspection.
- Standard DIN rail structure enables quick installation and disassembly inside electrical cabinets.
4. Technical Features
- Wide three-phase input voltage range, suitable for global industrial 400 V / 500 V three-phase power grid environment.
- Compact metal housing design, effectively dissipating heat during long-time continuous operation.
- Low ripple output ensures stable power supply for precision sensors and controllers.
- Comprehensive electronic protection system prevents damage caused by short circuit, overload and reverse wiring.
- High efficiency reduces heat generation and lowers long-term energy consumption.
- Excellent load regulation and line regulation, stable output under variable load and input fluctuation.
- Screw terminal design achieves reliable wiring, suitable for long-term industrial operation.
- Optimized EMC performance, resisting electromagnetic interference inside crowded control cabinets.
- Long service life and high MTBF value, satisfying 24-hour non-stop operation of automated equipment.
- Modular design, convenient for maintenance and replacement without complex configuration.
5. 10 Weidmuller Similar DIN Rail Switching Power Supplies
- 3025630000, PRO ECO3 240W 24V 10A three-phase DIN rail power supply
- 3025640000, PRO ECO3 480W 24V 20A three-phase switching power supply
- 1469530000, PRO ECO3 120W 24V 5A predecessor model three-phase power supply
- 3025560000, PRO ECO single-phase 72W 24V 3A DIN rail power supply
- 3025570000, PRO ECO single-phase 120W 24V 5A switching power supply
- 1478110000, PRO MAX3 120W 24V 5A three-phase industrial power supply
- 1478180000, PRO MAX3 240W 24V 10A three-phase DIN rail power supply
- 3025621000, PRO ECO3 120W 48V 2.5A three-phase switching power supply
- 3146470000, PRO ECO II 240W 24V 10A SNAP-IN terminal power supply
- 1469550000, PRO ECO3 480W 24V 20A three-phase DIN rail power supply
If required, I can optimize the wording to adapt to commercial catalog, packing list or customs declaration documents.
用纯英文详细介绍，包括产品概述，主要功能，技术特点，产品尺寸，重量等内容，部分内容可以采用表格形式，不能有引用超链接 ，并例举 10 个同品牌近似功能的产品：New Original Weidmuller 3025630000 240W 24V 10A Three Phase DIN Rail Switch Mode Power Supply
搜索 3 个关键词，参考 17 篇资料

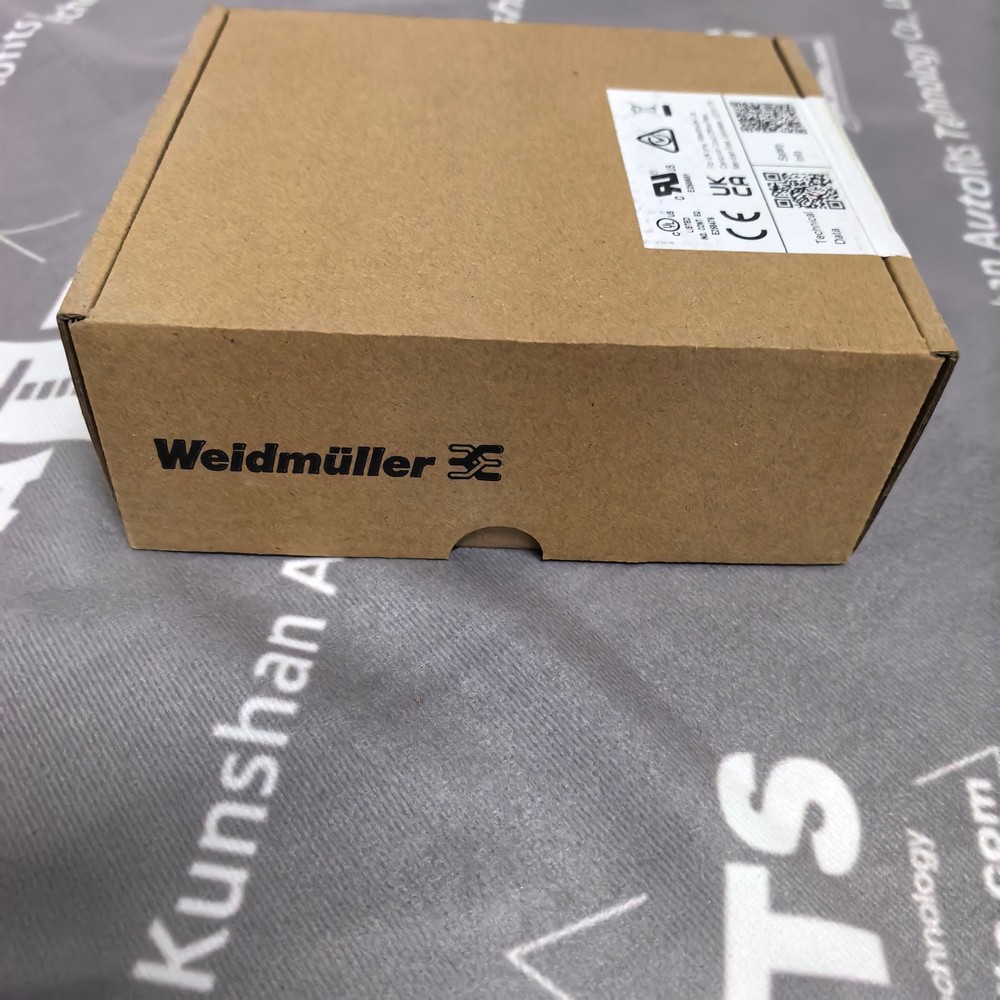

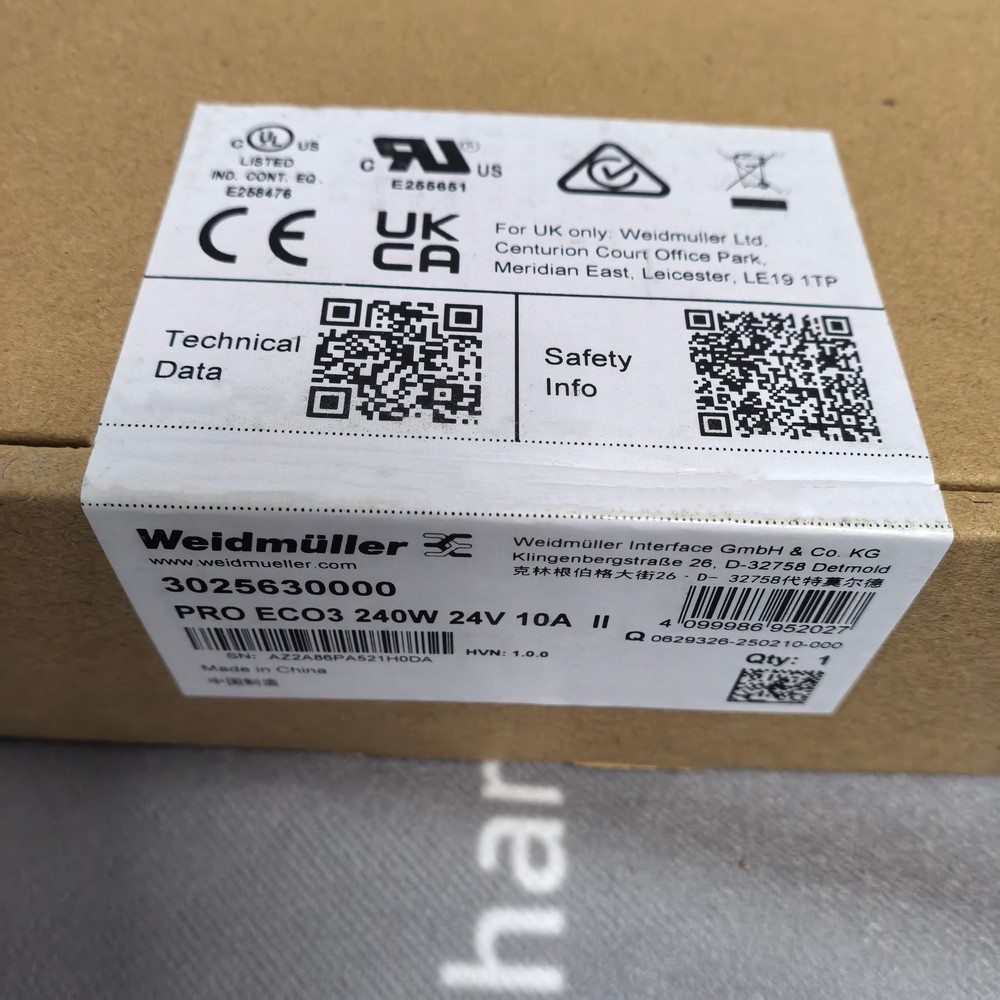

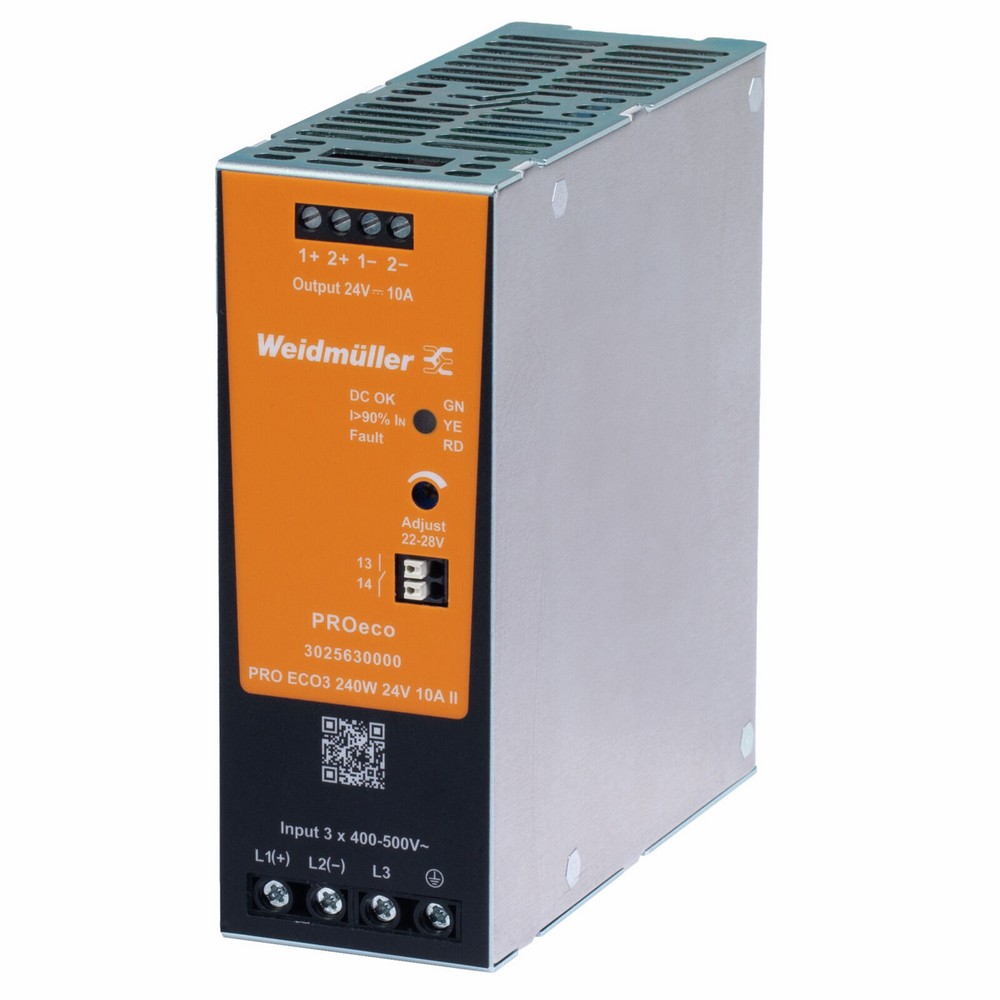

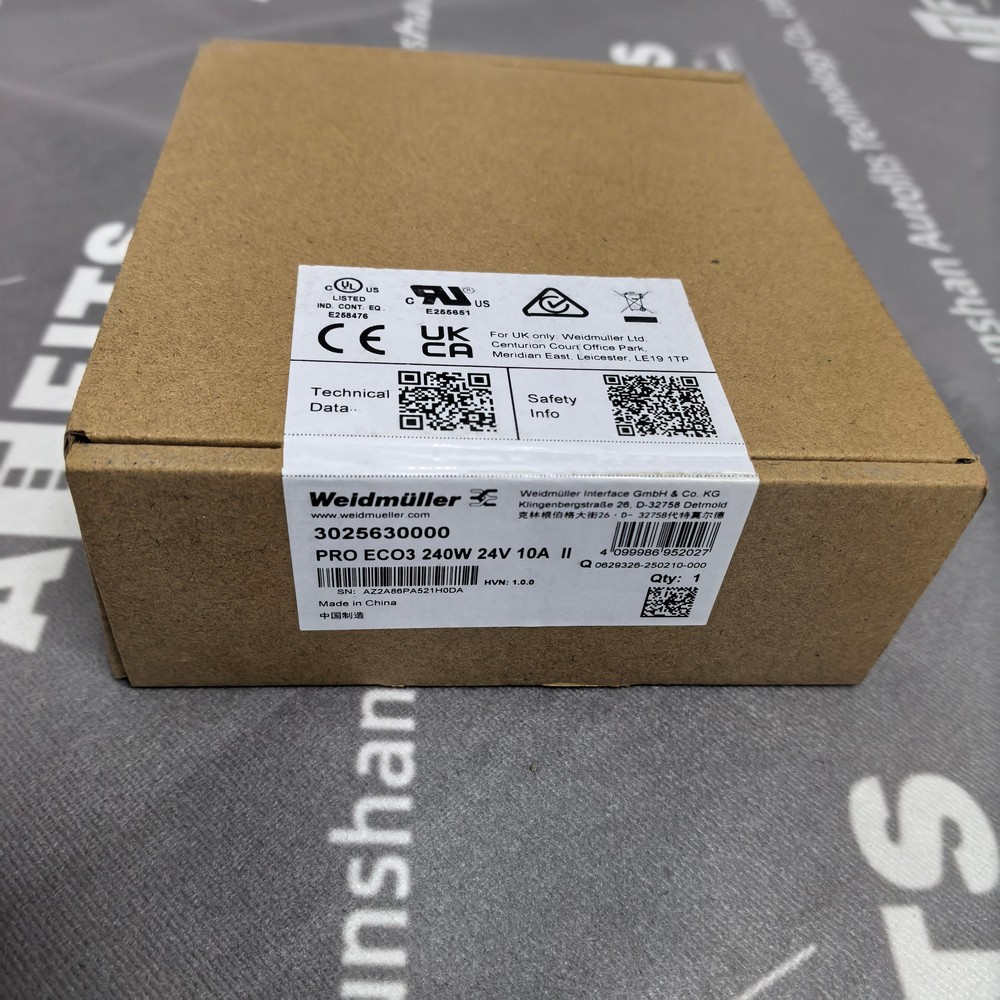

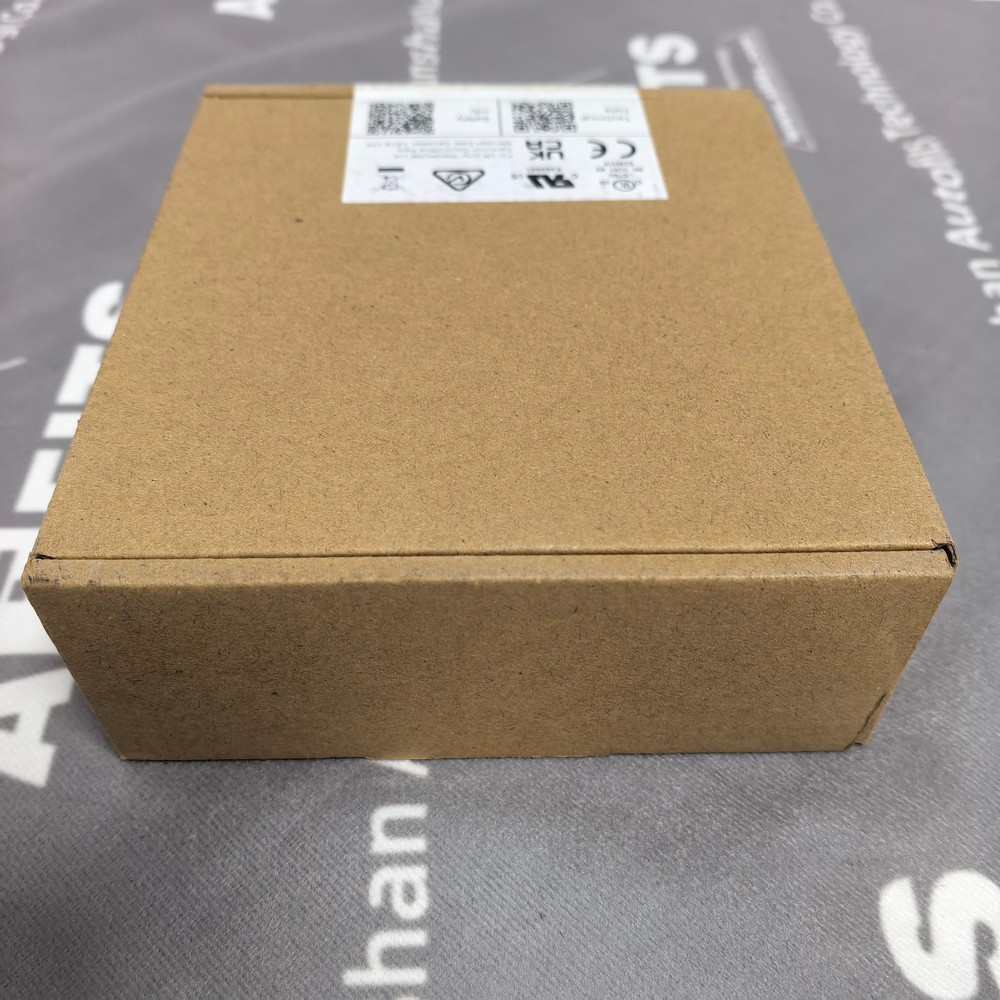

New Original Weidmuller 3025630000 PRO ECO3 240W 24V 10A Three Phase DIN Rail Switch Mode Power Supply
1. Product Overview
The Weidmuller 3025630000 belongs to the PRO ECO3 series three-phase DIN rail mounted switch mode power supply. It converts three-phase alternating current into stabilized 24 V DC power with rated power of 240 W and rated output current of 10 A. Designed for installation inside electrical control cabinets with standard 35 mm DIN rail mounting, this unit provides reliable DC power for PLC controllers, proximity sensors, solenoid valves, relays and other automation low-voltage components. Widely adopted in machine tools, automated assembly lines, packaging machinery, conveyor systems and process control equipment. The supplied unit is brand new original genuine Weidmuller product.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model Number | 3025630000 (PRO ECO3 240W 24V 10A II) |
| Input Power | 3-phase AC |
| Input Voltage Range | 3 × 320 V AC ~ 3 × 575 V AC; compatible with 450 V DC ~ 800 V DC input |
| Rated Output | 24 V DC, 10 A, 240 W |
| Adjustable Output Voltage | 22 V DC ~ 28 V DC via built-in potentiometer |
| Typical Efficiency | 89.6% |
| Residual Ripple Noise | ＜50 mVpp |
| Parallel Operation | Support, maximum 3 units connected in parallel |
| Protection Mechanisms | Overload protection, overvoltage protection, short-circuit protection, reverse polarity protection |
| Mounting Method | 35 mm standard DIN rail mounting |
| Protection Class | IP20 (cabinet installation only) |
| Operating Temperature | -25 °C ~ +70 °C; power derating required above 55 °C |
| Overall Dimensions (H × W × D) | 130 mm × 48 mm × 125 mm |
| Net Weight | Approx. 770 g |
| Wiring Connection | Screw clamp terminals |
| Compliance Certifications | CE, UL, RoHS |
3. Main Functions
- Convert industrial three-phase AC power into stable regulated 24 V DC power for automation control loads.
- Realize fine adjustment of output voltage through front panel potentiometer to match different load requirements.
- Multiple built-in protection functions automatically limit or cut off output under fault conditions to protect power supply and peripheral devices.
- Support parallel connection of multiple power supplies to expand total output power capacity.
- Maintain stable DC output voltage when three-phase grid voltage fluctuates.
- Preserve sufficient hold-up time during brief power failure to sustain continuous operation of control equipment.
- Equipped with status LED indicators to display normal operation, overload and fault status for easy on-site inspection.
- Standard DIN rail structure enables quick installation, disassembly and maintenance inside control cabinets.
4. Technical Features
- Wide three-phase input voltage range, suitable for global industrial 400 V / 500 V three-phase power grid environments.
- Compact metal housing with excellent heat dissipation performance for long-time continuous operation.
- Low output ripple ensures stable power supply for precision sensors and controllers.
- Comprehensive electronic protection system prevents damage caused by short circuit, overload and incorrect wiring.
- High energy efficiency reduces heat generation and lowers long-term operating energy consumption.
- Excellent line regulation and load regulation to maintain stable output under variable input and load conditions.
- Screw-type terminals provide reliable wiring connection for long-cycle industrial operation.
- Optimized EMC performance, resisting electromagnetic interference inside densely arranged control cabinets.
- High MTBF value, meeting requirements of 24-hour non-stop operation of automated production equipment.
- Modular structure simplifies maintenance and direct replacement without complicated configuration.
5. 10 Weidmuller Similar DIN Rail Switch Mode Power Supplies
- 3025620000, PRO ECO3 120W 24V 5A three-phase DIN rail power supply
- 3025640000, PRO ECO3 480W 24V 20A three-phase switching power supply
- 3025660000, PRO ECO3 960W 24V 40A three-phase industrial power supply
- 3025670000, PRO ECO3 960W 48V 20A three-phase DIN rail power supply
- 3025570000, PRO ECO single-phase 120W 24V 5A switching power supply
- 3025580000, PRO ECO single-phase 240W 24V 10A DIN rail power supply
- 1478110000, PRO MAX3 120W 24V 5A three-phase high-performance power supply
- 1478180000, PRO MAX3 240W 24V 10A three-phase DIN rail power supply
- 3025631000, PRO ECO3 240W 48V 5A three-phase switch mode power supply
- 1469540000, Previous generation PRO ECO3 240W 24V 10A three-phase power supply
