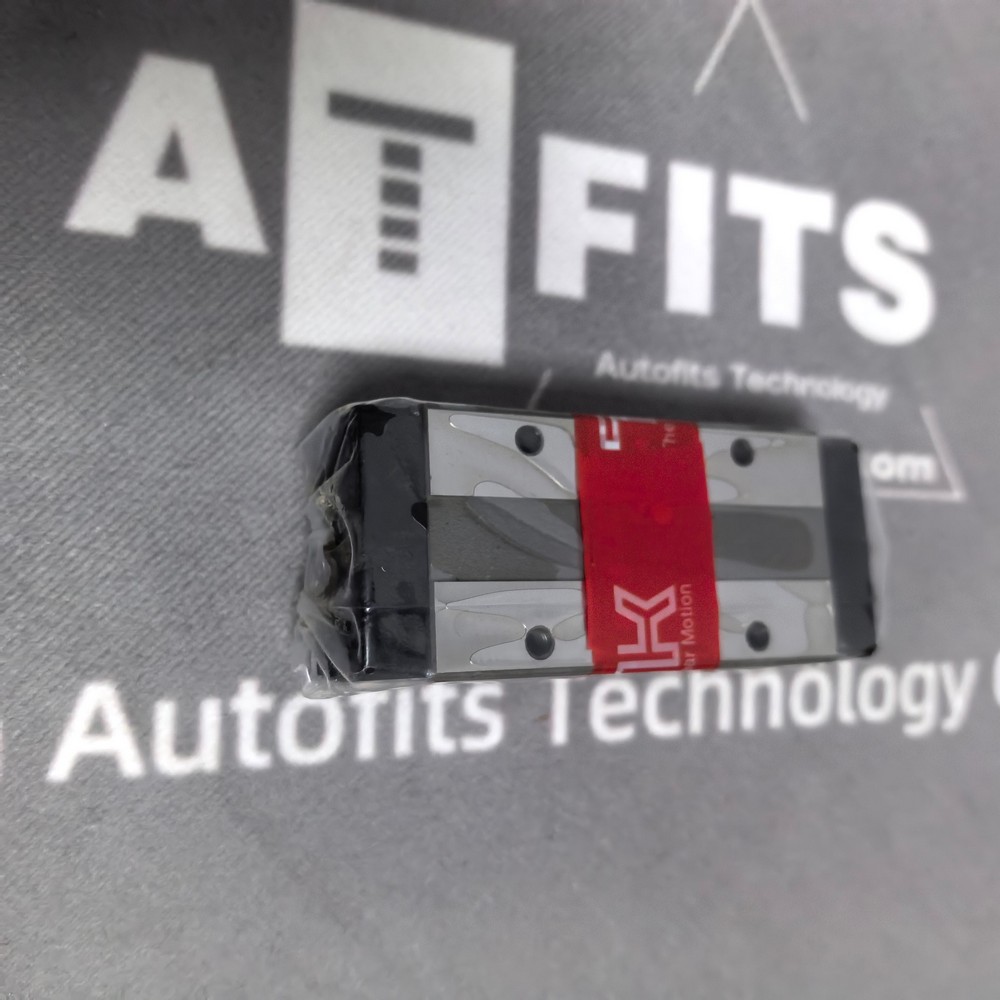

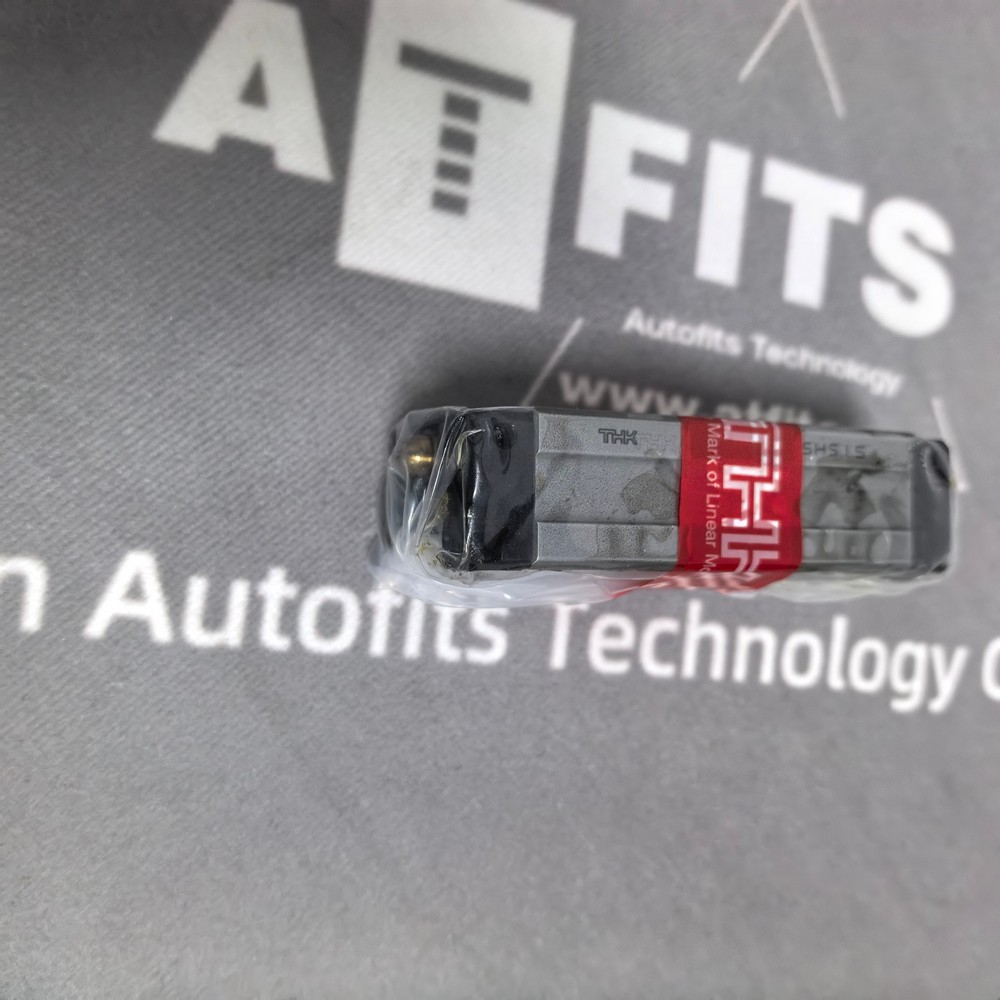

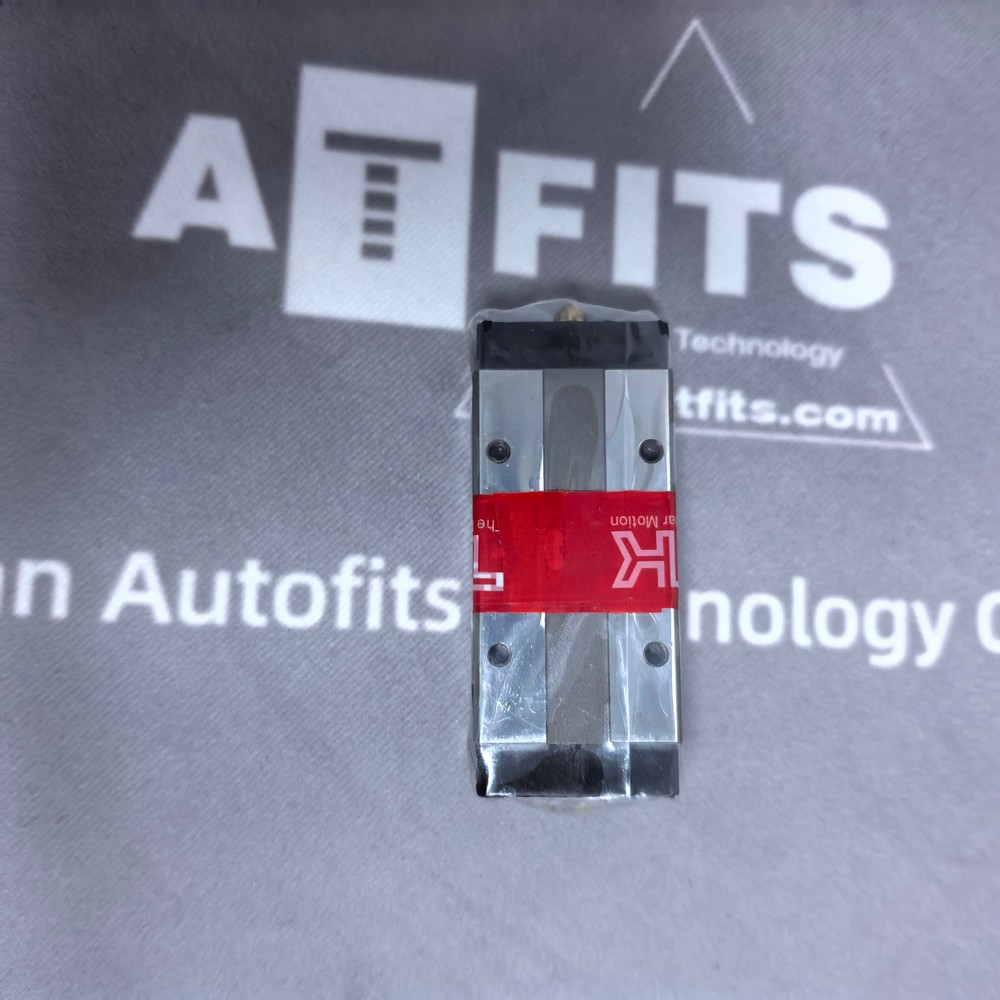

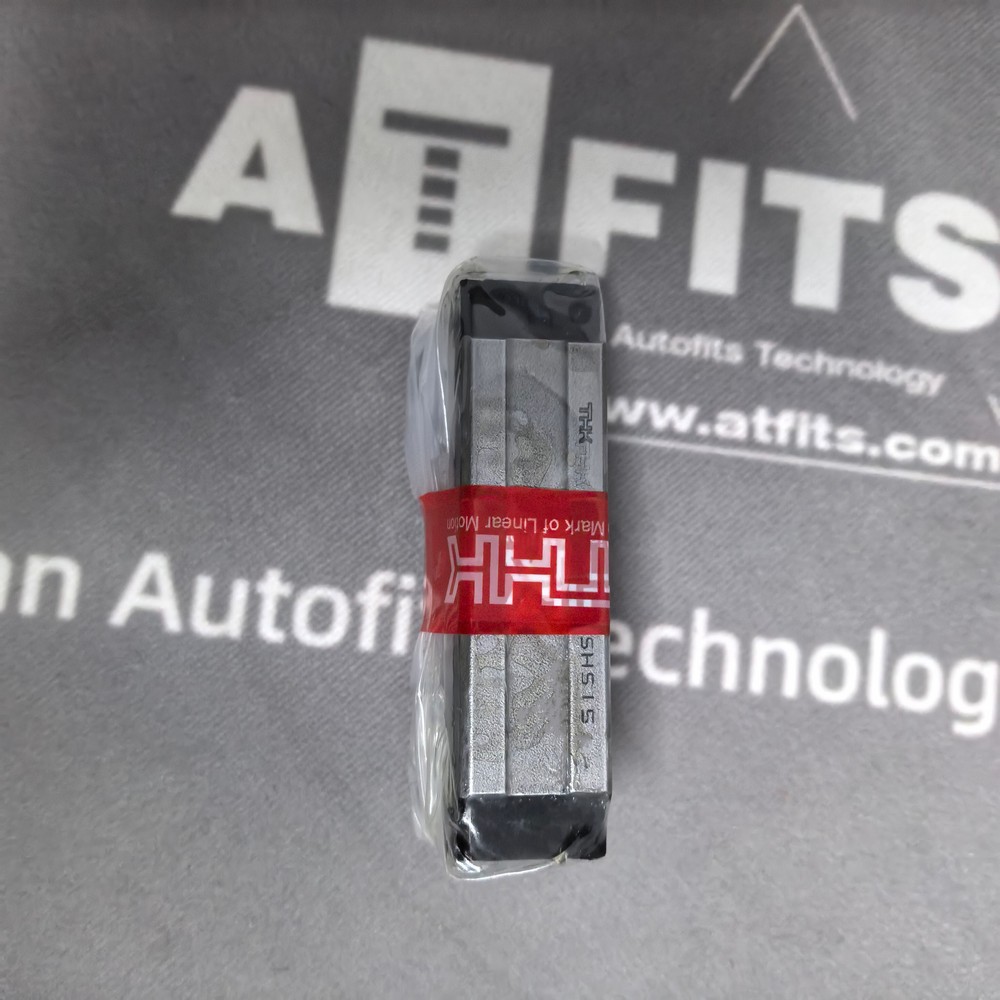

New Original THK SHS15LV1SS(GK) Linear Guide Block
Product Overview
This is an original THK SHS15LV1SS(GK) caged‑ball LM linear guide block from SHS series. The LV type represents long‑size square block structure, SS symbol indicates standard end‑seal dust‑proof configuration, and GK stands for global standard interchangeable specification. Equipped with ball retainer cage structure, it adopts four‑row 45‑degree contact angle ball circulation design. It delivers smooth low‑noise linear motion, high dynamic and static load capacity, and multi‑direction rigidity. Widely used in CNC machine tools, automation equipment, robotic mechanisms, inspection instruments, packaging machinery and other precision linear motion systems, matched with THK SHS15 series linear guide railTHK.
Main Functions
- Realize high‑precision, low‑friction reciprocating linear movement cooperating with matching LM guide rail.
- Bear loads from radial, reverse‑radial and two lateral directions, support multi‑orientation installation including horizontal, vertical and wall‑mounted arrangementdocs.rs-on
- Built‑in ball retainer cage avoids direct ball‑to‑ball contact, reduces wear, lowers noise and extends service life.
- SS end‑seal assembly prevents dust, metal chips and debris from entering internal ball circulation channel.
- Reserve grease nipple port for periodic lubrication maintenance to sustain stable running performance.
- DF‑arranged circular‑arc raceway provides self‑adjustment capability, absorbs minor mounting surface errors and maintains smooth motion under preload conditiondocs.rs-on
Technical Features
- Caged‑ball structure: Separates rolling balls, reduces collision noise, improves running stability and prolongs service cycle.
- Four‑row ball structure with 45° contact angle, equal load‑bearing capacity in four main directions, excellent multi‑direction rigidityTHK.
- DF‑type circular arc groove design, self‑compensates small installation misalignment without sacrificing motion smoothnessdocs.rs-on
- Standard SS end seals for dust‑proof protection in ordinary industrial workshop environment.
- GK interchangeable specification, blocks and rails can be freely combined within the same model specification.
- High‑strength carbon steel material, integral quenching heat‑treatment for raceway surface to achieve high hardness and wear resistance.
- Standard grease nipple for convenient grease refilling; support optional QZ long‑life lubrication unit.
- Available in multiple preload grades and precision grades to satisfy different accuracy‑level equipment requirements.
Core Technical Parameter Table
| Item | Specification |
|---|---|
| Model No. | SHS15LV1SS(GK) |
| Series | SHS Caged‑Ball LM Guide |
| Block Style | LV Long‑type Square Block |
| Dust‑proof Spec | SS Standard End Seal |
| Specification Code | GK Interchangeable Global Standard |
| Matching Rail Size | 15 |
| Basic Dynamic Load Rating (C) | 17.2 kN |
| Basic Static Load Rating (C₀) | 29.0 kN |
| Allowable Static Moment | MA:0.22 kN·m, MB:0.22 kN·m, MC:0.20 kN·m |
| Lubrication Port | Grease Nipple PB1021B |
| Applicable Preload | Standard / Light Preload C1 |
| Applicable Precision Grade | Normal, H High‑grade, P Precision‑grade |
| Material | Carbon Steel, Raceway Quenched |
Dimensions & Weight
| Parameter | Value |
|---|---|
| Block Overall Height (M) | 24 mm |
| Block Overall Width (W) | 34 mm |
| Block Overall Length (L) | 79.4 mm |
| Mounting Hole Spacing (Width) | 26 mm |
| Mounting Hole Spacing (Length) | 63 mm |
| Mounting Screw Size | M4 |
| Net Weight of Single Block | Approx. 0.22 kg |
10 Similar‑Function THK Linear Guide Blocks (SHS / HSR series caged‑ball & full‑ball LM blocks for 15‑size and adjacent sizes)
- THK SHS15V1SS(GK): Standard‑length square caged‑ball block, size15, SS dust seal, GK interchangeable, for general‑purpose precision automation equipment.
- THK SHS15LC1SS(GK): Long‑type flange‑mount caged‑ball block, size15, high load capacity, for installation with through‑mount holes.
- THK SHS15C1SS(GK): Standard‑length flange‑type caged‑ball block, size15, compact flange structure for limited‑height installation space.
- THK HSR15LV1SS: Long‑size square full‑ball linear guide block, size15, high rigidity, for heavy‑load CNC mechanical equipment.
- THK SHS20LV1SS(GK): SHS‑series long square caged‑ball block, size20, higher load rating for medium‑heavy‑duty motion mechanism.
- THK SHS15LR1SS(GK): Long‑type wide‑body square caged‑ball block, size15, enhanced lateral rigidity for offset‑load working condition.
- THK SSR15XW1SS: Compact radial‑type caged‑ball block, low‑profile structure, suitable for narrow‑space mechanical design.
- THK SHW17CR1SS: Wide‑flange caged‑ball linear block, low‑center‑of‑gravity design, good anti‑tilt performance for XY cross‑slide table.
- THK SHS25LV1SS(GK): Long‑size square caged‑ball block size25, super‑high load‑bearing, for heavy‑duty processing equipment.
- THK SHS15LV1UU(GK): Long‑type square block with double‑sided UU full‑dust‑proof assembly, improved dust‑resistance for dusty workshop environment.
