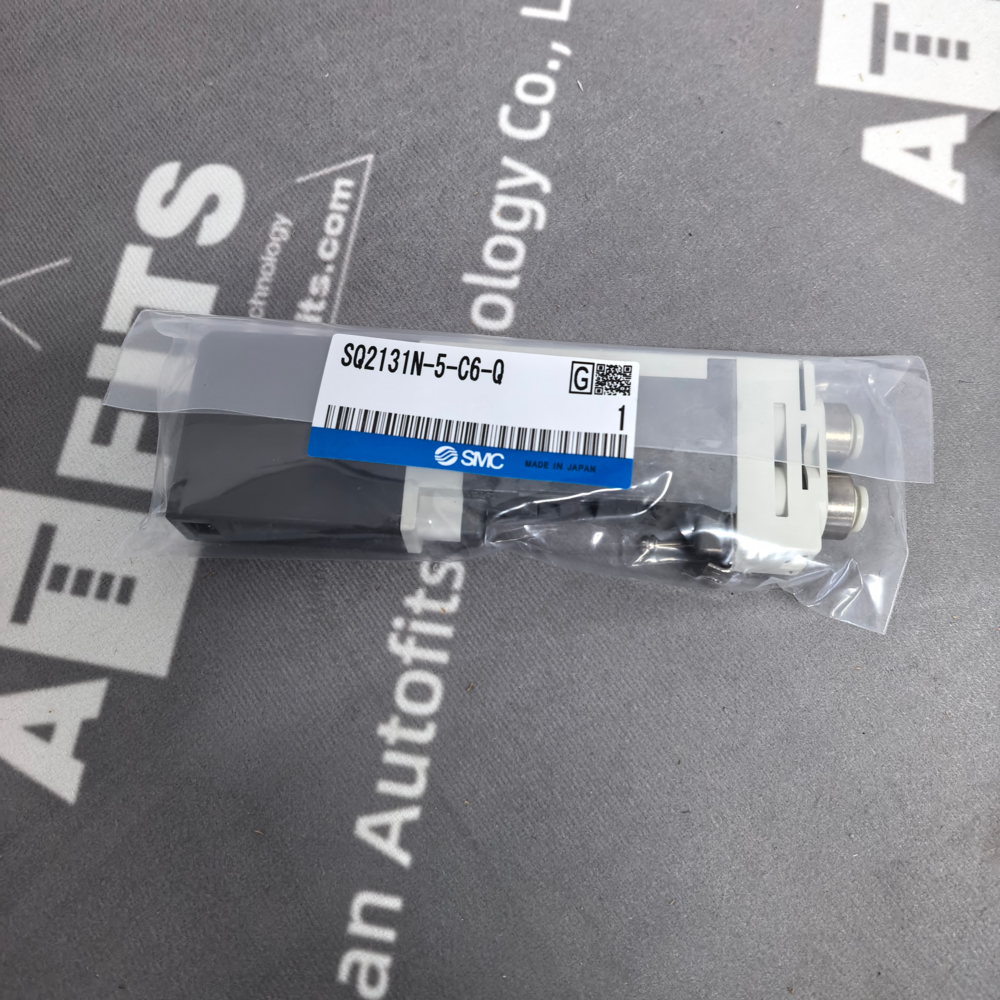

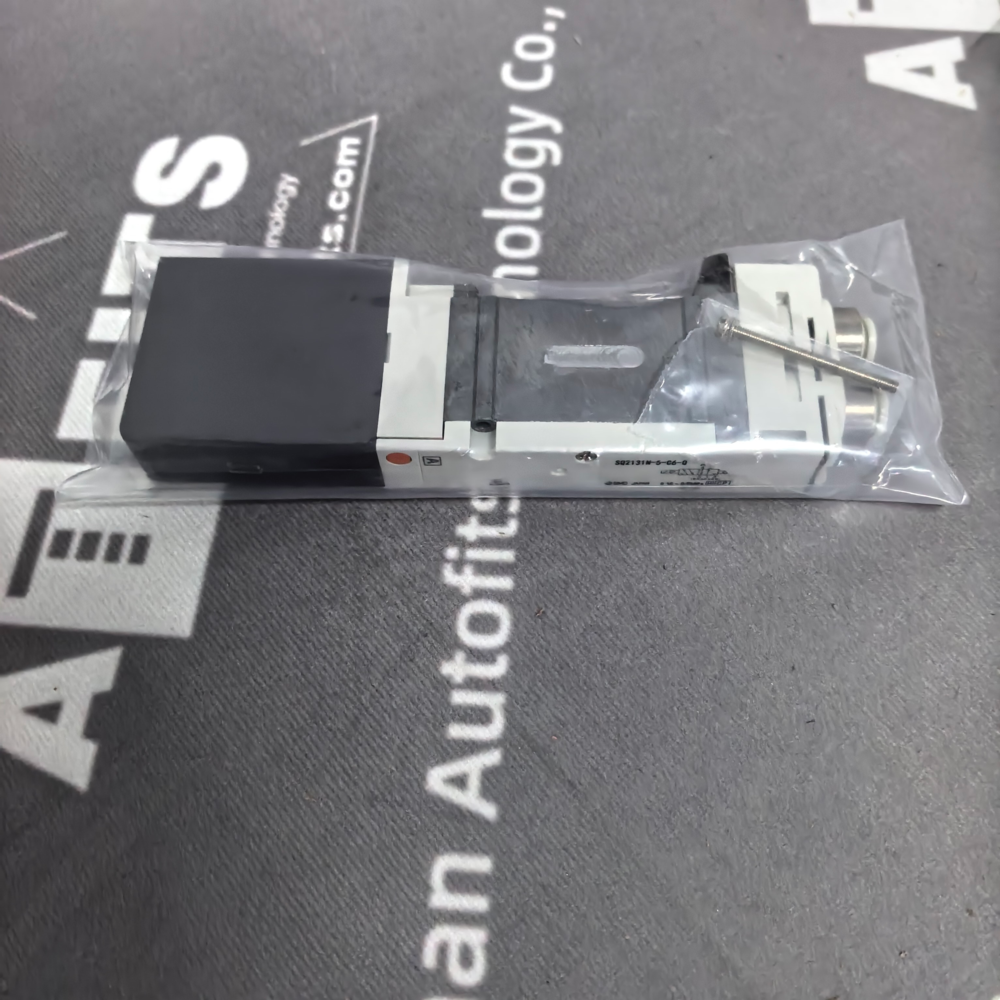

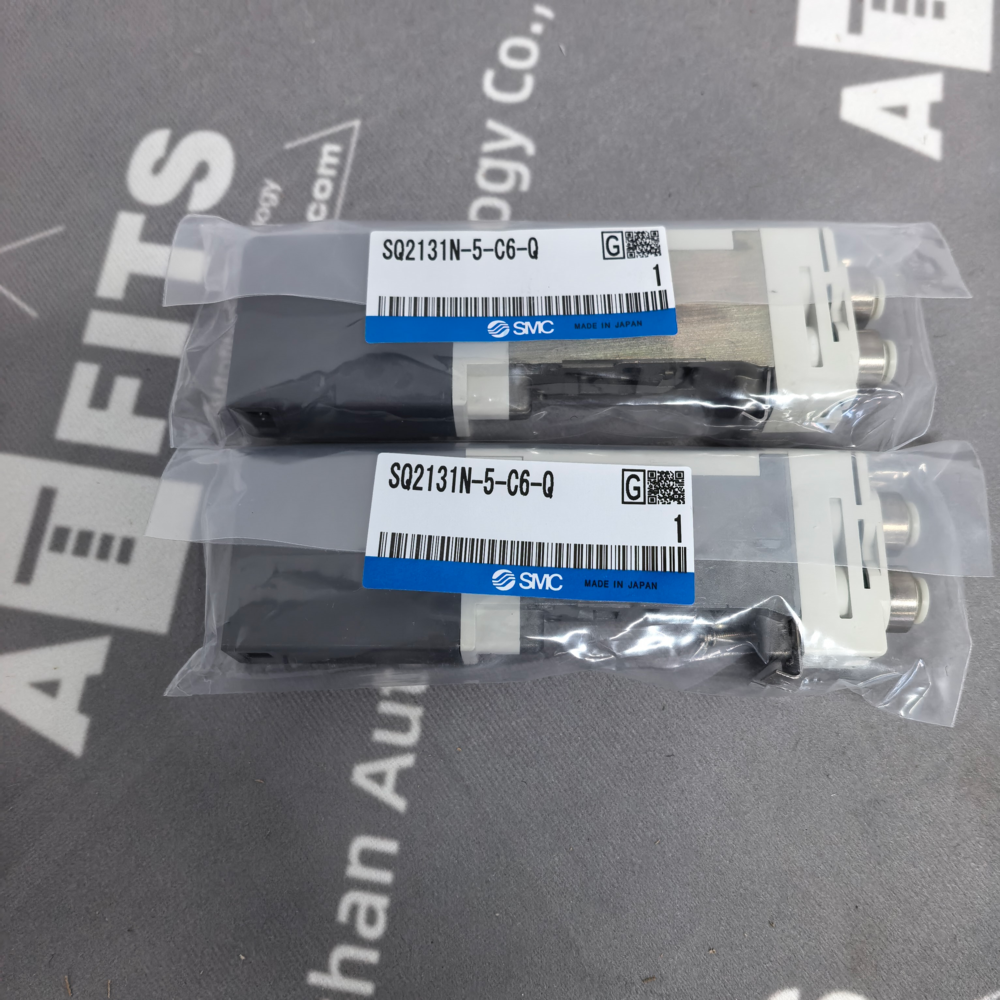

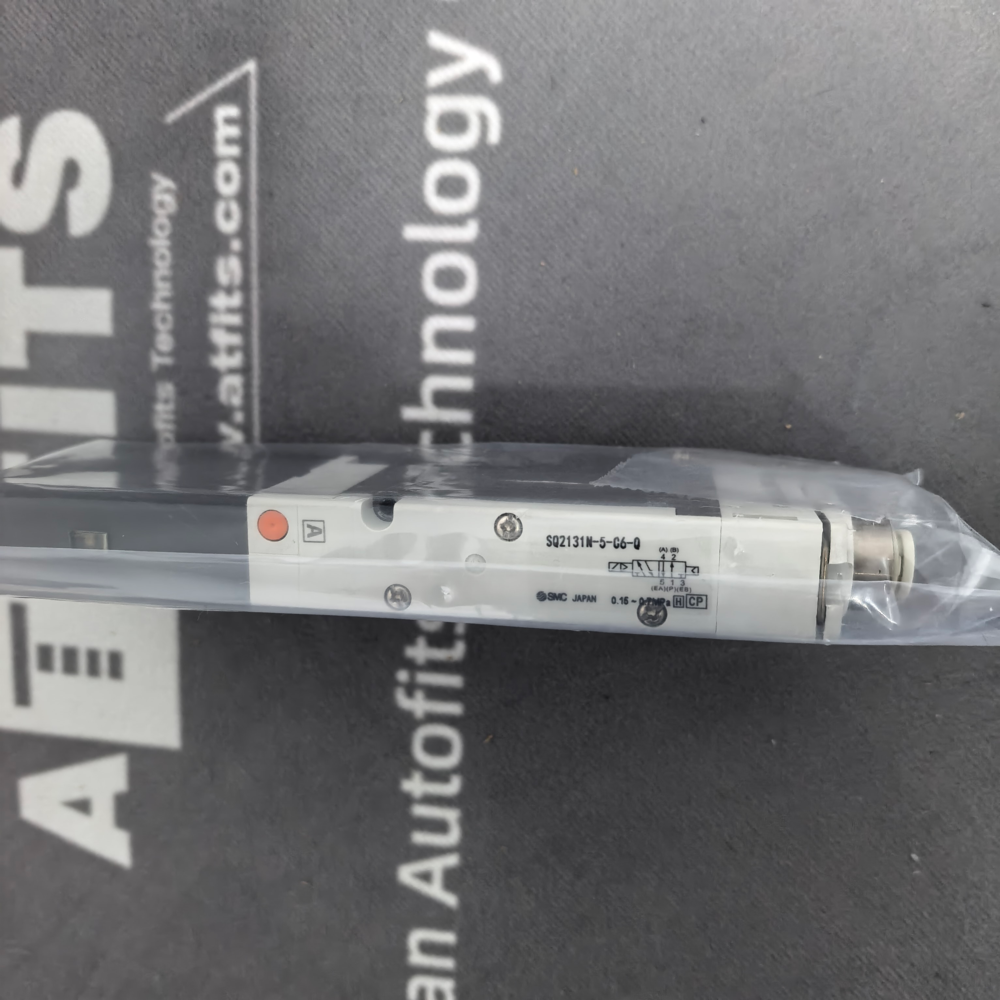

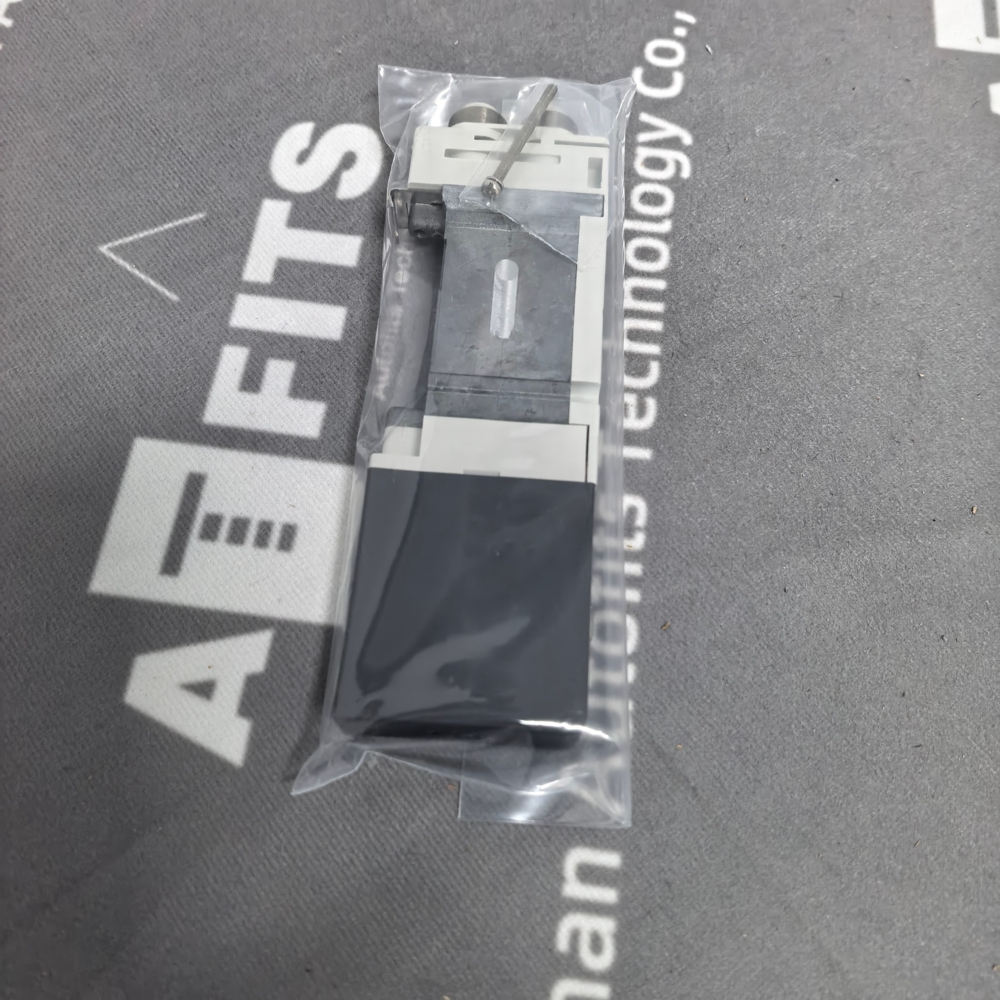

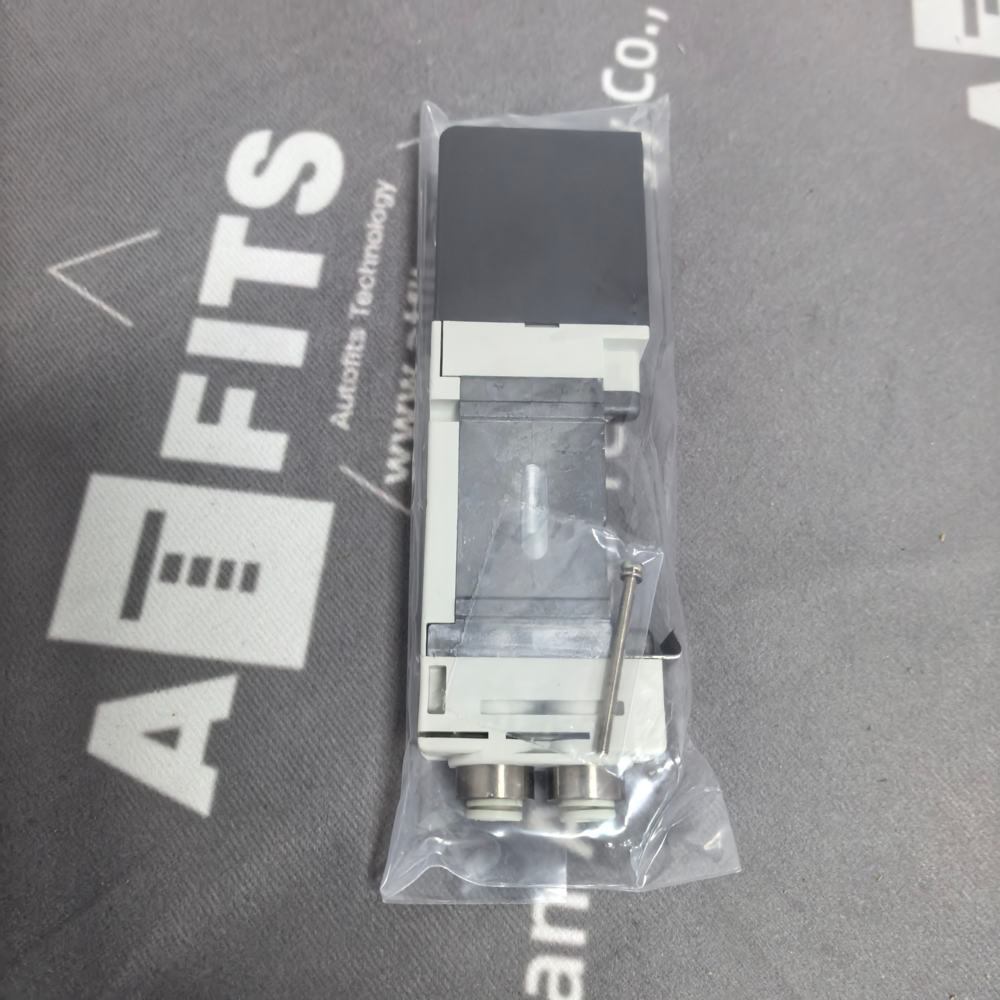

New Original SMC SQ2131N-5-C6-Q 5-Port Solenoid Valve
1. Product Overview
The SQ2131N-5-C6-Q is an original SMC 5-port 2-position single solenoid directional control valve belonging to the SQ2000 plug-in cassette series. Designed for high-speed, high-frequency switching applications in compact automation systems, this pneumatic valve adopts rubber seal structure with built-in one-touch push-in ports for 6 mm outer diameter pneumatic tubing. Powered by DC24V solenoid coil, it switches compressed air flow paths to drive small pneumatic cylinders, air grippers and other pneumatic actuators widely used in electronic assembly equipment, packaging machinery, testing fixtures, conveyor sorting systems and precision automated workstations. Its modular plug-in manifold design enables flexible station expansion, low power consumption and ultra-fast response speed, meeting long-cycle continuous operation requirements of modern miniature pneumatic control systems.
2. Main Functions
- Pneumatic flow direction switching: As a standard 5/2 way single solenoid spring return valve, it switches air channel to extend and retract pneumatic actuators; internal return spring resets spool automatically once electrical signal is cut off.
- Low-power electromagnetic driving: Only 0.4W power consumption for DC24V coil, effectively reducing overall power load of control cabinets.
- Built-in push-in tube connection: C6 specification integrated 6 mm one-touch ports realize tool-free quick tubing assembly and disassembly.
- Manual override function: Non-locking push manual button supports on-site commissioning and cylinder action testing without power supply.
- Modular manifold stacking: Multiple valves can be combined on shared DIN rail manifold base to realize centralized air supply and wiring arrangement.
- Stable air exhaust control: Independent exhaust channels with optional built-in silencer reduce operation noise during frequent switching.
- Reverse polarity protection: Internal circuit design prevents coil burnout caused by incorrect DC wiring on industrial sites.
3. Technical Specifications
| Item | Detailed Parameter |
|---|---|
| Complete Model | SQ2131N-5-C6-Q |
| Series | SMC SQ2000 Plug-in Cassette Solenoid Valve |
| Valve Specification | 5 Port, 2 Position, Single Solenoid, Spring Return |
| Sealing Type | Rubber Seal |
| Rated Coil Voltage | DC 24 V |
| Power Consumption | 0.4 W |
| Operating Pressure Range | 0.1 MPa ~ 0.7 MPa |
| Effective Flow Area | 0.40 ~ 0.71 mm² |
| Response Time | Less than 15 ms switching time |
| Port Configuration | Side ported with C6 one-touch fitting for Ø6 mm PU/PA tubing |
| Manual Override | Push-type non-locking manual button |
| Working Medium | Filtered compressed air or inert gas |
| Ambient Temperature | 0 °C ~ +50 °C |
| Protection Class | IP40 |
| Main Body Material | Die-cast zinc alloy; Spool: Resin composite |
| Seal Material | NBR rubber |
| Compliance Standard | CE certified |
4. Technical Features
- Ultra-compact slim body structure: Narrow 17mm width greatly saves installation space inside dense valve islands and small control cabinets.
- High-speed frequent switching performance: Optimized spool structure supports millions of high-cycle reciprocating switching with stable performance.
- Cassette plug-in design: Valves can be freely added or removed from manifold without disassembling the whole air circuit, convenient for system upgrading and maintenance.
- Low energy consumption design: Ultra-low wattage coil generates little heat, suitable for long-time uninterrupted operation.
- Integrated one-touch fittings: No extra threaded adapters needed, greatly shortening wiring assembly time on site.
- Low air leakage performance: Precisely matched rubber sealing components minimize internal and external compressed air leakage to cut energy waste.
- Multiple wiring options compatible: Matches D-sub connector, ribbon cable and serial bus wiring systems for diversified automation control layouts.
5. Product Dimensions & Net Weight
| Parameter | Value |
|---|---|
| Overall Dimensions (L × W × H) | 142 mm × 17 mm × 44 mm |
| Applicable Tubing Diameter | 6 mm outer diameter |
| Net Single Valve Weight | 145 g |
| Mounting Method | DIN rail manifold base stacking installation |
6. Ten SMC Similar Functional 5-Port Solenoid Valves
All listed items are original SMC plug-in directional control valves for pneumatic actuator driving with different configurations:
- SQ2131N-5-C4-Q: 5/2 single solenoid valve equipped with C4 port for 4 mm tubing, used for tiny flow miniature circuits.
- SQ2231N-5-C6-Q: 2-position double solenoid latching valve, keeps position stably after power cut for holding applications.
- SQ1131N-5-C6-Q: SQ1000 mini compact series valve with smaller outline for ultra-narrow installation space.
- SQ2331N-5-C6-Q: 3-position closed center 5-port valve for precise intermediate stop control of cylinders.
- SQ2131N-5-M5-Q: M5 threaded port version replacing one-touch fittings for fixed pipeline layout.
- SQ2131N-1-C6-Q: DC12V coil variant adapting to 12V DC control system power supply.
- SQ2131N-5-C6-S: Built-in silencer exhaust type to lower working noise for quiet workshop environments.
- VQZ2121-5M1-C6: VQZ series compact solenoid valve with enhanced anti-vibration performance for harsh vibration conditions.
- SQ2131N-5-C6-B: With back pressure check valve inside for vacuum circuit compatible scenarios.
- SQ2131N-5-C6-H: High temperature resistant sealing version stably working under up to +70 °C ambient temperature.
