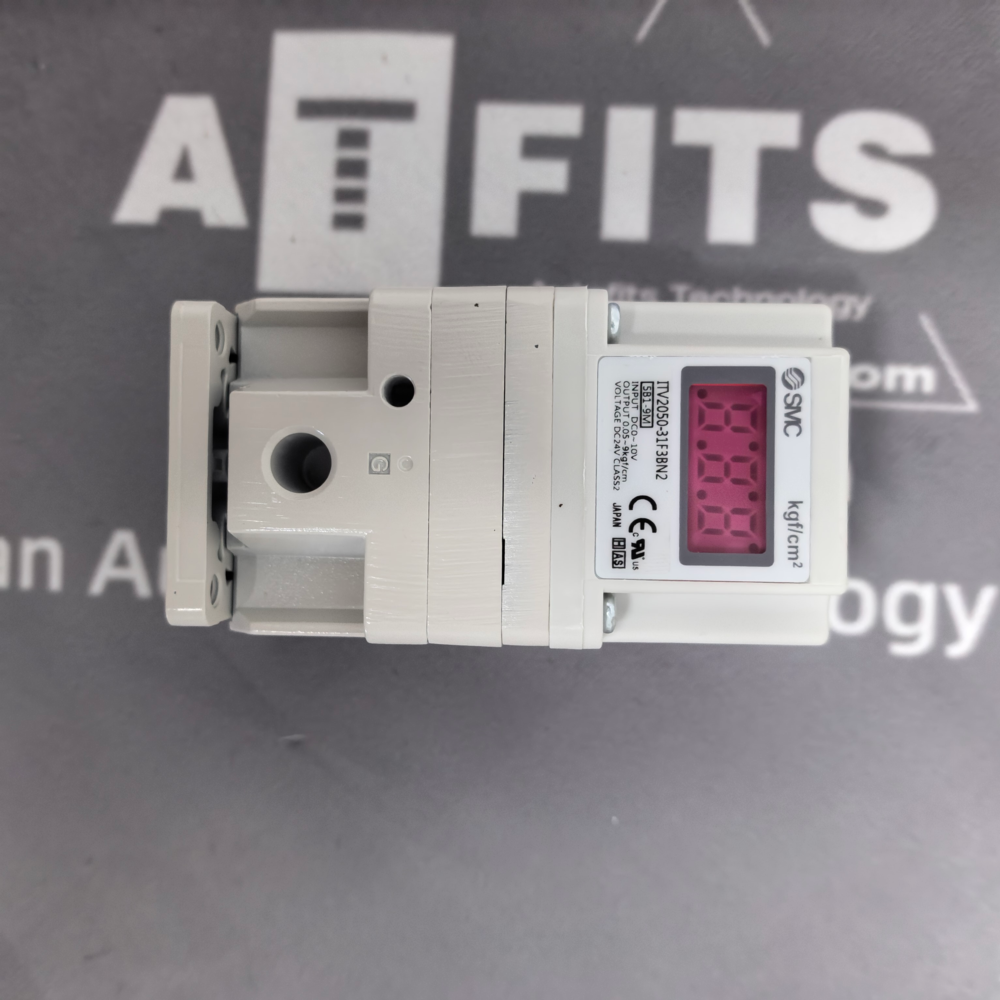

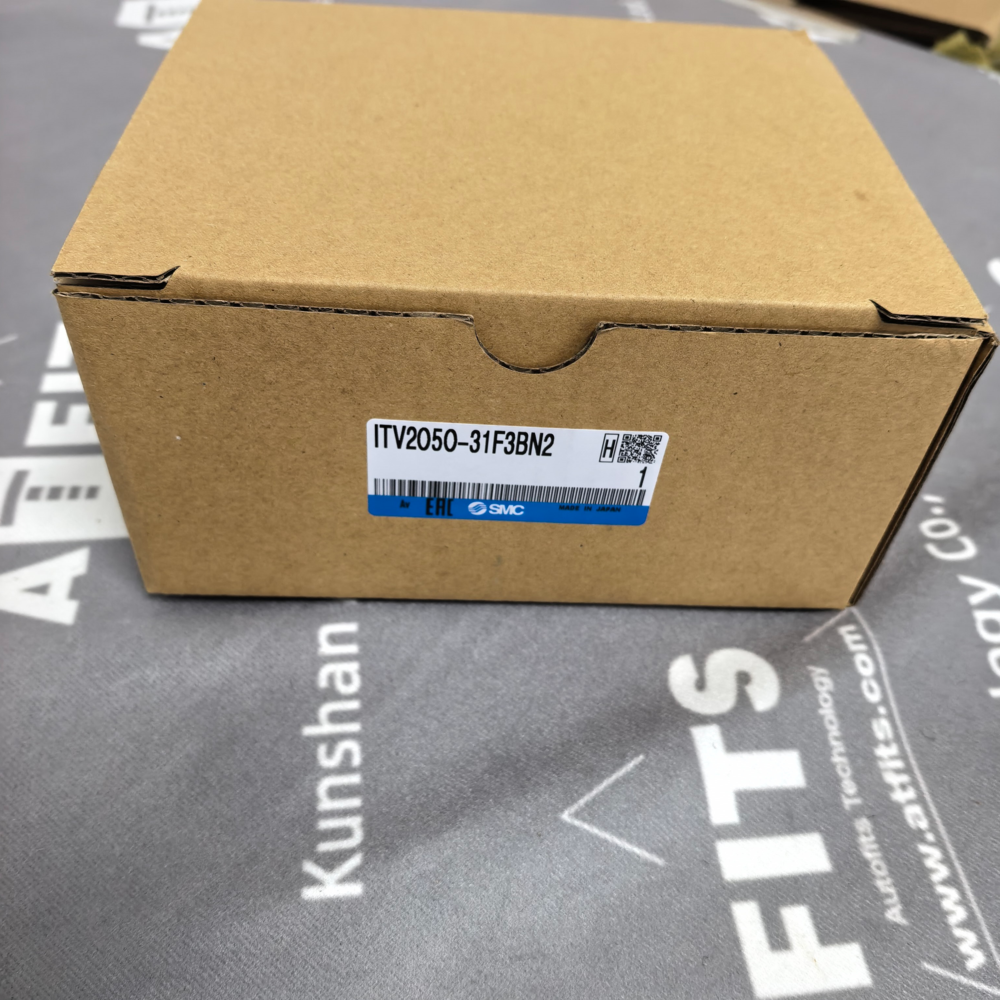

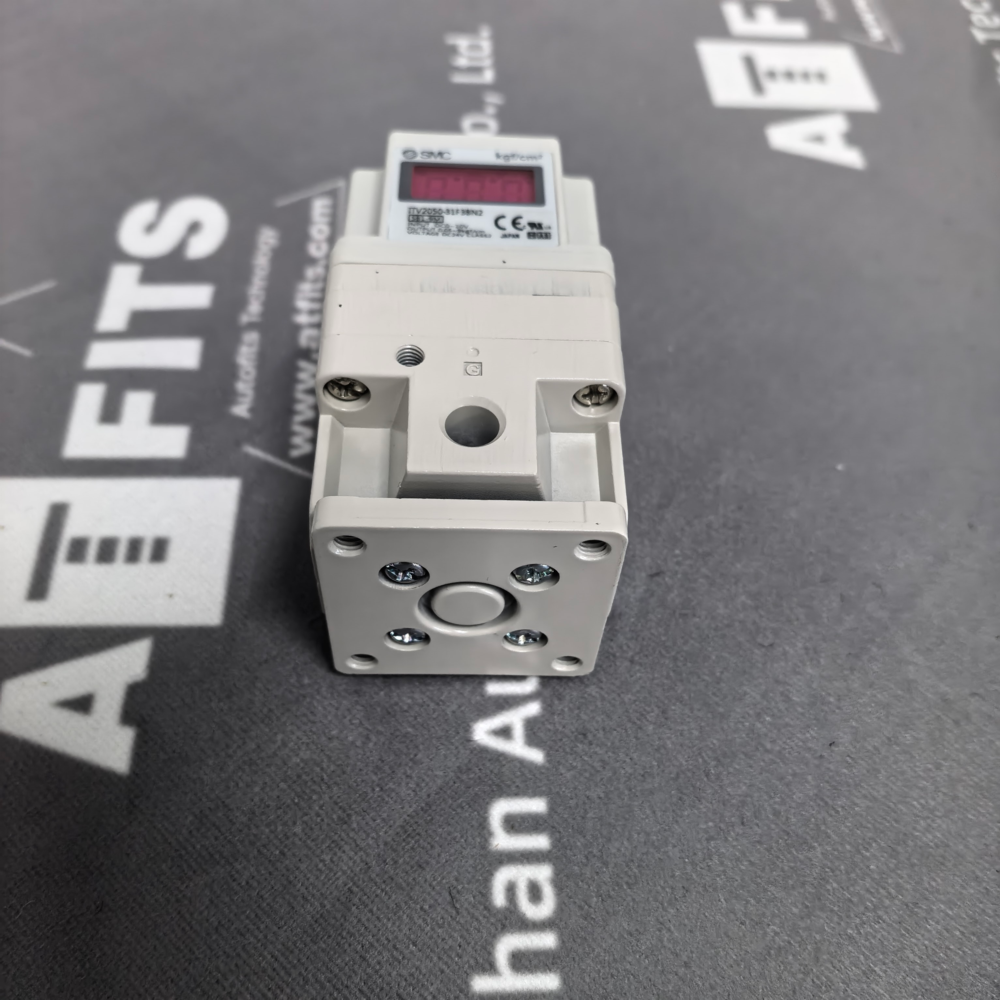

New Original SMC ITV2050-31F3BN2 Pneumatic Regulator
"*" señala los campos obligatorios
Detailed Product Introduction: New Original SMC ITV2050-31F3BN2 Electro-Pneumatic Proportional Regulator
1. Product Overview
The ITV2050-31F3BN2 is an original high-precision electro-pneumatic proportional regulator belonging to SMC ITV2000 series. It is also named electronic pressure regulator, which converts analog electrical control signals into stepless, proportional compressed air output pressure. This model adopts 4-20mA current input signal configuration, G1/4 port thread, built-in digital LED display, NPN alarm switch output and standard IP65 protection housing. Different from manual precision regulators, it realizes automatic continuous pressure adjustment through PLC industrial control signals without manual knob operation. It can stably maintain constant outlet pressure regardless of inlet air pressure fluctuation and flow variation. Widely applied in precision tension control, laser cutting equipment, coating spraying systems, semiconductor testing devices, injection molding auxiliary equipment, welding machinery and automated calibration platforms that require closed-loop precise pneumatic pressure control.
2. Main Functions
- Proportional electrical signal pressure conversion: Output air pressure changes linearly following 4–20mA analog input signal to achieve stepless continuous pressure regulation.
- Closed-loop pressure feedback control: Built-in high-sensitivity pressure sensor collects real-time outlet pressure data, automatically correct deviation to guarantee ultra-stable pressure output.
- Digital real-time pressure display: Onboard 3-digit LED screen shows actual output pressure value, supporting unit switching of MPa, kPa, bar and psi.
- Abnormal pressure alarm output: NPN open collector switch signal is triggered when actual pressure deviates greatly from preset value for fault prompt and equipment interlock protection.
- Internal preset pressure storage: 4 groups of fixed pressure values can be pre-stored for quick switching of different working pressure conditions.
- Automatic exhaust pressure relief: When input signal decreases, the valve automatically discharges redundant internal air to lower outlet pressure rapidly.
- Parameter lock function: All internal setting parameters can be locked to avoid accidental modification caused by vibration or misoperation.
3. Technical Specification Table
| Specification Item | Specific Parameter |
|---|---|
| Full Model | ITV2050-31F3BN2 |
| Product Category | Electro-Pneumatic Proportional Regulator |
| Pressure Adjustment Range | 0.005 ~ 0.9 MPa |
| Maximum Supply Inlet Pressure | 1.0 MPa |
| Input Control Signal | 4 ~ 20 mA DC Current Signal |
| Monitoring Output Signal | 4 ~ 20 mA DC Feedback Signal |
| Alarm Output Mode | NPN Open Collector Output |
| Port Thread Specification | G 1/4 Inch |
| Power Supply | 24 V DC |
| Power Consumption | ≤ 120 mA (Static State) |
| Linearity | ≤ ±1.0% Full Scale |
| Repeatability | ≤ ±0.5% Full Scale |
| Hysteresis | ≤ 0.5% Full Scale |
| Enclosure Protection Grade | IP65 |
| Working Medium | Dry Filtered Compressed Air |
| Ambient & Fluid Temperature | 0 °C ~ 50 °C (No internal condensation allowed) |
| Main Body Material | Die-cast Aluminum Alloy + Engineering Plastic |
| Sealing Component Material | Nitrile Rubber |
| Compliance Certification | CE, RoHS, UKCA |
4. Overall External Dimensions & Net Weight
External Dimensions (Unit: Millimeter)
- Total overall height: 104
- Overall width: 50
- Overall depth: 62
- Inlet and outlet port center distance: 38
- Digital display panel width: 26
- Mounting groove width for DIN rail bracket: 6 mm
Net Weight
Net weight of single unit without accessories: 390 grams

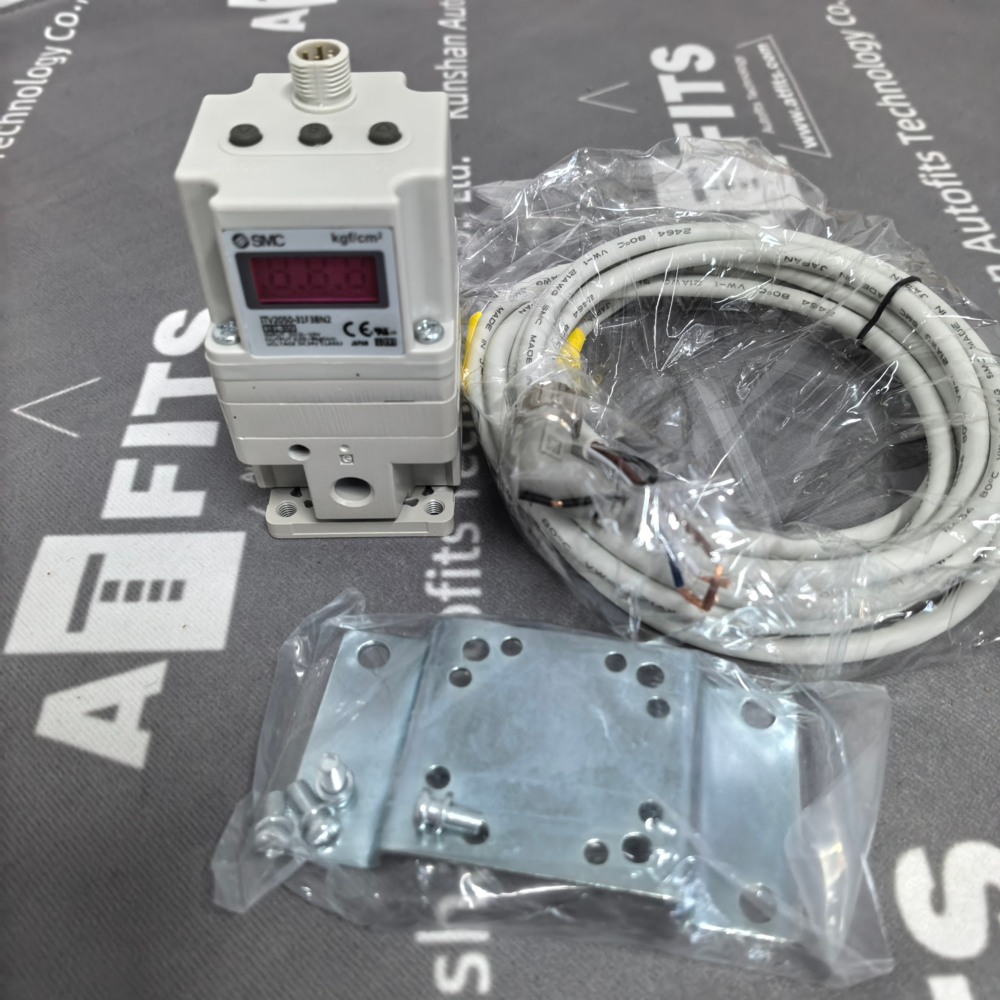

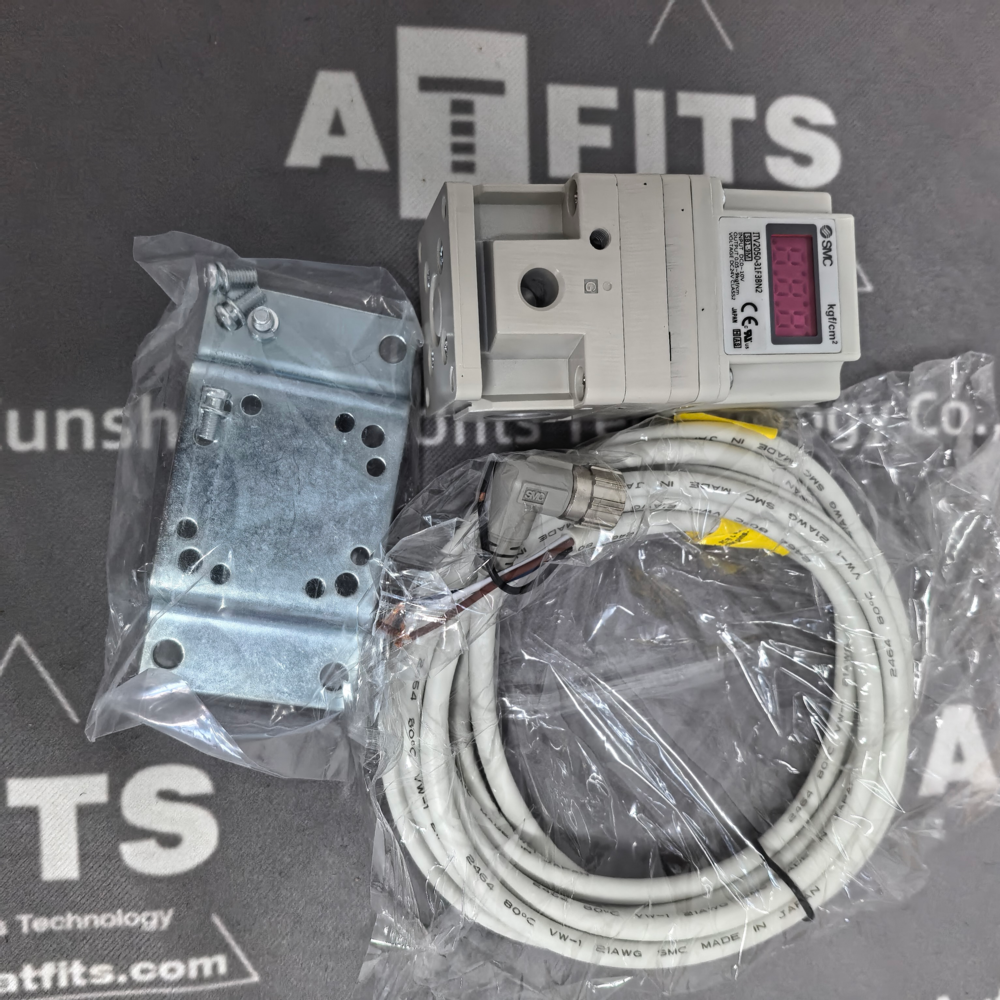

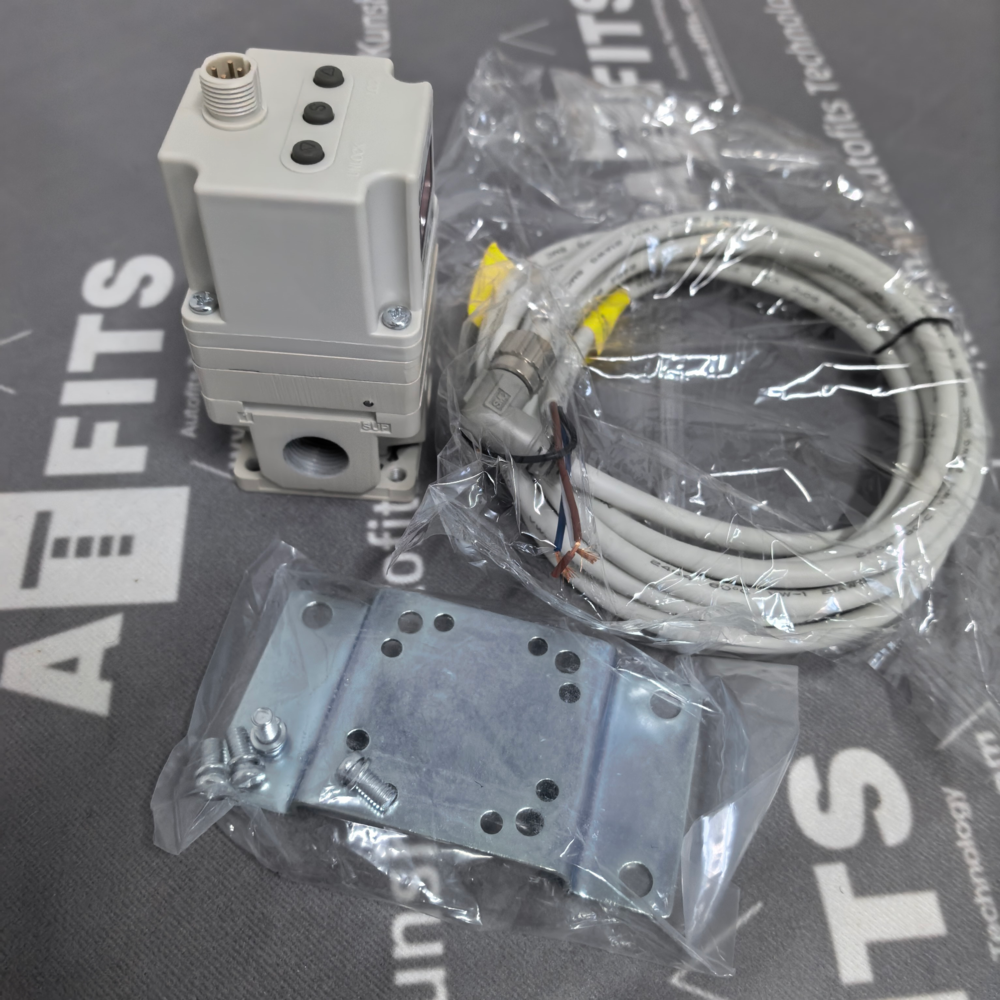

Total weight equipped with standard mounting bracket and cable connector: 435 grams
5. Core Technical Features
- High-precision closed-loop control system: Built-in high-resolution pressure sensing chip ensures tiny pressure fluctuation, perfectly matching precision process production requirements.
- Compact integrated modular design: Small overall volume, supporting panel mounting, DIN rail mounting and manifold stacking installation to adapt to various equipment layout spaces.
- Dustproof and waterproof IP65 structure: Sealed housing can be used in slightly dusty, humid workshop environments without extra protective cover.
- Fast response adjustment speed: Rapid intake and exhaust structure shortens pressure rise and fall time, suitable for high-frequency cyclic pressure switching working conditions.
- Multiple unit display switching: Users can freely switch pressure display units according to regional industrial usage habits.
- Complete internal circuit protection: Equipped with reverse power connection protection, surge voltage resistance and short-circuit protection to prolong service life.
- Low air consumption design: Minimal steady-state air loss after pressure stabilization, effectively reducing factory compressed air energy consumption.
- Strong anti-vibration performance: Internal components are fixed with shock-absorbing structure, pressure will not drift under long-term equipment vibration.
6. Ten SMC Similar Functional Electro-Pneumatic Regulator Products
All items listed below are SMC original ITV series proportional electronic pressure regulators with automatic signal-controlled pressure adjustment function, differing in pressure range, input signal type, flow capacity, communication mode and structural configuration:
- ITV2050-31F2BN2: 0–10V voltage input type proportional regulator with identical pressure range and port size
- ITV2030-31F3BN2: Medium pressure range version, adjustable pressure 0.005~0.5 MPa for low-load precision control
- ITV1050-31N2: Miniature small-flow proportional regulator, compact body for tiny precision automation equipment
- ITV3050-31F3BN2: Large-flow high-output proportional regulator, maximum air flow 4000 L/min for large pneumatic execution systems
- ITV2050-31F3BN4: IO-Link communication type digital proportional regulator supporting industrial bus network control
- ITV2050-31F3BN2-X177: Enhanced alarm function version with extended pressure deviation monitoring time
- ITV2050-01F3BN2: Rc1/8 small thread port proportional regulator for miniature pipeline connection
- ITV2090-31F3BN2: Ultra-wide pressure range high-precision regulator applicable to special process pressure adjustment
- ITV2050-31F3BN2-G: Complete set equipped with DIN rail mounting bracket and standard connecting cable
- ITV2050-31F3BN2-S: Corrosion-resistant internal component version for slightly corrosive gas environment application
