New Original Siemens SAS61.03 Electric Valve Actuator
Product Overview

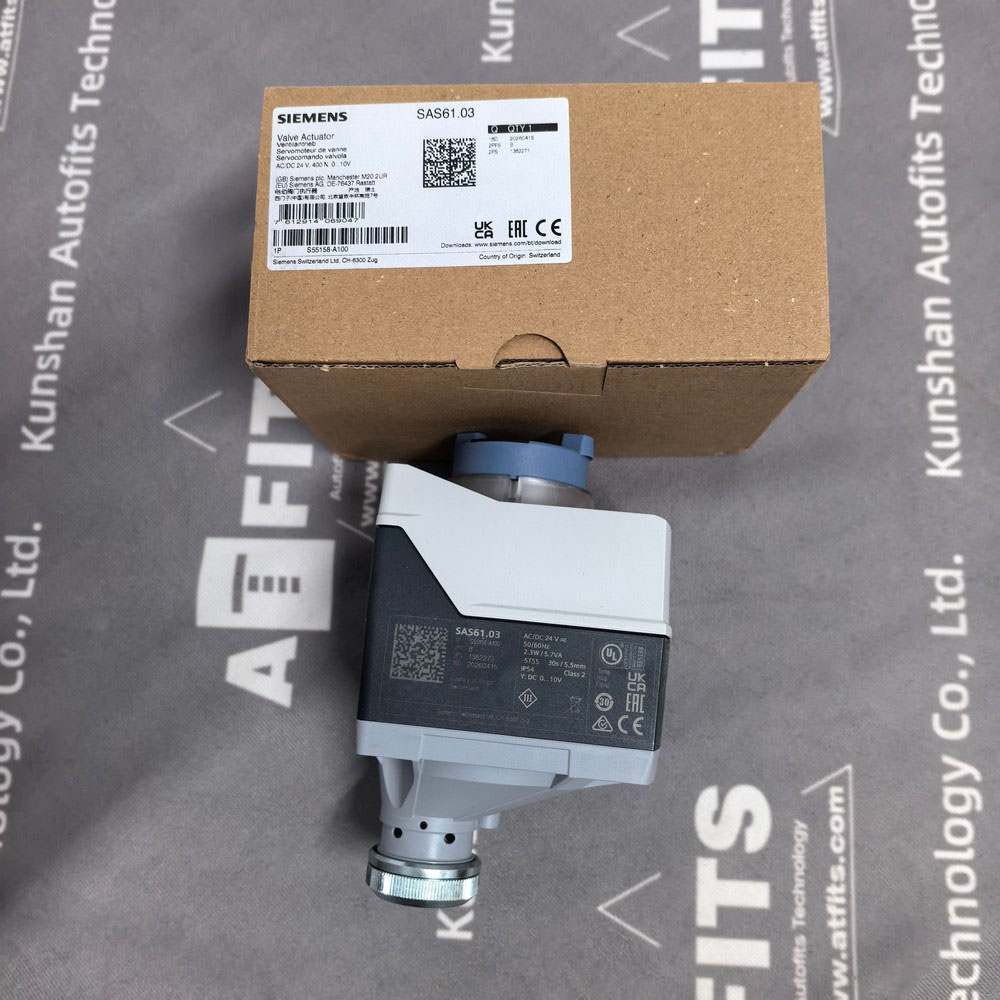

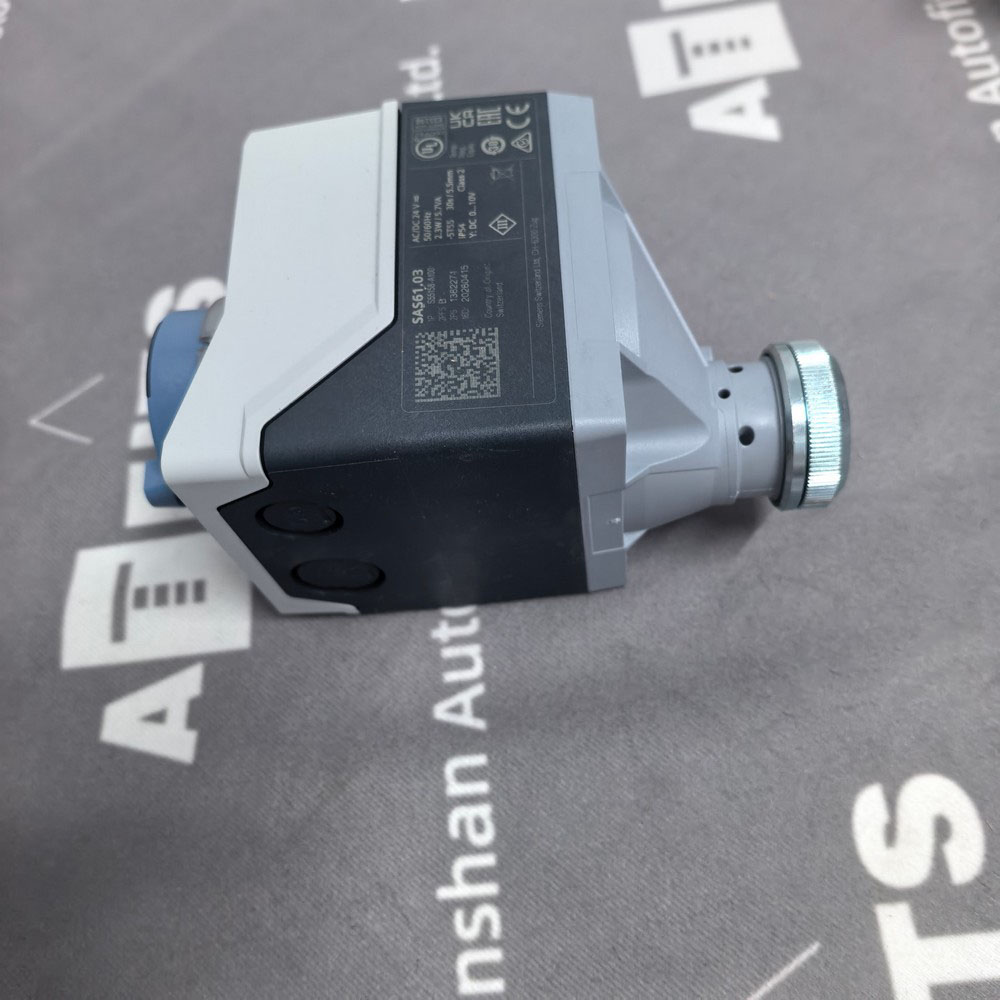

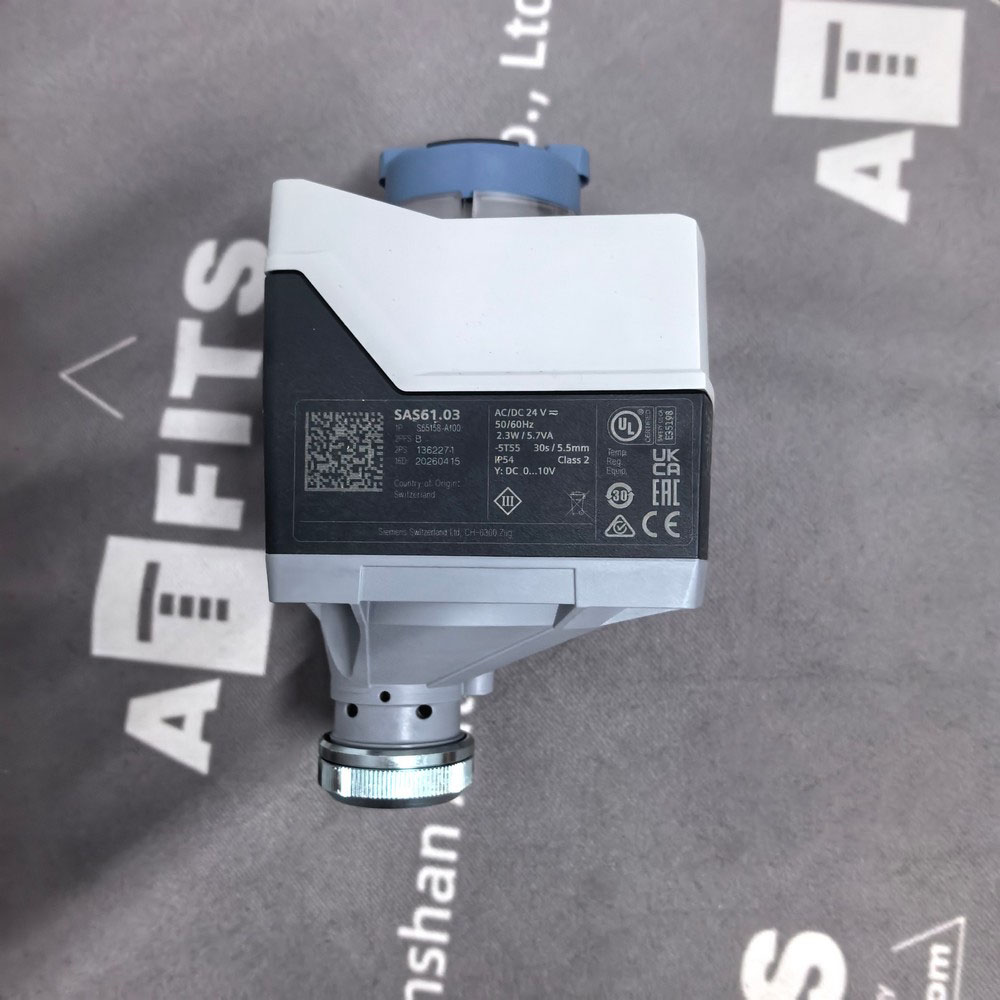

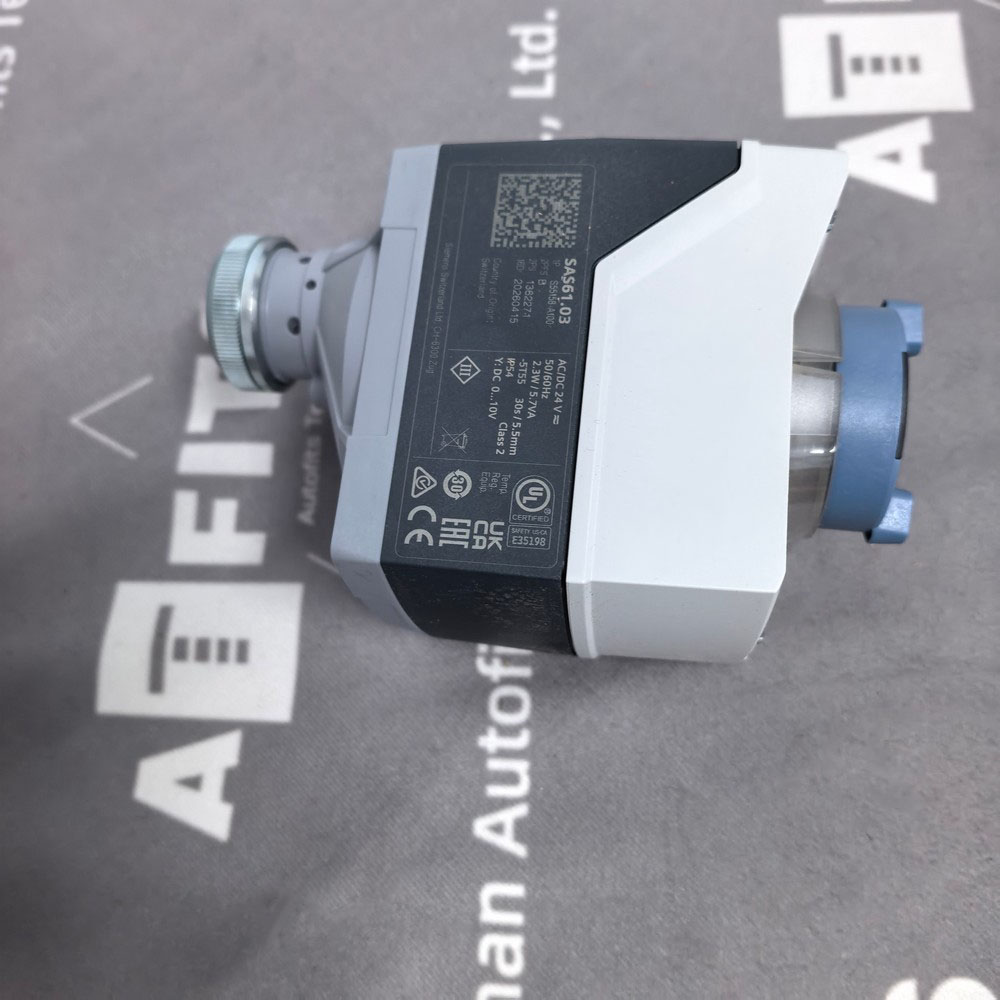

This is an original Siemens ACVATIX SAS61.03 non‑spring‑return electromotoric stroke valve actuator, delivering 400 N positioning force with 5.5 mm nominal strokehit.sbt.si…. It runs on AC/DC 24 V power supply and accepts 0‑10 V DC or 4‑20 mA modulating control signals, meanwhile providing 0‑10 V DC position feedback signal. It directly mounts on Siemens VVG44, VXG44, VVG55 series 2‑port and 3‑port modulating valves, widely used in HVAC heating, cooling, chilled‑water and hot‑water circulation systems for building automation, heat‑exchange stations and air‑handling unit water‑loop flow regulationdocs.rs-on…. No spring‑return function; the actuator stays in‑place upon power loss.
Main Functions
- Proportional modulating drive for linear‑stroke control valves, continuously adjust valve opening according to analog control signal.
- Output 0‑10 V DC real‑time valve‑position feedback signal for upper‑level controller closed‑loop monitoring.

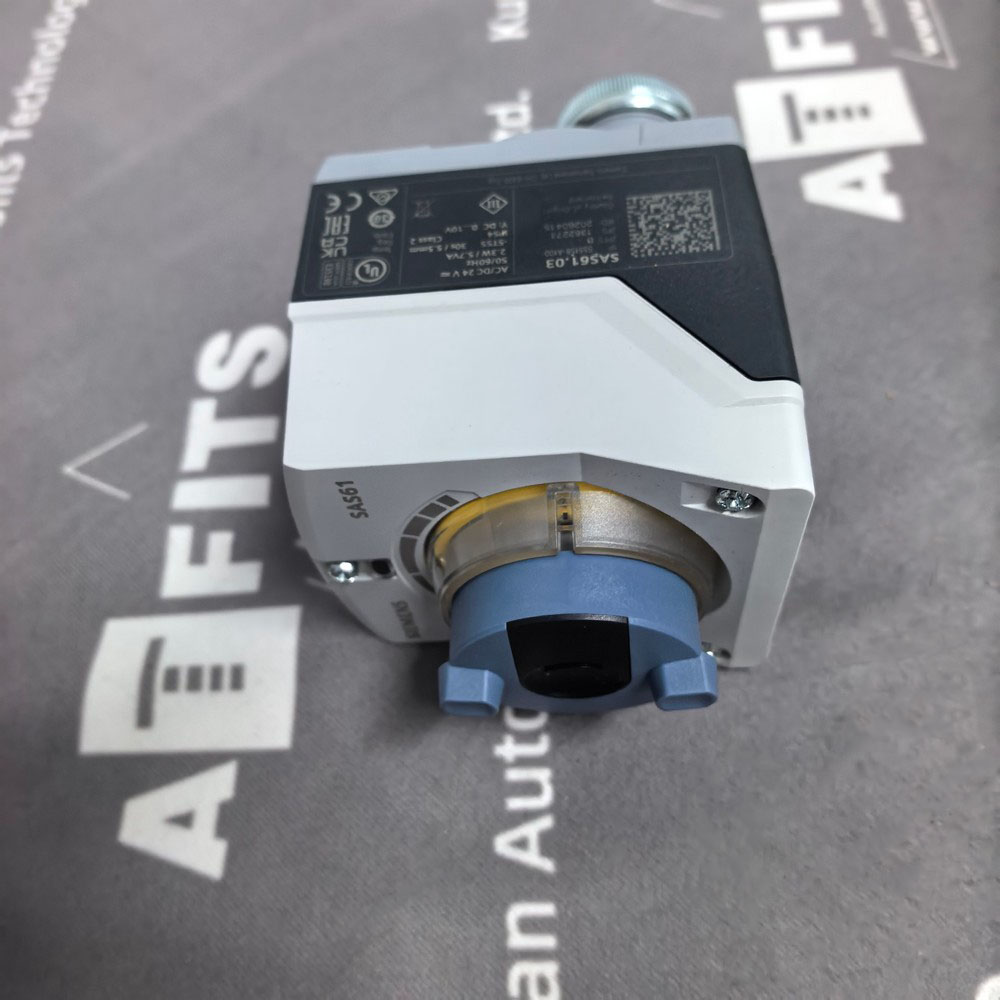

- Built‑in manual override knob for manual valve position adjustment during commissioning, debugging or maintenance.
- Visual position indicator shows current valve opening status on‑site.
- Support optional auxiliary switch ASC10.51 for additional limit‑position signal output.
- Tool‑free direct mounting for matched valve bodies; compatible with legacy valves by using ASK30 adapter kithit.sbt.si
- Parallel multi‑actuator driving is available for multi‑valve synchronous control within system design limits.
Technical Features
- 400 N positioning force, 5.5 mm nominal stroke, full‑stroke running time 30 secondshit.sbt.si
- Non‑spring‑return (fail‑in‑place) design; keeps current position when power supply fails.
- Dual‑input support: DC 0‑10 V or DC 4‑20 mA control signal; 0‑10 V DC position feedback output.
- Operating power supply AC/DC 24 V, wide input voltage tolerance.
- IP54 protection rating, suitable for indoor HVAC equipment cabinet installationhit.sbt.si
- Manual adjuster with position lock function for on‑site setup.
- Compact housing structure, multiple mounting orientations from upright to horizontal.
- Compliant with CE, RoHS and EN 60730 safety standards for building automation equipment.
Core Technical Parameter Table
| Item | Specification |
|---|---|
| Model | SAS61.03 |
| Actuator Type | Electromotoric modulating stroke actuator, non‑spring‑return |
| Nominal Stroke | 5.5 mm |
| Positioning Force | 400 N |
| Full‑stroke Running Time | 30 s |
| Power Supply | AC/DC 24 V |
| Power Consumption | 5.7 VA, 2.3 W; quiescent power 1.8 Whit.sbt.si… |
| Control Input Signal | DC 0‑10 V / DC 4‑20 mA |
| Position Feedback Signal | DC 0‑10 V |
| Spring‑Return Function | No (fail‑in‑place) |
| Manual Override | Yes, with position lock |
| Protection Class | IP54 |
| Operating Ambient Temperature | ‑5 ℃ ~ +55 ℃ |
| Allowable Medium Temperature | 1 ℃ ~ +130 ℃ |
| Relative Humidity | 5 %‑95 % RH, non‑condensing |
| Compatible Valves | VVG44, VXG44, VVG55, VVG549 series 2‑port / 3‑port valves |
| Optional Accessory | ASC10.51 auxiliary switch, ASK30 adapter kit |
| Compliance | CE, RoHS, EN 60730 |
Dimensions & Weight
| Parameter | Value |
|---|---|
| Overall Dimensions (W × H × D) | 160 mm × 124 mm × 153 mmhit.sbt.si… |
| Net Weight | Approx. 0.40 kggeytec.com |
10 Similar‑Function Siemens Electric Valve Actuators
- Siemens SAS61.33: 400 N, 5.5 mm stroke, 24 V modulating actuator with spring‑return safety function, for heating‑system fail‑safe requirements.
- Siemens SAS61.03/MO: SAS61 series modulating actuator with Modbus RTU RS‑485 communication, supports bus control mode.
- Siemens SAS81.03: 400 N,5.5 mm stroke, AC/DC24 V three‑position floating‑control actuator, for simple open‑close adjustment scenarios.
- Siemens SAS31.03: 400 N,5.5 mm stroke, AC230 V power supply, three‑position control, for 230V HVAC control cabinets.
- Siemens SAS81.33: 400 N,5.5 mm stroke, 24V three‑position with spring‑return, for safety‑related water‑loop cut‑off application.
- Siemens SAT61.03: Compact 400 N stroke actuator, 5.5 mm stroke, 24 V modulating, optimized for narrow‑space installation environment.
- Siemens SAX61.03: 800 N, 20 mm stroke modulating actuator, for VVF42 series DN25‑DN100 flange globe valves, large‑size HVAC pipelineshit.sbt.si….
- Siemens SKD62: 1000 N electromotoric modulating actuator, 20 mm stroke, for medium‑large‑size globe valves in central heating stations.
- Siemens SAS61.53: 400 N,5.5 mm stroke, modulating spring‑return actuator with enhanced safety performance for critical‑loop HVAC systems.
- Siemens SAY61P03/MO: Modbus‑enabled modulating stroke actuator, supports digital bus communication for building‑automation centralized management.
