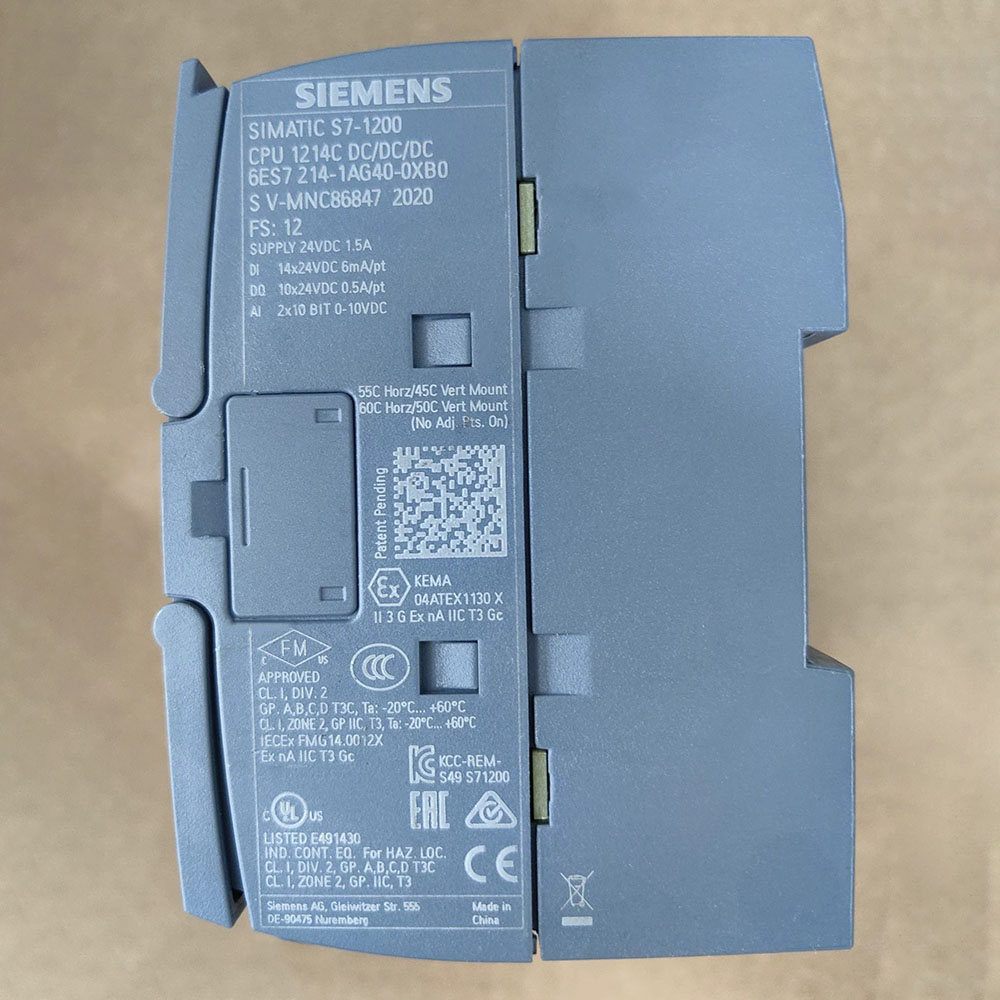

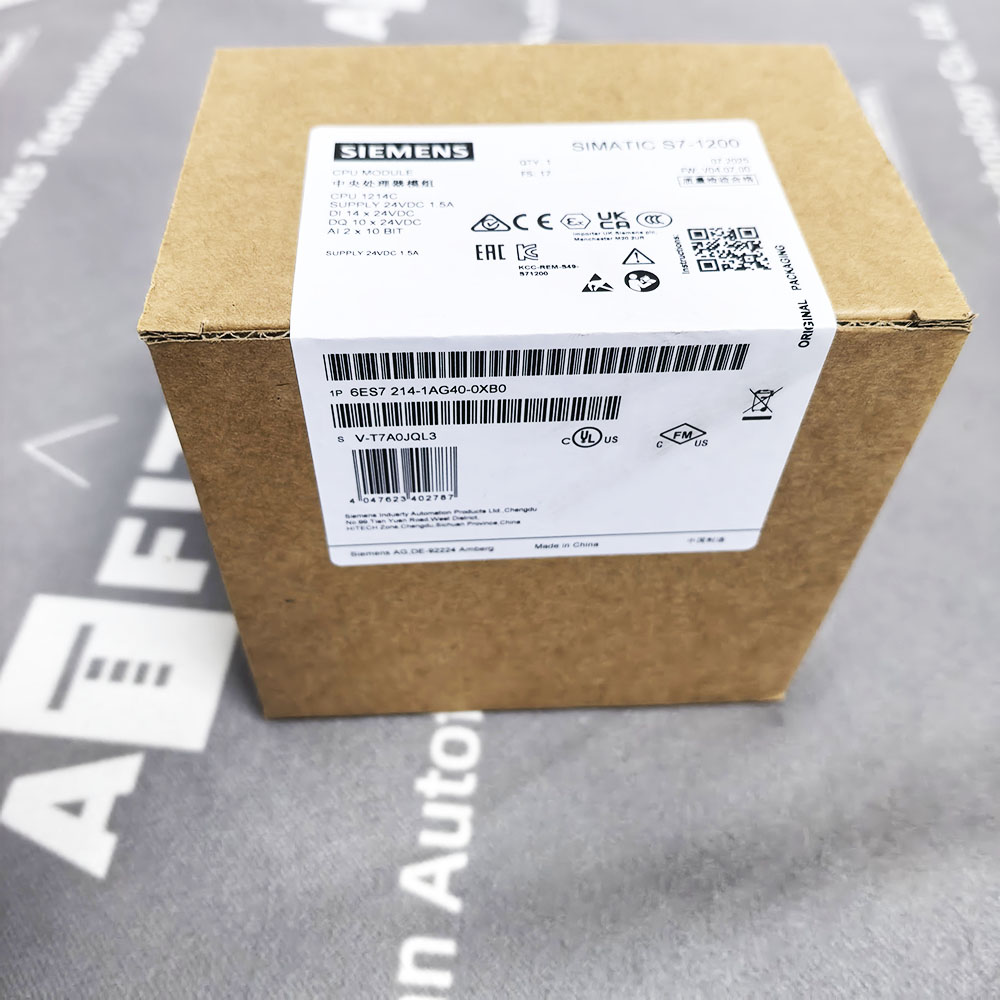

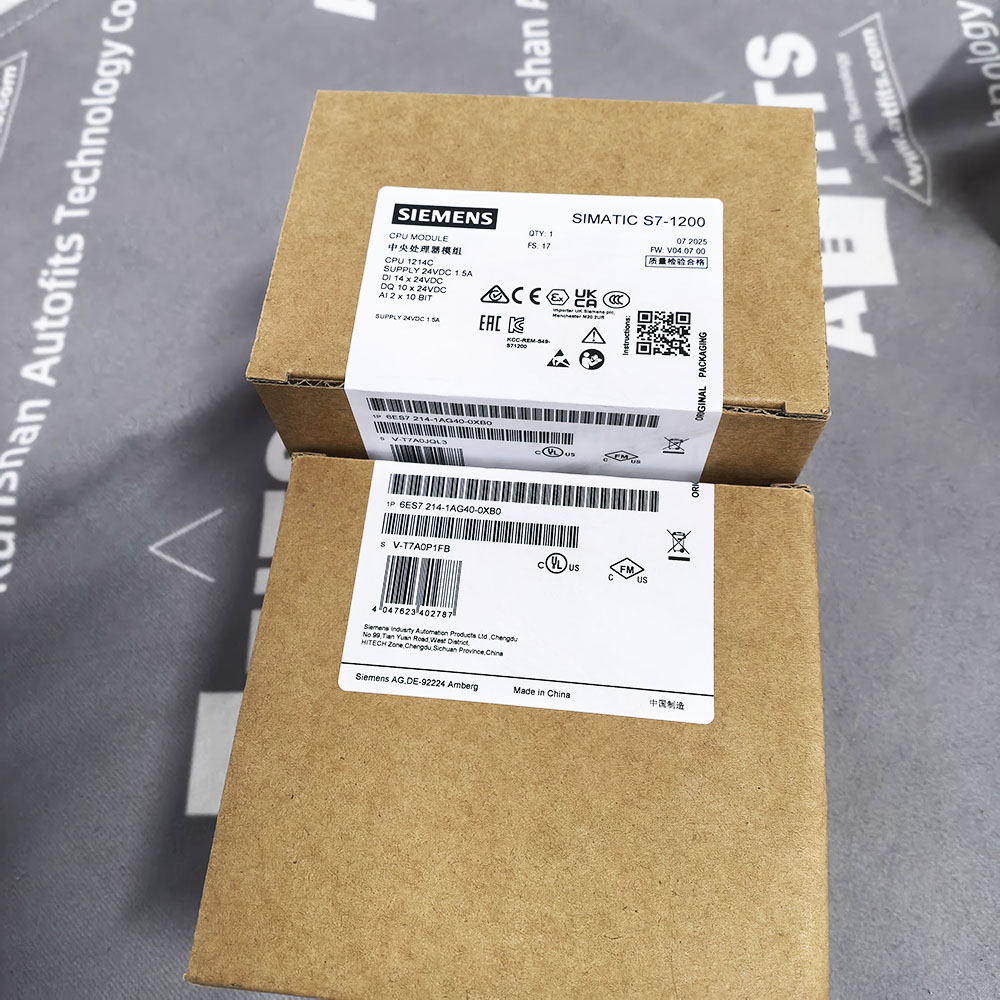

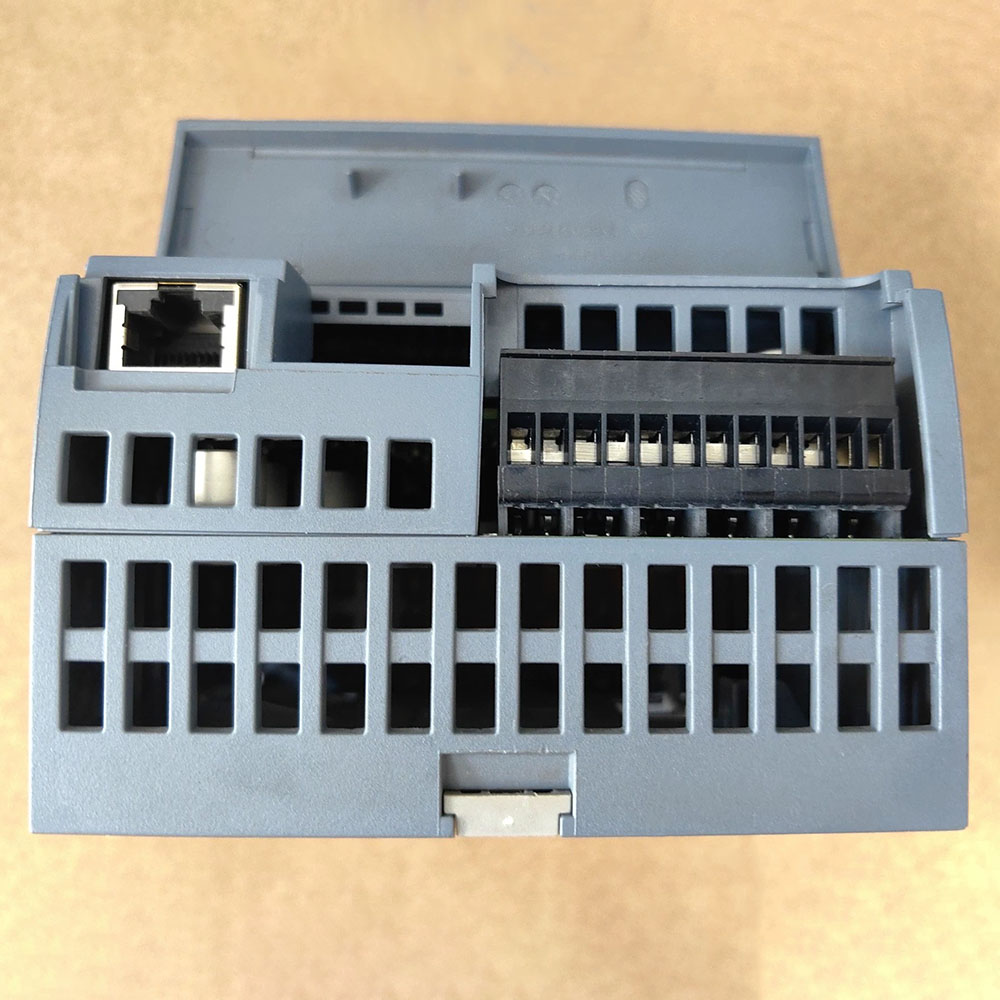

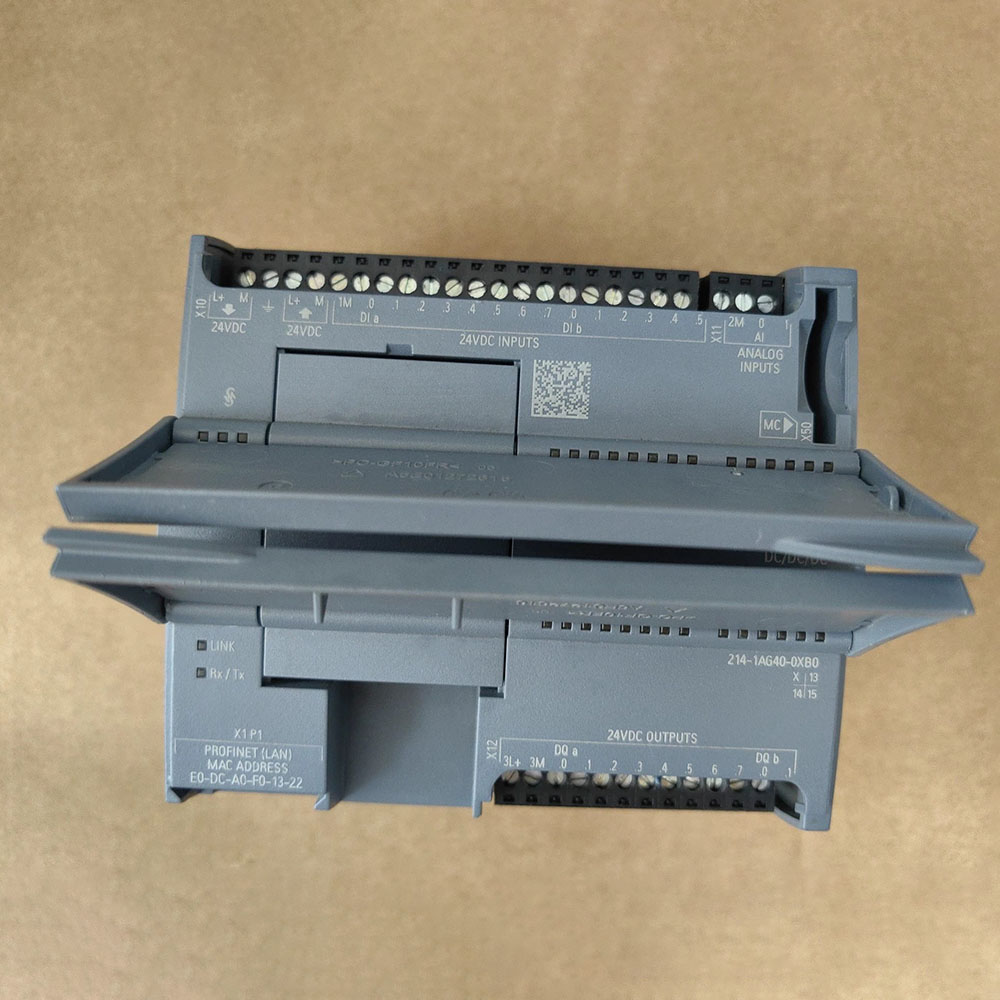

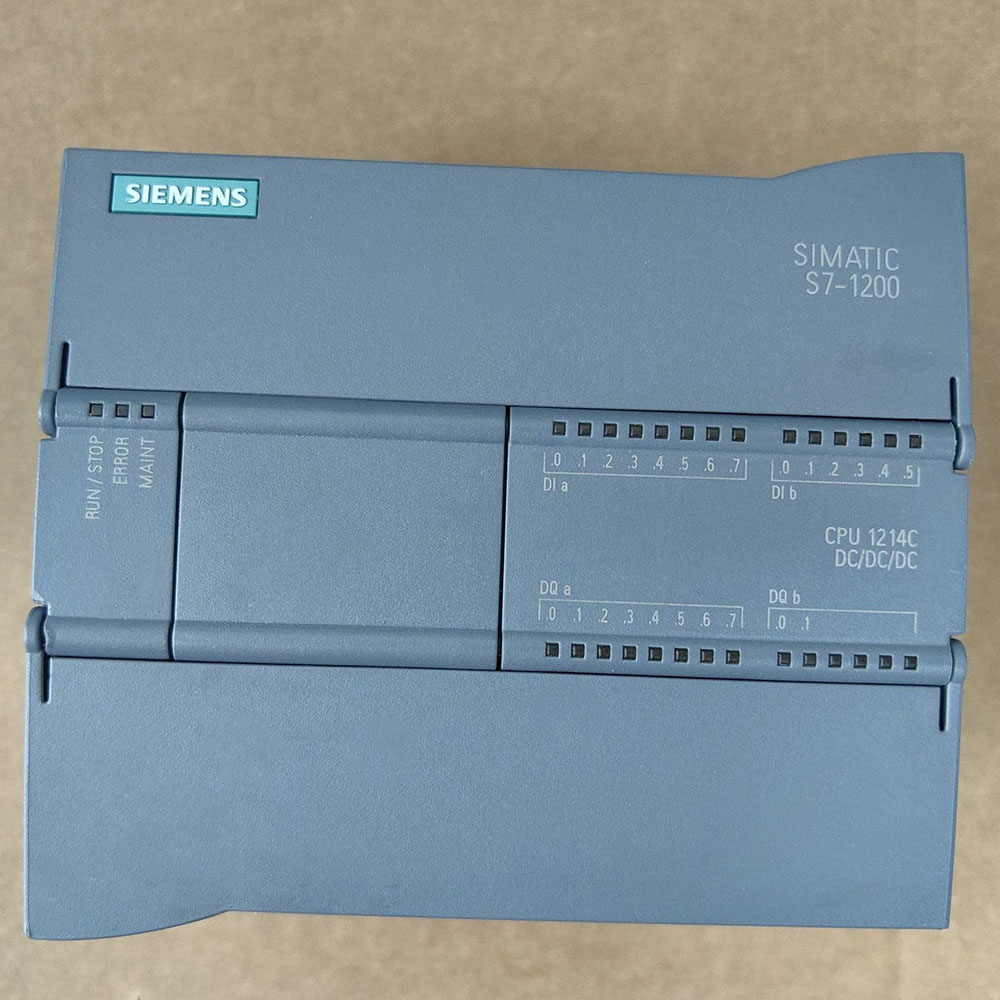

New Original Siemens 6ES7 214‑1AG40‑0XB0 CPU 1214C Compact PLC Central Processor Unit
"*" señala los campos obligatorios
Siemens 6ES7 214‑1AG40‑0XB0 CPU 1214C Compact PLC Central Processor Unit
Product Overview
Siemens 6ES7 214‑1AG40‑0XB0 is a DC/DC/DC compact central processing unit for SIMATIC S7‑1200 PLC series. It comes with integrated onboard I/O: 14 digital inputs, 10 digital outputs and 2 analog inputs. Equipped with one built‑in PROFINET Ethernet port, it supports standard industrial communication, motion control, high‑speed counting and PWM/PTO pulse output functionsSiemens. This CPU can expand up to 8 signal modules, 1 signal board and 3 communication modules to meet diverse automation requirements. It is programmed via TIA Portal engineering software, widely deployed in machinery, packaging, water treatment, HVAC and general‑purpose small‑to‑medium automation systemsTIA Portal
Main Functions
- Integrated onboard I/O:14×24 VDC digital inputs,10×24 VDC digital outputs,2×0‑10 V analog inputs for direct field device connection.
- High‑speed counter function up to 100 kHz for encoder and pulse signal acquisition.
- PTO and PWM pulse output up to 100 kHz for stepper and servo drive motion control.
- Built‑in PROFINET port supports PROFINET IO, TCP/IP, Modbus TCP, OPC UA communication protocols.
- Supports flexible hardware expansion: up to 8 signal modules, 1 signal board and 3 communication modules.
- Data logging, recipe management and retentive memory function for data storage after power‑off.
- Multiple LED status indicators for RUN, ERROR, DIAG, I/O channel status for fast on‑site troubleshooting.
- Program download, diagnostics and remote access via PROFINET Ethernet interface.
- Supports SD memory card for program backup, firmware upgrade and data storage.
- Rich instruction set including logic operations, mathematical calculations, interrupt processing and closed‑loop PID control.
Technical Features
- Compact all‑in‑one PLC design combining CPU, power supply and onboard I/O.
- Boolean execution speed as low as 0.085 μs per operation for fast logic processingSiemens.
- Reverse‑polarity protection for DC24V power input.
- Supports both 35 mm DIN‑rail mounting and direct wall mounting.
- IP20 protection class, designed for indoor control‑cabinet installation only.
- Compliant with CE, EMC industrial standards.
- Integrated OPC UA server supports secure data access for upper‑level monitoring systems.
- Password‑based access protection prevents unauthorized program modification.
- Shock‑vibration resistance meets IEC 60068‑2 industrial test standardsSiemens In….
Technical Data Table
| Item | Specification |
|---|---|
| Model | CPU 1214C DC/DC/DC |
| Order Code | 6ES7 214‑1AG40‑0XB0 |
| Brand | Siemens |
| Power Supply | DC 20.4 V ~ 28.8 V (nominal DC24 V) |
| On‑board Digital Inputs | 14 × 24 VDC |
| On‑board Digital Outputs | 10 × 24 VDC (0.5 A per channel) |
| On‑board Analog Inputs | 2 × 0‑10 V DC |
| Program / Work Memory | 150 KB |
| Retentive Memory | 14 KB |
| Load Memory | 4 MB internal, expandable by SD card |
| Communication Interface | 1 × PROFINET Ethernet port |
| Max High‑speed Counter Frequency | 100 kHz |
| Max PTO / PWM Output Frequency | 100 kHz |
| Expandable Signal Modules | Up to 8 units |
| Signal Board | Max 1 unit |
| Communication Modules | Max 3 units |
| Protection Class | IP20 |
| Operating Ambient Temperature | 0 °C ~ +60 °C |
| Storage & Transport Temperature | -40 °C ~ +85 °C |
| Mounting | 35 mm DIN‑rail or wall mounting |
| Dimensions (W × H × D) | 110 mm × 100 mm × 75 mm |
| Net Weight | Approx 0.415 kg |
10 Similar‑function Siemens S7‑1200 Compact CPU Products
- 6ES7211‑1AE40‑0XB0: CPU1211C DC/DC/DC, smallest‑size S7‑1200 compact CPU for simple automation tasks
- 6ES7212‑1AE40‑0XB0: CPU1212C DC/DC/DC, medium‑small compact CPU with moderate I/O capacity
- 6ES7214‑1BG40‑0XB0: CPU1214C AC/DC/Relay, AC powered relay output version of CPU1214C
- 6ES7214‑1HG40‑0XB0: CPU1214C DC/DC/Relay, DC powered relay output CPU1214C variant
- 6ES7215‑1AG40‑0XB0: CPU1215C DC/DC/DC, dual‑PROFINET ports, higher‑memory compact CPU
- 6ES7215‑1HG40‑0XB0: CPU1215C DC/DC/Relay, dual‑port relay‑output S7‑1200 CPU
- 6ES7217‑1AG40‑0XB0: CPU1217C DC/DC/DC, top‑end S7‑1200 CPU with maximum performance and I/O expansion capability
- 6AG1214‑1AG40‑4XB0: SIPLUS CPU1214C DC/DC/DC, conformal‑coated wide‑temperature harsh‑environment version
- 6ES7212‑1BE40‑0XB0: CPU1212C AC/DC/Relay, AC input relay‑output compact PLC controller
- 6ES7211‑1BE40‑0XB0: CPU1211C AC/DC/Relay, AC‑powered low‑cost compact CPU
