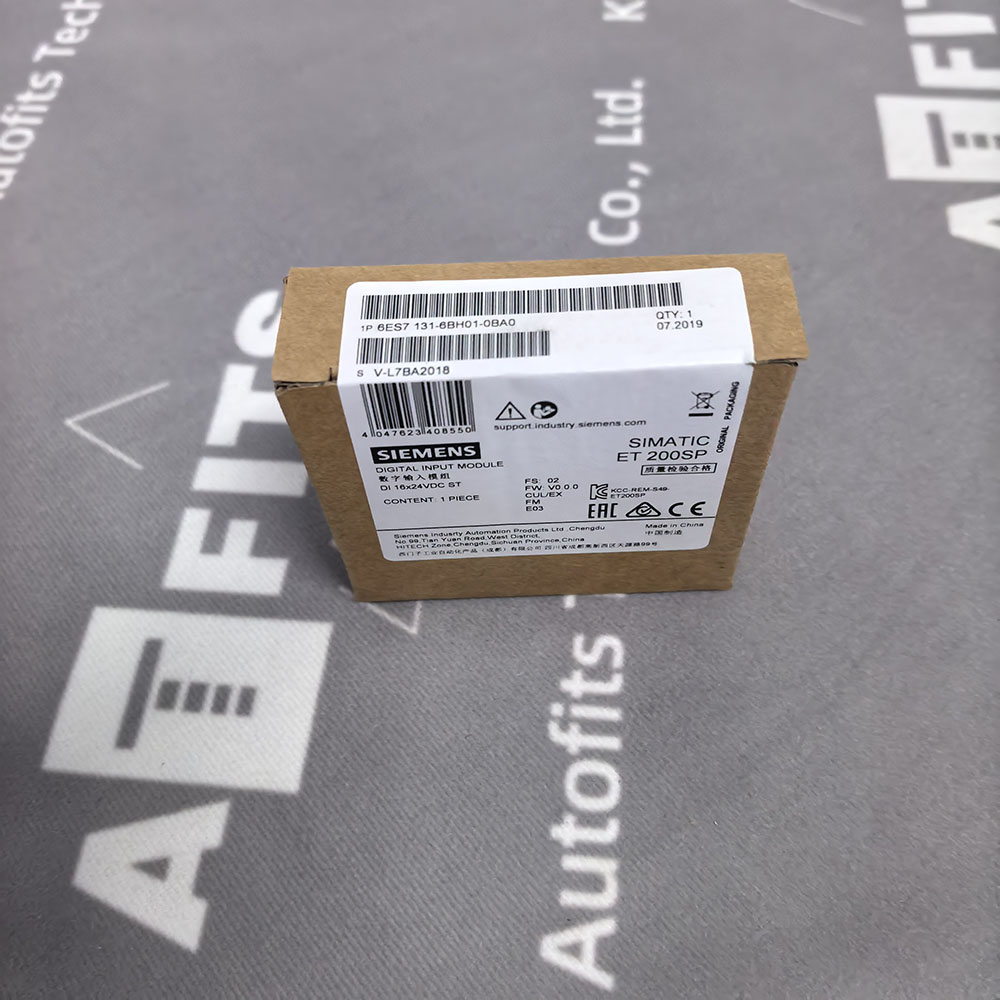

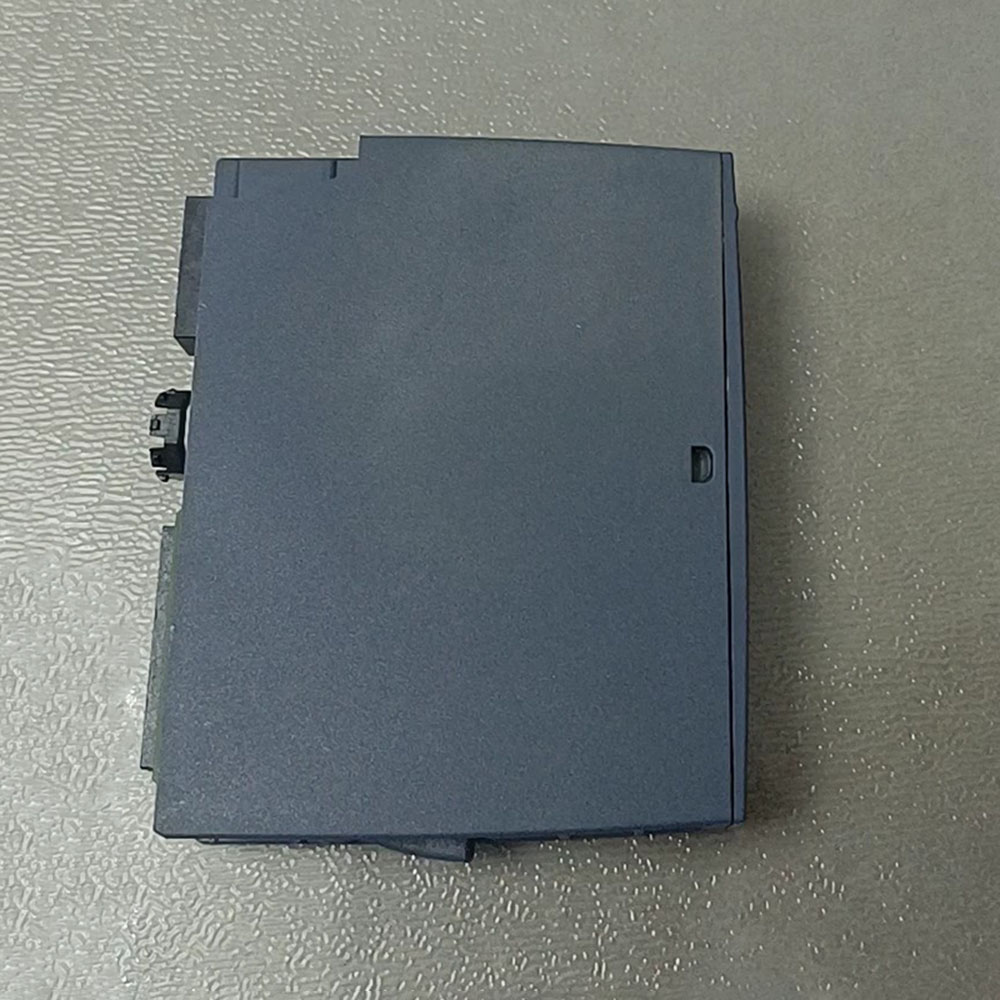

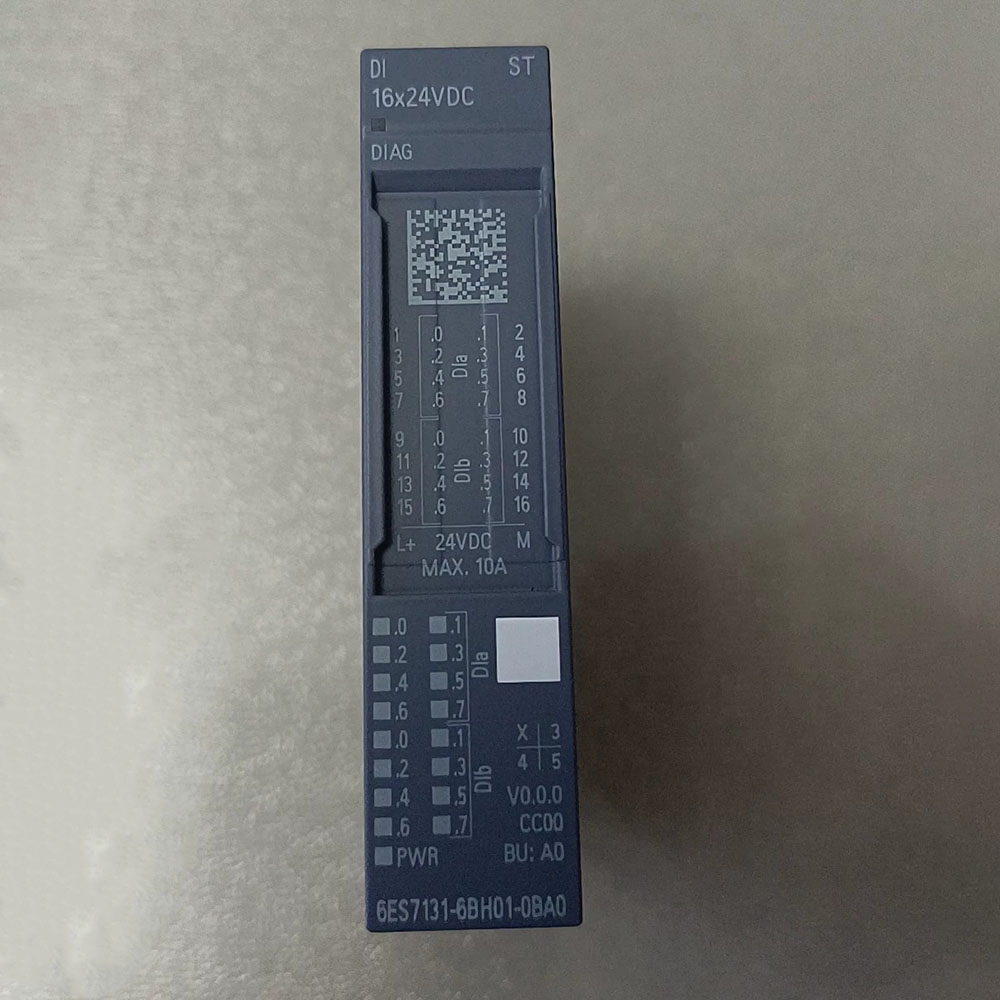

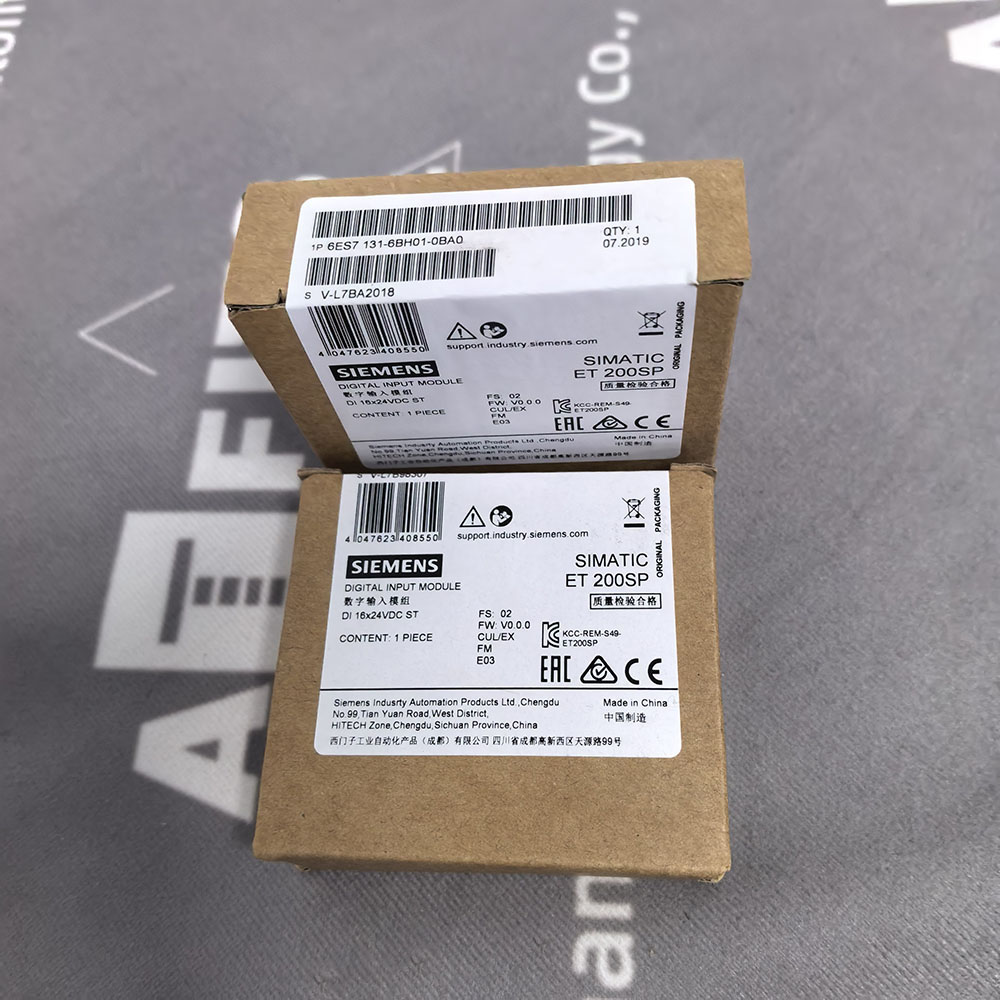

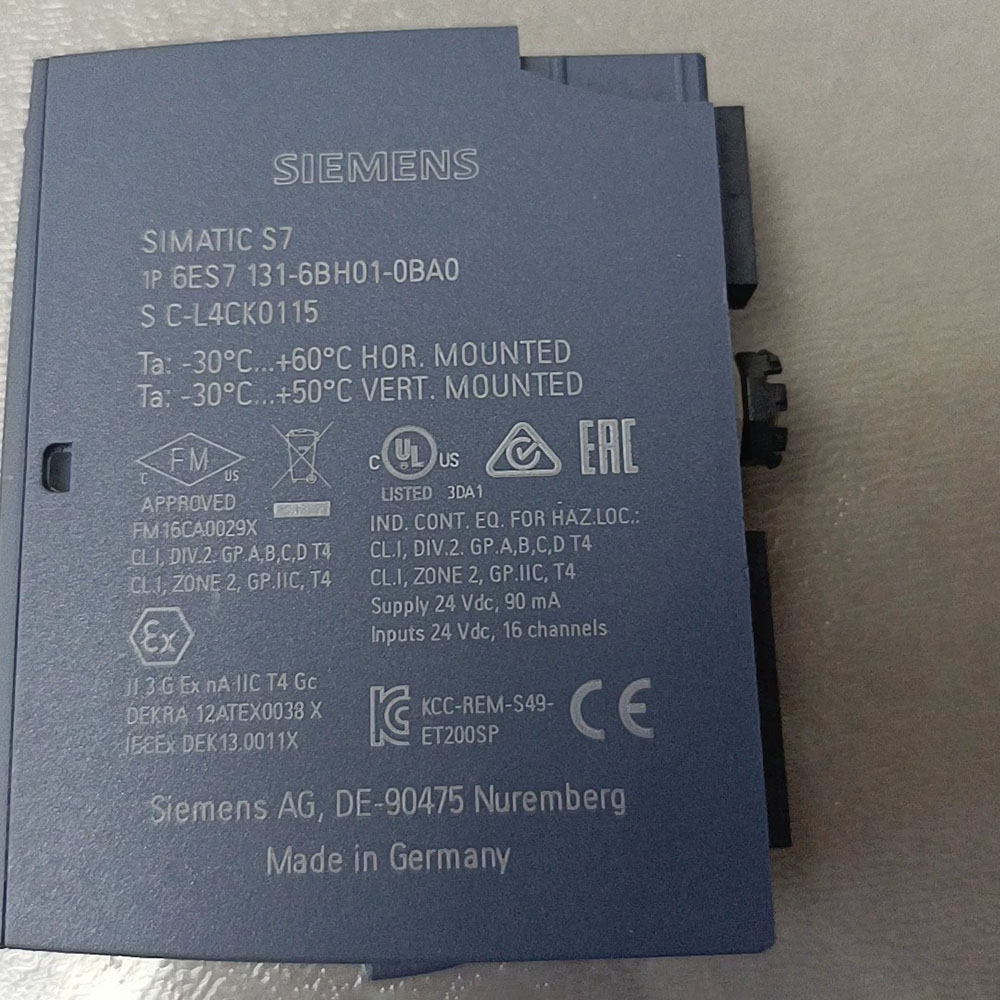

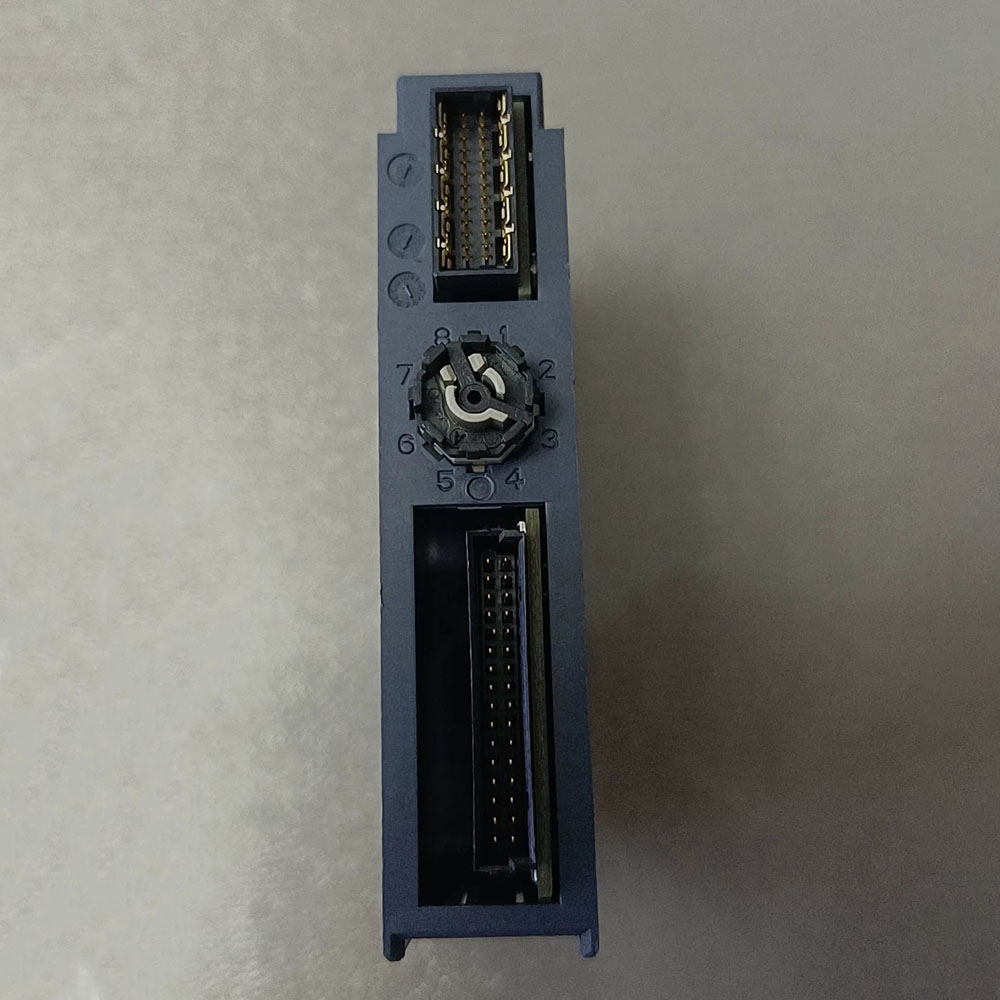

Siemens 6ES7 131‑6BH01‑0BA0 ET200SP 16 Digital Input Module
Product Overview
Siemens 6ES7 131‑6BH01‑0BA0 is a standard digital input electronic module for SIMATIC ET200SP distributed I/O system, designated DI 16×24VDC ST. It provides 16‑channel sink‑type (PNP P‑reading) digital inputs complying with IEC 61131‑2 Type 3, designed to collect 24 VDC binary signals from push‑buttons, limit switches and proximity sensors. This module must be assembled with Type A0 base unit (CC00 color code) for mechanical mounting and field wiring connection. It supports hot‑swap replacement without powering down the ET200SP station and works with both PROFINET‑IO and PROFIBUS‑DP interface modules. Widely deployed in machine manufacturing, packaging production lines and general factory automation for discrete signal acquisition.
Main Functions
- 16‑channel sink digital inputs for acquiring 24 VDC field sensor and switch status signals.
- Channel‑wise configurable input delay ranging from 0.05 ms to 20 ms for signal de‑bounce filtering.
- Built‑in diagnostic functions including wire‑break detection and supply‑voltage fault monitoring.
- Individual channel LED status indicators plus module diagnostic LED for fast on‑site fault inspection.
- Hot‑swap capability: electronic module can be replaced without switching off ET200SP station power supply.
- Supports I&M0‑I&M3 identification and maintenance data for equipment asset management
- Mechanical anti‑mismatch coding prevents installation onto incompatible base units.
- Hardware configuration is completed via TIA Portal or STEP 7 engineering software.
Technical Features
‑ Sink input (PNP P‑reading), meets IEC 61131‑2 Type 3 input specification. ‑ Galvanic isolation between field‑side circuits and backplane bus, isolation test voltage 707 V DC; no channel‑to‑channel isolation. ‑ Compatible with 1‑wire, 2‑wire, 3‑wire and 4‑wire sensor wiring when paired with Type A0 base units. ‑ IP20 protection class, intended exclusively for indoor control‑cabinet installation. ‑ Conforms to CE, EMC and RoHS industrial standards.
Technical Data Table
| Item | Specification |
|---|---|
| Model | DI 16×24VDC ST |
| Order Code | 6ES7 131‑6BH01‑0BA0 |
| Brand | Siemens |
| Number of Digital Inputs | 16 channels, sink input (PNP P‑reading) |
| Rated Input Voltage | DC 24 V (19.2 V ~ 30 V) |
| Typical Input Current for Signal 1 | 2.5 mA |
| Parameterizable Input Delay | 0.05 ms ~ 20 ms |
| Matching Base Unit | BU‑Type A0, Color Code CC00 |
| Galvanic Isolation | Field side to backplane bus, 707 V DC |
| Protection Class | IP20 |
| Operating Temperature (Horizontal Mount) | 0 °C ~ +60 °C |
| Operating Temperature (Vertical Mount) | 0 °C ~ +50 °C |
| Storage & Transport Temperature | ‑40 °C ~ +85 °C |
| Dimensions (W × H × D) | 15 mm × 73 mm × 58 mm |
| Net Weight | Approx 0.028 kg |
10 Similar‑function Siemens ET200SP Digital Input Modules
- 6ES7131‑6BF01‑0BA0: DI 8×24VDC ST, 8‑channel standard sink digital input module, compatible with Type A0 base unit
- 6ES7131‑6BH60‑0CA0: DI 16×24VDC HF, high‑feature 16‑channel digital input with expanded diagnostic and quality‑information functions
- 6ES7131‑6BF60‑0CA0: DI 8×24VDC HF, high‑feature 8‑channel digital input module
- 6ES7131‑6BH01‑2BA0: DI 16×24VDC ST, bulk‑pack version (10 units per pack)
- 6AG1131‑6BH01‑4BA0: SIPLUS DI 16×24VDC ST, conformal‑coated wide‑temperature variant for harsh industrial environments
- 6ES7131‑6FD00‑0BB1: DI 4×120‑230VAC ST, 4‑channel AC digital input module for high‑voltage field signals
- 6ES7131‑6TF00‑0CA0: DI 4×NAMUR HF, 4‑channel NAMUR input module for intrinsically‑safe field sensors
- 6ES7133‑6BH00‑0BA0: DI 8×/DQ 8×24VDC/0.5A ST, mixed 8‑input + 8‑output combined I/O module
- 6ES7131‑6CF00‑0AU0: DI 8×24VAC/48VUC BA, 8‑channel AC‑voltage digital input module
- 6ES7131‑6BH50‑0AA0: DI 16×24VDC SRC BA, 16‑channel source‑type digital input module for NPN sensors
