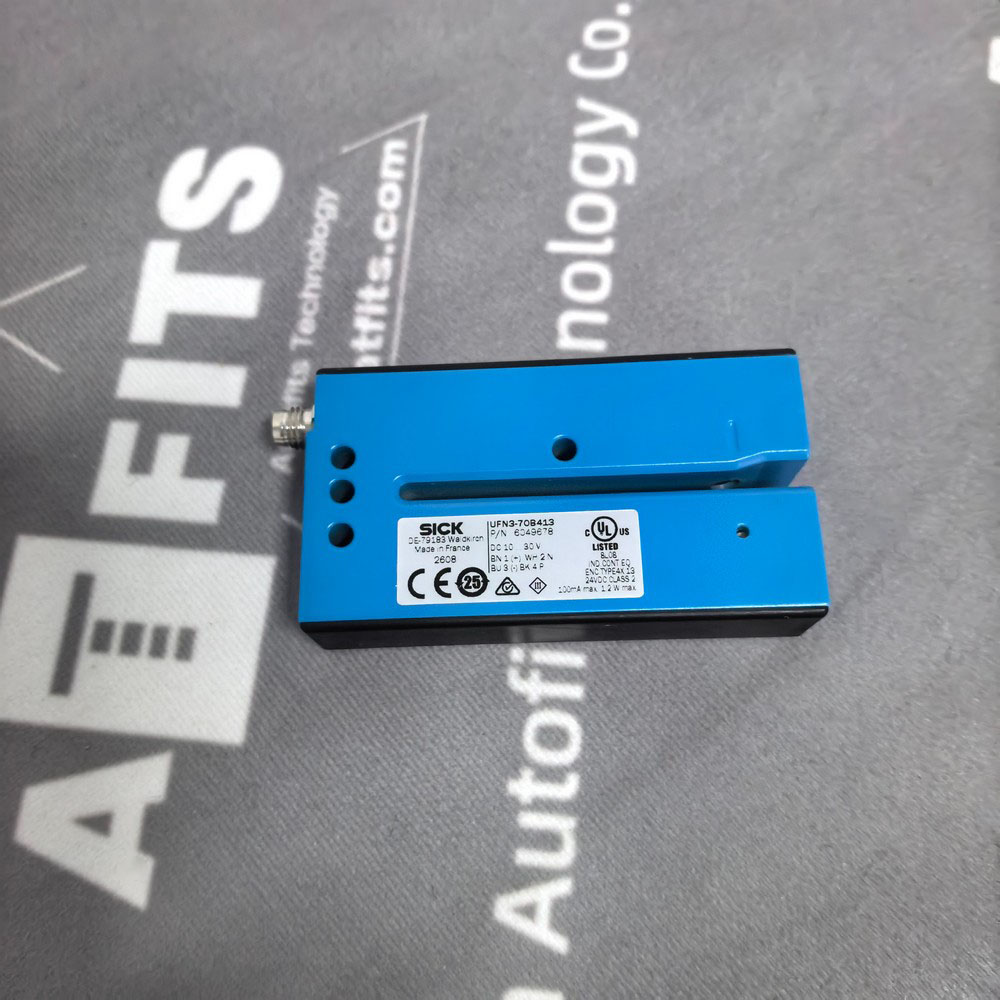

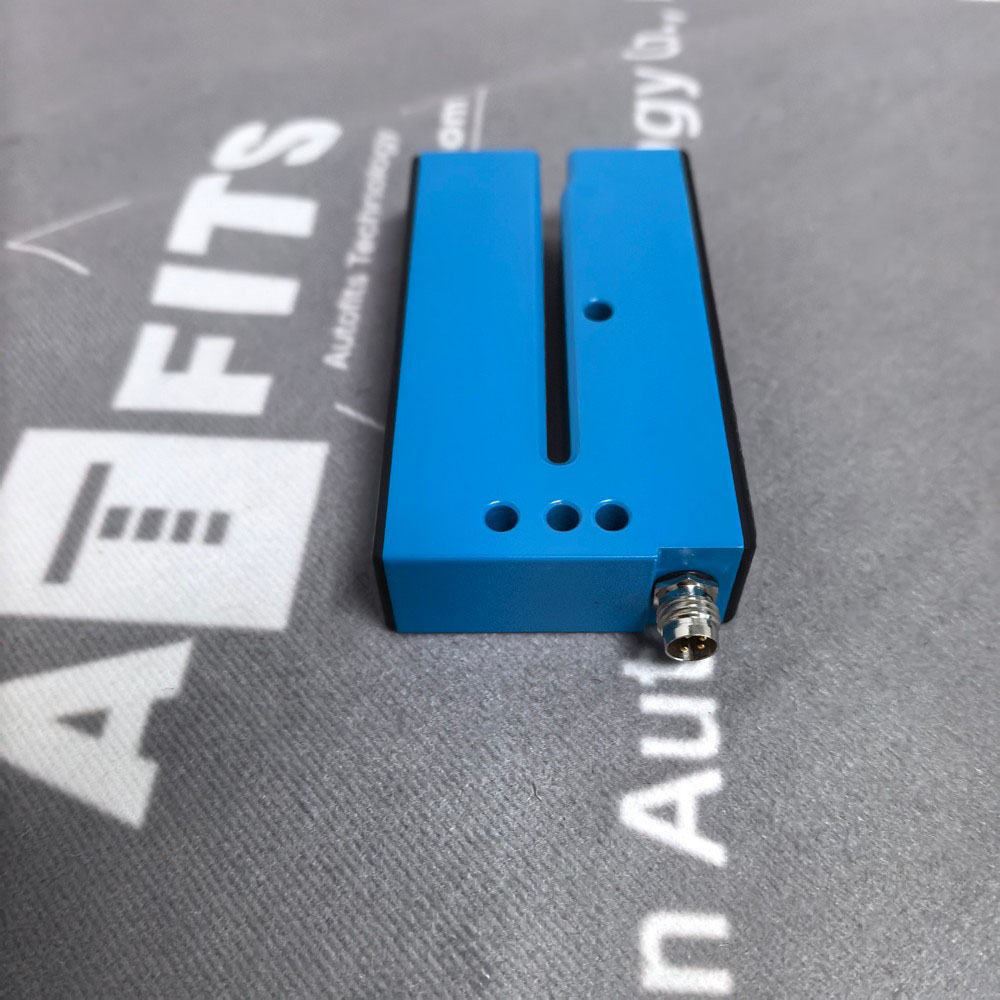

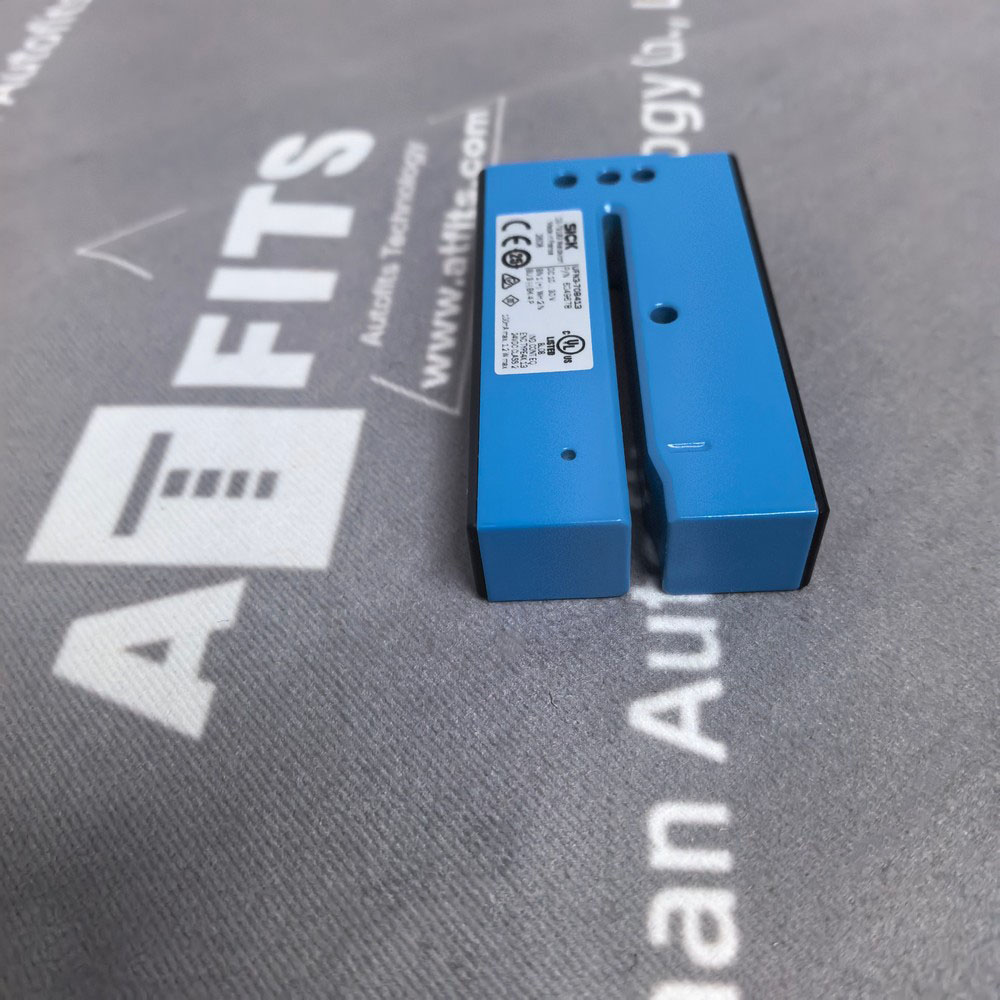

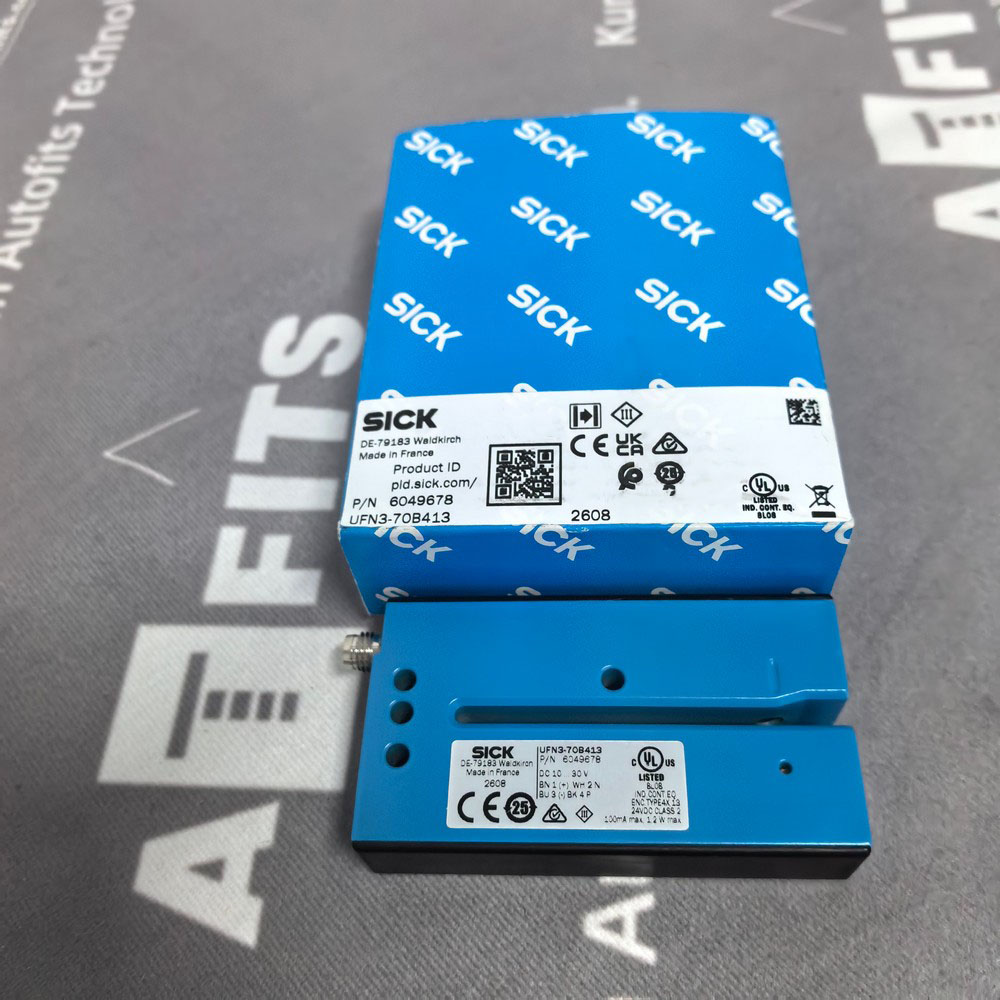

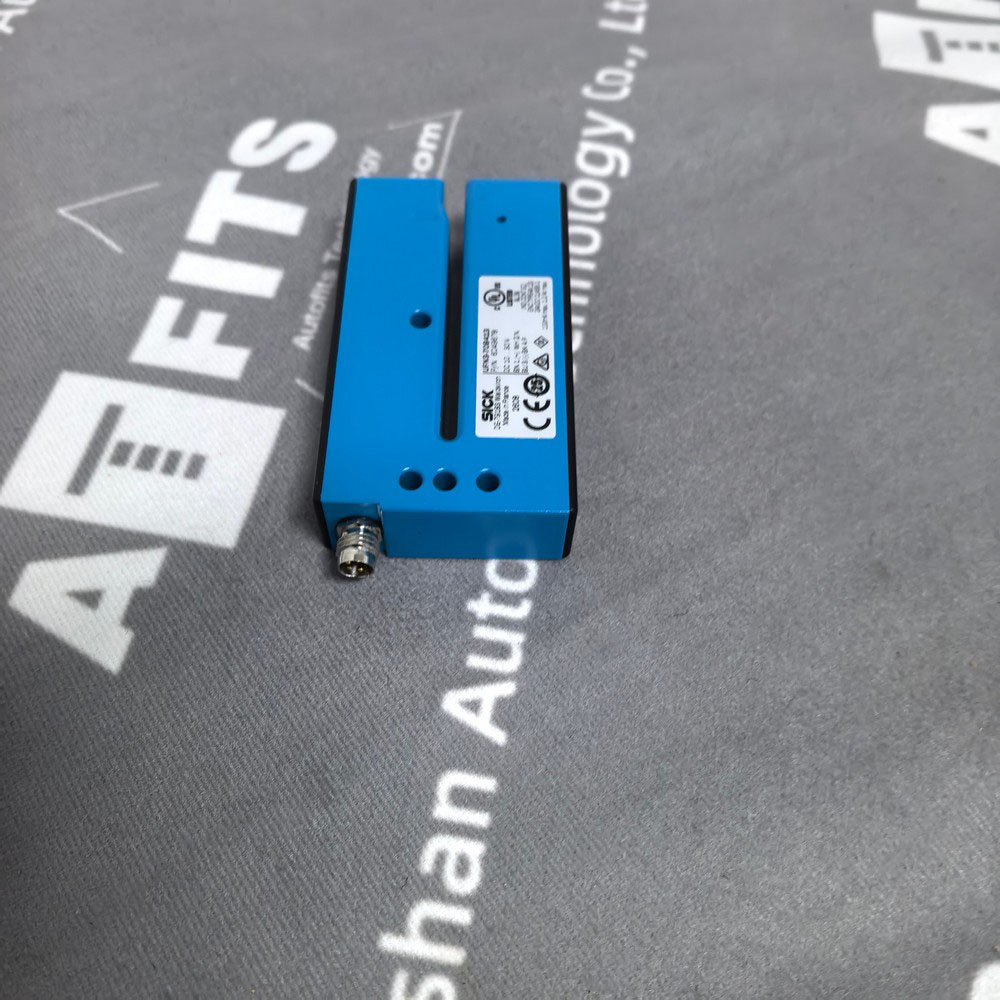

SICK 6049678 UFN3‑70B413 Ultrasonic Fork Sensor
Product Overview
SICK UFN3‑70B413 (order code 6049678) is an ultrasonic fork‑type label sensor belonging to the SICK UF product series. Adopting ultrasonic through‑beam detection principle, it reliably detects transparent, translucent, printed, metallic‑foil labels and label gaps without being disturbed by surface gloss, color or ambient light interference. The fork opening width is 3 mm and fork depth is 69 mm; minimum detectable label and gap size reaches 2 mm Equipped with combined PNP/NPN switch output and M8 4‑pin connector, it is widely used for labeling machines, packaging machines and web processing equipment for label position detection and registration control. The rugged aluminum housing delivers stable performance for high‑speed continuous production processes.
Main Functions
- Ultrasonic‑based label detection for transparent, opaque, printed and metal‑foil labels and label gap identification.
- Dual PNP / NPN switch output, supports light‑on / dark‑on operating mode selectable via physical buttonsdocs.
- Supports two‑point teach‑in and dynamic teach‑in for quick sensitivity configuration on site.
- Fast response time ≤ 250 μs and maximum switching frequency up to 1.5 kHz, suitable for high‑speed web running applications.
- Built‑in reverse‑polarity protection, short‑circuit output protection and interference pulse suppression functions.
- LED status indicators provide visual feedback for switching state and sensor working status.
- Compact fork mechanical structure for direct installation on label processing equipment without extra optical alignment adjustment.
Technical Features
‑ Ultrasonic through‑beam fork detection principle, immune to label color, gloss and external ambient light disturbance. ‑ Aluminum alloy rugged housing with IP65 enclosure rating for industrial workshop environments. ‑ Combined PNP / NPN push‑pull output; maximum output current 100 mA per channel. ‑ M8 4‑pin circular plug connection for convenient wiring and replacement. ‑ No requirement for precise optical alignment after mechanical mounting. ‑ Conforms to relevant industrial EMC standards.
Technical Data Table
| Item | Specification |
|---|---|
| Model | UFN3‑70B413 |
| Order Code | 6049678 |
| Brand | SICK |
| Detection Principle | Ultrasonic through‑beam fork sensor |
| Fork Width | 3 mm |
| Fork Depth | 69 mm |
| Minimum Detectable Object | 2 mm label / label gap |
| Supply Voltage | DC 10 V ~ 30 V, reverse‑polarity protected |
| Current Consumption | 40 mA (without load) |
| Switching Output | PNP / NPN selectable |
| Max Output Current | 100 mA |
| Response Time | ≤ 250 μs |
| Switching Frequency | 1.5 kHz (typical) |
| Connection | M8, 4‑pin connector |
| Housing Material | Aluminum |
| Protection Class | IP65 |
| Operating Ambient Temperature | +5 °C ~ +55 °C |
| Storage & Transport Temperature | ‑20 °C ~ +70 °C |
| Dimensions (W × H × D) | 18 mm × 47.5 mm × 92.5 mm |
| Net Weight | Approx 95 g |
