New Original Schneider XB4BSB444 XB4 Emergency Mushroom Head Modular Red Push Button

1. Product Overview

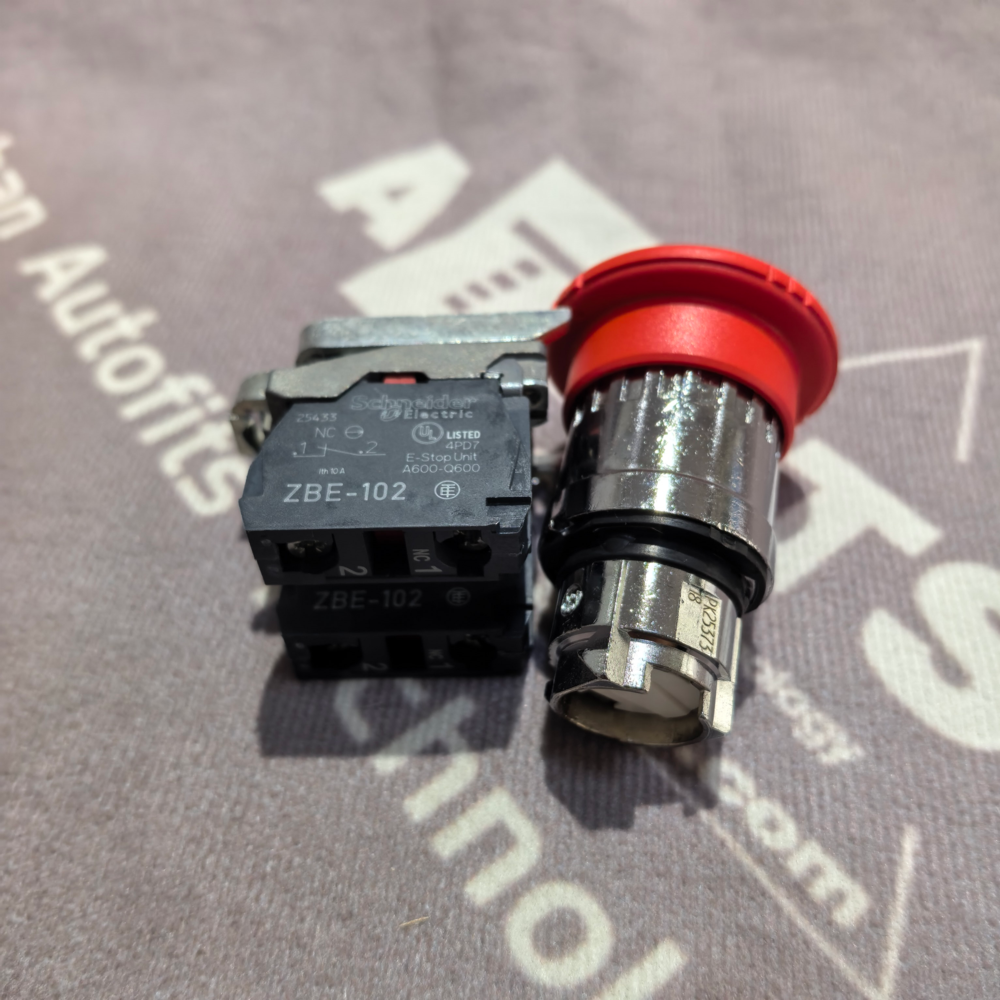

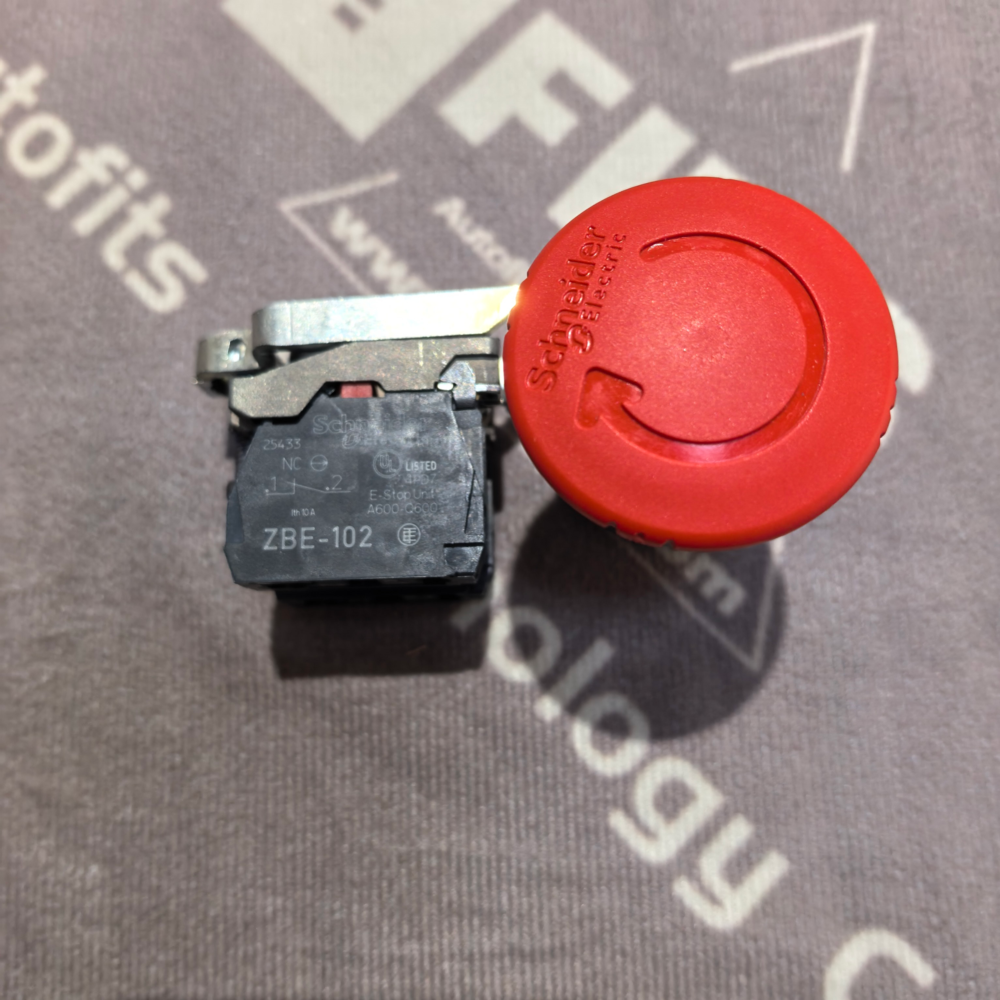

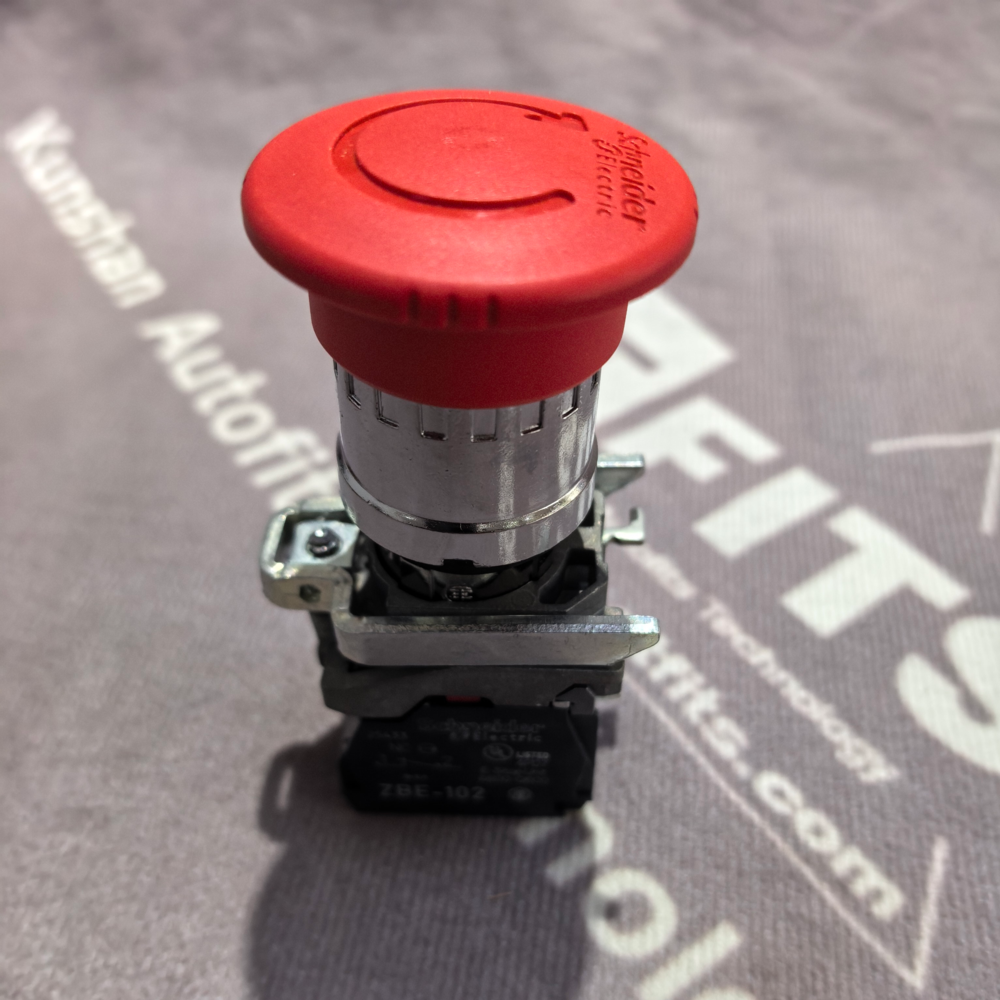

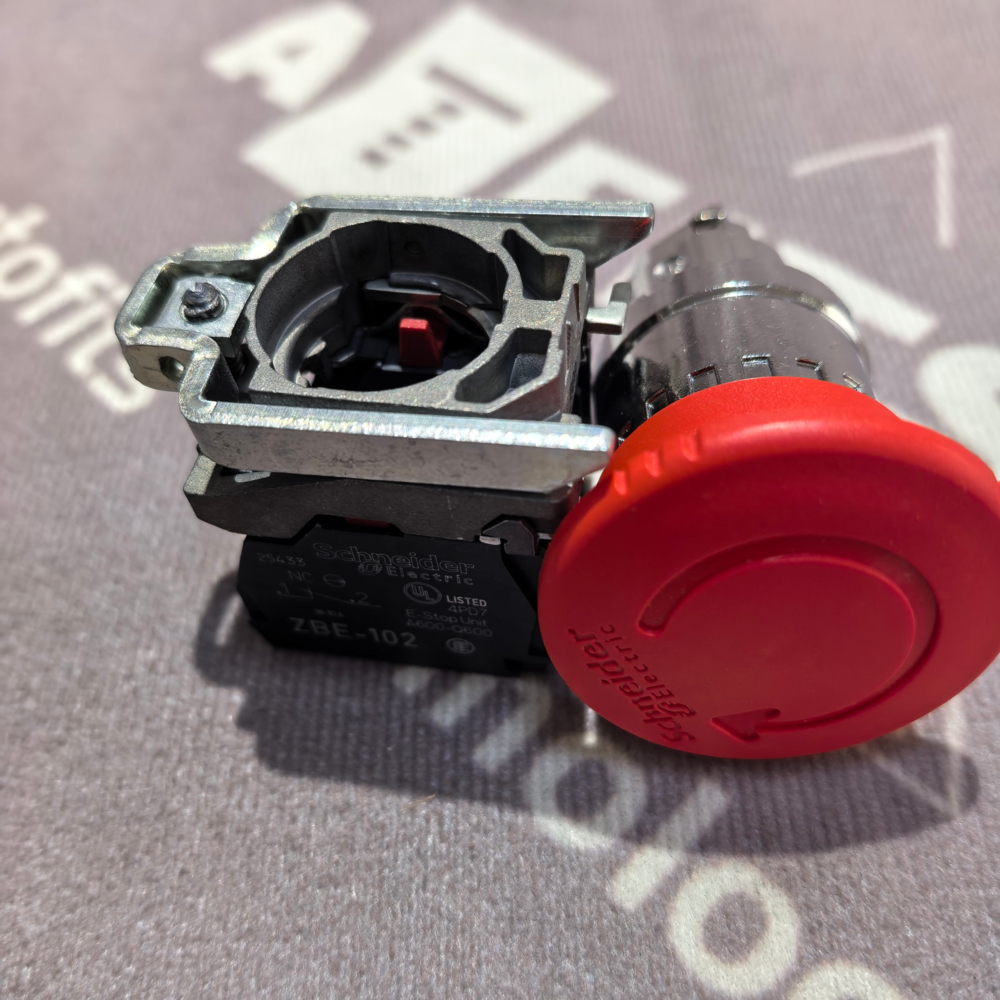

The XB4BSB444 is a brand-new genuine emergency stop push button from Schneider Electric Harmony XB4 modular control component series. It adopts standard 22 mm panel mounting structure, fitted with chrome-plated metal mounting bezel, large red mushroom-shaped actuator, twist-to-reset mechanical structure and built-in two normally closed plus two normally open contact configuration (2NC+2NO). This emergency stop device is pre-assembled as a complete unit, widely installed on machine operation consoles, automation equipment panels, local control stations, production line control boxes and mechanical safety operation panels. Designed as a critical safety component for industrial equipment emergency cut-off, it features high mechanical locking reliability, superior dust and water protection performance, stable contact transmission and standardized modular design, which can maintain stable and reliable safety response performance in harsh industrial environments with vibration, dust and moisture.

2. Main Functions

Emergency Power Cut-off Protection

Once the mushroom head is pressed down rapidly under abnormal dangerous conditions, the internal normally closed contacts open immediately to break control circuits of contactors and relays, cutting off power supply of operating equipment to stop machinery movement instantly and avoid personal injury or equipment damage.
Twist Reset Mechanism Design

After emergency activation, the button stays locked in pressed position. Operators must rotate the mushroom head clockwise to release the interlock structure and restore the button to standby state for equipment restart, preventing accidental automatic reset and misoperation.
Dual-channel Signal Feedback Transmission

Equipped with both normally closed safety contacts and normally open auxiliary contacts. NC contacts execute safety circuit breaking; NO contacts transmit emergency stop trigger signals to PLC input modules, alarm indicators and fault monitoring systems for real-time fault recording and status feedback.
Modular Expansion Compatibility

Matched with full range of XB4 series contact bases and auxiliary accessories, it supports flexible adjustment of contact quantity to meet safety circuit design requirements for high-level safety-related control systems.
Standard Safety Color Identification

Bright red mushroom head complies with global industrial safety specification requirements, which can be quickly recognized by on-site operators as emergency stop components to ensure rapid response during risk incidents.

3. Technical Features

Core Electrical & Performance Specification Table

表格

Specification Item	Technical Parameter
Full Model Number	XB4BSB444
Product Series	Schneider Harmony XB4 Modular Control Components
Actuator Type	Large mushroom head emergency stop, twist-to-reset
Actuator Color	Red
Operating Mode	Latching when pressed, reset by clockwise twisting
Internal Contact Configuration	2 Normally Closed + 2 Normally Open (2NC+2NO), slow-break type
Terminal Identification	NC: 21-22, 31-32; NO: 13-14, 43-44
Rated Insulation Voltage (Ui)	600 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
AC Rated Operating Current (AC-15)	6 A @ 120 V AC; 3 A @ 240 V AC
DC Rated Operating Current	0.55 A @ 125 V DC
Mechanical Endurance Life	1,000,000 operation cycles
Electrical Endurance Life (rated load)	500,000 operation cycles
Ingress Protection Rating	IP66, IP67, IP69K
Mechanical Impact Resistance Grade	IK06
Operating Ambient Temperature	-40 °C ~ +70 °C
Storage Temperature Range	-45 °C ~ +85 °C
Standard Panel Mount Hole Diameter	22 mm
Wiring Terminal Type	Screw clamping terminal
Applicable Wire Cross-section	0.22 ~ 2.5 mm² single solid wire; max 2 × 1.5 mm² wires with wire ferrules
Compliance Standards	IEC 60947-1, IEC 60947-5-1, relevant machinery safety regulations

Structural and Performance Advantages

High-strength Anti-corrosion Metal Bezel Assembly

Chrome-plated decorative bezel together with zinc alloy locking sleeve provides excellent scratch resistance, wear resistance and rust-proof capability, adapting to dusty, humid and slightly corrosive workshop working conditions.
High-reliability Silver Alloy Contact System

Silver-nickel alloy contact points resist electric arc ablation and oxidation effectively after frequent emergency triggering, keeping stable contact resistance for long-term safety operation and eliminating hidden dangers of poor contact in safety loops.
Multi-layer Sealing Waterproof and Dustproof Structure

Multi-channel internal sealing structure achieves high-level ingress protection, preventing dust accumulation and splashing water infiltration, and tolerates high-pressure water washing cleaning on equipment surface.
Safe Locking and Reset Mechanism

Precision internal mechanical latch ensures stable locked state after pressing; twist reset structure avoids unintended automatic rebound, conforming to mandatory emergency stop safety design requirements for mechanical equipment.
Anti-vibration Anti-loose Wiring Terminals

Anti-loosening screw structure prevents wire loosening caused by long-term equipment vibration, guaranteeing continuous and reliable connection of safety critical circuits.
Universal XB4 Modular Interface Design

Unified assembly interface supports combination with additional contact blocks, protection hoods and locking accessories, facilitating customized safety circuit design and on-site maintenance replacement.

4. Product Dimensions and Weight

Dimension Specification Table (Unit: mm)

表格

Dimension Description	Dimension Value
Overall Width	38
Overall Height	65
Rear Protruding Depth after Panel Installation	52
Complete Overall Outer Dimension	38 (W) × 65 (H) × 52 (D)

Weight Parameters

Single unit net weight: approximately 95 grams
Single unit gross weight with individual retail packaging: approximately 110 grams
