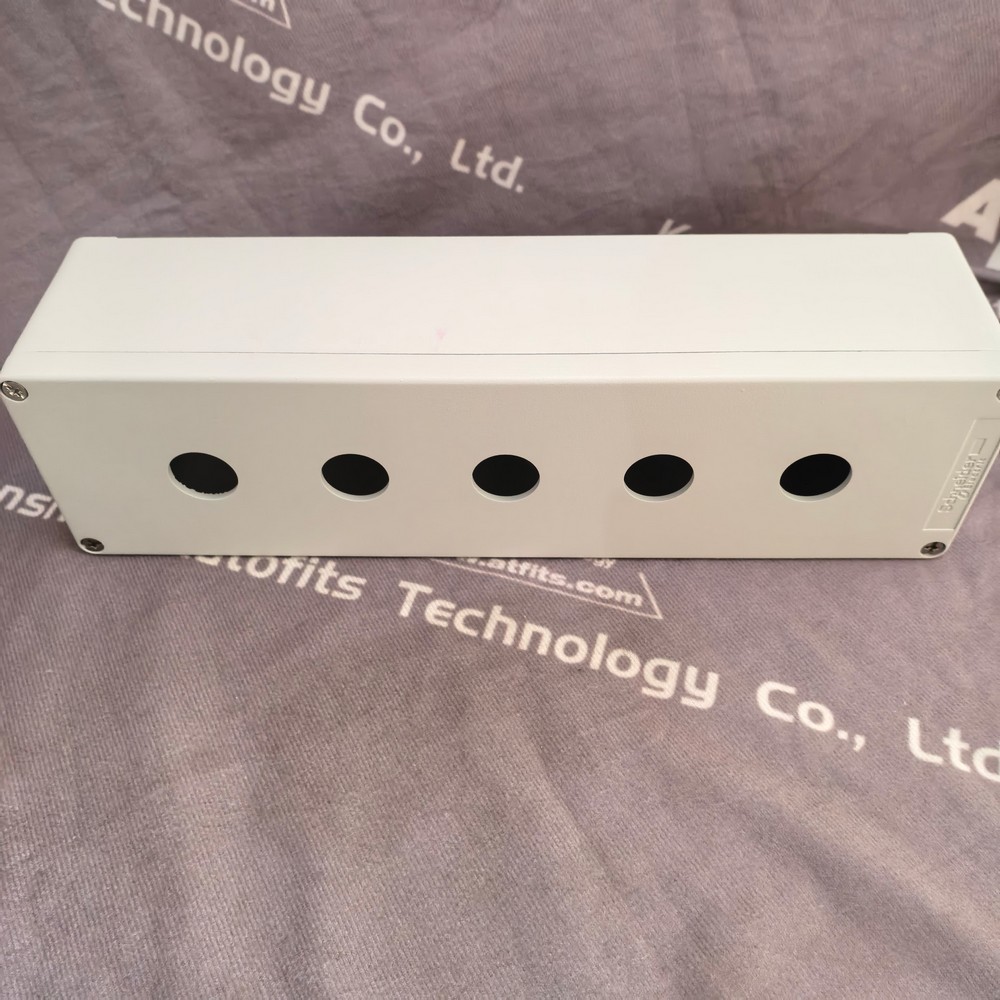

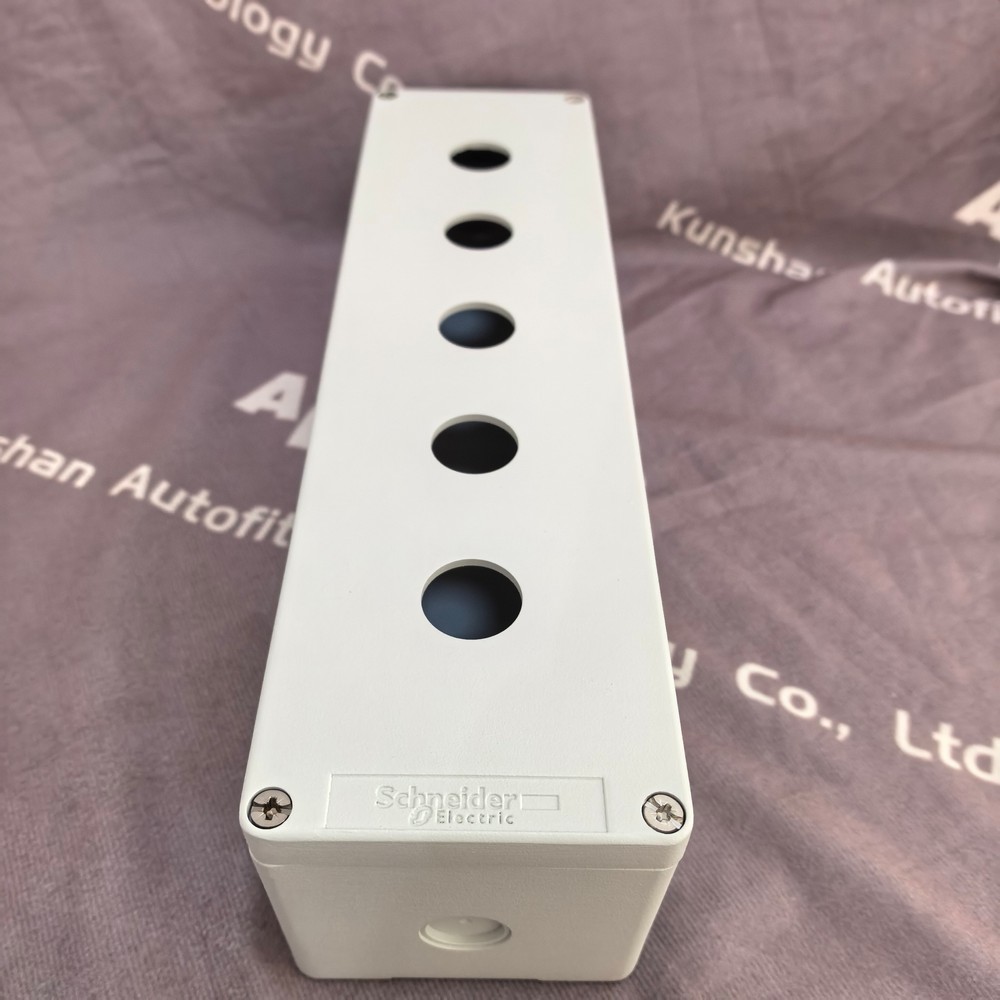

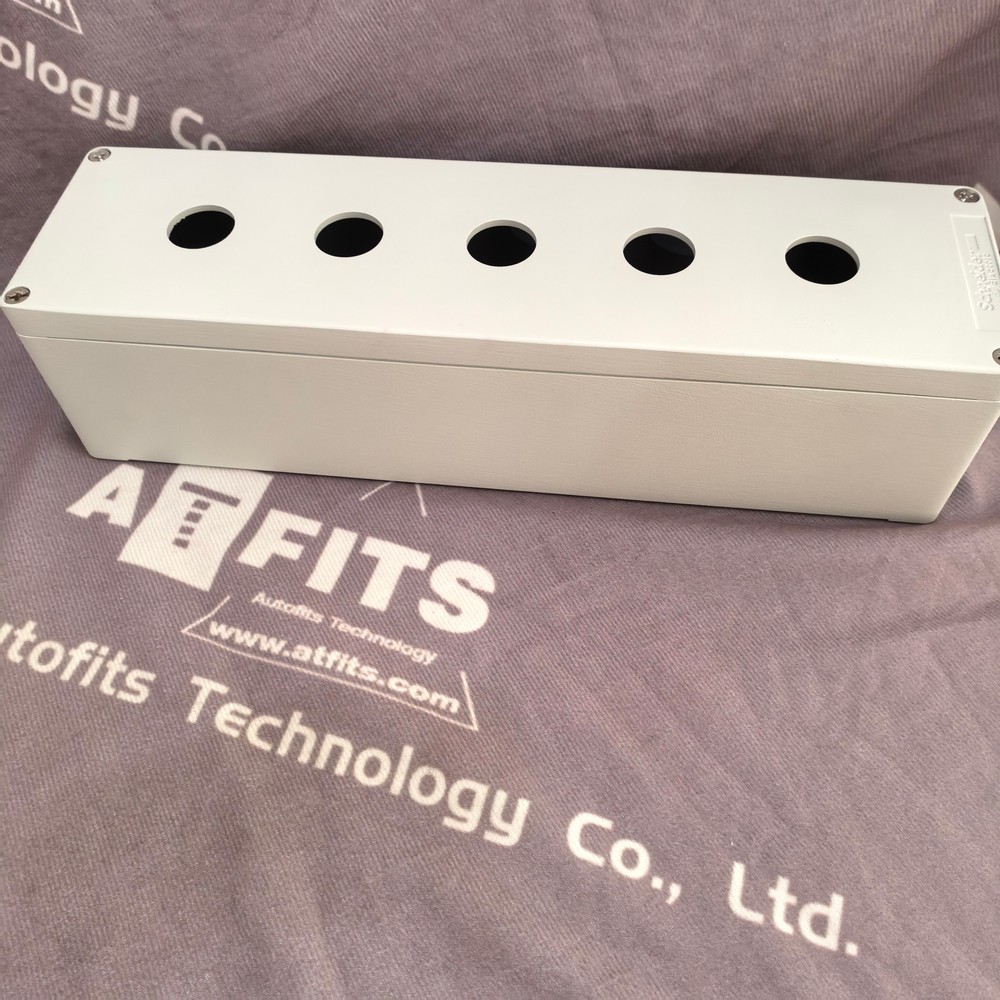

New Original Schneider XAPD5505 Harmony XAPD Empty Control Button Box
1. Product Overview
XAPD5505 is an original empty die-cast aluminum control station enclosure belonging to Schneider Electric Harmony XAPD series industrial button boxes. It is a pre-drilled blank housing specially designed to accommodate standard Ø22mm pushbuttons, selector switches, emergency stop buttons and indicator lights of XB2, XB4, XB5 series.
This model features five reserved 22mm mounting holes on the front panel, finished in industrial gray RAL7035. Constructed from high-strength die-cast aluminum alloy, it delivers excellent mechanical robustness, anti-corrosion and shock resistance. Equipped with one M32 threaded cable entry port at the bottom for wiring glands, it reserves ample internal space for wiring arrangement and auxiliary contact assembly. Widely applied on machine tool consoles, conveyor lines, water pump control stations, HVAC equipment and on-site portable operation panels in workshops, it allows flexible customized configuration of start/stop buttons, emergency stops and status signal components according to different automation control logic requirements. With high ingress protection performance, it adapts to dusty, humid and oil mist industrial environments perfectly.
2. Main Functions
- Modular Installation Carrier for Industrial Command Components
The 5 pre-punched Ø22mm holes support arbitrary assembly of push buttons, rotary switches, emergency stop devices and pilot lights, enabling personalized layout for multi-channel equipment control signals.
- Comprehensive Protection for Internal Wiring & Components
IP65 front and overall enclosure protection blocks dust, splashing water, lubricating oil mist and metal debris from invading the interior, safeguarding electrical components and wiring against short-circuit and corrosion damage.
- Stable Mechanical Protection Against Vibration & Impact
Die-cast aluminum housing boasts high rigidity, resistant to mechanical shock and equipment vibration during long-term production operation, avoiding loosening of buttons and internal wiring terminals.
- Standardized Cable Wiring Management
Built-in M32 metric threaded cable inlet matches ISO standard cable glands, realizing sealed cable entry; spacious inner cavity facilitates neat wiring, terminal arrangement and later maintenance inspection.
- Wall & Surface Mounting Compatibility
Reserved mounting screw holes on the base allow secure fixing on equipment surfaces, metal brackets and cabinet walls, applicable to both fixed panel installation and temporary portable operation scenarios.
- Anti-Corrosion Long-Term Service Performance
Surface anti-oxidation coating prevents rust and chemical erosion, maintaining stable appearance and structural performance under harsh factory environmental conditions for years.
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | XAPD5505 |
| Product Series | Harmony XAPD Metal Control Button Box |
| Housing Material | Die-cast Aluminium Alloy |
| Surface Color | Industrial Gray (RAL7035) |
| Number of Mounting Holes | 5 holes |
| Standard Hole Diameter | 22 mm (for XB2/XB4/XB5 series devices) |
| Cable Entry Port | 1 × M32 ISO Metric Thread |
| Overall Protection Degree | IP65 |
| Mechanical Shock Resistance | IK07 |
| Operating Ambient Temperature | -25 ℃ ~ +70 ℃ |
| Storage Temperature Range | -40 ℃ ~ +75 ℃ |
| Mounting Mode | Surface wall mounting via reserved screw holes |
| Internal Wiring Space | Large cavity for flexible wiring layout |
| Compliance Standards | IEC 60529, IEC 62444, RoHS, REACH |
| Flame Retardant & Insulation | Class I electric shock protection |
Core Technical Advantages
- Integral die-cast aluminum structure features higher strength and durability than plastic button boxes for heavy industrial scenarios;
- Pre-drilled holes save on-site punching time, greatly improving equipment assembly efficiency;
- Universal compatibility with all Schneider Ø22mm standard command and signalling components;
- Sealed wiring design effectively avoids water and dust intrusion in humid workshop environments;
- Unified modular size convenient for combined arrangement of multiple control stations.
4. Product Overall Dimensions & Weight
External Dimensions (Unit: Millimeter)
| Dimension Item | Exact Size |
|---|---|
| Total Length | 310 |
| Total Width | 85 |
| Total Depth | 77 |
Weight Parameters
| Weight Category | Specific Value |
|---|---|
| Single Unit Net Weight | 980 g |
| Original Packaged Gross Weight | 1065 g |
5. 10 Schneider XAPD Series Similar Metal Empty Button Boxes
All listed items are die-cast aluminum control enclosures of XAPD range, IP65 protection, compatible with 22mm standard pushbutton units; differences lie in hole quantity, cable thread specification and overall dimension:
- XAPD21 1-hole Gray Aluminium Empty Control Box, M20 Cable Entry
- XAPD2202 2-hole Metal Button Box, M20 Thread Port
- XAPD3303 3-hole Industrial Control Station Enclosure, M25 Cable Inlet
- XAPD44 4-hole Pre-drilled Aluminium Button Housing, M25 Thread
- XAPD54 No-hole Blank Aluminium Box (Custom Drilling Available), M32 Port
- XAPD11 1-hole Mini Compact Metal Control Box
- XAPD2504 4-hole Extended Size Button Box, M20 Cable Entry
- XAPD3506 6-hole Large Capacity Control Station, M25 Thread
- XAPD5606 6-hole Long Strip Aluminium Button Box, M32 Inlet
- XAPD4504 4-hole Deepened Cavity Wiring Control Enclosure
