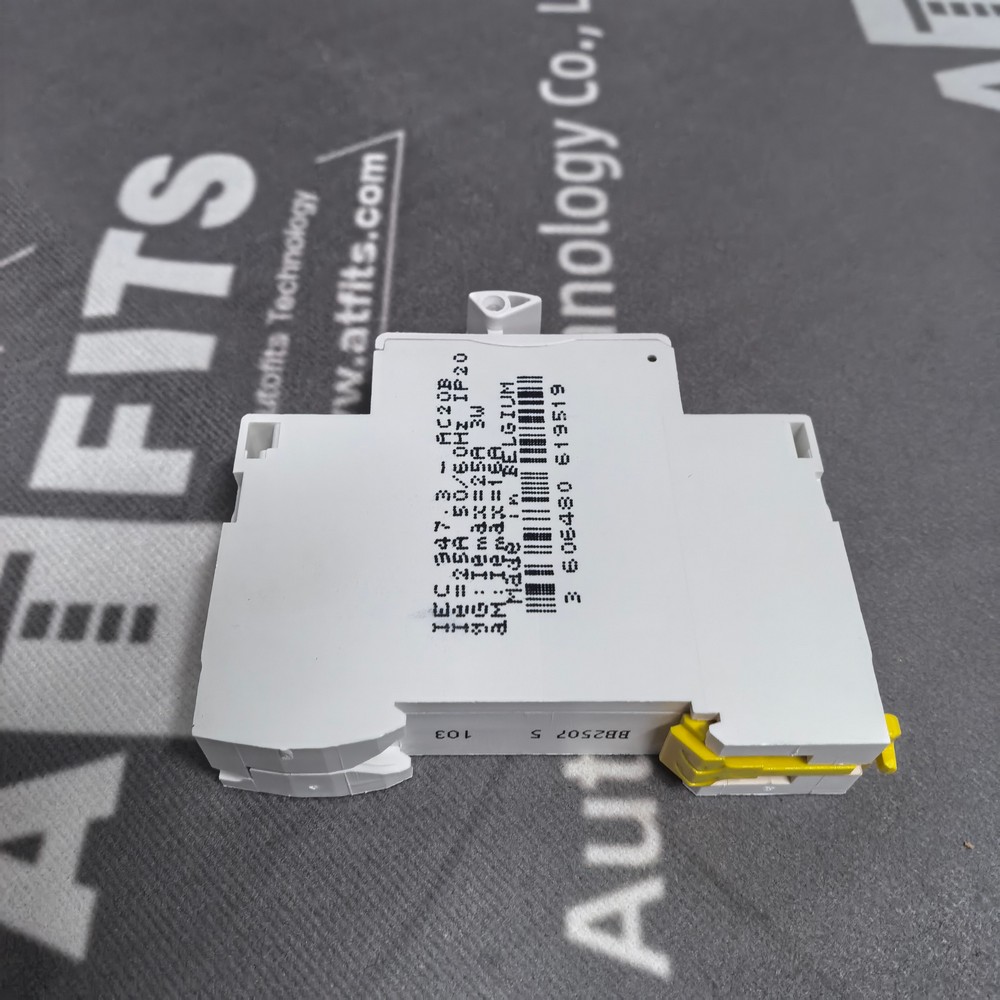

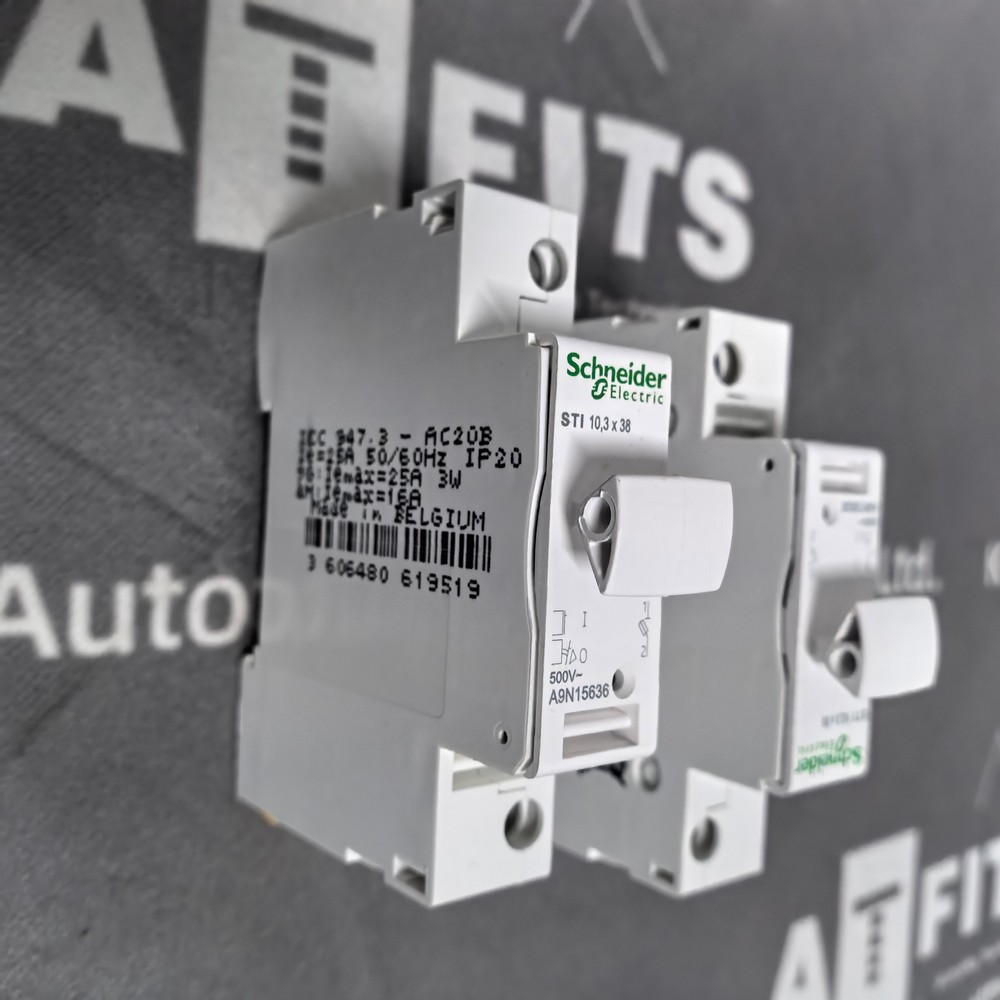

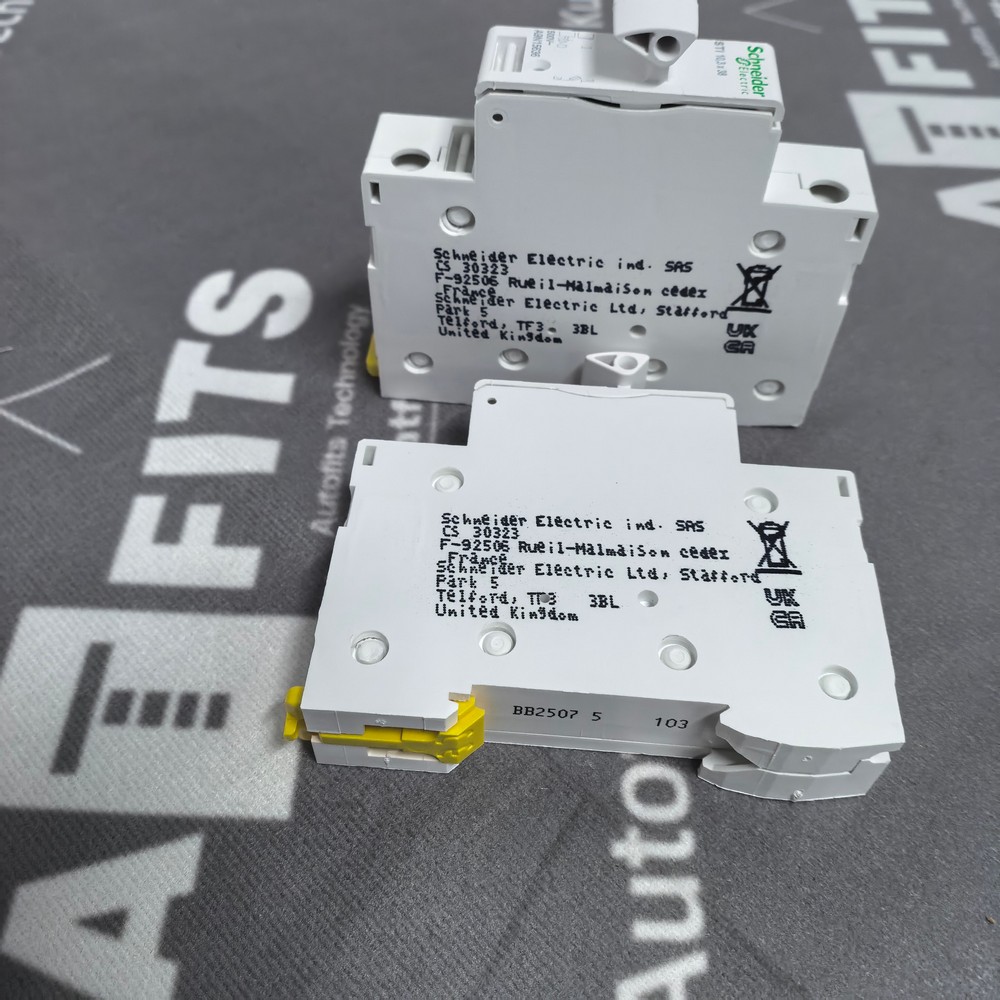

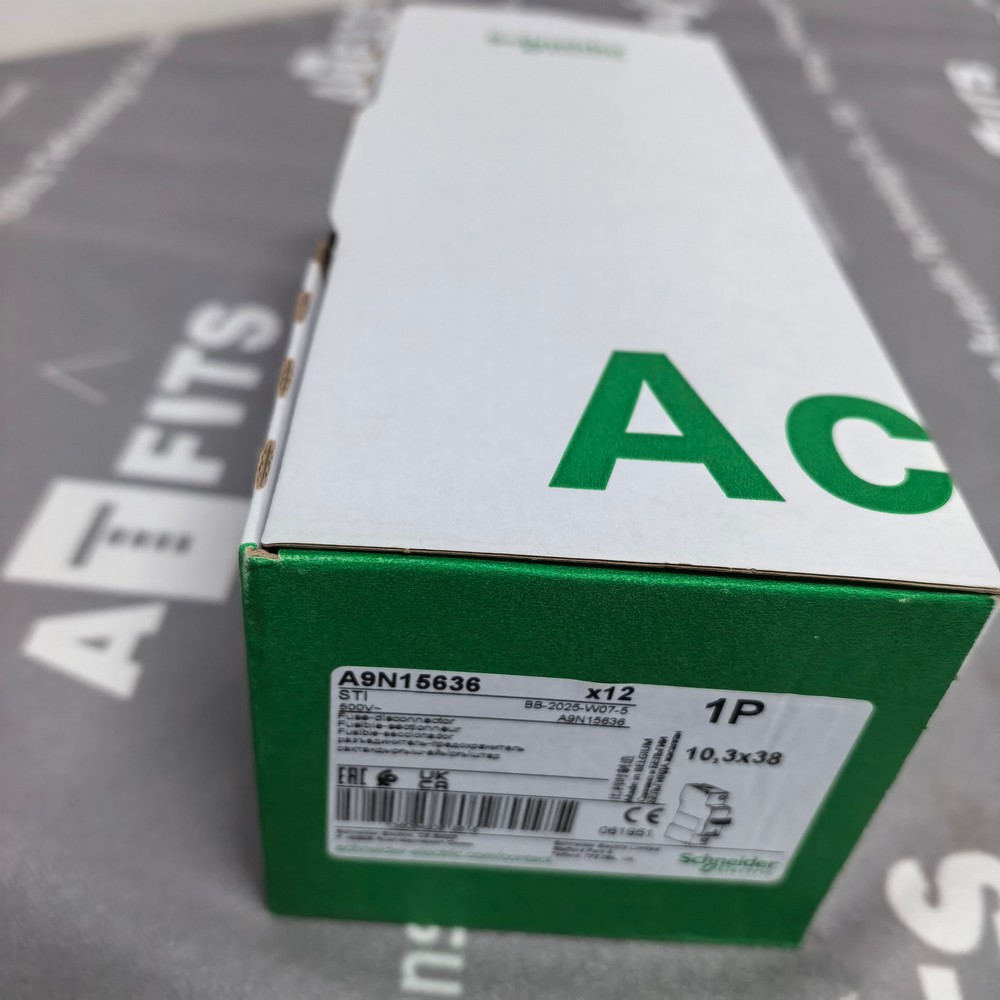

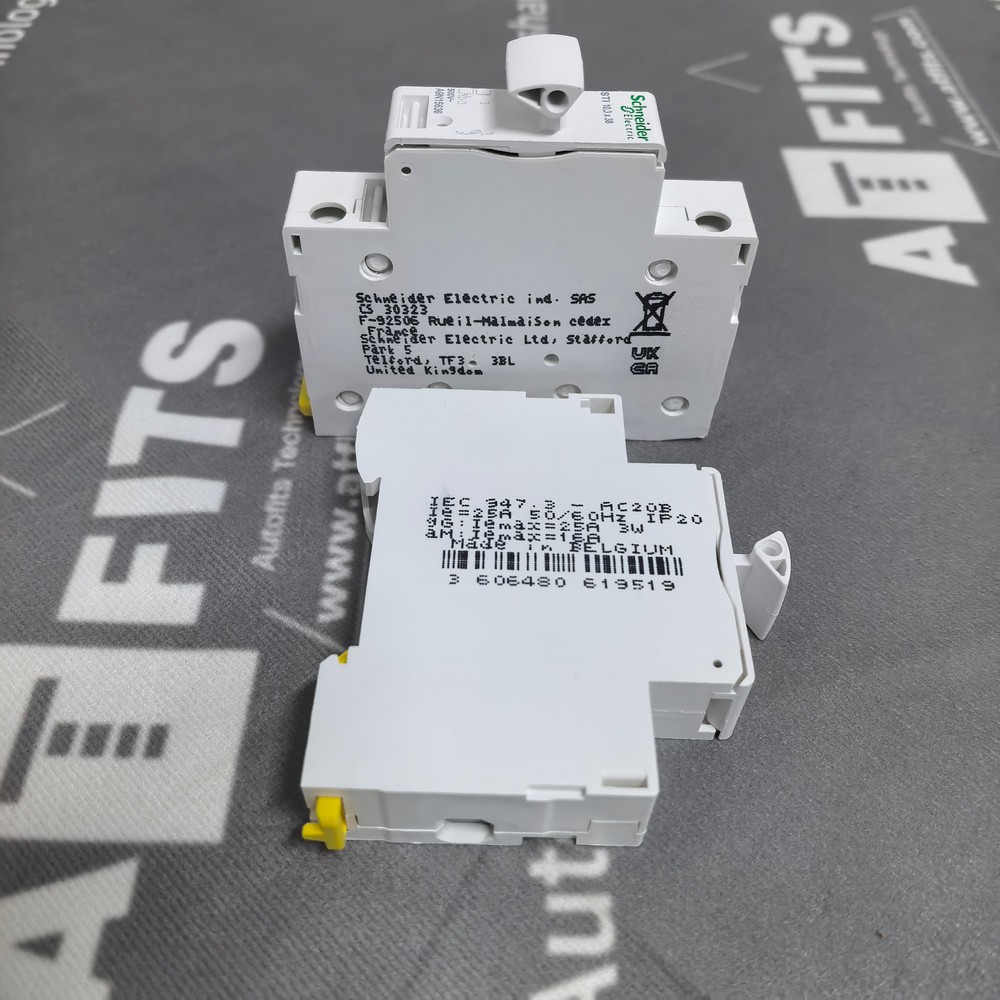

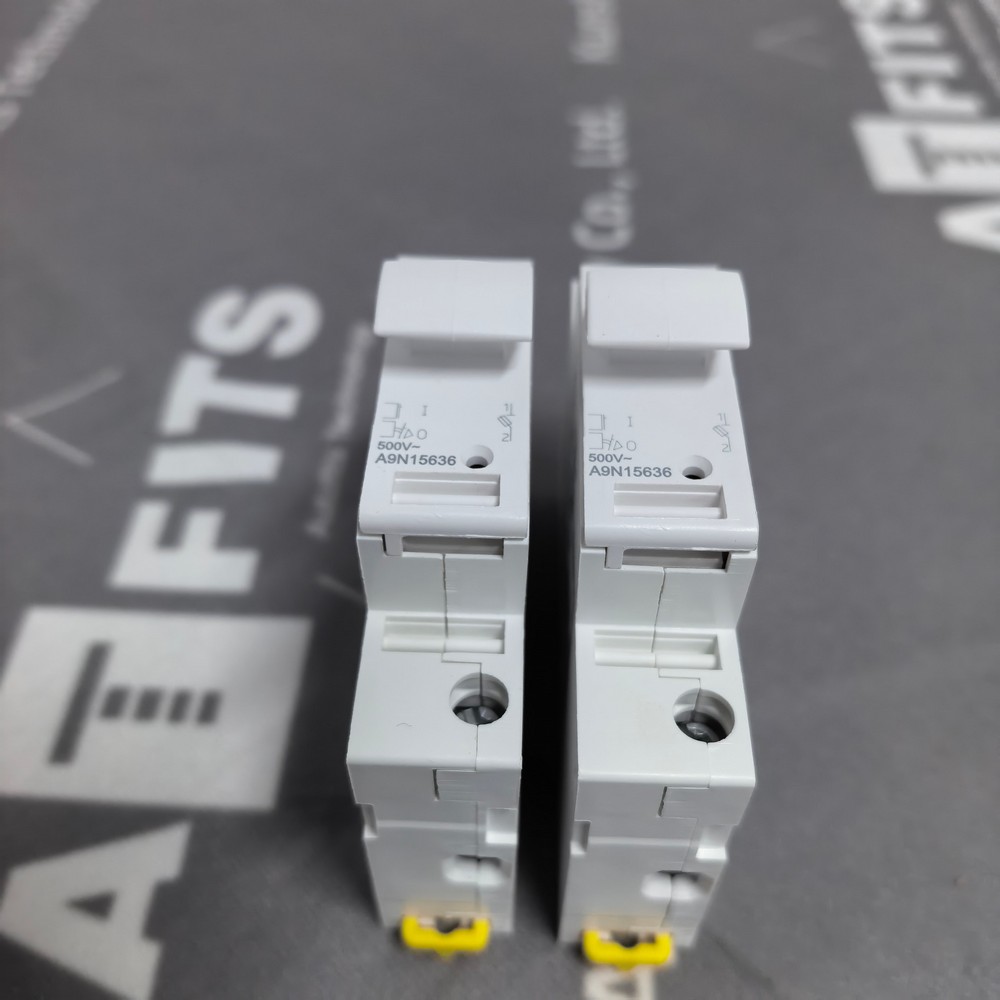

New Original Schneider A9N15636 Acti9 STI 1P 25A Fuse Disconnector
"*" señala los campos obligatorios
New Original Schneider A9N15636 Acti9 STI 1P 25A Fuse Disconnector
1. Product Overview
The A9N15636 is an original Schneider Electric modular STI series fuse disconnector under the premium Acti9 low-voltage distribution product line. It is a 1-pole DIN rail-mounted fuse holder integrated with an isolating switch, designed to accommodate standard cylindrical cartridge fuses with dimensions 10.3 mm × 38 mm. This unit combines three core functions: manual circuit isolation, fuse mounting carrier, and overload/short-circuit protection triggered by inserted gG general-purpose fuses or aM motor-protection fuses. Widely deployed in industrial control cabinets, commercial power distribution systems, machinery automation panels, building auxiliary electrical circuits and tertiary facility power loops, it delivers reliable circuit cut-off capability for equipment maintenance and safeguards downstream electrical loads against overcurrent faults. The standardized modular structure ensures seamless combination with other Acti9 series low-voltage components inside distribution boxesSchneider ….
2. Main Functions
- Genuine Electrical Isolation Function: The front operating toggle can fully disconnect the live circuit to form a visible break point, complying with international isolation safety standards for safe power-off maintenance work.
- Fuse Carrier & Overcurrent Protection: Holds 10.3×38 mm cartridge fuses; inserted gG fuses protect general circuits from overload and short-circuit faults, while aM fuses provide short-circuit protection for motor loads with high starting current.
- Lockable Switch Toggle: The operating handle supports padlocking in both open and closed positions to prevent unauthorized switching operations on site.
- Fuse Blown Status Indication Compatibility: Reserved mounting space for optional 230V AC neon indicator lamp, which lights up red once the internal fuse melts to remind maintenance personnel of fault conditions.
- Spare Fuse Storage Slot: Built-in small cavity inside the housing for storing one spare cartridge fuse to facilitate rapid on-site replacement.
- Universal Cable Connection: Screw clamp terminals accept both rigid and flexible copper wires of various cross-sectional areas for flexible wiring layout.
- Modular Combination: Standard 18mm width module can be arranged side by side with multiple identical units or other Acti9 series electrical devices on 35mm DIN rails.
3. Technical Specifications
| Item | Detailed Parameter |
|---|---|
| Full Model Code | A9N15636 |
| Product Series | Schneider Acti9 STI Fuse Disconnector |
| Number of Poles | 1 Pole (1P) |
| Rated Current (In) | 25 A |
| Rated Operational Voltage | 500 V AC, 50/60 Hz |
| Rated Insulation Voltage | 690 V AC |
| Applicable Fuse Size | 10.3 mm × 38 mm cylindrical cartridge fuse |
| Compatible Fuse Types | gG general-purpose fuse, aM motor protection fuse |
| Breaking Capacity | 25 kA |
| Protection Grade | IP20 (terminal side); IP40 when installed inside enclosed distribution cabinet |
| Terminal Wiring Capacity | Rigid wire: 0.75 ~ 10 mm²; Flexible wire: 0.5 ~ 6 mm² |
| Operating Temperature Range | -20 °C ~ +60 °C |
| Pollution Degree | Class 3 |
| Compliance Standards | IEC/EN 60947-3, RoHS compliant |
| Mounting Method | 35 mm standard DIN rail clip-on installation |
| Toggle Function | Padlockable open/closed position |
4. Technical Features
- High-strength Flame-retardant Housing: The shell is made of premium thermosetting flame-retardant plastic, resistant to high temperature, electric arc erosion and impact, adapting to harsh industrial workshop environments.
- Compact Modular Outline: Single module width is only 18 mm, greatly saving internal space of electrical distribution cabinets.
- Safe Visible Disconnection Point: Clear mechanical break point inside the device after switch opening, fully meeting electrical safety isolation requirements for maintenance operations.
- Captive Fuse Carrier Design: The fuse bracket is fixed inside the unit to avoid accidental falling off during fuse replacement and reduce electric shock risks.
- Low Contact Resistance Internal Structure: Silver-plated conductive contacts ensure stable current transmission and avoid overheating under long-term rated load operation.
- Excellent Environmental Adaptability: Stable performance under wide temperature fluctuation and low humidity condensation conditions.
- Full Compatibility with Acti9 Ecosystem: Perfectly matched with Acti9 busbars, auxiliary contacts and all series modular low-voltage components for integrated power distribution system construction.
5. Product Dimensions and Net Weight
| Parameter | Value |
|---|---|
| Overall Width | 18 mm |
| Overall Height | 81 mm |
| Overall Depth | 75 mm |
| Single Unit Net Weight | 55 g |
| Standard DIN Rail | 35 mm top-hat rail |
| Terminal Screw Tightening Torque | 1.2 N·m |
6. Ten Schneider Similar-Function Acti9 STI Series Fuse Disconnectors
All listed products belong to Acti9 STI fuse disconnector range for circuit isolation and fuse overcurrent protection with varied poles, rated currents and specifications:
- A9N15632: 1P 10A single-pole fuse disconnector for low-current small-power control circuits
- A9N15634: 1P 16A single-pole variant for medium-current lighting and auxiliary equipment loops
- A9N15651: 2P 25A two-pole fuse disconnector for single-phase live and neutral dual-circuit protection
- A9N15656: 3P 25A three-pole model for three-phase AC power distribution circuits
- A9N15638: 1P 20A single-pole fuse holder with intermediate current rating
- A9N15661: 1P+N 25A pole-plus-neutral type for household and commercial single-phase distribution boxes
- A9N15640: 1P 25A STI unit pre-installed with 230V fuse blow indicator lamp
- A9N15670: 4P 25A four-pole fuse disconnector for complete three-phase four-wire system protection
- A9N15630: 1P 6A miniature low-current fuse disconnector for instrument and sensor power supply loops
- A9N15675: High-temperature resistant STI 1P 25A version suitable for high-heat equipment workshop environments
