New Original Sanyo Denki 9LG1224P1G001 San Ace 120L DC Brushless Axial Cooling Fan
1. Product Overview

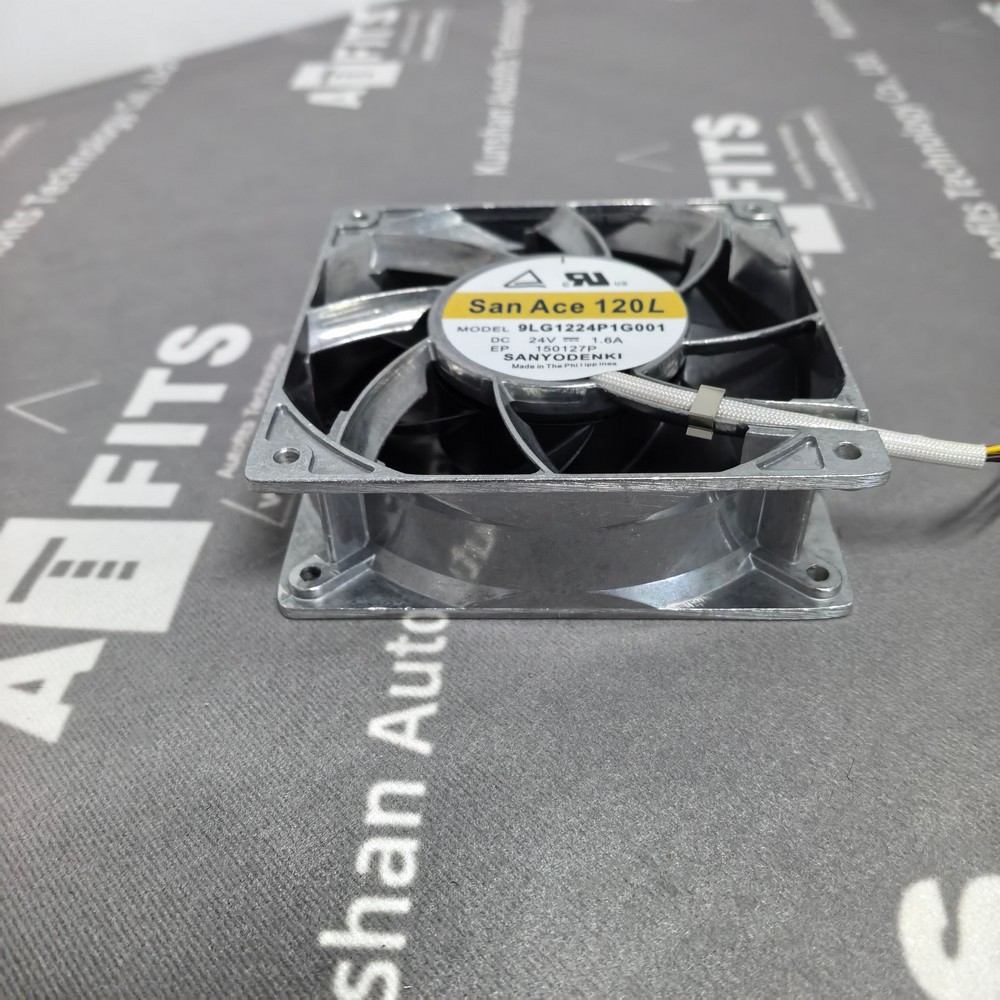

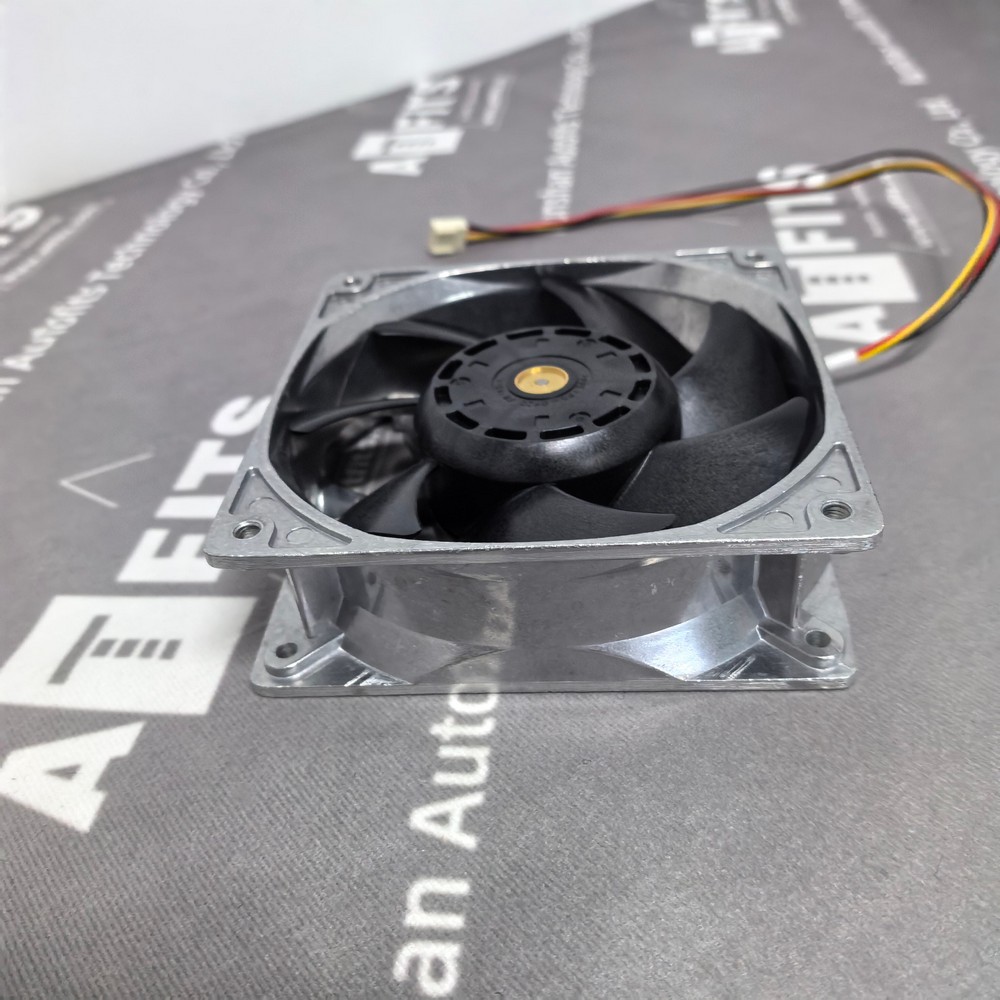

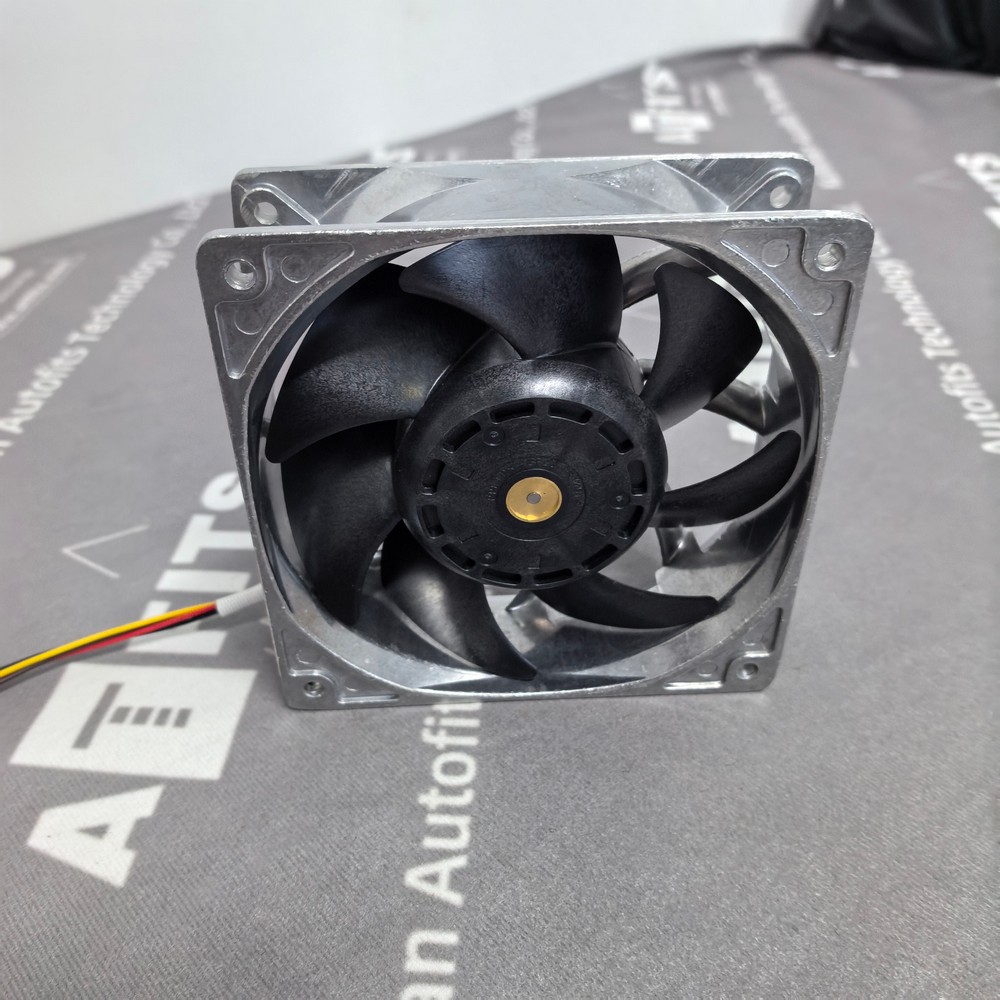

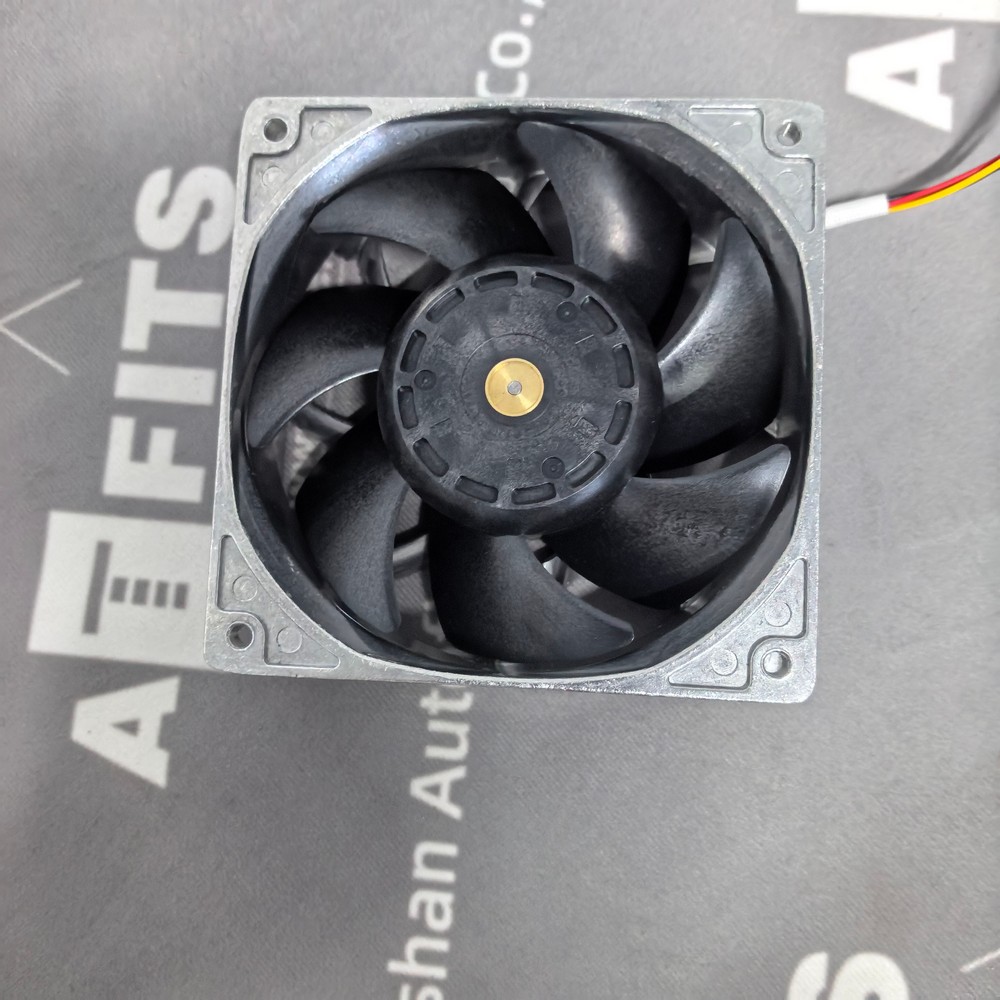

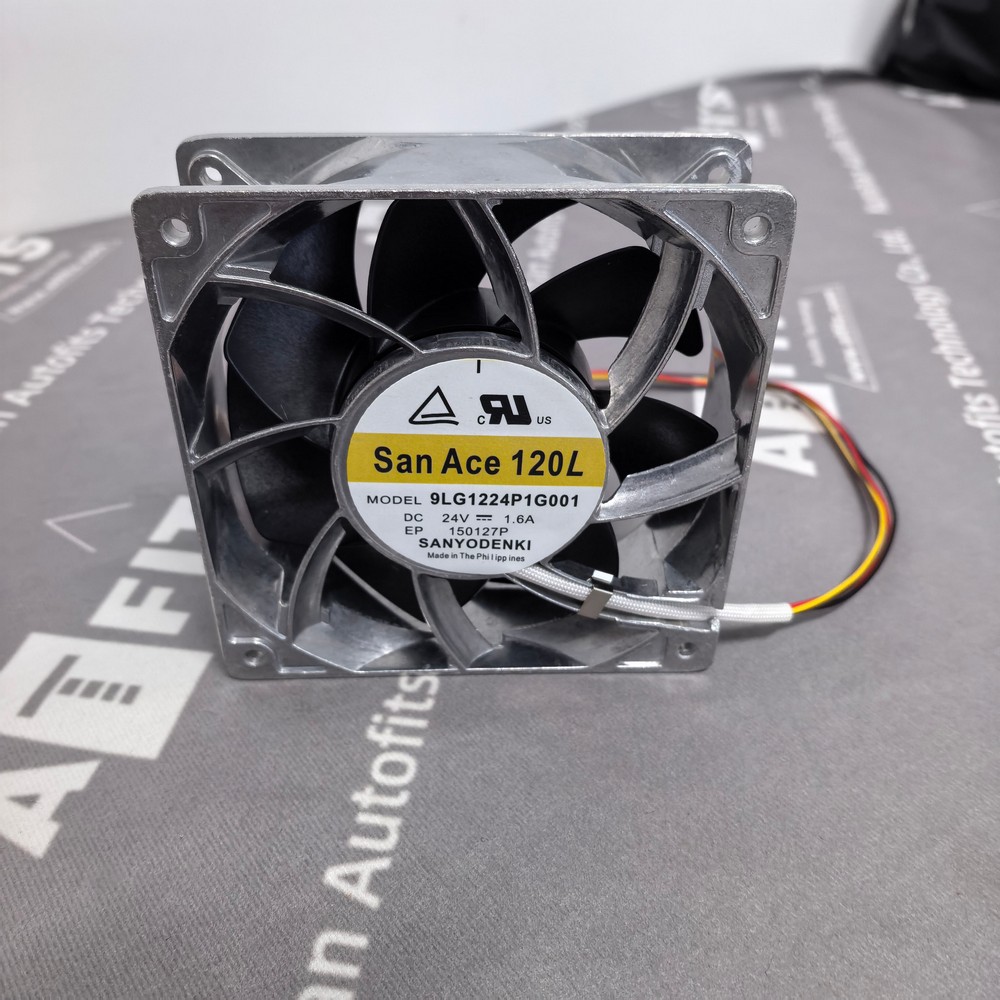

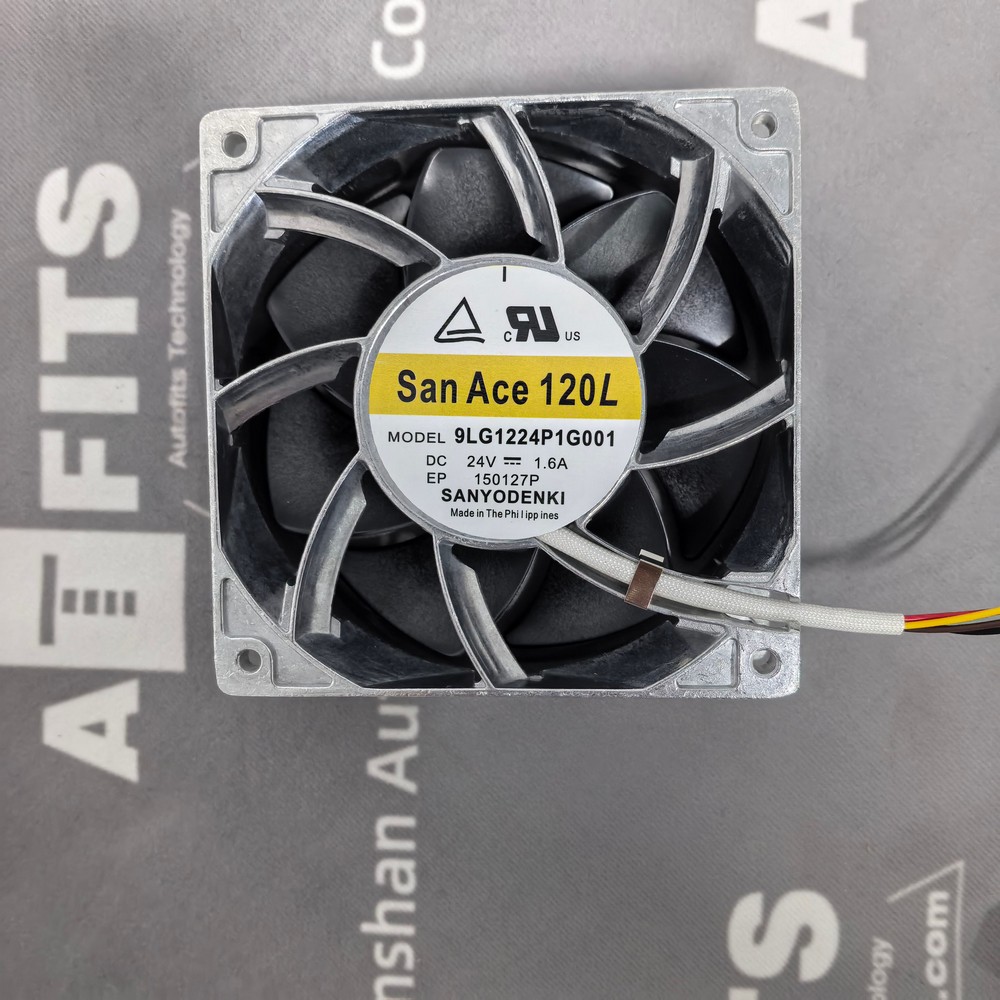

9LG1224P1G001 is an original Sanyo Denki industrial DC brushless axial cooling fan belonging to the San Ace 120L (9LG) long-life series. This fan adopts a 120 × 120 × 38 mm aluminium frame, ball bearing structure and four-wire interface, supporting PWM speed regulation and FG pulse speed feedback signal output. Rated operating voltage is 24 V DC.
It delivers high airflow and high static pressure performance, designed for thermal dissipation of equipment with large internal airflow resistance. Widely applied for cooling industrial inverters, server power supplies, communication cabinets, laser equipment, automated machinery and high-density electrical control enclosures. The long-life bearing system ensures stable continuous operation for maintenance-demanding industrial facilities.
2. Main Functions
- High Static Pressure Forced Air Cooling Generates strong airflow to dissipate heat inside sealed equipment and overcome high internal air resistance.
- PWM Stepless Speed Regulation Accepts external PWM control signals to adjust rotational speed dynamically for energy saving and noise optimization.
- FG Tachometer Speed Feedback Outputs pulse signal to monitor real-time fan rotational speed, supporting equipment fault diagnosis and alarm logic.
- Built-in Locked Rotor Protection Automatically cuts off drive current when fan blades are blocked to avoid motor burnout.
- Wide Operating Voltage Adaptability Stable operation within 15 V DC ~ 30 V DC, resisting voltage fluctuation in industrial power supply systems.
- Long Service Life Ball Bearing Design Optimized bearing lubrication formulation extends service life under continuous operating conditions.
- Standard Mounting Hole Layout Universal 120 mm square mounting holes for convenient installation and interchangeability in equipment design.
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | 9LG1224P1G001 |
| Product Series | San Ace 120L (9LG) DC Brushless Axial Fan |
| Rated Voltage | 24 V DC |
| Operating Voltage Range | 15 V DC ~ 30 V DC |
| Rated Current | 1.6 A |
| Rated Input Power | 38.4 W |
| Rated Rotational Speed | 6550 min⁻¹ |
| Maximum Airflow | 7.0 m³/min (247.1 CFM) |
| Maximum Static Pressure | 370 Pa (1.48 inchH₂O) |
| Acoustic Noise Level | 62 dB(A) |
| Bearing Type | Ball Bearing |
| Signal Interface | 4-wire (PWM control + FG speed pulse output) |
| Frame Material | Aluminium Alloy |
| Blade Material | High-strength engineering plastic |
| Operating Temperature Range | -20 ℃ ~ +70 ℃ |
| Expected Service Life | 180,000 hours @ 60 ℃; 215,000 hours @ 40 ℃ |
| Approvals | UL, CSA, TUV, RoHS Compliant |
Core Technical Advantages
- Aluminium frame improves structural rigidity and heat conduction compared with plastic frame fans;
- Excellent high-static-pressure performance suitable for equipment with dense internal components;
- Integrated PWM and FG dual signal functions facilitate intelligent thermal control system design;
- Industry-leading long-life bearing system reduces equipment maintenance frequency;
- Built-in stall protection effectively enhances safety under abnormal operating conditions.
4. Product Dimensions and Weight
External Dimensions (Unit: Millimeter)
| Dimension Item | Exact Size |
|---|---|
| Overall Width | 120 |
| Overall Height | 120 |
| Overall Thickness | 38 |
Weight Reference
| Weight Category | Specific Value |
|---|---|
| Single Fan Net Weight | 420 g |
| Original Packaged Gross Weight | 465 g |
5. 10 Sanyo Denki Similar San Ace 120L Series Cooling Fans
All variants belong to 9LG San Ace 120L 120×120×38 mm industrial fan platform; differences include rated voltage, rotational speed and signal configuration:
- 9LG1212P1G001 12 V DC High Speed PWM FG Axial Fan
- 9LG1224A1001 24 V DC Medium Speed Low-noise Axial Fan
- 9LG1224F1001 24 V DC Low Speed Energy-saving Cooling Fan
- 9LG1224M1001 24 V DC Ultra-low Speed Silent Fan
- 9LG1224P1S001 24 V DC High Static Pressure Variant Fan
- 9LG1248P1G001 48 V DC High Speed PWM Industrial Fan
- 9LG1224A1D001 24 V DC Medium Speed Fan without PWM Function
- 9LG1224P1G001-WP Special Anti-dust Coated Fan Variant
- 9LG1212A1001 12 V DC Medium Speed Non-PWM Axial Fan
- 9LG1224P1G001-R Reversed Airflow Direction Fan
