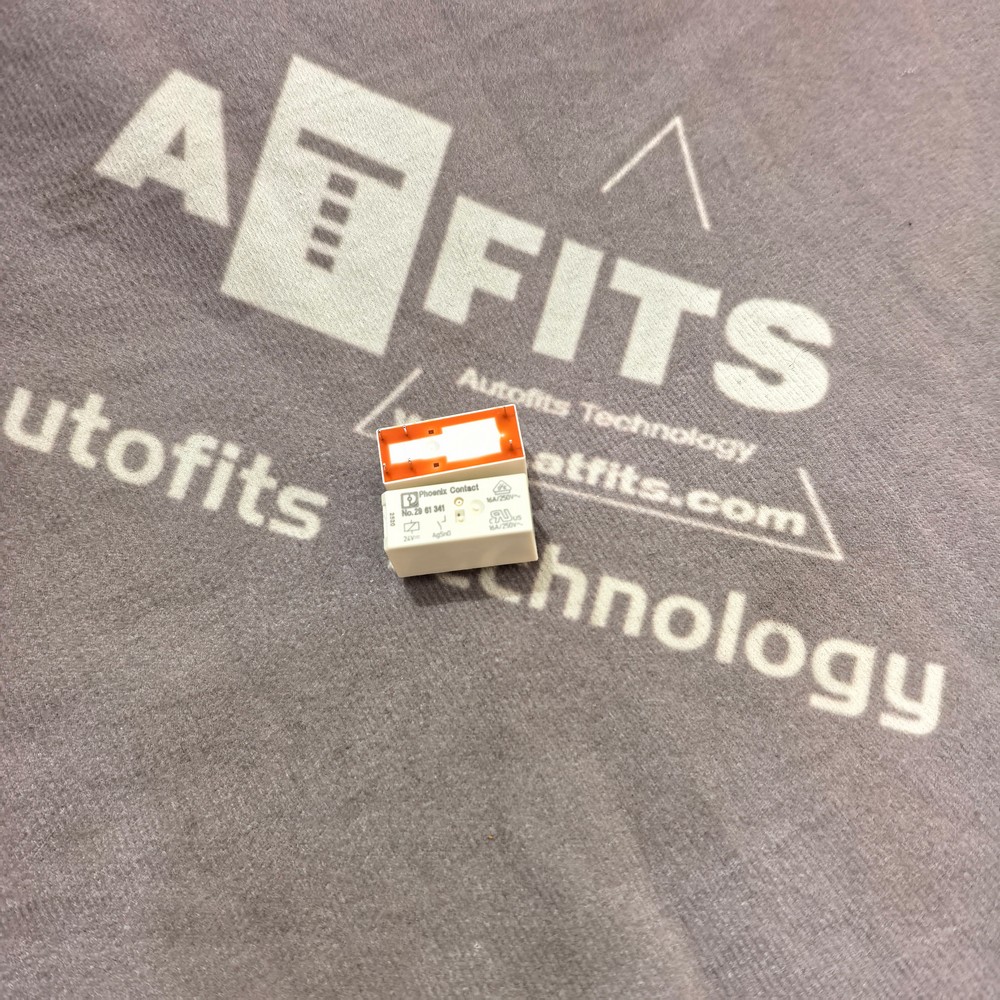

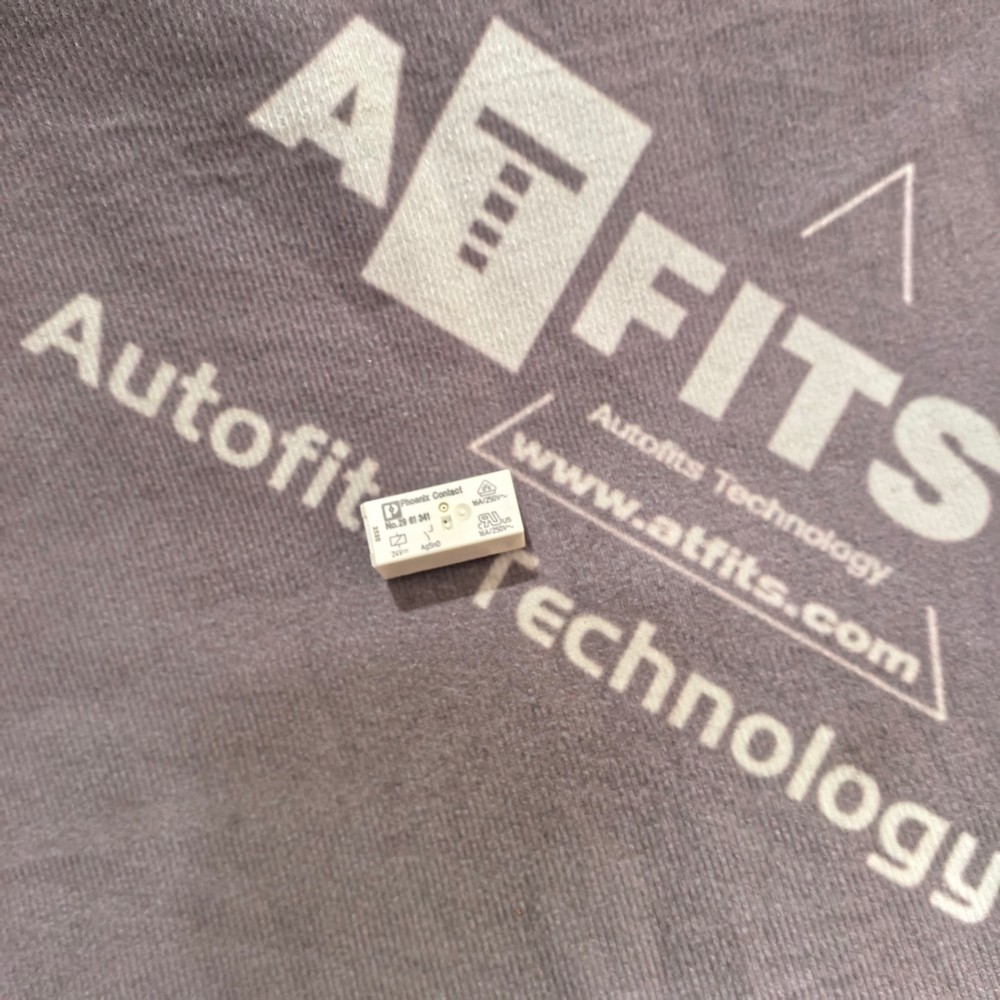

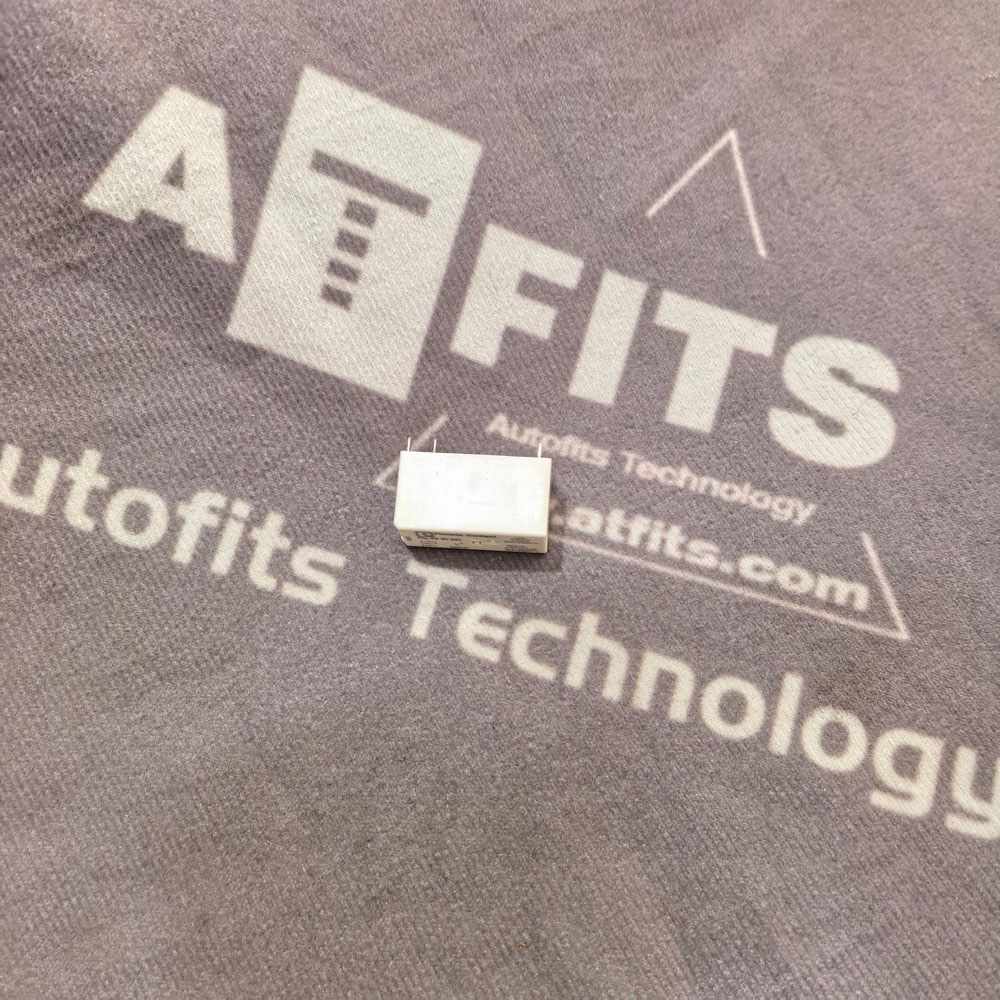

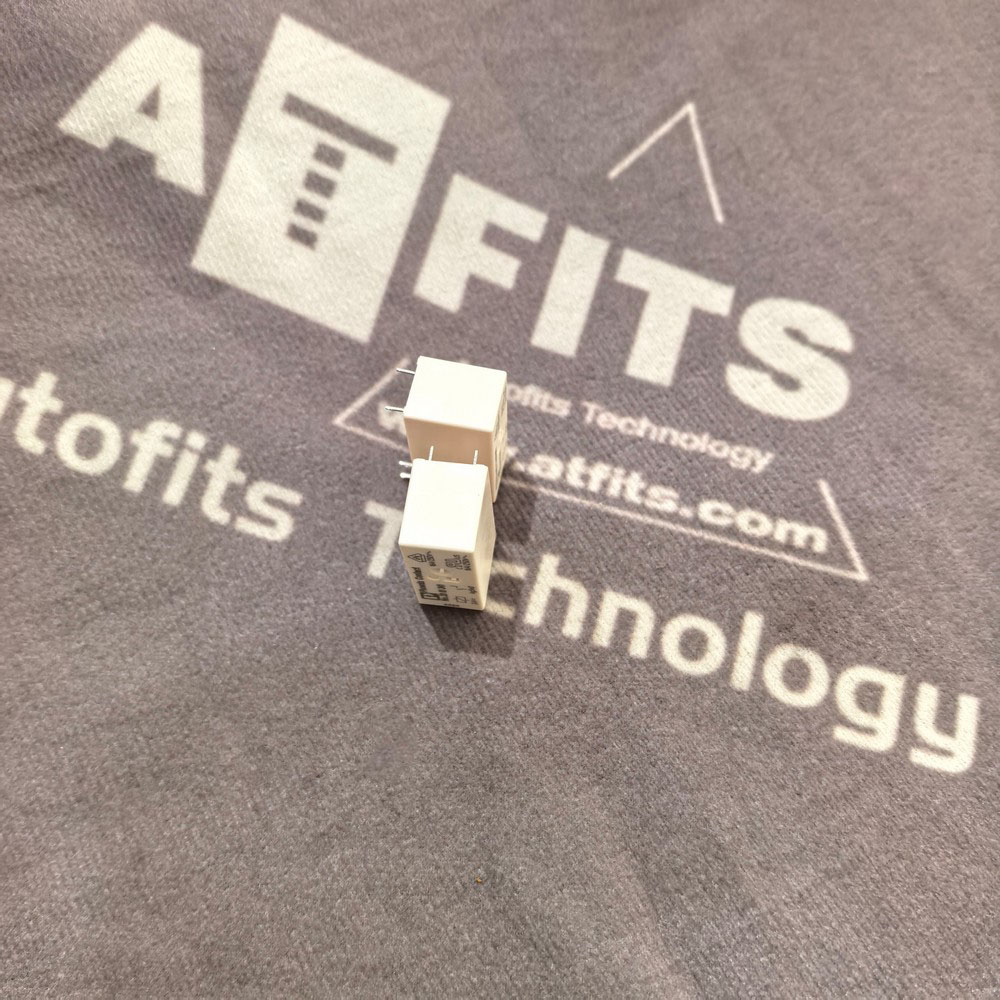

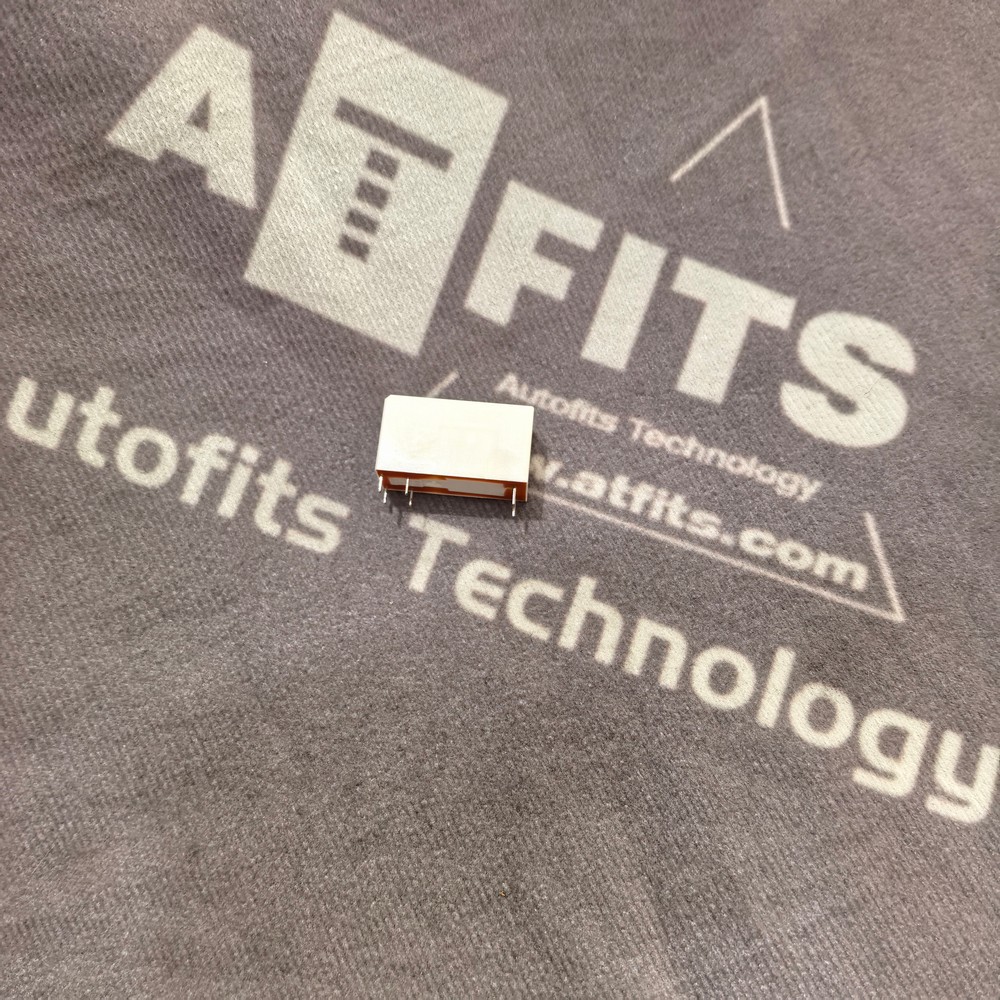

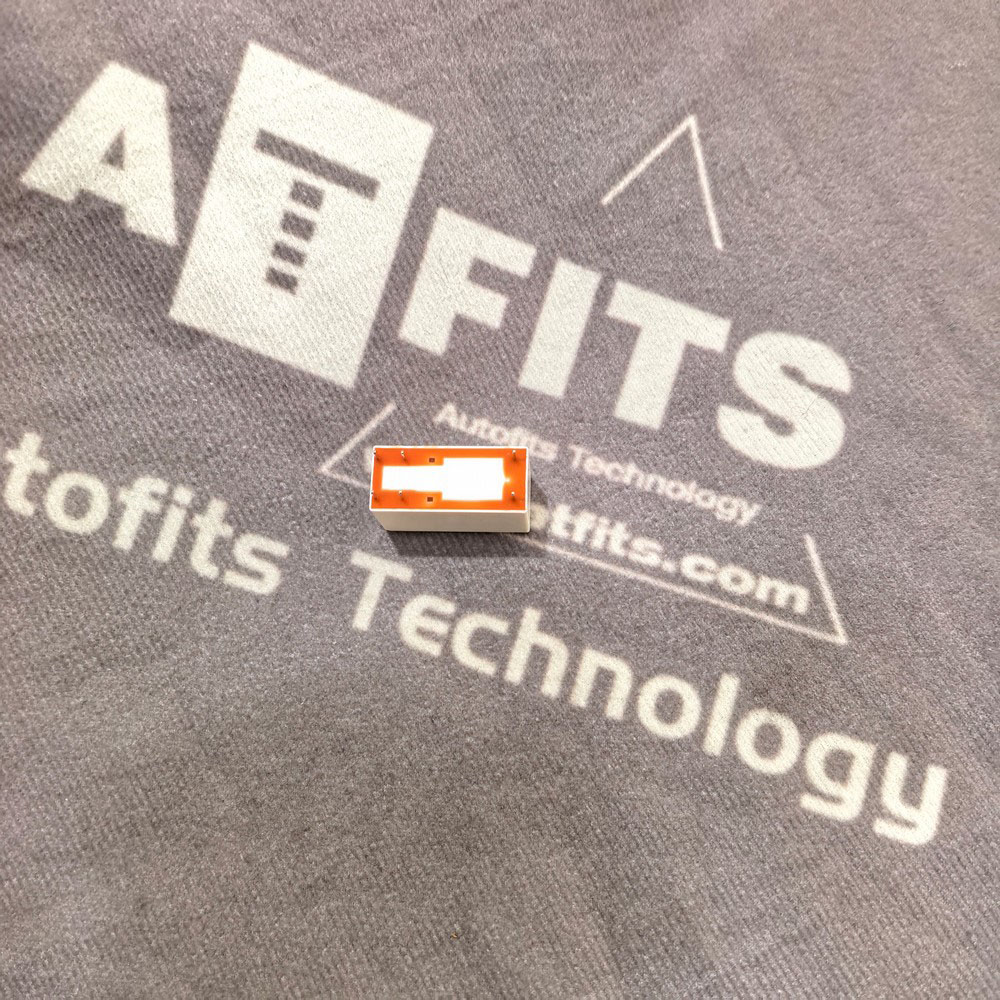

New Original Phoenix Contact 2961105 REL-MR-24DC/21 Miniature Plug-in PCB Power Relay
1. Product Overview
REL-MR-24DC/21 (Order No. 2961105) is an original Phoenix Contact miniature plug-in electromechanical relay from the REL-MR series. Equipped with a 24 V DC coil and one single-pole changeover (SPDT) contact, this relay adopts standard through-hole pins for direct PCB soldering or plug-in assembly onto corresponding relay sockets.
The relay is designed for low-power signal switching and small load control in industrial automation systems. It is widely used to drive solenoid valves, indicator lamps, transfer sensor signals and expand PLC output circuits on packaging machines, conveyor systems, machine tool control panels and compact electronic modules. Its slim housing supports side-by-side dense arrangement on printed circuit boards to save installation space.
2. Main Functions
- Signal and Small Load Switching Achieves reliable make-and-break control for alternating current and direct current loads, transmitting control signals from controllers to on-site actuators.
- SPDT Changeover Contact Configuration Integrates normally open and normally closed contacts, enabling flexible circuit switching and signal selection for diverse control logic.
- Dual Mounting Compatibility Supports direct soldering on PCB or plug-in installation with matched relay bases, facilitating quick replacement during equipment maintenance.
- Low Power DC Coil Operation Low coil power consumption reduces load pressure on PLC transistor outputs and other control modules.
- Long Service Life Contact System AgSnO contact material effectively prevents contact welding and guarantees stable performance under repeated switching cycles.
- Effective Isolation Between Coil and Contacts Provides electrical separation between the control coil circuit and load circuit to reduce mutual electromagnetic interference.
- Wide Ambient Temperature Adaptability Maintains consistent switching performance under temperature fluctuations inside electrical control cabinets.
3. Technical Characteristics
| Technical Parameter | Detailed Specification |
|---|---|
| Full Model | REL-MR-24DC/21 |
| Order Number | 2961105 |
| Product Series | REL-MR Miniature Plug-in PCB Relay |
| Nominal Coil Voltage | 24 V DC |
| Coil Rated Power | 0.17 W |
| Coil Resistance | 3390 Ω ±10% |
| Contact Type | 1 SPDT (1 changeover) |
| Contact Material | AgSnO |
| Rated Switching Current | 6 A |
| Maximum Switching Voltage | 250 V AC / 250 V DC |
| Typical Operate Time | 5 ms |
| Typical Release Time | 2.5 ms |
| Mechanical Service Life | 20,000,000 operations |
| Electrical Service Life (rated load) | 100,000 operations |
| Mounting Style | PCB through-hole / plug-in socket |
| Housing Material | Flame-retardant engineering plastic |
| Operating Temperature Range | -40 ℃ ~ +70 ℃ |
| Storage Temperature Range | -40 ℃ ~ +85 ℃ |
| Compliance Standards | IEC 61810, UL, RoHS |
Core Technical Advantages
- Compact slim structure allows high-density layout on PCBs, optimizing space utilization inside control cabinets;
- Low-consumption coil avoids overloading digital output channels of PLC and controllers;
- Anti-welding AgSnO contacts improve reliability for resistive load applications;
- Standard pin layout ensures good interchangeability with supporting relay sockets;
- Stable performance suitable for continuous long-running automation equipment.
4. Product Dimensions and Weight
External Dimensions (Unit: Millimeter)
| Dimension Item | Exact Size |
|---|---|
| Width | 12.7 |
| Height | 29.0 |
| Depth | 15.7 |
Weight Reference
| Weight Category | Specific Value |
|---|---|
| Single Relay Net Weight | 13 g |
| Original Packaged Gross Weight | 16 g |
5. 10 Phoenix Contact Similar REL-MR Series Miniature PCB Relays
All variants belong to the REL-MR miniature plug-in relay series; differences include coil voltage, contact quantity and contact specifications:
- REL-MR-12DC/21 2961092 12 V DC 1 Changeover Contact PCB Relay
- REL-MR-48DC/21 2961118 48 V DC Single Changeover Relay
- REL-MR-230AC/21 2961147 230 V AC SPDT Miniature Relay
- REL-MR-24DC/21AU 2961121 24 V DC Gold-plated Contact Signal Relay
- REL-MR-24DC/21HC 2961312 24 V DC High-current Version Relay
- REL-MR-24DC/21-21 2961192 24 V DC Two Changeover Contacts Relay
- REL-MR-6DC/21 2961084 6 V DC Miniature Plug-in PCB Relay
- REL-MR-60DC/21 2961130 60 V DC SPDT Electromechanical Relay
- REL-MR-24DC/21AU/MS 2909645 Relay with Manual Test Button
- REL-MR-BL-24DC/21HC 1109540 High-load Socket-mount Relay Variant
