New Original Omron E3JK-DR11-C Photoelectric Switch Sensor
1. Product Overview
The E3JK-DR11-C is a brand-new cuboid diffuse-reflective photoelectric sensor from Omron’s E3JK universal AC/DC free power series. It adopts an integrated built-in power supply circuit design, supporting wide-range AC and DC dual power input without separate power adapters. This model features relay contact output, 2.5-meter maximum diffuse sensing distance, red LED light source, and a 2-meter fixed PVC cable connection.
As a cost-effective general industrial photoelectric sensor, it is widely used for object presence detection, counting, position confirmation and material shortage monitoring on packaging machines, conveyor lines, food processing equipment, printing machinery and automated assembly stations. Every genuine original unit undergoes strict factory aging testing, EMC anti-interference inspection and IP64 dustproof/waterproof sealing verification to maintain stable operation in environments with workshop dust, water splashes and electromagnetic noise generated by motors and inverters. It is equipped with an adjustable sensitivity potentiometer and dual-status LED indicators for easy on-site calibration and fault judgment, and the matched metal mounting bracket simplifies fixed installation on equipment frames.
2. Main Functions
2.1 Diffuse-Reflective Object Detection
- Single-body diffuse reflection design, no separate reflector or transmitter-receiver pairing required
- Max 2.5 m effective sensing distance detected with standard 300×300 mm white test paper
- Adjustable detection threshold via built-in trimmer potentiometer, compatible with targets of different colors, sizes and reflectivity
- Automatically identifies opaque objects including cartons, plastic parts, metal sheets, paper and wood materials
- Supports switchable Light-ON and Dark-ON operation modes to match different control logic demands
2.2 Universal AC/DC Power & Relay Output Control
- Wide-range free power input: AC 24–240 V / DC 12–240 V, compatible with almost all factory power distribution systems
- Built-in mechanical relay single-contact output (1C contact), capable of directly driving small solenoid valves, signal lamps and auxiliary relays
- Complete internal circuit protection against overvoltage, surge current and reverse voltage damage
- Dual LED indicators: orange operation light for trigger status, green stability light for reliable sensing zone prompt
2.3 Industrial Environmental Adaptability
- IP64 protection rating blocks dust and splashing liquid to avoid internal circuit short circuit
- Reinforced ABS plastic housing with excellent vibration and shock resistance for continuous operation on vibrating production lines
- Wide operating temperature range adapts to normal-temperature assembly workshops and low-temperature food processing lines
2.4 Convenient Installation & Maintenance

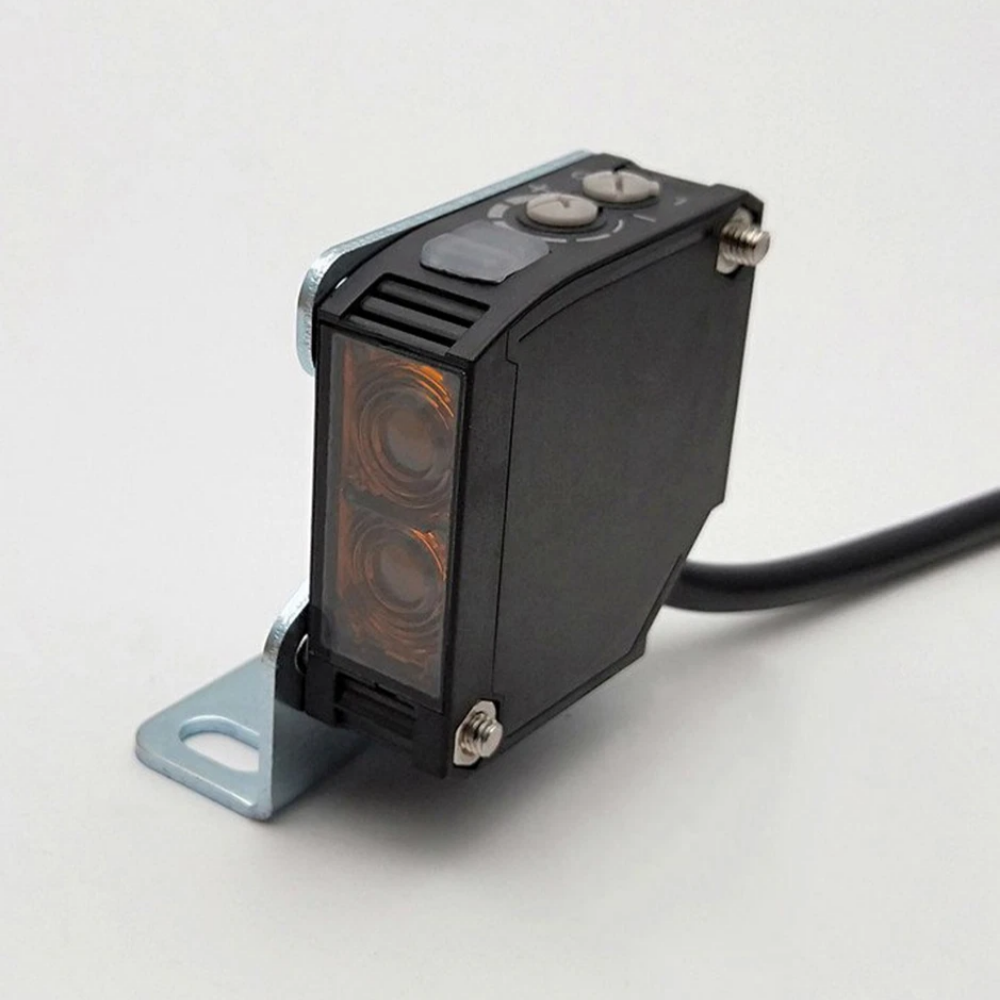

- Standard cuboid body with pre-drilled mounting holes, supplied with metal fixed bracket as standard accessory

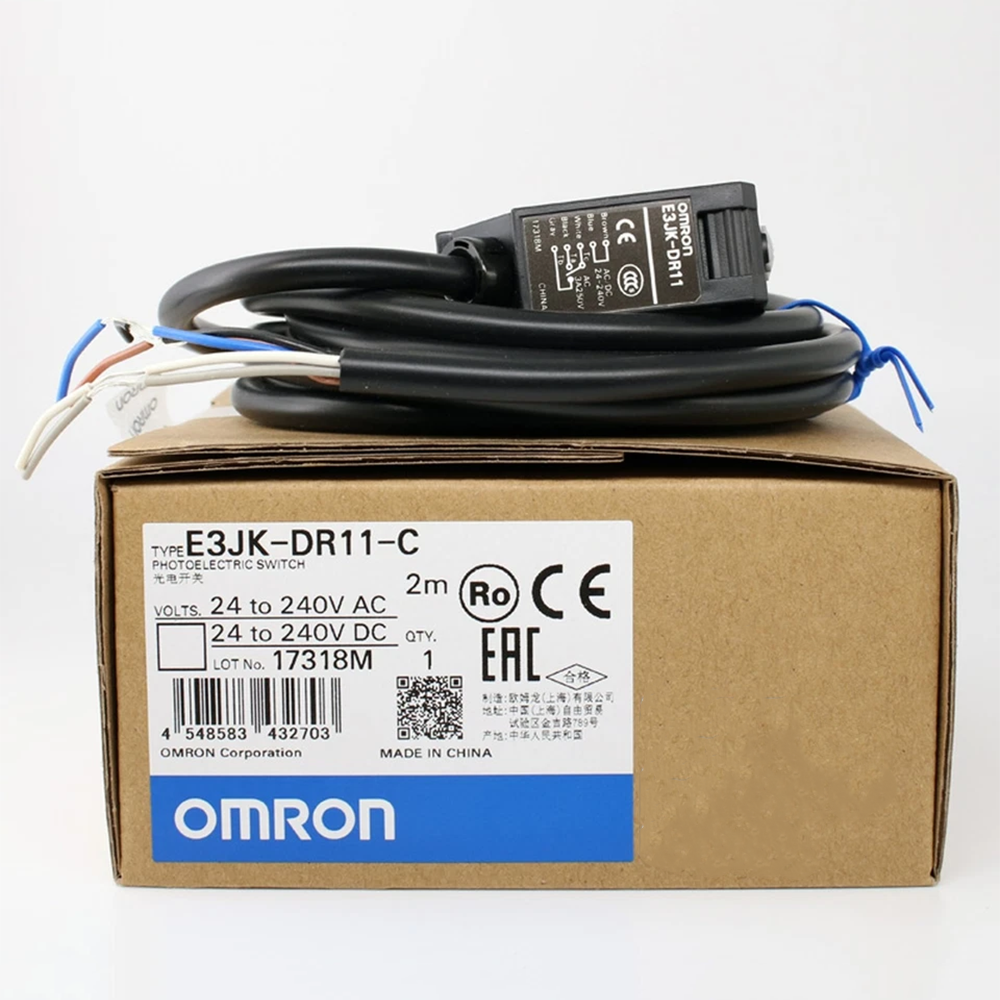

- 2-meter oil-resistant PVC fixed cable reduces wiring preparation work on site

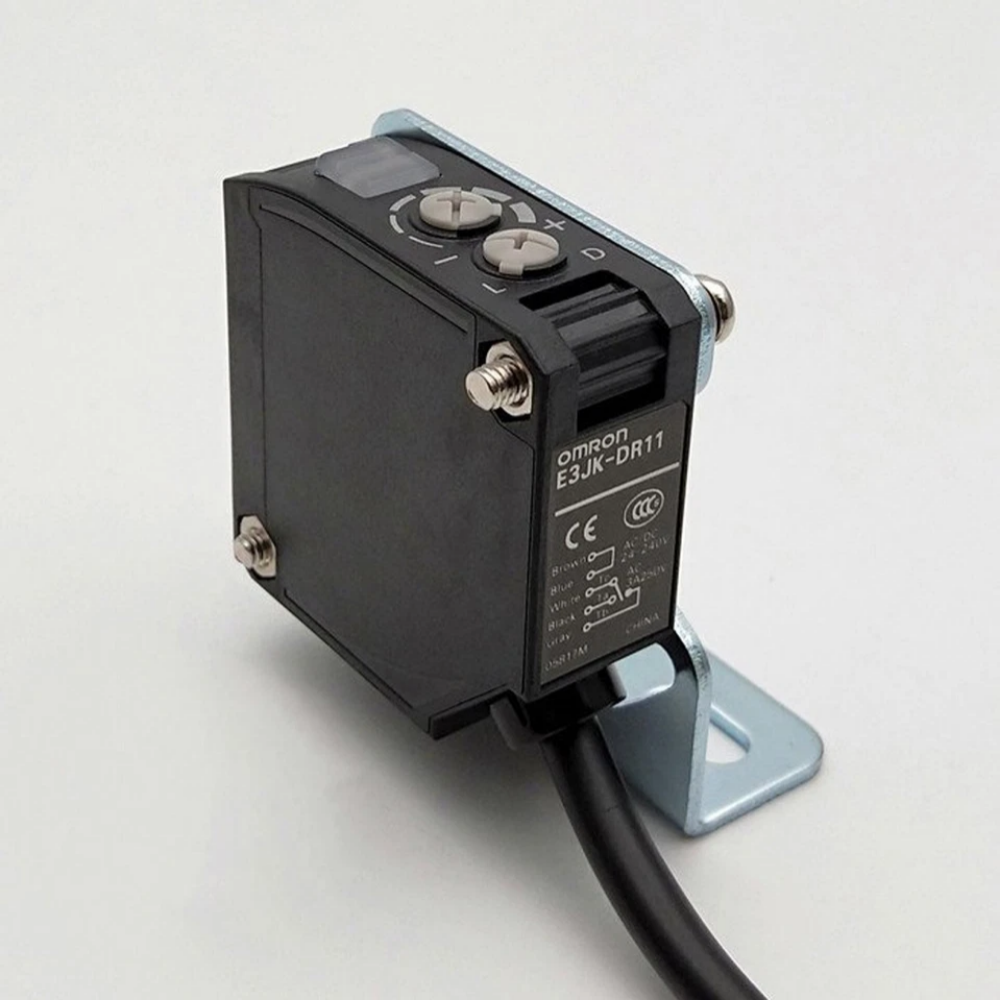

- Large adjustable potentiometer with clear scale for intuitive sensitivity tuning without professional tools
3. Detailed Technical Specifications
| Specification Item | Specific Parameter |
|---|---|
| Model Number | E3JK-DR11-C |
| Detection Principle | Diffuse-reflective photoelectric sensor |
| Light Source | Red LED (624 nm wavelength) |
| Rated Sensing Distance | 2.5 m (300×300 mm white test paper) |
| Operation Mode | Switchable Light-ON / Dark-ON |
| Power Supply Range | AC 24–240 V, DC 12–240 V (universal free power) |
| Output Type | Relay single-pole single-throw contact (1C) |
| Relay Rated Load | AC 250 V, 3 A; DC 30 V, 3 A |
| Response Time | Max 1 ms |
| Connection Mode | 2 m fixed 4-core PVC oil-resistant cable |
| Status Indicators | Orange operation LED, green stability LED |
| Protection Grade | IP64 (IEC 60529 standard) |
| Operating Temperature | -20 °C ~ +55 °C |
| Storage Temperature | -40 °C ~ +70 °C |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude, 2 hours per X/Y/Z axis |
| Shock Resistance | Destruction test: 500 m/s², 3 times per axis; malfunction test: 100 m/s², 3 times per axis |
| Insulation Resistance | Min 20 MΩ (500 VDC megger test) |
| Dielectric Strength | 1500 VAC, 50/60 Hz, 1 minute |
| Housing Material | ABS plastic; Lens window: methacrylic resin |
| Compliance Standard | IEC 60947-5-2, CE certified |
4. Product Dimensions and Weight
4.1 External Physical Dimensions
- Sensor body length: 80.8 mm
- Sensor body width: 52 mm
- Sensor body height: 39.5 mm
- Standard fixed cable length: 2000 mm
4.2 Weight Data
- Net weight of single sensor unit: 0.130 kg
- Gross weight with original factory packaging, bracket and manual: 0.160 kg
4.3 Standard Matching Accessories
Metal mounting bracket, installation instruction manual, 4 mounting screws are included in each package.
5. Core Technical Features
- Universal AC/DC wide-range power supply eliminates the need for dedicated DC power modules, lowering overall system configuration costs.
- Built-in relay contact output can directly control low-power actuators without intermediate signal conversion modules.
- Single-body diffuse-reflective structure saves installation space compared with through-beam and retro-reflective dual-component sensors.
- 2.5-meter long sensing distance meets medium-range detection demands for large conveying equipment and stacking stations.
- Dual LED indicators separately display trigger signal and stable detection state, enabling rapid on-site troubleshooting.
- Manual sensitivity potentiometer supports flexible adjustment for dark, thin or low-reflectivity detection targets.
- IP64 sealed housing effectively resists workshop dust, coolant splashes and accidental water spray.
- Robust mechanical structure with high vibration and shock resistance fits stamping, packaging and other high-vibration production lines.
- Switchable Light-ON/Dark-ON logic adapts to diverse equipment control program requirements.
- Integrated pre-wired 2-meter oil-resistant cable avoids loose connection risks caused by frequent plugging and unplugging.
6. 10 Similar-Function Omron E3JK Series Photoelectric Sensors
- E3JK-DR12-C: Diffuse-reflective relay output sensor, Dark-ON fixed logic, 2.5 m sensing distance, AC/DC universal power
- E3JK-DN11-C: Diffuse-reflective NPN transistor output model, DC dedicated power supply, 2.5 m detection range
- E3JK-DP11-C: Diffuse-reflective PNP transistor output photoelectric switch for DC control systems
- E3JK-RR11-C: Retro-reflective relay output sensor with matched reflector, maximum sensing distance 4 m
- E3JK-5DR1-C: Through-beam relay output sensor set (transmitter + receiver), 5 m long detection distance
- E3JK-DR13-C: Dual-output diffuse-reflective relay sensor with both NO and NC contact signals
- E3JK-DR11-M: M12 plug connection variant of E3JK-DR11-C without fixed 2-meter cable
- E3JK-DR11-H: High-temperature enhanced diffuse-reflective sensor, stable operation up to +60 °C
- E3JK-DR11-L: Anti-strong ambient light optimized model for outdoor and bright workshop environments
- E3JK-10DR1-C: Long-distance through-beam relay photoelectric sensor with 10-meter maximum detection span
