New Original IFM E30013 Welding adapter for process sensor
"*" señala los campos obligatorios
Full‑Product Introduction for New Original IFM E30013 Welding Adapter for Process Sensor
1. Product Overview

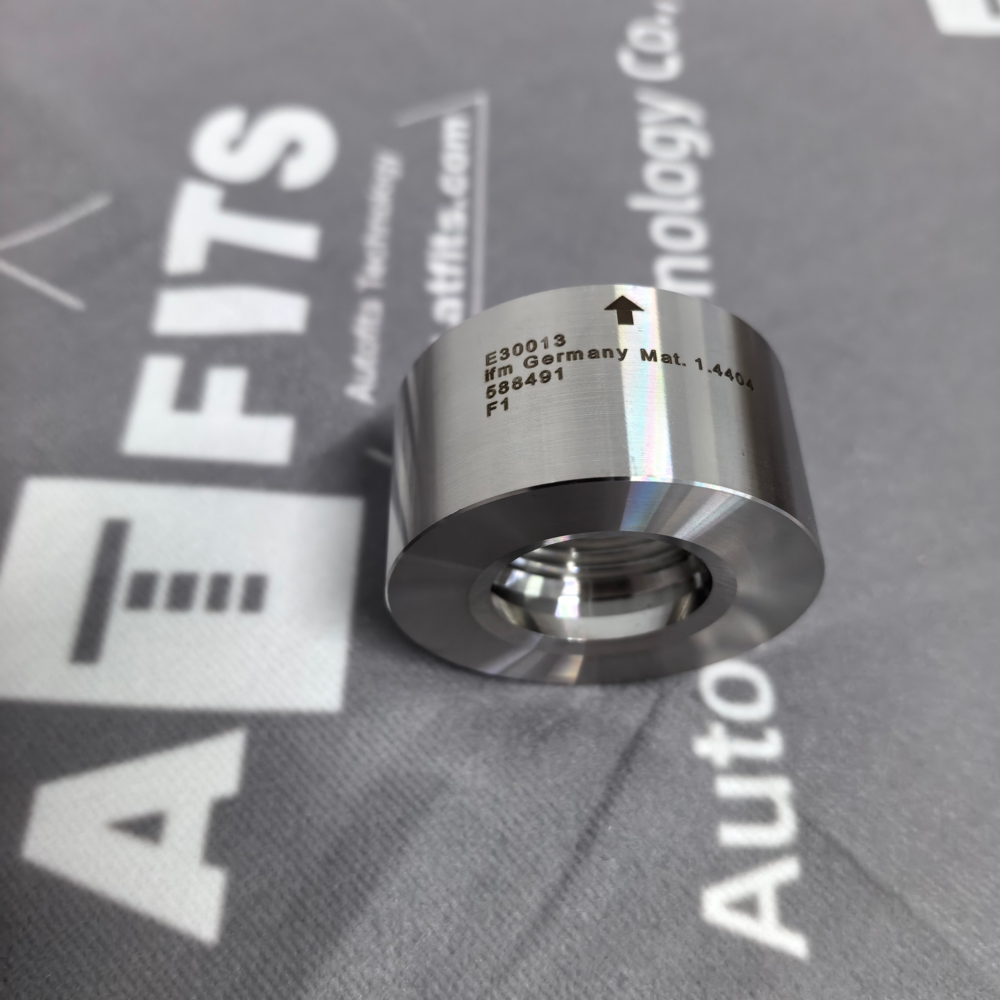

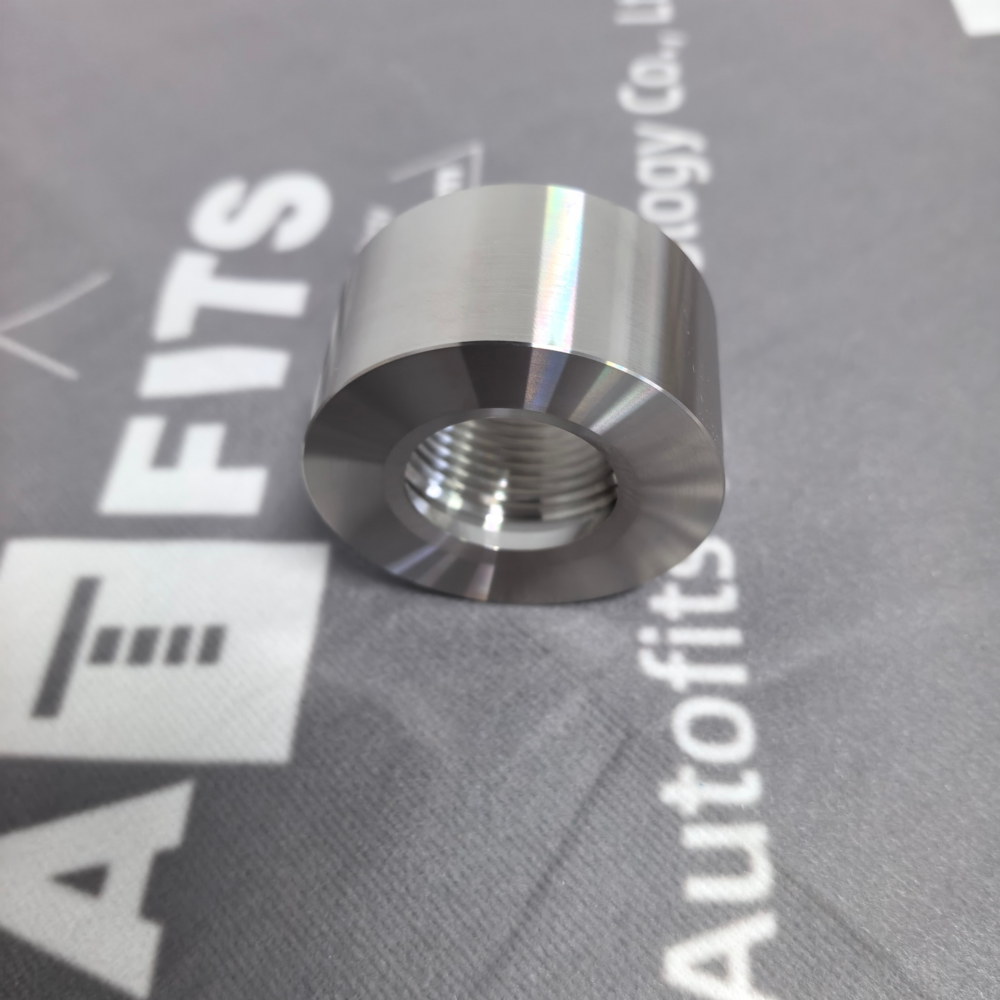

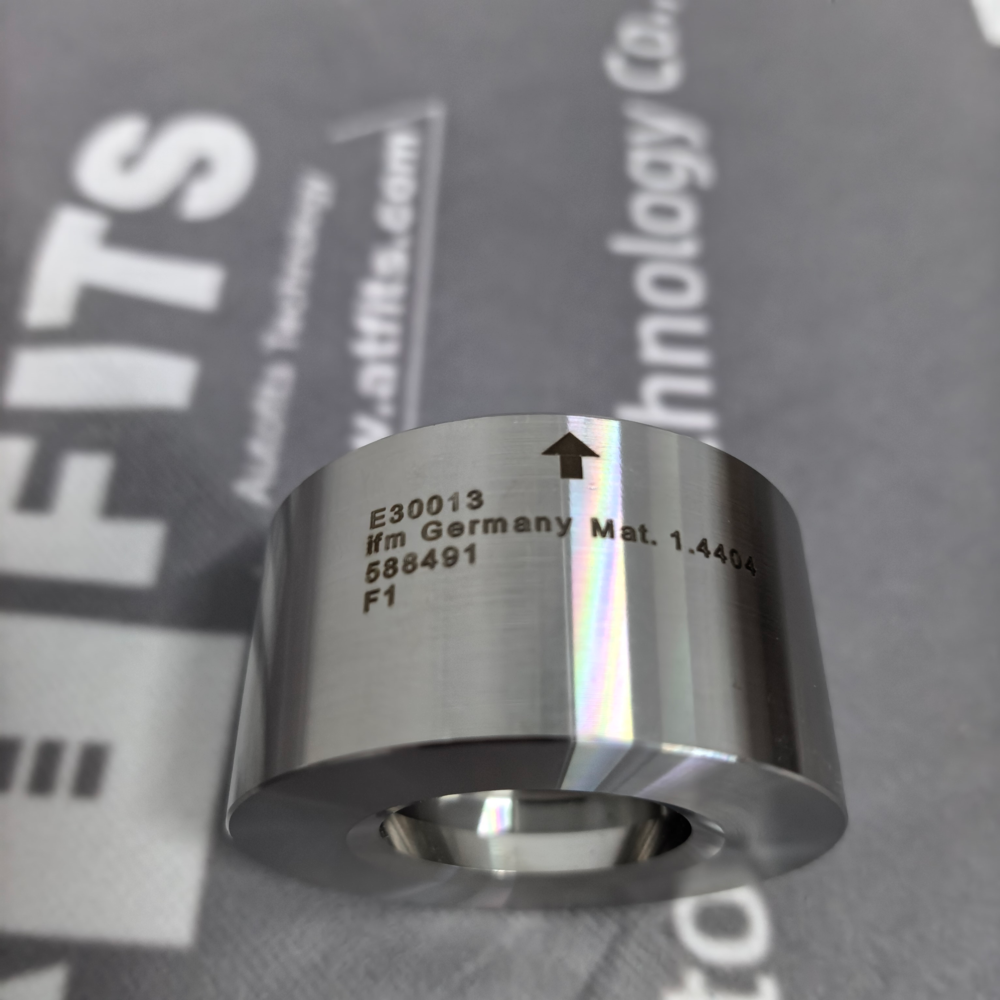

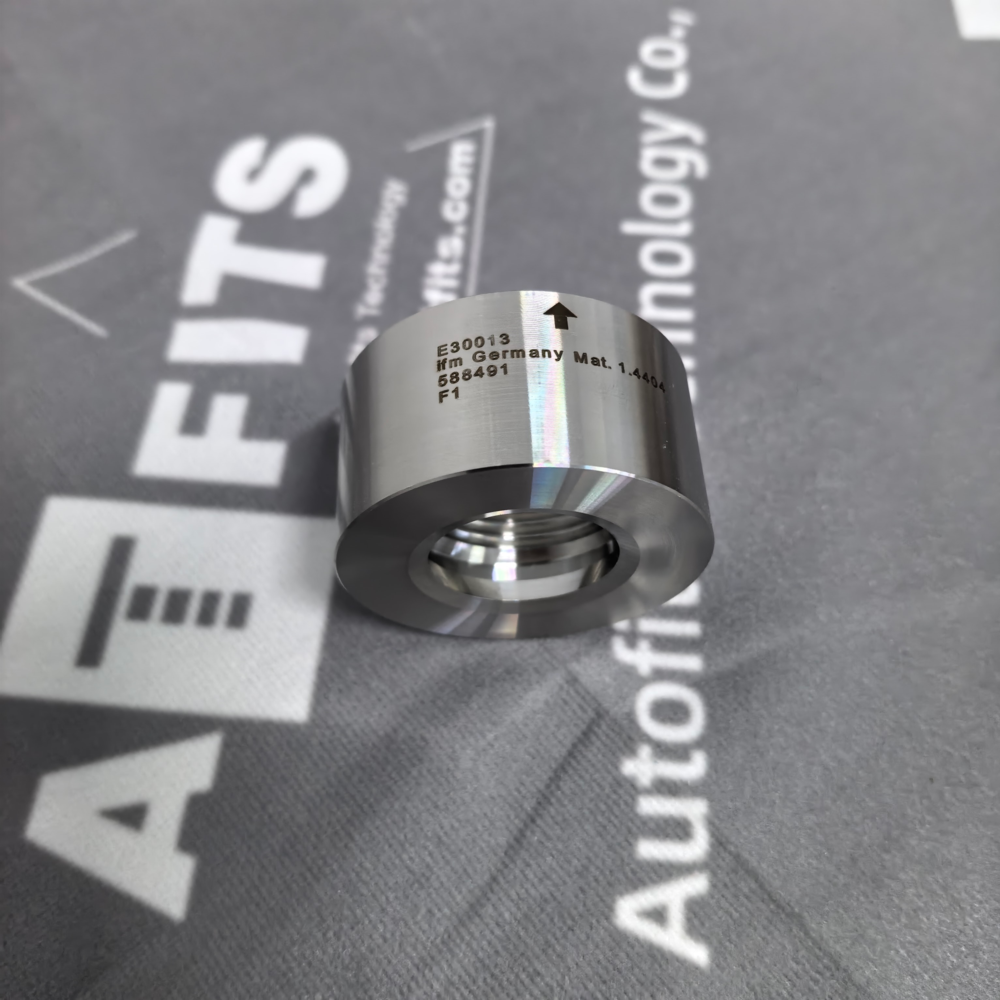

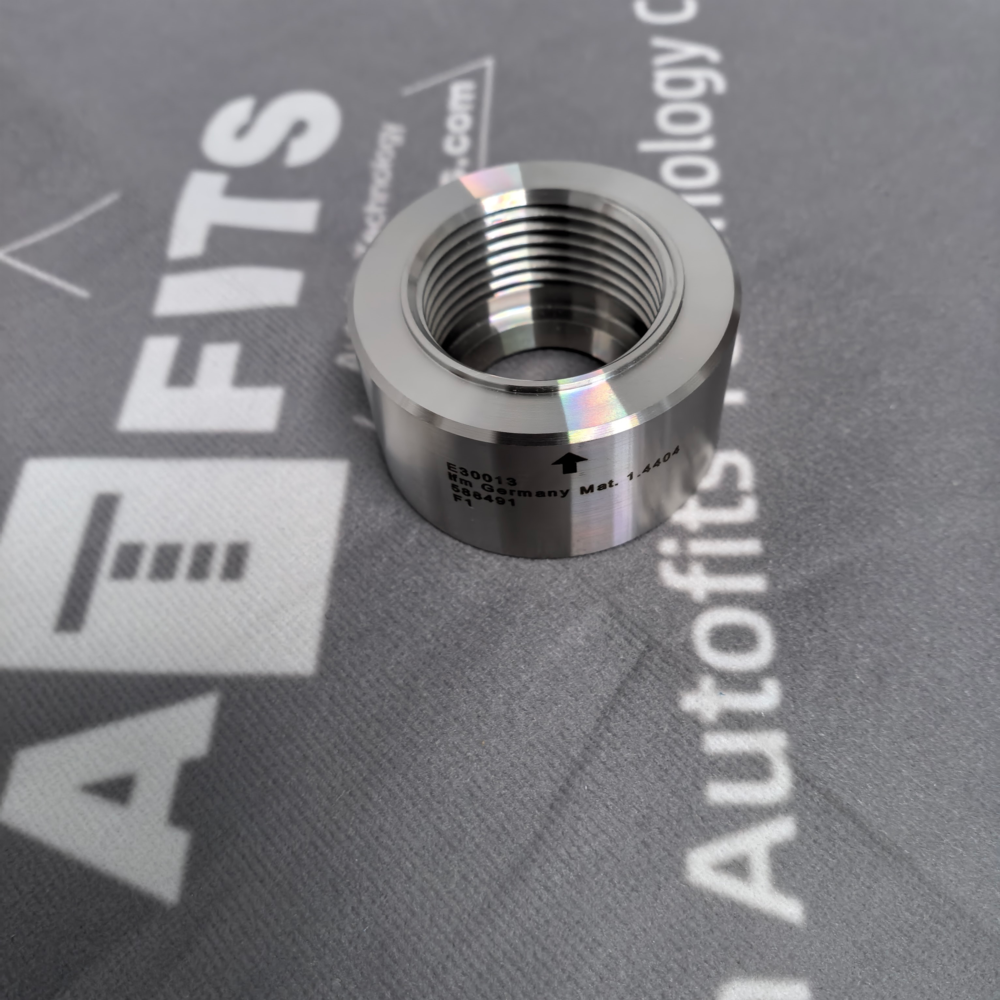

IFM E30013 is an original German‑manufactured welding‑in mounting adapter designed exclusively for IFM process‑related sensors including pressure sensors, temperature transmitters and level sensors. It belongs to IFM E300 series hygienic installation accessories. The wetted components are constructed from stainless‑steel grade 1.4404 (316L). Its internal thread is G1 sealing‑cone structure, and the outer welding diameter is 50 mm for permanent welding onto pipelines and tank vesselsifm易福…. The high‑precision surface finish with Ra＜0.4 µm fulfills hygienic requirements for food‑beverage, pharmaceutical and general heavy‑duty industrial environments. This adapter creates a reliable connecting interface between process equipment and sensors, ensures stable physical installation and leak‑proof connection. The whole component complies with RoHS, PED guideline and CRN pressure‑certification standards. It is supplied as a single‑piece original unit without refurbished parts.
2. Main Functions
- Permanent Welding‑in Installation
The outer cylindrical body with Ø50‑mm profile can be fully welded onto pipe walls and tank shells by professional welding operations, providing a fixed installation base for process sensors. It avoids loose mounting problems caused by long‑term equipment vibration.
- High‑pressure Sealing Connection
The internal G1 sealing‑cone surface matches IFM G1‑thread process sensors perfectly. With a corresponding EPDM or FKM O‑ring, it achieves leak‑tight sealing under high‑pressure working conditions, preventing medium leakage inside pipelinesifm易福….
- Hygienic Surface Performance
Ultra‑fine machined surface with Ra＜0.4‑µm reduces residue accumulation of liquid medium. It complies with hygienic standards to avoid bacteria growth, suitable for sanitary‑grade production lines.
- Wide‑range Medium Compatibility
316L stainless‑steel material resists corrosion from water, diluted acid, alkaline liquid and common industrial fluids after proper medium compatibility inspection.
- Simple Sensor Assembly
Operators install sensors directly into the internal G1 thread following specified torque value, which simplifies later‑period sensor replacement and maintenance.
- High Mechanical Stability
Thick‑wall stainless‑steel structure can withstand high‑pressure impulse and long‑time thermal cycles without deformation.
3. Technical Characteristics
| Technical Item | Specific Parameters |
|---|---|
| Part Number | E30013 |
| Product Type | Welding‑in adapter for process sensors |
| Wetted‑part Material | Stainless‑steel 1.4404 (316L, V4A) |
| Surface finish of wetted area | Ra＜0.4 µm, Rz = 4 µm |
| Sensor‑side connection | G1 sealing‑cone thread |
| Process‑side connection | Ø50 mm cylindrical welding body |
| Maximum allowable working pressure | 150 bar (15 MPa) for sensor‑adapter joint |
| Applicable O‑ring options | E30054 (EPDM, FDA‑approved), E30123 (FKM for chemical‑resistant scenarios) |
| Permissible medium temperature | −40°C to +120°C |
| Ambient working temperature | −25°C to +100°C |
| Certifications | RoHS‑compliant, PED‑eligible, CRN approved |
| Installation method | Full circumferential welding |
| Recommended tightening torque for sensors | 40 Nm |
4. Product Dimensions and Net Weight
- Detailed overall dimensions:
Outer welding diameter: 50 mm
Total height: 30 mm
Internal thread depth for G1 port: 27 mm
- Single‑unit net weight: 300 grams

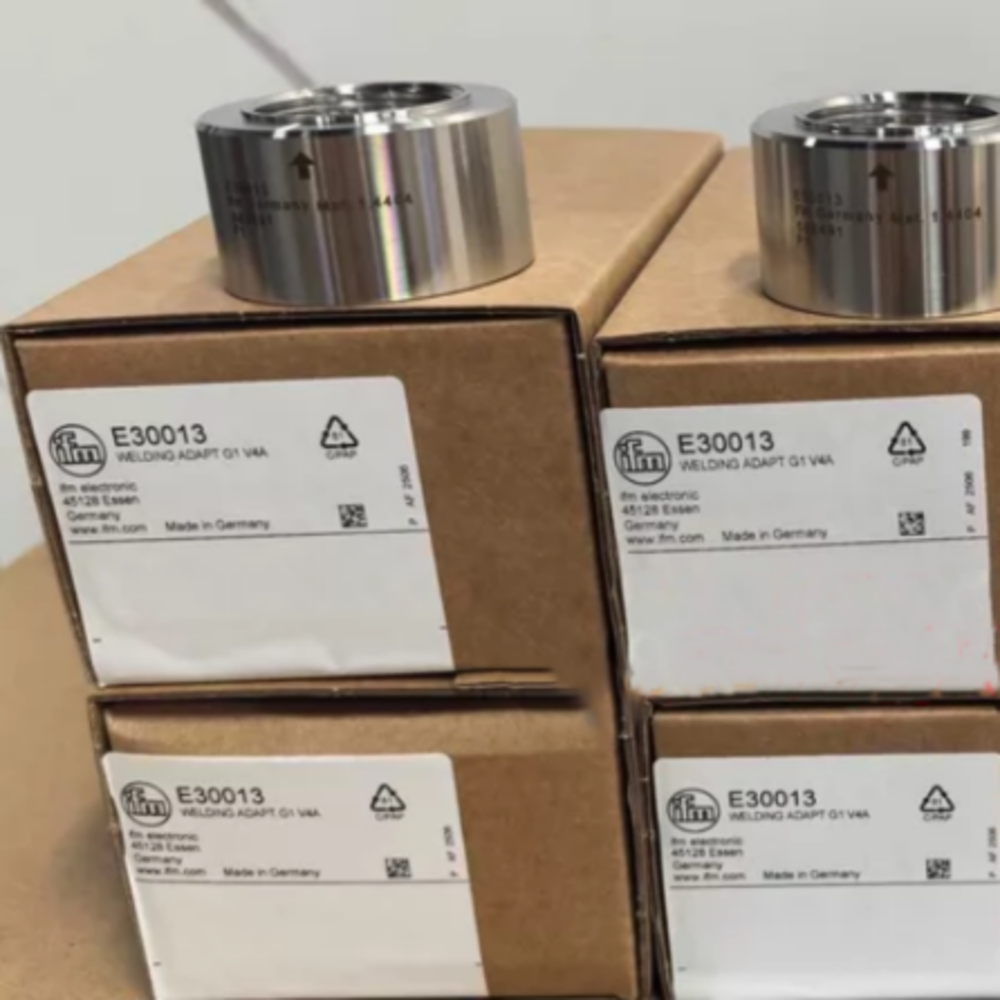

- Packing specification: one piece per package without extra attachments.
5. Ten IFM Similar‑Functional Products (Welding‑Type Mounting Adapters for Process Sensors)
All listed items are original IFM stainless‑steel welding adapters used for installing pressure, temperature or level sensors for industrial and hygienic applications:
- E30122: G1‑Aseptoflex‑Vario welding adapter with Ø50‑mm outer diameter, maximum pressure 50 bar, designed for high‑sanitary pharmaceutical pipelines.
- E30153: M12‑thread small‑size welding shoulder adapter with 316L material for compact miniature sensors, pressure rating 50 barifm.
- E43300: G1/2 cylindrical welding‑in adapter for tank installation, for small‑range temperature sensors.
- E43301: G1/2 pipe‑mount welding adapter for narrow‑diameter industrial pipelines.
- E30091: G1 thread welding adapter with Ø40‑mm outer diameter, optimized for thin‑wall pipeline installation.
- E40623: DN50 EN10357‑C standard welding adapter complying with ASME‑BPE norms for food‑industry flow metersifm易福….
- E30014: G1 welding adapter with nickel‑plated stainless‑steel body for coastal salt‑fog environments.
- E30016: High‑temperature‑resistant G1 welding adapter made from improved 1.4435 stainless‑steel; medium temperature up to 180°C.
- E30201: Extended‑body G1 welding adapter with longer height for thick‑wall tank boards.
- E30018: Anti‑corrosion welding adapter with FKM‑seal built‑in structure for chemical‑factory corrosive fluid conditions.
6. Typical Application Fields
IFM E30013 is widely used in food‑beverage production lines, pharmaceutical workshops, hydraulic‑piping systems, chemical processing equipment and automated water‑treatment facilities. It serves as the installation base for IFM pressure sensors, temperature transmitters and level sensors to monitor process parameters reliably.
