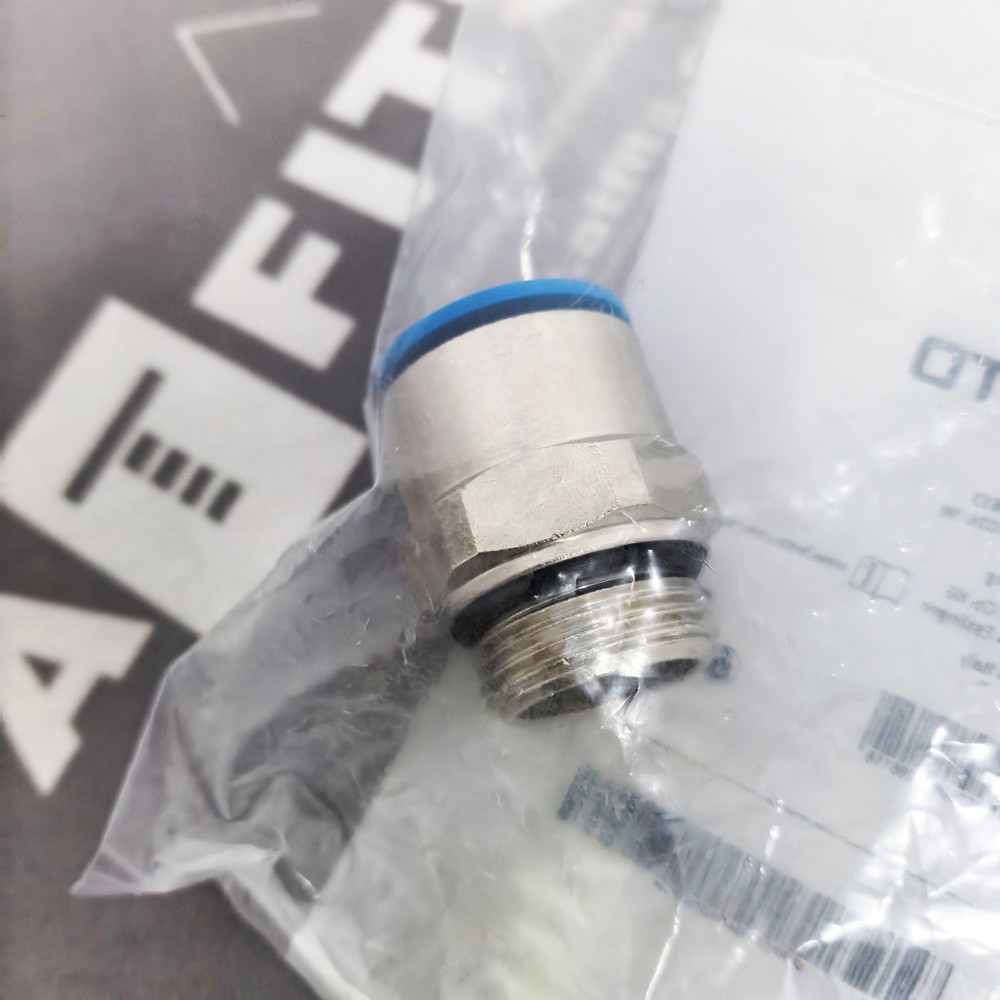

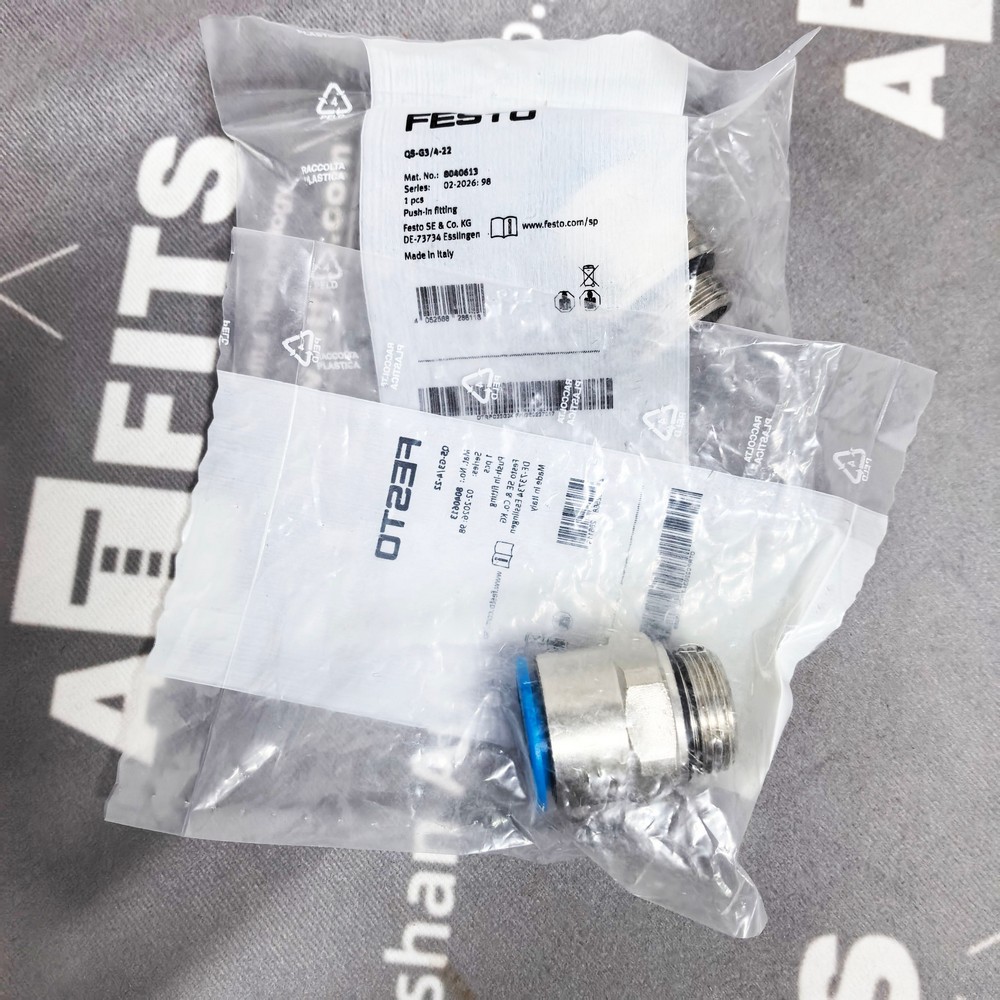

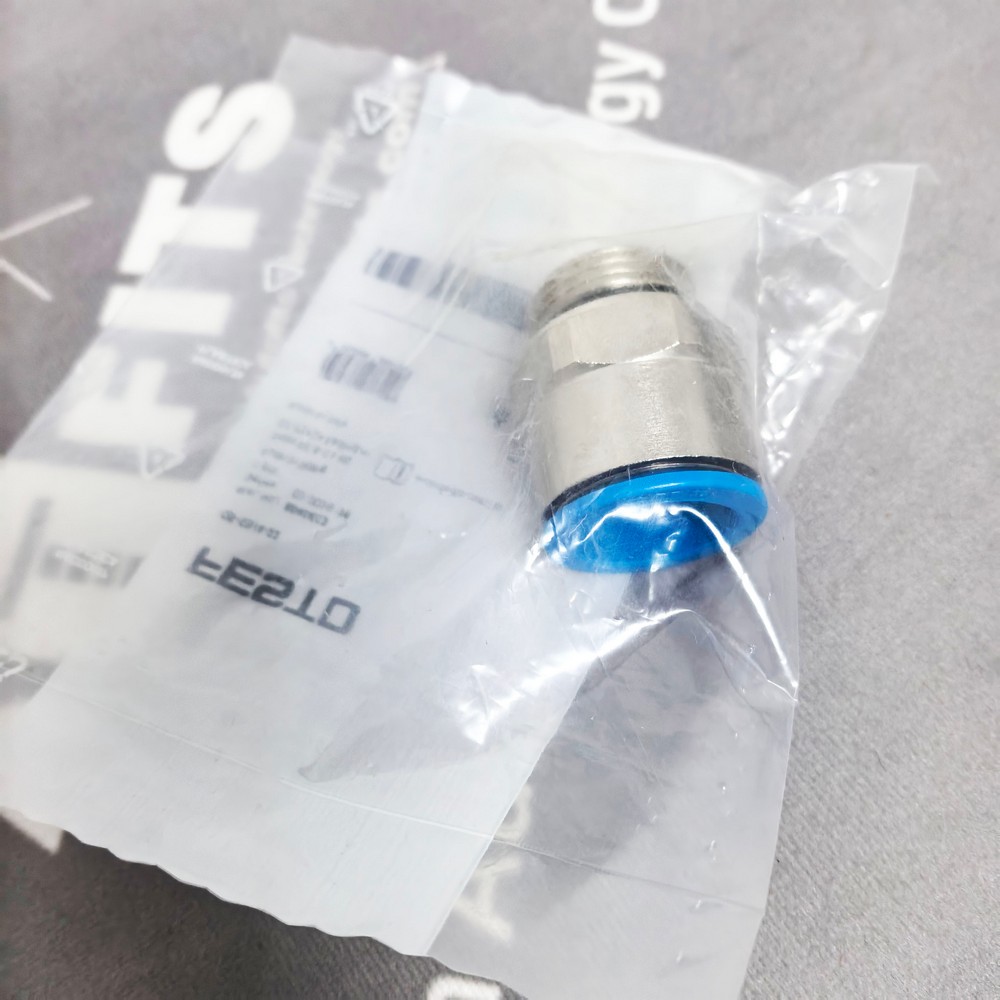

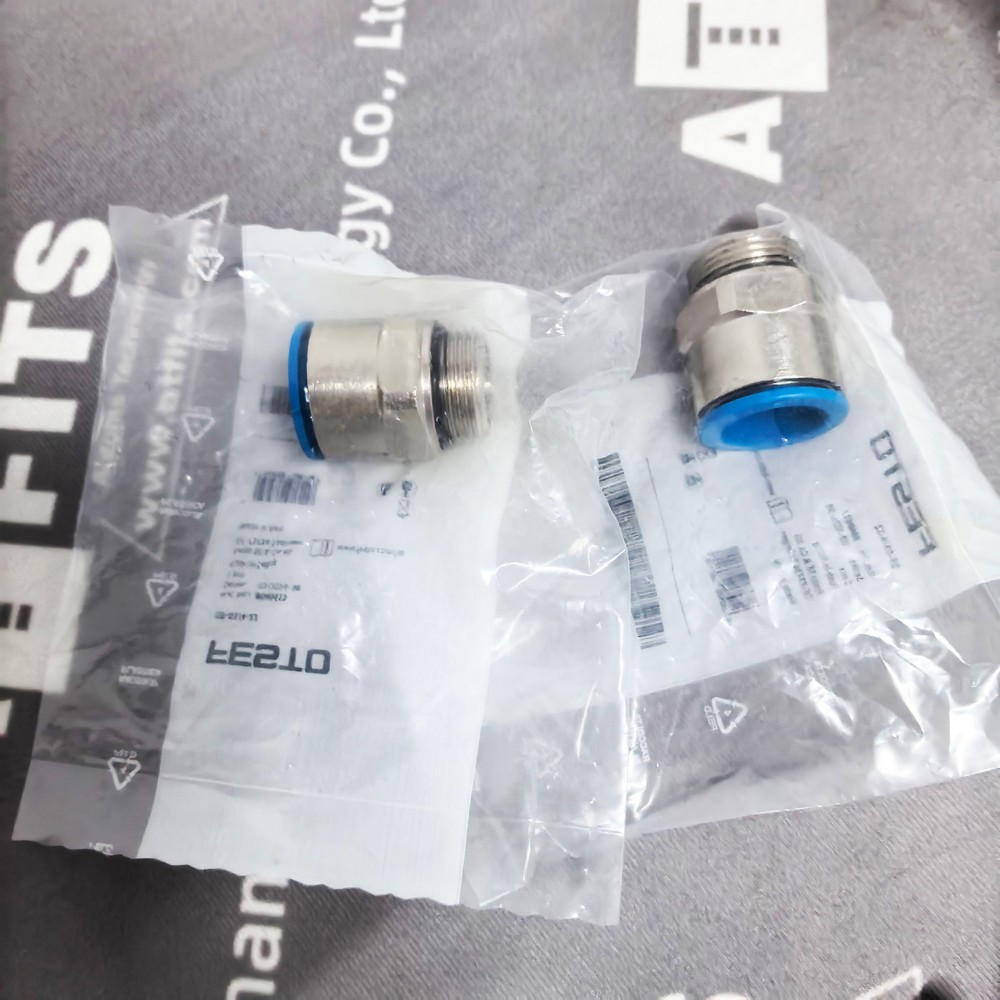

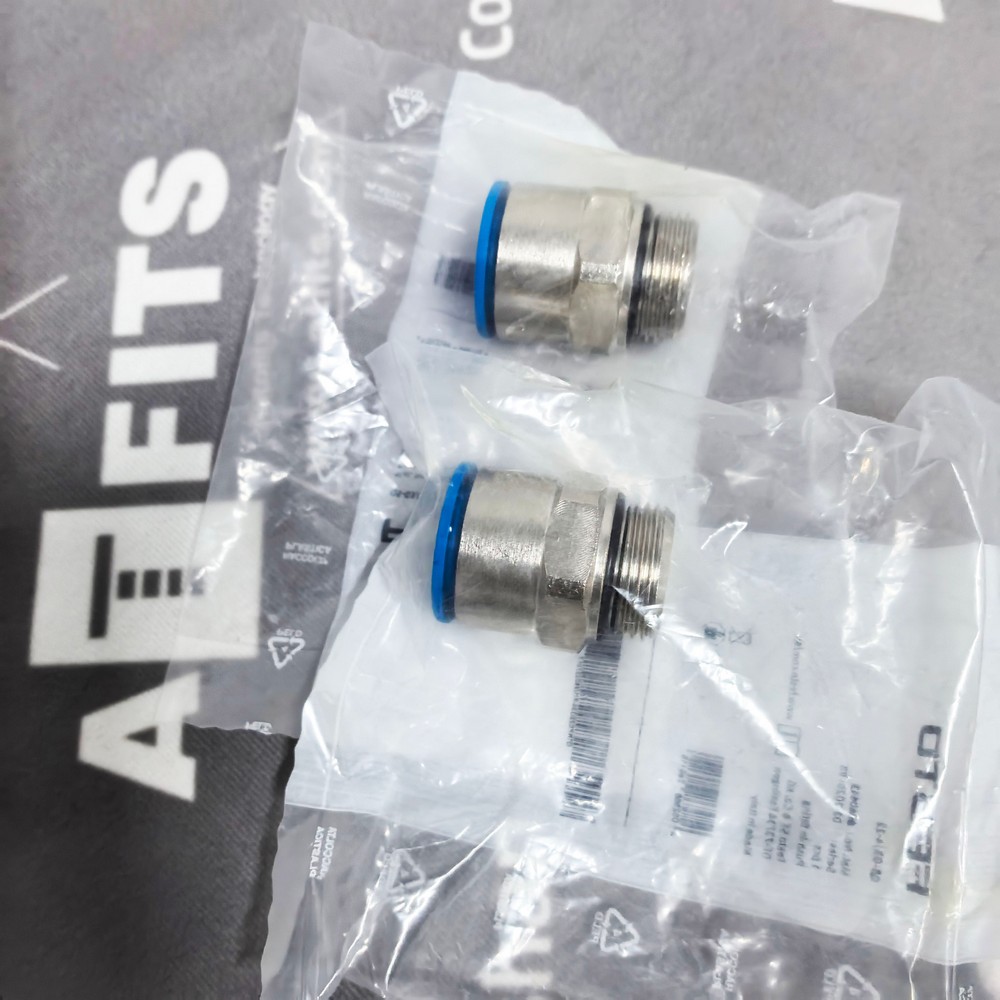

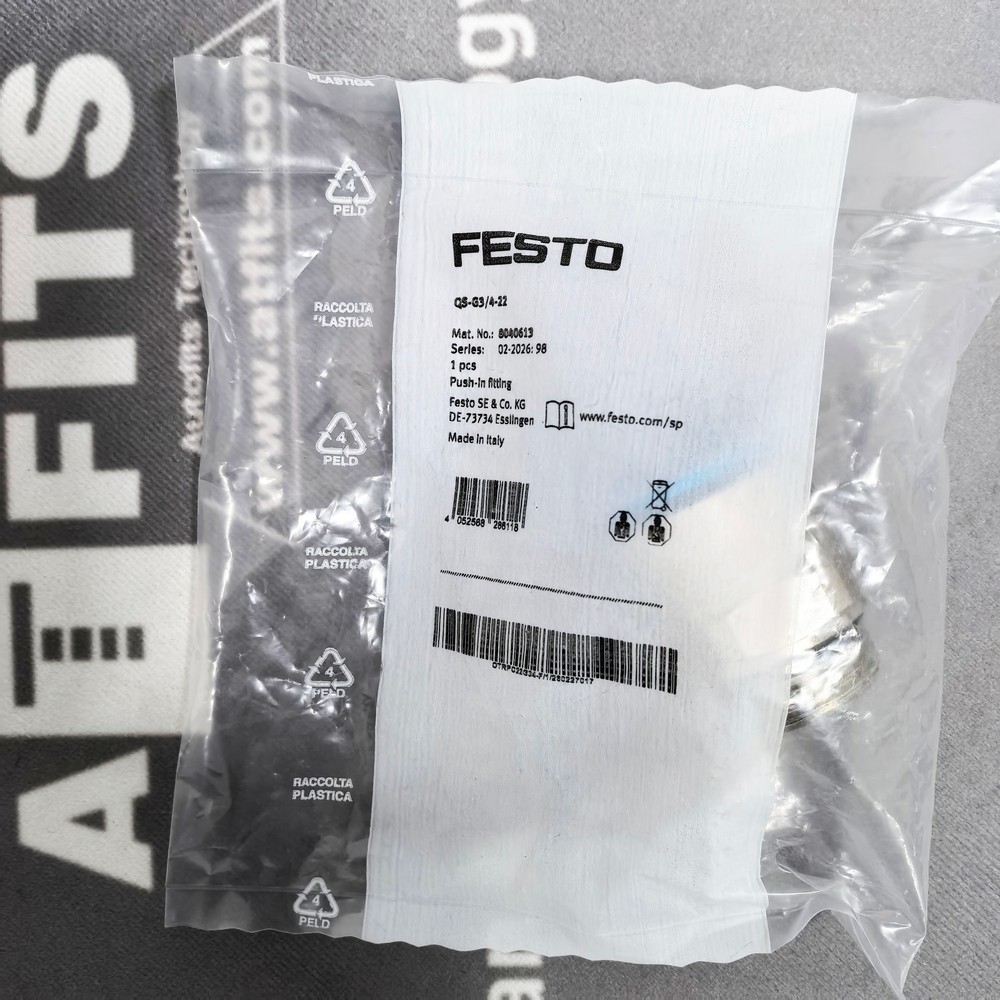

New Original FESTO 8040613 QS‑G3/4‑22 Push‑in Pneumatic Fitting
Product Overview
The FESTO QS‑G3/4‑22 (part number 8040613) is an original male‑thread push‑in pneumatic fitting for compressed‑air piping connections in automation systems. As a brand‑new original component, it connects G3/4 male thread ports to pneumatic tubing with an outer diameter of 22 mm. Widely used on pneumatic actuators, valve manifolds, air preparation units and compressed‑air distribution circuits, this fitting enables quick assembly and disassembly of air lines without additional threading tools. It delivers reliable air‑tight connections for factory automation, packaging machinery and material‑handling pneumatic equipment under standard industrial working conditions.
Main Functions
- Provides air‑tight connection between G3/4 external thread interfaces and 22 mm outer‑diameter pneumatic tubing.
- Realizes fast tubing insertion and release via push‑in locking structure, reducing field assembly time.
- Transmits compressed air for pneumatic cylinders, solenoid valves and other pneumatic execution components.
- Supports repeated plug‑and‑unplug cycles for equipment debugging, modification and maintenance.
- Ensures stable gas‑sealing performance under rated working pressure to prevent compressed‑air leakage.
- Adapts to centralized air distribution in multi‑loop pneumatic systems for automation stations.
Technical Features
- Nickel‑plated brass male‑thread body with high‑strength plastic push‑in insert ring for long‑term service life
- Reliable stainless‑steel retaining claw structure grips tubing firmly to avoid accidental pull‑out
- G3/4 parallel pipe thread with sealing performance for standard pneumatic component interfaces
- Suitable for PU, PA and PTFE pneumatic tubing with 22 mm outer diameter
- Compact body design saves installation space inside valve islands and machine frames
- Good chemical resistance against common workshop oils, coolants and aerosols
- No special tools required for tubing mounting and removal; press release ring to detach tubing
- Strict factory leakage testing guarantees consistent sealing performance for each unit
Specifications
表格
| Item | Parameter |
|---|---|
| Brand | FESTO |
| Model | QS‑G3/4‑22 |
| Part Number | 8040613 |
| Product Type | Push‑in Pneumatic Straight Fitting |
| Thread Specification | G3/4 male parallel thread |
| Applicable Tubing OD | 22 mm |
| Working Medium | Compressed air (filtered, lubricated or non‑lubricated) |
| Operating Pressure Range | ‑0.95 bar ~ 16 bar |
| Operating Temperature Range | ‑20 °C ~ +80 °C |
| Body Material | Nickel‑plated brass, PBT plastic, stainless steel clamping claws |
| Overall Dimensions | Thread length 14 mm, total length 61 mm, maximum outer diameter 38 mm |
| Weight | Approx. 162 g |
