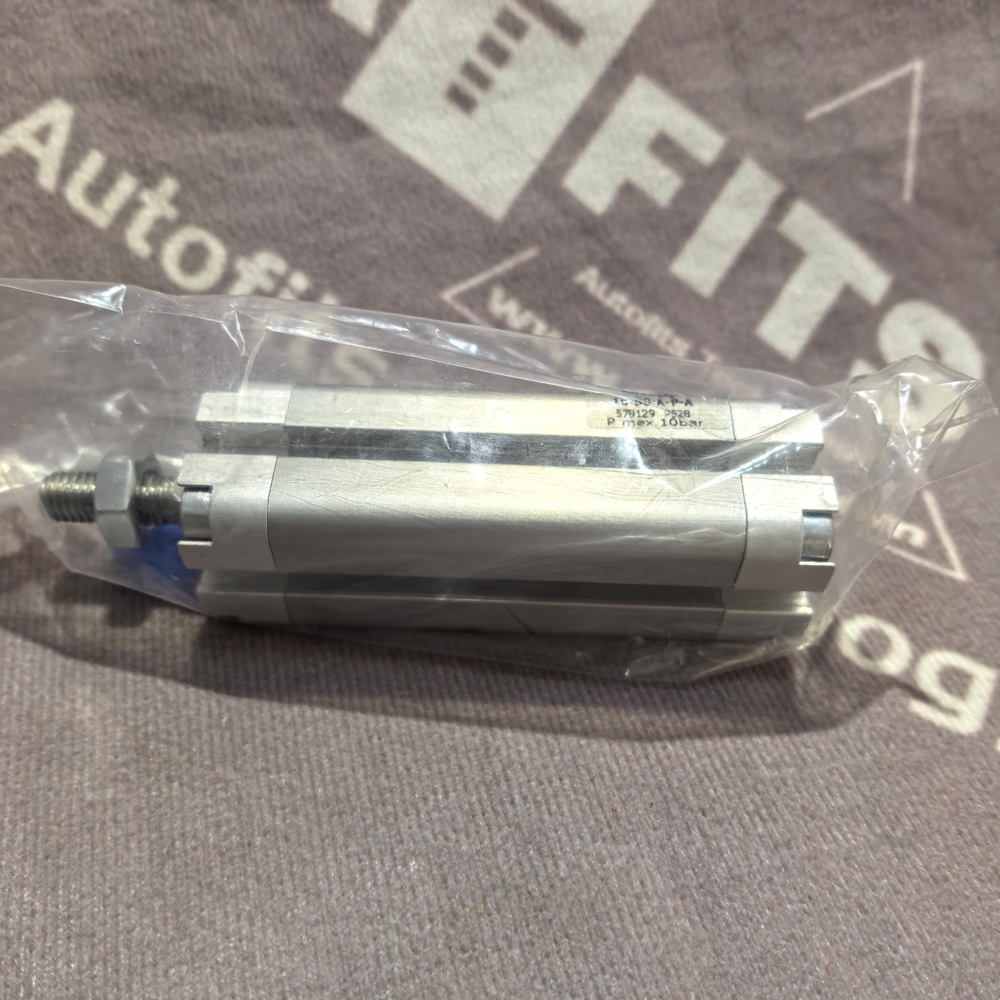

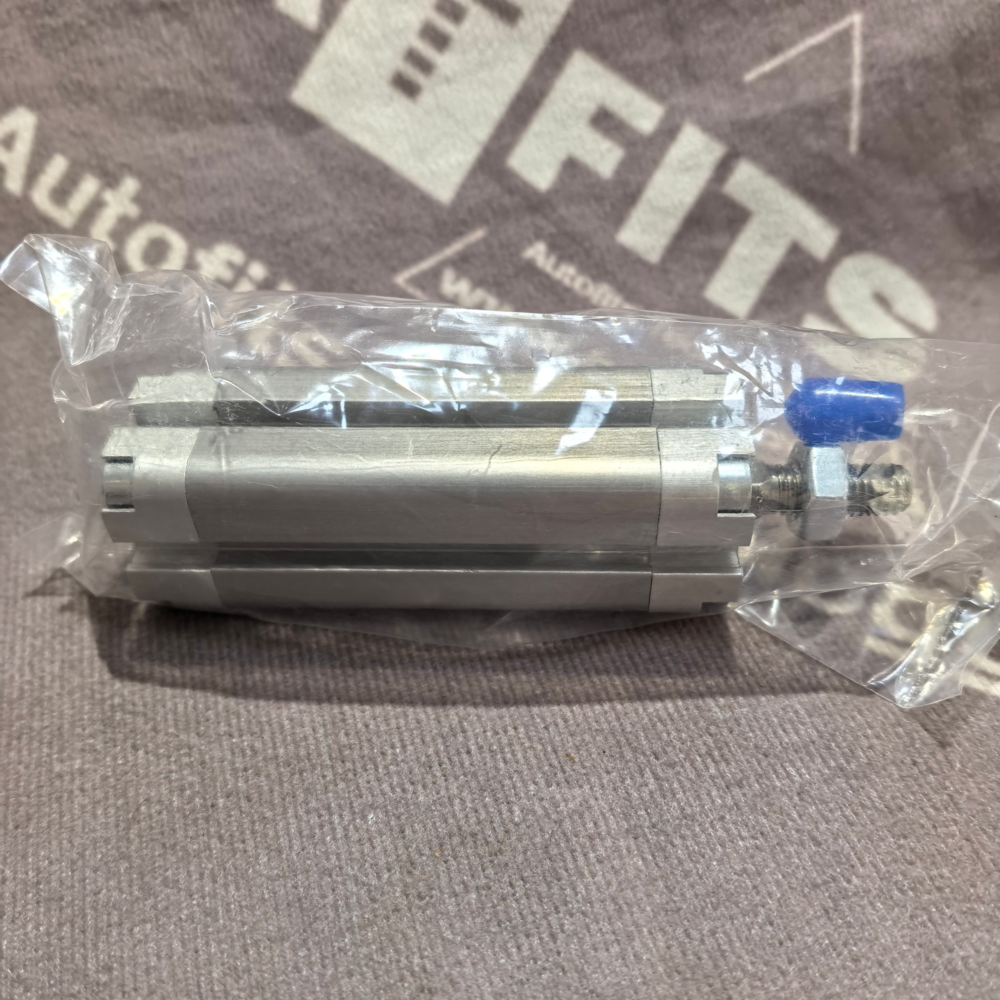

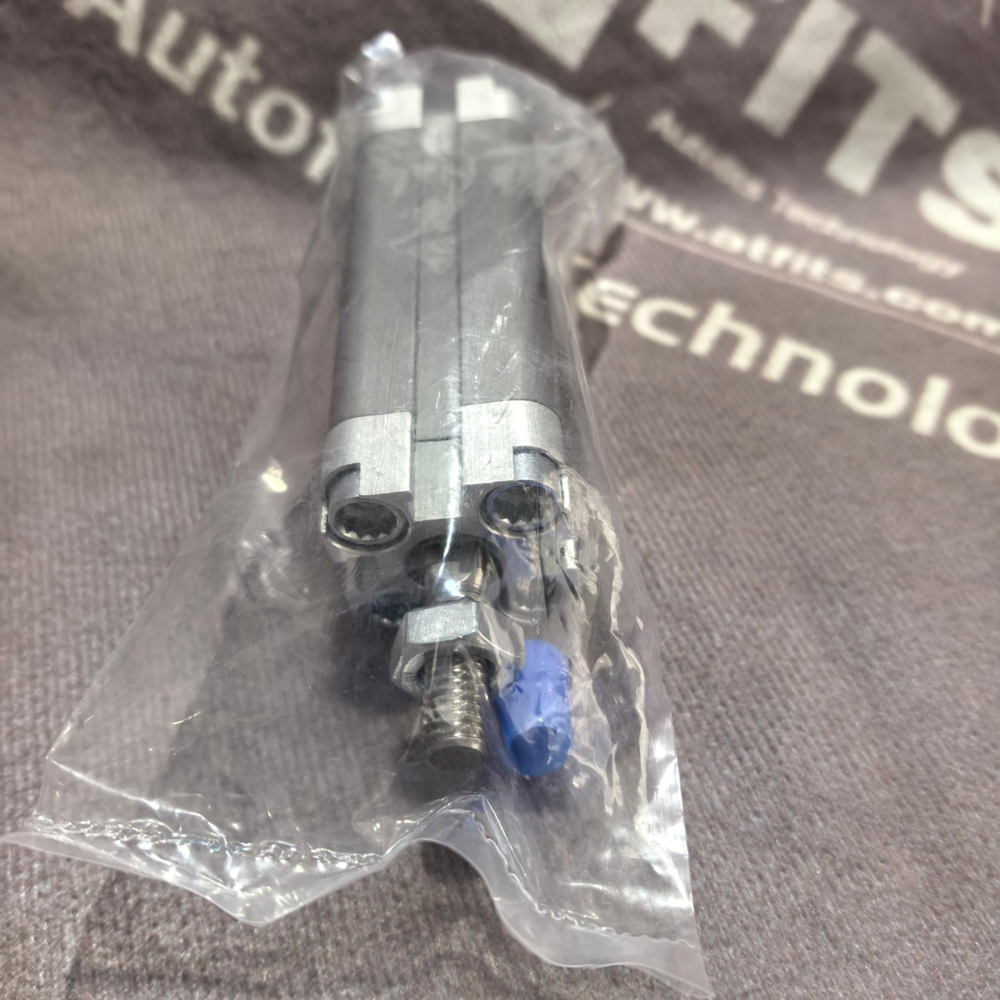

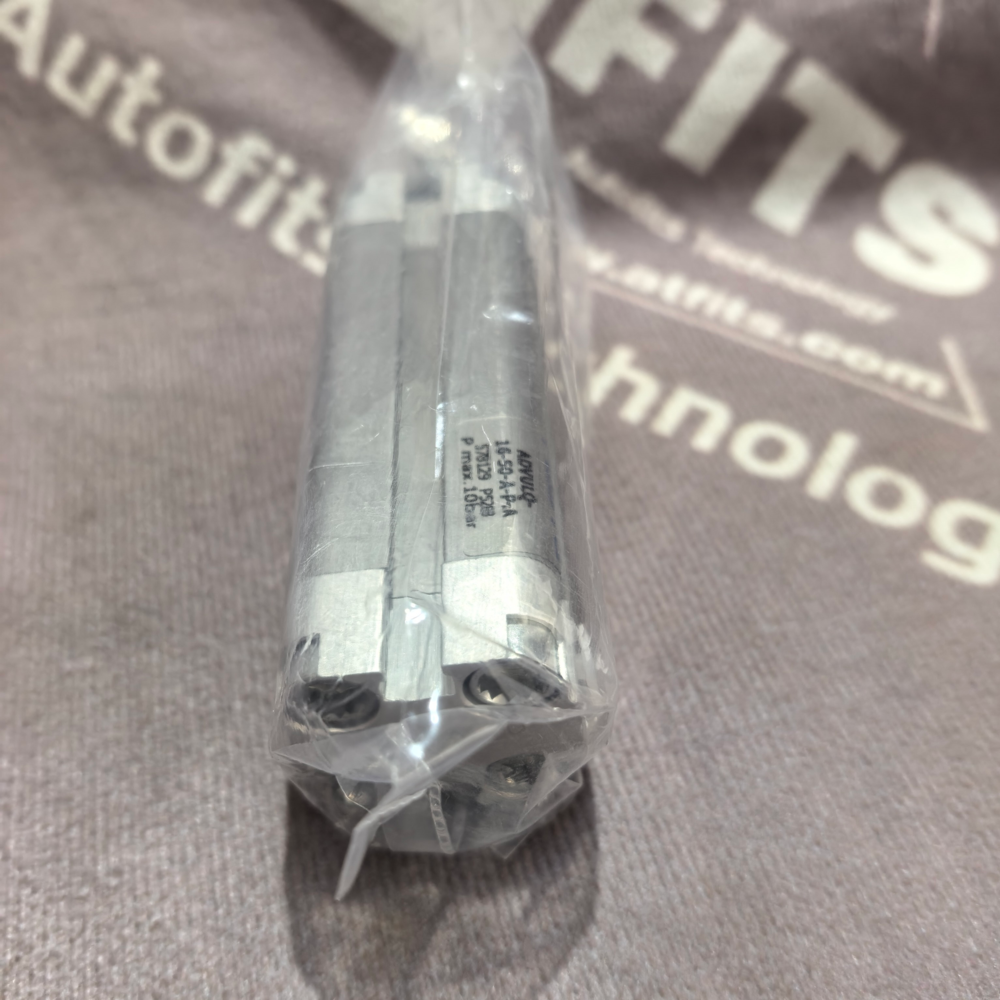

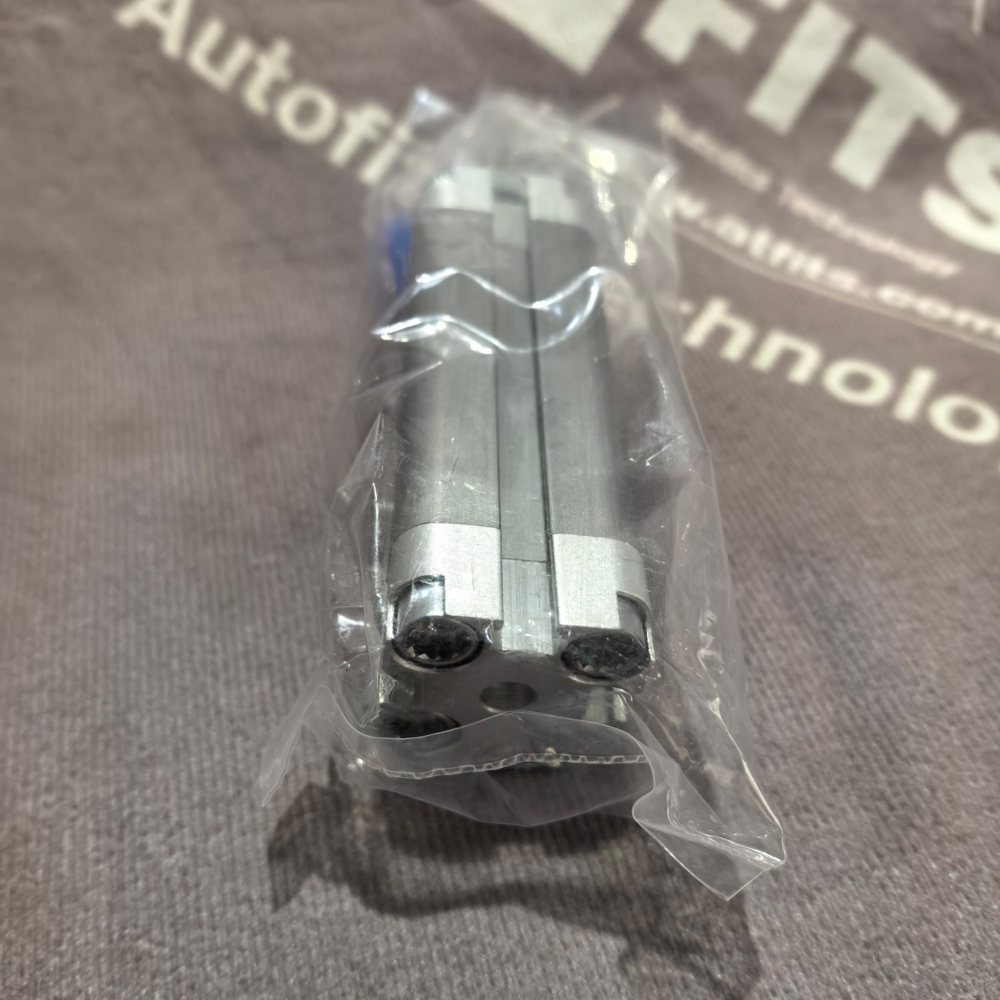

New Original Festo 578129 ADVULQ‑16‑60‑P‑A Compact Cylinder
1. Product Overview
Part‑number 578129 belongs to the Festo ADVULQ series short‑stroke compact cylinder designed according to ISO 21287 standard. This single‑rod double‑acting cylinder adopts a flat square‑shaped profile with internal air‑channels, eliminating bulky external piping. The model ADVULQ‑16‑60‑P‑A means a 16 mm piston bore, 60 mm working stroke, piston‑rod with internal thread type and standard end‑plate design. It runs on filtered compressed‑air conforming to ISO‑8573‑1‑2010 [7:4:4]. The cylinder is widely used for clamping, pushing, lifting and positioning tasks on automated assembly equipment, sorting machines, testing fixtures and packaging‑line stations. The housing is made of hard‑anodized aluminium alloy, achieving CRC‑2 corrosion resistance grade and complying with RoHS standards for general‑purpose factory‑condition applications.
2. Main Functions
- Double‑acting operation: Forward stroke driven by compressed‑air fed into the rear chamber, return stroke powered by compressed‑air entering the front chamber, providing stable pushing‑and‑retracting output force.
- Piston‑rod internal‑thread design: The end of piston rod has internal thread for installing custom‑made fixtures, push pins and adapters conveniently.
- Built‑in adjustable end‑position cushioning: Elastic polymer cushioning at both stroke ends reduces impact noise and absorbs kinetic energy to extend service life.
- Proximity‑sensor mounting slots: Grooves on four sides of the cylinder body accept Festo T‑slot proximity switches to detect extended‑and‑retracted positions for feedback to PLC.
- Flexible installation options: It can be fixed through front‑end mounting holes, side mounting holes or foot brackets without modifying the cylinder main‑body.
- Anti‑twist structure: The internal anti‑rotation guide prevents the piston‑rod from rotating during operation to ensure precise positioning.
3. Technical Characteristics
- Working medium: Filtered compressed‑air; lubricated air is permissible, but continuous lubrication must be applied once oil is introduced.
- Operating pressure range: 0.1 MPa‑1.0 MPa.
- Theoretical force (0.6 MPa supply pressure): Extension force = 120 N; Retraction force = 97 N.
- Stroke tolerance: +1.0 mm / 0 mm.
- Sealing material: PU and NBR composite seals with excellent wear‑resistant and ageing‑resistant performance.
- Piston‑rod material: High‑strength stainless‑steel with precision‑grinded surface.
- Ambient and medium temperature: −20 °C to +80 °C.
- Maximum operating frequency: 3 cycles per second under proper cushioning setup.
- Permissible lateral load: Small side‑force is allowed; excessive side‑load will shorten the service life of rod‑seals.
- Protection grade: IP65 when fitted properly; dust‑proof and splash‑proof for factory‑environment.
4. Dimensions and Weight
| Item | Specific Parameter |
|---|---|
| Piston bore | 16 mm |
| Working stroke | 60 mm |
| Overall length (fully retracted) | 96 mm |
| Overall width | 32 mm |
| Overall height | 32 mm |
| Piston‑rod size | Rod diameter 8 mm, internal thread M4 |
| Air‑port thread size | G1/8 female thread |
| Net weight | 310 g |
| Cushion type | Built‑in fixed elastomer cushion |
| Installation way | Through‑hole mounting or side‑bracket mounting |
5. Ten Festo similar‑function compact cylinders (ISO‑21287 short‑stroke compact cylinders)
All items are genuine Festo compact‑type cylinders with 16 mm bore or matching structure for alternative selection, complete with official part numbers:
- ADVULQ‑16‑40‑P‑A (Part‑No:578127): Bore 16 mm, shorter 40 mm stroke, double‑acting, internal‑thread rod, same overall width and mounting slots as 578129.
- ADVULQ‑16‑80‑P‑A (Part‑No:578131): 16‑mm bore, stroke extended to 80 mm, built‑in anti‑twist function and T‑slot sensor grooves.
- ADVUL‑16‑60‑P‑A (Part‑No:156861): Standard ADVUL version without anti‑rotation structure, bore‑16 mm stroke‑60 mm, cost‑effective conventional compact cylinder.
- ADVULQ‑16‑60‑PPV‑A (Part‑No:578135): Equipped with adjustable pneumatic PPV cushioning instead of fixed cushion, applicable for high‑speed‑motion conditions.
- ADN‑16‑60‑P‑A‑PPS (Part‑No:536244): ADN‑series compact cylinder conforming to ISO‑21287, 16‑mm bore, 60‑mm stroke with adjustable air‑cushion.
- ADVULQ‑20‑60‑P‑A (Part‑No:578143): Bore upgraded to 20 mm, 60‑mm stroke for larger pushing‑force requirement, same flat‑body design.
- ADVULQ‑16‑60‑P‑A‑S6 (Part‑No:8087542): Low‑temperature variant, suitable for −30 °C cold‑chamber working environment with special cold‑resistant seals.
- ADNGF‑16‑60‑P‑A (Part‑No:554231): Guide‑rod integrated compact cylinder, 16‑mm bore‑60‑mm‑stroke, strong anti‑deflection capacity for heavy side‑load.
- ADVULQ‑16‑60‑F‑A (Part‑No:578133): Flange‑type piston‑rod with external thread instead of internal‑thread rod for different fixture installation requirements.
- ADNP‑16‑60‑I‑P‑A (Part‑No:8023647): Short‑design compact cylinder with internal air‑channels; lightweight structure for narrow‑installation‑space equipment.
6. Application Notes
- Do not apply heavy lateral force to the piston‑rod; if side‑load is unavoidable, choose a guided‑cylinder type like ADNGF series.
- Use clean compressed‑air to avoid dust particles scratching the piston‑rod and damaging internal seals.
- Install proximity switches into the side‑T‑slots to achieve automatic position feedback for the whole‑automation‑system.
- Keep the operating pressure below 1.0 MPa to prevent permanent deformation of internal components.
