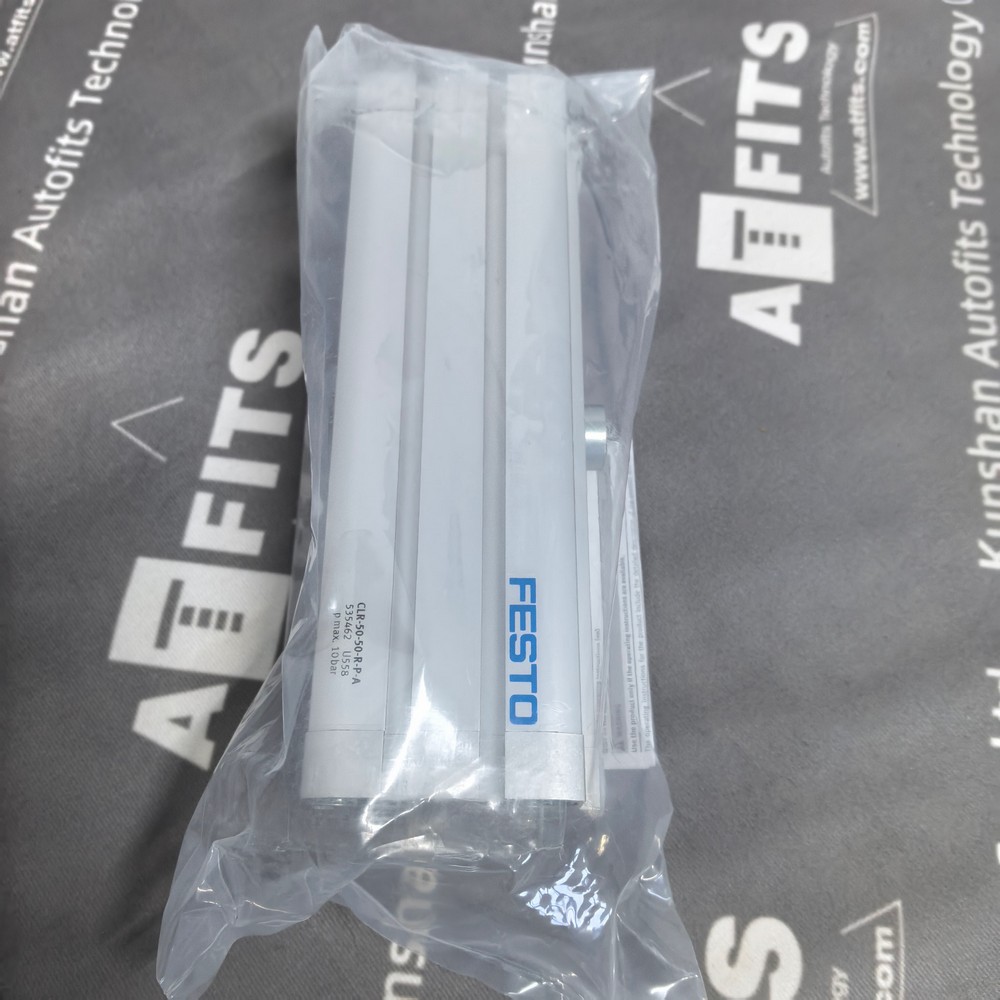

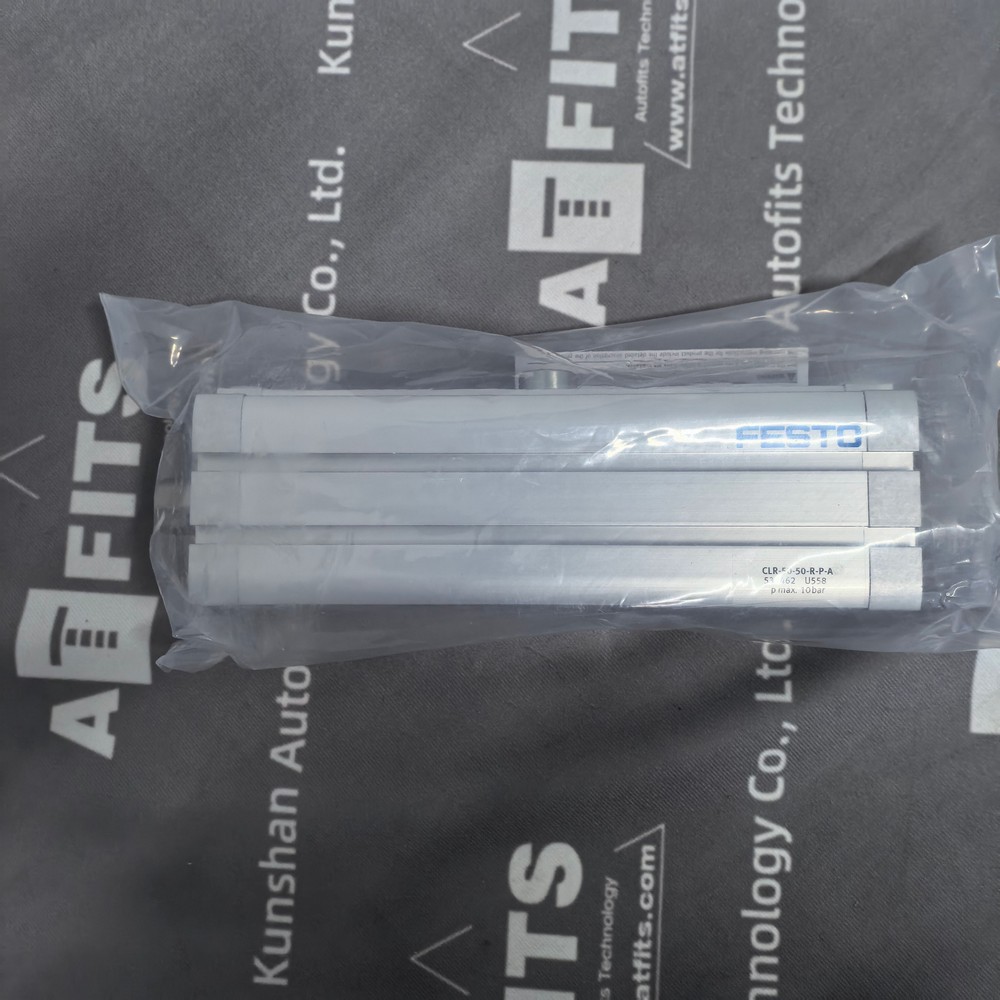

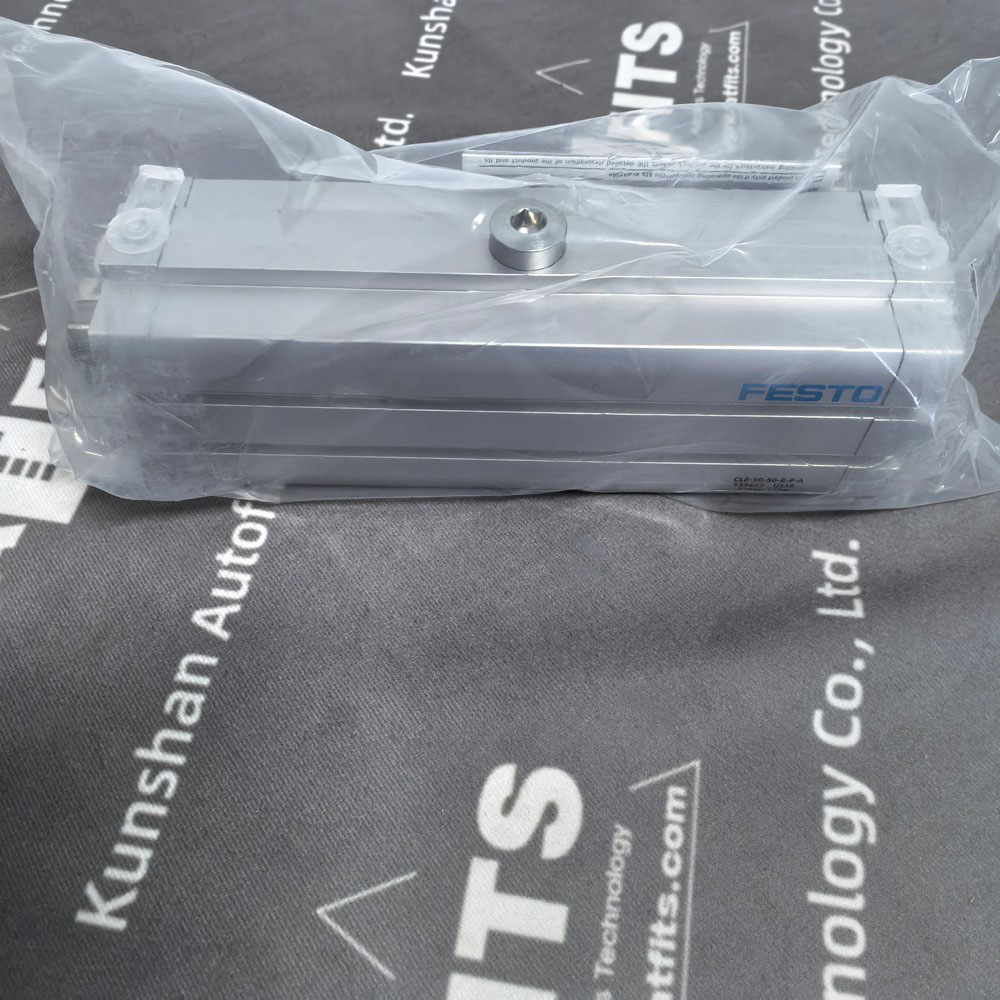

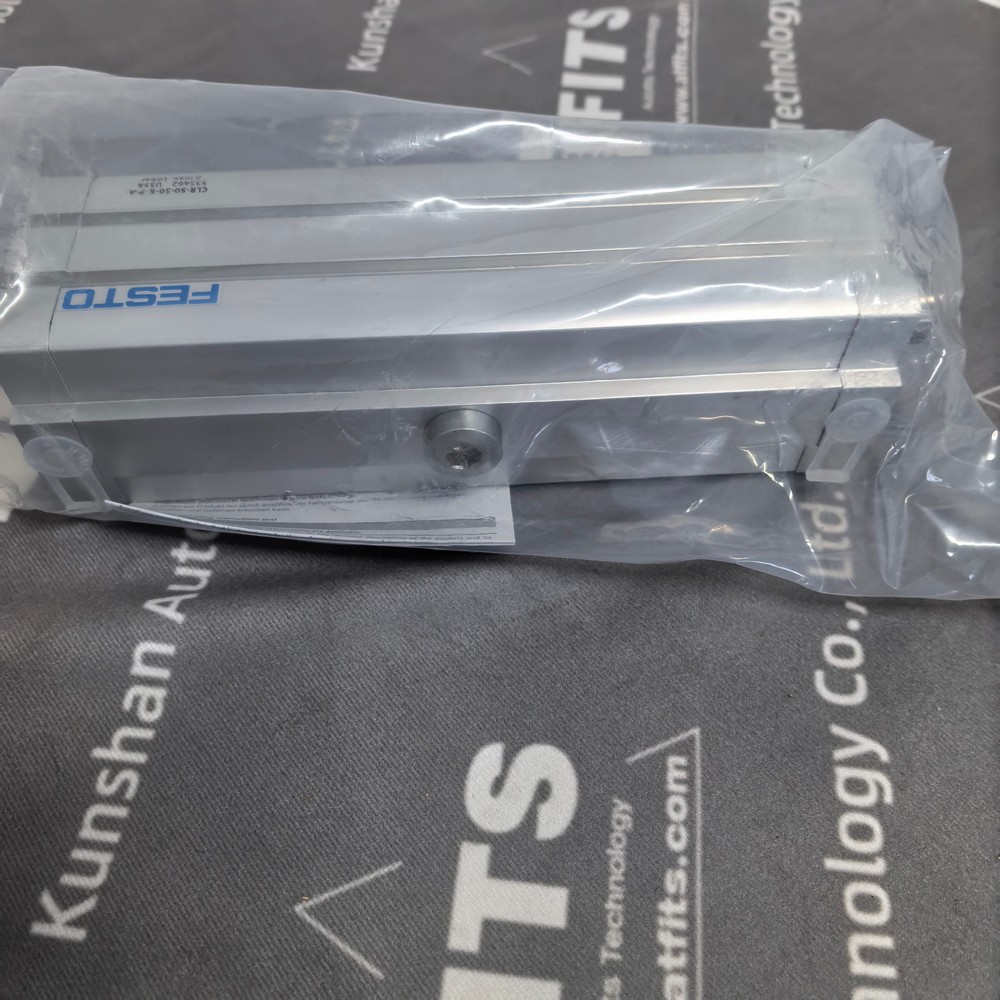

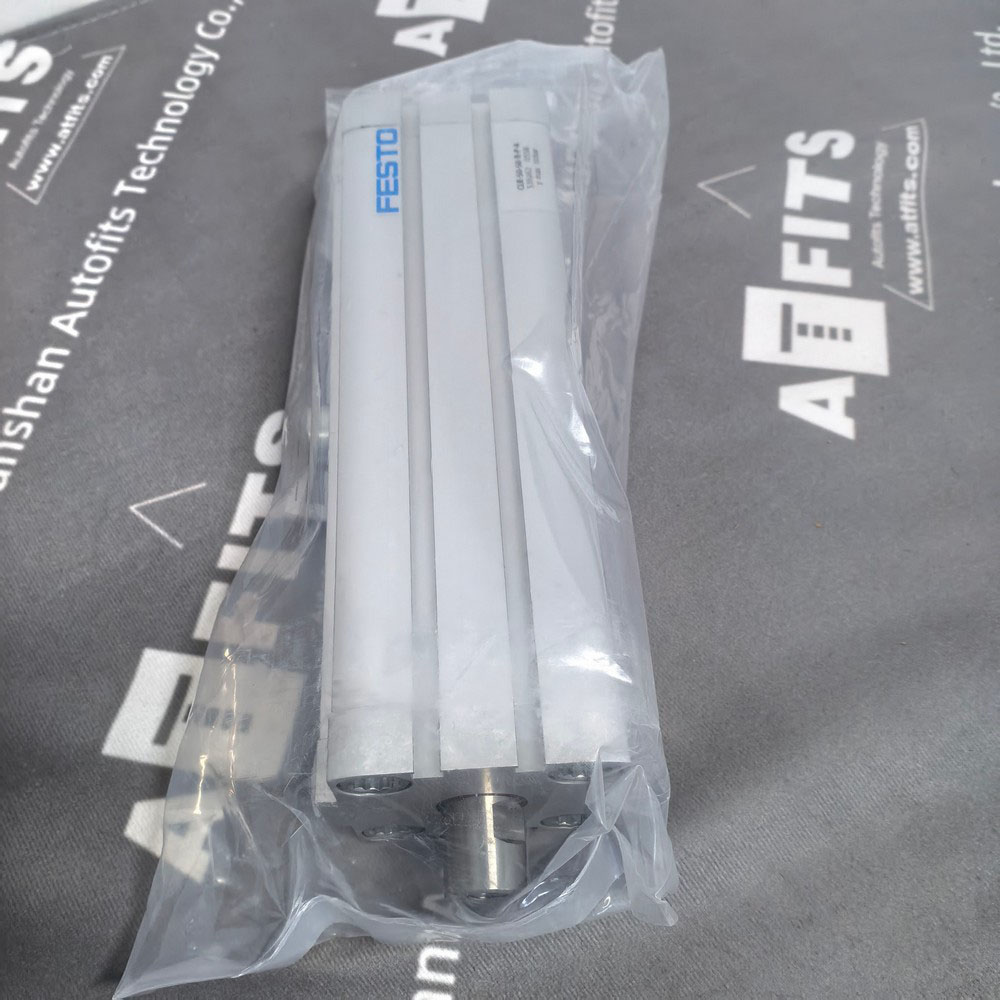

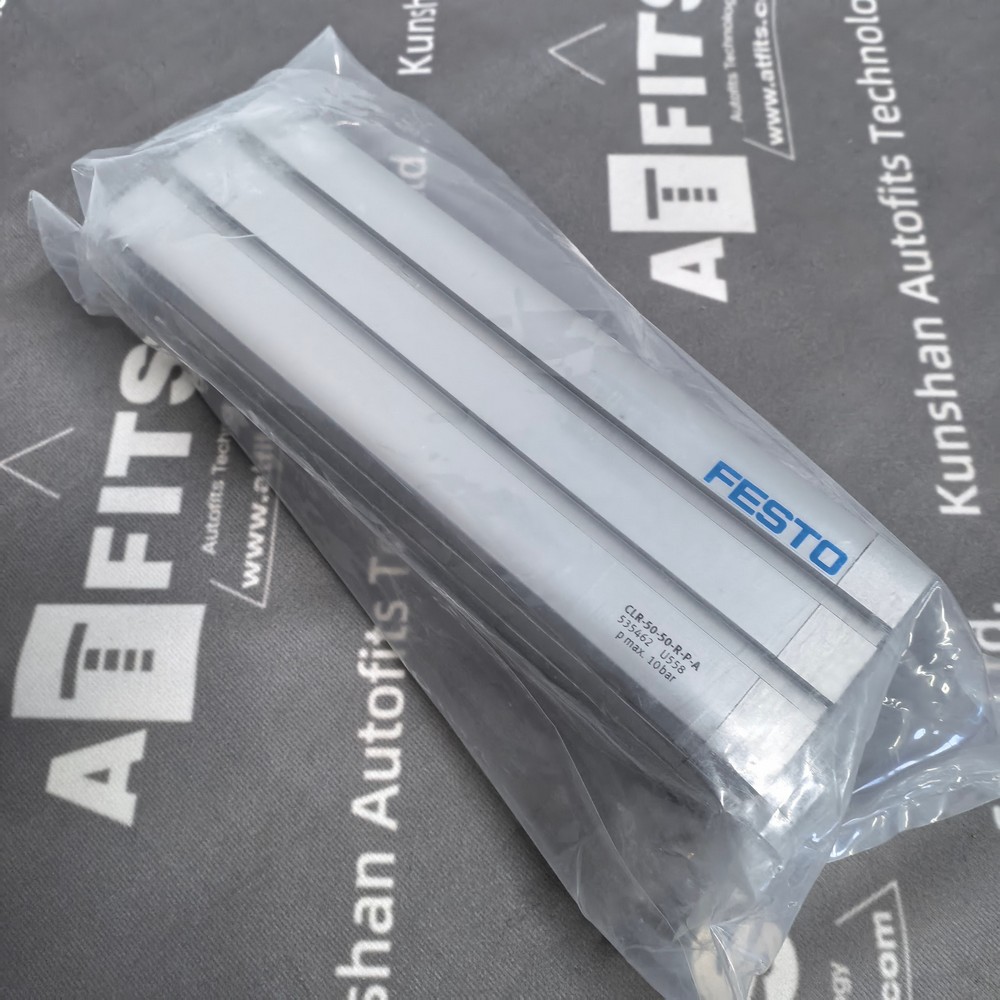

New Original FESTO 535462 CLR‑50‑50‑R‑P‑A Pneumatic Clamping Cylinder
"*" señala los campos obligatorios
New Original FESTO 535462 CLR‑50‑50‑R‑P‑A Pneumatic Clamping Cylinder
Product Overview
FESTO CLR‑50‑50‑R‑P‑A, part number 535462, is a double‑acting linear‑swivel swing‑clamp cylinder from the CLR seriesFesto. It combines 90‑degree right‑hand swivel motion and 50 mm linear clamping stroke. When retracting, the piston rod first rotates clockwise by 90 degrees and then moves axially to press down and clamp workpieces; extending releases and swings away the clamping finger to clear workpiece loading‑unloading space. The bore size is 50 mm, designed for heavy‑duty fixture clamping tasks. It is widely used in automated assembly jigs, machining fixtures, welding fixtures and packaging equipment. It supports proximity sensor installation for position feedback and follows ISO 21287 mounting hole standards for flexible fixture integrationmedia.fest…。
Main Functions
- Combined swivel‑clamp action: 90‑degree right‑hand rotation plus 50 mm linear stroke for swing‑in clamping and swing‑out release of workpieces.
- Heavy‑force workpiece holding: Generates high clamping force under compressed air to fix workpieces for processing or assembly.
- Sensor‑ready position detection: Built‑in grooves for proximity sensors to detect retracted‑clamped and extended‑released positions.
- Elastic end‑of‑stroke cushioning: Absorbs mechanical impact at both stroke ends to reduce vibration and noise during cyclic operation.
- Multiple mounting options: Direct mounting via through‑holes or internal threaded holes; compatible with standard ISO 21287 mounting accessories such as foot brackets and flangesdocs.rs-on….
- Accepts external clamping fingers: M10 piston‑rod thread allows fitting customized clamping fingers for different workpiece profiles.
- Any‑orientation installation: Can be mounted vertically, horizontally or inclined for diverse fixture layout requirements.
- Double‑acting pneumatic control: Controlled by external solenoid valves to realise automated clamping‑release cycles.
Technical Characteristics
- Operating principle: Double‑acting piston drive, right‑hand 90° swivel (+/‑2° tolerance) with 50 mm clamping stroke, total travel 71 mmFesto.
- Bore diameter: 50 mm; piston‑rod thread M10; pneumatic connection G1/8 female thread.
- Cushioning: Elastic cushioning rings on both extend and retract ends.
- Operating pressure range: 2 bar ~ 10 bar. Theoretical clamping force 990 N at 6 bar; effective clamping force 716 N at 6 barFesto.
- Material: Cylinder barrel and housing are smooth‑anodised wrought aluminium alloy; piston rod is coated high‑alloy stainless steel; seals are NBR and TPE‑U(PU)Festo.
- Corrosion resistance class CRC 2; RoHS compliant and VDMA 24364‑B1/B2‑L LABS‑PWIS compliant for paint‑industry automation lines.
- Operating medium: Filtered compressed air conforming to ISO 8573‑1:2010; lubricated compressed air is permitted if consistent lubrication is maintained.
- Ambient temperature range: ‑10 ℃ ~ +80 ℃Festo.
- Max tightening torque for clamping‑finger screw: 47 Nm.
Product Dimensions and Weight
| Item | Specification |
|---|---|
| Piston bore | 50 mm |
| Clamping stroke | 50 mm |
| Total stroke | 71 mm |
| Swivel angle | 90° ± 2°, right‑hand rotation |
| Piston‑rod thread | M10 |
| Pneumatic port | G1/8 |
| Net weight | 2115 g |
Core Operating Parameters
| Parameter | CLR‑50‑50‑R‑P‑A Specification |
|---|---|
| Operation mode | Double‑acting linear‑swivel clamp cylinder |
| Operating pressure | 2 bar ~ 10 bar |
| Theoretical clamping force @6 bar | 990 N |
| Effective clamping force @6 bar | 716 N |
| Ambient temperature | ‑10 ℃ ~ +80 ℃ |
| Cushioning | Elastic cushioning both ends |
| Position detection | For proximity sensors |
| Mounting orientation | Any position |
10 FESTO Products with Approximate Pneumatic Swing‑Clamp / Clamping‑Cylinder Functions
- CLR‑50‑50‑L‑P‑A (535463): CLR‑series swing‑clamp cylinder, 50 mm bore, 50 mm stroke, left‑hand 90‑degree swivel for mirrored fixture layouts.
- CLR‑50‑20‑R‑P‑A (535460): 50 mm bore right‑swivel clamping cylinder, short 20 mm clamping stroke for compact fixture space.
- CLR‑40‑50‑R‑P‑A (535446): 40 mm bore CLR swing‑clamp cylinder, 50 mm stroke, medium‑force clamping for smaller‑size jigs.
- CLR‑63‑50‑R‑P‑A (535474): Large‑bore 63 mm swing‑clamp cylinder, 50 mm stroke for extra‑heavy‑workpiece clamping applications.
- CLR‑32‑20‑R‑P‑A (535428): Compact 32 mm bore swing‑clamp cylinder, 20 mm stroke for light‑duty automated fixtures.
- CLR‑25‑10‑R‑P‑A (535414): Miniature CLR swing‑clamp cylinder, 25 mm bore, 10 mm stroke for small‑part clamping tasks.
- CLR‑40‑20‑R‑P‑A‑K11‑R8 (535495): 40 mm bore swing‑clamp cylinder with dust‑ and weld‑spatter‑resistant wiper for welding‑station environments.
- EV‑25‑5 (150684): Diaphragm‑type flat clamping module, 25 mm diaphragm diameter, 5 mm short stroke for low‑profile non‑swivel pressing‑clamping.
- KPE‑12 (178473): Compact short‑stroke pneumatic clamping cartridge, pure linear‑action clamping element without swivel movement for modular jig plates.
- CLR‑63‑20‑L‑P‑A (535471): 63 mm bore left‑swivel swing‑clamp cylinder, 20 mm stroke for heavy‑duty short‑travel clamping.
