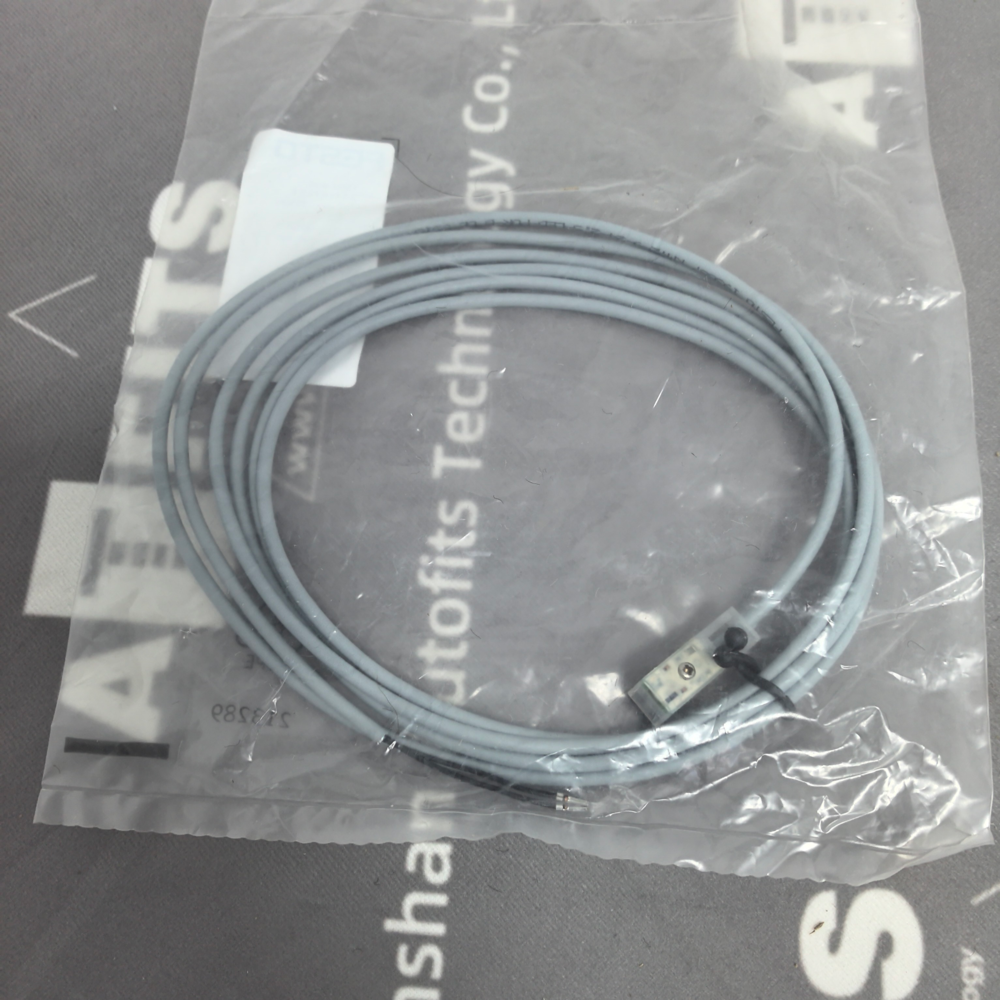

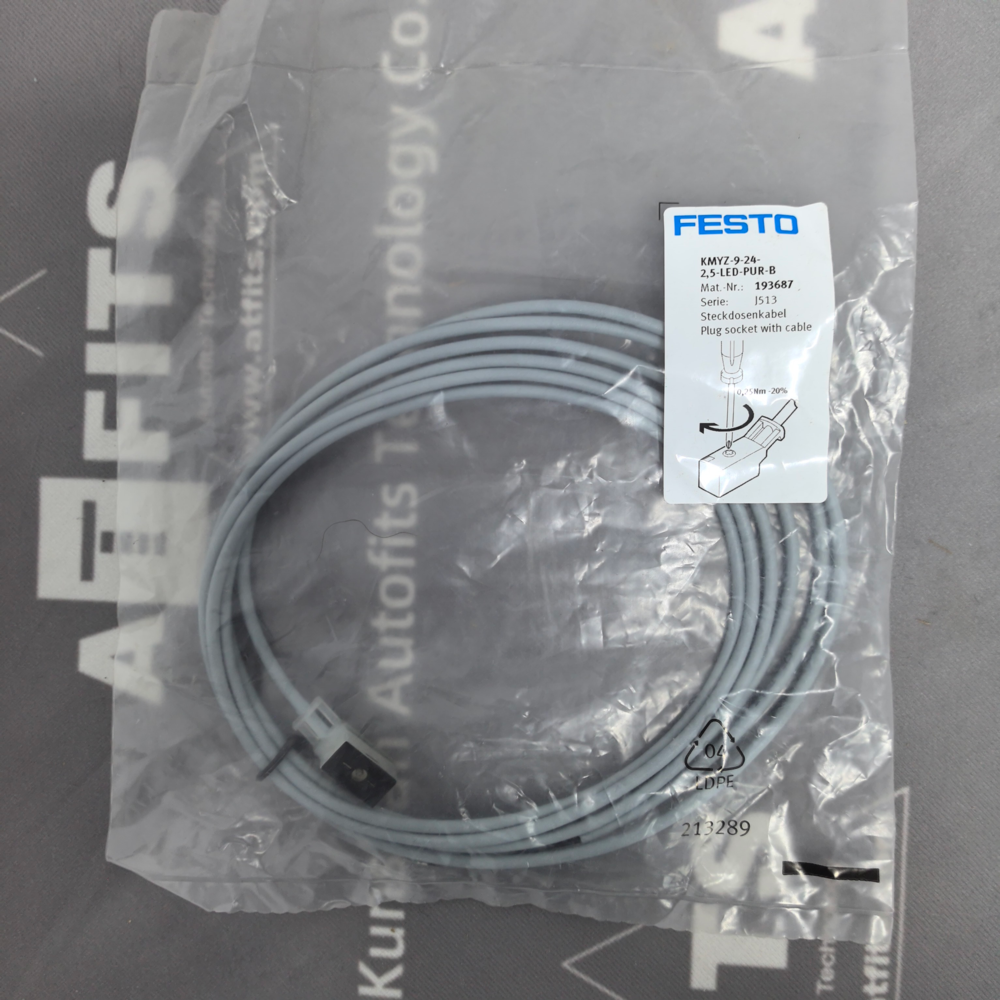

New Original Festo 193687 KMYZ-9-24-2,5-LED-PUR-B connecting cable
"*" señala los campos obligatorios
Product Introduction for New Original Festo 193687 KMYZ‑9‑24‑2,5‑LED‑PUR‑B Connecting Cable
1. Product Overview

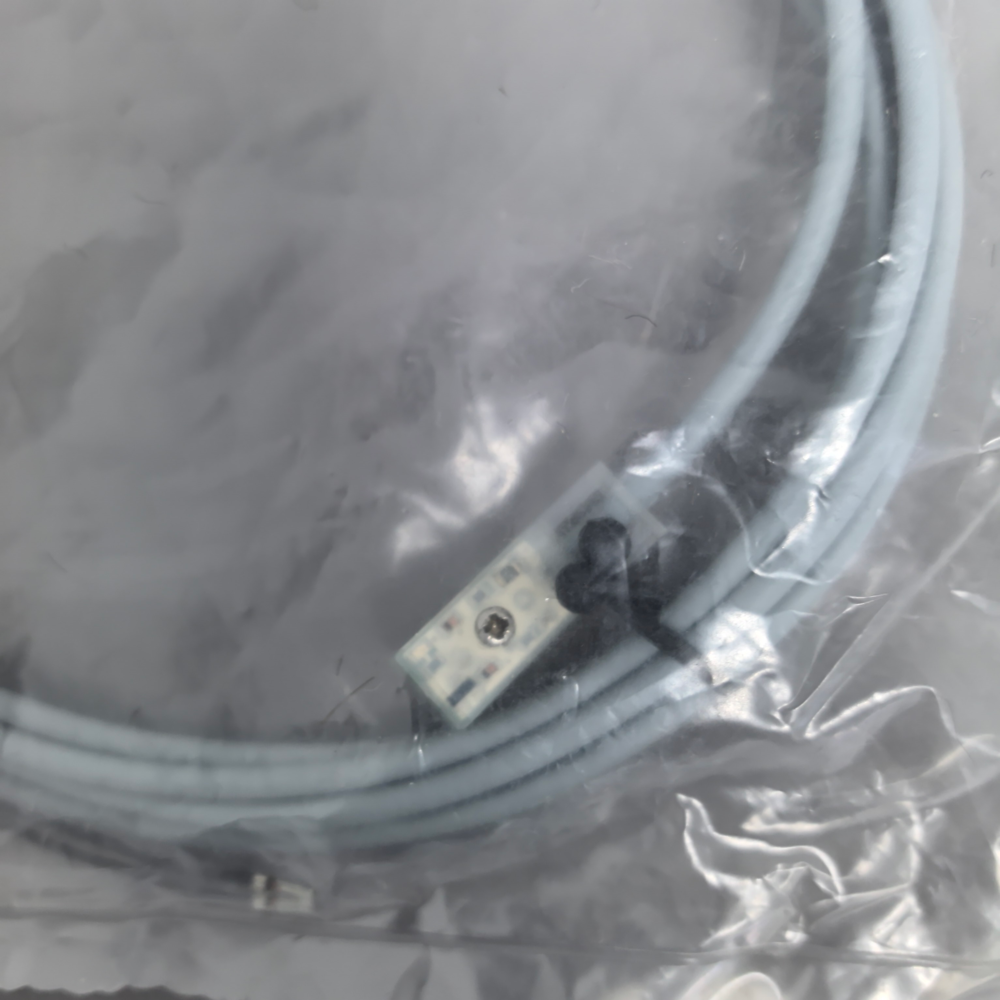

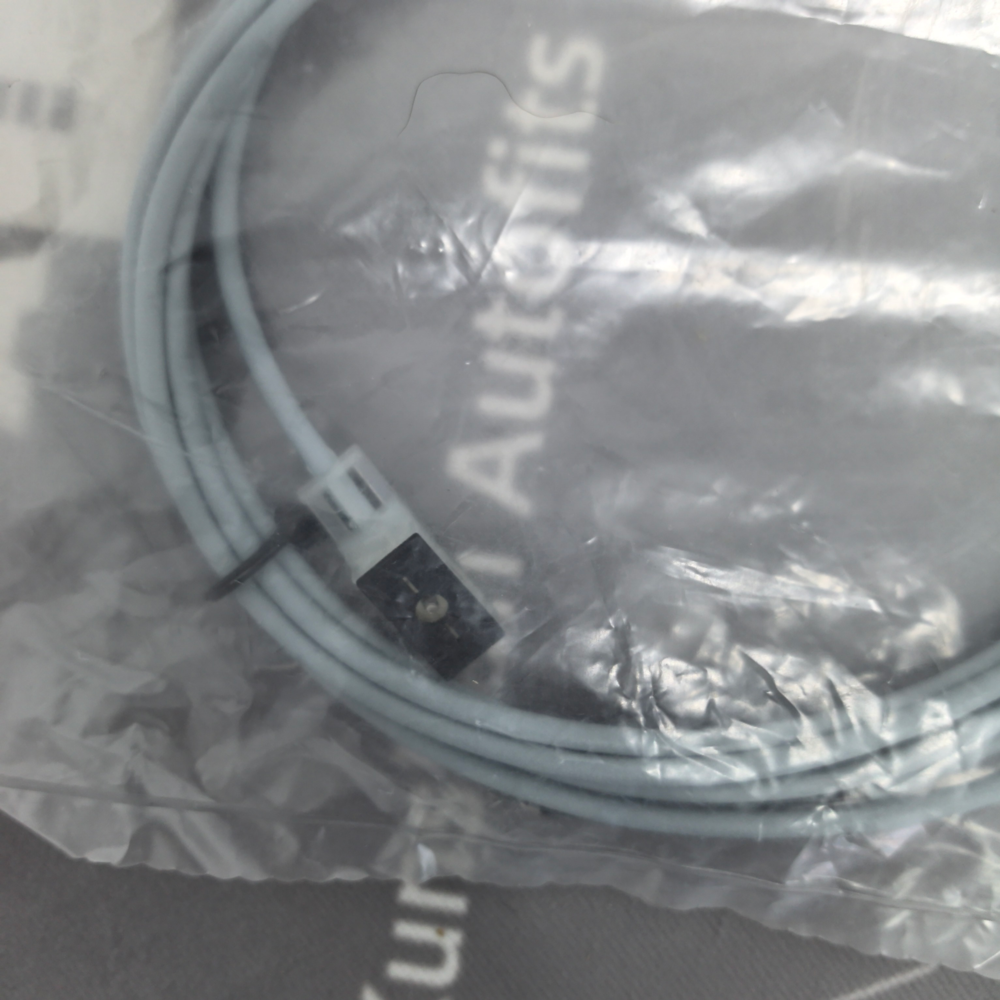

KMYZ‑9‑24‑2,5‑LED‑PUR‑B with part number 193687 is an original‑manufactured single‑ended angled connecting cable from Festo Germany, belonging to the KMYZ dedicated wiring series for CPE‑10 and CPE‑14 compact solenoid valves with ZC coilsFesto. One end is a square‑shaped angled 2‑pin socket which fastens to solenoid valves via M2 central screw; the other end is open bare wire terminals for wiring with PLC or power‑supply modules. It adopts flexible PUR (TPE‑U) outer jacket, built‑in holding‑current reduction circuit and status‑indicating LED lamp under DC24V working voltage. It is widely used on automated assembly equipment, packaging machinery, sorting machines and pneumatic control cabinets in general‑industrial environments, and complies with RoHS, CE and VDMA‑24364‑B2‑LABS standardsFesto.
2. Main Functions
- Power transmission: Deliver 24‑V DC power supply to Festo compact solenoid valves to control valve switching‑on and switching‑off actions.
- Holding‑current reduction: The internal built‑in resistor automatically cuts down holding current after valve coil pulls‑in, lowers coil heating and extends the service life of solenoid coils.
- Visual running‑state feedback: Integrated LED light displays working status, light‑on for energized valve and light‑off for power‑off condition for quick on‑site troubleshooting.
- Reliable environmental isolation: IP65 protection grade prevents dust, moisture and oil mist from entering connecting positions to avoid short‑circuit faults.
- Convenient field wiring: Open‑ended wire design allows flexible connection with terminal blocks or controller output ports without extra intermediate connectors.
3. Technical Parameters
| Items | Specific Specifications |
|---|---|
| Part number | 193687; Model: KMYZ‑9‑24‑2,5‑LED‑PUR‑B |
| Rated operating voltage | DC 24 V |
| Maximum allowable current | 1 A under 40‑℃ environment |
| Wire structure | 2‑core wire with cross‑section 0.25 mm² for each core |
| Total cable length | 2.5 m |
| Outer cable diameter | 3.4 mm |
| Protection class | IP65 |
| Permissible ambient temperature | ‑10 ℃ ~ +50 ℃ |
| Recommended tightening torque for valve installation | 0.25 N·m |
| Outer‑jacket material | Flexible PUR (TPE‑U) |
| Connector housing material | Polyamide (PA) |
| Contact material of socket | Bronze with anti‑oxidation treatment |
| Installation type on solenoid valve | Fixed by central M2 screw |
| Ground wire | Not available |
| Corrosion‑resistance class | CRC‑2 for medium‑corrosion industrial conditionsFesto |
4. Physical Dimensions and Net‑Weight Data
| Dimension Description | Value |
|---|---|
| Length of angled plastic socket body | 18 mm |
| Width of square‑shaped socket | 14 mm |
| Height of square‑shaped socket | 12 mm |
| Total cable length | 2500 mm |
| Single‑piece net weight | 50 g |
5. Product Core Advantages
- High‑flexibility PUR cable jacket resists repeated bending during long‑term equipment vibration without cable‑cracking; it also has good oil‑resistance and abrasion‑resistant performance.
- Integrated current‑limiting circuit and LED indicator are embedded inside the compact angled plug, saving installation space compared with external resistors.
- Original Festo manufacturing ensures stable electrical‑conducting performance and low failure‑rate for continuous‑cycle operation.
- Angled plug design avoids sharp bending of cables when mounted on compact valves, effectively preventing internal copper‑wire breakage.
- Standard M2‑screw fixing method matches Festo CPE‑series valves perfectly for quick replacement and maintenance.
6. Ten Festo connecting‑cable products with similar functions for solenoid‑valve connection
- Festo 193688 KMYZ‑9‑24‑5‑LED‑PUR‑B: 5 m‑long 2‑pin angled connecting cable with LED indicator and built‑in current reducer for CPE‑series valves.
- Festo 193689 KMYZ‑9‑24‑10‑LED‑PUR‑B: 10‑meter PUR‑jacket connecting cable for long‑distance valve‑controller wiring.
- Festo 193692 KMYZ‑9‑24‑2,5‑LED‑PUR‑W: 2.5‑m cable with white‑colored PUR outer jacket for clean‑room pneumatic‑equipment application.
- Festo 8026075 KMYZ‑9‑24‑2,5‑IED‑PUR‑B: Improved‑version cable with reverse‑polarity protection except for original LED and current‑reduction function.
- Festo 193700 KMYZ‑9‑24‑2,5‑NO‑LED‑PUR‑B: 2.5‑m connecting cable without LED lamp for occasions without status‑monitoring requirement.
- Festo 193703 KMYZ‑9‑24‑2‑LED‑PUR‑B: Short‑length 2‑meter angled connecting cable for narrow installation space.
- Festo 8072040 KMYZ‑12‑24‑2,5‑LED‑PUR‑B: 12‑pin variant connecting cable for multi‑valve terminal assembly.
- Festo 193705 KMYZ‑9‑24‑2,5‑LED‑PVC‑B: 2.5‑meter cable with PVC outer‑jacket for dry‑indoor low‑cost projects.
- Festo 8045672 KMYZ‑9‑24‑2,5‑LED‑PUR‑B‑ST: Cable with terminal‑ferrule fitted on open wire ends for direct terminal‑block installation.
- Festo 193708 KMYZ‑9‑24‑3‑LED‑PUR‑B: 3‑meter angled connecting cable with built‑in holding‑current reduction circuit for medium‑distance wiring jobs.
