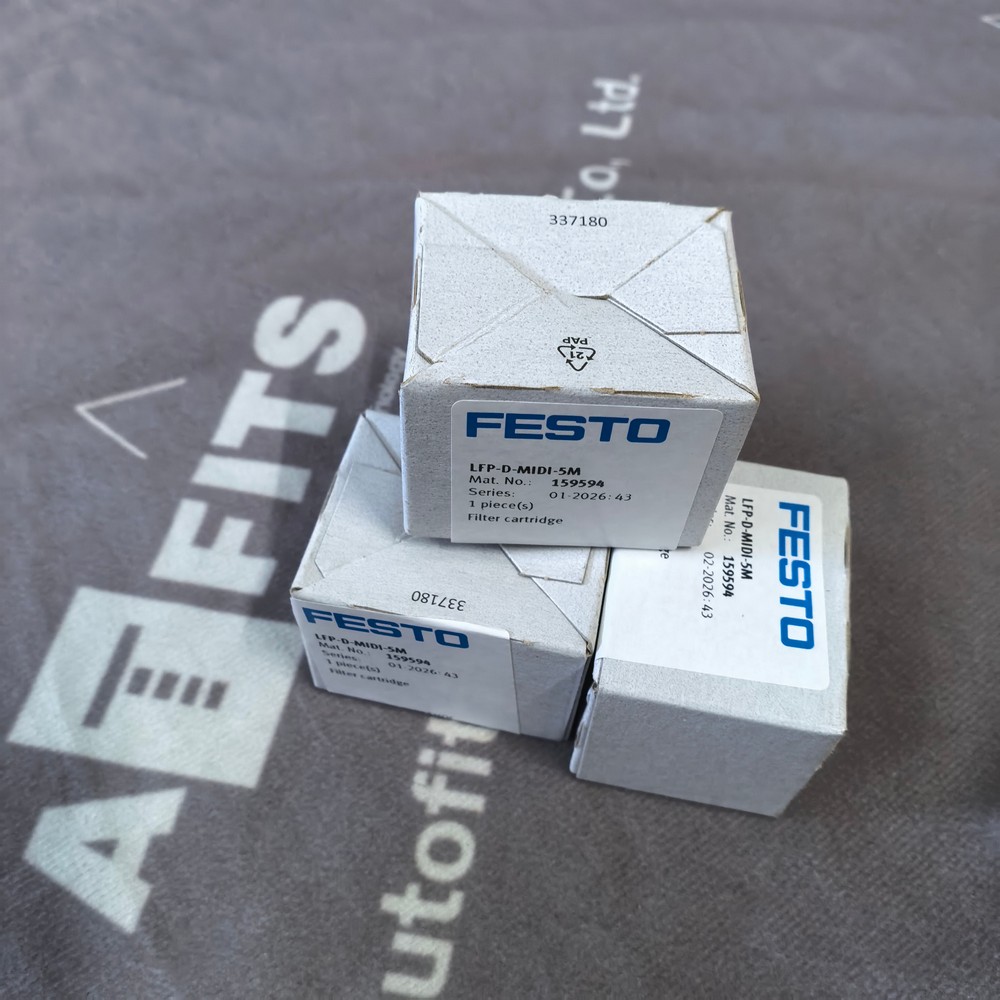

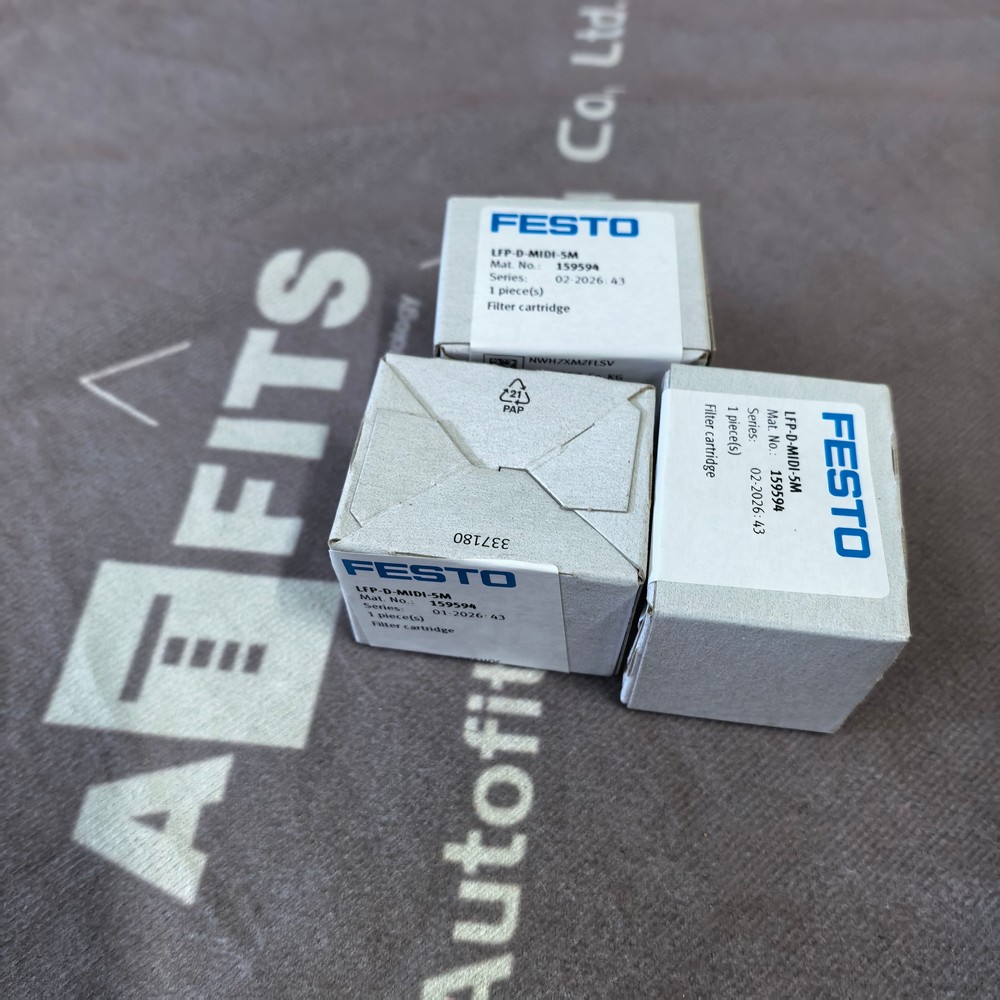

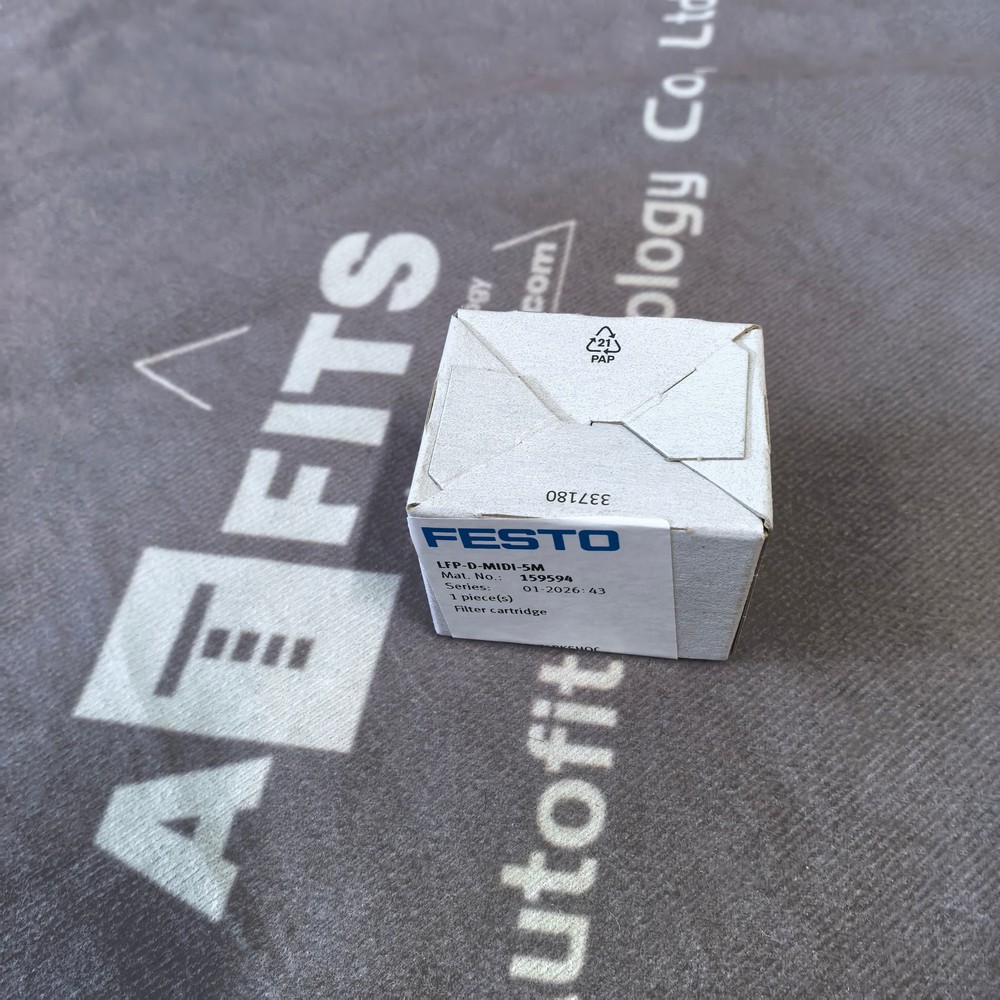

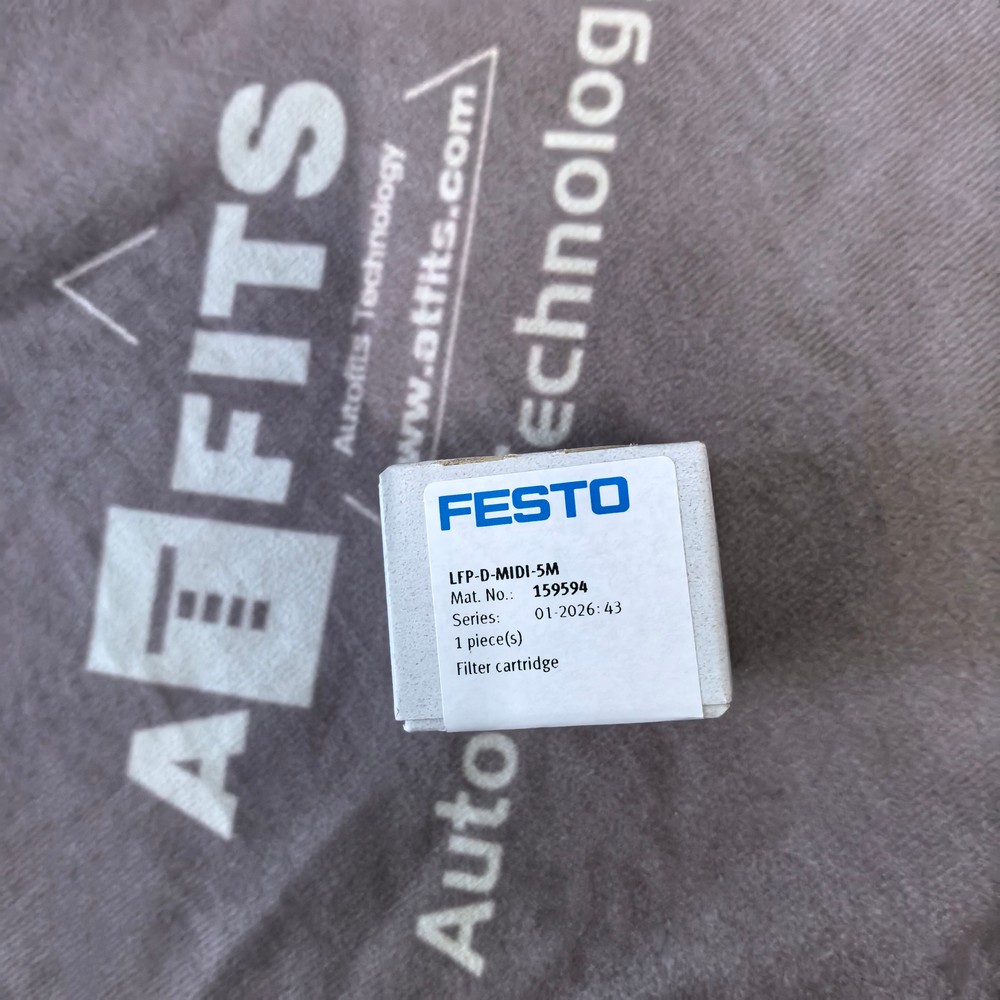

New Original FESTO 159594 LFP‑D‑MIDI‑5M Filter Cartridge
"*" señala los campos obligatorios
New Original FESTO 159594 LFP‑D‑MIDI‑5M Filter Cartridge
Product Overview

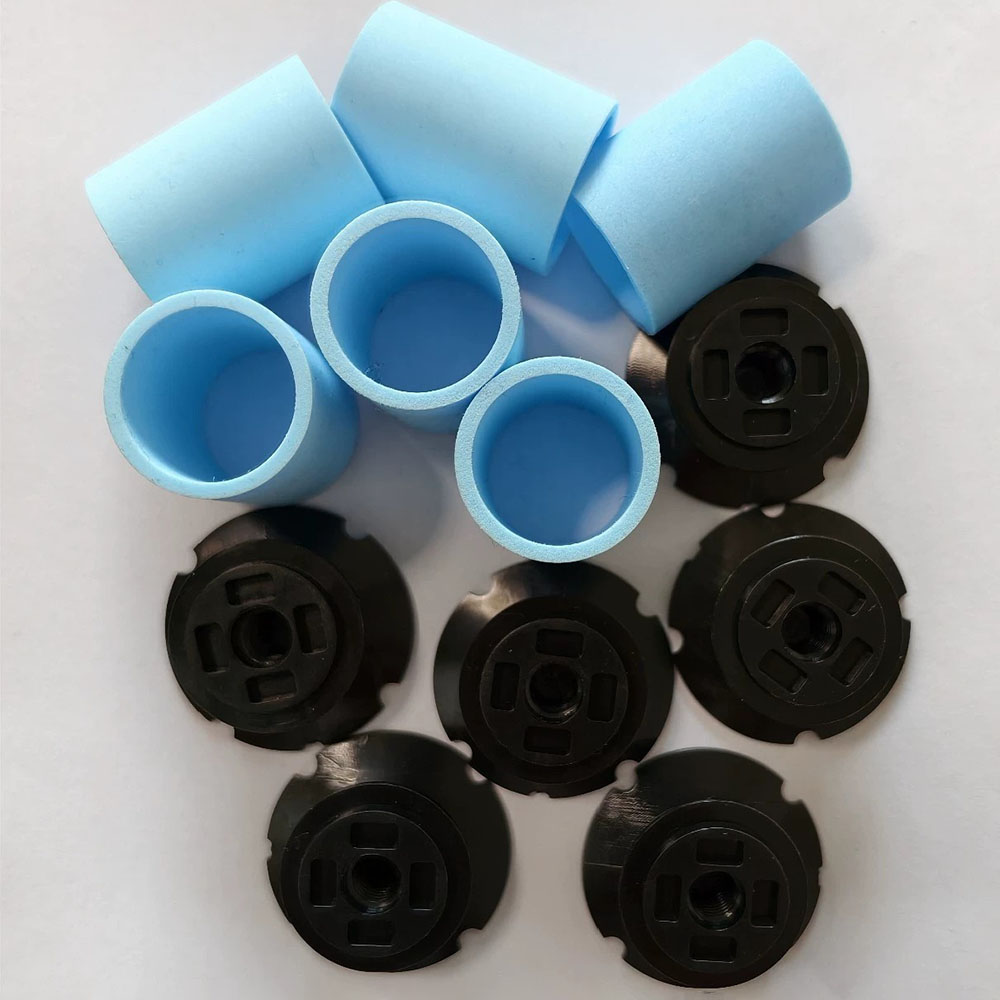

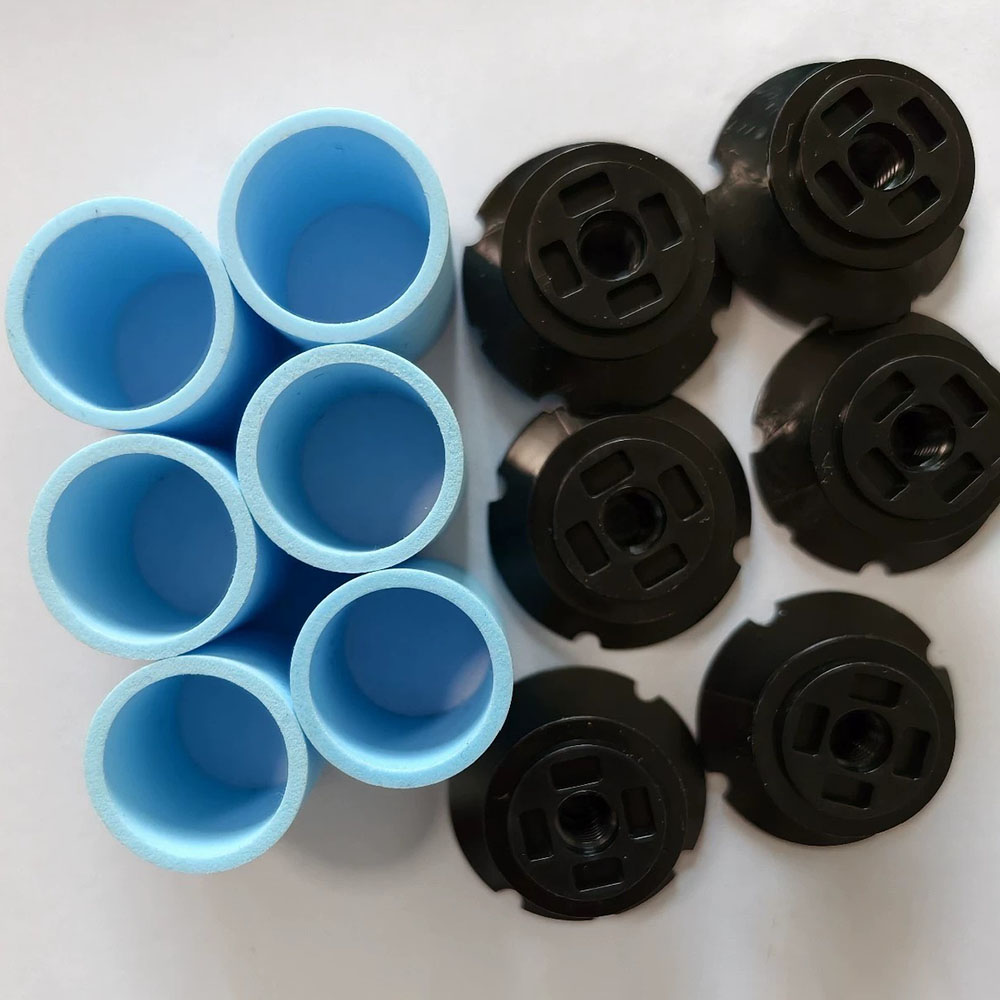

FESTO LFP‑D‑MIDI‑5M, part number 159594, is a cylindrical replacement filter cartridge for D‑series MIDI‑size service units, including LF filter and LFR filter‑regulator assembliesautolinein…. Constructed from porous polyethylene filter medium, this element achieves 5‑micrometer particle filtration for compressed‑air circuits. It traps solid dust, fine particles and residual pipeline debris inside pneumatic air‑preparation units. It is widely used in factory automation production lines, packaging machines, robotic systems and general‑purpose industrial compressed‑air treatment systems. Periodic cartridge replacement maintains compressed‑air quality, protects downstream valves, cylinders and precision pneumatic components from particle contamination. It complies with LABS‑PWIS requirements and is suitable for paint‑industry automation environmentsFesto.
Main Functions
- Solid‑particle filtration: Captures 5 μm and larger solid contaminants from flowing compressed‑air streams.
- Consumable replacement element: Standard spare part for MIDI‑size D‑series filter housings for easy on‑site maintenance.
- Stabilize air‑supply quality: Reduces particle contamination to extend service life of downstream pneumatic actuators and valves.
- Cylindrical through‑flow structure: Ensures uniform air flow distribution across the entire filter medium surface.
- Paint‑process‑compatible filtration: LABS‑PWIS compliant, avoids releasing interfering substances for coating‑industry equipmentFesto.
- Simple installation: Direct insert‑fit assembly inside filter bowl without extra fixing tools.
- Supports non‑lubricated and properly lubricated compressed‑air systems.
- Passive filter element, no external power required for continuous particle separation.
Technical Characteristics
- Filter medium: Porous polyethylene, copper‑free and PTFE‑free material composition.
- Filtration grade: 5 μm particle retention rating.
- Form factor: MIDI size, dedicated for D‑series service‑unit filter housings.
- Conforms to RoHS directives and VDMA 24364‑B1/B2‑L LABS‑PWIS standards for painting‑automation applicationsFesto.
- Compatible with compressed‑air per ISO 8573‑1:2010.
- Operating pressure matches D‑series MIDI service‑unit working pressure range.
- Replaceable consumable component; cannot be cleaned for repeated long‑term reuse.
- Corrosion resistance class CRC 1 for standard indoor industrial environments.
Product Dimensions and Weight
| Item | Specification |
|---|---|
| Series size | MIDI |
| Overall outer diameter | 47 mm |
| Inner bore diameter | 27 mm |
| Cartridge height | 70 mm |
| Net weight | Approx. 12 g |
Core Operating Parameters
| Parameter | LFP‑D‑MIDI‑5M Specification |
|---|---|
| Filtration precision | 5 μm |
| Operating medium | Compressed air, inert non‑corrosive gas |
| Ambient working temperature | ‑10 ℃ ~ +60 ℃ |
| Filter medium | Porous polyethylene |
| Material restriction | Copper‑free, PTFE‑free |
| Applicable housing | LF‑D‑MIDI, LFR‑D‑MIDI filter‑regulator units |
10 FESTO Products with Approximate Filter‑Cartridge Functions
- LFP‑D‑MIDI‑40M (159595): D‑series MIDI‑size filter cartridge with 40 μm coarse‑filtration grade, for primary pre‑filtration of compressed‑air pipelines.
- LFP‑D‑MINI‑5M (159590): MINI‑size D‑series filter cartridge, 5 μm filtration precision, for compact MINI‑type filter‑regulator service units.
- LFP‑D‑MINI‑40M (159591): MINI‑size 40 μm filter cartridge, coarse particle filtration for small‑capacity air‑preparation assemblies.
- LFP‑D‑MAXI‑5M (159598): MAXI‑size D‑series filter cartridge, 5 μm fine filtration, for high‑flow MAXI‑model filter housings.
- LFP‑D‑MAXI‑40M (159599): MAXI‑size 40 μm filter cartridge, pre‑filtration element for large‑volume compressed‑air service units.
- MS4‑LFP‑A‑UM (529414): MS‑series 4‑size general‑purpose filter cartridge, 5 μm filtration grade for modern modular MS service‑unit systems.
- MS6‑LFM‑B‑HF (552092): MS6 fine filter cartridge, 1 μm high‑precision borosilicate‑fiber filter element for ultra‑clean compressed‑air requirements.
- MS6‑LFM‑A‑HF (552093): MS6 micro‑filter cartridge, 0.01 μm ultra‑fine filtration for instrument‑grade clean compressed‑air supply.
- MS4‑LFX‑AK (529416): Activated‑carbon filter cartridge for MS4 service units, removes oil vapors and gaseous contaminants from compressed‑air flow.
- LFM‑D‑MIDI (162630): D‑series MIDI fine‑filter insert, 0.1 μm high‑efficiency filter element for demanding high‑purity pneumatic‑air applications.
