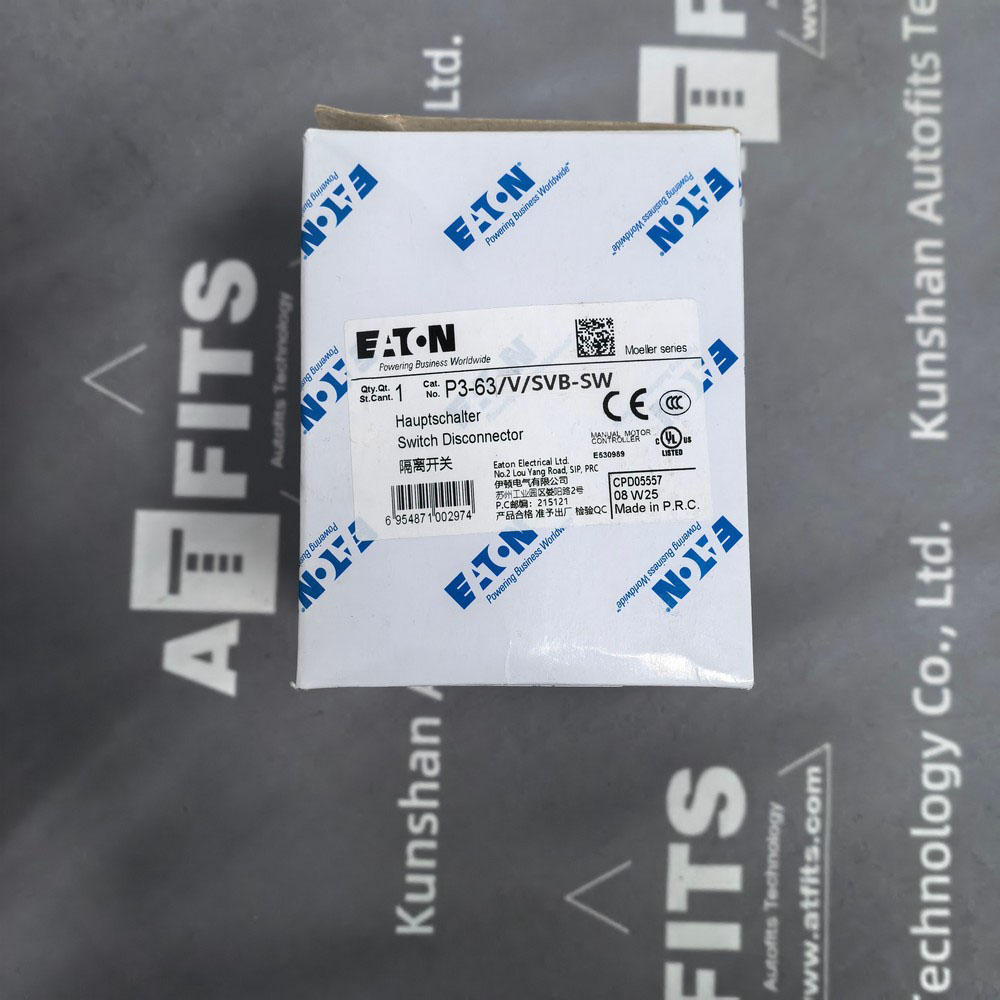

New Original EATON P3-63/V/SVB-SW Moeller Series Switch Disconnector
"*" señala los campos obligatorios
New Original EATON P3-63.V.SVB-SW Moeller Series Switch Disconnector
Product Overview

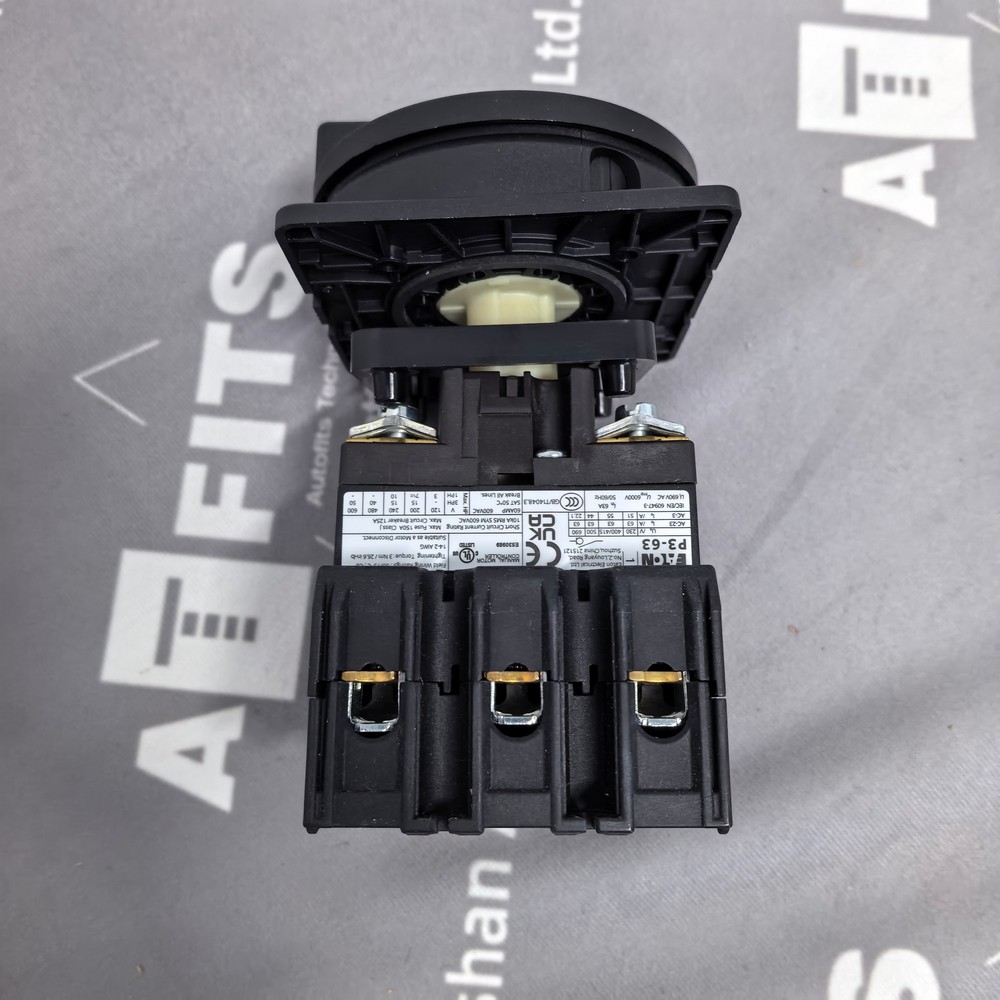

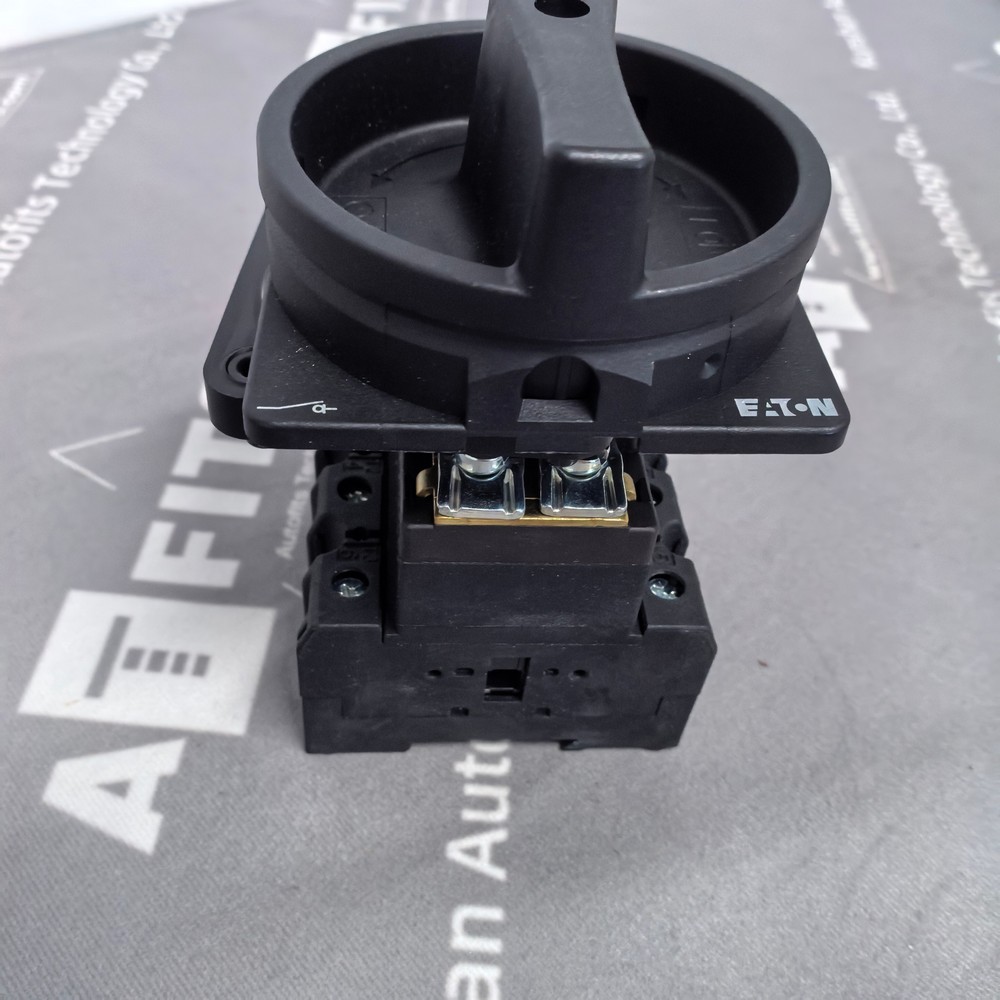

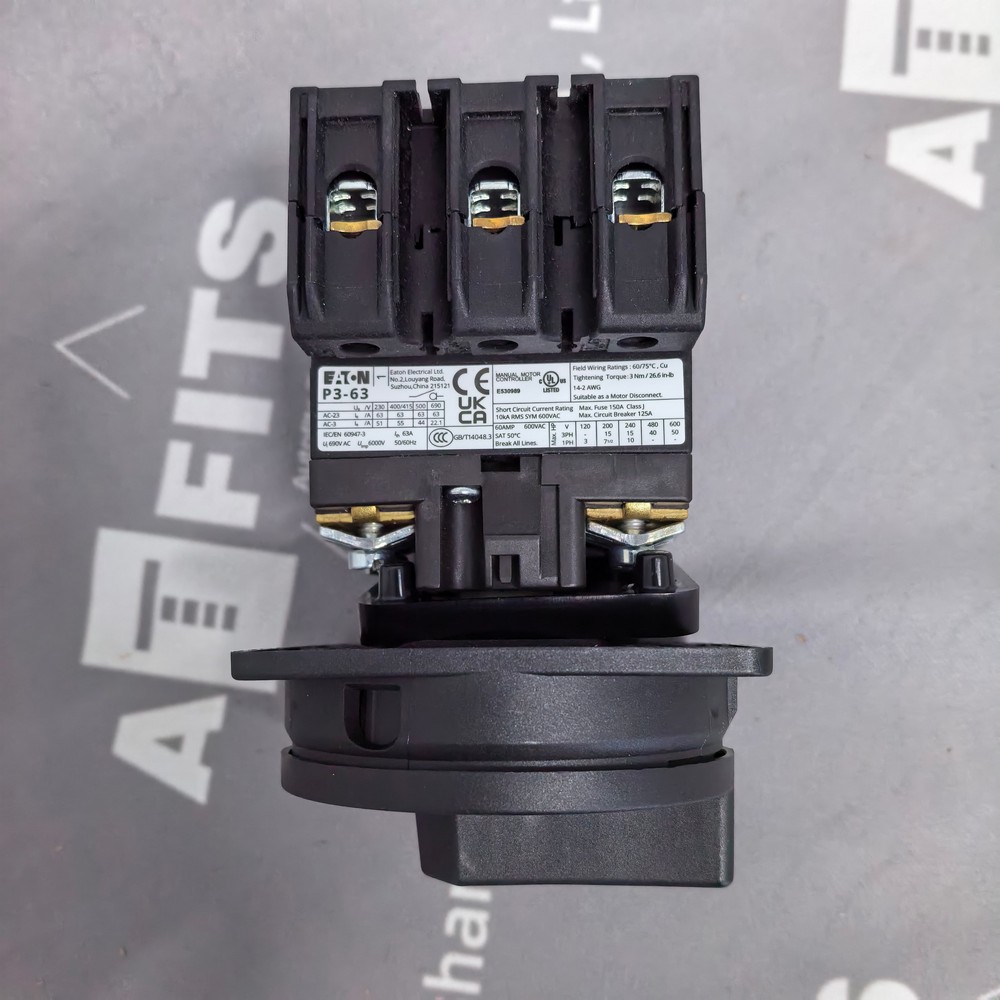

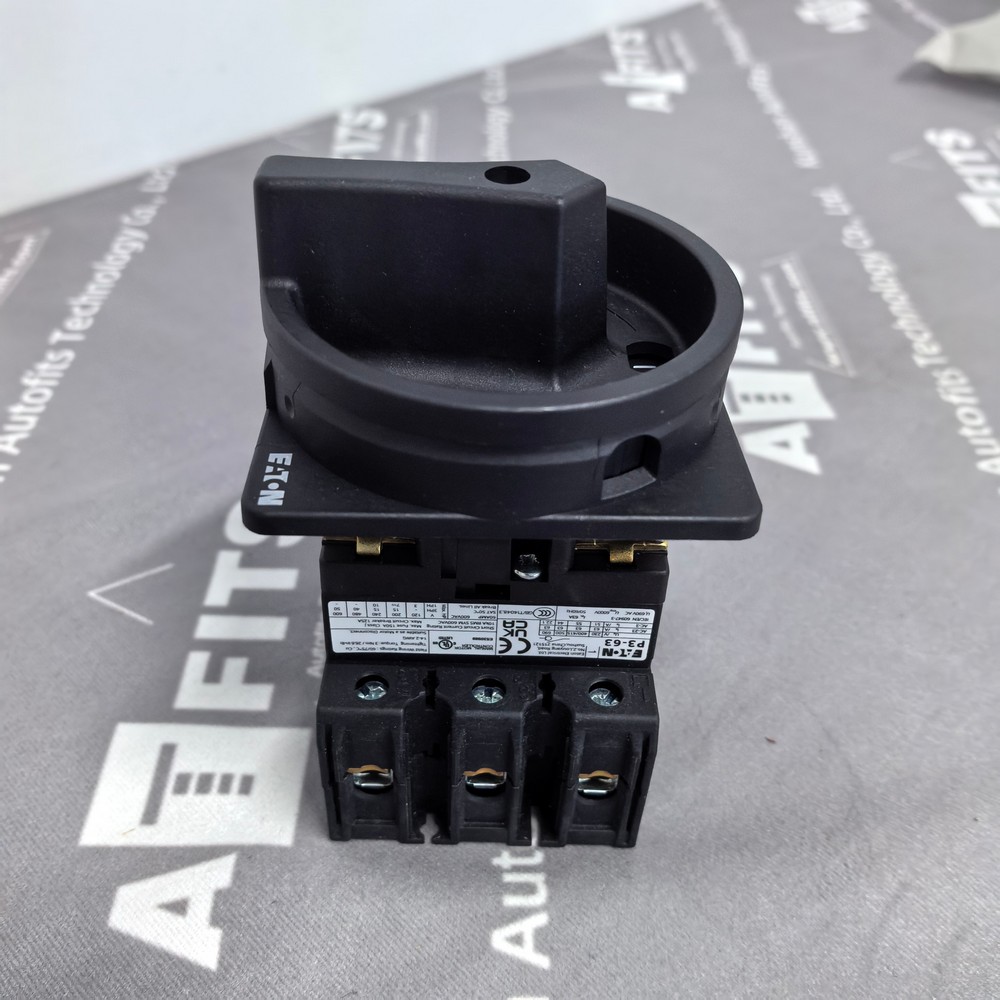

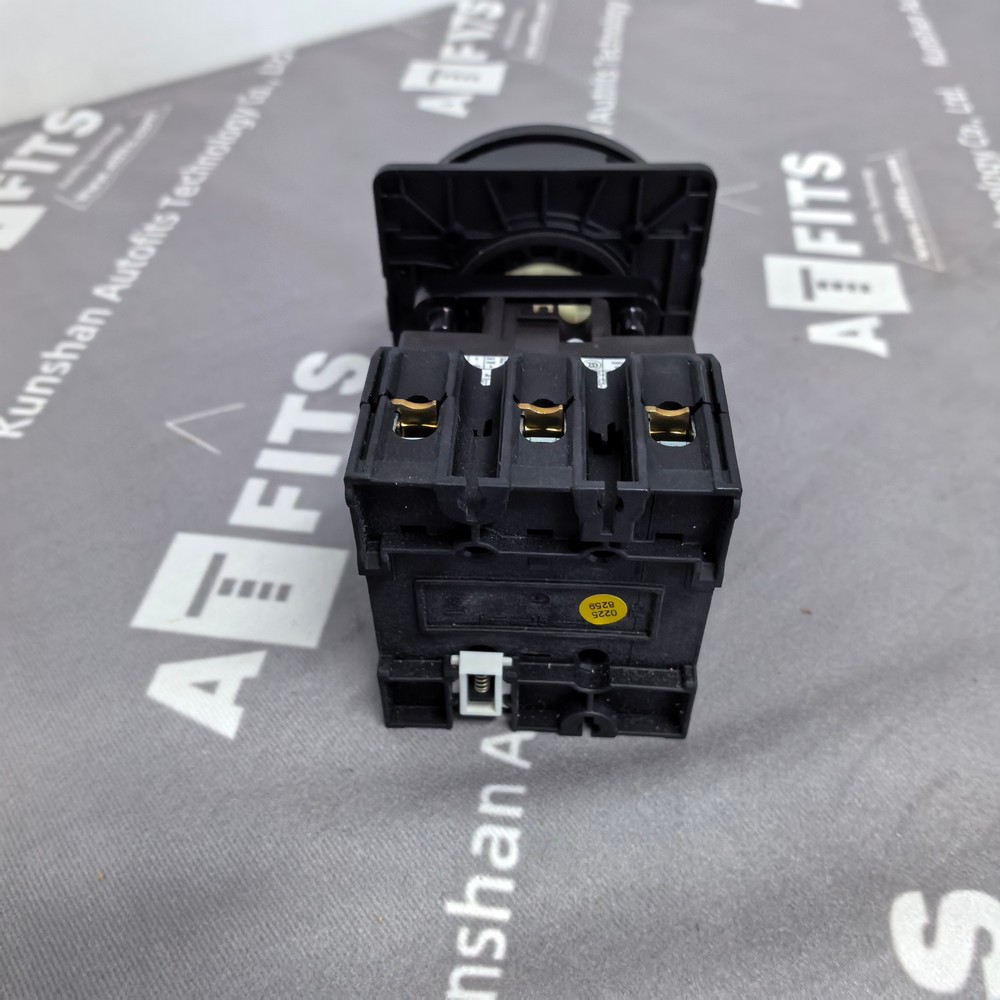

P3-63.V.SVB-SW is a brand-new original main switch disconnector belonging to the classic Moeller P3 series manufactured by Eaton. This industrial rotary isolating switch is designed for main circuit power cut-off, equipment maintenance safety isolation and emergency stop control in low-voltage electrical systems. Rated at 63A with 3-pole configuration, it adopts rear panel mounting structure, equipped with SVB standard red-yellow emergency rotary operating handle and SW enhanced sealing assembly. The switch complies with global IEC, UL, CSA and VDE electrical standards, featuring IP65 front protection grade. It is widely applied in machine tool control cabinets, automated production lines, packaging machinery, HVAC equipment, water treatment systems and general industrial power distribution panels, serving as the core safety isolation component to completely disconnect power supply during equipment overhaul and fault maintenance.
Main Technical Specifications Table
| Parameter Item | Detailed Specification |
|---|---|
| Full Model Number | P3-63.V.SVB-SW |
| Product Category | Rotary Switch Disconnector / Main Isolating Switch |
| Series | Eaton Moeller P3 Series |
| Rated Continuous Current (Iu) | 63 A |
| Number of Poles | 3 Poles |
| Rated Operational Voltage | Up to 690 V AC |
| Motor Switching Capacity (AC-23A, 400V) | 30 kW |
| Protection Degree (Front Side) | IP65 / NEMA 12 |
| Handle Configuration | SVB Red rotary handle with yellow locking ring |
| Locking Function | Lockable in OFF position with maximum 3 padlocks |
| Mounting Mode | Rear panel flush mounting |
| Terminal Connection | Screw-type cable terminals |
| Short-time Withstand Current (1s) | 1.26 kA |
| Impulse Withstand Voltage | 6 kV |
| Ambient Operating Temperature | -25 °C ~ +70 °C |
| Mechanical Service Life | ≥ 100,000 switching cycles |
| Compliance Standards | IEC/EN 60947-3, UL, CSA, VDE 0660, CE certified |
Overall Dimensions and Net Weight
- Overall width: 87 mm
- Overall height: 102 mm
- Installation depth (cabinet penetration): 128 mm
- Panel cutout dimension: Standard 68 mm × 68 mm square hole
- Single unit net weight: approximately 0.43 kg
Main Functions
- Complete Power Isolation: Physically disconnect three-phase main power circuit to form visible break points, eliminating residual voltage for safe equipment maintenance.
- Emergency Power Cut-off: Red-yellow emergency handle enables rapid forced power shutdown under unexpected equipment faults or hazardous conditions.
- Lockout-Tagout Safety Protection: The OFF position can be locked via padlocks to prevent accidental power-on by unauthorized personnel during overhaul.
- Motor Load Switching: Stable switching for three-phase asynchronous motors under AC-23A load category, suitable for frequent start-stop industrial equipment.
- Dustproof and Splashproof Sealing: IP65 front sealing structure blocks dust, cooling liquid splashes and moisture inside electrical cabinets.
- Auxiliary Contact Expandability: Reserved interface for installing NO/NC auxiliary contacts to feedback switch ON/OFF status to PLC control systems.
- Multi-position Installation Adaptation: Supports horizontal, vertical and arbitrary angle panel mounting without affecting switching performance.
- Overload and Short-circuit Withstand: Robust contact structure resists instantaneous overload current during circuit startup.
Key Technical Features
- Silver-alloy composite moving and fixed contacts deliver excellent electrical conductivity, anti-arcing performance and long service life under frequent switching operations.
- Reinforced thermosetting plastic switch base features high insulation resistance, flame retardancy and anti-aging performance for long-term stable operation.
- 90-degree precise rotary switching mechanism ensures clear ON/OFF positioning, avoiding ambiguous intermediate states of the contact system.
- SW enhanced sealing component optimizes internal sealing performance, adapting to humid, dusty workshop industrial environments.
- Compact modular structure occupies minimal cabinet installation space, convenient for dense layout of multiple power distribution components.
- Standardized panel cutout size realizes direct interchange with all P3 series switches without secondary cabinet modification.
- Optimized internal arc extinguishing chamber design quickly quenches electric arcs generated during breaking inductive loads, extending contact service life.
- Vibration-resistant internal component layout adapts to continuous vibration working conditions of machine tools and automated assembly lines.
List of 10 Eaton Moeller Similar Functional Switch Disconnectors (P1 & P3 Series)
- P3-32/V.SVB-SW (32A 3-pole flush mounting isolating switch)
- P3-40/V.SVB-SW (40A main rotary disconnector)
- P3-80/I4.SVB-SW (80A surface mounted 3P isolator)
- P3-63/EA.SVB (Flush mounting emergency stop switch without SW seal)
- P1-25/I2.SVB-SW (25A small capacity P1 series isolating switch)
- P1-32/MBS.SVB-SW (32A black handle maintenance switch)
- P3-63/I4/SVB/N (63A 3P+N four-pole power isolating switch)
- P3-100/V.SVB-SW (100A high-current cabinet main switch)
- P3-63/V.MBB-SW (Black standard handle non-emergency disconnector)
- P3-63/SVB-HI11 (63A isolator with built-in auxiliary contact set)
