New Original ABB 1SVR740010R3200 CT‑MBS.22P DIN Rail Multifunction Timer Relay
1. Product Overview

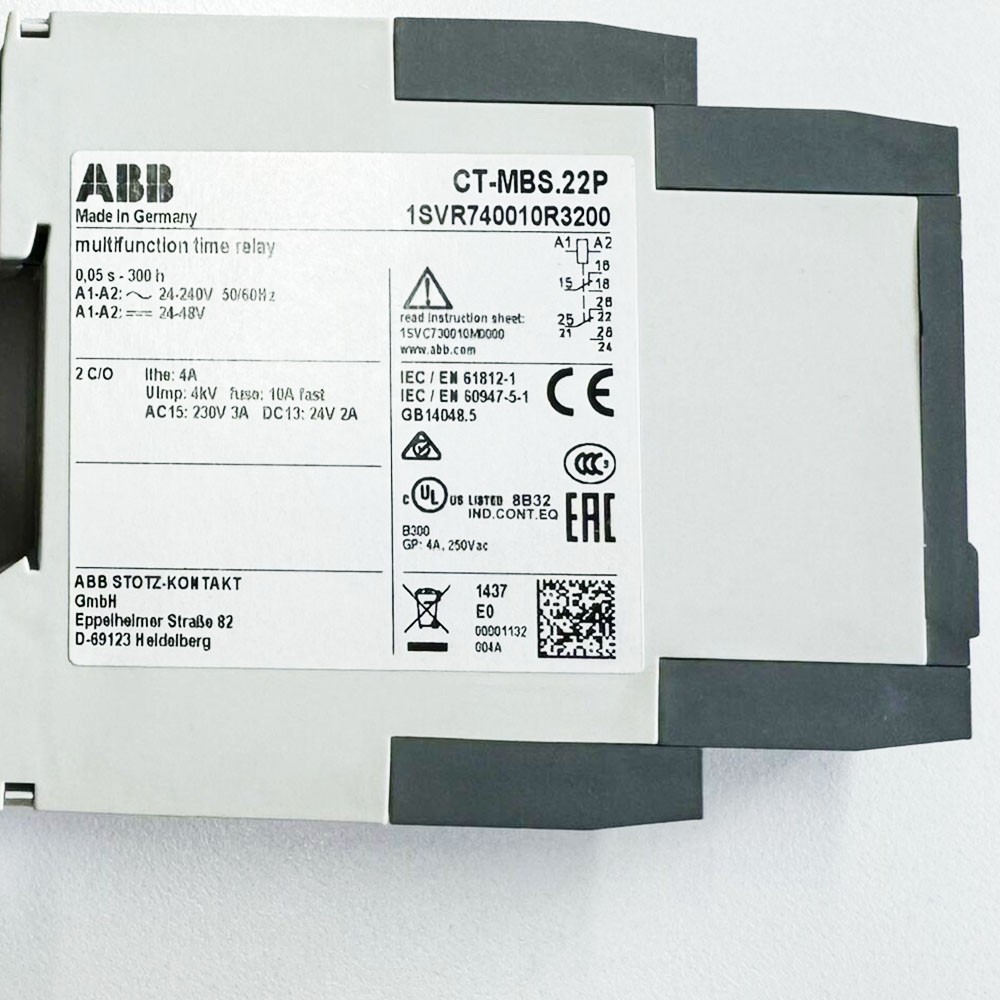

The ABB CT‑MBS.22P (Order No.1SVR740010R3200) belongs to the CT‑S series multifunction electronic timer relay. It is DIN‑rail mountable with push‑in easy‑connect terminals, supporting mixed wide‑range control supply of 24‑240 V AC and 24‑48 V DC. This device provides 10 selectable timing functions and 10 adjustable time ranges from 0.05 seconds up to 300 hours, equipped with 2 change‑over (2 c/o SPDT) relay outputs. It accepts volt‑free trigger input and supports external remote potentiometer connection for fine time adjustment. Widely used for time‑sequence logic control inside automation cabinets, such as motor star‑delta startup, delay triggering, pulse generation, flashing signal control for machine tools, conveyor lines, packaging equipment and general industrial control panels. The delivered unit is brand‑new original genuine ABB productABB Group.
2. Main Technical Specifications
| Item | Parameter |
|---|---|
| Model | CT‑MBS.22P |
| Order Code | 1SVR740010R3200 |
| Series | CT‑S Multifunction Timer Relay |
| Control Supply Voltage | 24‑240 V AC; 24‑48 V DC |
| Output Contact | 2 c/o (SPDT) change‑over contacts |
| Rated Contact Load | 4 A / 250 V AC resistive |
| Timing Functions | ON‑delay, OFF‑delay, Impulse‑ON, Impulse‑OFF, symmetrical ON/OFF‑delay, two flasher modes, star‑delta, pulse former, ON/OFF function |
| Time Adjustment Range | 0.05 s ~ 300 h, 10 adjustable time ranges |
| Trigger Input | Volt‑free floating trigger input; remote potentiometer interface supported |
| Terminal Type | Push‑in easy‑connect tool‑free terminals |
| Mounting | Standard 35 mm DIN rail mounting |
| Protection Class | IP20 (cabinet‑mounted device) |
| Operating Ambient Temperature | -25 °C ~ +60 °C |
| Status Indication | Multi‑color LED indicators for power, timing and output status |
| Overall Dimensions (W × H × D) | 22.5 mm × 85.6 mm × 103.7 mm |
| Net Weight | Approx. 129 g |
| Compliance Standards | IEC 61812‑1, CE, UL 508, RoHS |
3. Main Functions
- Realize multiple configurable time‑delay logics for industrial automatic sequential control.
- Support star‑delta motor soft‑start timing control for three‑phase asynchronous motors.
- Generate pulse signals and periodic flashing control signals for indicator lamps and auxiliary actuators.
- Accept volt‑free contact trigger signal to start, pause or reset timing sequences.
- External remote potentiometer can be connected to realize on‑site fine adjustment of timing value.
- Two independent change‑over contacts can drive small‑capacity loads such as solenoid valves, contactor coils and signal lamps.
- LED status indicators show power supply status, timing running status and relay output status for convenient commissioning and fault diagnosis.
- Tool‑free push‑in terminals speed up wiring work and simplify on‑site replacement and maintenance.
4. Technical Features
- Ultra‑compact 22.5 mm housing width, saving installation space inside crowded electrical control cabinets.
- Wide universal supply voltage range covers both AC and DC power supply modes, reducing spare‑part inventory types.
- High timing repeat accuracy, timing repeat error less than ±0.2 % under stable working conditions.
- Tool‑free push‑in connection technology, no screwdriver required for wiring, stable anti‑vibration connection performance.
- Multiple built‑in timing modes can be selected via front‑panel rotary switches without software configuration.
- Supports external remote potentiometer to adjust time parameters outside the cabinet.
- Short recovery time less than 80 ms for fast repeated timing cycles.
- High‑quality relay contacts guarantee long‑term electrical service life for frequent switching applications.
- Standard DIN‑rail clip enables quick snap‑on and snap‑off installation.
- High‑fire‑retardant housing material meets strict industrial safety requirements.
5. 10 ABB Similar DIN‑Rail Multifunction Timer Relays
- CT‑MBS.22S, 2 c/o multifunction timer relay, screw‑type terminals, 24‑240V AC / 24‑48V DC
- CT‑MFS.21P, multifunction timer relay, 1 c/o contact, push‑in terminal CT‑S series
- CT‑MVS.21P, multifunction time relay with 1 c/o output, wide universal supply voltage
- CT‑MFE.22P, multifunction timer relay with reduced function set, 2 c/o contacts
- CT‑ERS.22P, ON‑delay / OFF‑delay dual‑function time relay, push‑in terminal
- CT‑APS.12P, single‑function pulse‑on timer relay, 1 change‑over contact
- CT‑ARS.11P, flasher‑function DIN‑rail timer relay, compact 22.5 mm width
- CT‑SDS.23P, dedicated star‑delta motor start‑up timer relay, 3‑contact output
- CT‑MXS.22P, extended‑range multifunction timer relay with extra timing modes
- CT‑WBS.22P, multifunction timer relay with auxiliary voltage‑free off‑delay function
