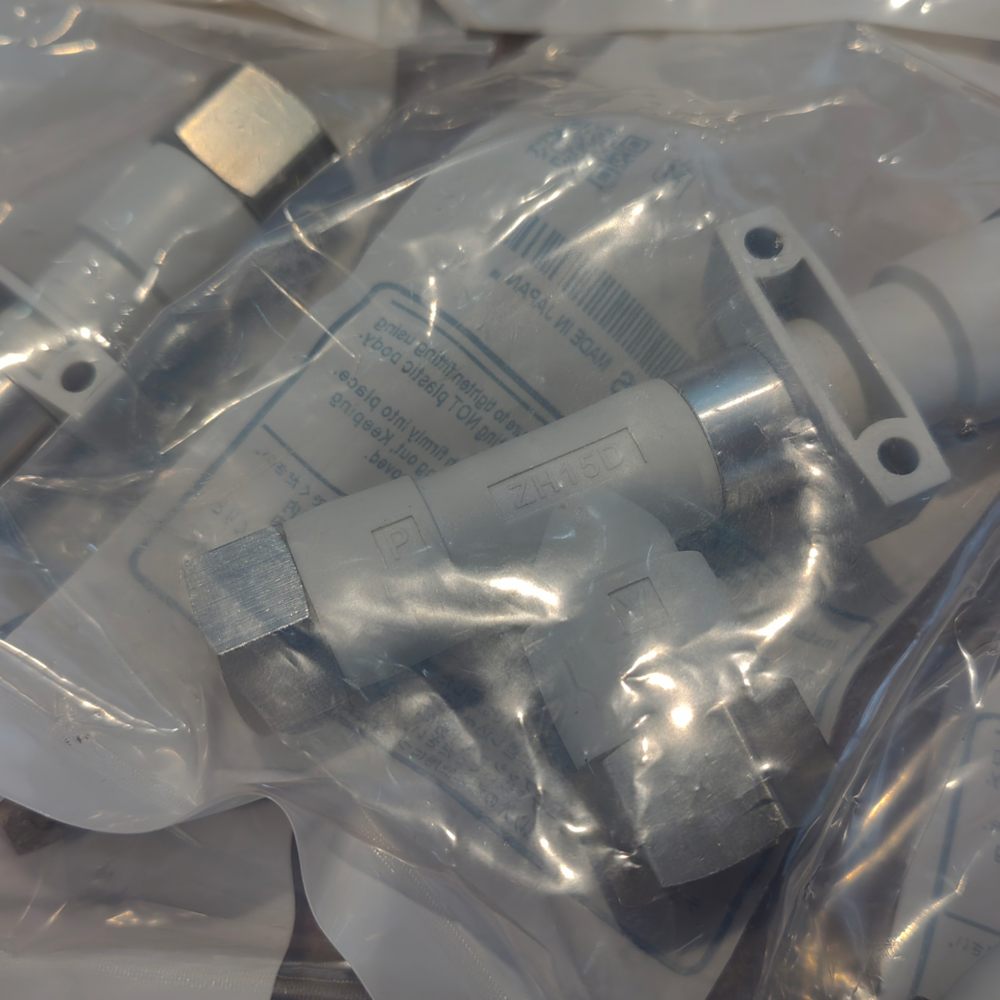

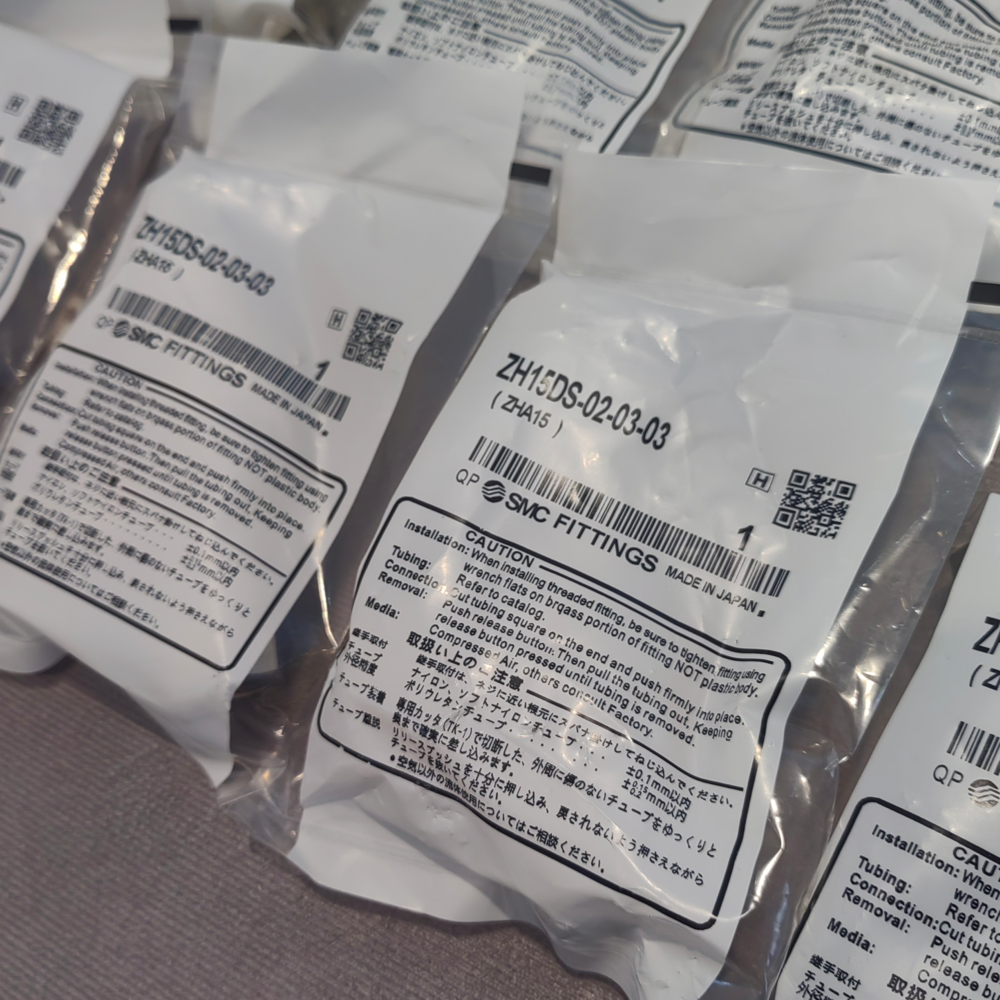

SMC ZH15DS-02-03-03 Vacuum Generator (ZH15DS020303)
1. Product Overview
The SMC ZH15DS-02-03-03 is a direct-piping type vacuum generator from SMC’s ZH15 series, designed for generating reliable negative pressure in industrial pneumatic systems. It features an integrated resin body with a Φ1.5 mm nozzle, offering an L-type maximum vacuum pressure of -66 kPa and compatibility with Rc1/4 (supply, SUP), Rc3/8 (vacuum, VAC), and Rc3/8 (exhaust, EXH) internal thread connections. This generator is ideal for material handling, pick-and-place operations, and automated assembly lines, providing efficient vacuum for suction cups to lift and transport workpieces. The direct-piping design simplifies installation in compact spaces, while the integrated nozzle and resin body ensure lightweight and durable performance. It supports an operating pressure range of 0.25–0.6 MPa, making it suitable for standard factory compressed air systems, and comes with a standard bracket for flexible mounting. RoHS-compliant construction meets international environmental standards, suitable for eco-friendly production facilities, and the oil-free operation eliminates the risk of workpiece contamination in clean manufacturing environments.
2. Main Functions
| Function | Detailed Description |
|---|---|
| Vacuum Generation | Converts positive compressed air (0.25–0.6 MPa) into negative pressure (-66 kPa max) via the Venturi effect, powering suction cups for material handling in packaging and assembly applications. |
| Direct Piping Connection | Rc1/4 (SUP), Rc3/8 (VAC), and Rc3/8 (EXH) internal threads enable direct integration into pneumatic lines, reducing installation complexity and space requirements. |
| Multiple Mounting Options | Compatible with direct mounting, standard bracket, L-type bracket, and DIN rail installation, allowing flexible integration into diverse system layouts. |
| Oil-Free Operation | No lubrication required for internal components, preventing contamination of sensitive workpieces in clean manufacturing processes. |
| Durable Integrated Design | One-piece resin body with an integrated nozzle enhances structural stability and minimizes air leakage, ensuring consistent vacuum performance over long-term operation. |
| Efficient Air Consumption | Optimized nozzle design balances air usage and vacuum generation, reducing energy costs in large-scale production lines. |
3. Technical Features
- Integrated Resin Body: One-piece molding of the nozzle and body reduces component count, enhances durability, and lowers overall weight for easy handling and installation.
- Φ1.5 mm Nozzle: Delivers a balanced combination of vacuum flow and pressure (-66 kPa max), suitable for medium-load material handling tasks requiring stable suction force.
- Direct Piping Configuration: Eliminates the need for additional adapters, streamlining system design and reducing potential leak points.
- Multiple Mounting Flexibility: Supports four installation methods (direct, standard bracket, L-type bracket, DIN rail) for versatile placement in space-constrained setups.
- Oil-Free Compatibility: Internal components are pre-lubricated for maintenance-free operation, ideal for cleanrooms and contamination-sensitive processes.
- RoHS Compliance: Free of restricted hazardous substances (e.g., lead, mercury), meeting international environmental standards for sustainable manufacturing.
- Wide Operating Pressure Range: Works with 0.25–0.6 MPa supply pressure, compatible with standard factory compressed air systems for seamless integration.
- Temperature Resilience: Operates in 5°C–60°C environments, suitable for use in cool warehouses and warm production floors alike.
4. Product Dimensions (Unit: mm)
| Dimension Parameter | Value |
|---|---|
| Overall Length | 62.5 |
| Overall Width | 38.5 |
| Overall Height (Including Bracket) | 52.0 |
| Supply Port (SUP) Diameter | Rc1/4 (Internal Thread) |
| Vacuum Port (VAC) Diameter | Rc3/8 (Internal Thread) |
| Exhaust Port (EXH) Diameter | Rc3/8 (Internal Thread) |
| Mounting Hole Diameter | 6.5 |
| Mounting Hole Spacing (Center-to-Center) | 30 × 35 |
| Nozzle Diameter | 1.5 |
| Body Thickness | 28.0 |
| Bracket Height | 10.0 |
| Thread Depth (All Ports) | 10.0 |
5. Weight and Material Specifications
| Component | Material | Weight (g) |
|---|---|---|
| Main Body | Integrated Resin | 32 |
| Nozzle | Resin (Integrated with Body) | – |
| Standard Bracket | Steel | 18 |
| Seals & O-Rings | Nitrile Rubber (NBR) | 5 |
| Thread Inserts | Brass | 12 |
| Fasteners | Steel | 3 |
| Total Weight (Assembly) | – | 60 |
6. Key Performance Parameters
| Parameter | Value |
|---|---|
| Nozzle Diameter | Φ1.5 mm |
| Maximum Vacuum Pressure (L-Type) | -66 kPa |
| Operating Pressure Range | 0.25–0.6 MPa |
| Maximum Supply Pressure | 0.7 MPa |
| Operating Temperature Range | 5°C–60°C |
| Air Consumption (at 0.5 MPa) | 380 L/min |
| Vacuum Flow Rate (at 0.5 MPa) | 250 L/min |
| Fluid Compatibility | Clean Compressed Air (Oil-Free) |
| Mounting Type | Direct Piping with Standard Bracket |
| RoHS Compliance | Yes |
| Service Life | ≥10,000 Hours (Typical) |
