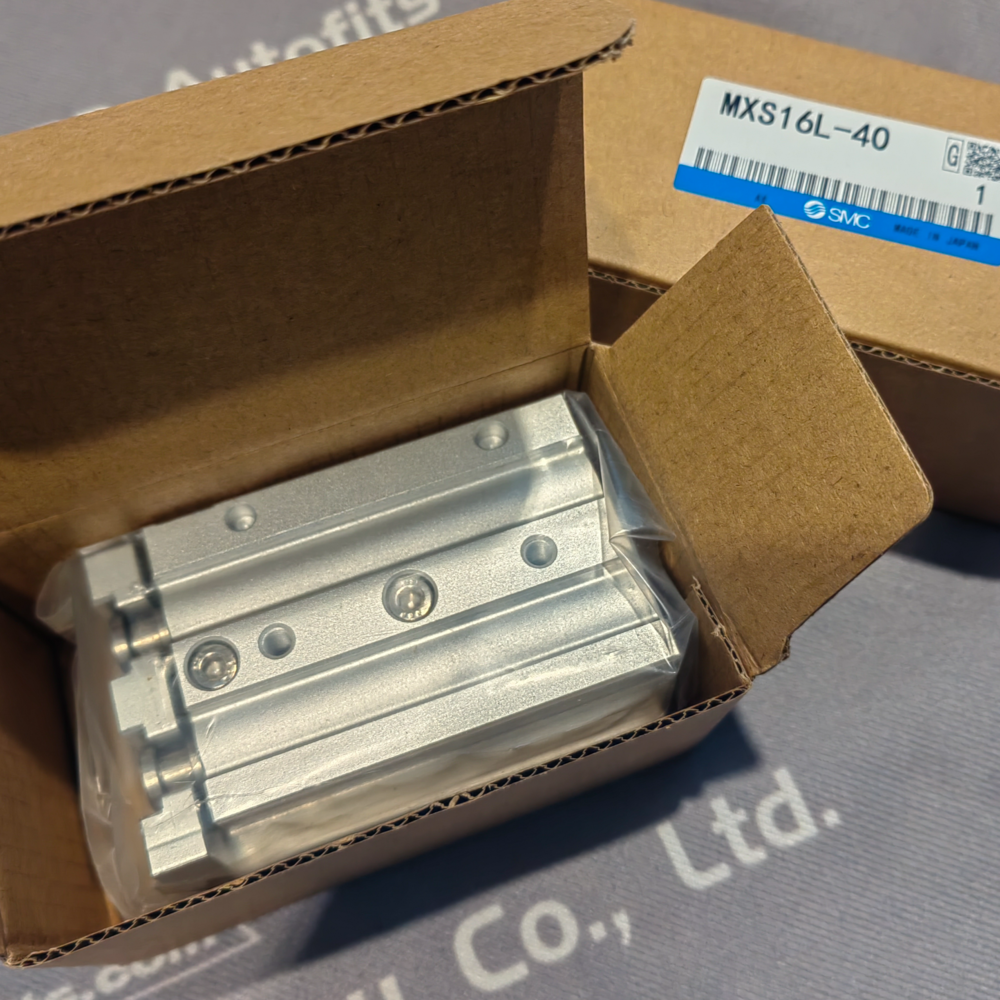

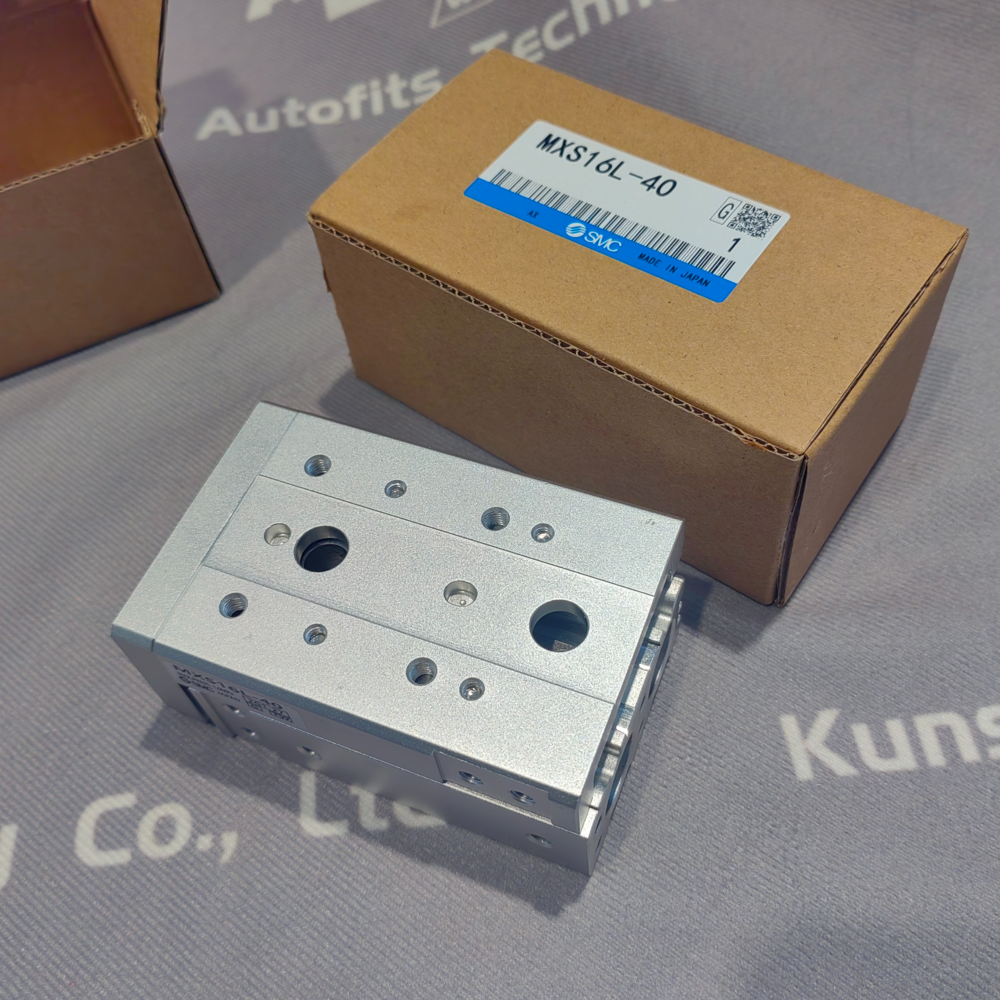

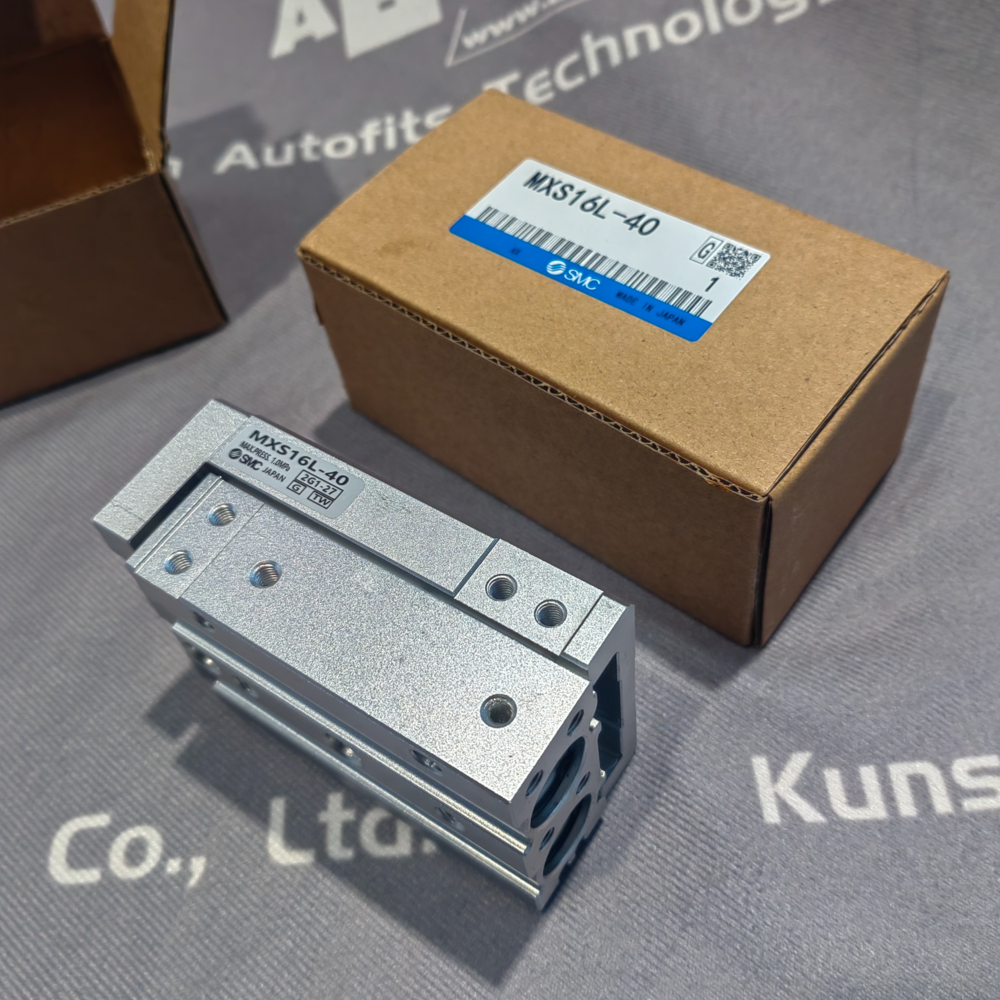

SMC MXS16L-40 Pneumatic Guided Cylinder (MXS16L40)
1. Product Overview
The SMC MXS16L-40 is a high-precision double-acting pneumatic guided cylinder (slide table) belonging to SMC’s MXS series, engineered for industrial automation applications requiring stable, high-accuracy linear motion. It features a 16 mm bore diameter and 40 mm stroke length, integrated with a cross-roller guide system that eliminates backlash and ensures exceptional rigidity. The dual-piston rod design delivers balanced thrust and minimizes rotational deviation, making it ideal for precision positioning, small-part transfer, automated assembly, and robotic pick-and-place tasks in electronics manufacturing, automotive component production, and laboratory automation. With a built-in magnetic ring for position feedback and a lubrication-free structure, this cylinder supports seamless PLC integration and maintenance-free operation, while its compact low-profile form factor optimizes space utilization in dense automation setups.
2. Main Functions
| Function | Detailed Description |
|---|---|
| Precision Linear Positioning | Cross-roller guide system enables ±0.01 mm position repeatability and minimal rotational runout, ensuring accurate alignment of workpieces or tools in high-precision applications. |
| Double-Acting Bidirectional Motion | Compressed air drives the slide table for both extension and retraction strokes, with adjustable speed and thrust via pressure regulation, supporting cyclic automated operations. |
| Magnetic Position Feedback | A magnetic ring embedded in the piston allows installation of magnetic proximity switches, providing real-time extension/retraction status signals for system synchronization and safety interlocks. |
| Multi-Orientation Mounting | L-shaped slide table with standardized threaded holes supports top, bottom, or side mounting on fixtures, linear rails, or robotic end-effectors, maximizing layout flexibility. |
| Impact Shock Absorption | Rubber cushions installed at both stroke ends absorb kinetic energy during rapid stops, reducing operational noise and extending the service life of the cylinder and connected components. |
| High Load Stability | Cross-roller guide structure bears radial, lateral, and moment loads independently of the piston rods, preventing deflection and ensuring stable performance under dynamic working conditions. |
3. Technical Features
- Cross-Roller Guide Mechanism: The precision cross-roller guide delivers 2x higher allowable moment loads compared to conventional slide cylinders, with zero backlash for smooth, consistent linear motion.
- Dual-Piston Rod Design: Symmetric dual-piston rods eliminate piston rotation and thrust imbalance, ensuring uniform force distribution and precise positioning throughout the stroke.
- Corrosion-Resistant Construction: Main body and slide table are made of hard-anodized aluminum alloy; piston rods and guide rollers are crafted from SUS304 stainless steel with hard chrome plating for wear and corrosion resistance.
- Maintenance-Free Operation: Lubrication-free internal seals and pre-lubricated guide components eliminate the need for regular oiling, reducing downtime and operational costs in clean industrial environments.
- Broad Operating Parameters: Functions reliably at an air pressure range of 0.15–0.7 MPa and a piston speed range of 50–500 mm/s, compatible with filtered compressed air (particle size ≤5 μm).
- Sensor Integration Flexibility: Compatible with SMC D-M9 series magnetic switches, which can be mounted directly in the cylinder’s side grooves without additional brackets or modifications.
- Adjustable Stroke Fine-Tuning: Optional stroke adjusters (0–5 mm adjustment range) enable precise end-position calibration, adapting to specific workpiece positioning requirements.
- RoHS Compliance: Meets international environmental standards, free of restricted hazardous substances, suitable for eco-friendly manufacturing facilities.
4. Product Dimensions (Unit: mm)
| Dimension Parameter | Value |
|---|---|
| Bore Diameter | 16 |
| Stroke Length | 40 |
| Overall Length (Including Cushions) | 145 |
| Overall Width | 52 |
| Overall Height | 23 |
| Slide Table Length | 40 |
| Slide Table Width | 52 |
| Piston Rod Diameter | 8 |
| Air Port Specification | M5 × 0.8 (Female Thread, 2 Ports) |
| Mounting Hole Diameter | 6 |
| Mounting Hole Spacing (Center-to-Center) | 40 × 32 |
| Minimum Clearance for Operation | 15 |
5. Weight and Material Specifications
| Component | Material | Weight (g) |
|---|---|---|
| Main Cylinder Body | Hard-Anodized Aluminum Alloy | 320 |
| Slide Table | Hard-Anodized Aluminum Alloy | 180 |
| Dual Piston Rods | SUS304 Stainless Steel (Chrome-Plated) | 60 |
| Cross-Roller Guide Assembly | Carbon Steel (Chrome-Plated) + Composite Polymer | 45 |
| Seals & O-Rings | NBR Rubber | 15 |
| Fasteners & Cushions | SUS304 Stainless Steel + Nitrile Rubber | 30 |
| Total Weight (Assembly) | – | 650 |
6. Key Performance Parameters
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 0.7 MPa |
| Minimum Operating Pressure | 0.15 MPa |
| Maximum Piston Speed | 500 mm/s |
| Minimum Piston Speed | 50 mm/s |
| Thrust Force (at 0.5 MPa) | 80 N |
| Position Repeatability | ±0.01 mm |
| Maximum Allowable Radial Load | 180 N |
| Maximum Allowable Moment Load (Pitch/Yaw) | 2.5 N·m |
| Service Life | ≥5,000,000 Cycles |
| Working Fluid | Filtered Compressed Air (≤5 μm) |
| Operating Temperature Range | -10°C to 60°C |
| Magnetic Switch Compatibility | SMC D-M9N, D-M9P, D-M9PSAPC |
