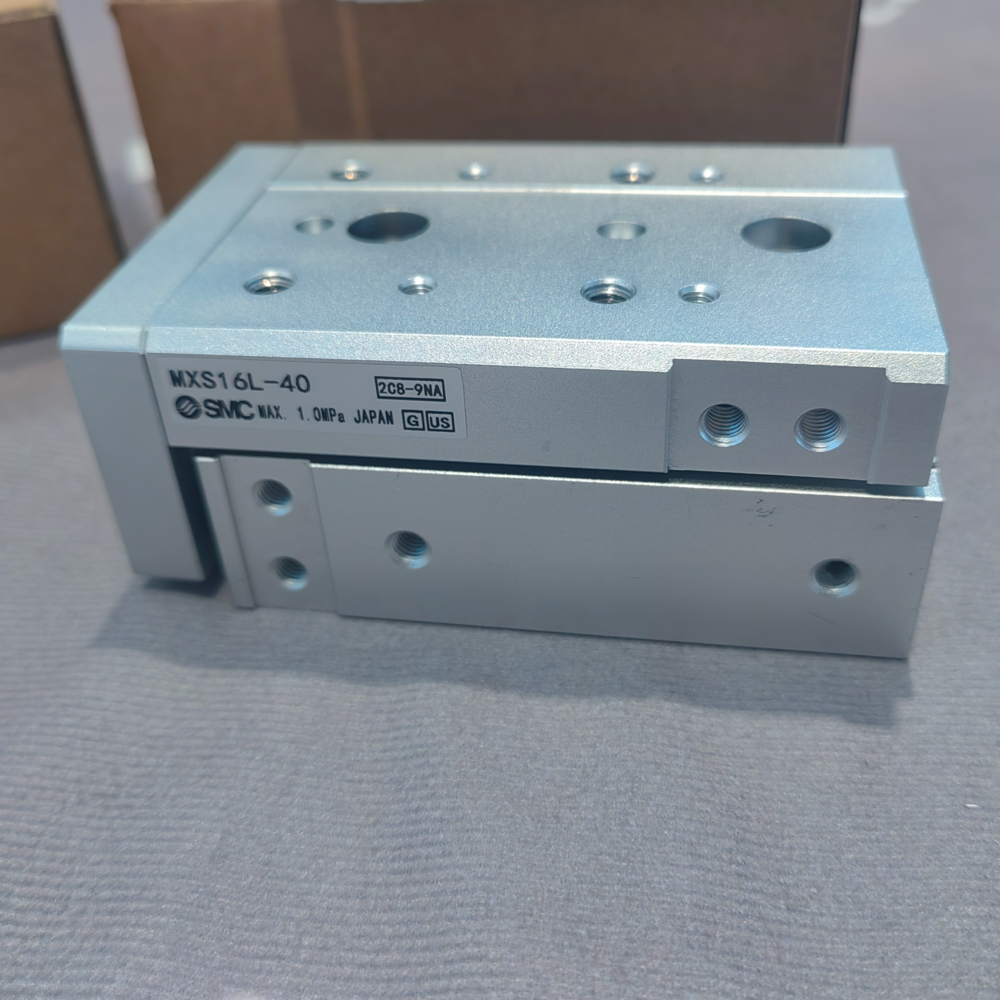

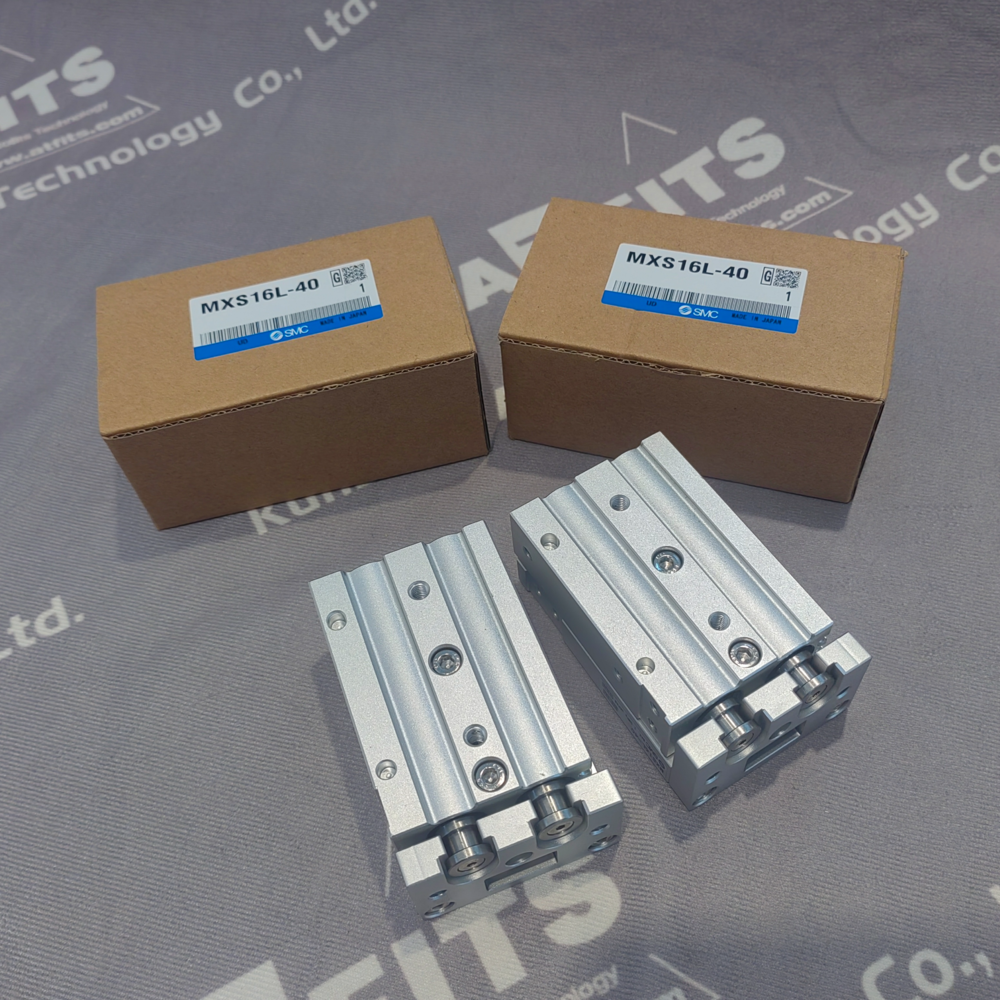

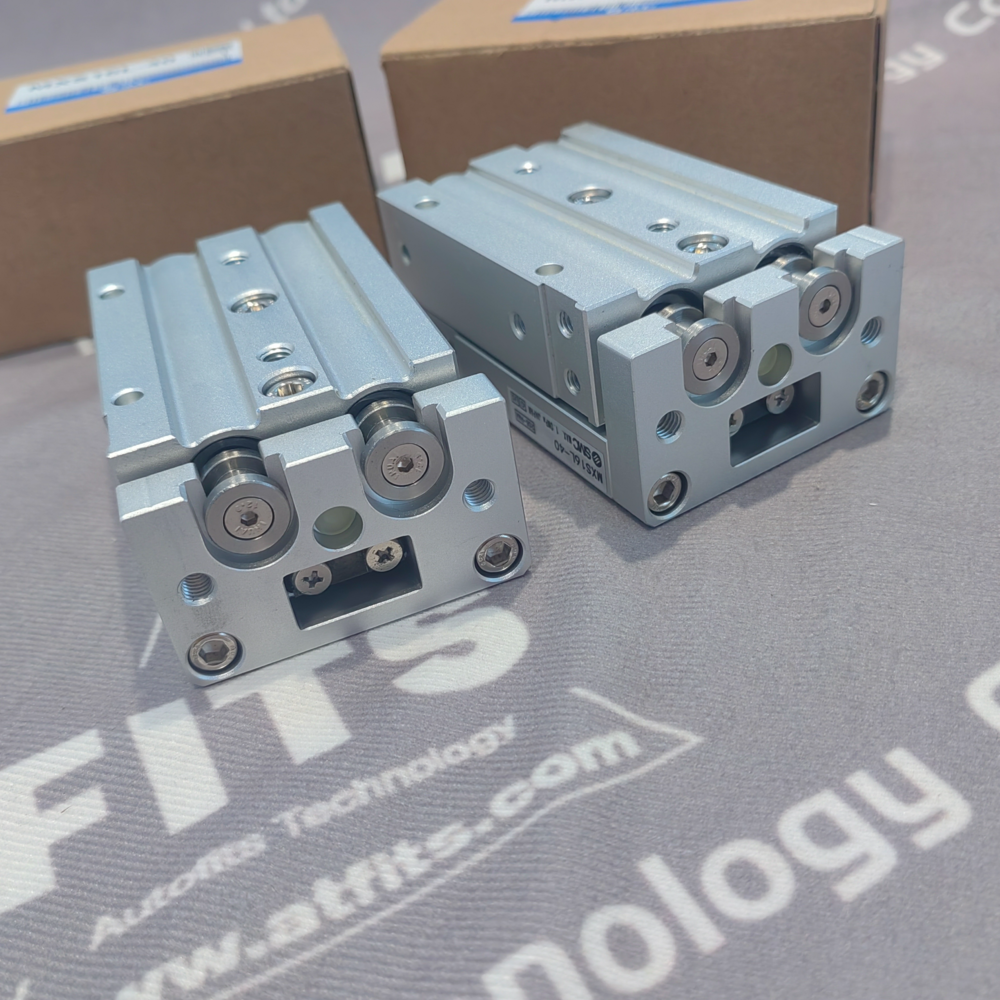

SMC MXS16L-40 Pneumatic Guided Cylinder MXS16L
1. Product Overview
The SMC MXS16L-40 is a high-precision, double-acting pneumatic guided cylinder (slide table) from SMC’s MXS series, featuring a 16 mm bore, 40 mm stroke, and a cross-roller guide for exceptional rigidity and stable linear motion. It integrates a dual-piston rod structure with a compact slide table, delivering twice the thrust of conventional single-rod designs while maintaining a low-profile form factor. This cylinder is ideal for precision positioning, small-part transfer, and automated assembly tasks in electronics manufacturing, automotive component assembly, and robotic pick-and-place systems, where ±0.01 mm repeatability and minimal rotational deviation are critical. The built-in magnetic ring supports magnetic switches for real-time position feedback, and the lubrication-free design ensures maintenance-free operation in standard industrial environments. Its cross-roller guide eliminates play, enabling smooth, backlash-free movement, and the integrated structure reduces installation complexity compared to separate guide-and-cylinder setups.
2. Main Functions
| Function | Detailed Description |
|---|---|
| Precision Linear Motion | Cross-roller guide ensures ±0.01 mm positioning repeatability and minimal rotational runout, enabling accurate alignment of small workpieces or tools in assembly and inspection tasks. |
| Double-Acting Bidirectional Thrust | Dual-piston rod design delivers bidirectional motion, with adjustable speed (50-500 mm/s) and thrust via pressure regulation, suitable for controlled pick-and-place and material handling operations. |
| Magnetic Position Feedback | Piston-mounted magnetic ring supports SMC D-M9 series magnetic switches, providing extension/retraction status signals for PLC integration and safety interlocks. |
| Multi-Directional Mounting | L-shaped slide table with threaded holes allows top, bottom, or side mounting on fixtures, robotic arms, or linear slides, optimizing layout flexibility in dense automation setups. |
| Impact Absorption | Rubber cushions on both ends reduce shock during stroke reversal, lowering noise and extending component service life. |
| Maintenance-Free Operation | Lubrication-free design with durable NBR seals eliminates regular oiling, reducing downtime and operational costs. |
3. Technical Features
- Cross-Roller Guide System: Cross-roller guide enhances rigidity, enabling 2x higher allowable moments than conventional models and backlash-free motion for stable operation under dynamic loads.
- Dual-Piston Rod Design: Dual rods deliver twice the thrust of single-rod cylinders, improving load capacity while maintaining compact dimensions.
- Broad Operating Range: Works with 0.15–0.7 MPa air pressure and 50–500 mm/s piston speed, compatible with filtered compressed air (particle size ≤5 μm) for reliable performance.
- Easy Sensor Integration: Compatible with SMC D-M9 series magnetic switches, mountable in side grooves without extra brackets for simple setup and maintenance.
- Durable Construction: Hard-anodized aluminum alloy body resists corrosion; SUS304 stainless steel piston rods and cross-roller guides ensure long service life under standard industrial conditions.
- Compact Low-Profile Design: Height of 23 mm and lightweight construction optimize space utilization in tight automation layouts.
- Adjustable Cushioning: Rubber cushions on both ends absorb impact, and optional stroke adjusters (0–5 mm range) enable fine-tuning of end positions for precise workpiece handling.
4. Product Dimensions (Unit: mm)
| Dimension Parameter | Value |
|---|---|
| Bore Diameter | 16 |
| Stroke Length | 40 |
| Overall Length (Including Cushions) | 145 |
| Overall Width | 52 |
| Overall Height | 23 |
| Slide Table Length | 40 |
| Slide Table Width | 52 |
| Air Port Size | M5 × 0.8 (Female Thread, 2 Ports) |
| Mounting Hole Diameter | 6 |
| Mounting Hole Spacing | 40 × 32 |
| Piston Rod Diameter | 8 |
5. Weight and Material Specifications
| Component | Material | Weight (g) |
|---|---|---|
| Main Body | Hard-Anodized Aluminum Alloy | 320 |
| Slide Table | Hard-Anodized Aluminum Alloy | 180 |
| Dual Piston Rods | SUS304 Stainless Steel | 60 |
| Cross-Roller Guide | Carbon Steel with Chrome Plating | 45 |
| Seals & O-Rings | NBR Rubber | 15 |
| Fasteners & Cushions | SUS304 Stainless Steel & Rubber | 30 |
| Total Weight (Assembly) | – | 650 |
6. Key Performance Parameters
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 0.7 MPa |
| Minimum Operating Pressure | 0.15 MPa |
| Maximum Piston Speed | 500 mm/s |
| Minimum Piston Speed | 50 mm/s |
| Thrust Force (at 0.5 MPa) | 80 N |
| Position Repeatability | ±0.01 mm |
| Allowable Radial Load | 180 N |
| Allowable Moment (Pitch/Yaw) | 2.5 N·m |
| Service Life | ≥5,000,000 Cycles |
| Working Fluid | Filtered Compressed Air (≤5 μm) |
| Ambient Temperature | -10°C to 60°C |
| Magnetic Switch Compatibility | SMC D-M9N, D-M9P, D-M9PSAPC |
