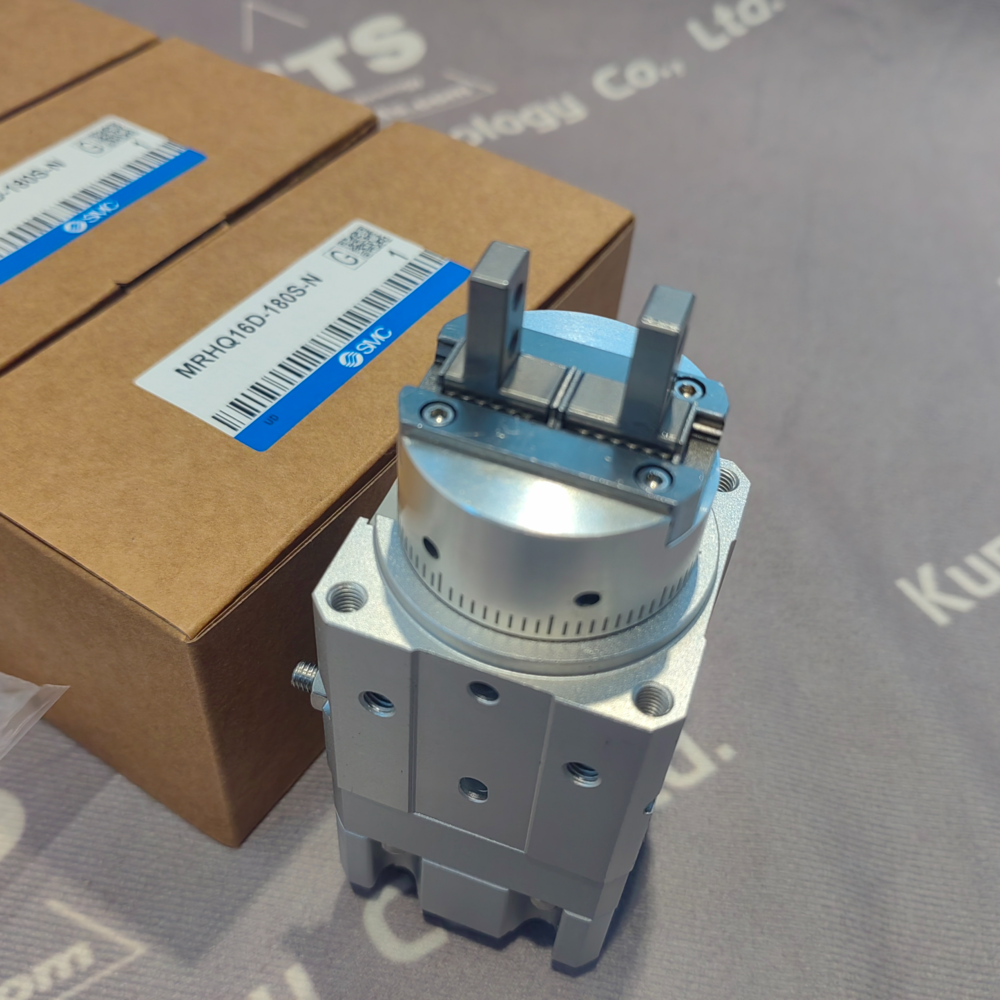

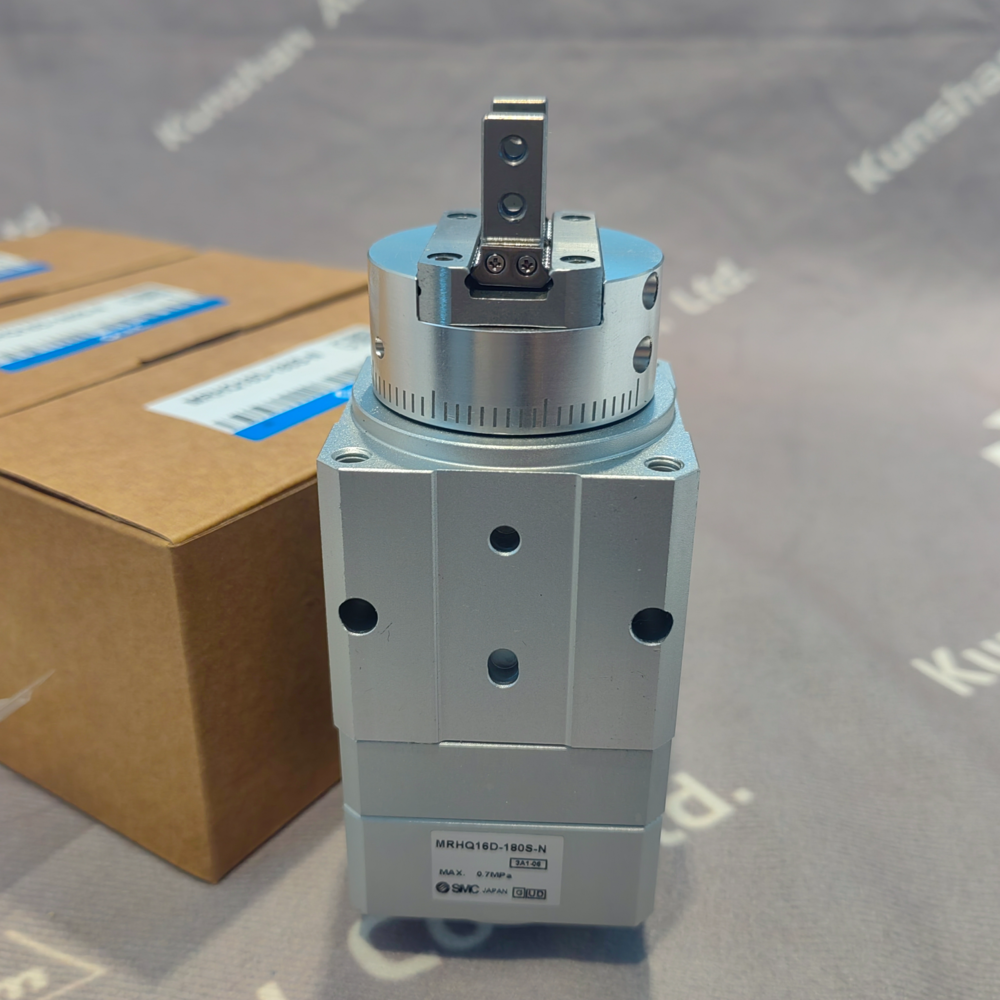

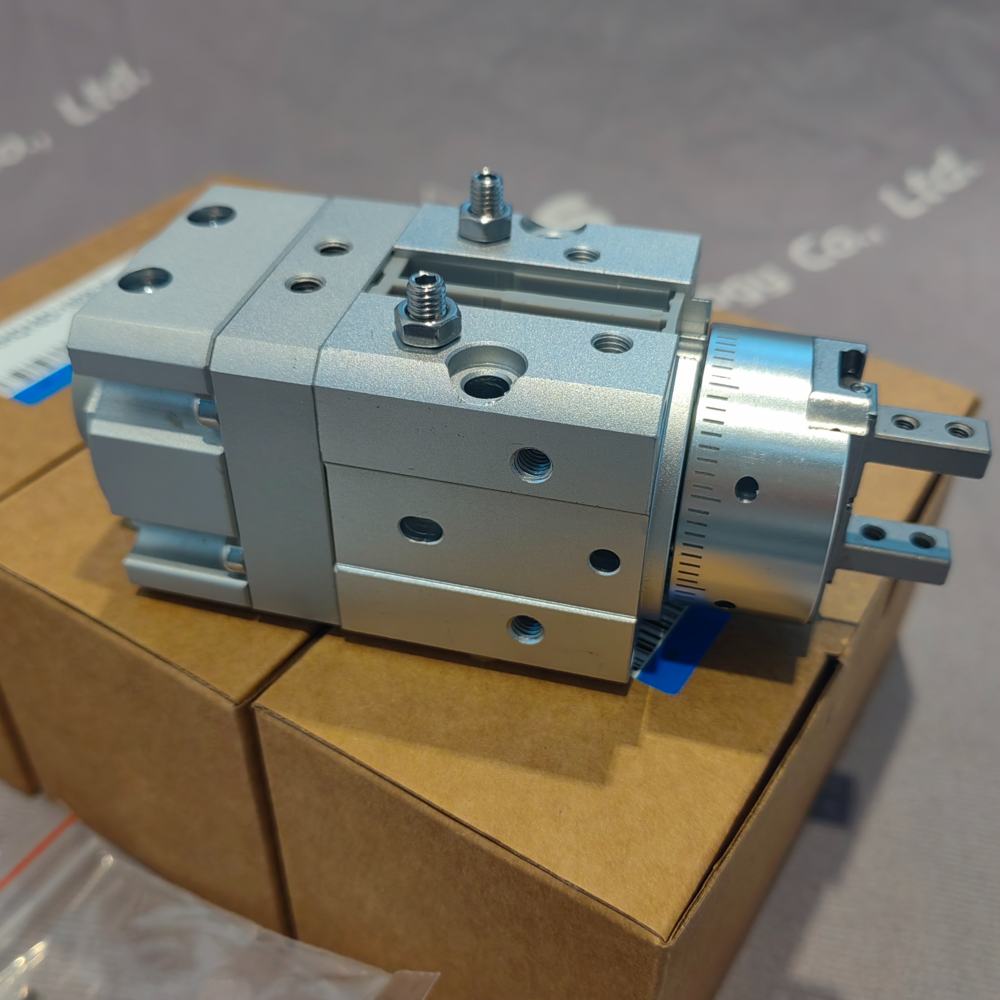

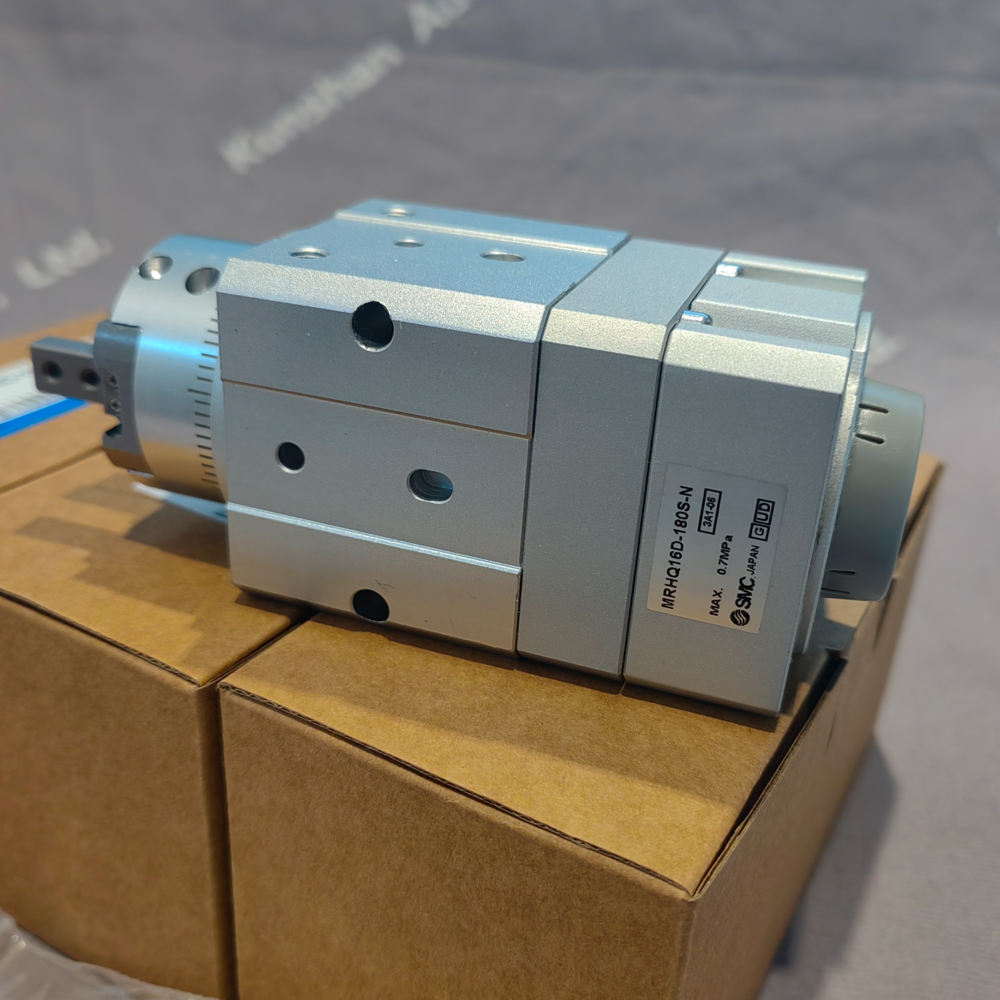

1. Product Overview
The SMC MRHQ16D-180S-N is a 2-finger parallel rotary gripper cylinder from SMC’s MRHQ series, integrating gripping and 180° rotary functions in a compact cylindrical body. It features a 16 mm bore, double-acting operation, and a single-vane rotary mechanism for precise 180° ±10° rotation (adjustable by ±5° at both ends). The parallel – finger design, driven by a wedge cam, ensures synchronous opening/closing with a 3 mm single – finger stroke, suitable for handling small – to – medium – sized cylindrical, square, or polygonal workpieces in transfer lines, assembly stations, and robotic pick – and – place tasks. Its integrated structure reduces piping/wiring tangling and is 20% shorter in longitudinal dimension than combined rotary table – air gripper setups. The built – in magnetic ring supports magnetic switches for position feedback, enabling seamless PLC integration, and it has ±0.01 mm finger repeatability for high – precision automation.
2. Main Functions
| Function | Detailed Description |
|---|---|
| 2 – Finger Parallel Synchronous Gripping | Wedge cam mechanism drives two parallel fingers to open/close synchronously, providing balanced clamping force for stable holding of regular – shaped workpieces without lateral displacement. |
| 180° Adjustable Rotary Action | Single – vane rotary unit achieves 180° rotation, with ±5° adjustability at both ends, ideal for workpiece flipping, orientation change, and transfer in automated production lines. |
| Double – Acting Bidirectional Control | Compressed air powers both finger clamping/releasing and rotary actuation, allowing independent adjustment of gripping force and rotation speed via pressure regulation. |
| Magnetic Position Feedback | Piston – mounted magnetic ring enables installation of magnetic switches, delivering open/closed and rotational position signals for system synchronization and safety interlocks. |
| Space – Saving Integration | Combined gripping and rotary functions eliminate the need for separate rotary tables and adapters, reducing longitudinal dimensions by ~20% and minimizing piping/wiring tangling. |
| Versatile Mounting | Standard threaded holes on the body/base support back – side or bottom mounting, facilitating integration into robotic arms, linear slides, or fixtures for diverse automation layouts. |
3. Technical Features
- Integrated Gripping & Rotary Design: Combines parallel gripping and 180° rotation in one compact unit, streamlining end – of – arm tooling and cutting assembly time/space requirements.
- Precision Rotary Adjustability: 180° ±10° rotation range with ±5° end – stop adjustment, meeting strict angular positioning needs in workpiece transfer and orientation tasks.
- Durable Construction: Hard – anodized aluminum alloy body, carbon steel fingers, and SUS304 stainless steel piston rods/fasteners resist wear and corrosion in industrial settings.
- Adjustable Performance: Gripping force (40 N at 0.5 MPa), rotation speed (0.07–0.3 s/90° at 0.5 MPa), and rotation angle are adjustable to suit various workpiece and process demands.
- Broad Operating Range: Works with 0.25–0.7 MPa air pressure and in – 10°C to 60°C ambient temperatures, compatible with filtered compressed air (particle size ≤5 μm).
- Easy Sensor Integration: Compatible with SMC D – M9 series magnetic switches, mountable in side grooves without extra brackets for simple setup and maintenance.
- Low Maintenance: Sealed internal components and pre – lubricated cam/rotary mechanisms enable maintenance – free operation, reducing downtime and operational costs.
4. Product Dimensions (Unit: mm)
| Dimension Parameter | Value |
|---|---|
| Bore Diameter | 16 |
| Single – Finger Stroke | 3 |
| Maximum Finger Opening | 20.9 |
| Finger Closing Dimension | 14.9 |
| Overall Diameter | 40 |
| Overall Length (Closed) | 82 |
| Rotation Angle | 180° ±10° (±5° adjustable at both ends) |
| Air Port Size | M5 × 0.8 (Female Thread, 4 Ports) |
| Mounting Hole Diameter | 6 |
| Mounting Hole Spacing | 32 × 25 |
5. Weight and Material Specifications
| Component | Material | Weight (g) |
|---|---|---|
| Main Body | Hard – Anodized Aluminum Alloy | 120 |
| Parallel Fingers | Carbon Steel | 25 |
| Piston & Wedge Cam | Steel & Aluminum Alloy | 30 |
| Rotary Vane & Shaft | SUS304 Stainless Steel | 28 |
| Seals & O – Rings | NBR Rubber | 7 |
| Fasteners & Guides | SUS304 Stainless Steel | 10 |
| Total Weight (Assembly) | – | 220 |
6. Key Performance Parameters
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 0.7 MPa |
| Minimum Operating Pressure | 0.25 MPa |
| Gripping Force (0.5 MPa) | 40 N |
| Finger Repeatability | ±0.01 mm |
| Rotation Angle | 180° ±10° (±5° adjustable) |
| Rotation Speed Range | 0.07–0.3 s/90° (0.5 MPa) |
| Maximum Operating Frequency | 180 Cycles/Minute |
| Service Life | ≥10,000,000 Cycles |
| Working Fluid | Filtered Compressed Air (≤5 μm) |
| Ambient Temperature | – 10°C to 60°C |
| Magnetic Switch Compatibility | SMC D – M9N, D – M9P, D – M9PSAPC |
