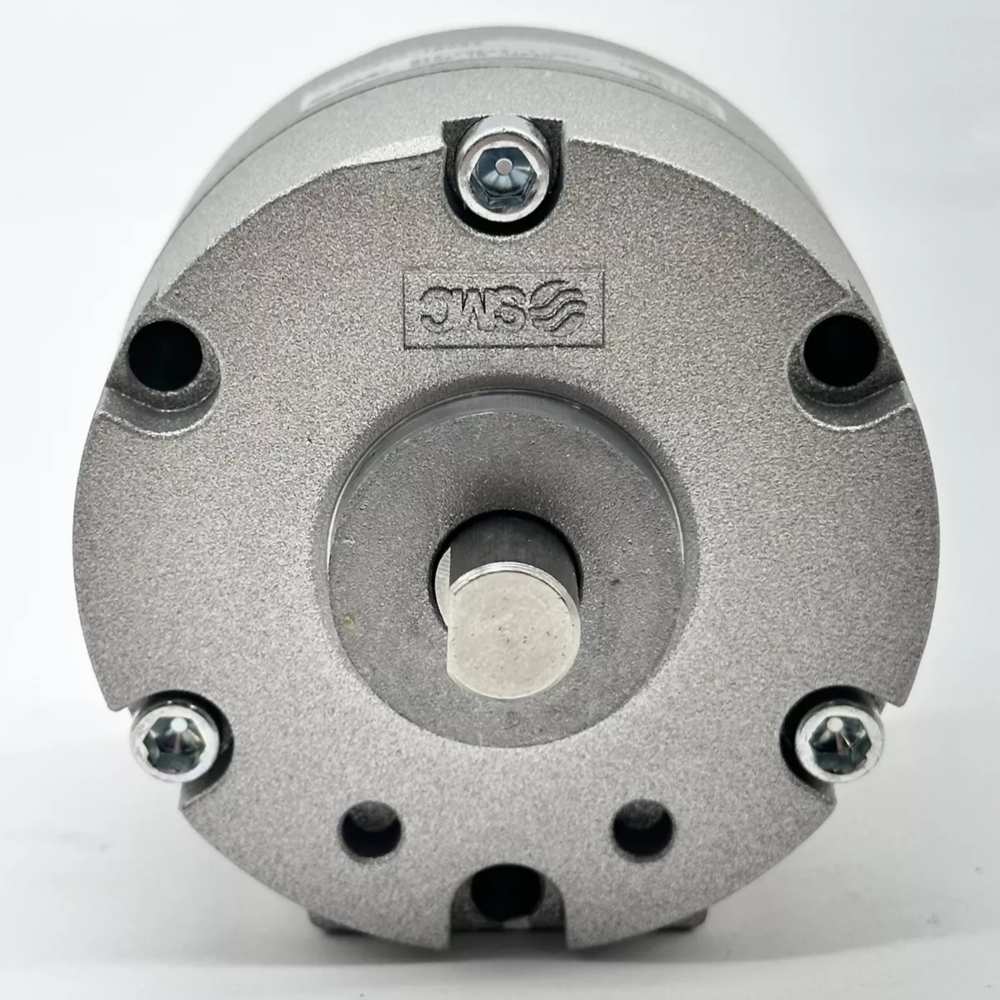

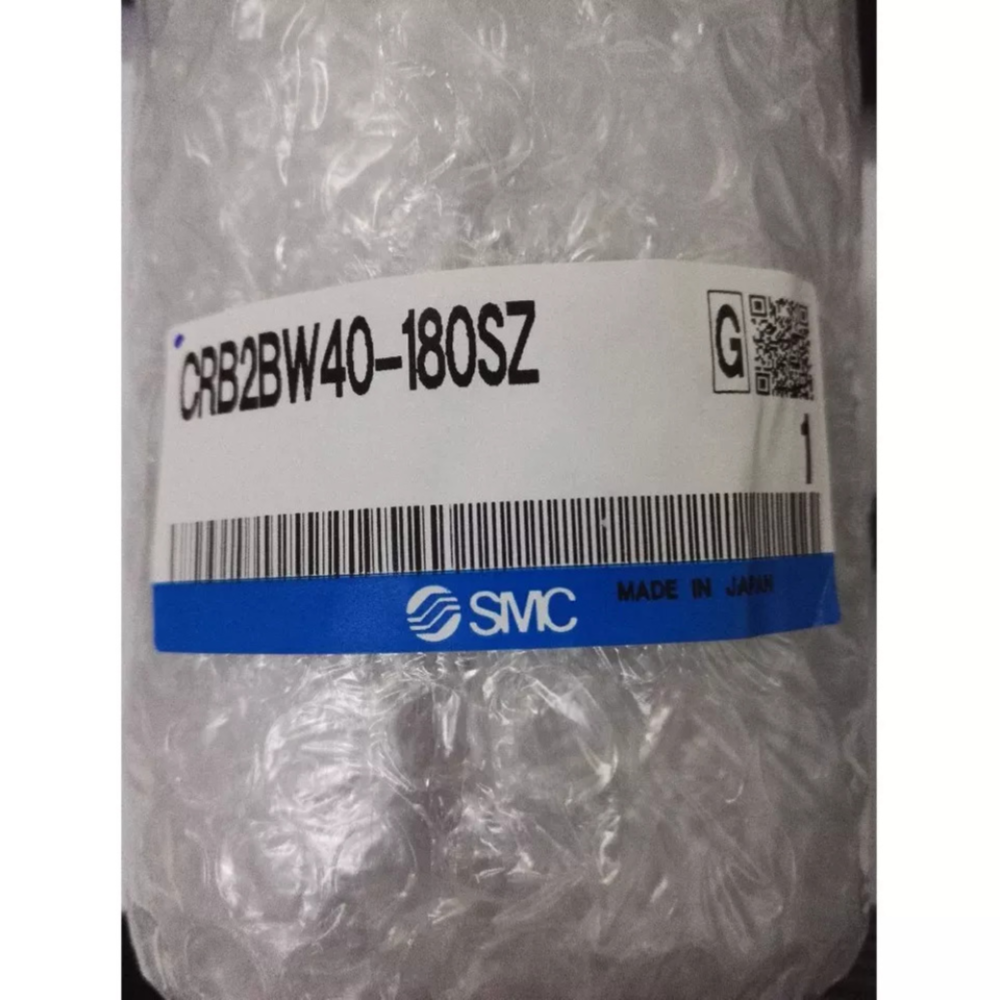

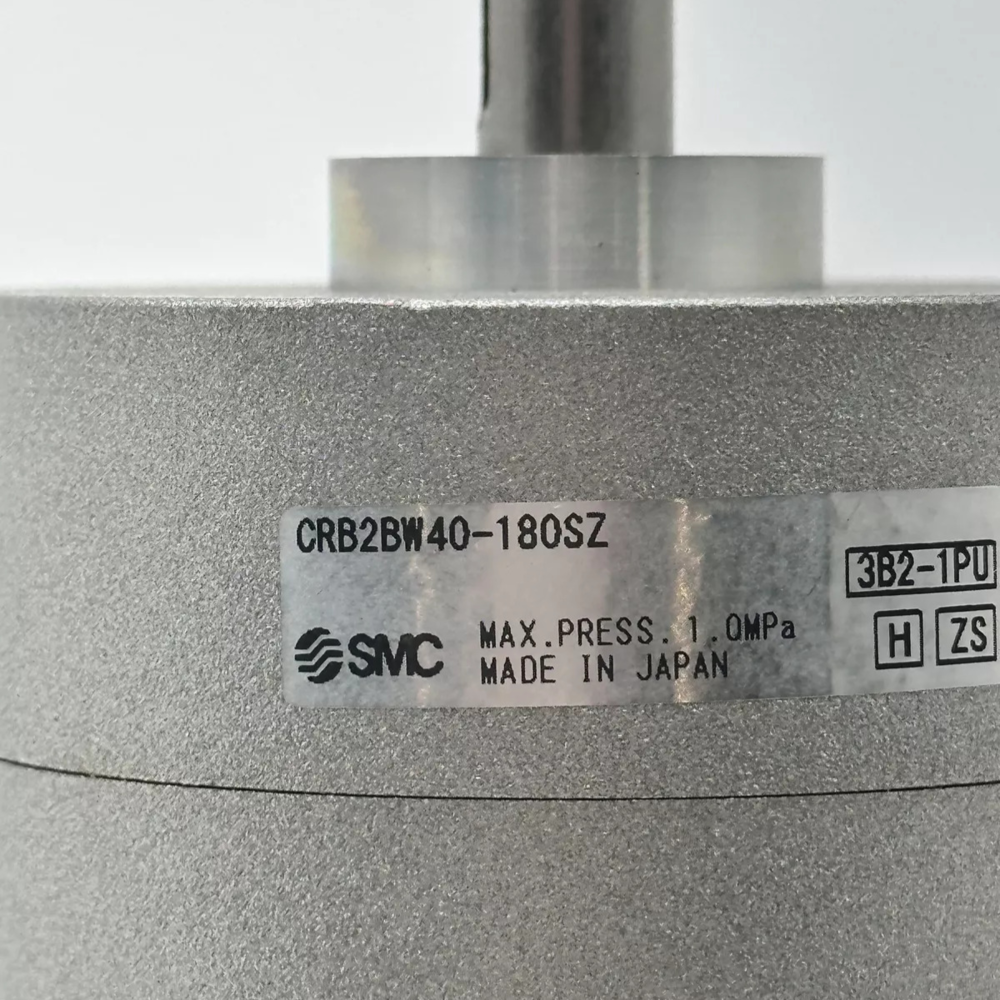

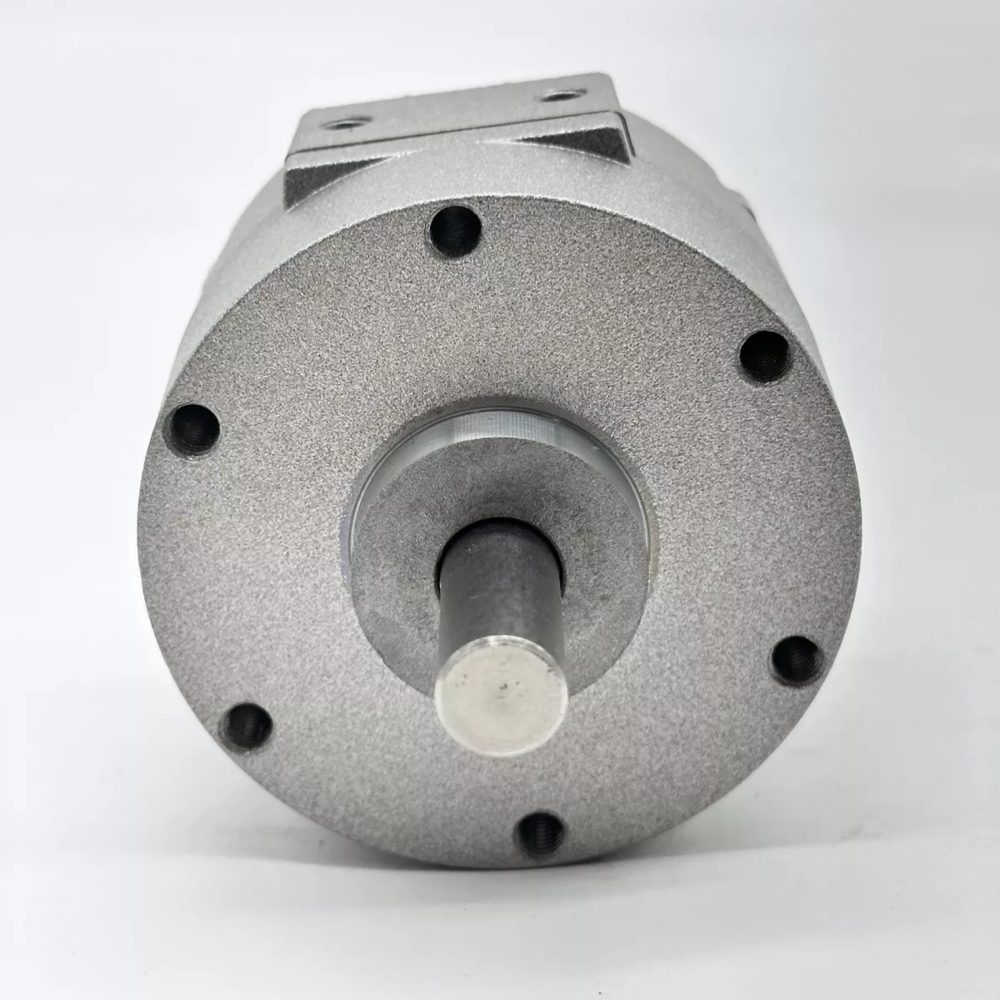

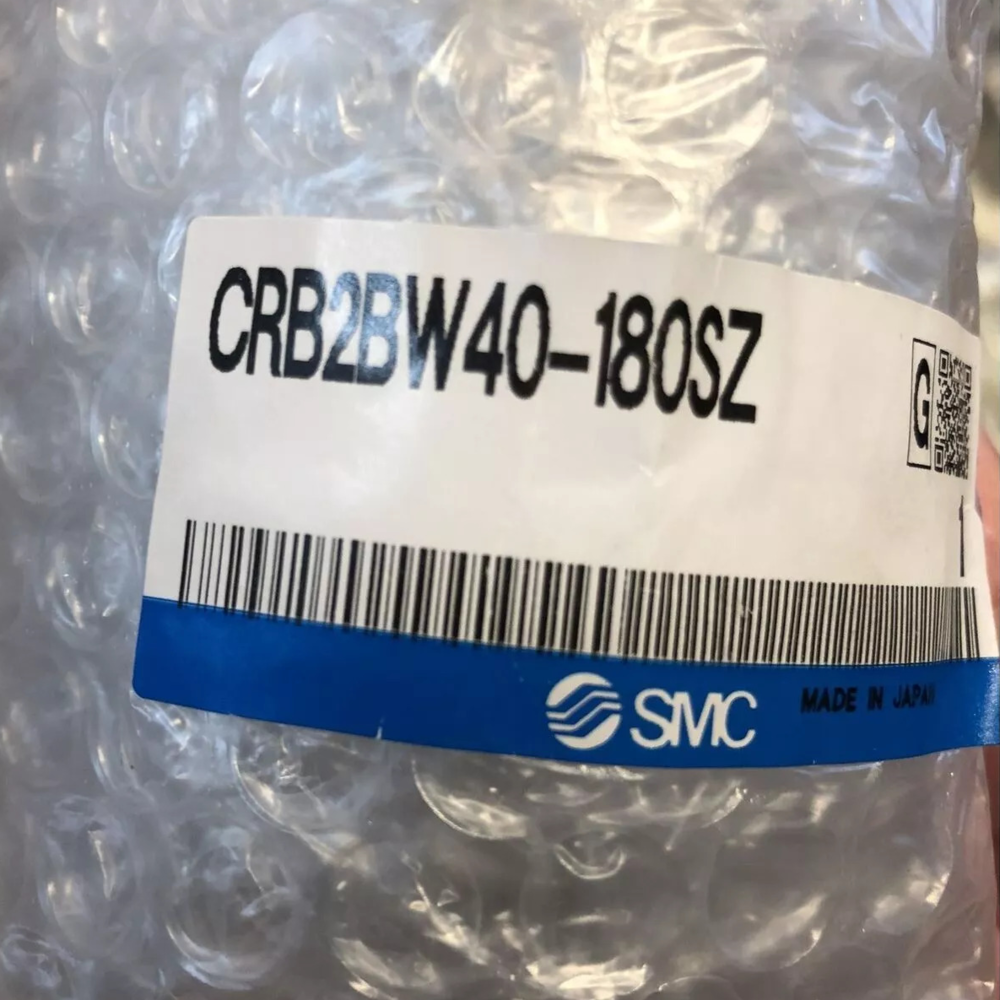

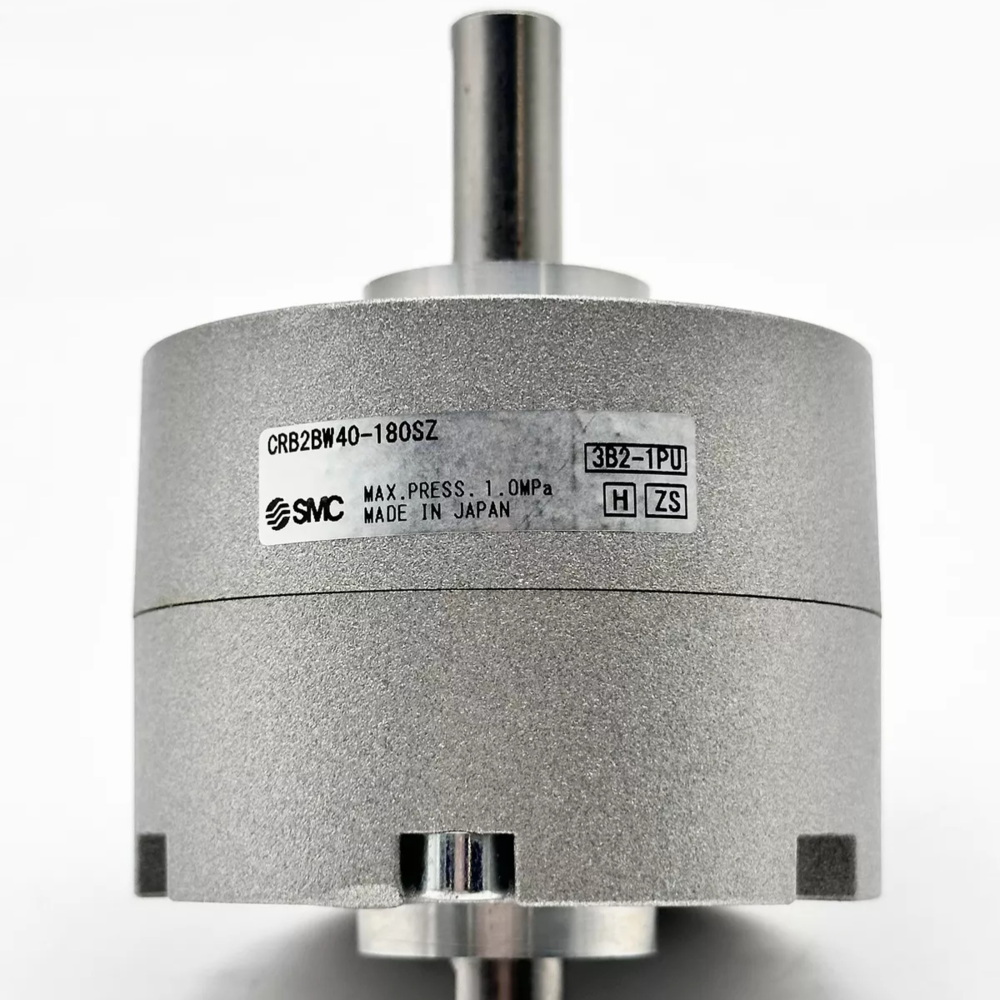

SMC CRB2BW40-180SZ Rotating Cylinder (CRB2BW40180SZ)
1. Product Overview
The SMC CRB2BW40-180SZ (also designated as CRB2BW40180SZ) is a high-precision rotating cylinder from SMC’s CRB2 series, a flagship line of compact swing cylinders designed for industrial automation. As a double-acting rack-and-pinion driven actuator, it features a 40 mm bore diameter and a standard 180° swing angle, delivering stable torque output for tasks such as workpiece flipping, part indexing, precision clamping, and automated positioning. Its compact structure, paired with a double-shaft design and versatile mounting options, makes it ideal for space-constrained applications in electronic manufacturing, automotive assembly, packaging machinery, and robotic workstations. Adhering to SMC’s strict quality standards, the CRB2BW40-180SZ ensures minimal backlash, low operational noise, and reliable long-term performance, seamlessly integrating with standard pneumatic control systems.
2. Main Functions
|
Function
|
Detailed Description
|
|
180° Precision Swing Motion
|
Driven by a precision rack-and-pinion mechanism, it delivers consistent 180° rotational motion with adjustable angle range (±5°), ensuring high positioning accuracy and minimal backlash.
|
|
Double-Acting Operation
|
Converts pneumatic pressure into bidirectional rotational force (clockwise and counterclockwise), supporting automated cycle operations via solenoid valves and PLC control systems.
|
|
Dual-Shaft Output
|
Features double output shafts (designated by “W” in the model) for flexible connection to mechanical components, enabling symmetric force transmission and versatile application configurations.
|
|
Built-In Cushioning
|
Equipped with non-adjustable pad cushions at both limit positions (0° and 180°) to absorb impact, reduce vibration, and prevent component damage during rapid stops.
|
|
Magnetic Position Feedback
|
Integrated magnetic ring in the piston enables installation of magnetic proximity sensors, providing real-time rotational position feedback for closed-loop control and system synchronization.
|
3. Technical Features
-
Precision Rack-and-Pinion Drive: Adopts high-strength carbon steel gears and dual racks to eliminate tooth gap, ensuring smooth rotational motion with repeatability accuracy of ±0.5°.
-
Durable Construction: Cylinder barrel made of hard-anodized aluminum alloy for wear and corrosion resistance; stainless steel (SUS304) output shafts with chrome plating enhance durability and load-bearing capacity.
-
Reliable Sealing System: Double NBR rubber seals prevent air leakage, maintaining stable pressure and consistent performance at maximum operating pressure, with optional Viton seals for high-temperature environments.
-
Broad Operating Range: Functions reliably at 0.15–1.0 MPa air pressure and -10°C to 60°C ambient temperature, adapting to typical industrial working conditions with relative humidity ≤85%.
-
Oil-Free Operation: Designed for maintenance-free, oil-free lubrication, reducing operational costs and making it suitable for clean environments like electronic component assembly.
-
Multi-Orientation Mounting: Supports front, rear, and side mounting via standardized holes, adapting to horizontal, vertical, and inclined installation orientations in compact spaces.
4. Product Dimensions (Unit: mm)
|
Dimension Parameter
|
Value (mm)
|
|
Bore Diameter
|
40
|
|
Standard Swing Angle
|
180° (±5° adjustable)
|
|
Output Shaft Diameter
|
12 (each shaft)
|
|
Overall Length
|
148
|
|
Overall Width
|
62
|
|
Overall Height
|
78
|
|
Air Port Size
|
M5 x 0.8 (Female Thread)
|
|
Shaft Thread Specification
|
M6 x 1.0 (each shaft)
|
5. Weight and Material Specifications
|
Component
|
Material
|
Weight (g)
|
|
Cylinder Barrel
|
Hard-Anodized Aluminum Alloy
|
280
|
|
Front/Rear End Caps
|
Aluminum Alloy
|
120
|
|
Output Shafts & Gears
|
Stainless Steel & Carbon Steel
|
95
|
|
Piston & Racks
|
Aluminum Alloy & Carbon Steel
|
65
|
|
Seals & Gaskets
|
NBR Rubber
|
15
|
|
Total Weight
|
–
|
575
|
6. Performance Parameters
|
Parameter
|
Value
|
|
Maximum Operating Pressure
|
1.0 MPa
|
|
Minimum Operating Pressure
|
0.15 MPa
|
|
Maximum Torque Output (at 0.5 MPa)
|
8.5 N·m
|
|
Swing Time (at 0.5 MPa)
|
0.3–1.2 s/180°
|
|
Repeatability Accuracy
|
±0.5°
|
|
Service Life
|
≥5,000,000 Cycles
|
|
Working Fluid
|
Filtered Compressed Air (≤5 μm), recommended to use with SMC AF series air filters for optimal performance.
|
|
Allowable Axial Load
|
500 N
|
