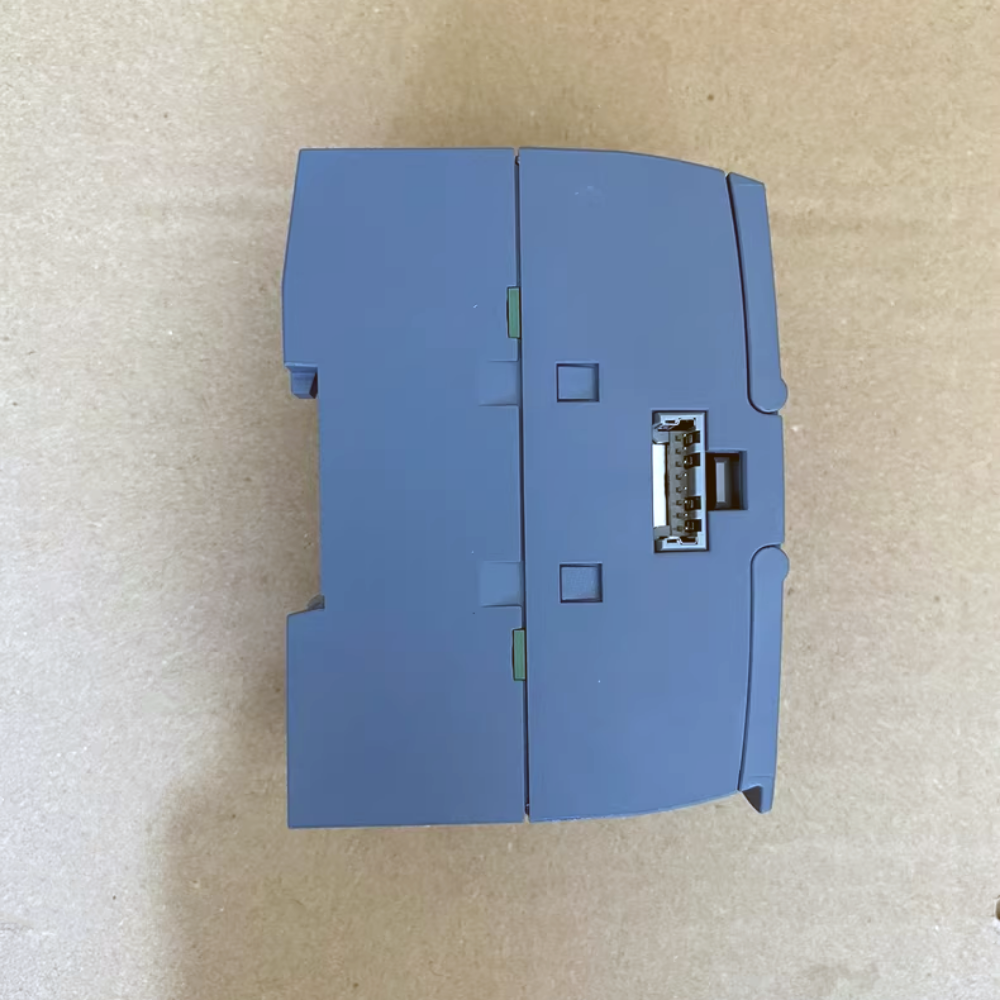

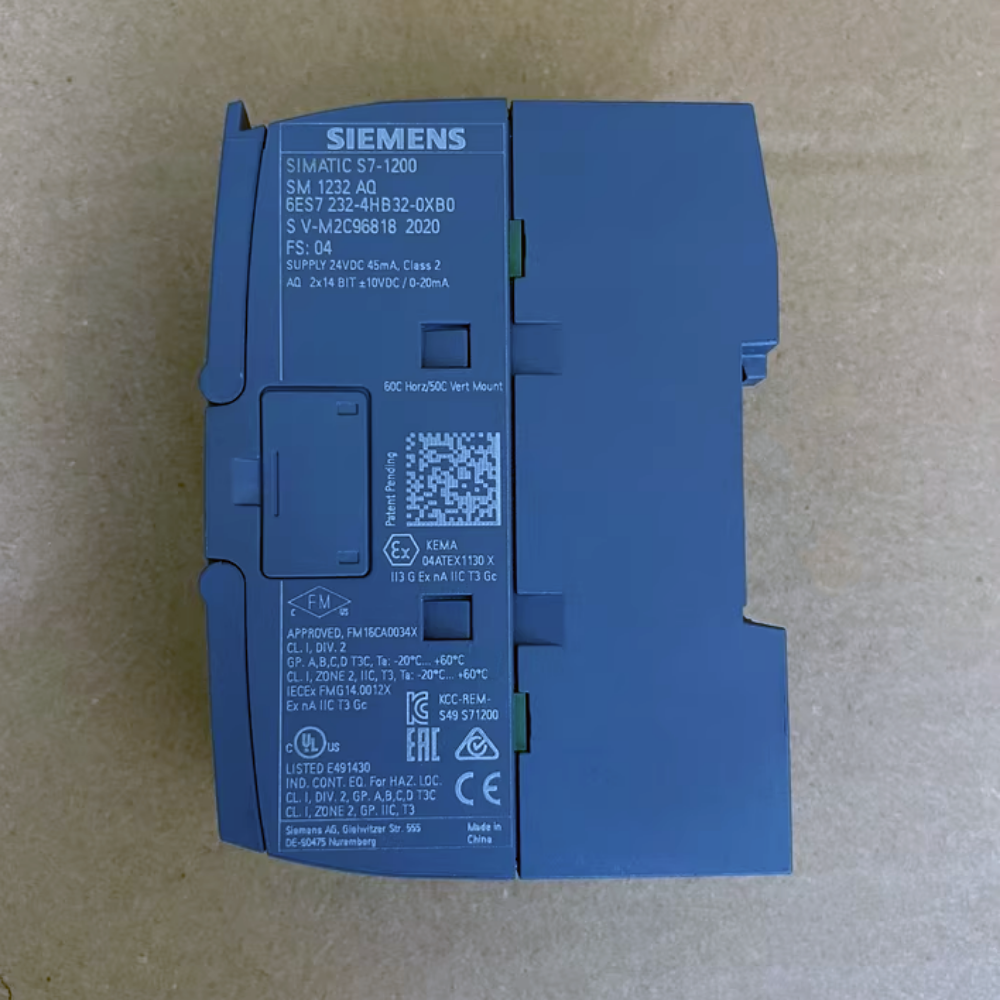

Siemens 6ES7232-4HB32-0XB0 Analog Output Module SM 1232
Product Overview
The Siemens 6ES7232-4HB32-0XB0 is an analog output module (SM 1232) designed for the SIMATIC S7‑1200 compact PLC series. It converts digital control signals from the CPU into stable, precise analog voltage or current signals to control field actuators such as control valves, frequency converters, analog indicators, positioners, and regulators. Featuring high accuracy, low drift, and strong anti-interference performance, this module is widely used in process automation, packaging machinery, temperature control systems, and small‑to‑medium automation equipment.
Main Functions
-
Analog Signal Output
- Converts digital CPU signals into standard analog current and voltage signals.
- Provides independent, stable output for precise control of field actuators.
-
Multi‑Range Support
- Supports multiple voltage and current output ranges to match various field devices.
- Configurable ranges via TIA Portal software for flexible application.
-
Signal Stability & Linearity
- Delivers high linearity and low temperature drift to maintain long‑term accuracy.
- Includes output filtering to reduce interference and ensure smooth control.
-
Output Protection
- Provides short‑circuit protection and overload protection for each channel.
- Prevents module damage from wiring faults or abnormal load conditions.
-
Status Indication & Diagnostics
- Equipped with LED indicators for module status and channel diagnostics.
- Supports system diagnostics for open circuit, overload, and parameter errors.
-
Direct Expansion Compatibility
- Plugs directly onto the S7‑1200 CPU for tool‑free installation.
- Fully compatible with all S7‑1200 CPUs and TIA Portal engineering framework.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Product Model | 6ES7232-4HB32-0XB0 |
| Product Series | SIMATIC S7‑1200, SM 1232 |
| Module Type | Analog Output Module |
| Number of Output Channels | 2 channels |
| Supported Signal Types | Voltage: 0–10 V; Current: 0–20 mA / 4–20 mA |
| Output Accuracy | High resolution, low drift, high linearity |
| Output Protection | Short-circuit, overload protection |
| Operating Voltage | 24 V DC nominal |
| Isolation | Basic isolation between channels and backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10% – 95% non‑condensing |
| EMC Compliance | EN 61131‑2, EN 61000‑6‑2, EN 61000‑6‑4 |
| Protection Class | IP20 |
| Mounting | Direct expansion mount on S7‑1200 CPU |
Product Dimensions
- Width: 45 mm
- Height: 100 mm
- Depth: 75 mm
- Compact size optimized for control cabinet space efficiency
Weight
- Net weight: Approximately 0.16 kg
- Gross weight (with packaging): Approximately 0.20 kg
