Siemens 6ES7 223-1PL32-0XB0 SIMATIC S7-1200 Digital IO SM 1223 6ES72231PL320XB0
"*" indicates required fields

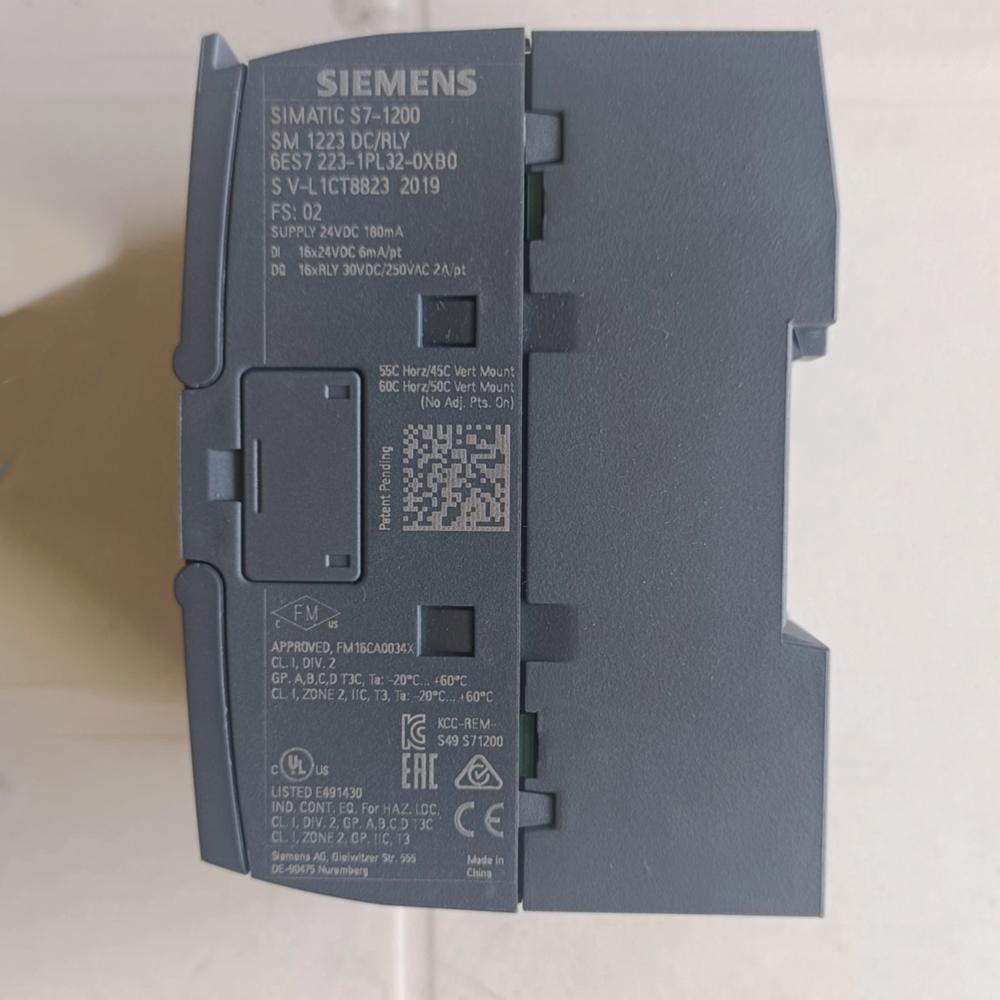

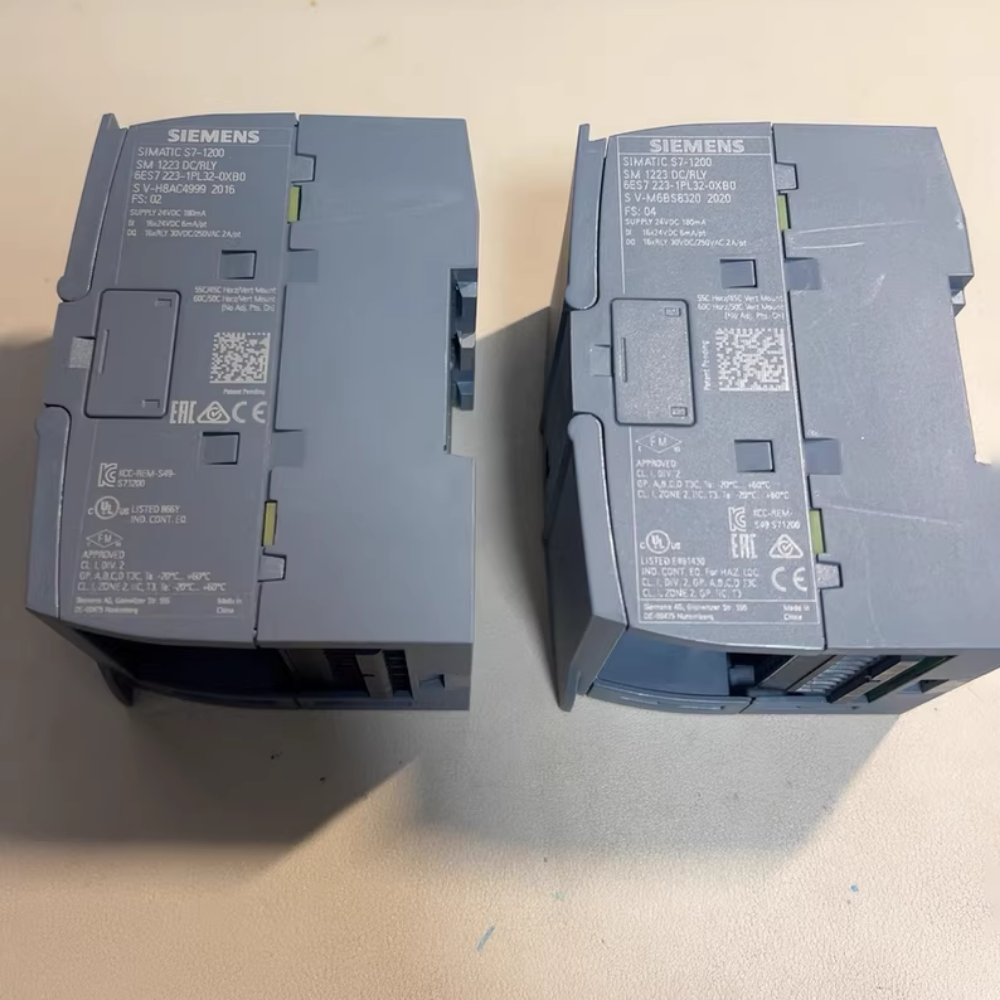

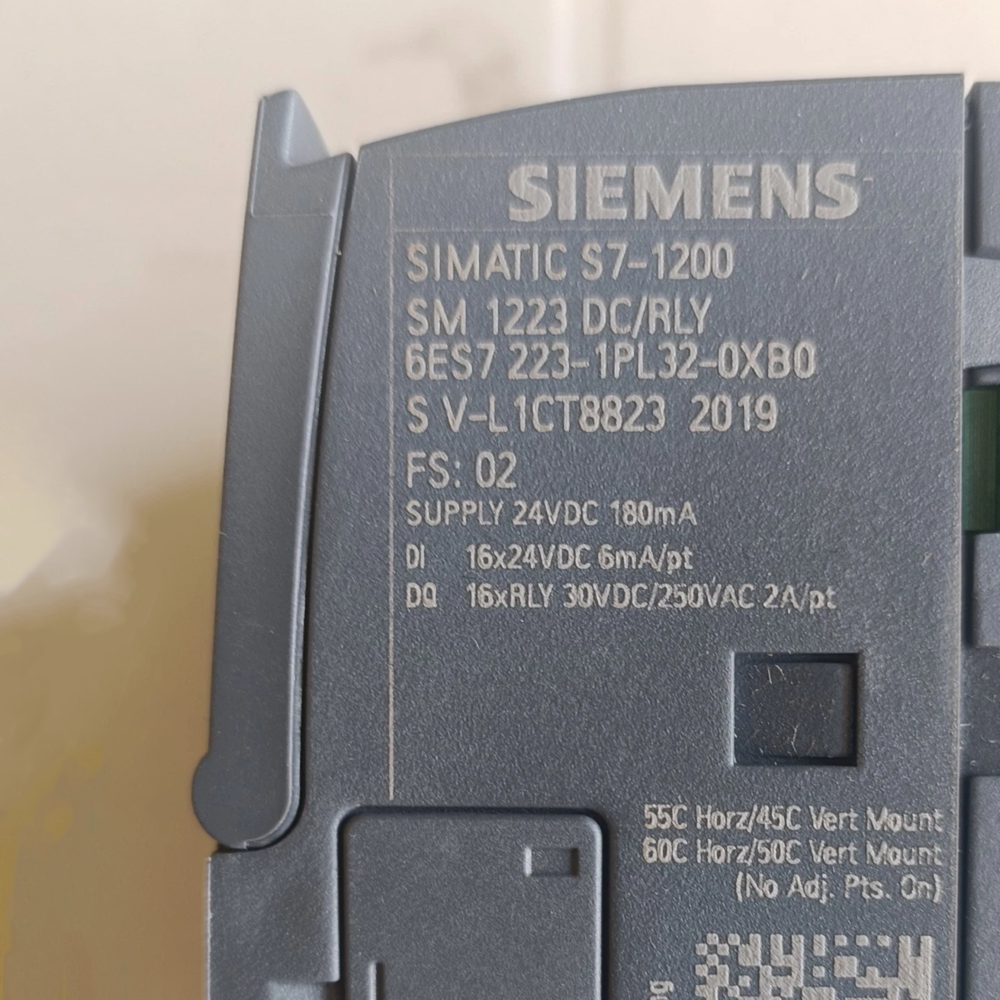

Siemens 6ES7 223-1PL32-0XB0 SIMATIC S7-1200 Digital I/O SM 1223
Product Overview
The 6ES7 223-1PL32-0XB0 is a SM 1223 digital input/output (I/O) signal module designed for seamless integration with the SIMATIC S7-1200 PLC series. It combines 16 digital inputs (24 V DC, sink/source type) and 16 relay outputs, enabling versatile connection of discrete sensors and actuators in industrial automation systemsSiemens. As a core expansion module, it enhances the I/O capacity of S7-1200 controllers, supporting flexible system scaling for small-to-medium automation tasks.
Key Features
- Dual I/O Functionality: Integrates 16×24 V DC digital inputs and 16x relay outputs, supporting both sinking and sourcing input logic for broad compatibility with industrial sensorsSiemens.
- High Load Capacity: Relay outputs handle up to 2 A for resistive loads, 30 W for DC lamp loads, and 200 W for AC lamp loads, supporting diverse industrial actuators (contactors, valves, indicators)Siemens.
- Flexible Input Configuration: Input delay times (0.2–12.8 ms) are selectable in groups of 4 channels, optimizing response for high-speed or noise-prone applicationsSiemens.

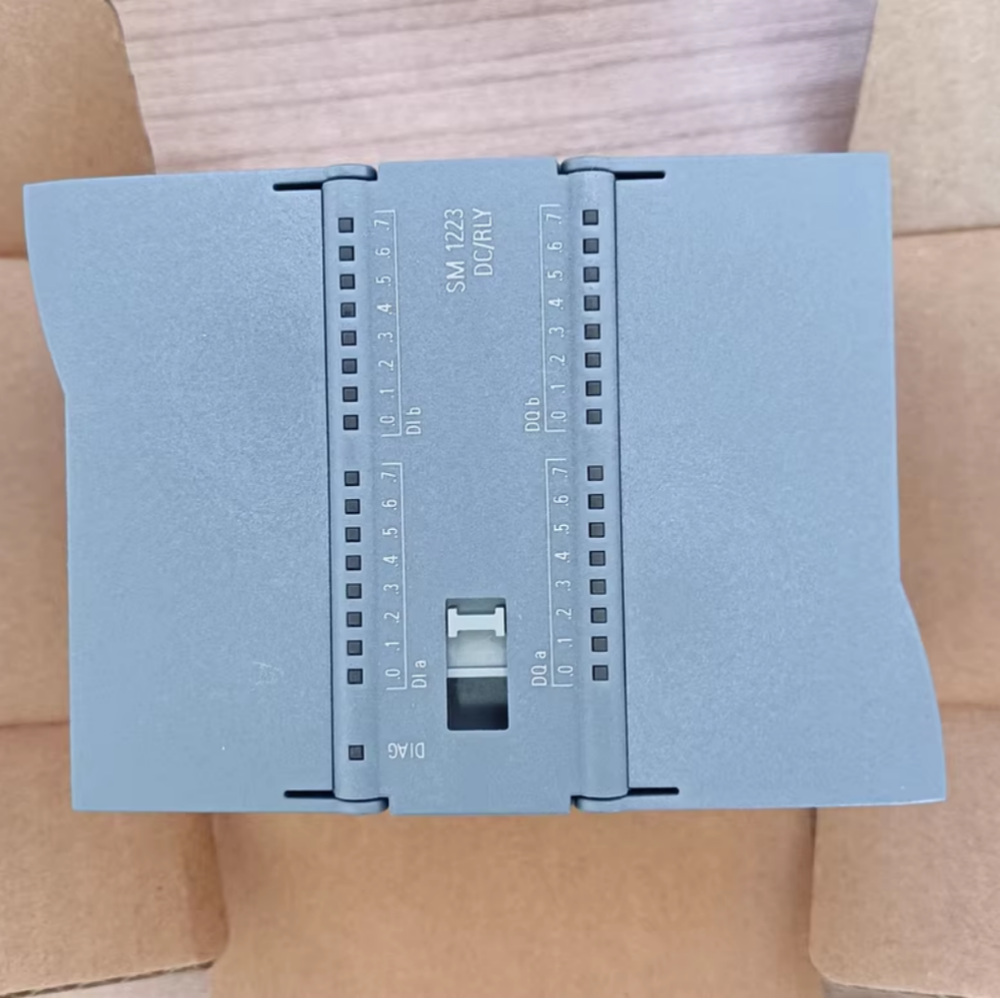

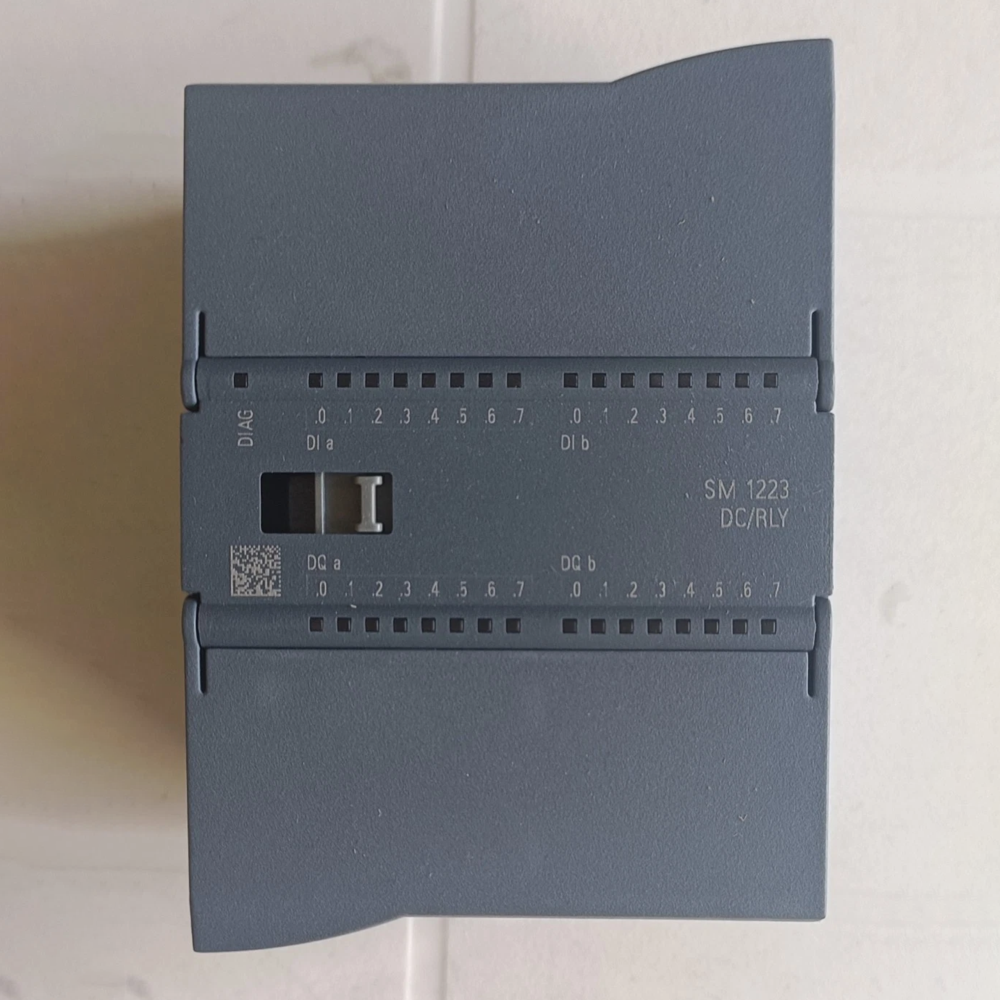

- Integrated Diagnostics: LED indicators for input/output states and diagnostic alarms simplify troubleshooting and system monitoringSiemens.
- Robust Design: IP20 protection rating, wide operating temperature range (-20 °C to +60 °C), and compliance with international standards (CE, UL, CSA, FM) ensure reliable operation in harsh industrial environmentsSiemens.
- Backplane Bus Power: Powered via the S7-1200 backplane (5 V DC), with a maximum current draw of 180 mA, simplifying wiring and power managementSiemens.
Technical Specifications
表格
| Category | Parameter | Value |
|---|---|---|
| General Identification | Product Type | SM 1223 Digital I/O Module |
| Order Number | 6ES7 223-1PL32-0XB0 | |
| Series | SIMATIC S7-1200 | |
| Power Supply | Input Voltage (DC) | 24 V DC (nominal); 20.4–28.8 V DC (range) |
| Backplane Bus Voltage | 5 V DC | |
| Backplane Bus Current (max) | 180 mA | |
| Digital Inputs | Number of Channels | 16 |
| Input Type | 24 V DC, Sink/Source (IEC 61131 Type 1) | |
| Input Current (Logic 1, typ) | 4 mA per channel | |
| Input Thresholds | Logic 0: ≤5 V DC (≤1 mA); Logic 1: ≥15 V DC (≥2.5 mA) | |
| Input Delay (selectable) | 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, 12.8 ms (grouped by 4) | |
| Max Cable Length (shielded) | 500 m | |
| Max Cable Length (unshielded) | 300 m | |
| Digital Outputs | Number of Channels | 16 (Relay) |
| Output Contact Rating | 2 A (resistive); 30 W (DC lamp); 200 W (AC lamp) | |
| Output Voltage Range | 5–30 V DC; 5–250 V AC | |
| Switching Delay (max) | 10 ms (rise/fall) | |
| Relay Mechanical Life (max) | 10 million cycles | |
| Relay Electrical Life (max) | 100,000 cycles (rated load) | |
| Physical & Environmental | Dimensions (W×H×D) | 70 × 100 × 75 mm |
| Weight (approx) | 350 g | |
| Operating Temperature | -20 °C to +60 °C (horizontal); -20 °C to +50 °C (vertical) | |
| Storage Temperature | -40 °C to +70 °C | |
| Humidity (operating) | 5–95% RH (non-condensing) | |
| Protection Rating | IP20 | |
| Certifications | Approvals | CE, UL, CSA, cULus, FM, RCM, KC, Marine Approval |
Physical Dimensions & Weight
- Dimensions: 70 mm (width) × 100 mm (height) × 75 mm (depth) – compact form factor for efficient panel mountingSiemens.
- Weight: Approximately 350 g – lightweight design simplifies installation and reduces structural load on control panelsSiemens.
