Siemens 6ES7221-3AD30-0XB0 Digital Input SB 1221
Product Overview

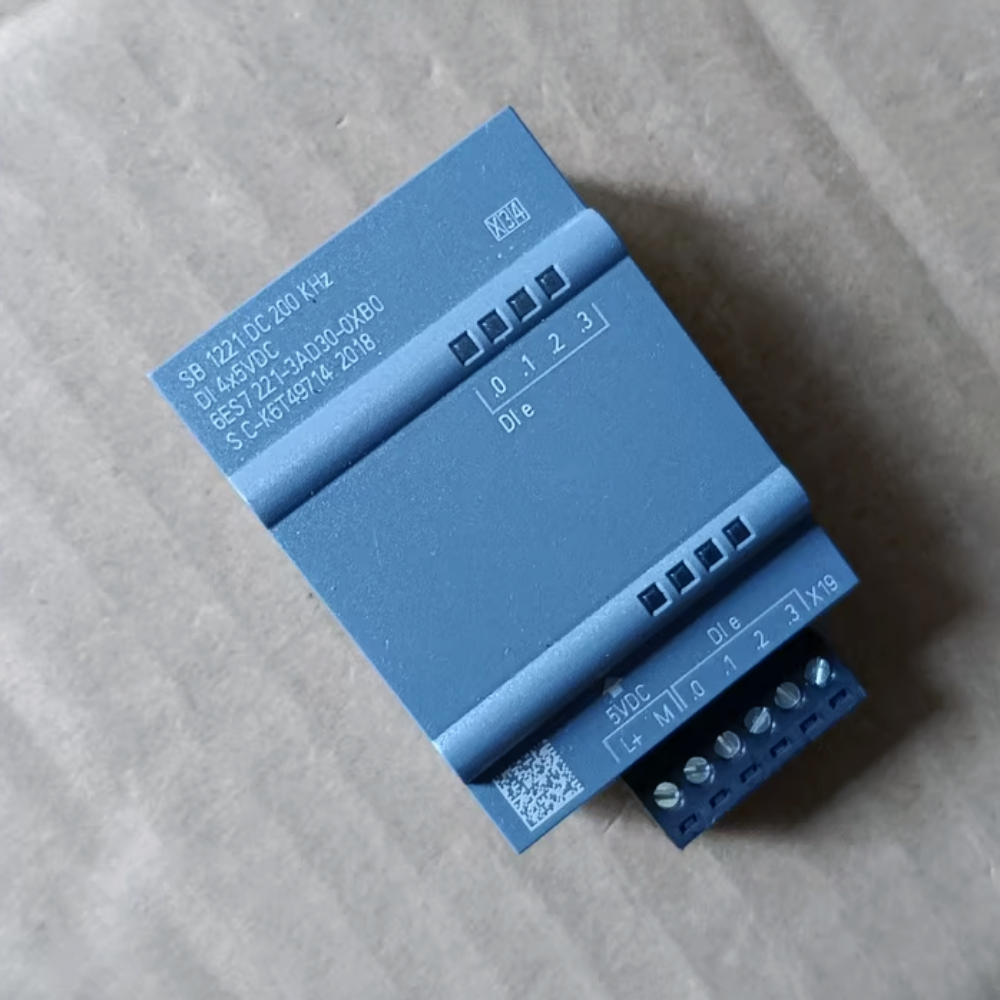

The Siemens 6ES7221-3AD30-0XB0 is a SB 1221 digital input signal board designed for direct installation on SIMATIC S7‑1200 CPUs. It provides a compact and cost-effective way to expand the digital input capability of the controller, allowing connection to field binary devices such as pushbuttons, limit switches, proximity sensors, and other 24 V DC switching devices. As a plug-in signal board, it occupies minimal space and is widely used in small automation systems, control cabinets, machinery, and building automation applications requiring flexible I/O extension.
Main Functions
-
Digital Input Signal Acquisition
- Captures and converts external 24 V DC binary switching signals into logical signals for the S7‑1200 CPU.
- Provides reliable detection of ON/OFF states from field sensors and manual operating devices.
-
Input Filtering and Anti-Interference
- Built-in input filtering suppresses electromagnetic interference and contact bounce, ensuring stable and accurate signal detection.
- Improves operational stability in harsh industrial environments with high electrical noise.
-
Voltage and Wiring Compatibility
- Supports 24 V DC nominal input voltage, matching standard industrial sensor and actuator systems.
- Allows flexible wiring configuration to suit different field device types.
-
Status Indication
- Equipped with LED indicators for each input channel to show real-time signal status.
- Supports quick on-site diagnostics and visual monitoring of input activity.
-
Direct CPU Integration
- Plugs directly into the onboard signal board socket of the S7‑1200 CPU without tools or additional mounting components.
- Requires no extra space in the control cabinet and simplifies system wiring.
-
System Diagnostics
- Integrates with the S7‑1200 CPU diagnostic system for status monitoring and fault detection.
- Supports automatic module recognition by the controller for fast commissioning.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Product Model | 6ES7221-3AD30-0XB0 |
| Product Series | SIMATIC S7‑1200, SB 1221 Signal Board |
| Module Type | Digital Input Signal Board |
| Number of Input Channels | 4 channels |
| Nominal Input Voltage | 24 V DC |
| Input Delay | Integrated hardware filtering |
| Isolation | Non-isolated (CPU-integrated signal board) |
| Operating Voltage | Supplied by S7‑1200 CPU internal logic |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10% – 95% non-condensing |
| EMC Compliance | EN 61131‑2, EN 61000‑6‑2, EN 61000‑6‑4 |
| Protection Class | IP20 |
| Installation | Directly plugged onto S7‑1200 CPU |
Product Dimensions
- Width: 19 mm
- Height: 62 mm
- Depth: 40 mm
- Extremely compact dimensions designed specifically for CPU-mounted expansion
Weight
- Net weight: Approximately 0.02 kg
- Gross weight (with packaging): Approximately 0.04 kg
