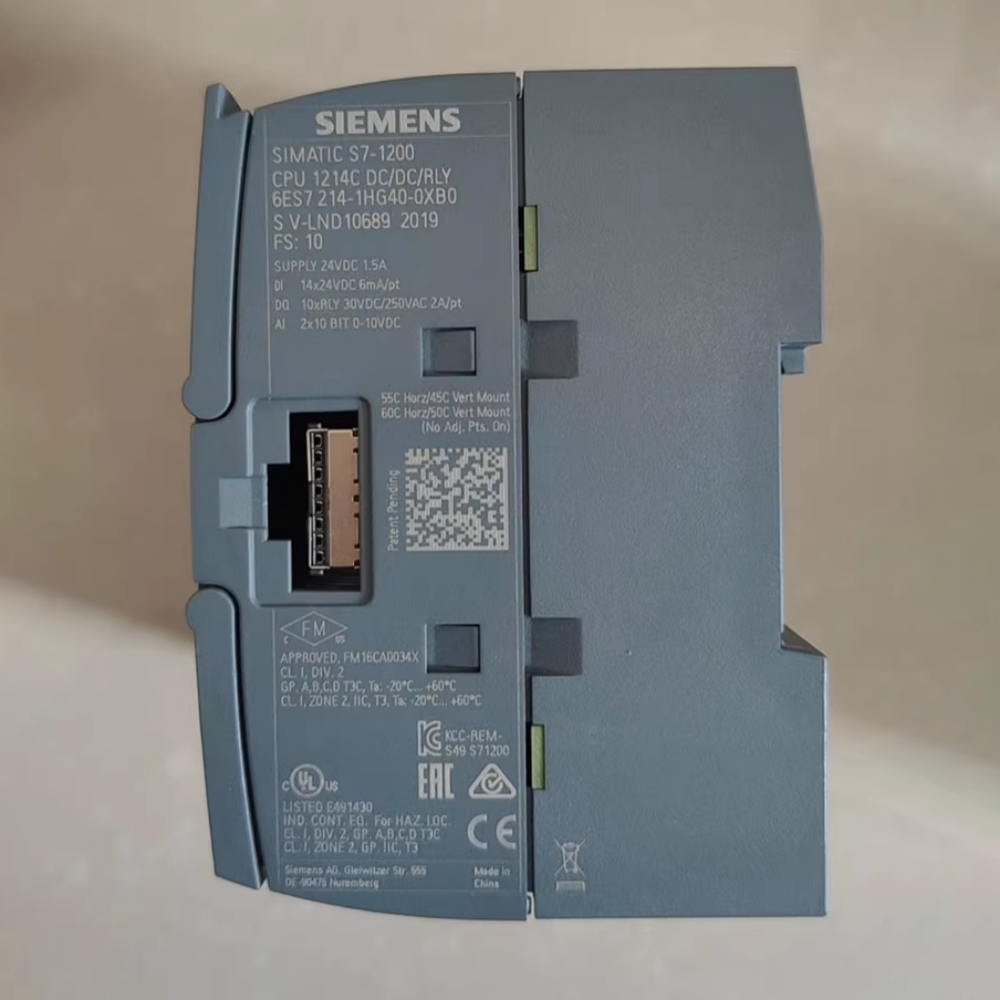

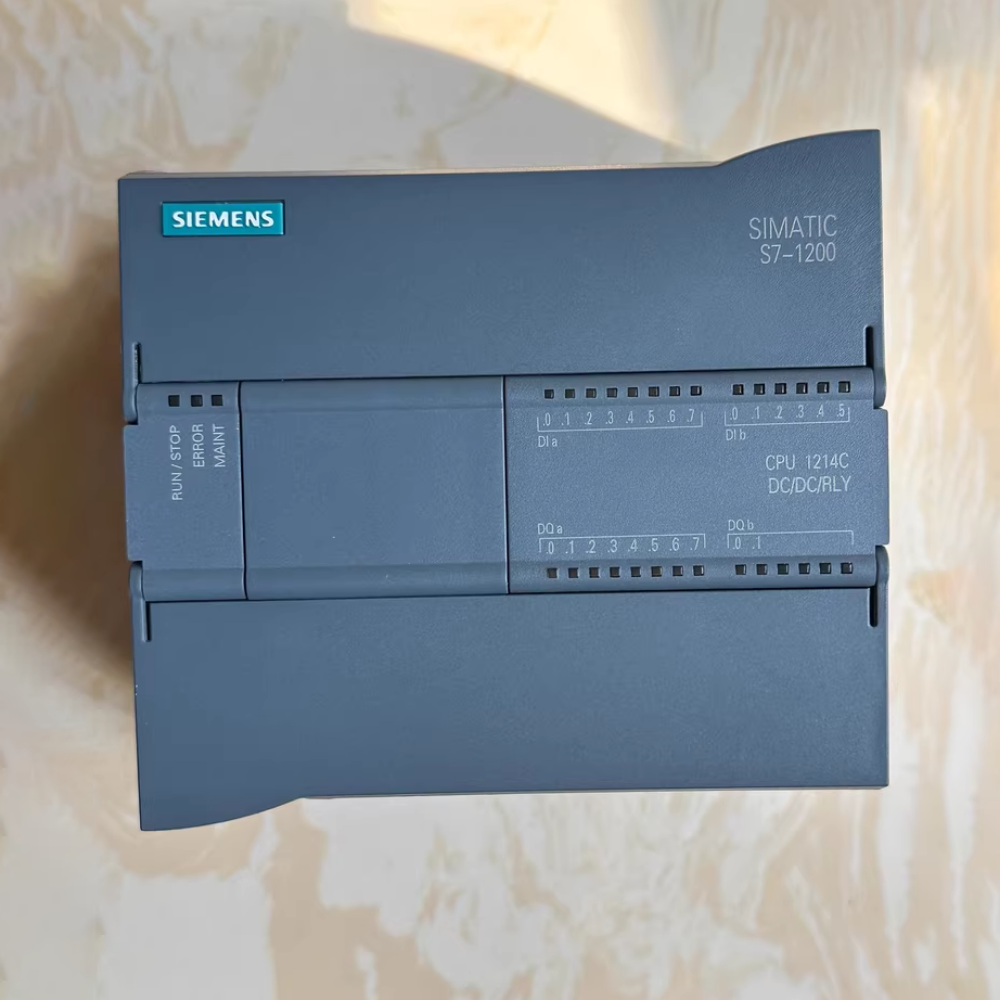

Siemens 6ES7 214-1HG40-0XB0 | SIMATIC S7-1200 CPU 1214C
Product Overview
The 6ES7 214-1HG40-0XB0 is a compact CPU 1214C DC/DC/relay within Siemens’ SIMATIC S7-1200 series, designed for small-to-medium industrial automation tasks. It integrates digital/analog I/O, built-in PROFINET communication, and flexible expandability, making it ideal for machinery, packaging lines, material handling, and process control applications. Its relay outputs enable direct connection to AC devices (up to 230 V AC), eliminating the need for external contactors in many scenarios. As a core component of the S7-1200 family, it delivers reliable performance, intuitive engineering, and cost-effective scalability for industrial environments.
Key Functions
- Integrated I/O Processing: Onboard 14 digital inputs (24 V DC), 10 relay outputs (2 A), and 2 analog inputs (0–10 V DC, 10-bit resolution) for direct connection to sensors, actuators, and industrial devices.
- PROFINET Communication: Built-in RJ45 port for PROFINET/IoT connectivity, enabling seamless data exchange with HMIs, SCADA systems, and other controllers.
- High-Speed Counting: Up to 3 high-speed counters (100 kHz) for precise position and speed monitoring in motion and counting applications.
- PID Control: Integrated PID controller with auto-tuning for stable regulation of temperature, pressure, flow, and speed processes.
- System Expandability: Supports expansion via 1 signal board (SB)/communication board (CB), up to 8 signal modules (SM), and 3 communication modules (CM) for tailored I/O and communication needs.
- Diagnostics & Security: Real-time system diagnostics, password protection, and program encryption to ensure operational safety and data integrity.
Technical Highlights
表格
| Category | Specification |
|---|---|
| Product Type | SIMATIC S7-1200 CPU 1214C (DC/DC/relay) |
| Order Number | 6ES7 214-1HG40-0XB0 |
| Firmware Version | V4.5 or higher |
| Supply Voltage | 24 V DC (20.4–28.8 V DC); reverse polarity protection |
| Power Consumption | 500 mA (base unit); max 1500 mA (with full expansion) |
| Onboard I/O | 14× DI 24 V DC (3× HSC, 100 kHz); 10× DO relay (2 A, 230 V AC max); 2× AI 0–10 V DC (10-bit) |
| Program/Data Memory | 100 KB (work memory); 4 MB (work memory for process image) |
| Processing Speed | Bit: ~0.085 µs; Word: ~1.7 µs; Floating-point: ~2.3 µs |
| Communication | 1× PROFINET (RJ45); optional expansion via CM (RS-232/422/485) |
| Expansion | 1× SB/CB; 8× SM; 3× CM |
| Programming Languages | LAD, FBD, SCL (via STEP 7 Basic/Professional V16+) |
| Certifications | CE, cULus, FM, UL (industrial safety & EMC compliance) |
Physical Specifications
表格
| Parameter | Value |
|---|---|
| Dimensions (W×H×D) | 100 mm × 110 mm × 75 mm |
| Net Weight | ~0.38 kg (380 g) |
| Mounting | DIN rail (TS 35/7.5/15) or wall mounting; IP20 protection class |
| Operating Temperature | -20 °C to 60 °C (horizontal); -20 °C to 50 °C (vertical); storage: -40 °C to 70 °C |
| Max. Altitude | 5,000 m (operational) |
| Humidity | 5–95% (non-condensing) |
Application & Compatibility
- Ideal For: Small machinery, packaging equipment, conveyor systems, batch processing, and standalone automation stations requiring relay outputs for AC loads.
- System Integration: Works with SIMATIC HMI panels, S7-1200/S7-200 SMART controllers, and the TIA Portal for unified programming, configuration, and diagnostics.
- Module Support: Compatible with all S7-1200 signal modules (digital/analog I/O, thermocouple/RTD) and communication modules (PROFIBUS, Modbus, CANopen).
