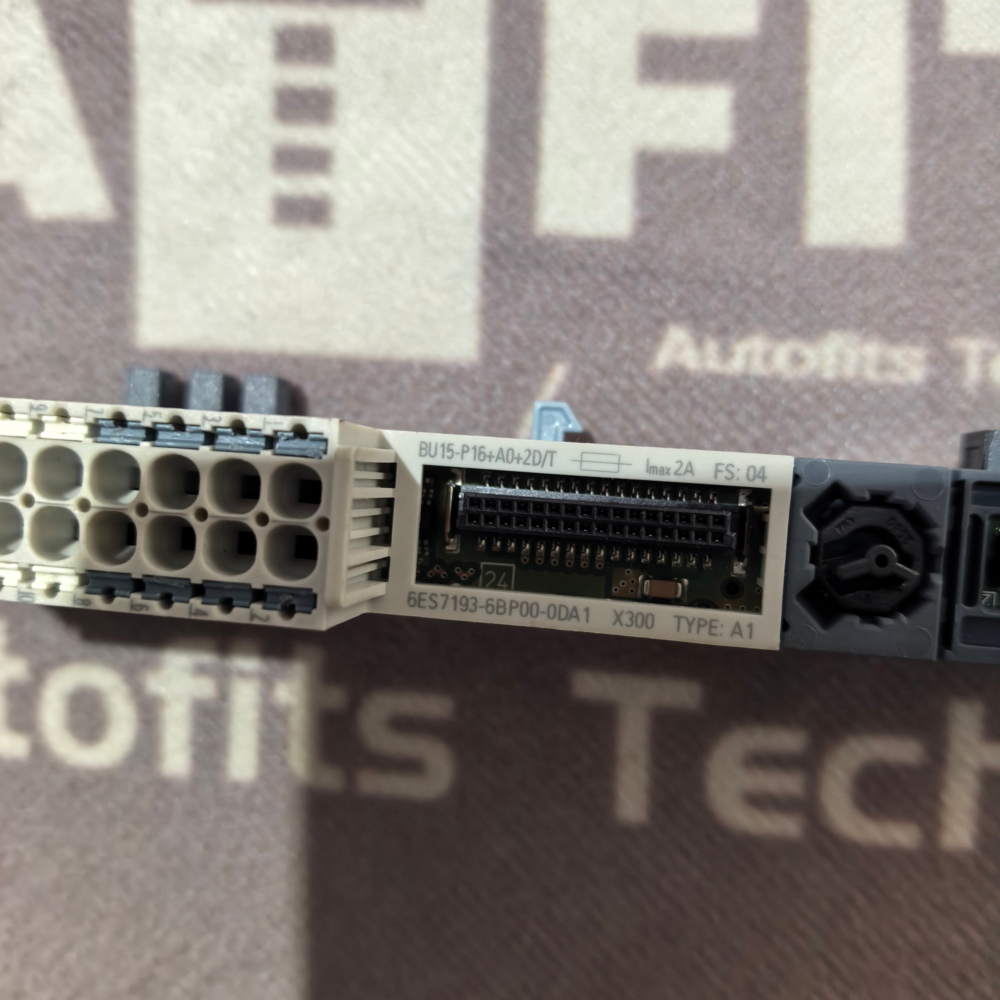

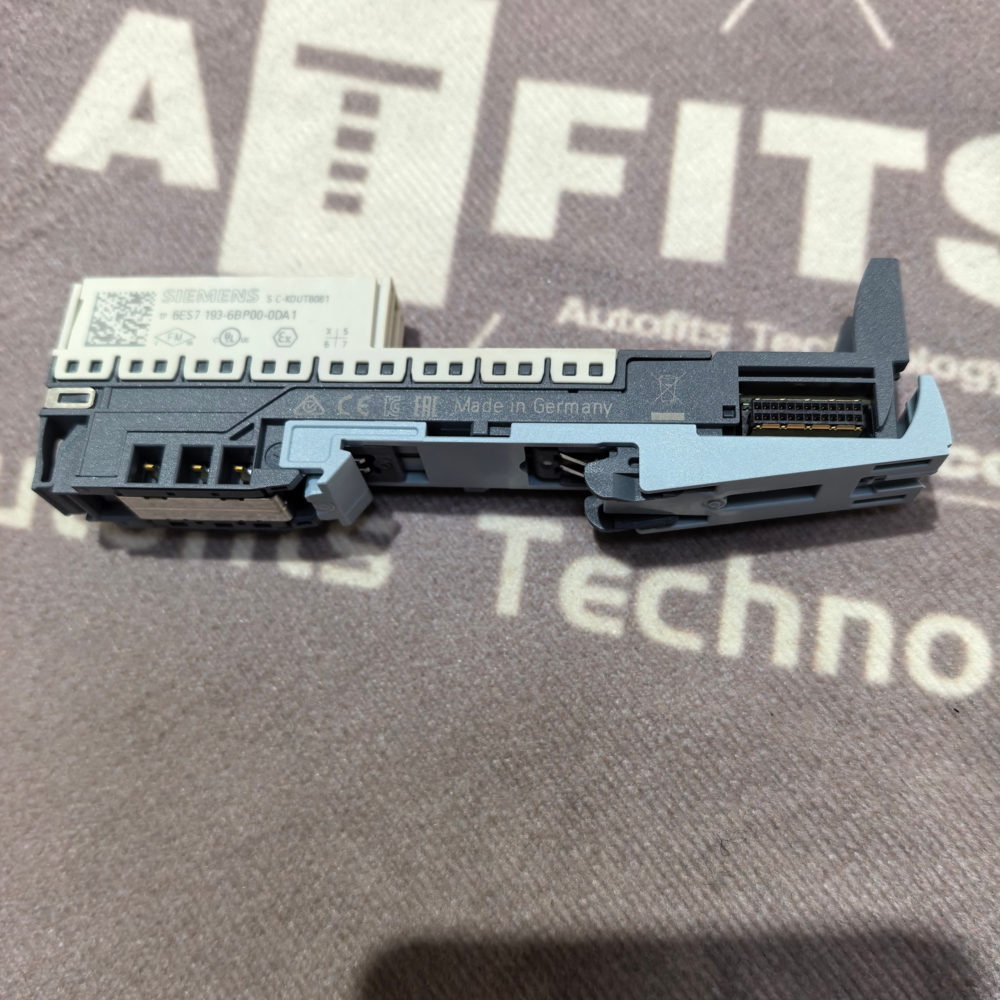

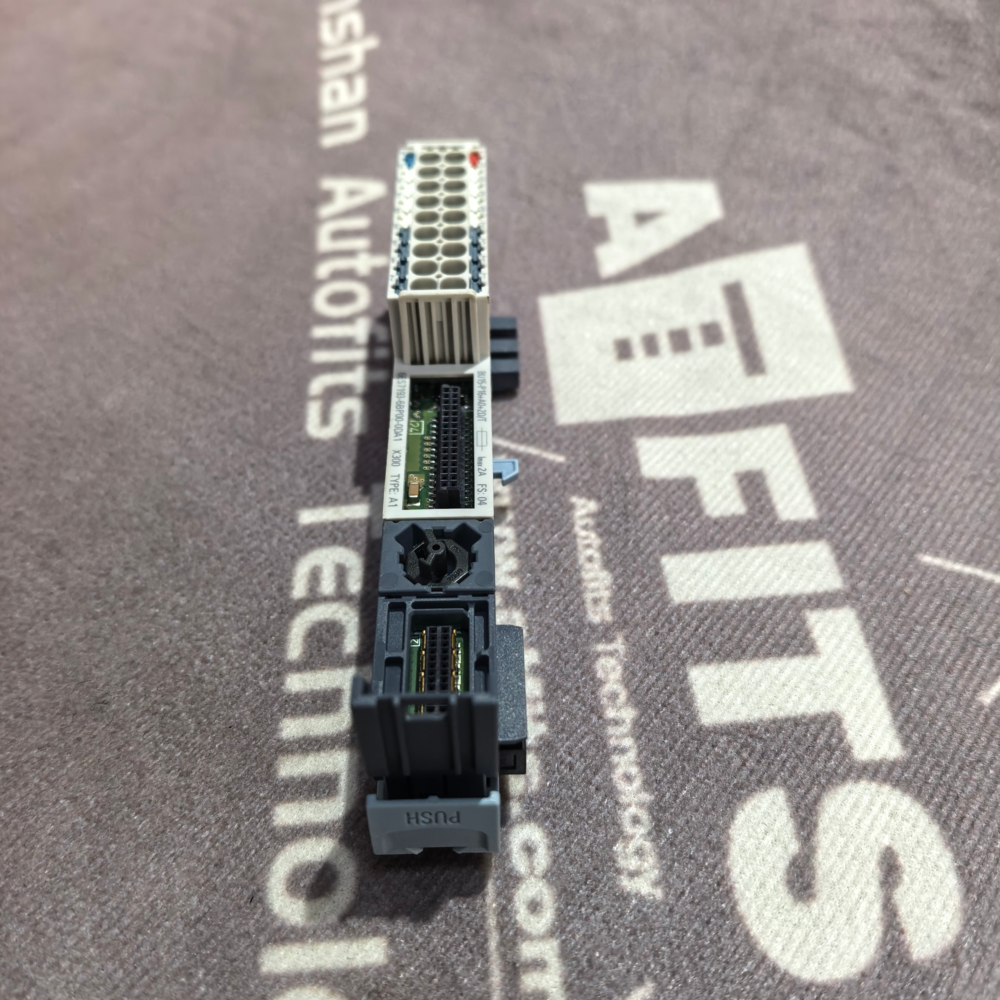

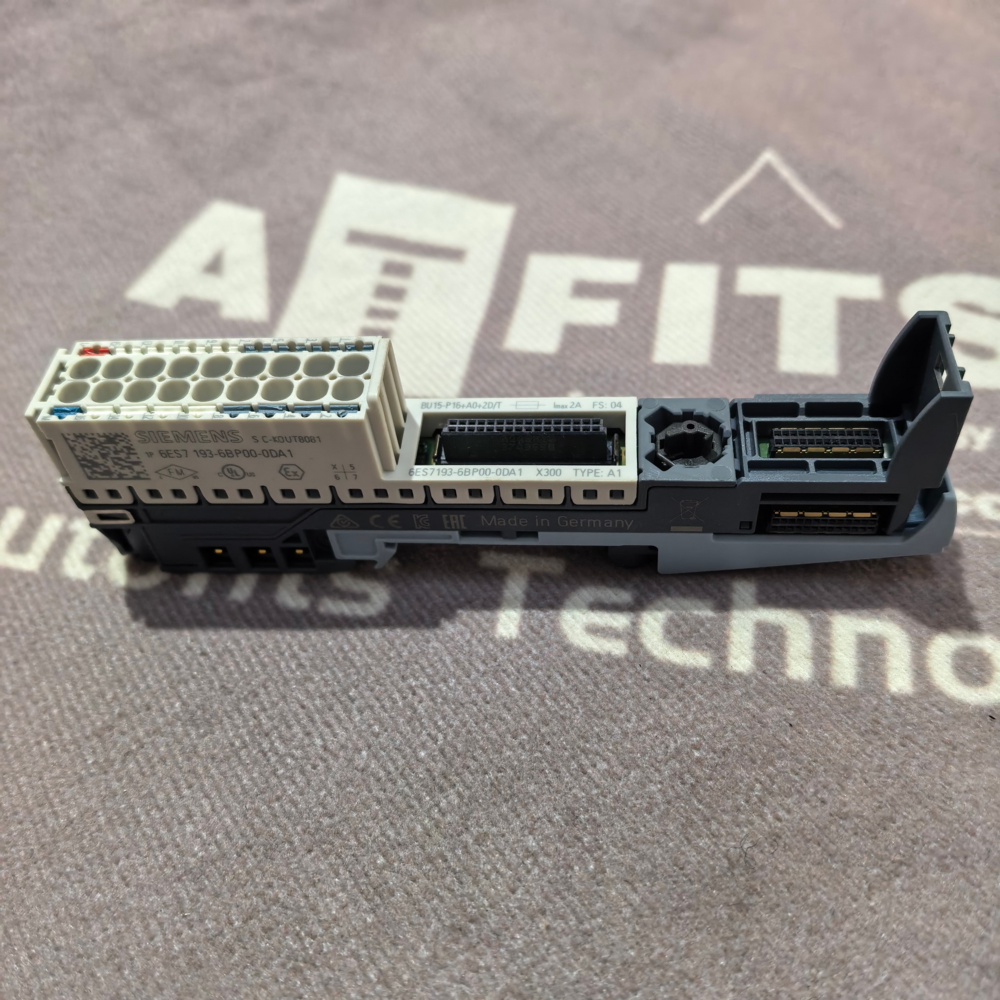

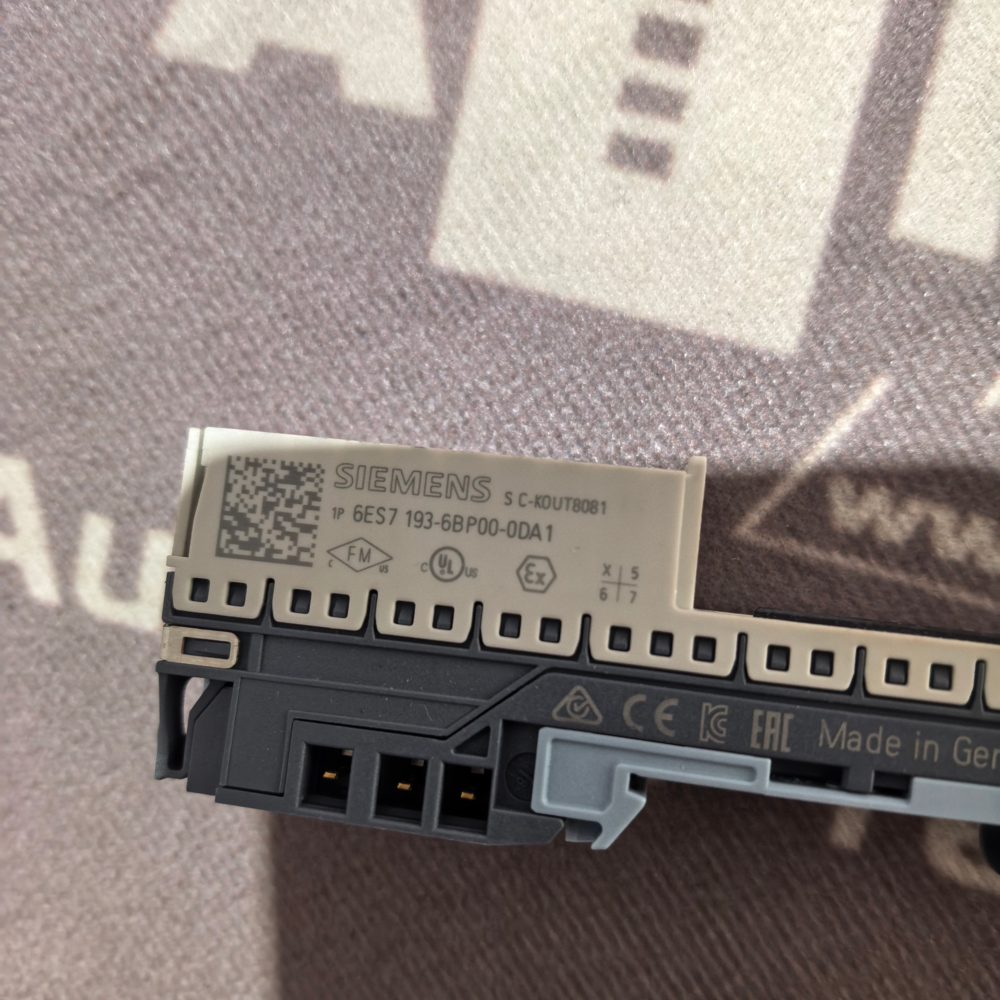

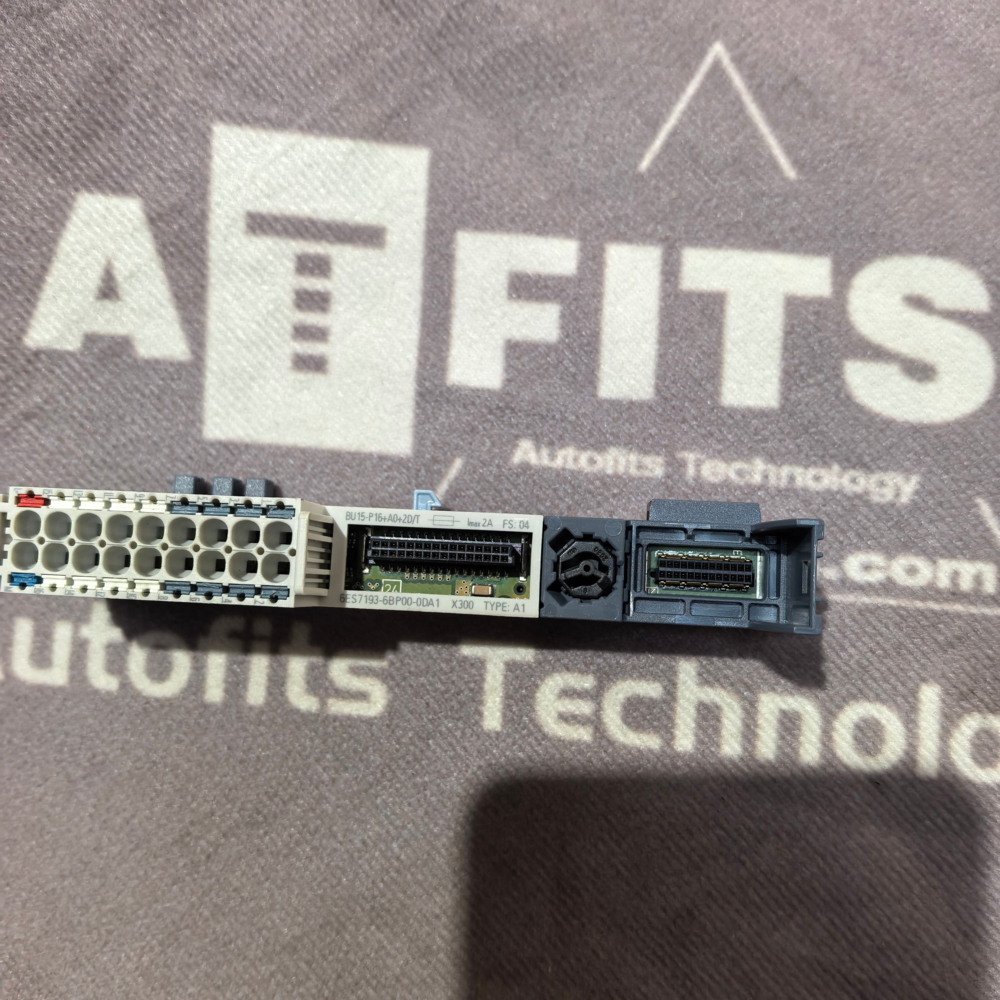

Siemens 6ES7193-6BP00-0DA1 Base Unit for ET 200SP
Product Overview
The Siemens 6ES7193-6BP00-0DA1 is a base unit (BU-type) designed exclusively for the SIMATIC ET 200SP distributed I/O system. It serves as the physical mounting and connection carrier for ET 200SP electronic modules, providing terminal points for field wiring, power distribution, and backplane bus communication. This base unit supports galvanic isolation and is intended for use with analog electronic modules in industrial automation systems, ensuring stable signal transmission and reliable wiring connection in machine building, factory automation, and process control applications.
Main Functions
-
Mechanical Mounting & Carrier Function
- Provides a secure mounting structure for ET 200SP electronic modules (analog input, analog output, communication modules).
- Enables snap-on installation directly onto a standard 35 mm DIN rail for fast and stable assembly.
-
Field Wiring Terminal Block
- Integrates screw-type terminals for connecting field sensors, actuators, and external signal lines.
- Organizes input/output signal wiring and power supply lines clearly to simplify installation and maintenance.
-
Backplane Bus Communication
- Transmits data, diagnostics, and power signals between the connected electronic module and the ET 200SP interface module via the internal backplane bus.
- Ensures reliable high-speed communication within the distributed I/O station.
-
Electrical Isolation & Protection
- Provides galvanic isolation between field wiring, module electronics, and system circuits to avoid ground loops and electromagnetic interference.
- Protects connected modules and controllers against voltage spikes and industrial noise.
-
Potential Group & Power Distribution
- Supports defined potential groups to separate signal circuits and improve system stability.
- Distributes operating voltage to the attached electronic module safely and efficiently.
-
Mechanical & Electrical Coding
- Features mechanical coding to prevent incorrect module insertion and ensure correct type matching.
- Supports electrical identification for system diagnostics and automatic module detection.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Product Model | 6ES7193-6BP00-0DA1 |
| Product Series | SIMATIC ET 200SP |
| Product Type | Base Unit (BU) for analog modules |
| Terminal Type | Screw terminals |
| Isolation | Galvanic isolation between field and system side |
| Suitable for | Analog input modules, analog output modules, communication modules |
| Nominal Operating Voltage | 24 V DC |
| Wire Connection Range | Suitable for typical control and sensor cables |
| Operating Temperature | -25 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 10% – 95% non-condensing |
| EMC Compliance | EN 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Protection Degree | IP20 |
| Mounting | 35 mm DIN rail (EN 50022) |
Product Dimensions
- Width: 15 mm
- Height: 66 mm
- Depth: 54 mm
- Compact dimensions match all standard ET 200SP electronic modules for uniform installation layout
Weight
- Net weight: Approximately 0.03 kg
- Gross weight (with packaging): Approximately 0.05 kg
