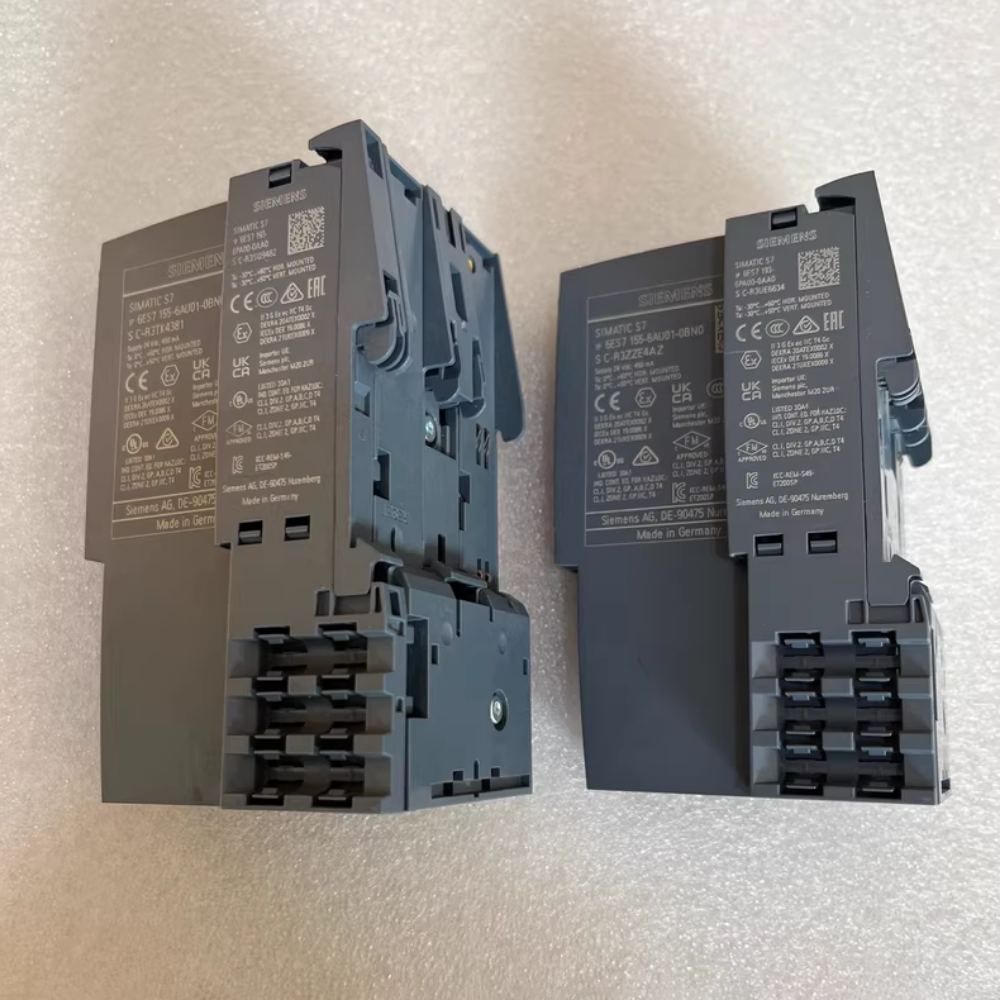

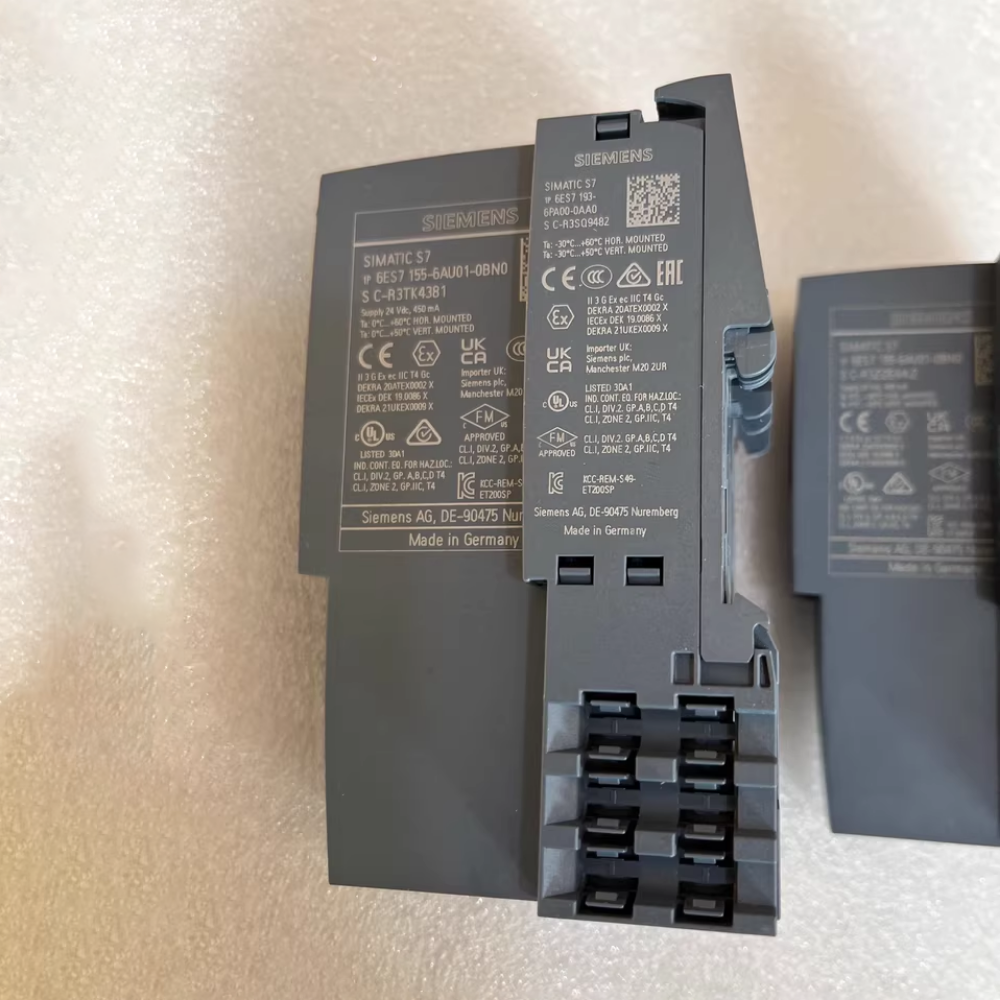

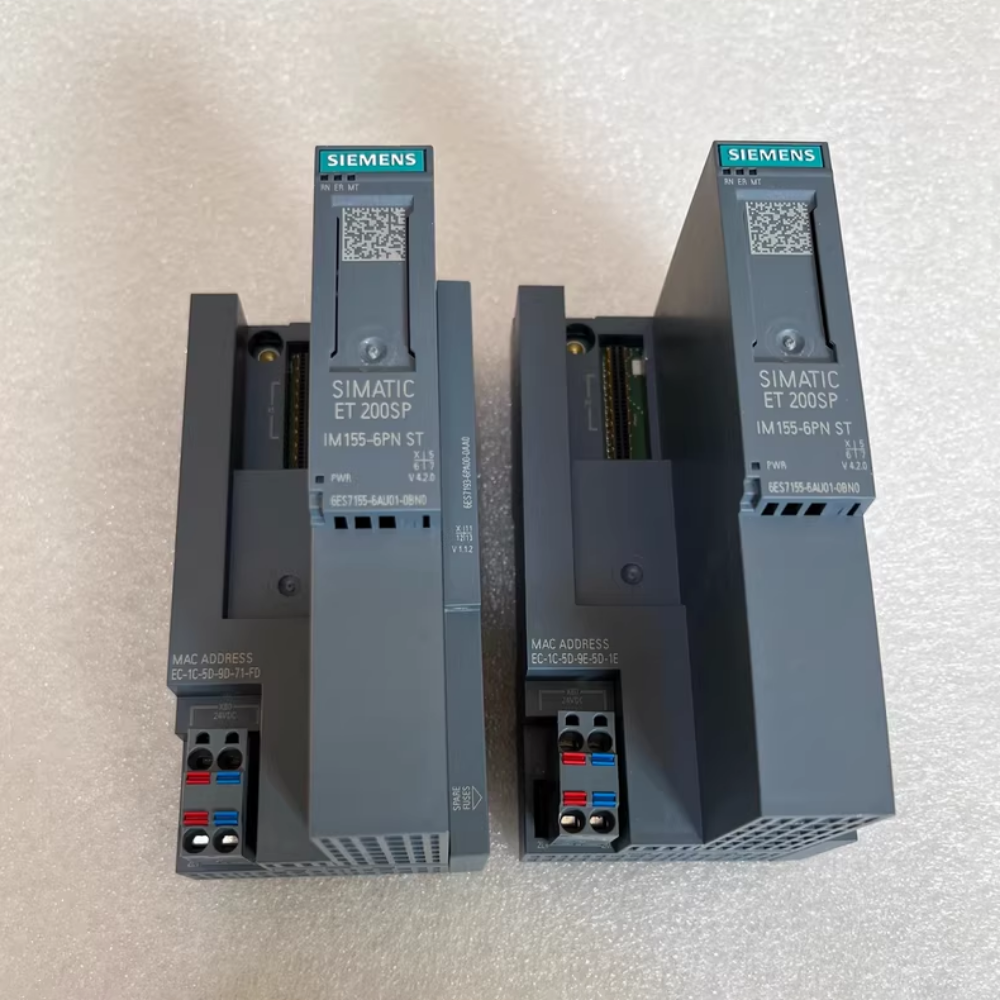

Siemens 6ES7 155-6AU01-0BN0 | SIMATIC ET 200SP IM 155-6 PN ST Interface Module
Product Overview
The 6ES7 155-6AU01-0BN0 is a high-performance PROFINET Interface Module (IM 155-6 PN ST) belonging to the SIMATIC ET 200SP distributed automation system. It serves as the core communication bridge between the upper-level PLC/controller and decentralized I/O nodes, enabling seamless data exchange in industrial environments.
Equipped with an integrated 2-port Ethernet switch and a built-in server module, this module supports flexible network topologies and high-speed data transmission. As a Standard (ST) version, it offers enhanced capacity and reliability, making it ideal for mid-to-large-scale automation projects in manufacturing, process control, and material handling. It is compatible with ET 200SP’s modular design, saving space in control cabinets and supporting easy system expansioncache.industry.siemens.com.
Key Functions
- High-Speed PROFINET Communication: Supports PROFINET IO Device protocol with a transmission rate of 100 Mbps, ensuring minimal update times (down to 1 ms) for time-critical applications.
- Integrated Ethernet Switch: Features 2×RJ45 ports (integrated switch) to support linear, star, and ring topologies without additional network switches, simplifying cabling and reducing hardware costs.
- Media Redundancy (MRP): Implements PROFINET Media Redundancy Protocol to ensure network failover within 500 ms, guaranteeing uninterrupted communication and system availability.
- Single Hot Swapping: Allows replacement or addition of I/O modules during operation without system shutdown, minimizing downtime and maximizing productivity.
- Comprehensive Diagnostics: Provides port diagnostics, network diagnostics (SNMP, LLDP-MIP, MRP-MIB), and voltage monitoring. LED indicators (PWR, Status, DIAG) offer real-time fault visualization for quick troubleshooting.
- I&M Identification Data: Stores I&M 0–3 identification data for easy device identification and maintenance, streamlining system management.
- Firmware Update: Supports over-the-air firmware updates via PROFINET IO, facilitating maintenance and feature enhancements without physical access to the module.
Technical Features
表格
| Category | Specifications |
|---|---|
| Electrical Ratings | – Supply Voltage: 24 V DC (range: 19.2–28.8 V DC)
– Max. Input Current: 550 mA – Typical Power Loss: 1.9 W – Reverse Polarity & Short-Circuit Protection: Yes – I²t Value: 0.16 A²·s, |
| Communication | – Protocol: PROFINET IO Device, Open IE
– Transmission Rate: 100 Mbps – Min. Update Time: 1 ms – Port Configuration: 2×RJ45 (integrated switch) – GSD Support: GSDML V2.35 |
| System Capacity | – Max. ET 200SP I/O Modules: 32
– Max. ET 200AL Modules: 16 – Max. Address Space per Station: 32 byte – Max. I/O Data: 256 byte (input/output), |
| Diagnostics | – Port Diagnostics: Yes
– Network Diagnostics: SNMP (MIB2), LLDP-MIP, MRP-MIB – Voltage Monitoring: Yes – LED Indicators: Power (PWR), Status, Fault (DIAG) |
| Mechanical | – Dimensions: 50 mm (W) × 117 mm (H) × 74 mm (D)
– Module Weight (Approx.): 180 g – Packed Weight (Approx.): ~200 g – Mounting: DIN Rail (via Base Unit Type A0) – Protection Class: IP20 (module), |
| Environmental | – Operating Temp (Horizontal): -30 °C to +60 °C
– Operating Temp (Vertical): -30 °C to +50 °C – Max. Installation Altitude: 5,000 m (with restrictions >2,000 m) – RoHS & REACH Compliant – Origin: Germany |
| Engineering | – Configurable in: STEP 7 TIA Portal (V14+), STEP 7 (V5.5 SP4+)
– Firmware Update: Supported (via PROFINET IO) – Configuration Control: Yes (via data groups) – Hardware Version: FS03 and above |
Physical Dimensions & Weight
表格
| Parameter | Value |
|---|---|
| Width | 50 mm |
| Height | 117 mm |
| Depth | 74 mm |
| Module Weight (Approx.) | 180 g |
| Packed Weight (Approx.) | ~200 g |
| Packed Dimensions | ~60 mm (W) × 122 mm (H) × 80 mm (D), |
Applications
Ideal for industrial automation scenarios including:
- Discrete manufacturing lines (automotive, packaging, machinery)
- Process control systems (valve/pump monitoring, fluid control)
- Material handling (conveyor systems, robotics, automated storage)
- Building automation (HVAC, security systems)
- Energy infrastructure (power generation, distribution equipment)
Compliance & Product Information
- HS Code: 8538903000
- Product Lifecycle (PLM): Active
- Certifications: CE, RoHS, REACH

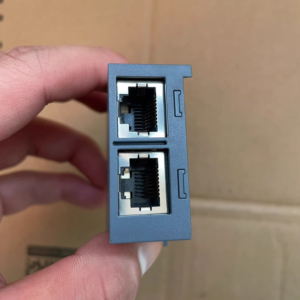

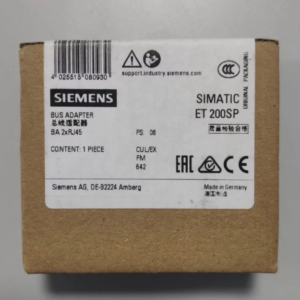

- Included Accessories: Server module (6ES7193-6PA00-0AA0), Bus Adapter (2×RJ45, 6ES7193-6AR00-0AA0)
- Bus Adapter Support: BA 2×RJ45, BA 2×FC
