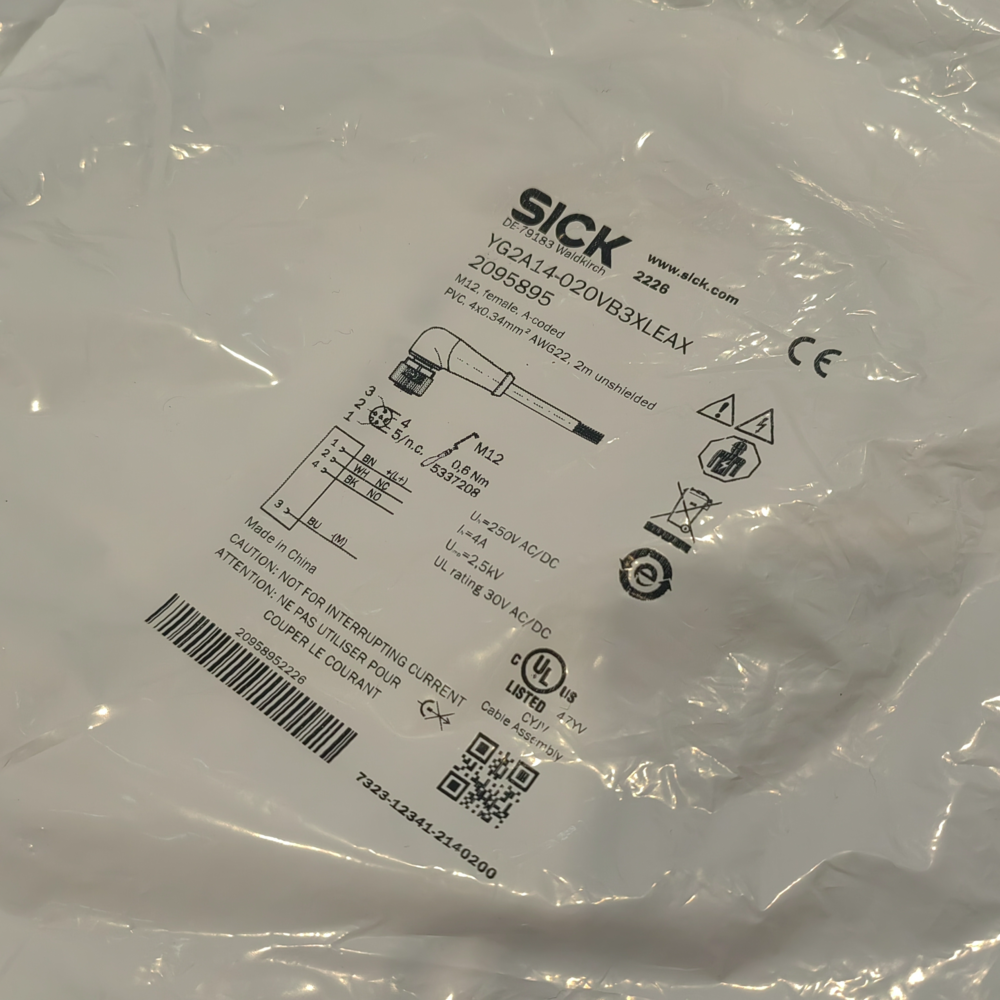

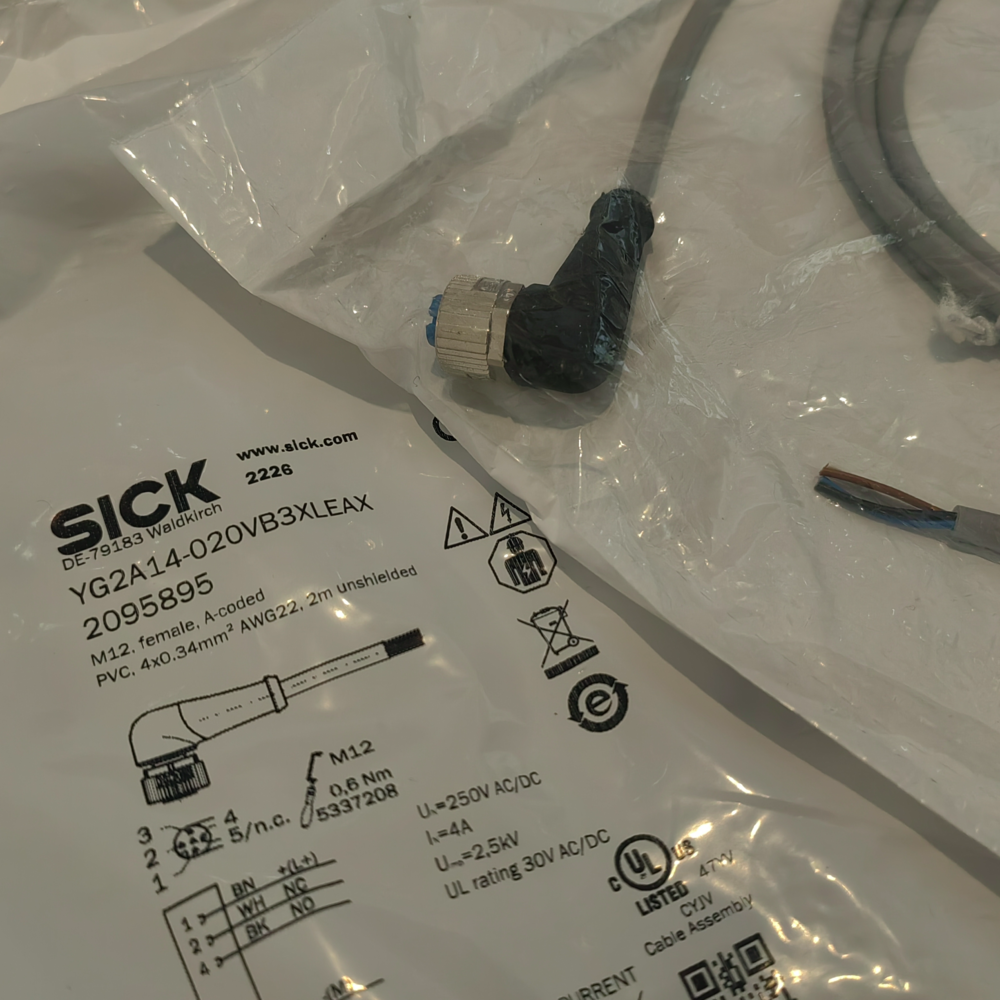

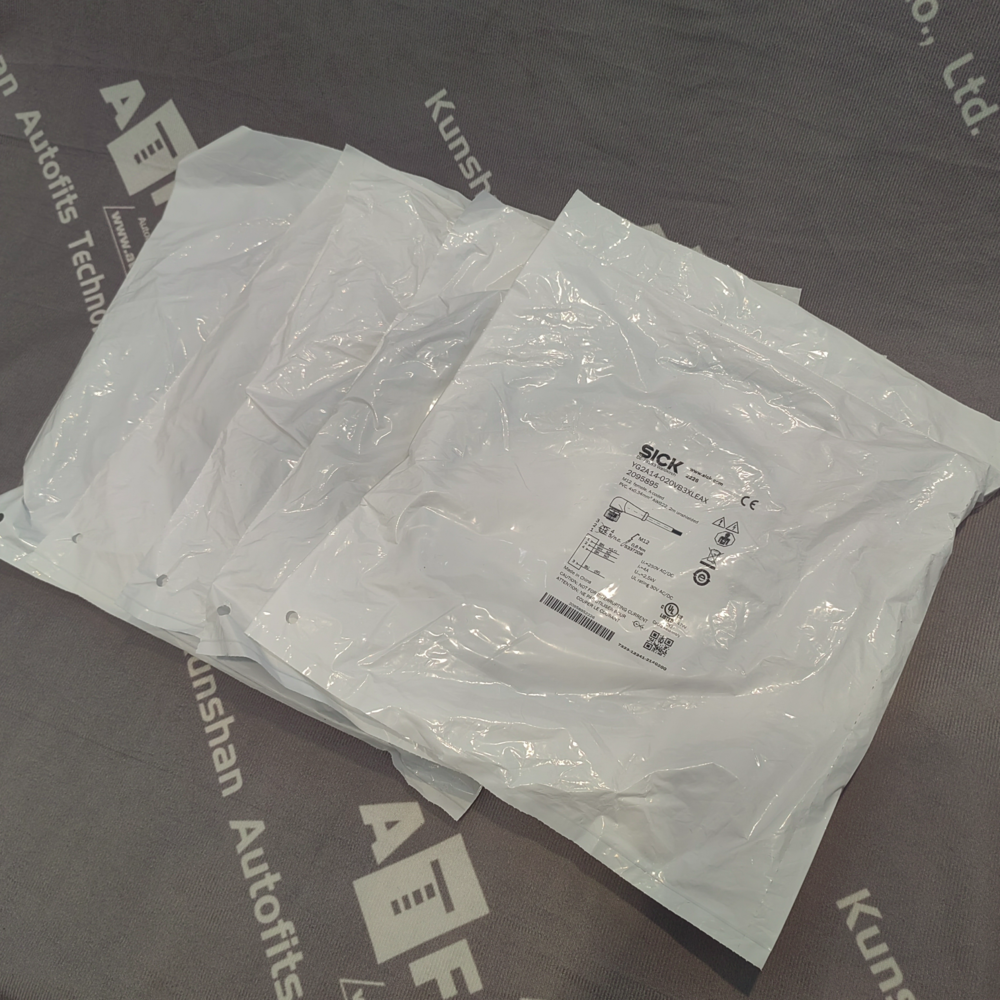

SICK YG2A14-020VB3XLEAX Connection Cable (Order Number: 2095895)
Product Overview

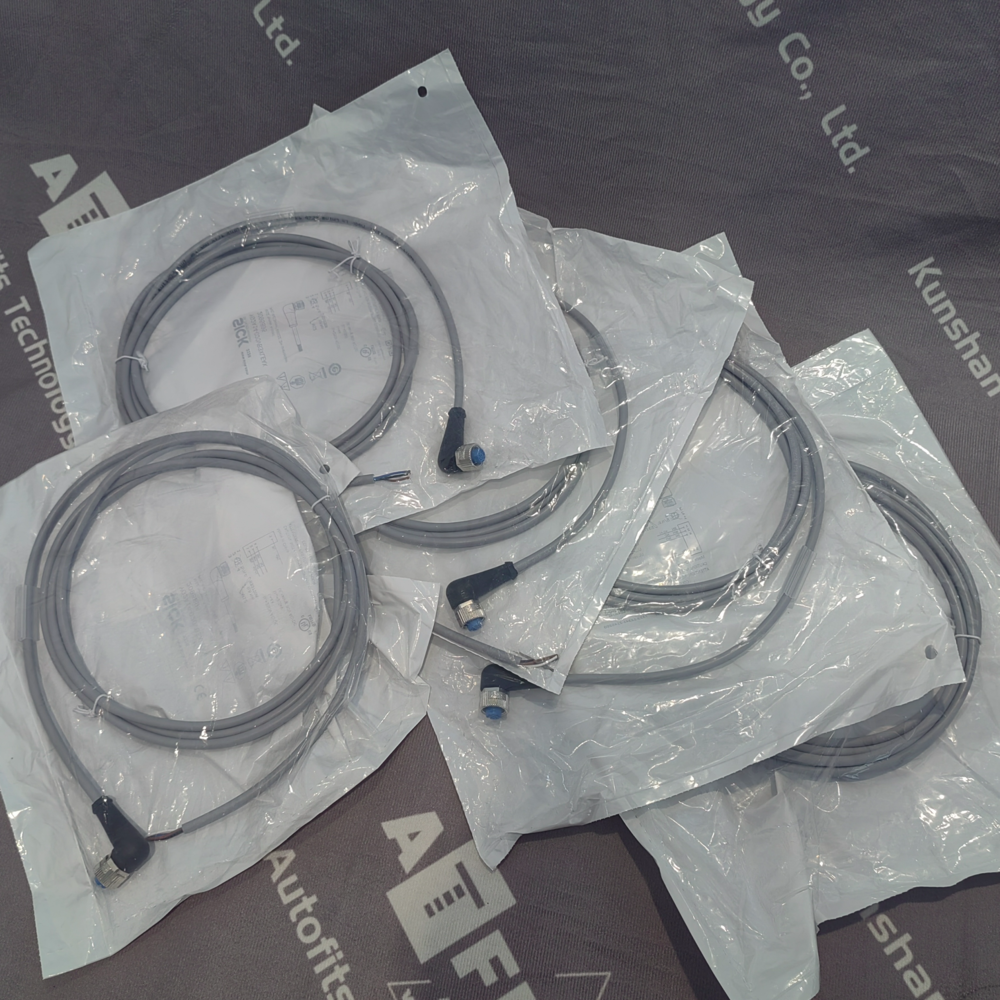

The SICK YG2A14-020VB3XLEAX is a 2-meter, 4-wire unshielded connection cable designed for reliable signal and power transmission between industrial sensors/actuators and control systems, particularly compatible with SICK photoelectric sensors and similar industrial automation devices. It features an angled M12 4-pin A-coded female connector on one end and flying leads on the other, with a gray PVC jacket and robust TPU connectors, ensuring durability and chemical resistance in industrial environments. The cable has an IP65/IP66K/IP67 protection rating, making it suitable for use in areas with dust, high-pressure water jets, and chemical exposure. It is CE-certified and UL-listed (UL File No. E335179), providing a secure and versatile connectivity solution for harsh industrial applications requiring stable electrical performance and flexible installation.
Main Functions
- Secure Power and Signal Transmission: Facilitates reliable transmission of power (up to 4 A current loading) and sensor/actuator signals between devices, with a nominal voltage of 300 V AC and reference voltage of 250 V AC/DC, meeting the electrical requirements of industrial automation systemsSICK.
- Flexible Connection: The angled M12 4-pin A-coded female connector enables easy connection to sensors/actuators, while flying leads allow direct wiring to control panels or terminal blocks, supporting diverse installation scenariosSICK.
- Harsh Environment Adaptability: The IP65/IP66K/IP67 protection rating and FKM seals prevent dust and water ingress, and the PVC jacket resists chemicals, ensuring stable operation in demanding industrial settingsSICK.
- Durable and Safe Connection: The zinc die-cast nickel-plated locking nut with a screw connection ensures a vibration-resistant interface, and FKM seals provide long-term sealing performance. The cable is tested to 2000 V AC for electrical safetySICK.
- Wide Temperature Range Operation: Operates in stationary positions from -30 °C to +80 °C and in flexible use from -5 °C to +80 °C, adapting to temperature variations in industrial environmentsSICK.
- Easy Installation: The 13 mm width across flats on the locking nut allows for easy tightening with a standard wrench, and the recommended tightening torque of 0.6 Nm ensures a secure connection without damaging the connectorSICK.
Technical Characteristics
| Technical Parameter | Specification |
|---|---|
| Cable Type | Sensor/actuator connection cable |
| Cable Length | 2 m |
| Number of Wires | 4 |
| Conductor Cross – section | 0.34 mm² |
| Cable Diameter | 5 mm |
| Jacket Material | PVC |
| Jacket Color | Gray |
| Shielding | Unshielded |

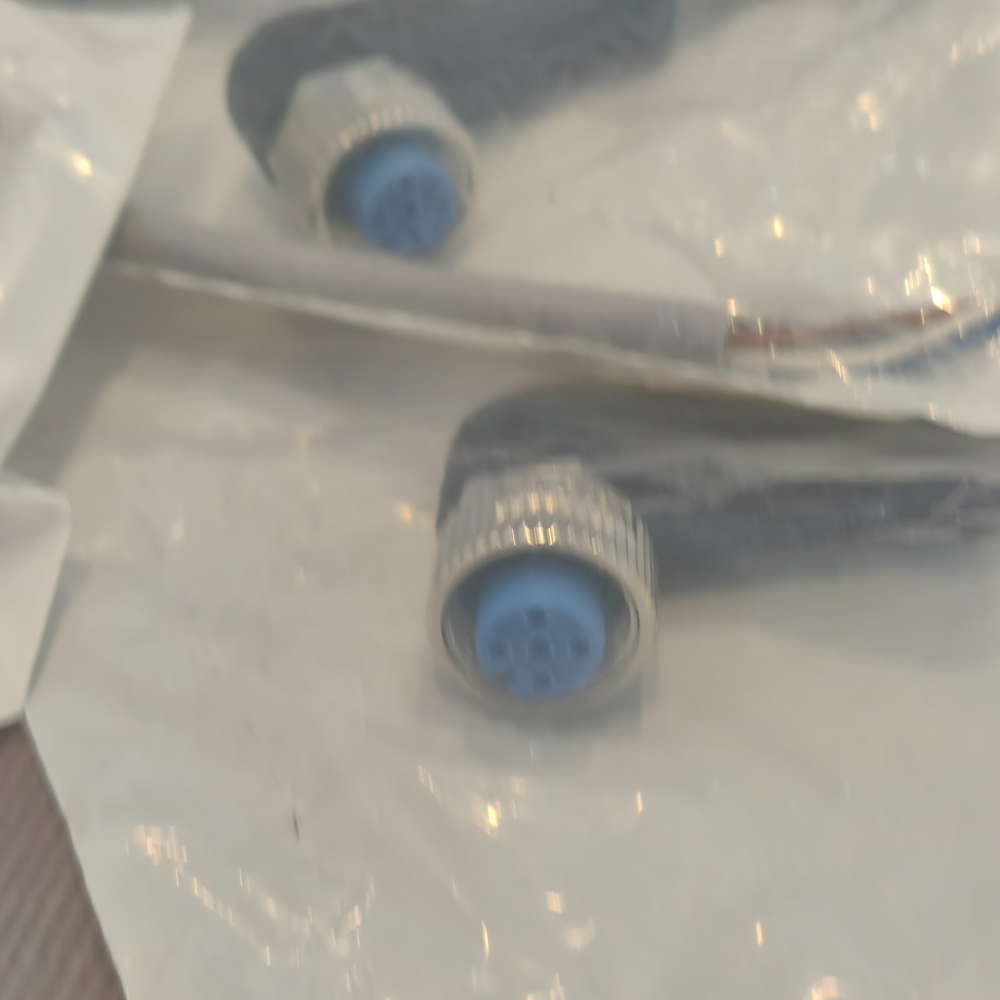

| Connector (Head A) | Angled M12 4 – pin A – coded female connector (TPU material, black) |
| Connector (Head B) | Flying leads |
| Locking Mechanism | Screw connection (zinc die – cast nickel – plated locking nut) |
| Seal Material | FKM |
| Tightening Torque | 0.6 Nm |
| Width Across Flats | 13 mm |
| Bending Radius | Flexible use: > 10 x cable diameter; Stationary position: > 5 x cable diameter |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2000 V AC |
| Reference Voltage | 250 V AC / 250 V DC |
| Rated Impulse Voltage | 2.5 kV |
| Current Loading | 4 A |
| Protection Rating | IP65 / IP66K / IP67 |
| Operating Temperature | Stationary: – 30 °C to + 80 °C; Flexible use: – 5 °C to + 80 °C |
| Connector Temperature Range | – 25 °C to + 80 °C |
| Certifications | CE, UL (UL File No. E335179) |
| Application | Zones with chemical exposure |
Product Dimensions and Weight
| Parameter | Metric | Imperial |
|---|---|---|
| Cable Length | 2000 mm | 78.74 in |
| Cable Diameter | 5 mm | 0.197 in |
| Conductor Cross – section | 0.34 mm² | 0.000527 in² |
| M12 Connector Width Across Flats | 13 mm | 0.512 in |
| Net Weight (Cable Assembly) | 17 g | 0.037 lbs |
| Connector Material | TPU (connector), Zinc die – cast nickel – plated (locking nut) | TPU (connector), Zinc die – cast nickel – plated (locking nut) |
| Jacket Material | PVC | PVC |
| Seal Material | FKM | FKM |
Structural Highlights
- Angled Connector Design: The M12 angled connector allows space – saving installation in tight areas, reducing cable stress and improving the overall system layout flexibility.
- Robust Connector Construction: TPU connectors and zinc die – cast nickel – plated locking nuts provide mechanical strength and corrosion resistance, extending the service life in industrial environments.
- Chemical – Resistant Jacket: The PVC jacket resists exposure to industrial chemicals, ensuring stable performance in harsh chemical zones.
- Optimized Bending Radius: The specified bending radii for flexible and stationary use prevent cable damage and signal loss, ensuring reliable long – term operation.
- Secure Sealing: FKM seals offer excellent resistance to heat and chemicals, maintaining the IP65/IP66K/IP67 protection rating even in extreme conditions.
- User – Friendly Installation: The 0.6 Nm tightening torque and 13 mm width across flats simplify installation and maintenance, ensuring consistent connection quality.
