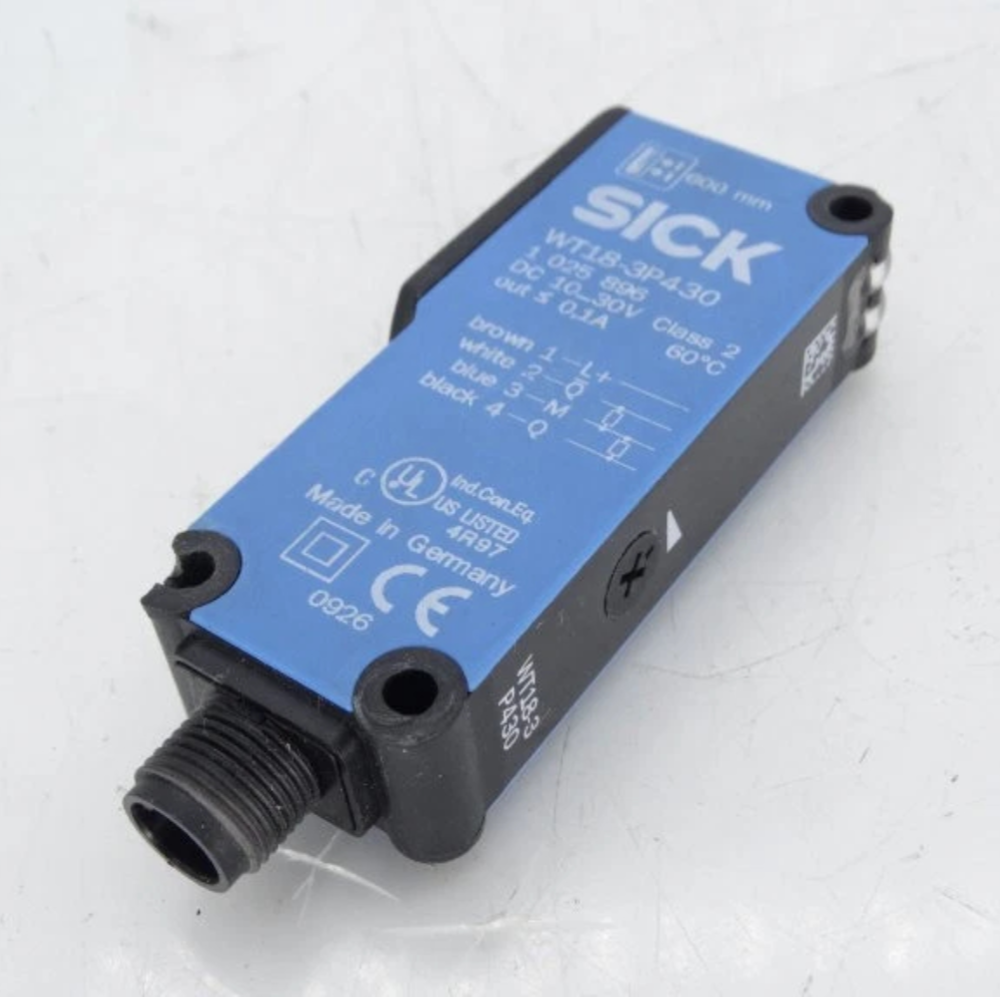

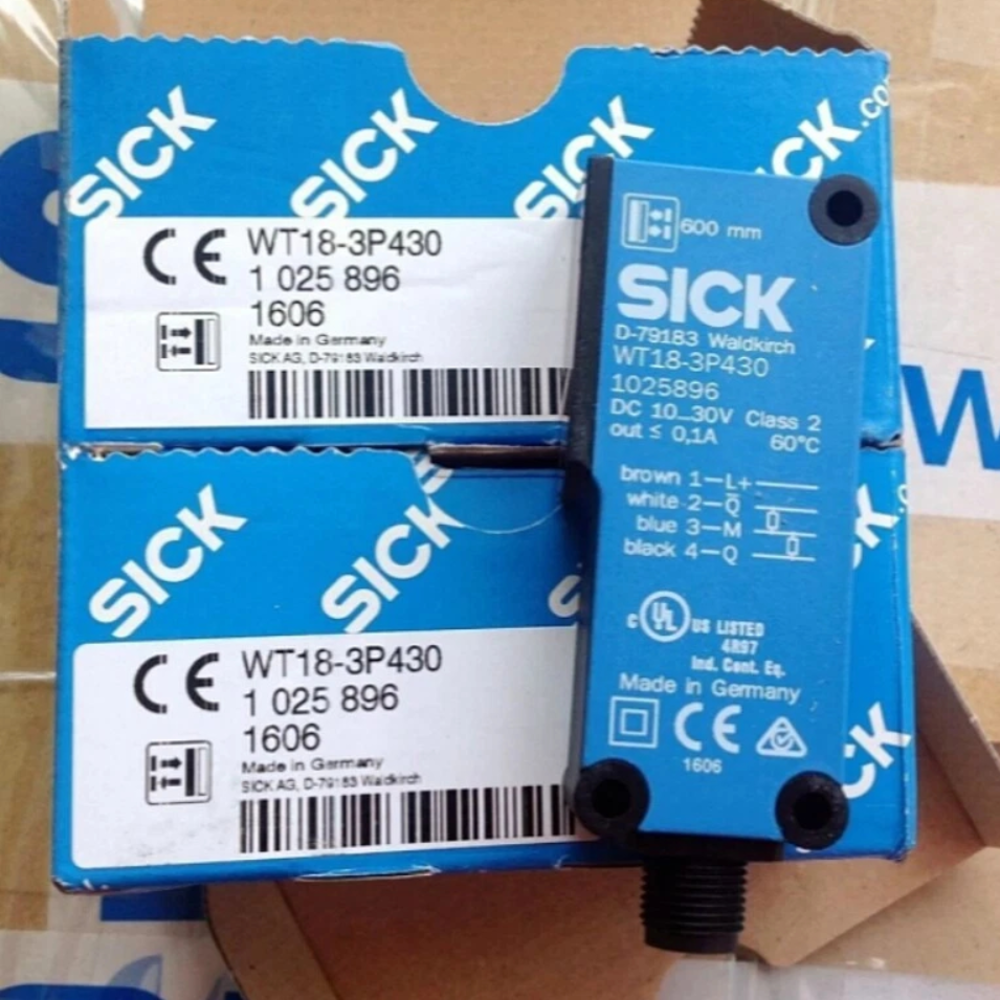

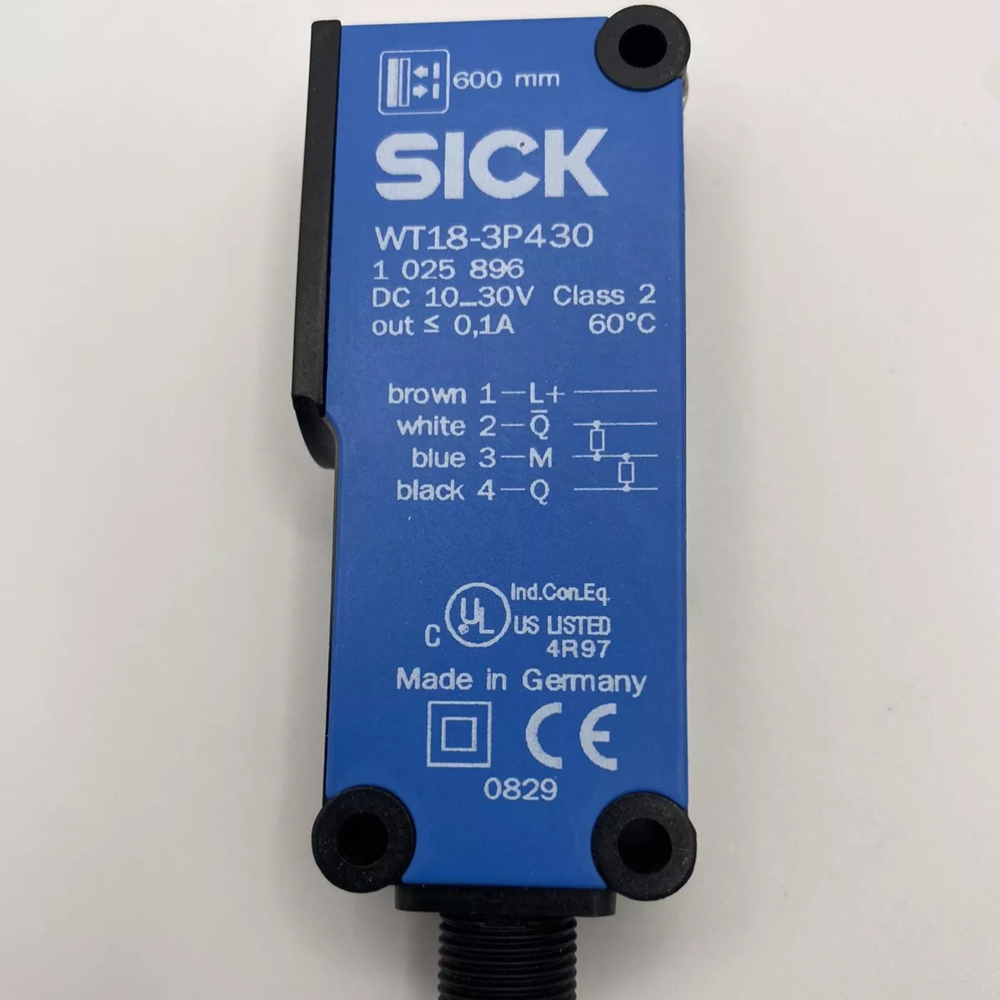

SICK WT18-3P430 Photoelectric Sensor (Order No. 1025896)
1. Product Overview
The SICK WT18-3P430 is a compact retro-reflective photoelectric sensor from SICK’s WT18 series, engineered for reliable non-contact object detection in industrial automation environments. It features a high-performance infrared LED light source, polarized optics, and a PNP normally open (NO) output, with a maximum switching distance of 5 m for standard retro-reflective tape (SICK PL80A). Designed for versatility, this sensor excels in packaging, material handling, conveyor systems, and assembly line applications, delivering consistent detection of both opaque and semi-transparent targets while resisting ambient light interference. Housed in a rugged, compact ABS/metal hybrid casing with an IP67 protection rating, it withstands dust, water immersion, and industrial vibration, ensuring stable operation in harsh factory conditions. The sensor operates on a 10–30V DC power supply, integrates a 4-pin M12 male connector for quick plug-and-play installation, and requires no complex calibration—making it a cost-effective, low-maintenance solution for high-speed and high-volume production processes. It is certified to international industrial standards, ensuring seamless integration into global automation systems.
2. Main Functions
| Function | Detailed Description |
|---|---|
| Retro-Reflective Object Detection | Emits an infrared beam to a retro-reflective tape and detects target interruption, enabling reliable non-contact detection of objects up to 5 m away. |
| Polarized Optic Anti-Glare Detection | Polarization filter technology eliminates false triggers from reflective backgrounds (e.g., metal, plastic) and ambient light, ensuring precise target identification. |
| PNP NO Digital Output | Delivers a stable PNP normally open signal (max 100 mA) to interface with PLCs, relays, and control systems, enabling real-time process automation and alarm triggering. |
| High-Speed Target Detection | Fast response time and high switching frequency support detection of fast-moving objects on conveyor belts and high-speed assembly lines, minimizing production delays. |
| Harsh Environment Operation | IP67-rated housing protects against dust, water immersion (1 m for 30 mins), and vibration, ensuring consistent performance in demanding industrial settings. |
| Plug-and-Play Integration | 4-pin M12 male connector enables tool-free, secure installation and quick replacement, reducing downtime during maintenance and system reconfiguration. |
| Overload & Short-Circuit Protection | Built-in electronic protection circuitry safeguards the sensor and connected equipment from electrical damage, enhancing long-term system reliability. |
| Wide Voltage Compatibility | Operates on 10–30V DC power, compatible with standard industrial power supplies and flexible for integration into diverse automation setups. |
3. Technical Features
- Polarized Retro-Reflective Optics: Eliminates background reflection and glare interference, ensuring accurate detection of opaque, semi-transparent, and low-reflectivity targets without false triggers.
- High-Power Infrared LED Source: 880 nm wavelength infrared LED provides a strong, focused light beam, maintaining detection reliability even at the maximum 5 m switching distance.
- Compact & Robust Hybrid Casing: ABS plastic body with metal mounting components balances lightweight design and structural durability, fitting into space-constrained installation areas.
- IP67 Ingress Protection: Dust-tight and water-immersion resistant construction protects internal electronic components from industrial contaminants and liquid exposure.
- Maintenance-Free Operation: Factory-calibrated sensitivity and fixed optics eliminate the need for on-site adjustment, reducing operational complexity and maintenance costs.
- Fast Response & Switching Speed: Optimized electronic circuitry delivers ultra-fast response and high switching frequency, ideal for high-throughput automation processes.
- Comprehensive Electrical Protection: Integrates short-circuit, overload, and reverse polarity protection, preventing sensor damage and ensuring safe operation in industrial electrical environments.
- International Standard Compliance: Meets IEC/EN industrial standards for photoelectric sensors, ensuring compatibility and safety for global automation system integration.
4. Product Dimensions (Unit: mm)
| Dimension Parameter | Value |
|---|---|
| Overall Length (L) | 62 |
| Overall Width (W) | 18 |
| Overall Height (H) | 32 |
| Mounting Hole Diameter | 3.5 |
| Mounting Hole Spacing (Center-to-Center) | 50 |
| Light Emission/Reception Window Size | 8 × 12 |
| Connector Protrusion Length | 10 |
| Housing Mounting Thread | M18 × 1 (partial) |

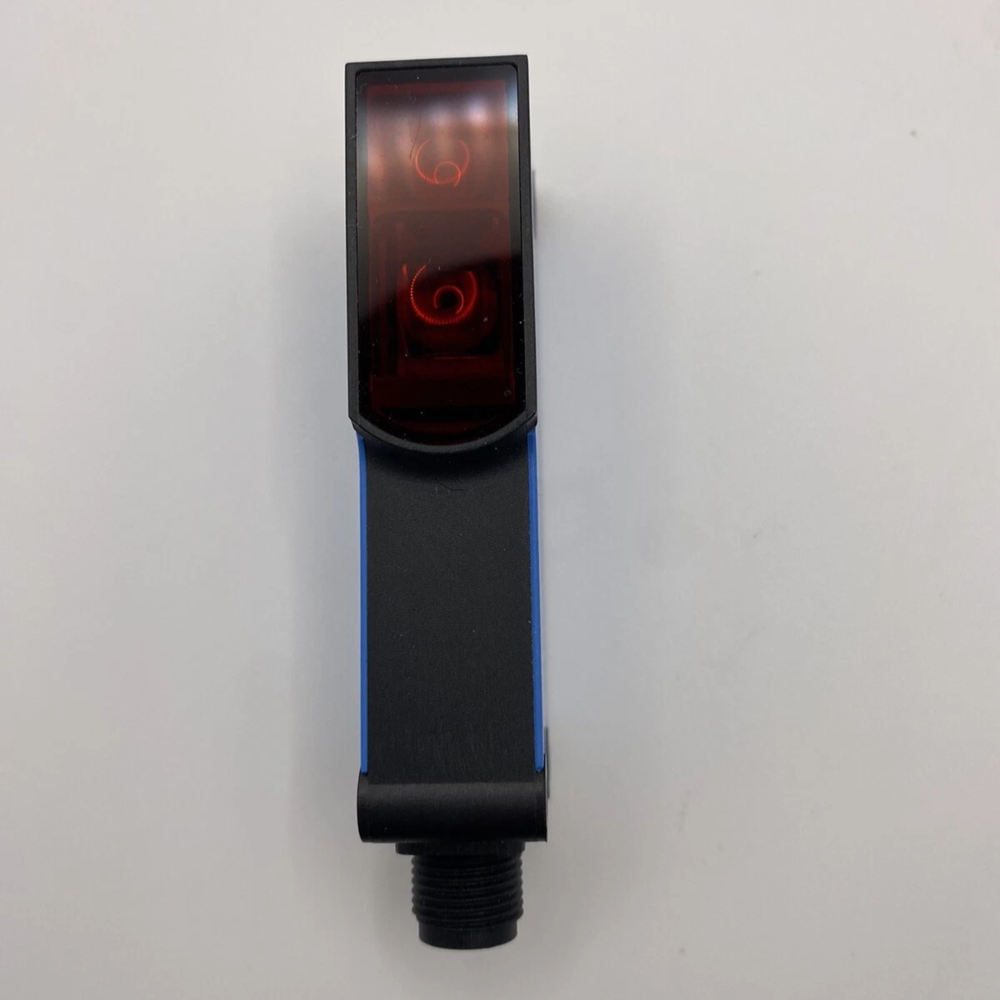

| Front Window Material | PMMA (Acrylic) |

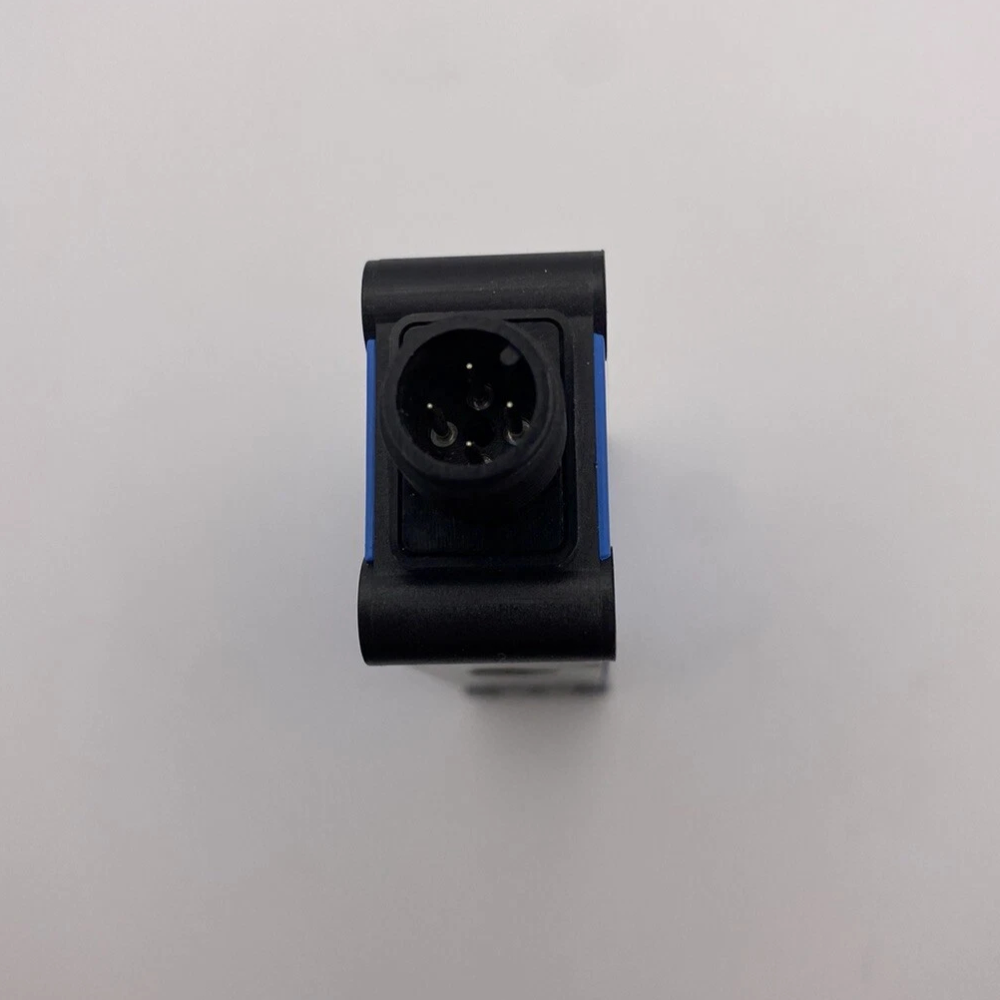

| Connector Type | 4-pin M12 Male (axial) |
5. Weight and Material Specifications
| Component | Material | Weight (g) |
|---|---|---|
| Main Housing | ABS Plastic (flame-retardant) | 35 |
| Mounting Structure | Zinc-Plated Steel | 15 |
| Front Optic Window | PMMA (Acrylic) | 4 |
| Infrared LED & Detector Module | Semiconductor + FR-4 Substrate | 8 |
| Circuit Board Assembly | FR-4 Epoxy Resin + Electronic Components | 12 |
| Seals & O-Rings | Nitrile Rubber (NBR) | 3 |
| 4-Pin M12 Connector | Brass Contacts + PVC Insulation | 7 |
| Total Weight (Assembly) | – | 84 |
6. Key Performance Parameters
| Parameter | Value |
|---|---|
| Detection Principle | Polarized Retro-Reflective |
| Maximum Switching Distance | 5 m (with SICK PL80A retro-reflective tape) |
| Light Source | Infrared LED (880 nm) |
| Output Type | PNP Normally Open (NO) |
| Output Current Capacity | Max 100 mA (30V DC max) |
| Response Time | ≤1 ms |
| Switching Frequency | 500 Hz |
| Supply Voltage Range | 10 – 30V DC |
| Current Consumption (No Load) | ≤15 mA |
| Ambient Light Immunity | 100,000 lx (sunlight), 30,000 lx (artificial light) |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Ingress Protection Rating | IP67 (EN 60529) |
| Vibration Resistance | 10–500 Hz, 2 g (EN 60068-2-6) |
| Shock Resistance | 30 g (11 ms, EN 60068-2-27) |
| Electrical Protection | Short-circuit, overload, reverse polarity |
| Order Number | 1025896 |
