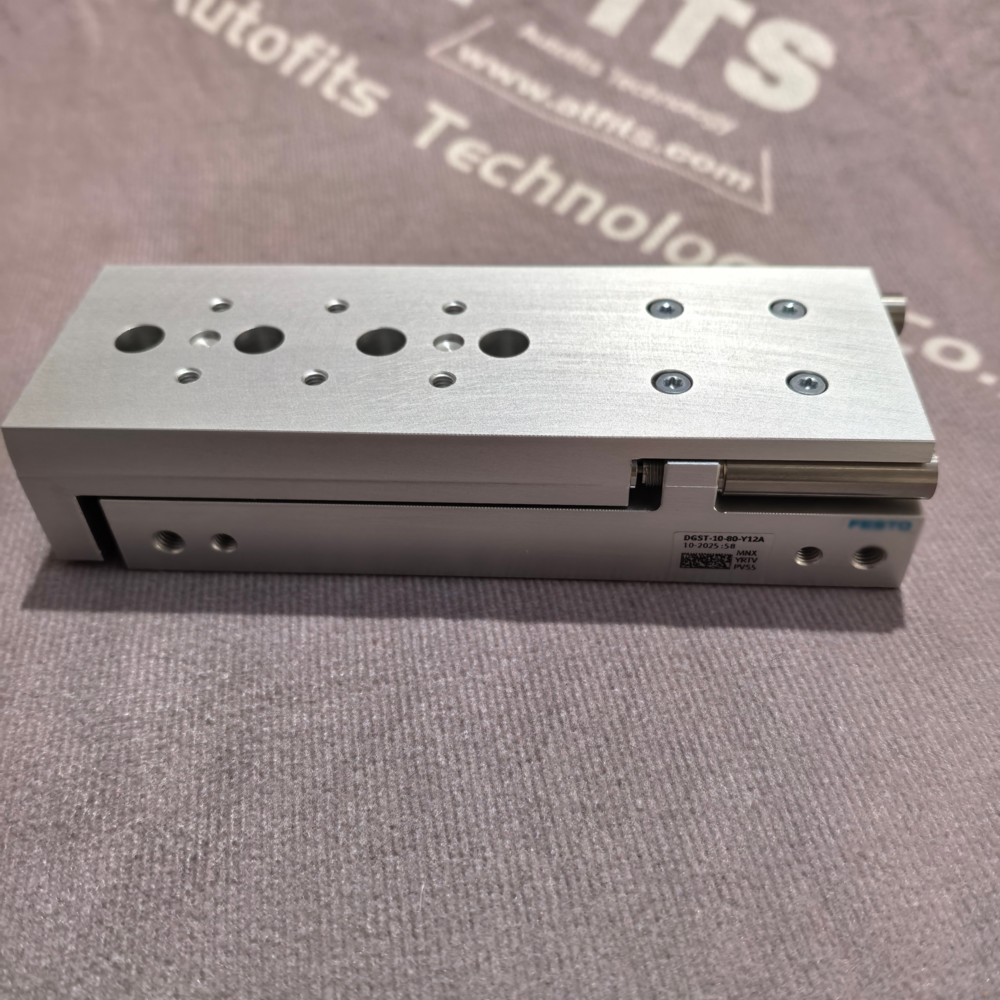

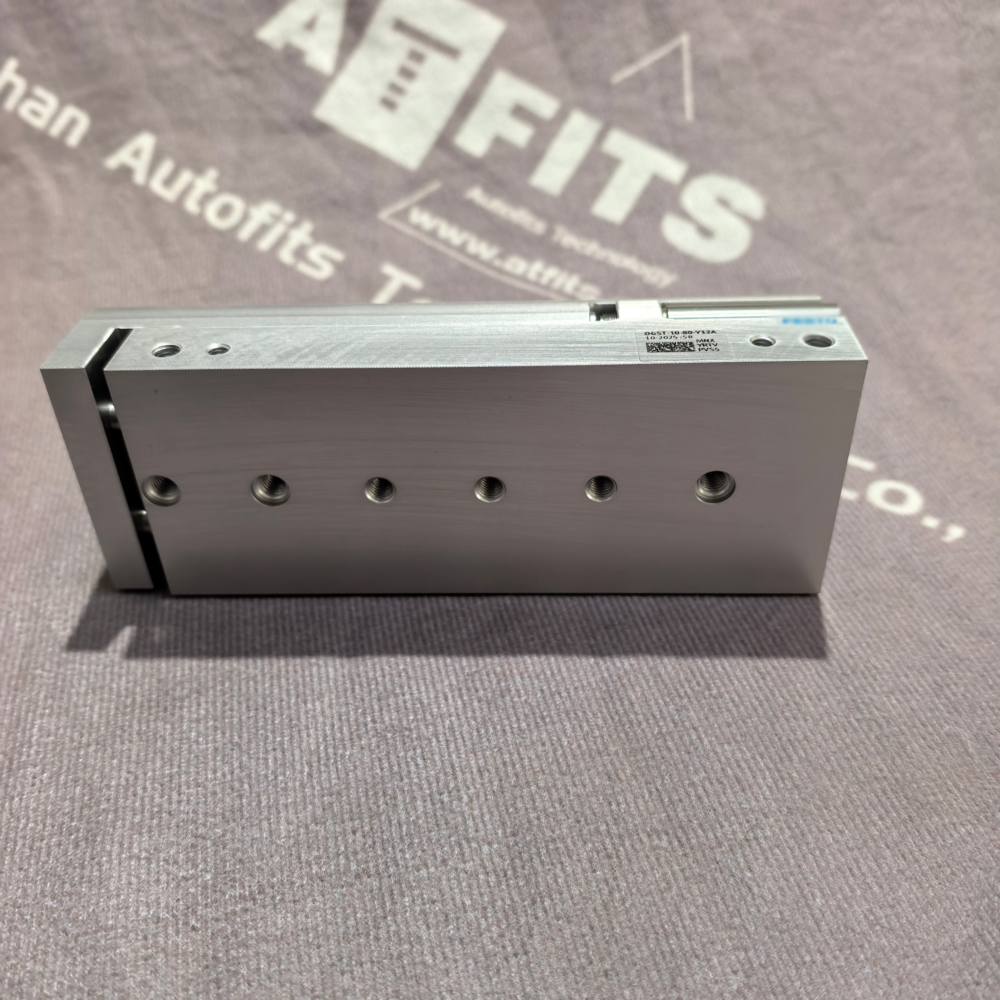

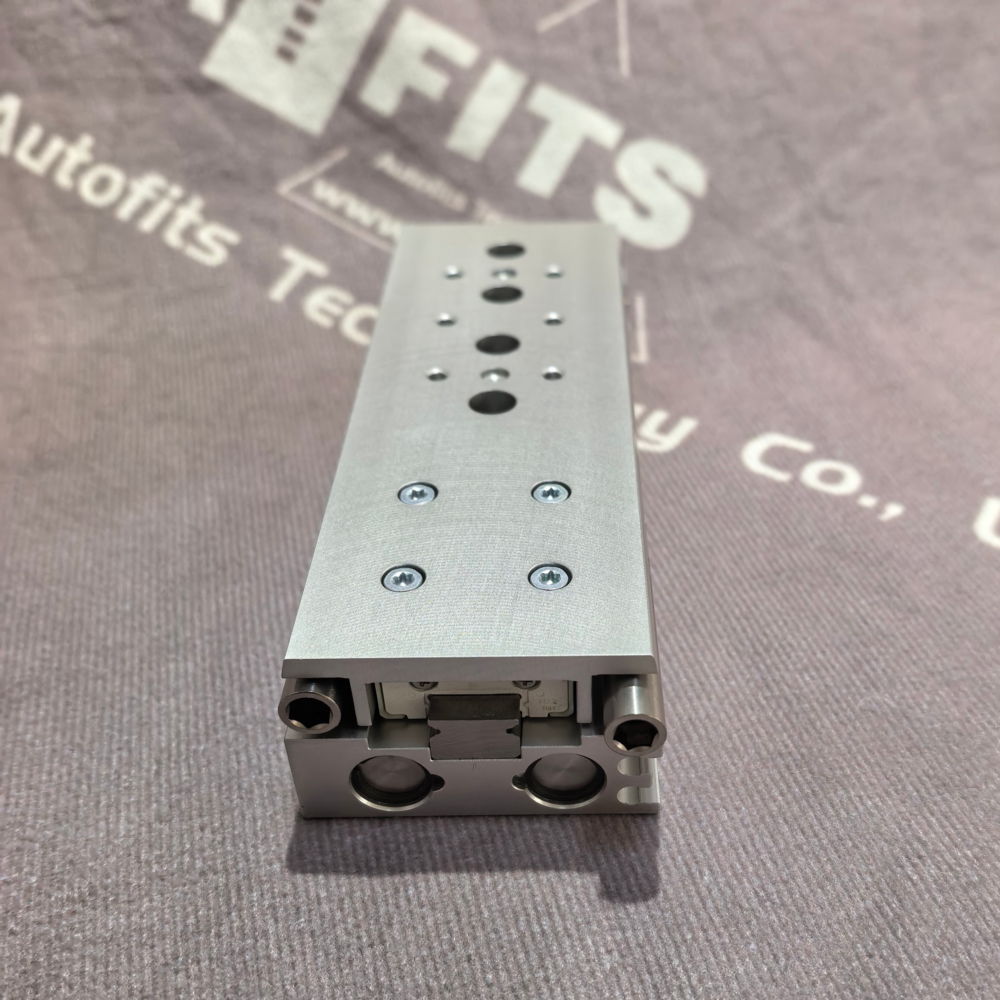

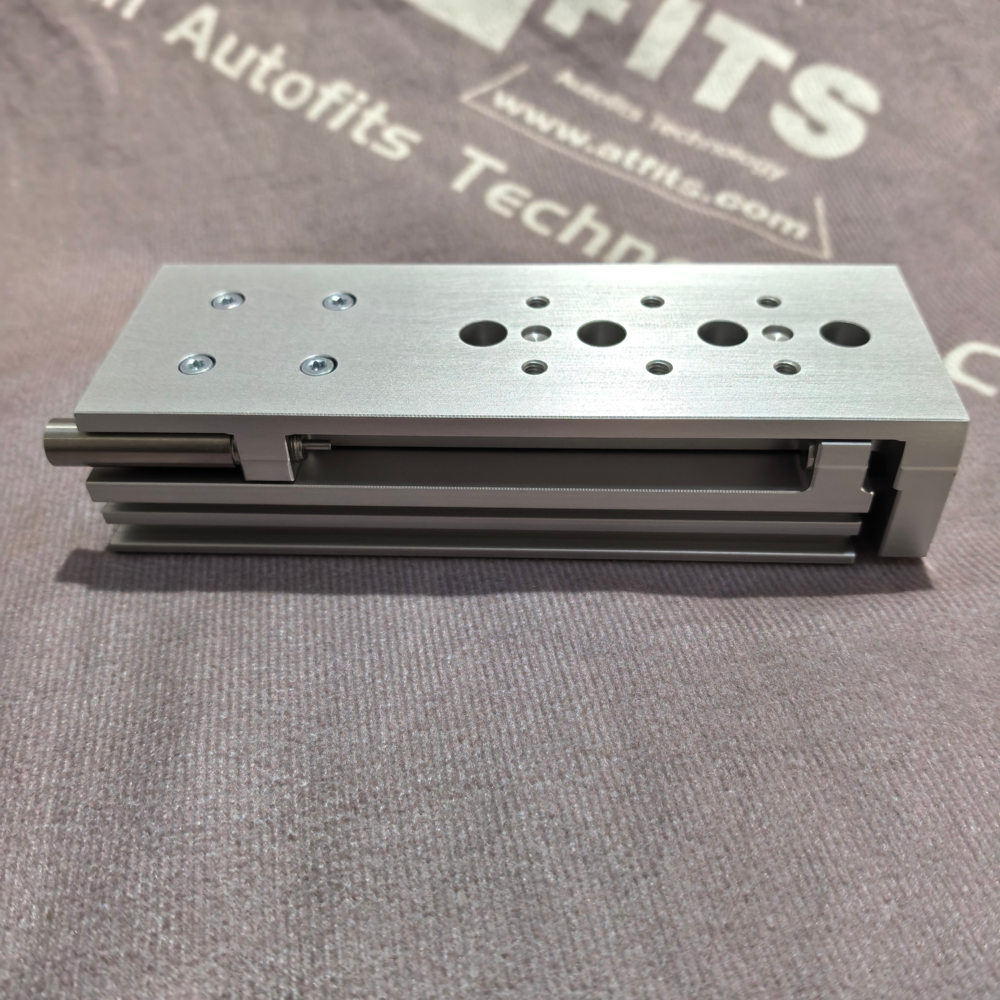

Festo 8085169 DGST-10-80-Y12A Mini slide Guided Cylinder
"*" indicates required fields
New Original Festo 8085169 DGST-10-80-Y12A Mini Slide Guided Cylinder: Detailed Introduction
Product Overview
The Festo 8085169 (DGST-10-80-Y12A) is a compact, high-precision mini slide guided cylinder from the DGST series, designed for linear positioning tasks in confined spaces. Integrating a slide and yoke plate as a single unit, it delivers exceptional rigidity, repeatability, and load capacity, making it ideal for automated assembly, pick-and-place, and testing applications. Equipped with hydraulic end-position cushioning and integrated sensor capability, it ensures shock-free operation and seamless integration into industrial automation systems.
Key Functions
- Precision Linear Motion: Converts compressed air energy into controlled, high-precision linear movement for double-acting loads.
- Integrated Guided Slide: Combined slide-yoke structure eliminates angular misalignment and maximizes stiffness, ensuring stable positioning.
- Hydraulic Cushioning: Absorbs impact at both stroke ends via adjustable hydraulic buffers, protecting the load and extending service life.
- Position Sensing: Features integrated sensor slots for proximity sensors, enabling reliable position detection without external protrusions.
- Dual-Piston Actuation: Provides smooth, consistent force output across the entire stroke for reliable performance.
- Versatile Mounting: Symmetrical through-hole mounting interface allows flexible installation in any orientation.
Technical Characteristics
Core Performance Specifications
表格
| Parameter | Detail |
|---|---|
| Order Number | 8085169 |

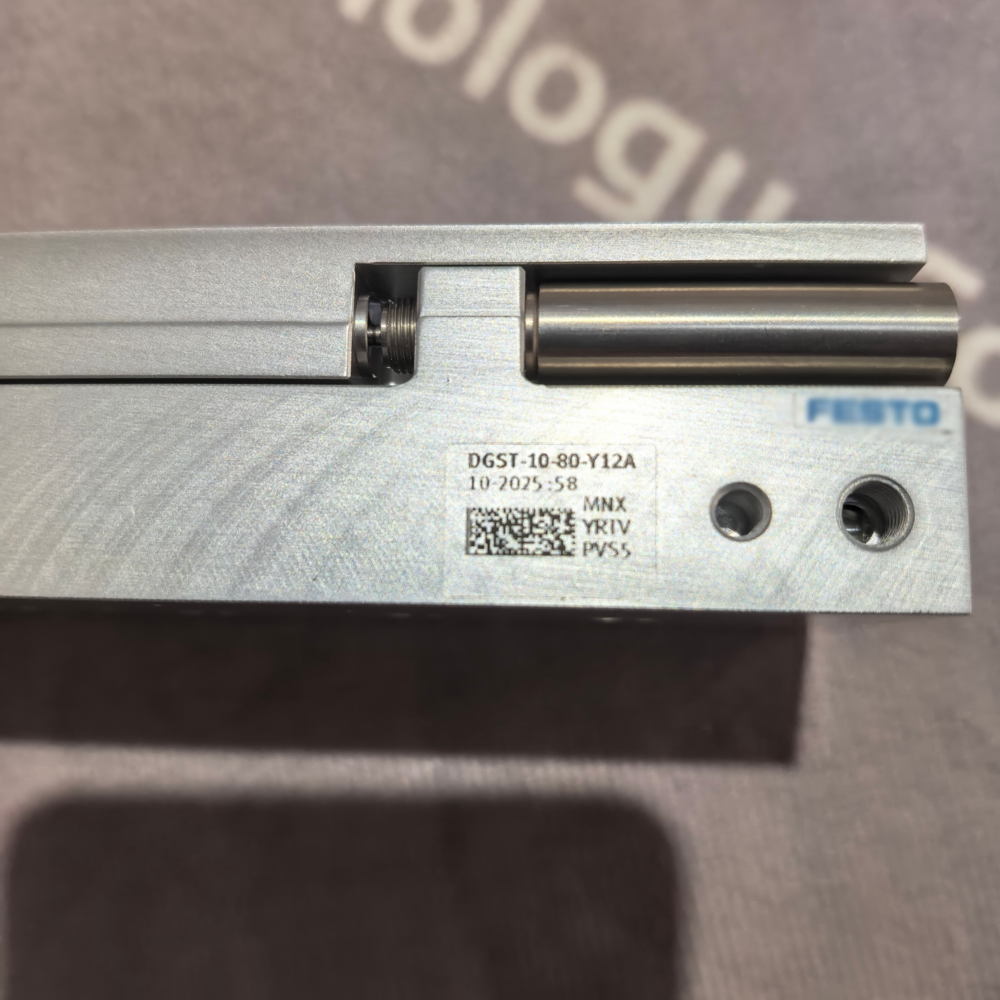

| Model | DGST-10-80-Y12A |
| Operation Mode | Double-acting |
| Piston Diameter | 10 mm |
| Stroke | 80 mm |
| Operating Pressure Range | 1 – 8 bar (0.1 – 0.8 MPa) |
| Theoretical Force (6 bar) | Advancing: 94 N; Retracting: 79 N |
| Max. Force (Fy/Fz) | 520 N |
| Max. Torque (Mx/My/Mz) | 6 Nm / 5 Nm / 5 Nm |
| Max. Speed | 0.8 m/s (800 mm/s) |
| Repeat Accuracy | ≤ 0.02 mm |
| Cushioning | Hydraulic, adjustable at both ends; cushion length 4 mm |
| End Position Impact Energy | 0.8 J |
| Pneumatic Port Thread | M5 |
| Guide Type | Recirculating ball bearing guide |
| Drive Mechanism | Yoke-driven piston |
| Mounting | Through-hole, any position |
| Position Sensing | Proximity sensor compatible (Y12A version) |
| Corrosion Resistance Class (CRC) | 1 (low corrosion stress) |
| Standards Compliance | CE, RoHS, VDMA 24364-B1/B2-L |
| Cleanroom Suitability | Class 6 per ISO 14644-1 |
Material & Construction
表格
| Component | Material / Specification |
|---|---|
| Housing & Cover | Wrought aluminum alloy |
| Slide & Yoke Plate | Integrated aluminum component |
| Guide Components | POM, TPE-E |
| Piston Rod | High-alloy steel |
| Seals | HNBR (oil-resistant, long service life) |
| Cushion Components | Hydraulic fluid + engineered plastics |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4]; lubrication optional (lubricated operation requires continuous lubrication) |
