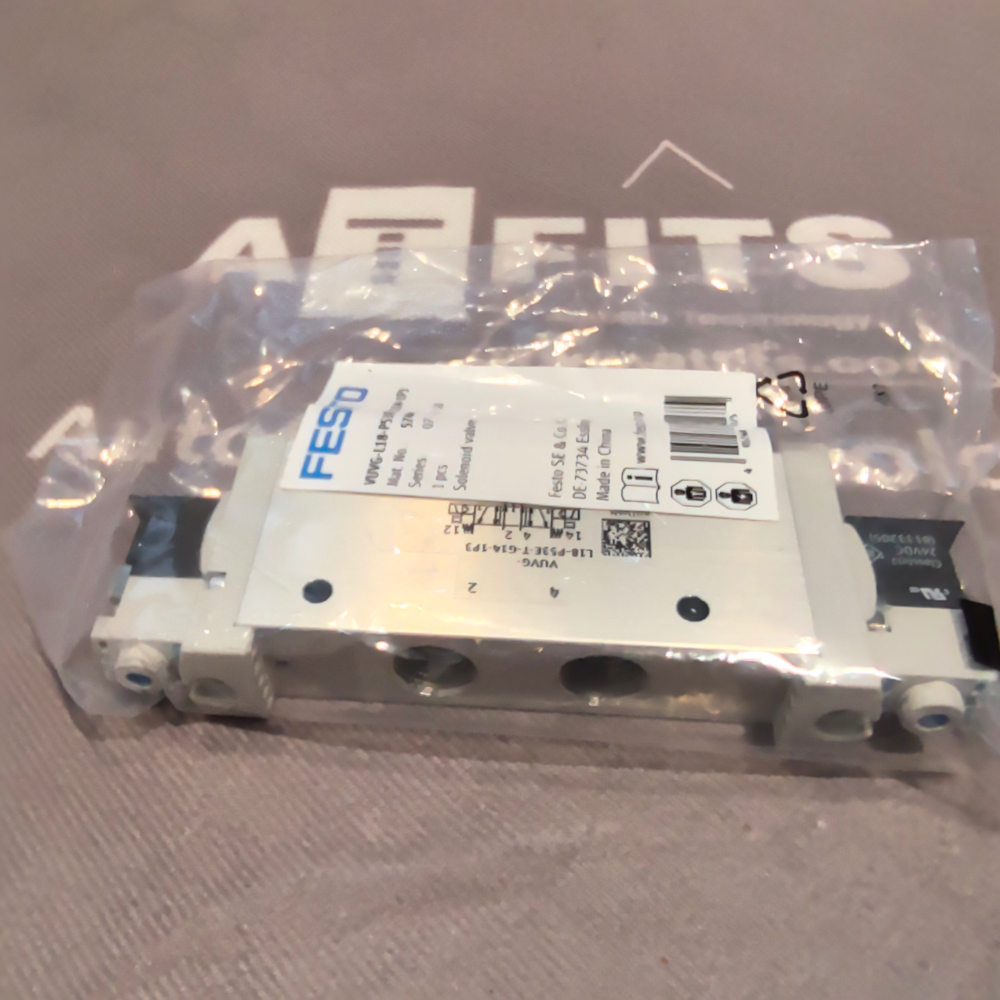

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve (Order Code: 574432) - Image 1

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve (Order Code: 574432) - Image 2

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve (Order Code: 574432)

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve (Order Code: 574432) - Image 3

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve (Order Code: 574432) - Image 4

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve (Order Code: 574432)

"*" indicates required fields

Category: FESTO

Festo VUVG-L18-P53E-T-G14-1P3 Solenoid Valve (Order Code: 574432)

Product Overview

The Festo VUVG-L18-P53E-T-G14-1P3 is a high-performance 5/3-way solenoid valve engineered for directional control of pneumatic actuators in heavy-duty industrial automation systems. As a core member of Festo’s VUVG series, this valve is optimized for high-flow applications, delivering precise air distribution to double-acting cylinders, grippers, and rotary actuators in scenarios such as automotive assembly lines, material handling conveyors, and packaging machinery. Its modular design, robust construction, and standardized interface ensure seamless integration with Festo valve terminals and control systems, while its fast switching speed and low power consumption make it ideal for high-cycle automation processes requiring reliable, energy-efficient operation.

Product Dimensions

Parameter	Specification
Overall Width	32 mm
Overall Height	115 mm
Overall Depth	95 mm
Pneumatic Port Size	G1/4 (inlet/outlet/exhaust)
Electrical Connector Type	3-pin M12 plug-in (A-coded, with polarity protection)
Mounting Hole Pitch	25 mm (center-to-center)
Mounting Compatibility	Panel mounting; compatible with Festo VABM valve manifolds for multi-valve integration

Main Functions

5/3-Way Directional Air Control
- Operates in spring-centered (3-position) mode, enabling three distinct flow states: pressurization of actuator port A, pressurization of actuator port B, and exhaust of both ports (neutral position). This supports precise positioning of double-acting actuators and fail-safe operation in case of power loss.
- Delivers a maximum flow rate of 1400 L/min (at 6 bar inlet pressure), ensuring fast actuation of large-bore cylinders and heavy-load pneumatic devices—critical for high-speed production lines with minimal cycle times.
Electrical Control & Status Monitoring
- Accepts a 24 V DC control signal, compatible with standard PLC digital output modules for direct integration into automated control systems. The plug-in M12 connector enables tool-free wiring and secure, vibration-resistant electrical connection.
- Features a built-in LED status indicator for each solenoid coil, providing clear visual confirmation of coil energization. Maintenance personnel can quickly diagnose power supply faults, signal issues, or valve malfunctions on-site without additional testing equipment.
Modular System Expansion
- Can be installed as a standalone unit or integrated into Festo VABM valve manifolds to create multi-valve control stations, eliminating redundant piping and simplifying pneumatic system design. The valve’s standardized footprint supports quick replacement and system reconfiguration for flexible production needs.
- Compatible with Festo’s full range of pneumatic accessories, including flow regulators, check valves, and exhaust mufflers, to optimize performance for specific application requirements.

Technical Features

High-Speed Performance & Reliability
- Achieves a fast switching time of ≤ 15 ms for both valve opening and closing, ensuring precise synchronization of actuators in high-cycle automation processes. The valve’s balanced spool design minimizes friction and wear, extending service life even under continuous operation.
- Operates within a wide pressure range of 1.5–10 bar, adapting to low and high-pressure pneumatic systems without performance degradation. It maintains stable flow characteristics even with inlet pressure fluctuations.
- Low power consumption: each solenoid coil consumes only 1.5 W of power, reducing energy usage in continuous operation scenarios and lowering overall system operating costs.
Robust Industrial Construction & Durability
- Housing Material: Die-cast aluminum alloy with a corrosion-resistant powder coating, providing excellent resistance to mechanical shock, vibration, and oil mist contamination in harsh manufacturing environments. Internal components are made of nickel-plated brass and stainless steel to ensure long service life.
- Protection Class: IP65 (front side), preventing ingress of dust and water spray—suitable for use in washdown environments and outdoor automation stations with proper sealing.
- Temperature Resistance: Operates reliably in a range of -20 °C to +60 °C, with stable performance even under extreme temperature fluctuations in production facilities such as cold storage and high-heat welding cells.
- Service Life: Up to 50 million switching cycles under standard operating conditions, minimizing replacement frequency and unplanned maintenance downtime.
Compliance & Safety Certification
- Fully compliant with international standards including ISO 15407-2 (pneumatic directional control valves), IEC 60947-5-1 (industrial low-voltage switchgear), CE, and RoHS, ensuring global market compatibility and adherence to environmental regulations.
- Designed with reverse polarity protection and short-circuit protection, safeguarding the valve and connected control systems from electrical faults and enhancing operational safety.

Weight

The net weight of the Festo VUVG-L18-P53E-T-G14-1P3 solenoid valve is approximately 0.75 kg, balancing robust construction with ease of handling during installation, maintenance, and system configuration.
