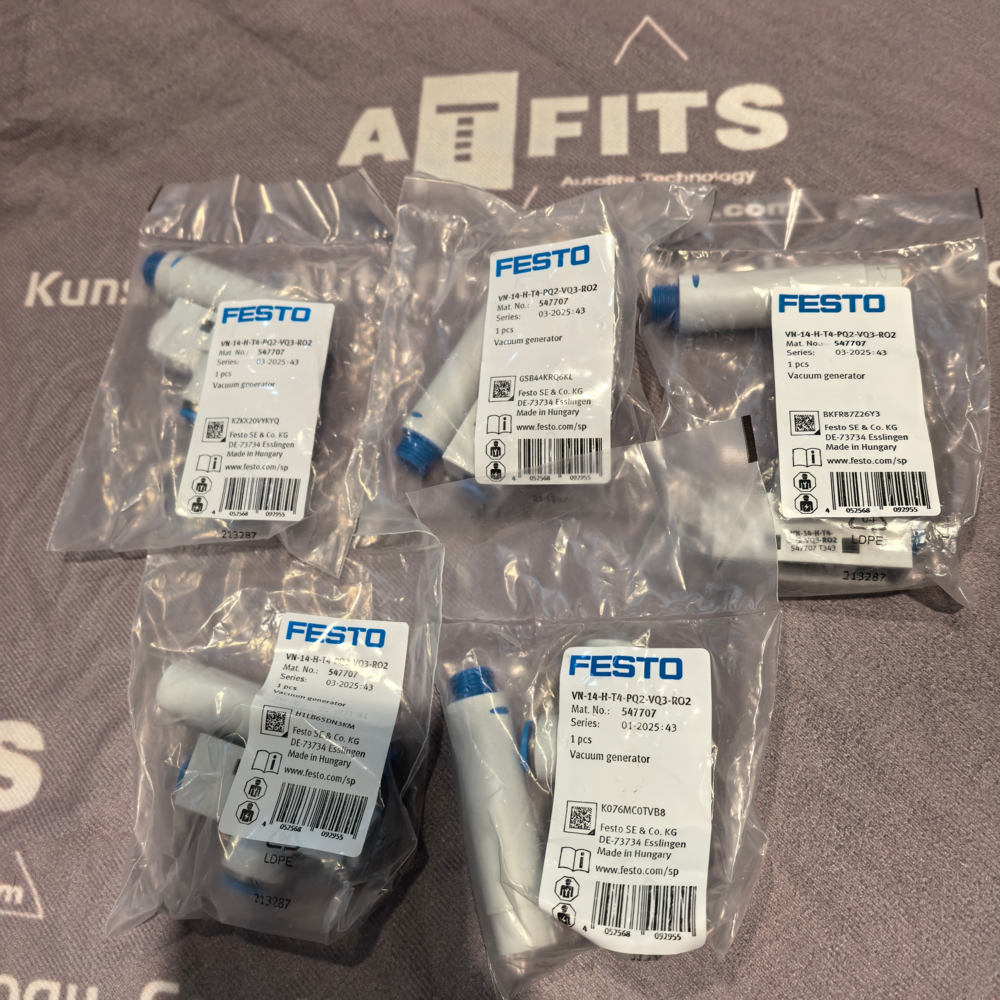

Festo VN-14-H-T4-PQ2-VQ3-RO2 Vacuum Generator (Order Code: 547707) - Image 1

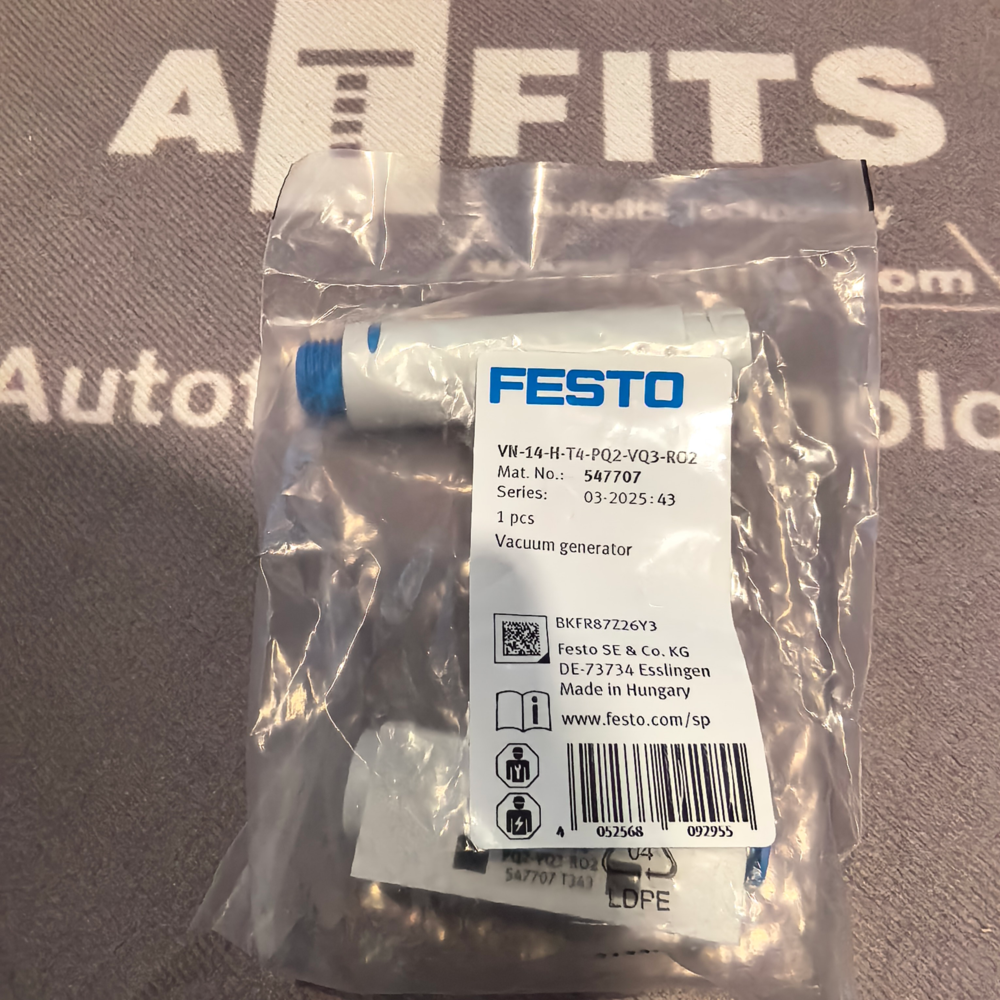

Festo VN-14-H-T4-PQ2-VQ3-RO2 Vacuum Generator (Order Code: 547707) - Image 2

Festo VN-14-H-T4-PQ2-VQ3-RO2 Vacuum Generator (Order Code: 547707)

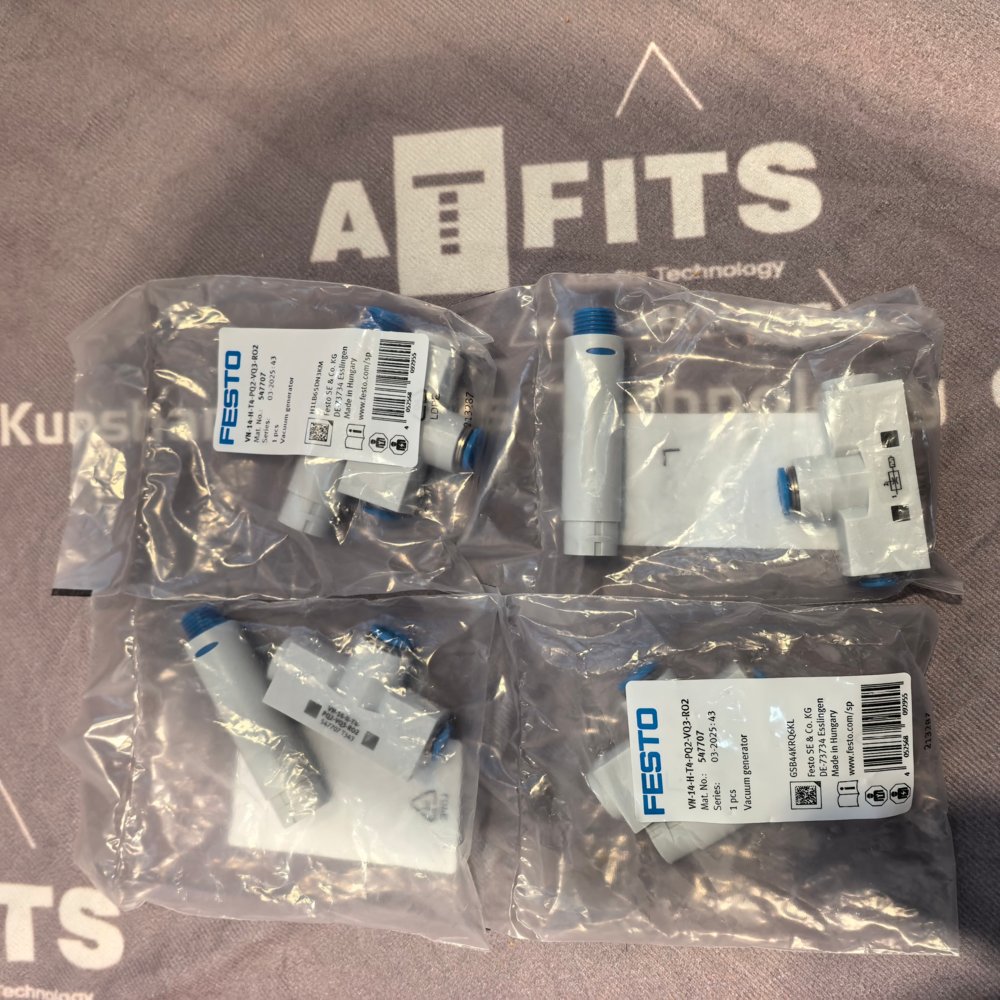

Festo VN-14-H-T4-PQ2-VQ3-RO2 Vacuum Generator (Order Code: 547707) - Image 3

Festo VN-14-H-T4-PQ2-VQ3-RO2 Vacuum Generator (Order Code: 547707) - Image 4

Festo VN-14-H-T4-PQ2-VQ3-RO2 Vacuum Generator (Order Code: 547707)

"*" indicates required fields

Category: FESTO

Festo VN-14-H-T4-PQ2-VQ3-RO2 Vacuum Generator (Order Code: 547707)

Product Overview

The Festo VN-14-H-T4-PQ2-VQ3-RO2 is a high-performance, multi-stage ejector vacuum generator designed for heavy-duty non-contact material handling in industrial automation systems. As a key member of Festo’s VN series, this device generates strong, stable vacuum pressure using only compressed air (no electric power required), making it ideal for applications such as pick-and-place of heavy workpieces, sheet metal handling, packaging line palletizing, and automotive component assembly. Its integrated modular design—combining ejector, throttle valve, dual vacuum ports, and a high-efficiency silencer—eliminates the need for bulky external accessories, optimizing space utilization in compact automation setups. With robust construction and optimized airflow dynamics, it delivers consistent performance in harsh manufacturing environments with minimal maintenance needs.

Product Dimensions

Parameter	Specification
Overall Width	35 mm
Overall Height	78 mm
Overall Depth	65 mm
Compressed Air Inlet Port	G1/4 (threaded)
Primary Vacuum Port (PQ2)	G1/4 (threaded)
Secondary Vacuum Port (VQ3)	G1/8 (threaded)
Exhaust Port (RO2)	Integrated high-flow silencer
Mounting Hole Pitch	28 mm (center-to-center)
Mounting Compatibility	Panel mounting; compatible with Festo vacuum suction cups, grippers, and vacuum distribution manifolds

Main Functions

High-Power Vacuum Generation & Adjustable Performance
- Adopts a multi-stage ejector core to convert 2–6 bar compressed air into a maximum vacuum level of -88 kPa (-0.88 bar), with a peak suction flow rate of 28 L/min. This enables fast pick-up of heavy or porous workpieces (e.g., cardboard boxes, plastic panels, metal sheets) in high-cycle automation processes.
- Features a precision T4 throttle valve for manual adjustment of inlet air pressure, allowing users to fine-tune vacuum generation speed and energy consumption to match specific workpiece characteristics—preventing damage to fragile items while ensuring secure holding of heavy loads.
Dual-Port Vacuum Distribution & System Integration
- Equipped with two independent vacuum ports (G1/4 PQ2 and G1/8 VQ3) to support simultaneous connection to two separate suction cup arrays or gripper systems. This eliminates the need for additional vacuum manifolds, simplifying system layout and reducing installation costs.
- Supports direct integration with Festo vacuum pressure switches via dedicated ports, enabling real-time vacuum level monitoring and feedback to PLCs. This facilitates critical safety functions such as workpiece presence detection, vacuum loss alarm, and automatic release of parts upon completion of handling tasks.
Noise Reduction & Energy Efficiency
- Incorporates a built-in high-flow silencer at the exhaust port, reducing operational noise to ≤ 62 dB(A) (at 6 bar inlet pressure)—complying with strict industrial noise regulations and improving workplace safety.
- Optimized ejector design minimizes compressed air consumption (18 L/min at 6 bar inlet pressure), lowering overall system energy costs compared to single-stage vacuum generators or electric vacuum pumps.

Technical Features

Robust Industrial Construction & Durability
- Housing Material: High-strength glass-reinforced polyamide (UL94 V-0 flame-retardant rating) with corrosion-resistant internal components (stainless steel ejector nozzles, brass valve cores). This ensures long service life in dusty, oil-mist-laden, or humid industrial environments.
- Protection Class: IP65, preventing ingress of dust and water spray—suitable for use in washdown environments (e.g., food packaging lines) and outdoor automation stations with proper sealing.
- Temperature Resistance: Operates reliably in a range of -10 °C to +60 °C, maintaining stable performance even under extreme temperature fluctuations in production facilities.
- Service Life: Up to 25 million cycles under standard operating conditions, minimizing replacement frequency and unplanned maintenance downtime.
Performance Optimization & Operational Flexibility
- Dry Operation Capability: Requires no lubrication, eliminating the risk of oil contamination on workpieces—critical for clean applications such as electronic component handling and food packaging.
- Backpressure Resistance: Maintains consistent vacuum generation even with exhaust backpressure up to 0.6 bar, enabling installation in confined spaces without performance degradation.
- Modular Accessory Compatibility: Supports direct connection to Festo’s full range of vacuum accessories (suction cups, check valves, pressure switches), creating a complete, plug-and-play vacuum handling system for diverse automation tasks.
Compliance & Certification
- Fully compliant with international standards including ISO 6431 (pneumatic components for industrial automation), CE, and RoHS, ensuring global market compatibility and adherence to environmental regulations.
- Each unit undergoes rigorous factory testing for vacuum level accuracy, flow rate performance, and noise reduction efficiency to meet Festo’s strict quality control standards.

Weight

The net weight of the Festo VN-14-H-T4-PQ2-VQ3-RO2 vacuum generator is approximately 0.12 kg (120 grams), making it lightweight and easy to handle during installation, system configuration, and maintenance.
