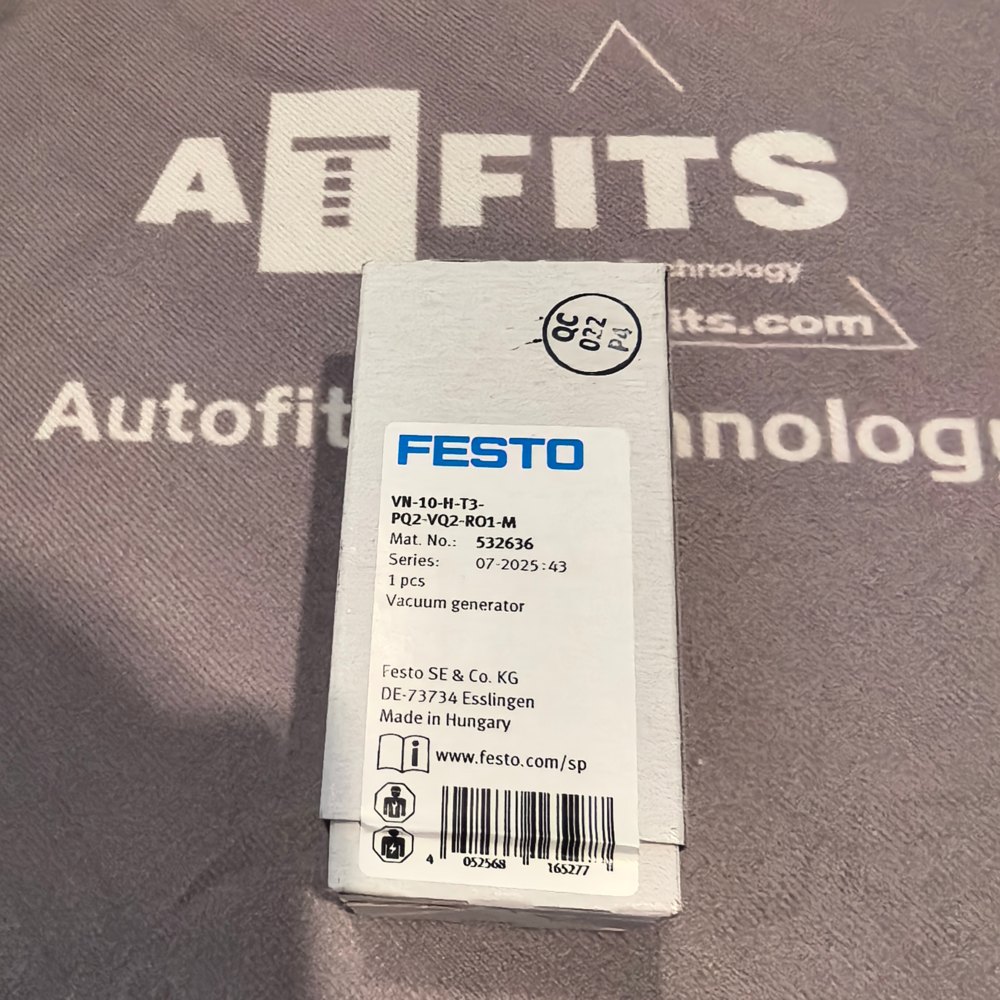

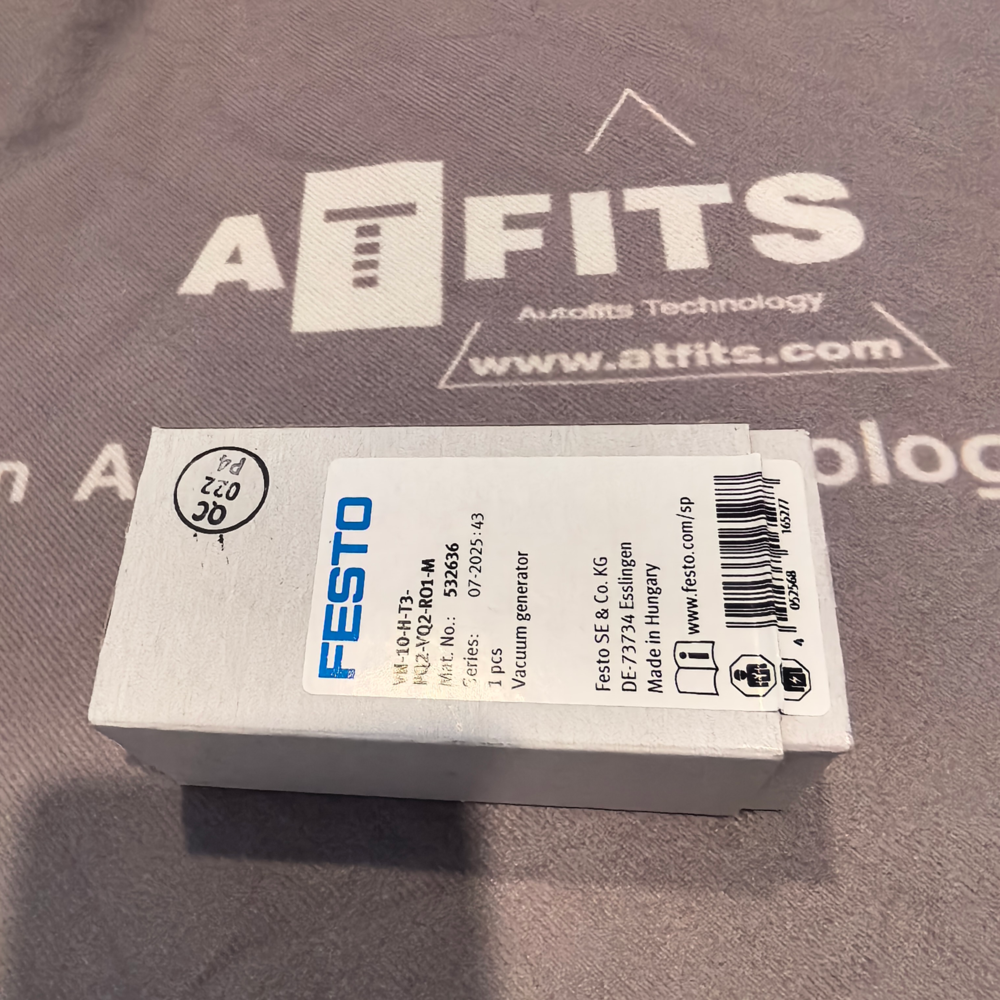

Festo VN-10-H-T3-PQ2-VQ2-RO1-M Vacuum Generator (Order Code: 532636) - Image 1

Festo VN-10-H-T3-PQ2-VQ2-RO1-M Vacuum Generator (Order Code: 532636) - Image 2

Festo VN-10-H-T3-PQ2-VQ2-RO1-M Vacuum Generator (Order Code: 532636)

Festo VN-10-H-T3-PQ2-VQ2-RO1-M Vacuum Generator (Order Code: 532636) - Image 3

Festo VN-10-H-T3-PQ2-VQ2-RO1-M Vacuum Generator (Order Code: 532636) - Image 4

Festo VN-10-H-T3-PQ2-VQ2-RO1-M Vacuum Generator (Order Code: 532636)

"*" indicates required fields

Category: FESTO

Festo VN-10-H-T3-PQ2-VQ2-RO1-M Vacuum Generator (Order Code: 532636)

Product Overview

The Festo VN-10-H-T3-PQ2-VQ2-RO1-M is a compact, high-efficiency multi-stage ejector vacuum generator engineered for non-contact material handling in industrial automation systems. As a core component of Festo’s VN series, this device generates reliable vacuum pressure using compressed air (no electric motor required), making it ideal for applications such as pick-and-place operations, electronic component handling, packaging line labeling, and small-part assembly. Its integrated design—combining ejector, silencer, and vacuum sensing ports—eliminates the need for additional accessories, streamlining system layout and reducing installation space. With robust construction and optimized airflow dynamics, it delivers consistent performance in harsh manufacturing environments with minimal maintenance requirements.

Product Dimensions

Parameter	Specification
Overall Width	28 mm
Overall Height	65 mm
Overall Depth	58 mm
Compressed Air Inlet Port	G1/8 (threaded)
Vacuum Port (PQ2/VQ2)	G1/8 (threaded, dual ports for flexible connection)
Exhaust Port (RO1)	Integrated silencer (no additional port required)
Mounting Hole Pitch	22 mm (center-to-center)
Mounting Compatibility	Panel mounting; compatible with Festo vacuum suction cups and gripper systems

Main Functions

High-Speed Vacuum Generation & Regulation
- Utilizes a multi-stage ejector design to convert compressed air (operating pressure: 2–6 bar) into vacuum pressure with a maximum suction flow rate of 14 L/min and a peak vacuum level of -85 kPa (-0.85 bar). This enables fast pick-up of lightweight workpieces (e.g., plastic parts, paper, circuit boards) in high-cycle automation processes.
- The integrated throttle valve (T3) allows manual adjustment of compressed air input, fine-tuning vacuum generation speed and energy consumption to match specific application requirements (e.g., slow suction for fragile components).
Integrated System Connectivity & Safety
- Features dual vacuum ports (PQ2/VQ2) for parallel connection to multiple suction cups, supporting simultaneous handling of multiple small workpieces without additional vacuum distribution manifolds.
- Equipped with dedicated ports for connecting Festo vacuum pressure switches, enabling real-time vacuum level monitoring and feedback to PLCs. This supports safety functions such as workpiece presence detection and vacuum loss alarm to prevent dropped parts during operation.
Noise Reduction & Energy Efficiency
- Incorporates a built-in silencer at the exhaust port, reducing operational noise to ≤ 60 dB(A) (at 6 bar inlet pressure)—complying with industrial noise regulations and improving workplace safety.
- Optimized ejector design minimizes compressed air consumption (仅 12 L/min at 6 bar inlet pressure), lowering overall system energy costs compared to single-stage vacuum generators.

Technical Features

Robust Industrial Design & Durability
- Housing Material: High-strength glass-reinforced polyamide (UL94 V-0 flame-retardant rating) with corrosion-resistant internal components (stainless steel ejector nozzle, brass valves), ensuring long service life in dusty, oil-mist-laden industrial environments.
- Protection Class: IP65, preventing ingress of dust and water spray—suitable for use in washdown environments and outdoor automation stations with proper sealing.
- Temperature Resistance: Operates reliably in a range of -10 °C to +60 °C, with stable performance even under temperature fluctuations in production facilities.
- Service Life: Up to 20 million cycles under standard operating conditions, minimizing replacement frequency and maintenance downtime.
Performance Optimization & Flexibility
- Dry Operation Capability: Requires no lubrication, eliminating oil contamination risks for sensitive applications such as food packaging and electronic component handling.
- Backpressure Resistance: Maintains stable vacuum generation even with exhaust backpressure up to 0.5 bar, enabling installation in confined spaces without affecting performance.
- Modular Accessory Compatibility: Supports direct connection to Festo vacuum suction cups, check valves, and pressure switches, creating a complete, plug-and-play vacuum handling system.
Compliance & Certification
- Fully compliant with international standards including ISO 6431 (pneumatic components for industrial automation), CE, and RoHS, ensuring global market compatibility and adherence to environmental regulations.
- Meets Festo’s strict quality control standards, with each unit undergoing airflow and vacuum performance testing before factory shipment.

Weight

The net weight of the Festo VN-10-H-T3-PQ2-VQ2-RO1-M vacuum generator is approximately 0.09 kg (90 grams), making it extremely lightweight and easy to handle during installation, system configuration, and maintenance.
