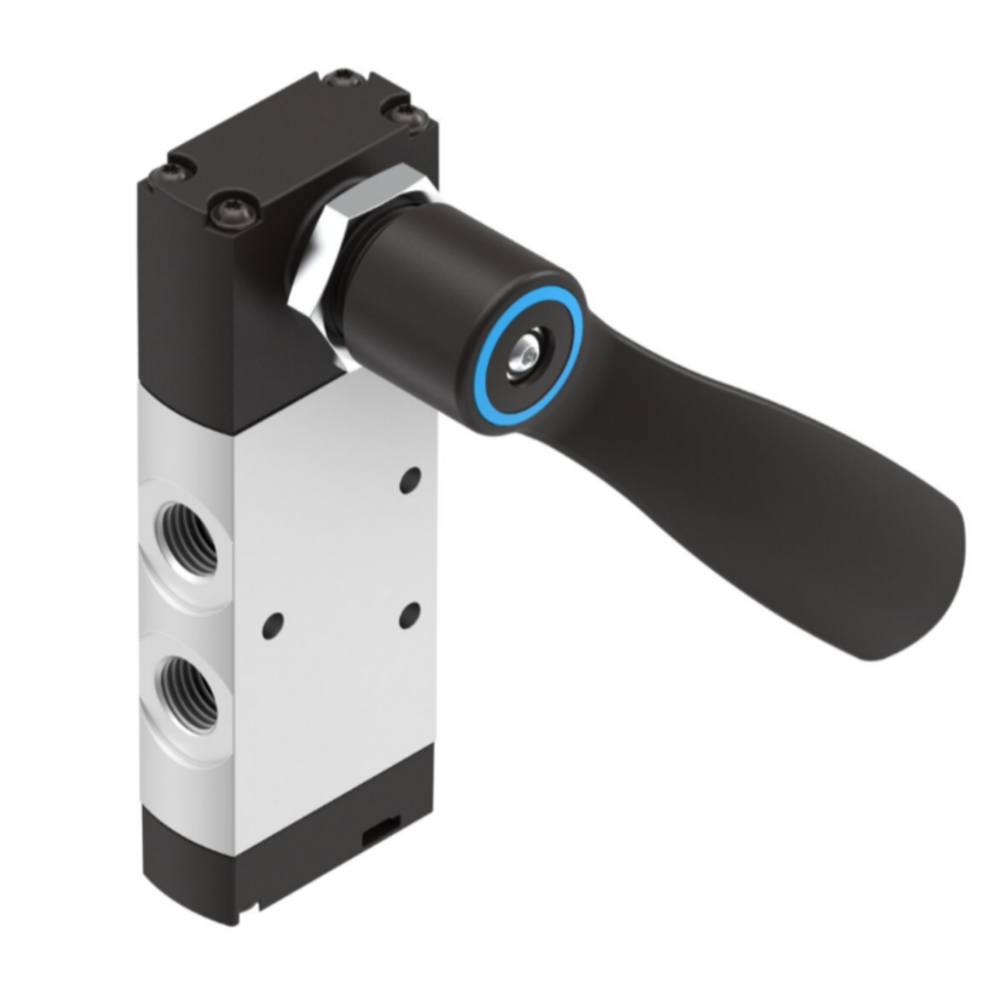

Festo VHEF-HS-P53C-M-G14 Hand Lever Valve (Order Number: 4165858)
Product Overview
The Festo VHEF-HS-P53C-M-G14 (Order Number: 4165858) is a robust 5/3 piston gate hand lever valve with a detenting lever, designed for manual control of pneumatic circuits in industrial automation, packaging, and material handling applications. It features a G1/4 pneumatic connection, soft sealing, and a direct-acting design that operates at -0.095 MPa to 1 MPa (-0.95 bar to 10 bar) with a standard nominal flow rate of 620 l/min (per DIN 1343). Compliant with RoHS and VDMA24364-B1/B2-L (LABS/PWIS), it offers reversible flow direction, any mounting position flexibility, and reliable performance in moderate corrosion stress environments (CRC 2) with media/ambient temperatures from -10°C to +60°C. The die-cast aluminum housing and lever ensure durability, while the detenting lever provides clear position locking for secure circuit control.
Main Functions
| Function | Description |
|---|---|
| Pneumatic Circuit Control | Manually switches between 5/3 mid-position closed (P53C) states to regulate air flow for actuators (e.g., cylinders) in automated processes. |
| Detenting Position Locking | The hand lever locks in three positions (1, 2, 0) to maintain stable valve states, preventing accidental switching during operation. |
| Flow Direction Reversibility | Enables bidirectional air flow to support diverse pneumatic circuit designs and actuator motion requirements. |
| Mid-Position Closed Function | Blocks all ports in the neutral position to hold actuator position securely, reducing air consumption and enhancing system safety. |
| Easy Installation & Maintenance | Front panel mounting with through-hole and G1/4 connections simplify integration; soft NBR seals ensure leak-free operation and easy replacement费斯托. |
Technical Features
Core Performance Metrics
| Metric | Value |
|---|---|
| Valve Function | 5/3 mid-position closed (P53C) |
| Design | Piston gate valve |
| Actuation | Hand lever with detenting |
| Sealing Principle | Soft (NBR seals) |
| Operating Pressure | -0.095 MPa to 1 MPa (-0.95 bar to 10 bar) |
| Standard Nominal Flow Rate | 620 l/min (DIN 1343) |
| Nominal Width | 5.2 mm |
| Max. Switching Frequency | 0.5 Hz |
| Flow Direction | Reversible |
| Mounting Position | Any |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:-:-]) |
| Corrosion Resistance Class | CRC 2 (Moderate Corrosion Stress) |
| Media/Ambient Temperature | -10°C to +60°C |
| Actuating Torque | 0.3 Nm |
| Max. Force on Actuator | 200 N |
| Max. Transverse Load on Actuator | 200 N |
Material & Compliance
| Component | Material | Key Properties |
|---|---|---|
| Housing | Die-cast aluminum | Lightweight, durable, corrosion-resistant (CRC 2) |
| Lever | Die-cast aluminum | Sturdy, ergonomic for manual operation |
| Seals | NBR | Oil-resistant, reliable sealing, RoHS-compliant |
| Compliance | RoHS, VDMA24364-B1/B2-L (LABS/PWIS) | Meets global environmental and industrial standards |
Product Dimensions & Weight
| Parameter | Value |
|---|---|
| Pneumatic Connections (Ports 1,2,3,4,5) | G1/4 |
| Mounting Type | Front panel mounting with through-hole |
| Construction Width | 18 mm |
| Product Weight | 235 g (minor batch variations) |
| Material – Housing | Die-cast aluminum |
| Material – Lever | Die-cast aluminum |
| Seal Material | NBR |
Installation & Safety Guidelines
- Mounting: Secure to the front panel via through-hole with appropriate fasteners; ensure lever accessibility for manual operation费斯托.
- Pressure Compliance: Operate within -0.095 MPa to 1 MPa; avoid exceeding 1 MPa to prevent seal damage.
- Temperature Limits: Do not use outside -10°C to +60°C to maintain seal elasticity and valve performance.
- Lever Operation: Use the detenting lever to lock positions firmly; avoid excessive force to prevent lever or valve damage.
- Seal Maintenance: Inspect NBR seals periodically for wear; replace if leaks occur to ensure optimal performance and safety费斯托.
