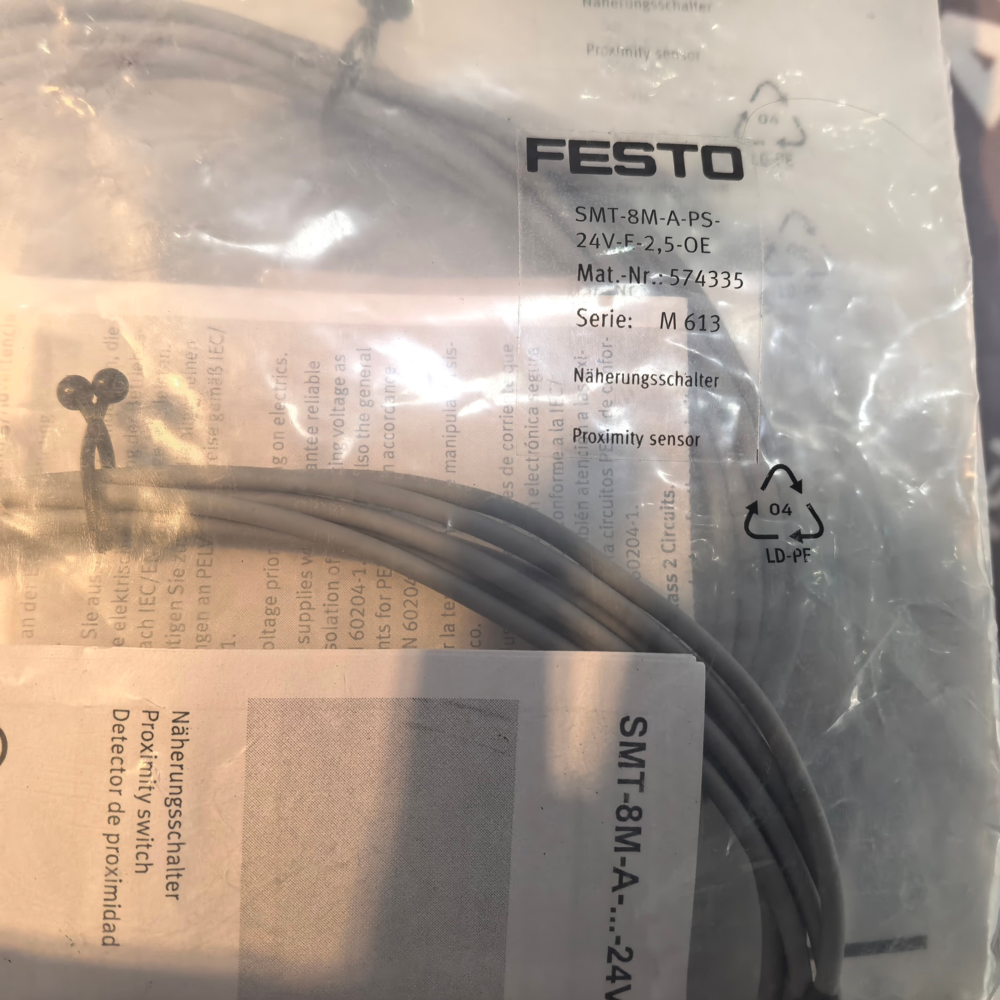

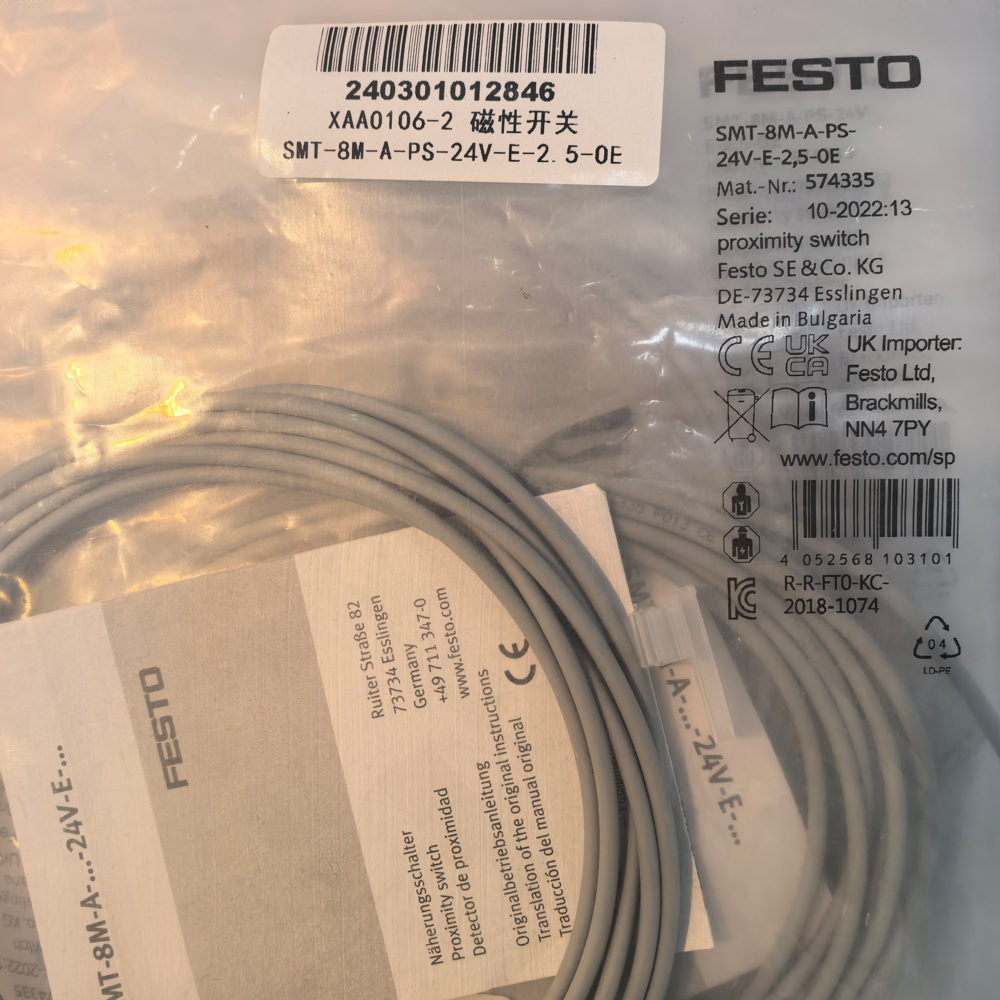

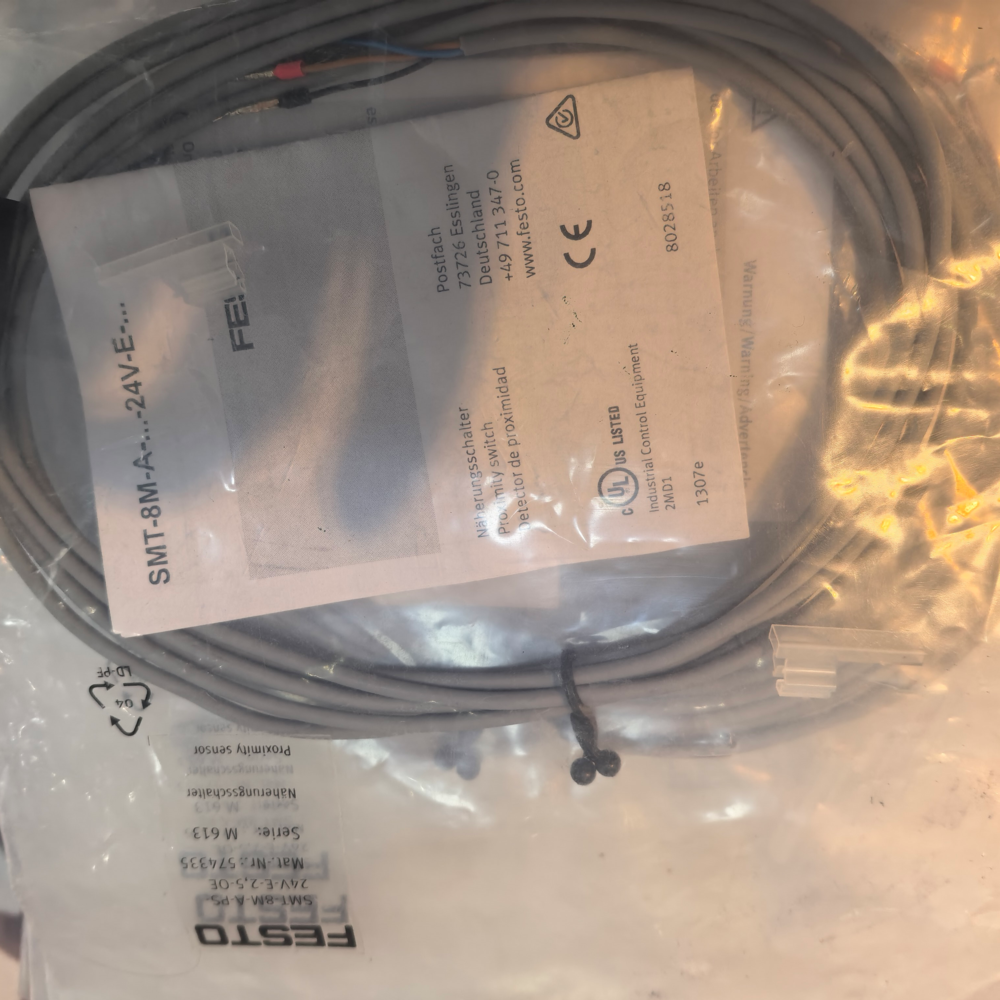

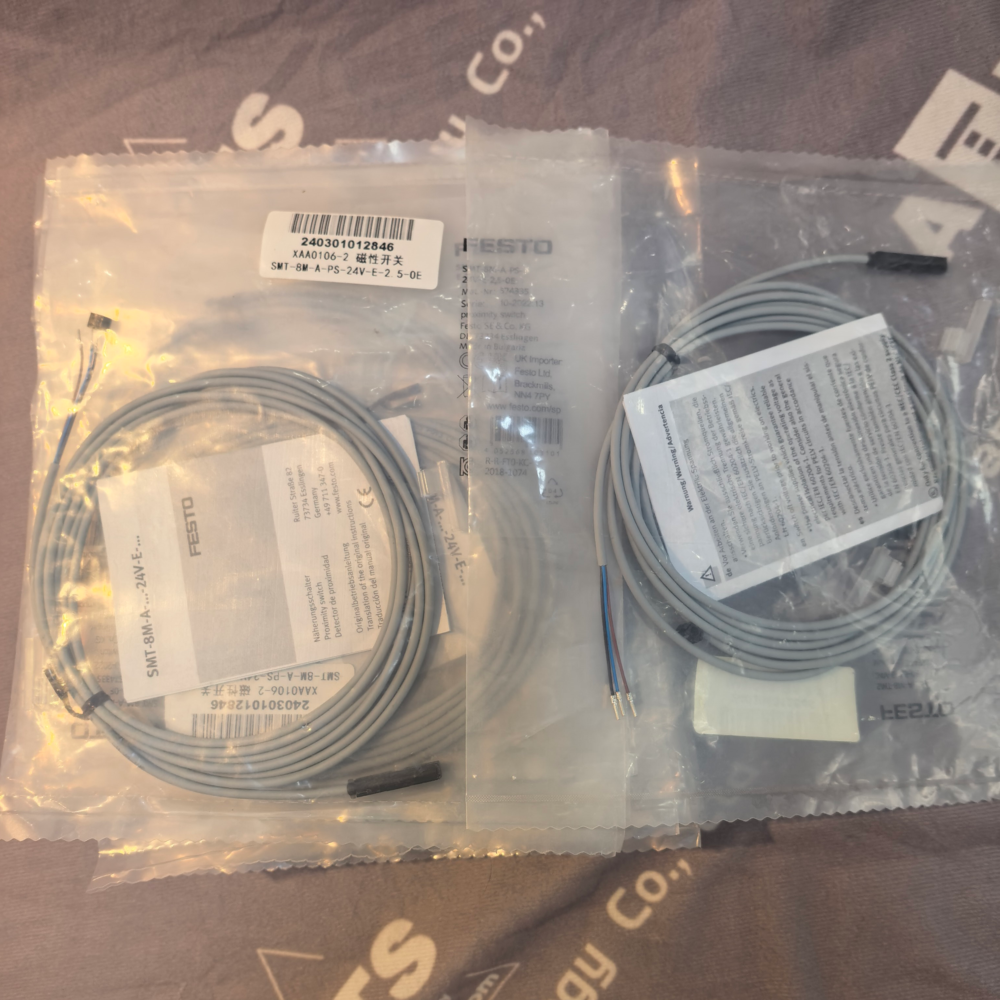

Festo SMT-8M-A-PS-24V-E-2,5-OE Proximity Sensor (Order Code: 574335)
Product Overview
The Festo SMT-8M-A-PS-24V-E-2,5-OE (Order Code: 574335) is a compact inductive proximity sensor belonging to Festo’s SMT series, engineered for non-contact position detection in industrial automation systems. Optimized for direct mounting on Festo’s T-slot profile pneumatic cylinders, actuators and grippers, it features an M8 cylindrical housing, a 2.5 mm nominal sensing distance and PNP normally open output, delivering high-precision position feedback for automated motion control. With a 24V DC power supply (10–30V DC operating range), 2.5 m pre-wired M12 connector cable and IP67 protection, it operates reliably in harsh industrial environments with dust, moisture and coolants. RoHS and CE compliant, this sensor integrates overload, short-circuit and reverse polarity protection, making it a durable, plug-and-play solution for assembly lines, material handling, packaging machinery and other pneumatic automation applications.
Main Functions
| Function | Description |
|---|---|
| Non-Contact Metallic Position Detection | Detects ferrous/non-ferrous metal targets at 2.5 mm without physical contact, eliminating wear on the sensor and target for long service life. |
| Festo Actuator Compatibility | Designed for direct T-slot mounting on Festo cylinders, linear drives and rotary actuators, providing real-time extend/retract position feedback for PLC control. |
| Plug-and-Play Electrical Integration | Comes with a 2.5 m pre-wired cable and M12 4-pin male connector for fast, tool-free connection to standard industrial control systems. |
| Industrial Environmental Resistance | IP67 hermetic sealing prevents ingress of dust, water and industrial coolants/oils, ensuring stable operation in harsh factory conditions. |
| Integrated Electronic Protection | Built-in protection against short circuits, overloads and reverse polarity connection reduces downtime and prevents sensor damage from wiring errors. |
Technical Features
| Characteristic | Specification |
|---|---|
| Order Code | 574335 |
| Sensor Series | SMT-8M |
| Sensor Type | Inductive proximity sensor |
| Nominal Sensing Distance | 2.5 mm |
| Sensing Range Tolerance | ±10% (under standard ambient conditions) |
| Output Configuration | PNP normally open (NO), DC 3-wire |
| Power Supply Voltage | 10 – 30 V DC (nominal: 24 V DC) |
| No-Load Current Consumption | ≤10 mA |
| Maximum Switching Current | 200 mA |
| Maximum Switching Frequency | 1000 Hz |
| Repeat Accuracy | ≤0.05 mm |
| Protection Class | IP67 |
| Electrical Connection | 2.5 m PVC cable with M12 x 1 male connector (4-pin) |
| Mounting Type | Integrated T-slot clip (for Festo profile actuators) |
| Ambient Temperature Range | -25 °C to +70 °C |
| Target Material | Ferrous metals (optimal); non-ferrous metals (reduced sensing distance) |
| Compliance | CE marked, RoHS compliant |
| Vibration Resistance | 10 – 500 Hz, 10 g (IEC 60068-2-6) |
| Shock Resistance | 50 g (11 ms, IEC 60068-2-27) |
Product Dimensions (mm)
| Dimension | Value |
|---|---|
| Housing Diameter (M8) | 8 |
| Housing Length (excl. cable/connector) | 32 |
| Sensing Face Diameter | 6 |
| T-slot Mounting Tab Width | 6 |
| T-slot Mounting Tab Thickness | 1.5 |
| M12 Connector Body Diameter | 12 |
| Cable Outer Diameter | 3 |
| Cable Total Length | 2500 |
| Distance from Mount Tab to Sensing Face | 18 |
Weight
| Item | Typical Weight (minor batch variations) |
|---|---|
| Total Product Weight | 28 g (0.028 kg) |
| Sensor Housing (including mounting clip) | 12 g |
| M12 4-pin Connector | 5 g |
| 2.5 m PVC Cable | 11 g |
| Packaging Weight (single unit) | 8 g |
