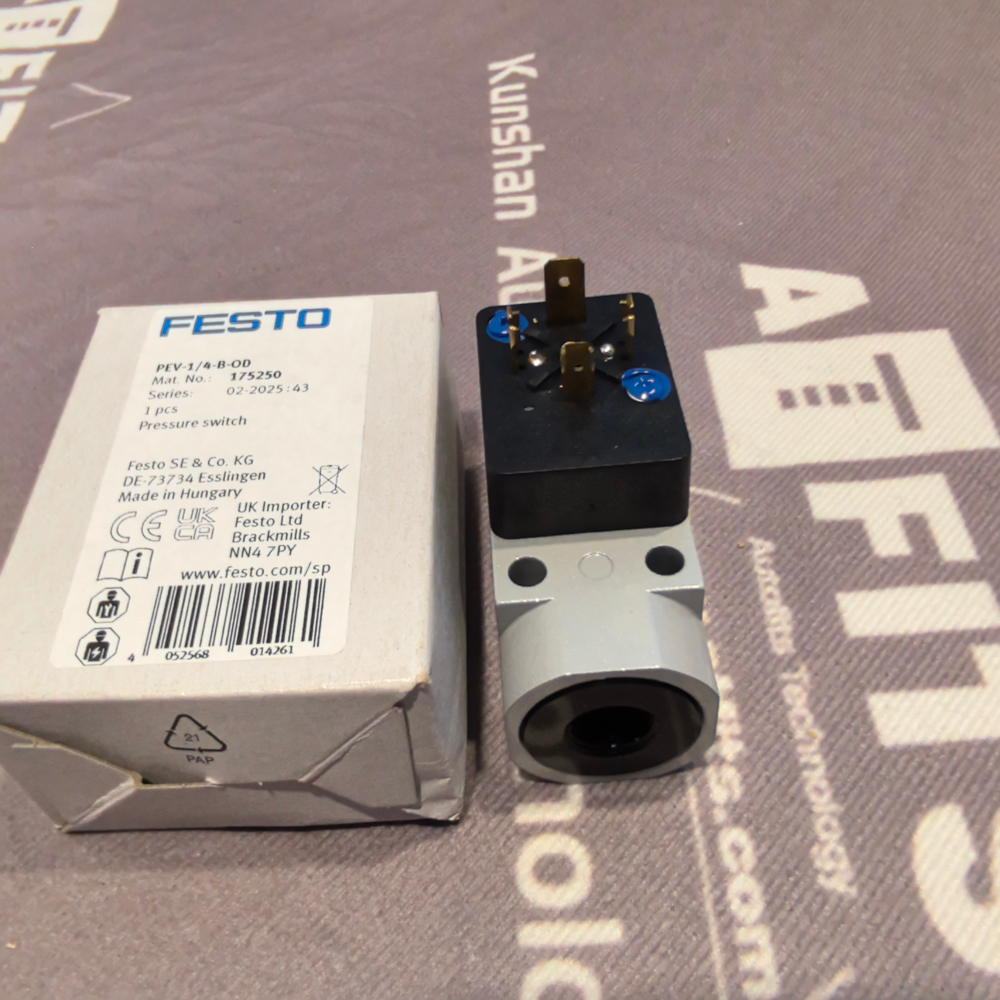

Festo PEV-1/4-B-OD Pressure Switch (Order Code: 175250) - Image 1

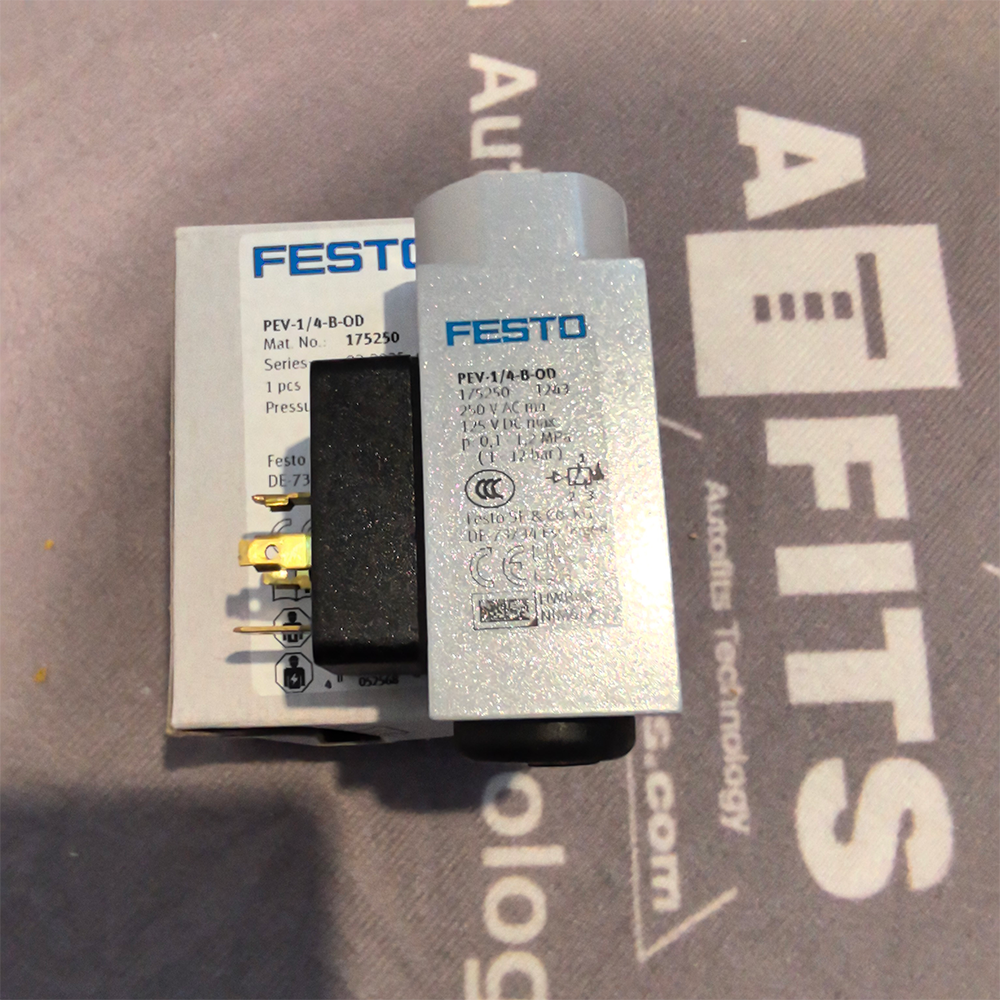

Festo PEV-1/4-B-OD Pressure Switch (Order Code: 175250) - Image 2

Festo PEV-1/4-B-OD Pressure Switch (Order Code: 175250)

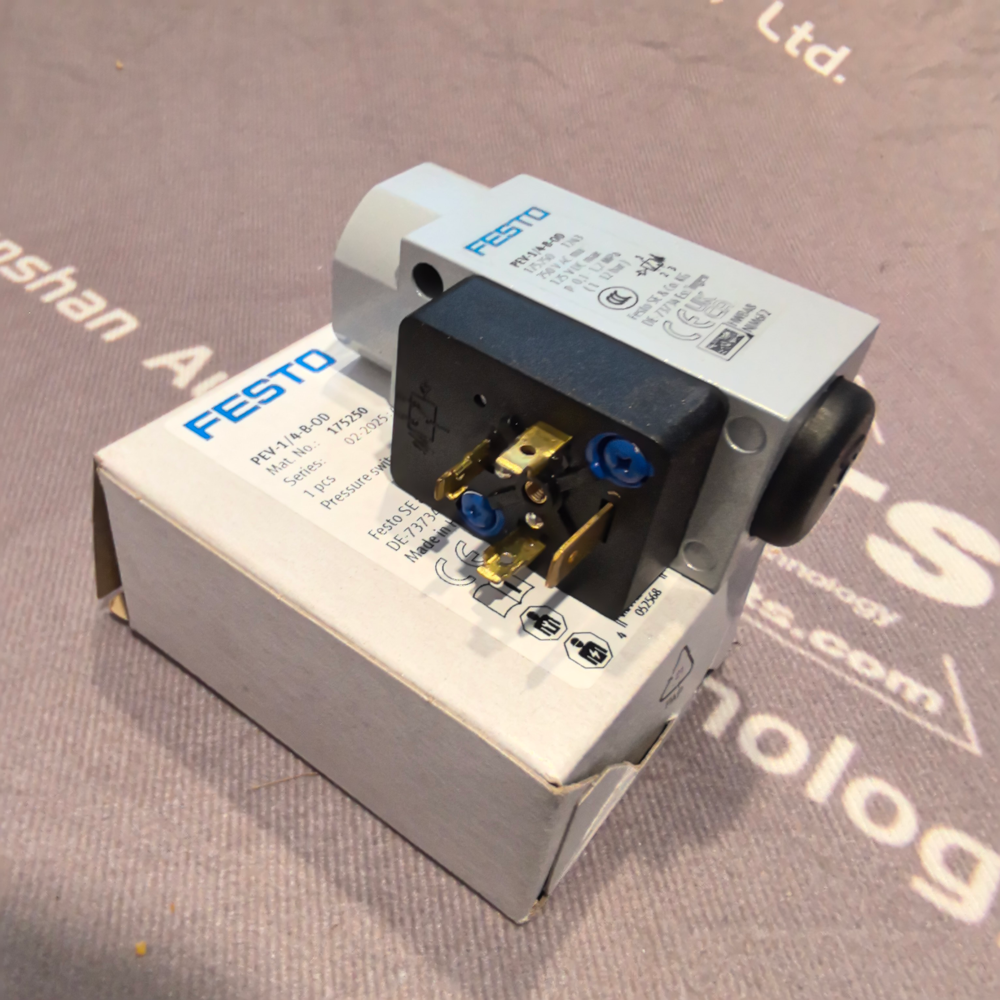

Festo PEV-1/4-B-OD Pressure Switch (Order Code: 175250) - Image 3

Festo PEV-1/4-B-OD Pressure Switch (Order Code: 175250) - Image 4

Festo PEV-1/4-B-OD Pressure Switch (Order Code: 175250)

"*" indicates required fields

Category: FESTO

Festo PEV-1/4-B-OD Pressure Switch (Order Code: 175250)

Product Overview

The Festo PEV-1/4-B-OD is a compact, mechanical pressure switch engineered for reliable pressure monitoring and control in industrial pneumatic systems. As a key component of Festo’s PEV series, this device is designed to detect preset pressure thresholds and trigger electrical signal outputs for automation control or alarm systems. It is ideal for applications such as pressure monitoring of air preparation units, cylinder end-position confirmation, and low-pressure fault detection in automotive assembly lines, packaging machinery, and material handling equipment. Its robust construction, simple adjustment mechanism, and standardized interface ensure seamless integration and long-term stable operation in harsh industrial environments.

Product Dimensions

Parameter	Specification
Overall Width	32 mm
Overall Height	65 mm
Overall Depth	48 mm
Pneumatic Port Size	G1/4
Electrical Connector Type	3-pin plug-in (DIN 43650 A-code)
Mounting Hole Pitch	25 mm (center-to-center)
Mounting Compatibility	Panel mounting; direct connection to pneumatic pipelines or manifolds

Main Functions

Precision Pressure Detection & Threshold Triggering
- Monitors pneumatic system pressure and activates an electrical switch output when the pressure reaches the user-presetted value. It supports both rising-pressure (NO, normally open) and falling-pressure (NC, normally closed) switching modes, covering diverse application needs for pressure control and alarm.
- Features an adjustable pressure range of 0.2–10 bar, allowing users to fine-tune the trigger threshold according to specific system requirements (e.g., low-pressure alarm at 0.5 bar, high-pressure cutoff at 8 bar).
Signal Integration for Automation Control
- Converts pressure status into a standard electrical signal (rated for 250 V AC / 30 V DC, 4 A), compatible with PLCs, relays, and indicator lights for seamless integration into automated control systems. This enables functions such as automatic pressure compensation of air preparation units, cylinder stroke confirmation, and system fault shutdown.
- The plug-in electrical connector design ensures tool-free wiring and quick disconnection for maintenance, reducing system downtime.
Visual Pressure Status Indication
- Equipped with a built-in mechanical indicator that provides clear visual confirmation of the switch’s on/off status, allowing maintenance personnel to quickly check pressure conditions on-site without additional instruments.

Technical Features

Robust Mechanical Design & Durability
- Housing Material: Die-cast zinc alloy with a corrosion-resistant coating, providing excellent resistance to mechanical shock, vibration, and ambient moisture in industrial environments. Internal components are made of high-strength steel and polymer to ensure long service life.
- Protection Class: IP65, protecting the switch from dust, water spray, and oil contamination—suitable for use in harsh manufacturing settings such as welding cells and machining workshops.
- Temperature Resistance: Operates reliably in a temperature range of -10 °C to +60 °C, ensuring stable performance across varying industrial temperature conditions.
- Service Life: Up to 10 million switching cycles under standard operating conditions, minimizing replacement frequency and maintenance costs.
High Performance & Operational Flexibility
- Delivers precise pressure switching with a repeatability of ±0.1 bar, ensuring consistent trigger accuracy even under dynamic pressure fluctuations. The snap-action switch mechanism provides fast, bounce-free signal output for reliable control system response.
- Supports a maximum permissible pressure of 16 bar, withstanding short-term pressure surges in pneumatic systems without damage.
- The compact, lightweight design enables installation in tight spaces, such as within control cabinets or on small-diameter pneumatic pipelines.
Compliance & Safety Certification
- Fully compliant with international standards including IEC 60947-5-1 (industrial low-voltage switchgear) and CE certification, ensuring adherence to global safety and quality requirements.
- RoHS-compliant design eliminates hazardous substances, making it suitable for use in environmentally sensitive applications and markets.

Weight

The net weight of the Festo PEV-1/4-B-OD pressure switch (order code 175250) is approximately 0.18 kg, making it lightweight and easy to handle during installation, maintenance, and system configuration.
