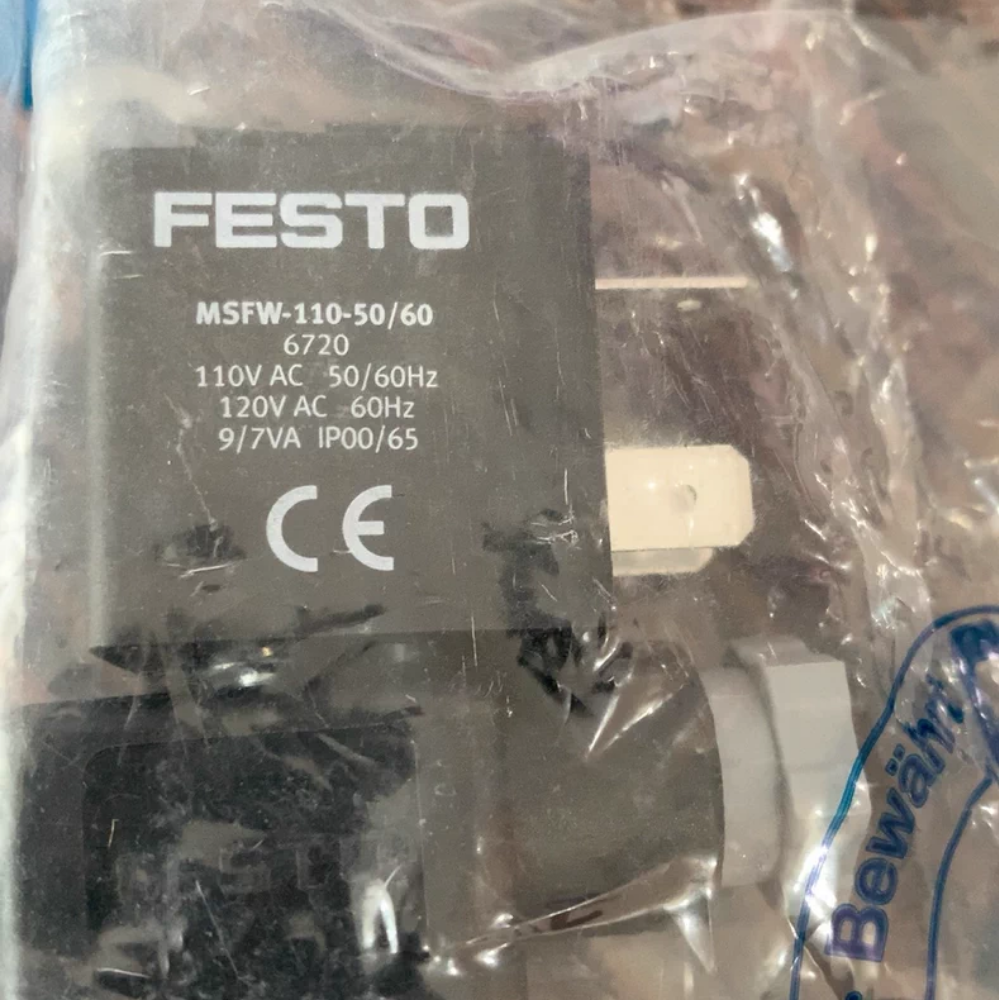

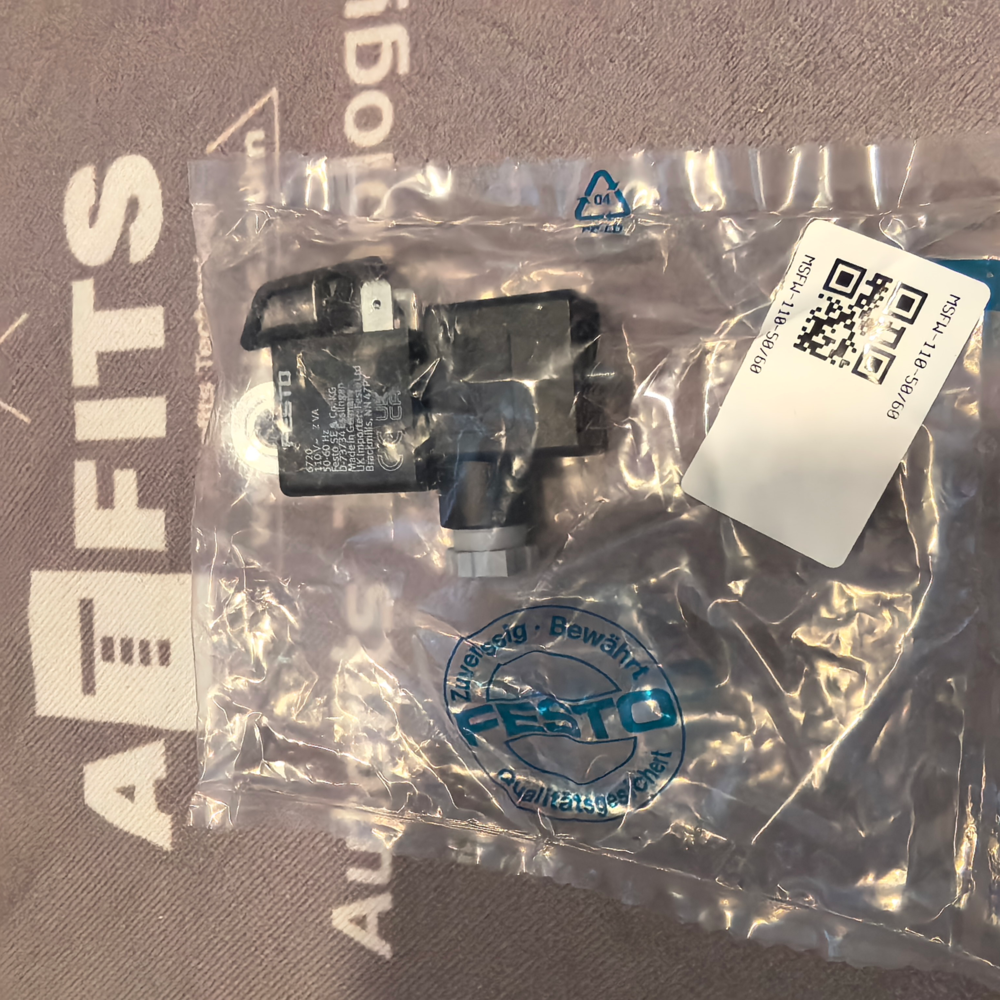

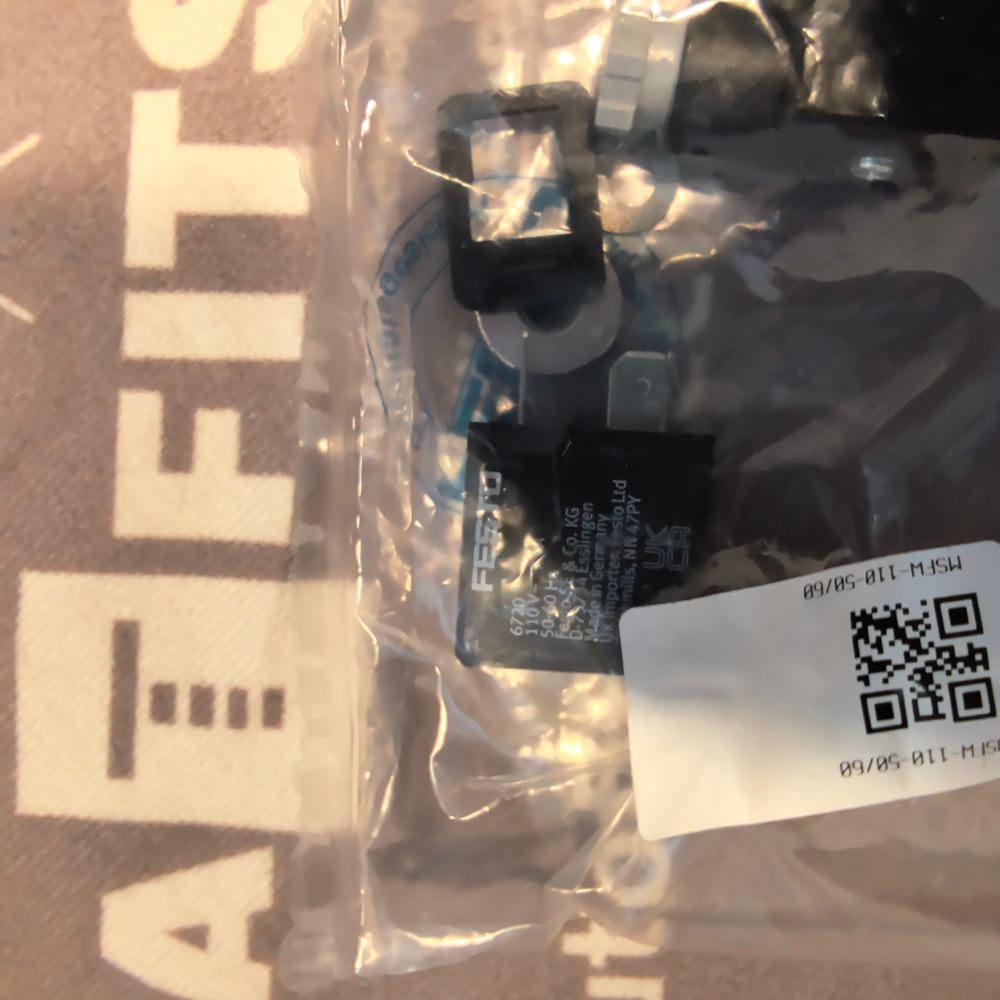

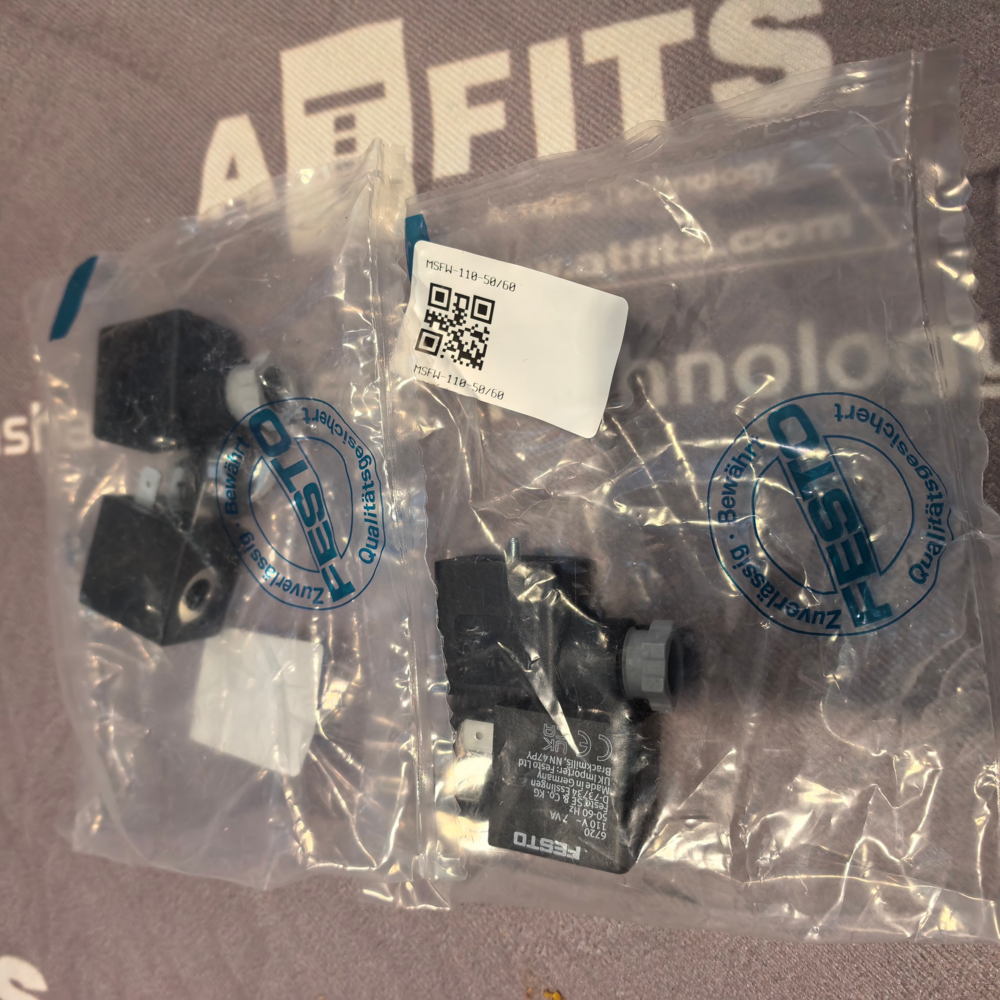

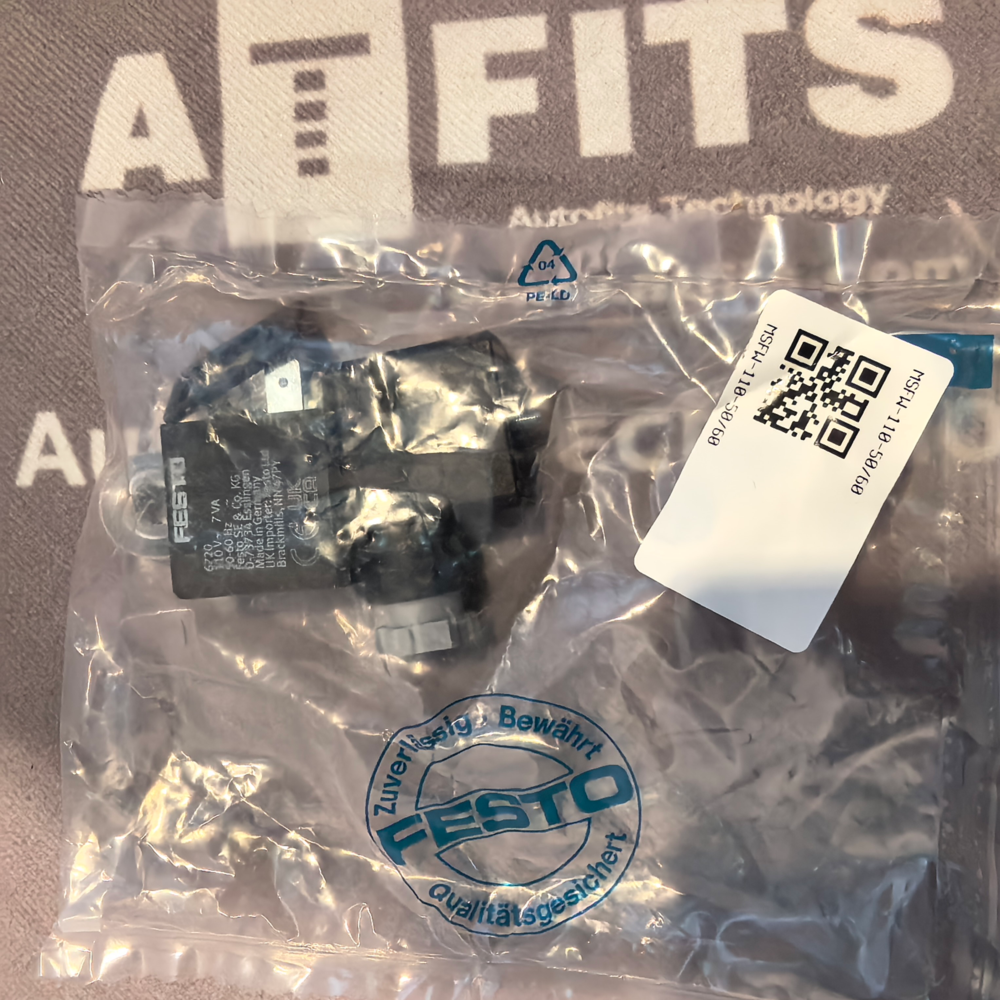

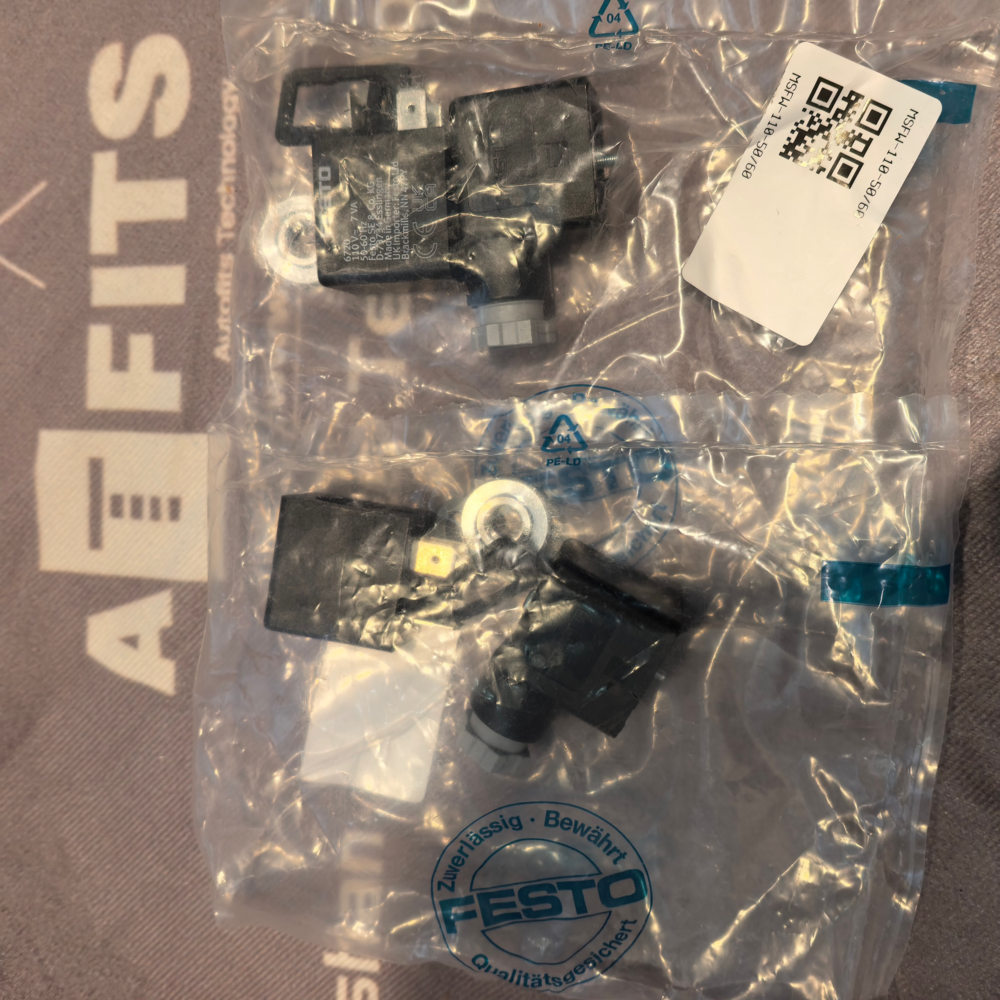

Festo MSFW-110-50/60 Solenoid Coil (Order Code: 6720)

Product Overview

The Festo MSFW-110-50/60 is a compact, high-efficiency AC solenoid coil designed for actuation of Festo pneumatic solenoid valves in industrial automation systems. Engineered to deliver reliable electromagnetic force for valve switching, this coil is compatible with a wide range of Festo valve series (e.g., JMN, MN1H, CPV) and optimized for operation with 110 V AC (50/60 Hz) power supplies. Its robust construction and standardized mounting interface ensure seamless integration and long-term stable performance in harsh manufacturing environments, making it ideal for applications in automotive assembly, packaging machinery, and material handling systems.

Product Dimensions

Parameter	Specification
Overall Diameter	28 mm
Overall Length (Including Connector)	55 mm
Mounting Hole Diameter	18 mm
Coil Bobbin Diameter	22 mm
Electrical Connector Type	DIN 43650 A, 2-pin plug-in
Cable Length (Optional)	Not applicable (plug-in design)
Mounting Compatibility	Fits Festo solenoid valves with 18 mm diameter valve cores; compatible with DIN 43650 A connectors

Main Functions

Electromagnetic Valve Actuation
- Converts 110 V AC electrical energy into linear electromagnetic force to trigger the opening or closing of pneumatic solenoid valve spools. This force drives the valve’s internal mechanism, enabling directional control of compressed air flow for downstream pneumatic actuators (e.g., cylinders, grippers).
- Supports both monostable and bistable valve operation, with fast response characteristics to ensure synchronized actuation in high-cycle automation processes.
Status Monitoring & Fault Diagnosis
- Features a built-in LED status indicator that provides visual confirmation of coil energization. This allows maintenance personnel to quickly identify power supply issues, coil malfunctions, or control signal faults on-site, minimizing system downtime.
- The plug-in electrical connector design enables tool-free disconnection and replacement, simplifying maintenance and reducing repair time.
Voltage Compatibility & Versatility
- Optimized for dual-frequency operation (50/60 Hz) with a 110 V AC input, making it suitable for use in global industrial applications with varying AC power supply standards. It delivers consistent electromagnetic force across both frequency ranges, ensuring reliable valve switching performance without adjustment.

Technical Features

High-Efficiency Electromagnetic Design
- Incorporates a precision-wound copper wire coil with low electrical resistance, minimizing power loss and heat generation during continuous operation. The coil delivers a rated electromagnetic force of 12 N (at 110 V AC, 50 Hz), ensuring reliable actuation of compatible solenoid valves even under low-pressure pneumatic conditions.
- Adopts a ferrite core construction to enhance magnetic flux density and reduce energy consumption, with a power rating of 8 VA (50 Hz) / 7 VA (60 Hz) for efficient operation.
Robust Industrial Construction & Durability
- Housing Material: Flame-retardant glass-reinforced polymer (UL94 V-0) that provides excellent resistance to mechanical shock, vibration, and chemical corrosion (e.g., oil mist, dust) in industrial environments.
- Protection Class: IP65 (when connected to a compatible valve body), preventing ingress of dust and water spray to ensure safe operation in harsh manufacturing settings.
- Temperature Resistance: Operates reliably in a temperature range of -25 °C to +55 °C, with thermal overload protection to prevent damage from excessive heat buildup during prolonged use.
- Service Life: Up to 10 million switching cycles under standard operating conditions, minimizing replacement frequency and maintenance costs.
Compliance & Safety Certification
- Fully compliant with international standards including IEC 61558-2-6 (safety of transformers and inductors), CE, and RoHS, ensuring global market compatibility and adherence to environmental and safety regulations.
- Designed with reverse polarity protection to prevent damage from incorrect electrical wiring, enhancing operational safety.

Weight

The net weight of the Festo MSFW-110-50/60 solenoid coil (order code 6720) is approximately 0.06 kg (60 grams), making it extremely lightweight and easy to handle during installation, replacement, and inventory management.
