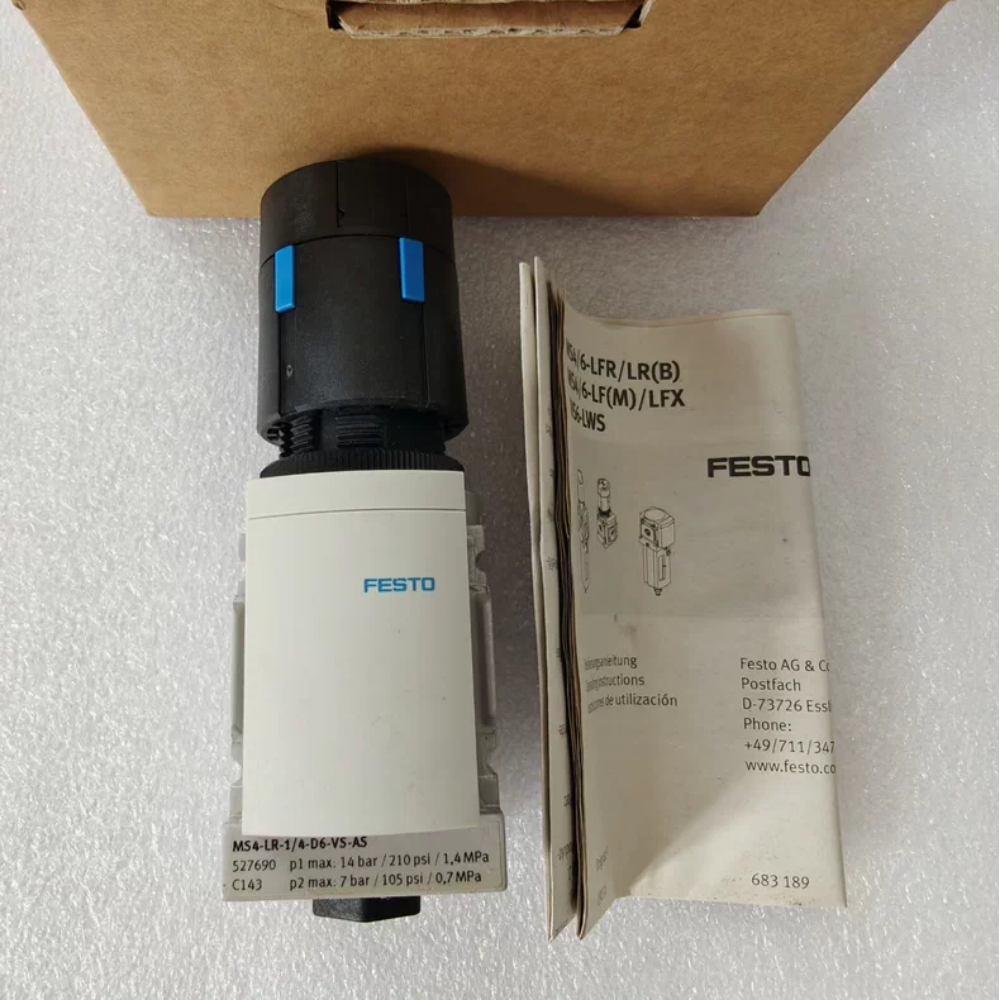

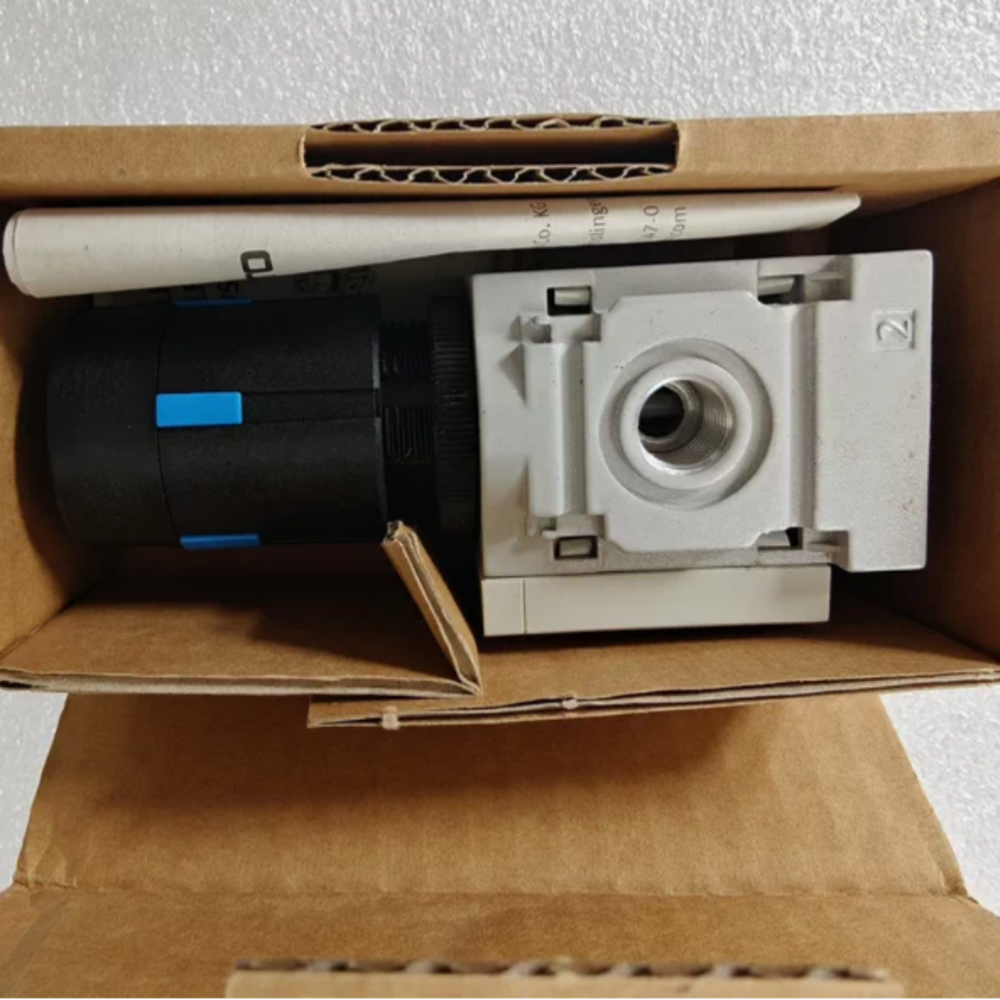

Festo MS4-LR Pressure Regulator (Order Code: 527690)

Product Overview

The Festo MS4-LR is a high-precision pneumatic pressure regulator belonging to Festo’s MS4 series of air preparation components, engineered to stabilize and adjust compressed air pressure for industrial automation systems. Designed for medium-flow pneumatic circuits, this regulator ensures consistent pressure supply to downstream devices such as valves, cylinders, and grippers, preventing pressure fluctuations that could compromise actuator performance or system reliability. Its modular design enables seamless integration with other MS4 series components (filters, lubricators) to form a complete air preparation unit, making it ideal for applications in automotive manufacturing, packaging machinery, and electronic assembly lines.

Product Dimensions

Parameter	Specification
Overall Width	40 mm
Overall Height	125 mm
Overall Depth	98 mm
Inlet/Outlet Port Size	G1/4
Pressure Gauge Port Size	G1/8
Mounting Hole Pitch	30 mm (widthwise) × 85 mm (depthwise)
Mounting Compatibility	Panel mounting; compatible with Festo MS4 series base plates and modular air preparation assemblies

Main Functions

Precision Pressure Adjustment & Stabilization
- Reduces and regulates inlet compressed air pressure to a preset outlet pressure, with an adjustment range of 0.5–10 bar. The regulator maintains stable outlet pressure even when inlet pressure fluctuates (max inlet pressure: 16 bar) or downstream air consumption varies, ensuring consistent performance of pneumatic actuators.
- Features a locking adjustment knob to prevent accidental pressure changes, enhancing system safety and operational consistency in high-vibration industrial environments.
Modular Air Preparation Integration
- Can be combined with Festo MS4 series filters (MS4-LF) and lubricators (MS4-LO) to create a customized air preparation unit, eliminating the need for separate piping and simplifying system layout. The modular connection design enables tool-free assembly and disassembly for maintenance or reconfiguration.
- Compatible with Festo pressure gauges and pressure switches for real-time pressure monitoring and feedback, enabling closed-loop pressure control when integrated with a PLC.
Pressure Relief & Protection
- Incorporates a built-in relief valve that automatically vents excess air if the outlet pressure exceeds the preset value, protecting downstream components from overpressure damage. This function is critical for sensitive pneumatic devices with strict pressure tolerance limits.

Technical Features

High-Precision & Reliable Performance
- Delivers excellent pressure regulation accuracy with a repeatability of ±0.1 bar and a hysteresis of ≤0.2 bar, ensuring minimal pressure deviation even under dynamic flow conditions.
- Adopts a balanced poppet valve design that minimizes the impact of inlet pressure fluctuations on outlet pressure stability, suitable for both constant and variable flow applications.
- Supports a maximum flow rate of 1200 L/min (at 6 bar outlet pressure), meeting the air demand of medium-sized pneumatic circuits with multiple actuators.
Robust Industrial Construction
- Housing Material: Die-cast aluminum alloy with a corrosion-resistant powder coating, providing durability and resistance to mechanical shock, vibration, and ambient moisture. Internal components are made of brass and reinforced polymer to ensure long service life.
- Sealing System: Nitrile rubber (NBR) seals for reliable airtightness; optional fluorocarbon rubber (FKM) seals are available for applications involving aggressive media or extreme temperatures.
- Protection Class: IP65 (front side), protecting the regulator from dust, water spray, and oil contamination in harsh manufacturing environments.
- Operating Temperature Range: -10 °C to +60 °C, enabling stable operation in temperature-variable industrial settings.
Energy Efficiency & Compliance
- Low pressure drop design minimizes energy loss during pressure regulation, reducing overall compressed air consumption and operational costs.
- Fully compliant with international standards including ISO 8573-1 (pneumatic air quality), CE, and RoHS, ensuring global market compatibility and adherence to environmental regulations.
- Meets Festo’s strict quality control standards, with each unit undergoing pressure tightness and performance testing before factory shipment.

Weight

The net weight of the Festo MS4-LR pressure regulator (order code 527690) is approximately 0.62 kg, making it lightweight and easy to handle during installation, maintenance, and system configuration.
